7 LCD SV6301A Vector Network Analyzer 6.3GHz, 1001 Sweep Points, MF to UHF (NanoVNA)

Product Description

Features:

• Frequency Range: 1MHz - 6.3GHz
• 1001 Data Points
• 100dB Dynamic Range

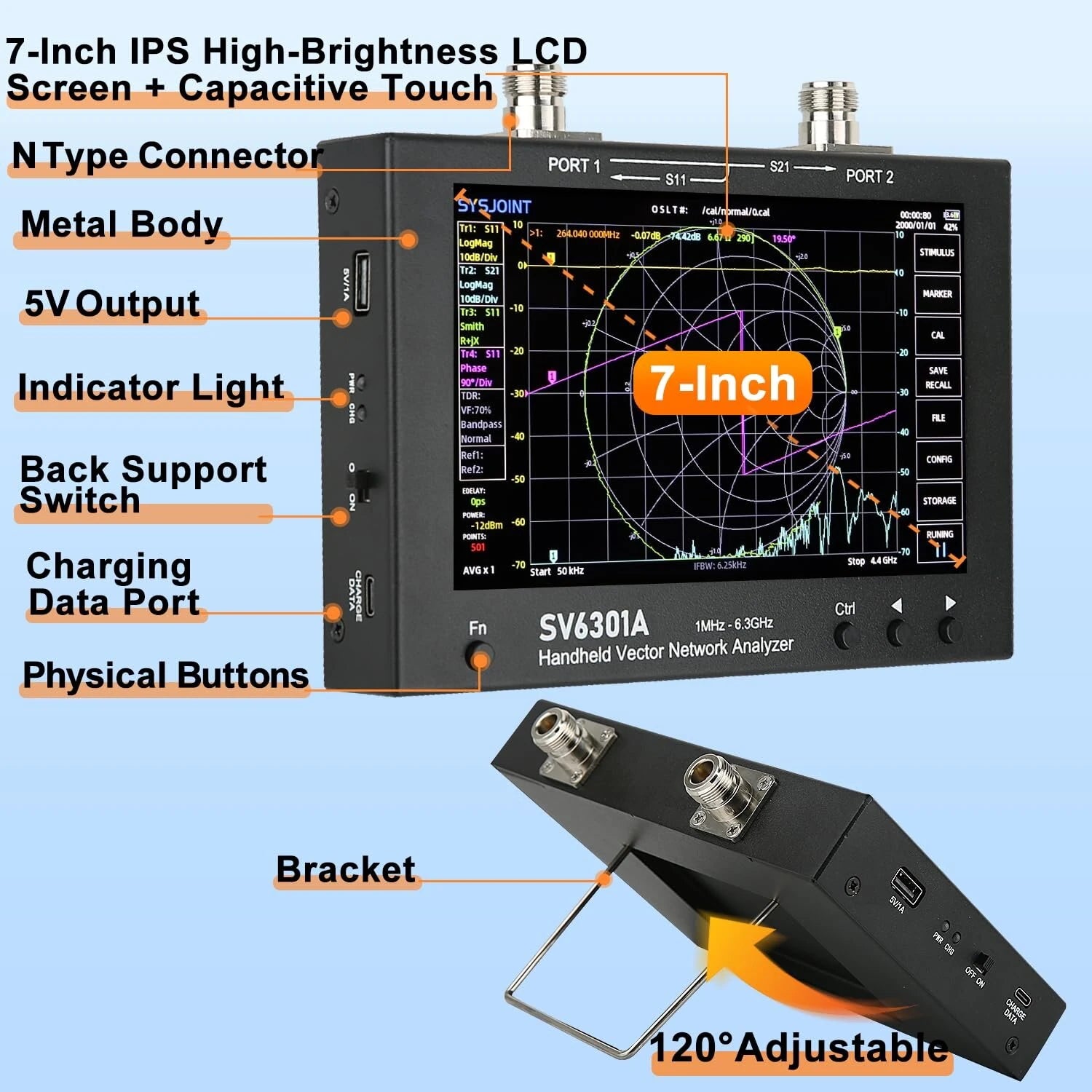

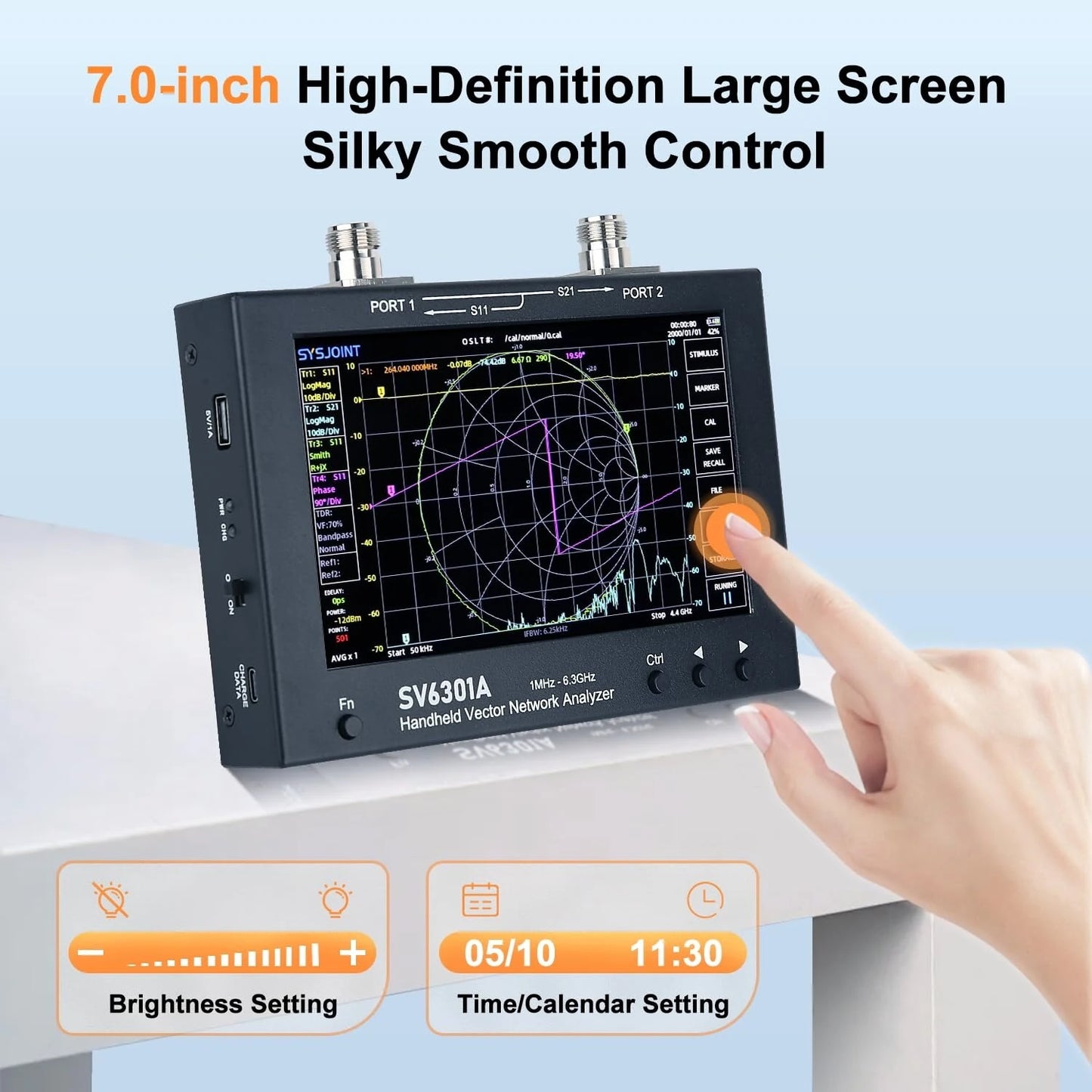

• 7” IPS LCD Display
• Stable and N-Type Connectors
• Ergonomically Designed with Back Bracket
• Adjustable Excitation Power: -40dBm to -10dBm

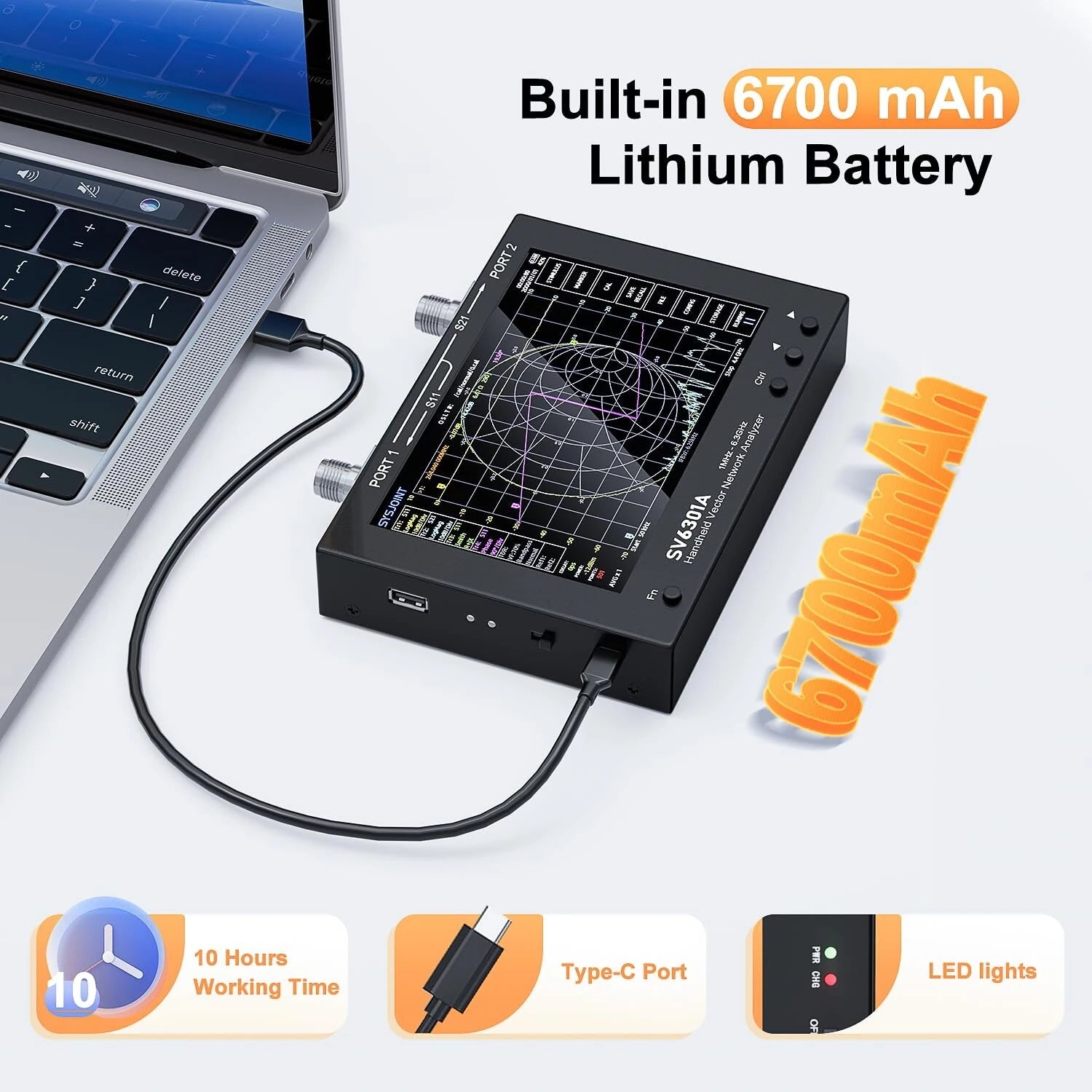

• Built-in 18650 Lithium Battery

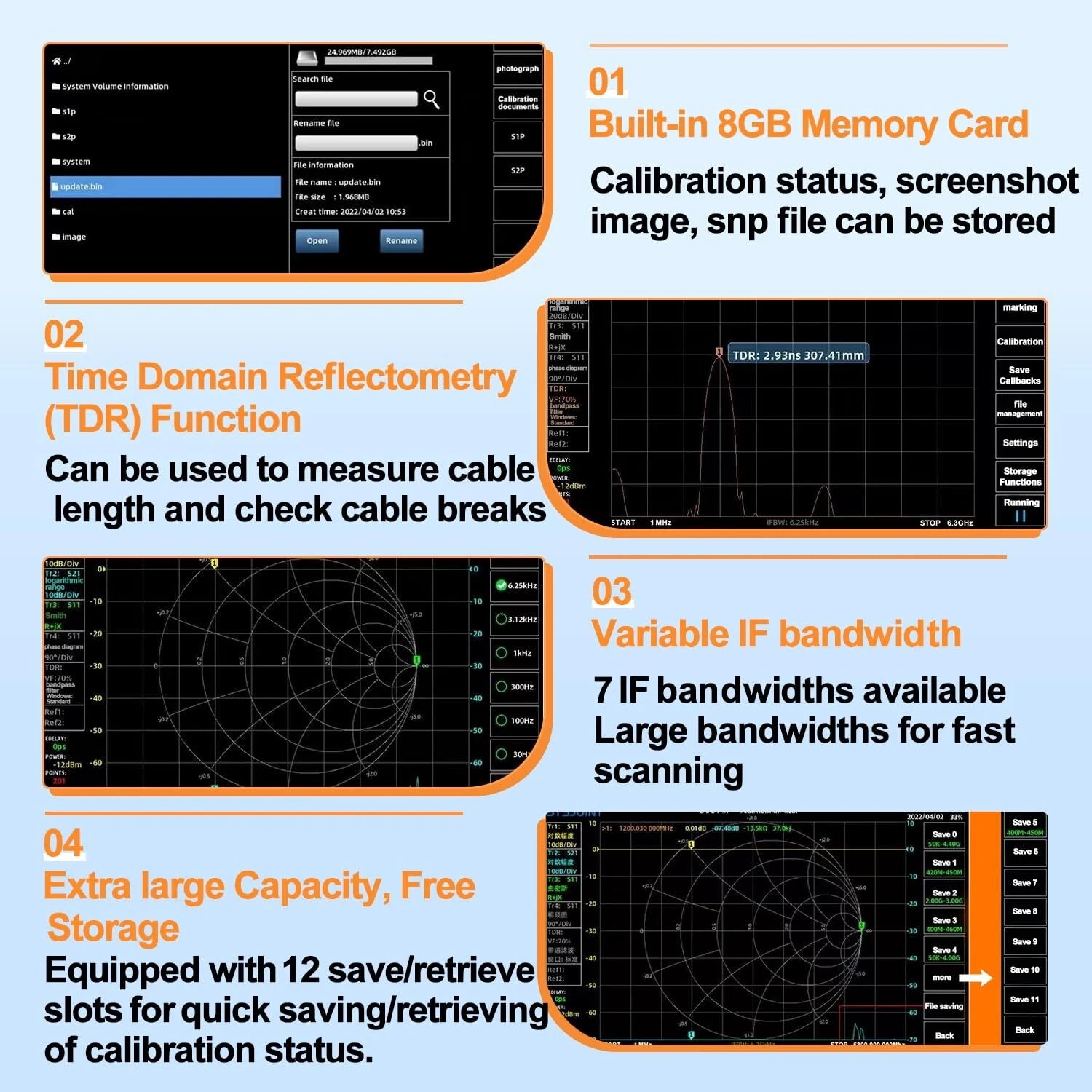

• Time Domain Reflectometer for Cable Length Measurement and Break Point Detection

Specification:

• Frequency Range: 1MHz - 6.3GHz
• RF Output Power: -40dBm to -10dBm
• RF Connector Type: N Type Female
• Max RF Input Power: 0dBm
• Frequency Precision: High Accuracy
• S21 Dynamic Range: 75dB at 3GHz
• S11 Dynamic Range: 50dB at 3GHz
• Scanning Points: Adjustable from 101 to 1001
• Scanning Speed: 500pts/s for Frequencies > 25MHz
• Power Consumption: 6.5W
• Operating Time: 3 Hours
• Charging Interface: USB Type-C
• Charging Voltage: 4.7V to 5.5V
• Power Output: USB 5V/1A
• Dimensions: 190 x 130 x 30mm
• Weight: 1.15kg
• Operating Temperature: 0℃ to 45℃

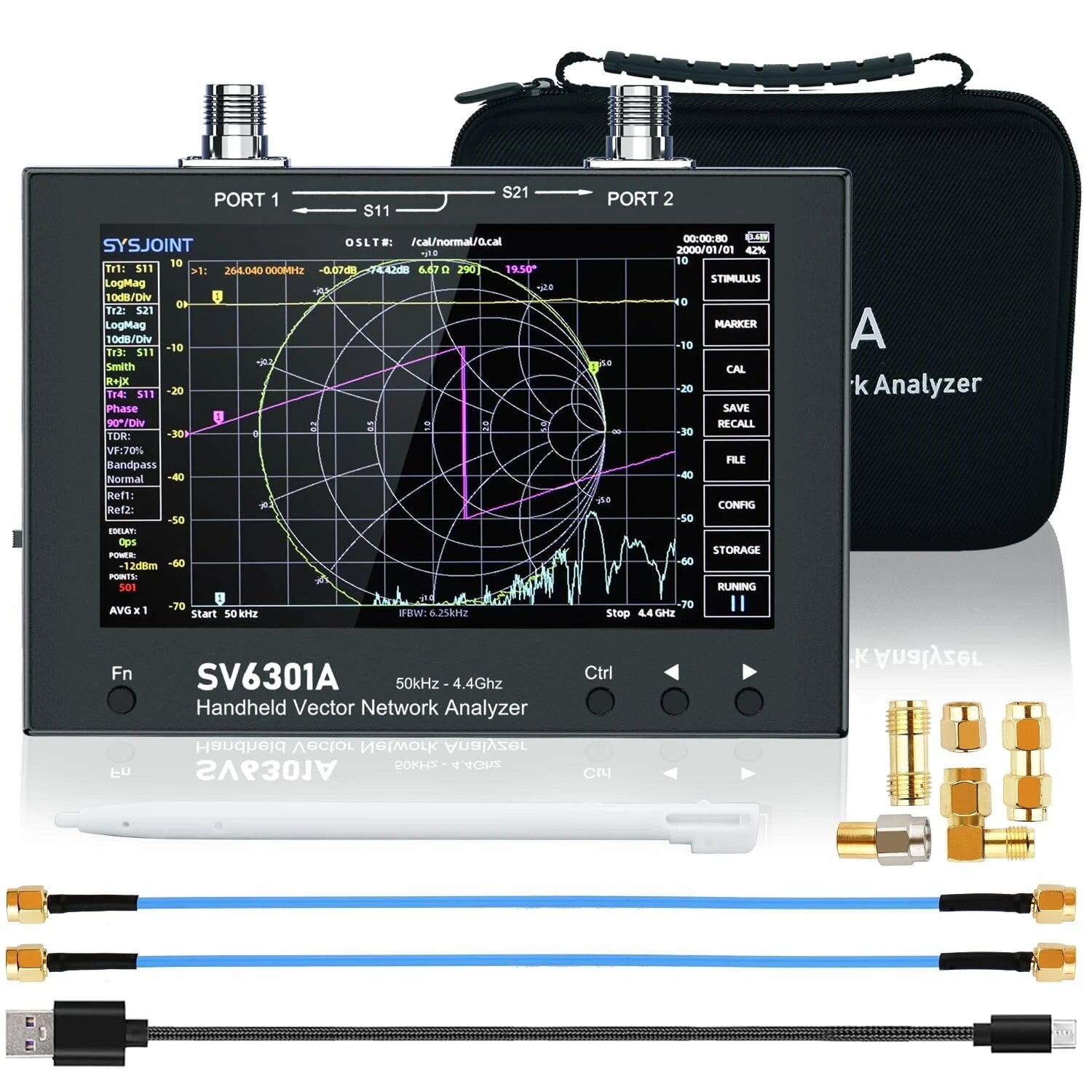

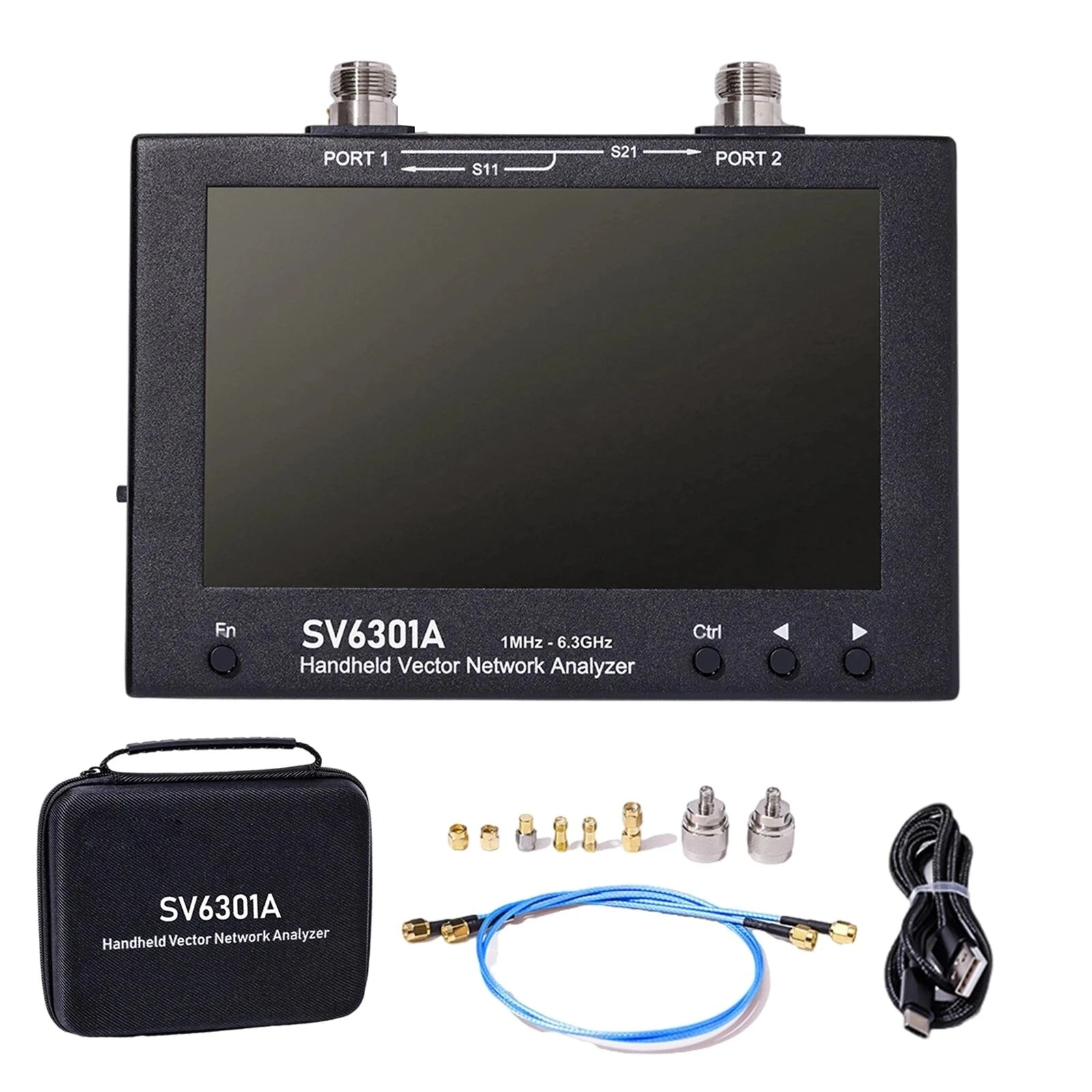

Package Includes:

• 1 x SV6301A Host
• 2 x N to SMA Adapter
• 1 x SMA LOAD/OPEN/SHORT Calibration Kit
• 2 x SMA Female to SMA Female Connector
• 1 x SMA Male to SMA Male Connector
• 2 x 60cm SS405 Cable
• 1 x USB Type-C Data Cable
• 1 x Storage Bag
