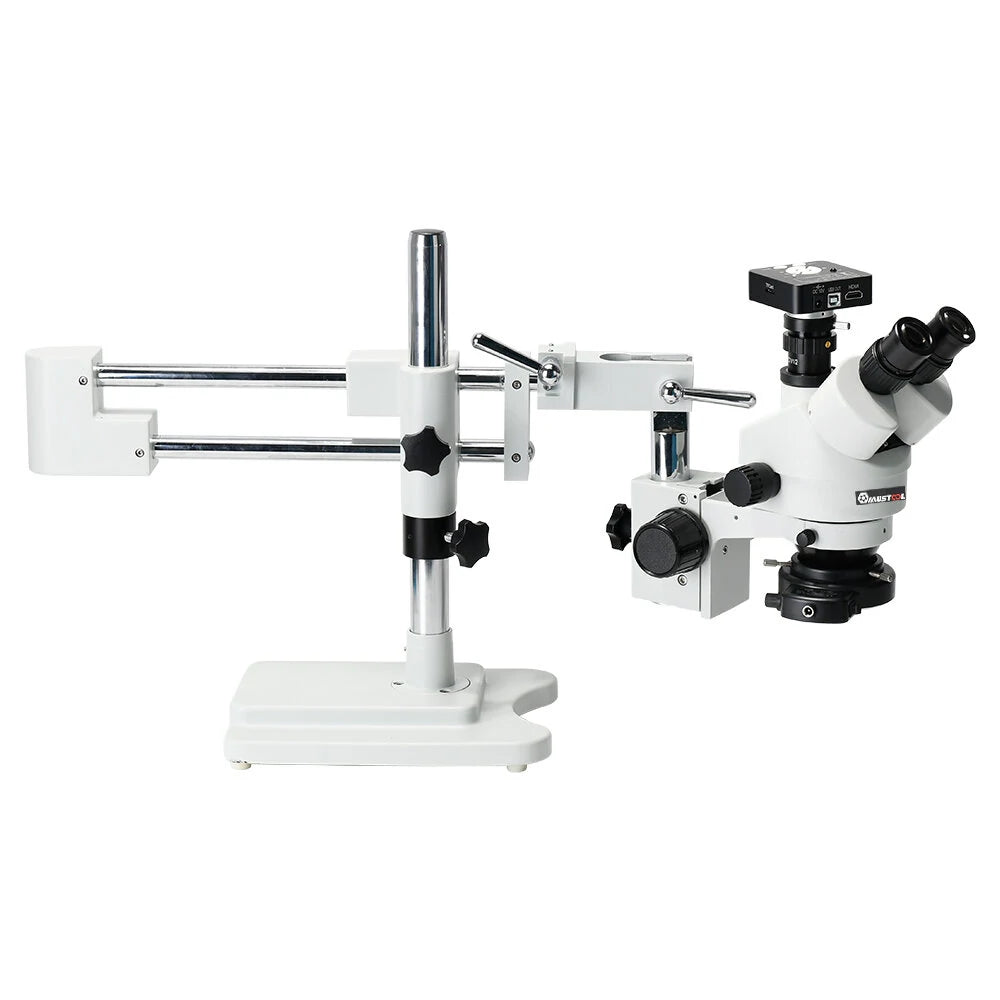

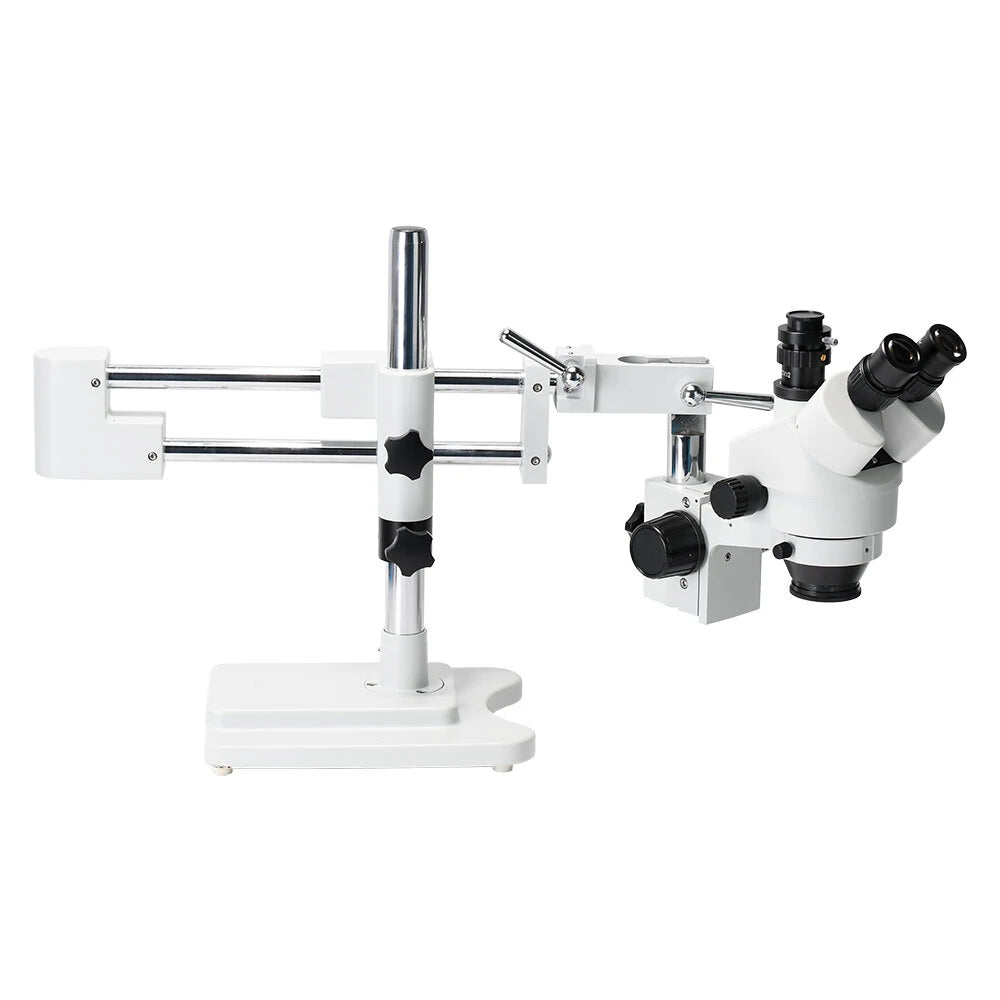

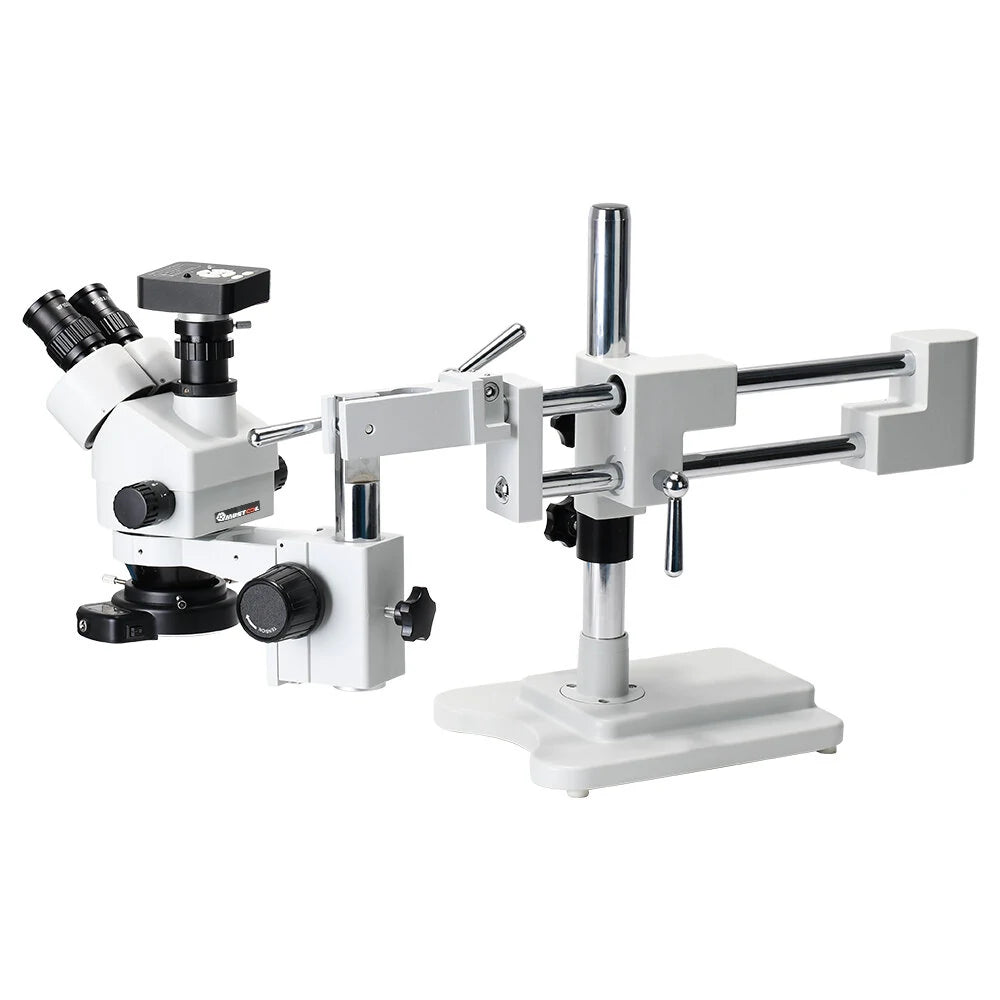

High-Precision MUSTOOL Trinocular Stereo Microscope with 41MP Camera - Ideal for Industrial PCB Repair: 3.5X-90X Zoom & Double Boom Stand

Product Highlights

• Stereo Inspection Microscope: Features a 56-LED ring light with adjustable intensity.
• Magnification Range: 7x-45x super wide zoom for detailed observation.
• Illumination System: 56 bright, cool white LEDs for shadow-free lighting.
• High Resolution: Delivers sharp and clear images with excellent flatness and contrast.
• Binocular Head: 45-degree inclined and 360-degree swiveling eye tubes for comfort.
• Stereo Images: Provides sharp, erect images with a wide field of view and true color reproduction.
• Adjustable Components: Featuring interpupillary distance adjustment and diopter changes for dual eye tubes.
• Robust Design: All-metal table stand, sturdy construction, and precise glass elements.
• Versatile Observation: Perfect for examining objects from any orientation.

Technical Specifications

• Vertical Pillar: Height 380mm, Diameter ϕ32mm
• Horizontal Movement: 235mm
• Base Dimensions: 210mm x 260mm x 40mm
• LED Lifespan: Up to 100,000 hours with intensity control (0-100%)
• Power Input: 100-240V, 50-60Hz
• Lens Capability: Matches lenses with diameters of 30mm-63mm

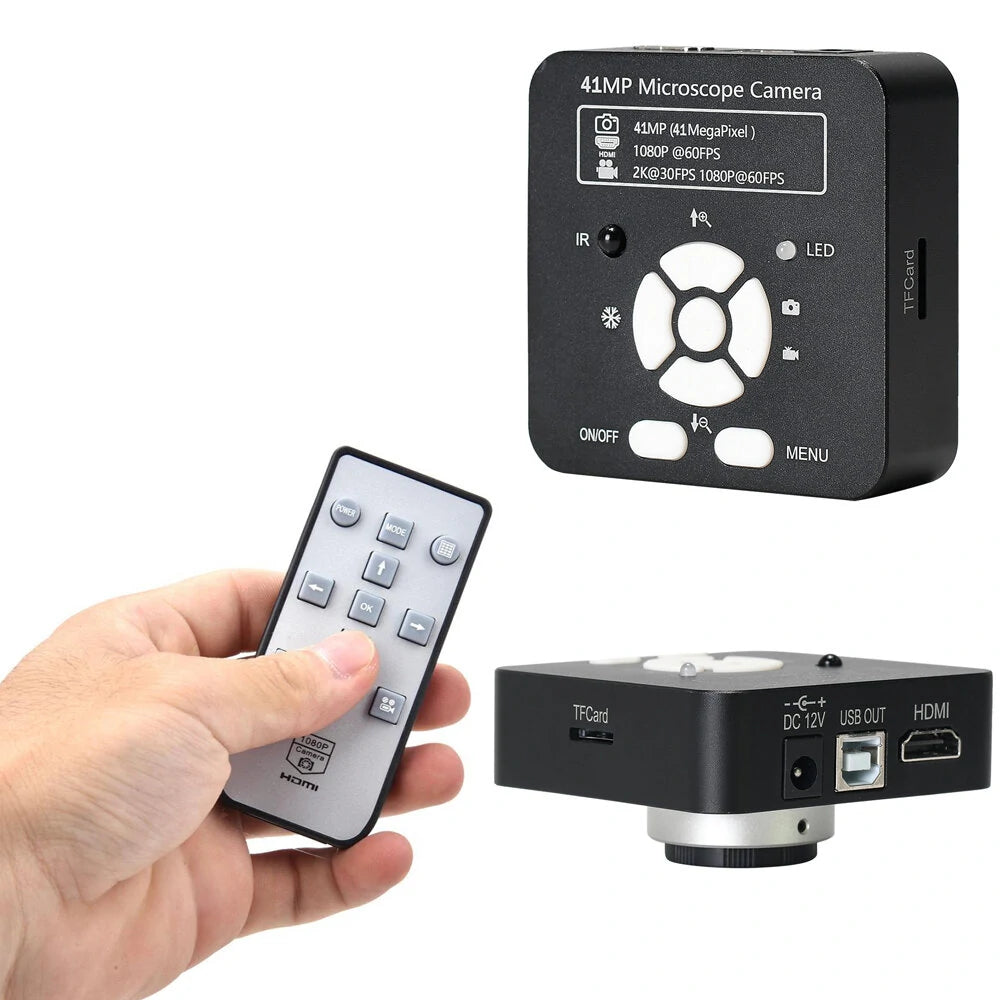

Camera Features

• Sensor: Panasonic 41 MegaPixel, CMOS
• Video Resolution: 1080p at 60FPS via HDMI
• Image Format: Supports HDMI (1920x1080p), USB connections, with several output options
• Compatibility: Connects with HDMI (Type A), USB (Type B), and TF card (Max 64GB)
• Advanced Settings: AWiB color correction, auto/manual exposure, cross lines, scale marks, and more

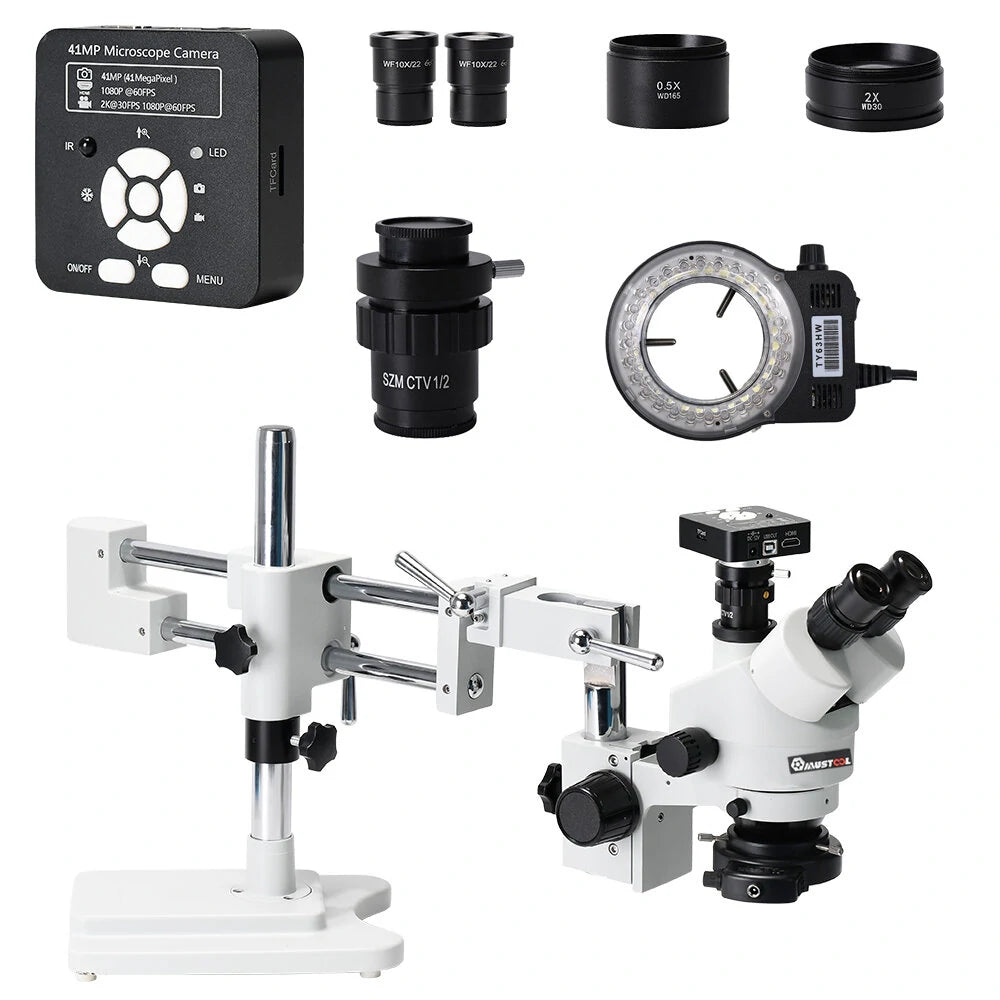

Package Includes

• Trinocular Stereo Zoom Head
• Super Widefield 10X20MM Eyepieces

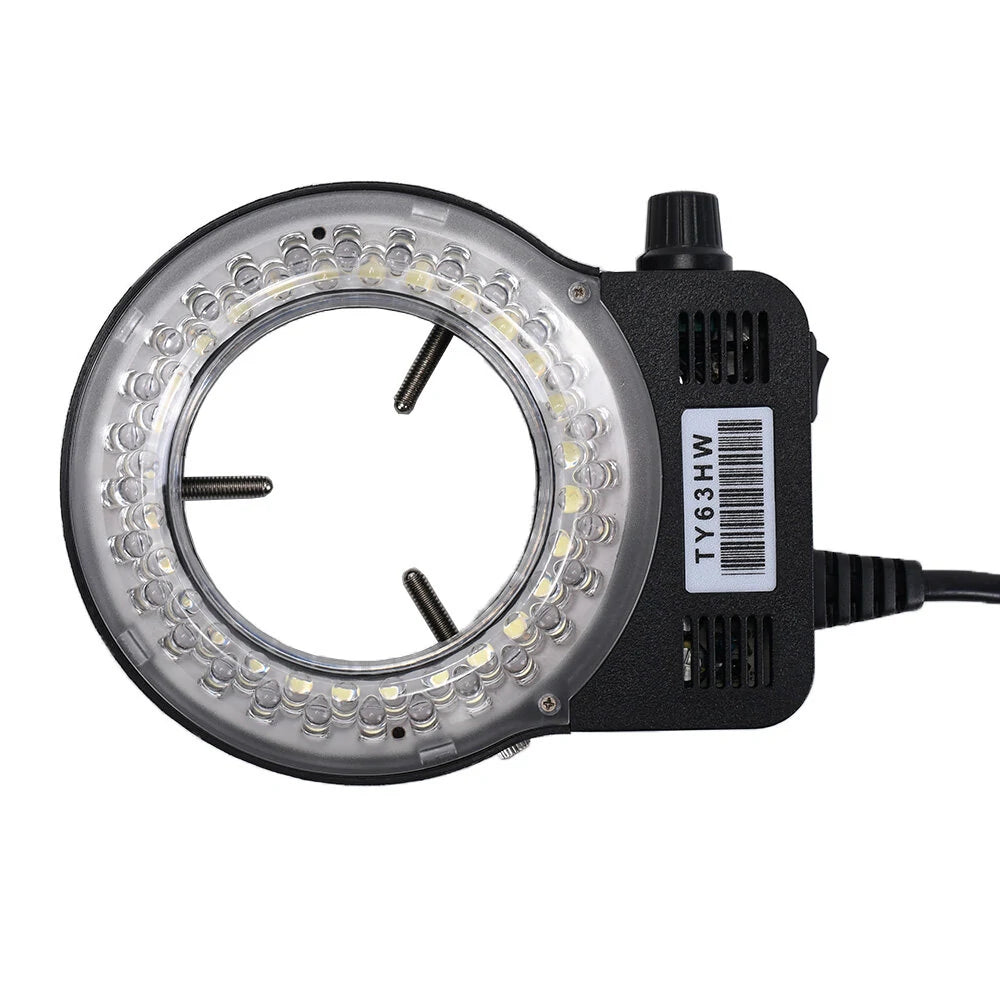

• 56-LED Ring Light

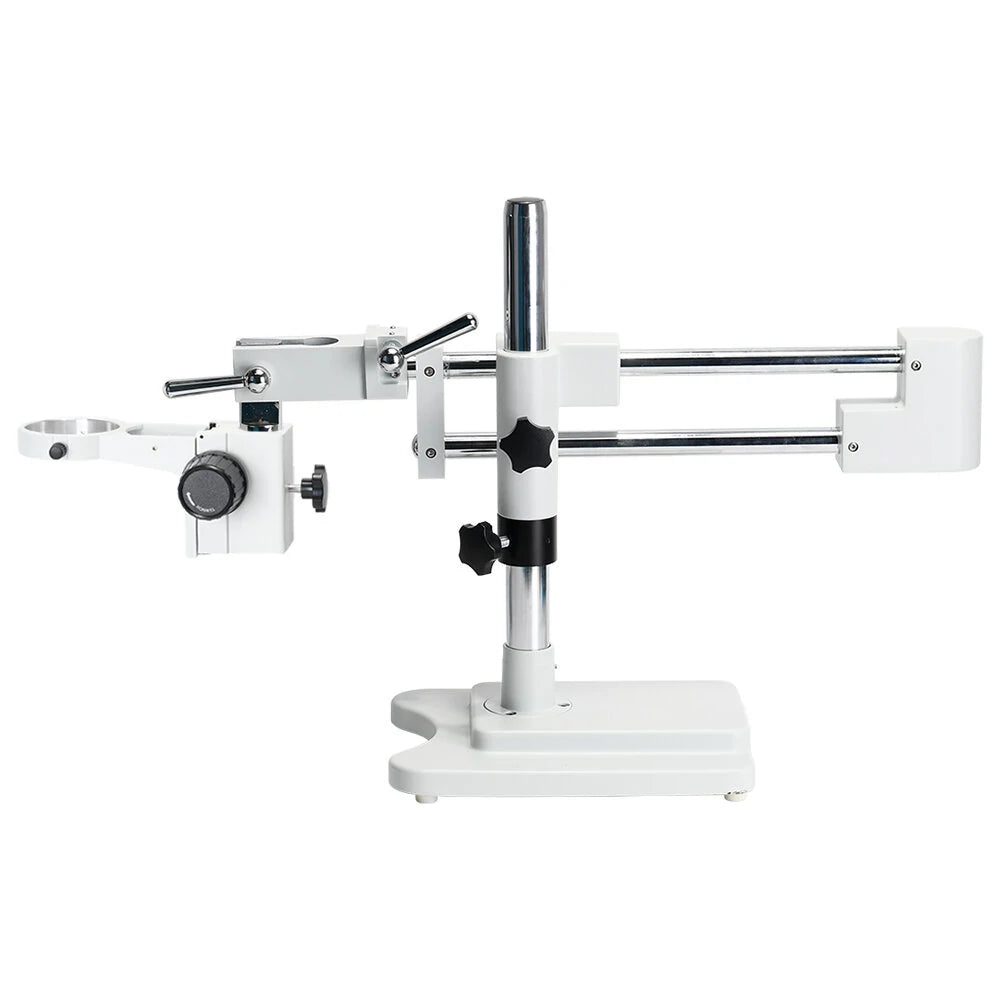

• Double Boom Microscope Bracket & Focusing Rack
• C-mount Adapter and Pair of Eye-Guards
• Dust Cover and Microscope Camera
• Power Adapter with US plug and EU adapter
• IR Remote Control and Connecting Cables (USB & HDMI)
• Manual Guide

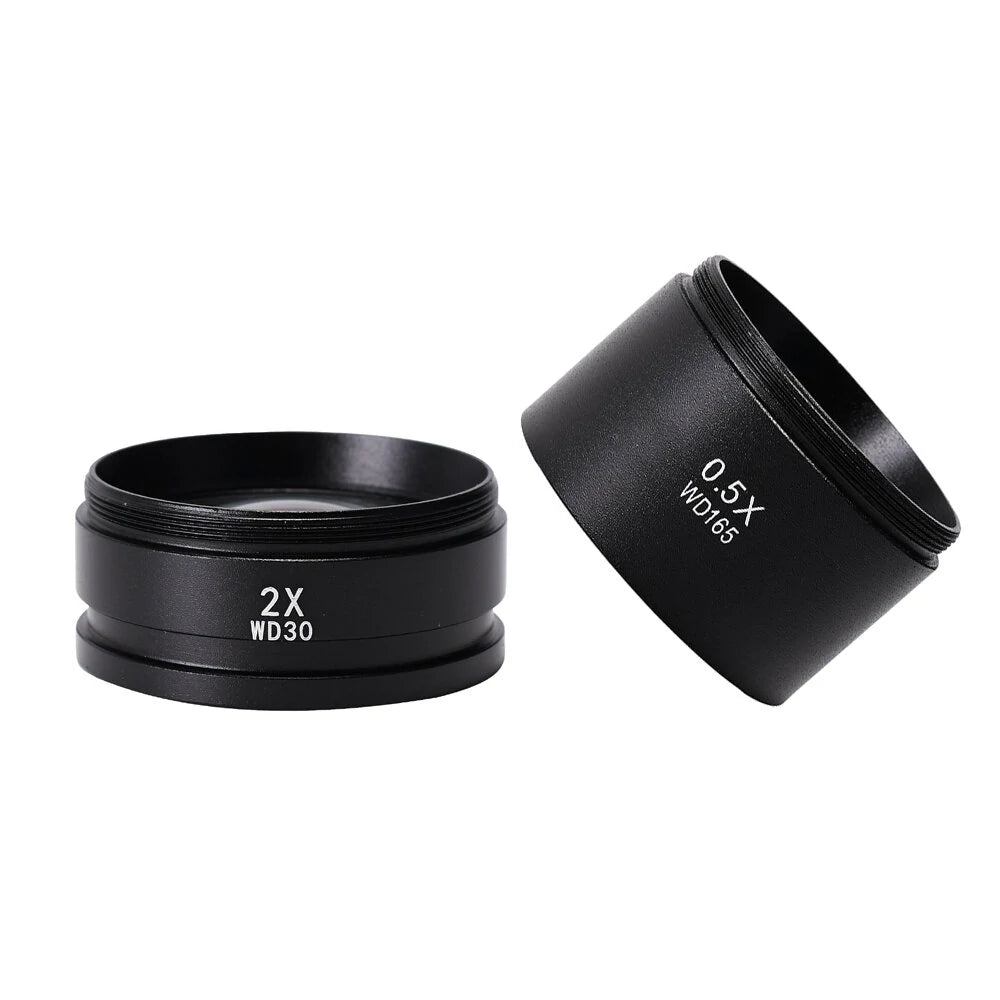

• Microscope Auxiliary Objective Lenses (0.5X and 2.0X)

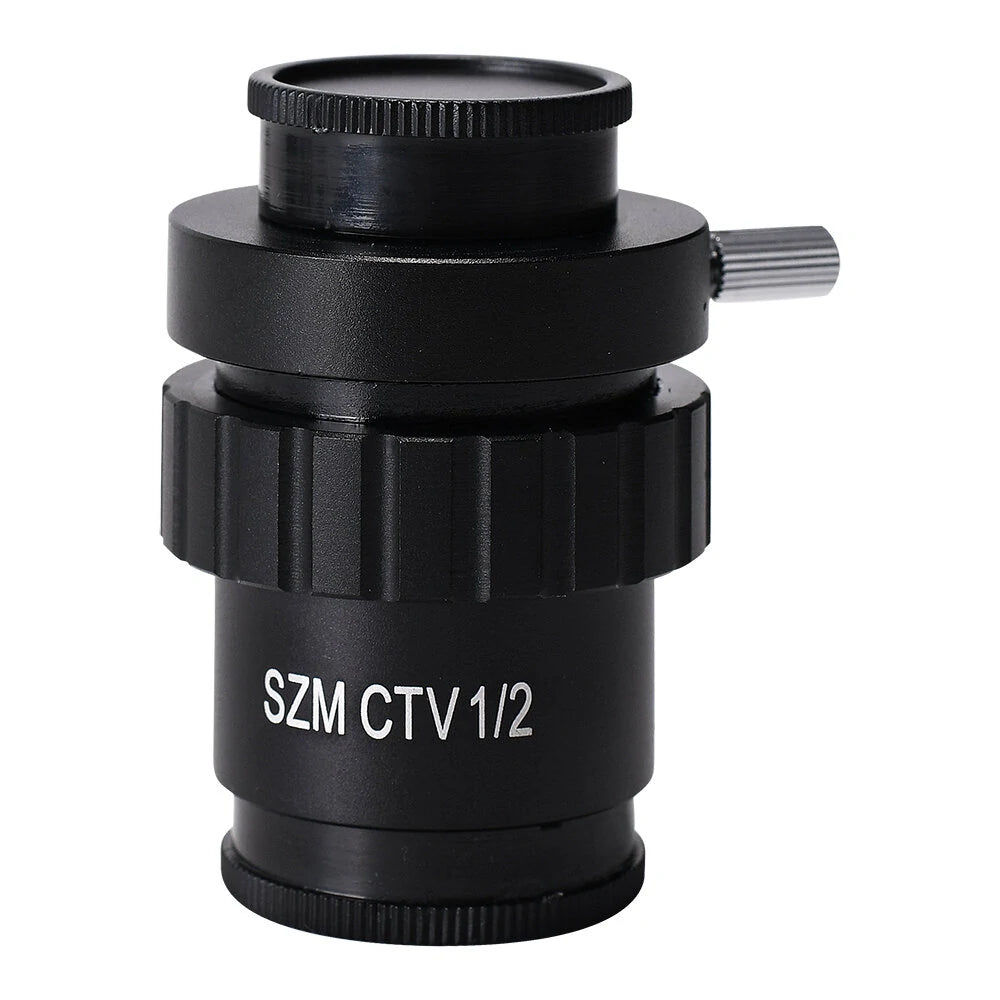

• SZMCTV 1/2 Lens

Troubleshooting

LCD Viewing Issues:

• No Video or Flicker: Ensure the power supply is connected and press the PowerKey.
• Black Bar/ Image Warping: Adjust the resolution on both the LCD and the camera.
• Dirty Spots: Clean the camera and lens using an ethyl cleanser.
