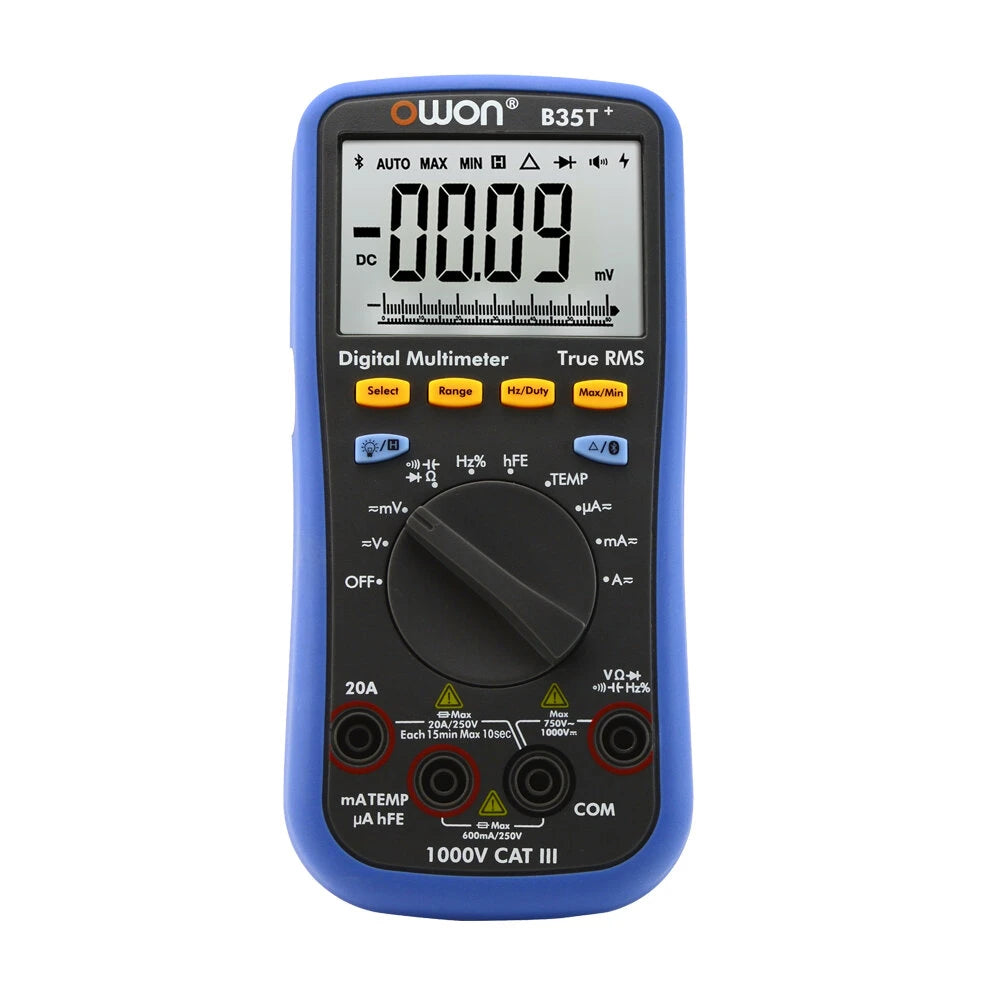

OWON B35T+ True RMS Bluetooth Multimeter & Datalogger with Temperature Meter & Multi-Connection Record

Product Specifications:

Measurement Range & Resolution:

• DC Voltage:
  • mV: 60.00mV/600.00mV, Resolution: 0.01 mV, Accuracy: ±(0.5%+2 digit)
  • V: 60.00mV/600.00mV/6.00V/60.00V/600V/1000V, Resolution: 0.1 mV / 0.1 V
• AC Voltage:
  • mV: 60.00mV/600.00mV, Resolution: 0.01 mV, Accuracy: ±(0.8%+2 digit)
  • V: 60.00mV/600.00mV/6.00V/60.00V/600V/750V, Resolution: 0.1 mV / 0.1 V, Accuracy: ±(0.8%+2 digit) / ±(1%+3 digit)
• DC Current:
  • uA: 600.0uA, Resolution: 0.1 uA, Accuracy: ±(0.8%+2 digit)
  • mA: 600.0mA / 6.000mA / 60.00mA / 600.0mA / 6.000A, Resolution: 0.01mA
  • A: 20.00A, Resolution: 1mA, Accuracy: ±(1.2%+3 digit)
• AC Current:
  • uA: 600.0uA, Resolution: 0.1 ma, Accuracy: ±(1%+3 digit)
  • mA: 600.0mA / 6.000mA / 60.00mA / 600.0mA / 6.000A, Resolution: 0.01mA
  • A: 20.00A, Resolution: 1mA, Accuracy: ±(2%+3 digit)
• Resistance: 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ / 10.00MΩ, 60.00MΩ, Resolution: 0.1Ω / 0.01MΩ, Accuracy: ±(0.8%+2 digit) / ±(2%+3 digit)
• Capacitance:
  • 40.00nF, Resolution: 0.01 nF, Accuracy: ±(2.5%+3 digit)
  • 400.0nF / 4.000uF / 40.00uF / 400.0uF / 4000uF, Resolution: 0.1nF / 0.1uF, Accuracy: ±(2.5%+3 digit) / ±(3%+5digit)
• Frequency: 9.999Hz to 9.999MHz, Resolution: 1mHz, Accuracy: ±(0.8%+2 digit)
• Duty Ratio:
  • 0.1% - 99.9%, Typical: Vrms=1V, f= 1kHz, Accuracy: ±(1.2%+3 digit)
  • 0.1% - 99.9% (≥1kHz), Accuracy: ±(2.5%+2 digit)
• Temperature:
  • Celsius: -50°C to +400°C, Resolution: 1°C, Accuracy: ±(2.5%+3 digit)
  • Fahrenheit: -58°F to +752°F, Resolution: 1F, Accuracy: ±(4.5%+5 digit)

Additional Features:

• Display: 6000-count
• Frequency Response: (40-400)Hz (D35, B35, B35+); (40-1000)Hz (D35T, B35T, B35T+)
• Shift Rate:
  • On DMM: 3 times/sec
  • On App: 2 times/sec
  • Simulated Chart: 30 times/sec
• Auto Ranging: Yes
• Offline Recording Function: Available in B35+ and B35T
• Recording Duration: 168 hours (7 days)
• Record Length: 10,000 points
• LCD Backlight: Yes
• Diode Test: Yes
• Audion Test: Yes
• Auto-Power Off: Yes
• ON-OFF Warning: Yes
• Low Battery Indicator: Yes
• Data Hold: Yes
• Relative Measurement: Yes
• Max/Min Value Measurement: Yes

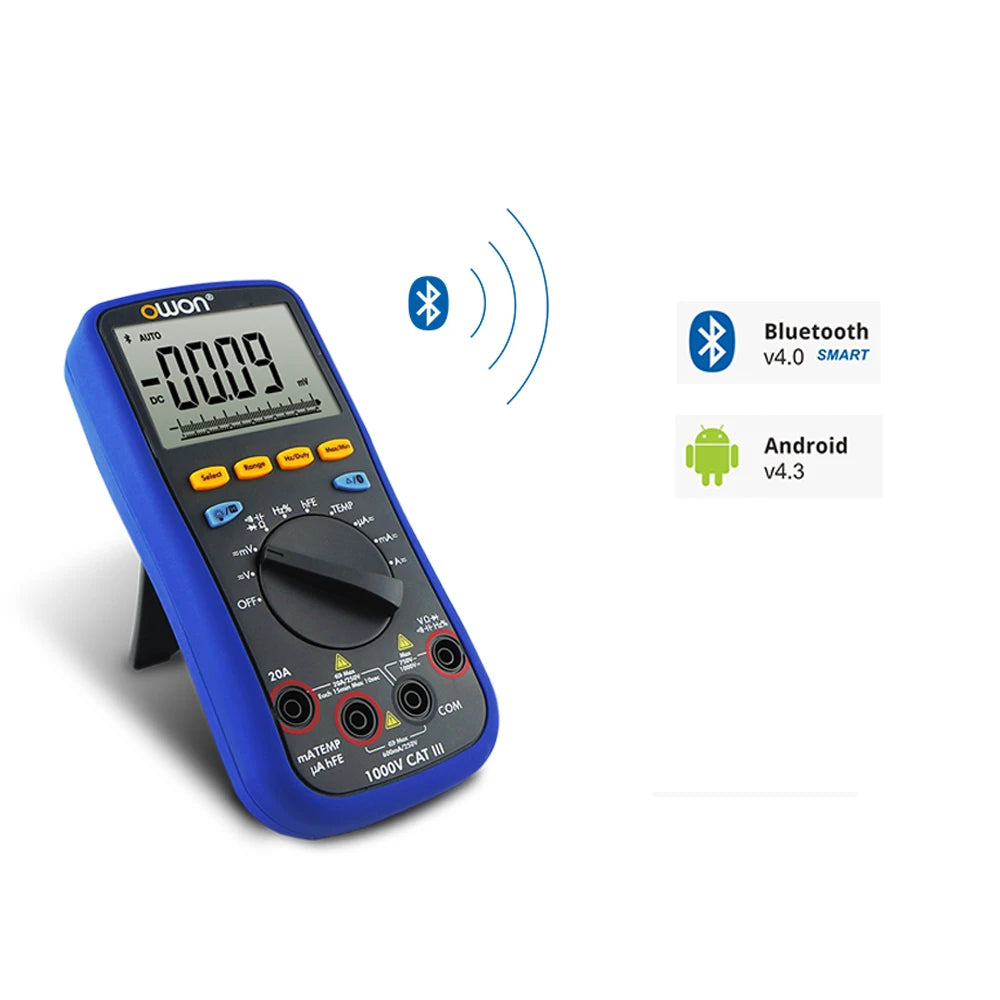

• Bluetooth Module: Available in B35, B35+, B35T, and B35T+
• True RMS: Available in D35T, B35T, and B35T+
• Input Protection: Yes
• Input Impedance: 10MΩ

Physical and Package Details:

• LCD Size: 69 x 52 mm
• Display Area: 67 x 46 mm (effective area: 66 x 45 mm)
• Battery: 3V (2.5V x 2) (not included)
• Dimension (W x H x D): 85mm x 135mm x 30mm
• Weight: 0.32kg
• Package Includes:
  • 1 x B35T+ Smart Digital Multimeter
  • 1 x Probe
  • 1 x K-Type Thermocouple
  • 1 x Alligator Clip
  • 1 x Multi-function Test Socket
  • 1 x English Manual
  • 1 x Soft Case
