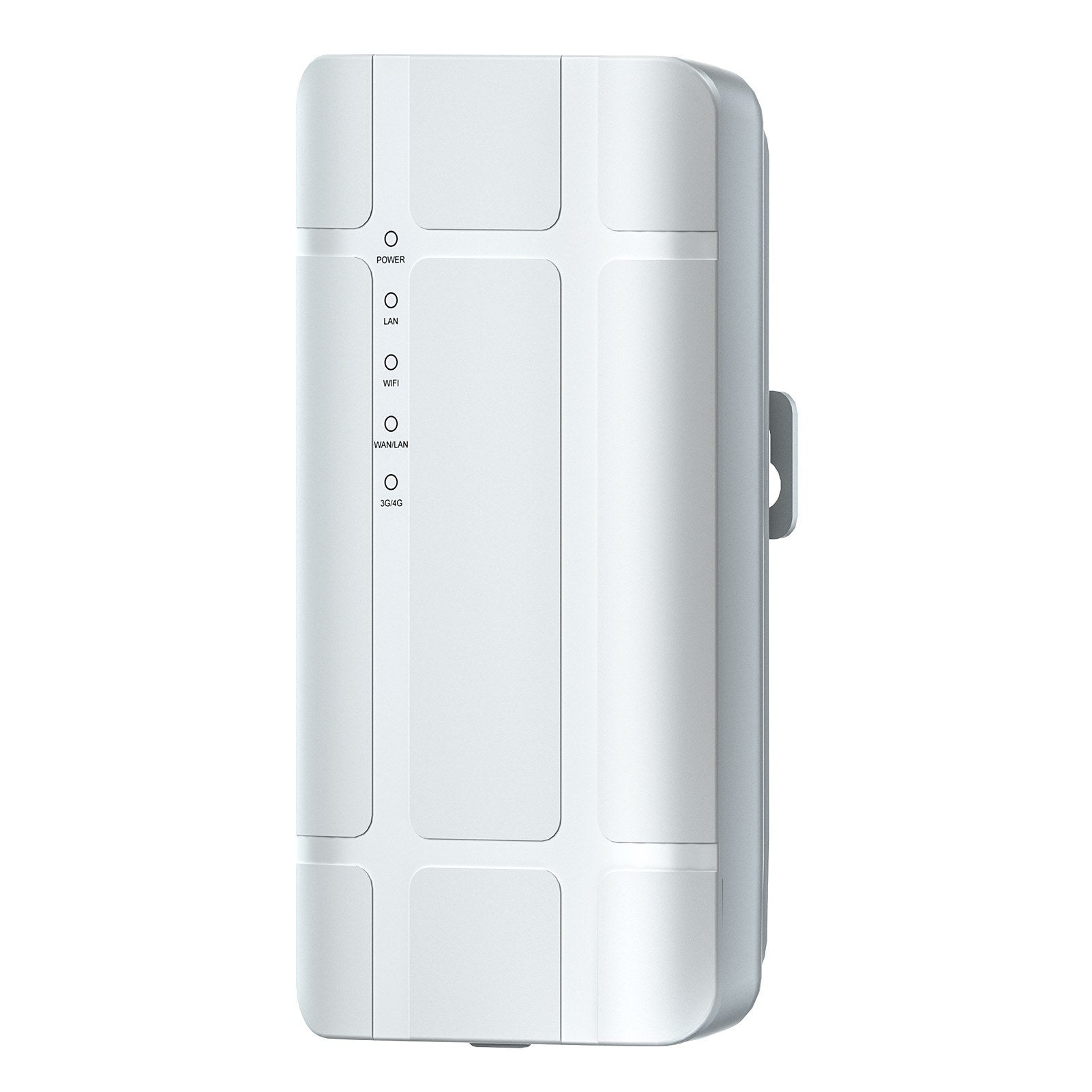

High-Performance Outdoor 4G Router

Key Features:

• Advanced Wireless Technology: Equipped with a built-in professional wireless processor, offering a wireless rate of up to 300Mbps. Enjoy seamless connectivity with a barrier-free transmission distance of approximately 100 meters.
• Efficient Dual SOC Hardware: Features dual SOC hardware design with self-detection and recovery mechanisms, ensuring stable and uninterrupted performance.

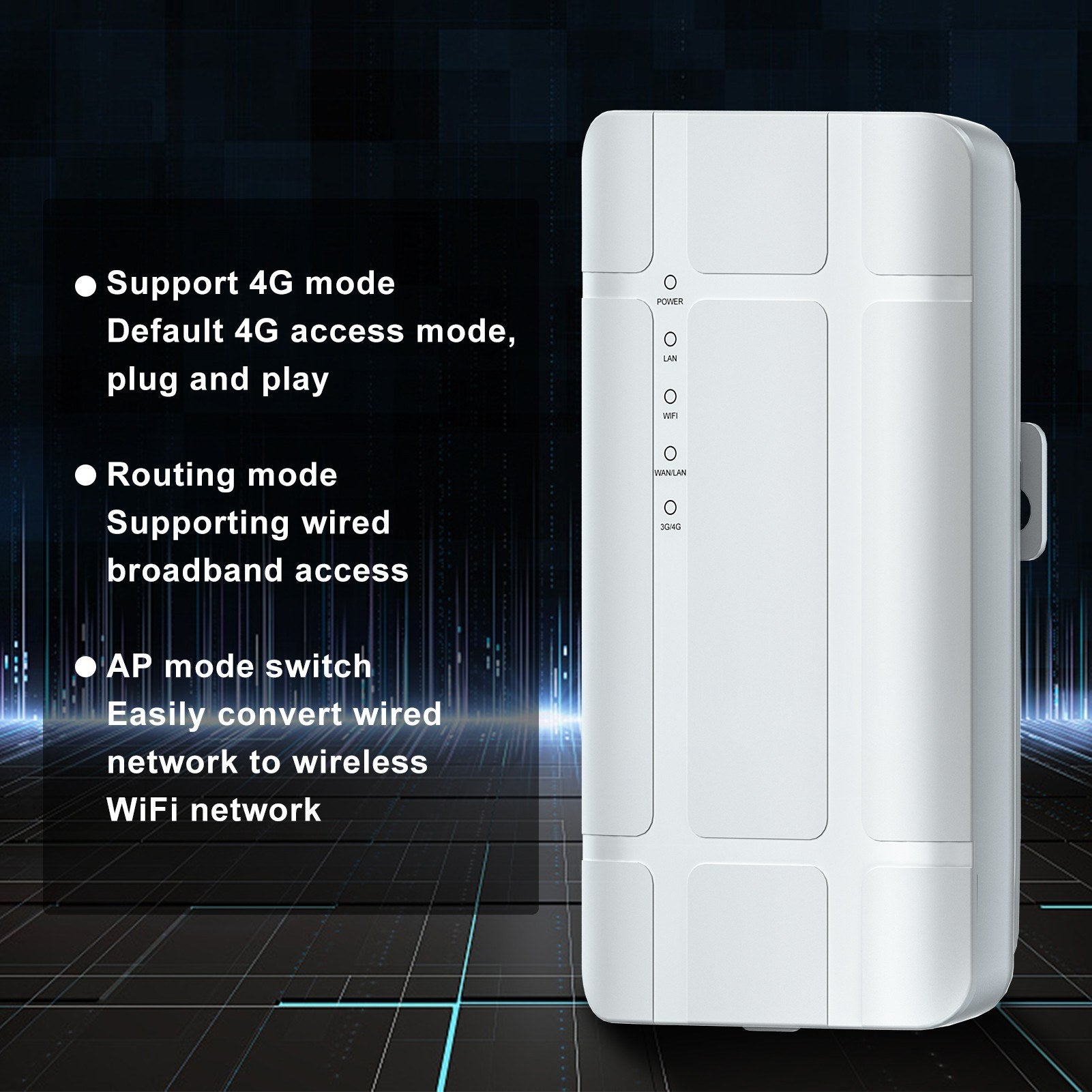

• Plug & Play: Default 4G access mode for easy setup. Supports 4G mode, routing mode, and AP mode. Quickly configure with the built-in wizard.
• Versatile Connectivity: Supports both 4G and wired broadband access. Easily switch between routing and AP modes for flexible network expansion.
• Enhanced Security: Supports WPA, WPA2, SSID hiding, and a wireless blacklist to safeguard your network against intrusions.

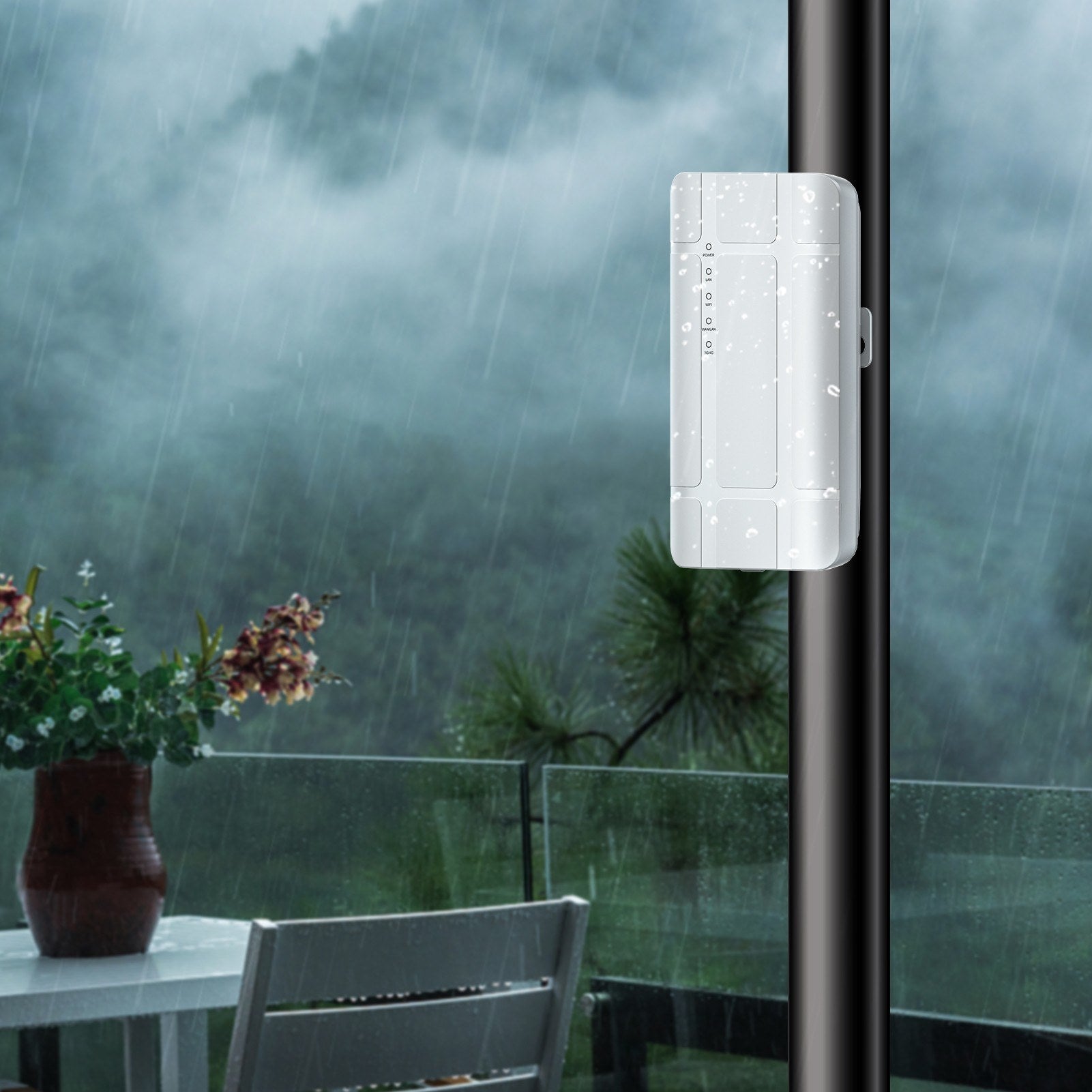

• Robust Outdoor Design: With an IP67-rated shell, it provides windproof, rainproof, and dustproof protection, suitable for all outdoor environments.

Specifications:

• Optional Plugs: EU Standard / US Standard
• Working Modes: 4G mode, Routing mode, AP mode
• Capacity: Supports up to 30 devices
• Waterproof Level: IP67
• Hardware Configuration:
  • Main Chip: MTK7628KN 300M
  • Main Frequency: 580MHz
  • Wireless Technology: 802.11b/g/n 300M MIMO
  • Memory: Flash 2MB, RAM 8MB

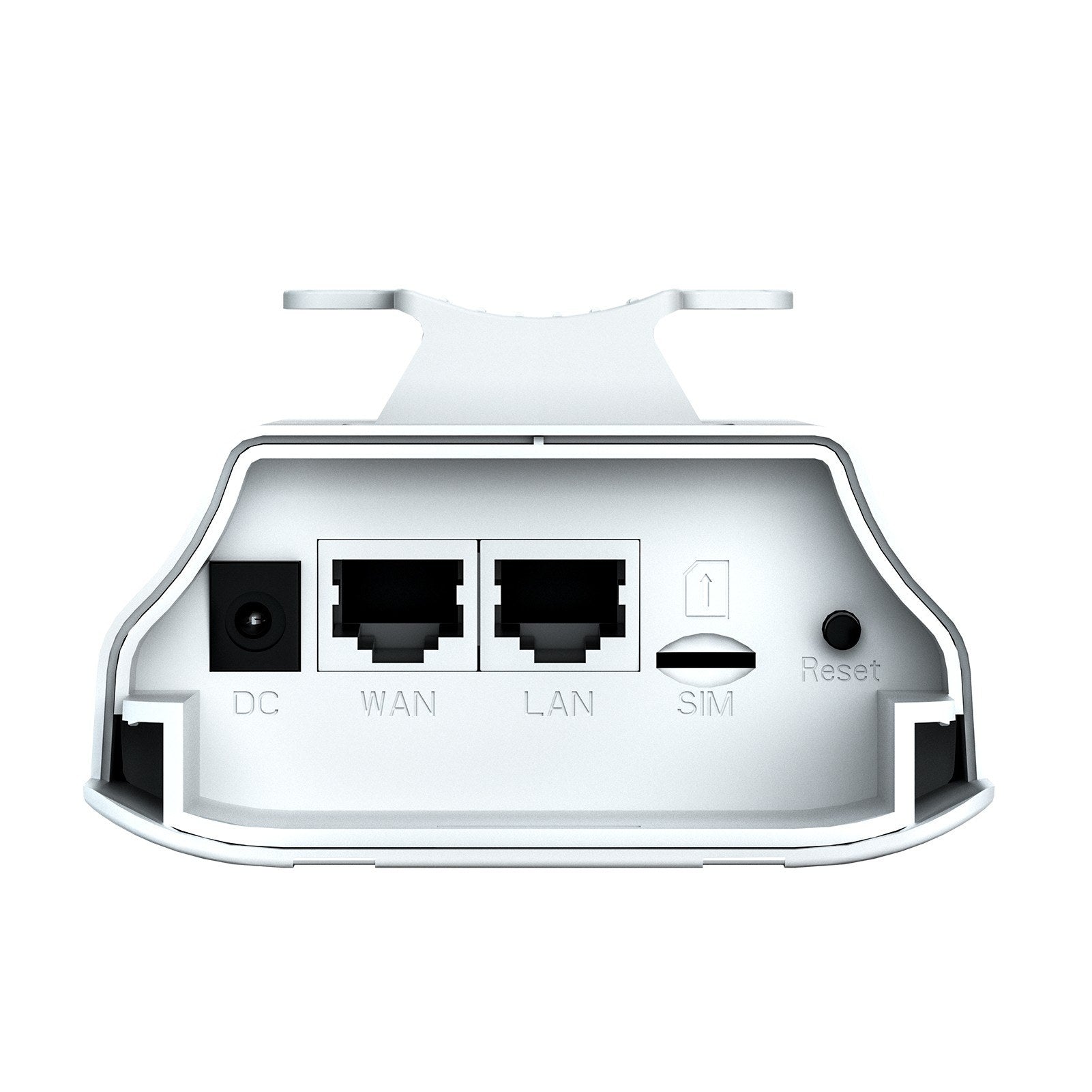

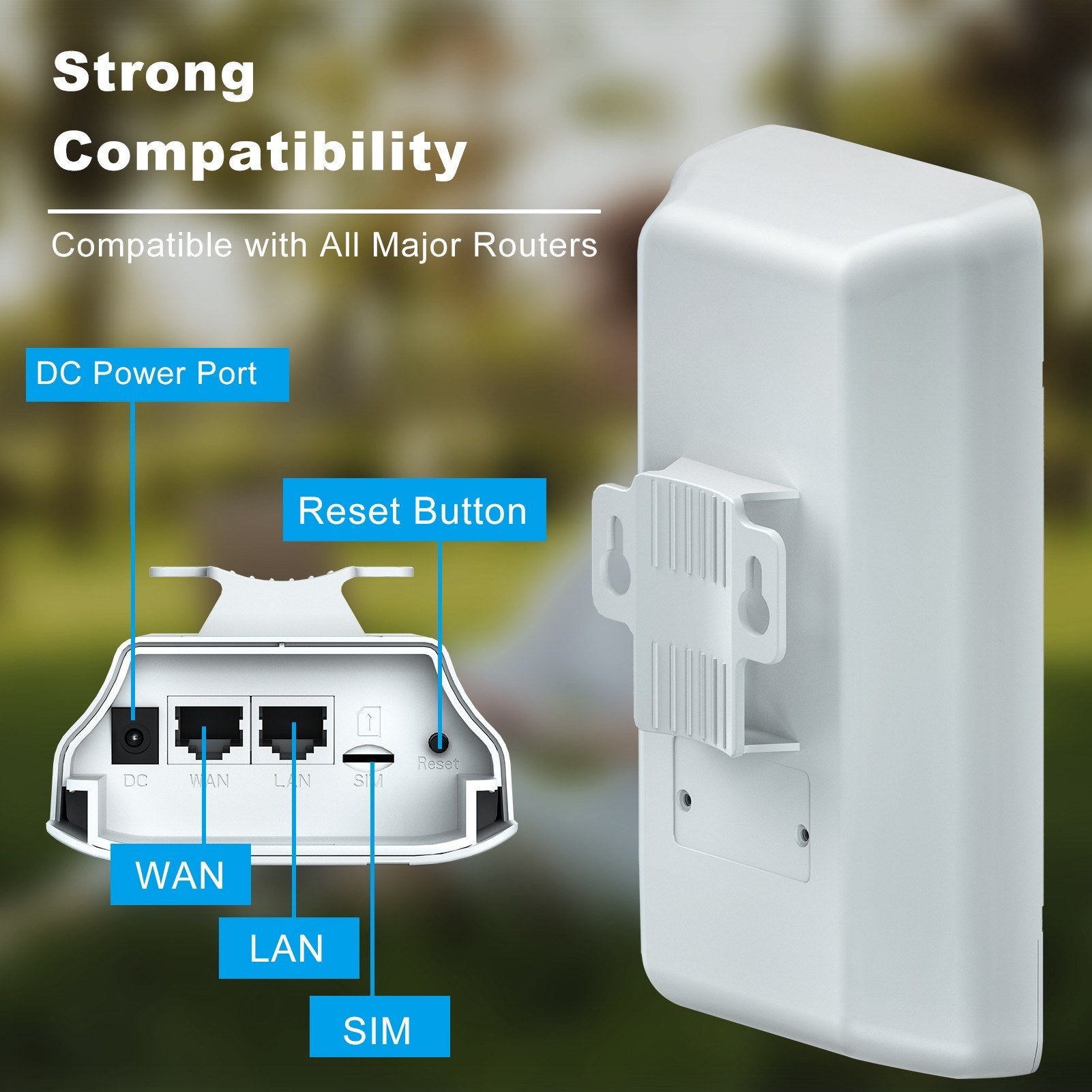

  • Interfaces: WAN/LAN 10/100Mbps; SIM card slot
  • Power Consumption: <10W
  • Reset Button: 1*RESET
• Operating Conditions:
  • Temperature: -10℃ to 50℃ (operating), -40℃ to 70℃ (storage)
  • Humidity: 5% to 95% (non-condensing)
• WiFi Parameters:
  • Frequency: 2.4~2.4835GHz
  • Transmission Rates: 11b: 1-11Mbps; 11g: 6-54Mbps; 11n: 300Mbps
  • Standards: IEEE 802.3, 802.3u, 802.11b/g/n
• 4G Network Support:
  • Systems: LTE FDD/TDD, UMTS, GSM, and more
  • Frequencies: LTE-FDD B1/B3/B5/B7/B8/B20/B28, LTE-TDD B38/B39/B40/B41
• Dimensions:
  • Product: 90x43x172 mm
  • Package: 195x110x100 mm
  • Weight: 400g

Package Includes:

• 1x Outdoor 4G Router
• 1x User Manual
