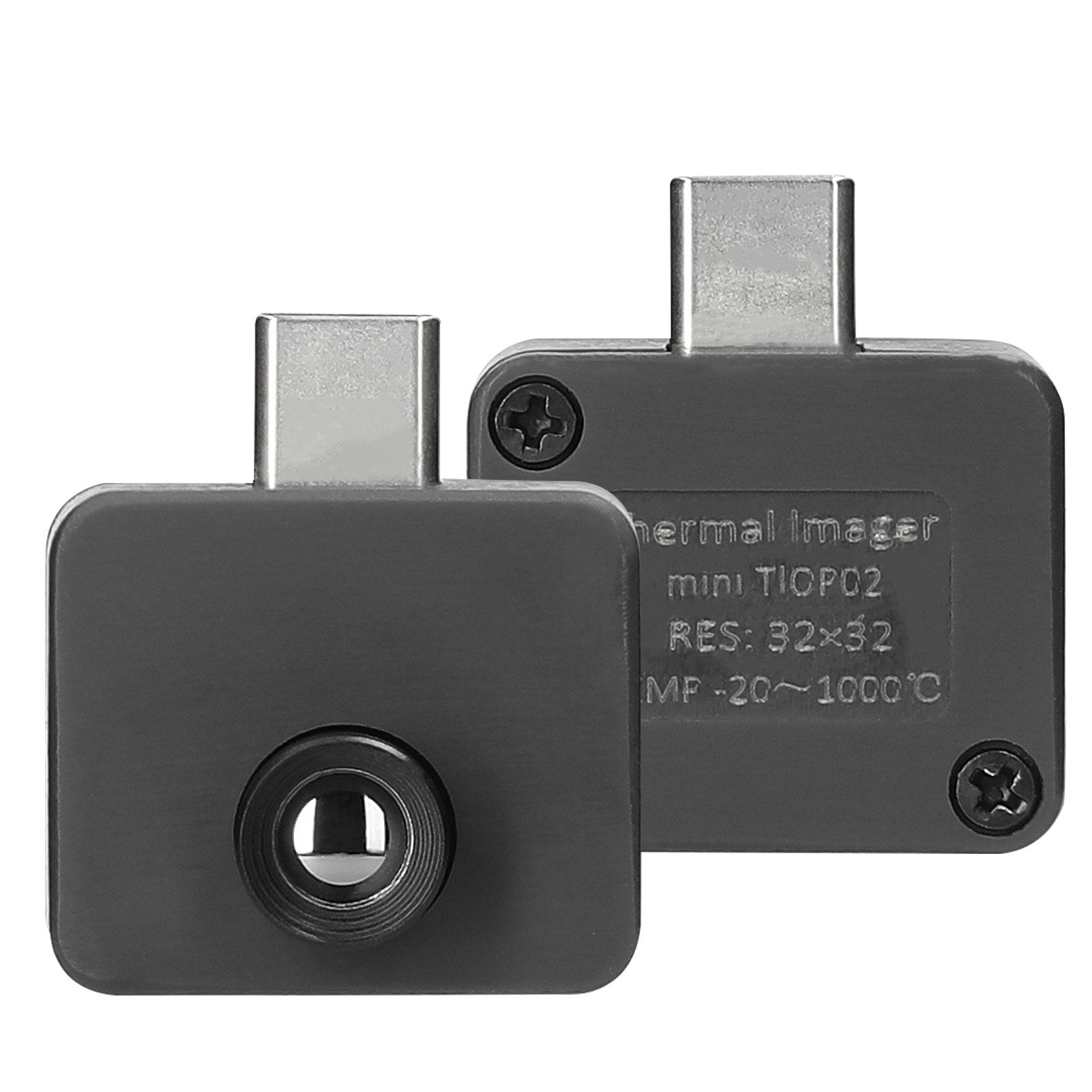

Thermal Imager

The Thermal Imager is a user-friendly, mobile-based thermal imaging camera designed to measure and display temperature distribution on an object's surface. By receiving infrared radiation emitted from the object, it translates temperature variations into a visual image viewable on your mobile device. Its high accuracy and resolution make it essential for monitoring equipment status and diagnosing faults, extensively used in power, chemical, construction, firefighting, and other industries.

Features

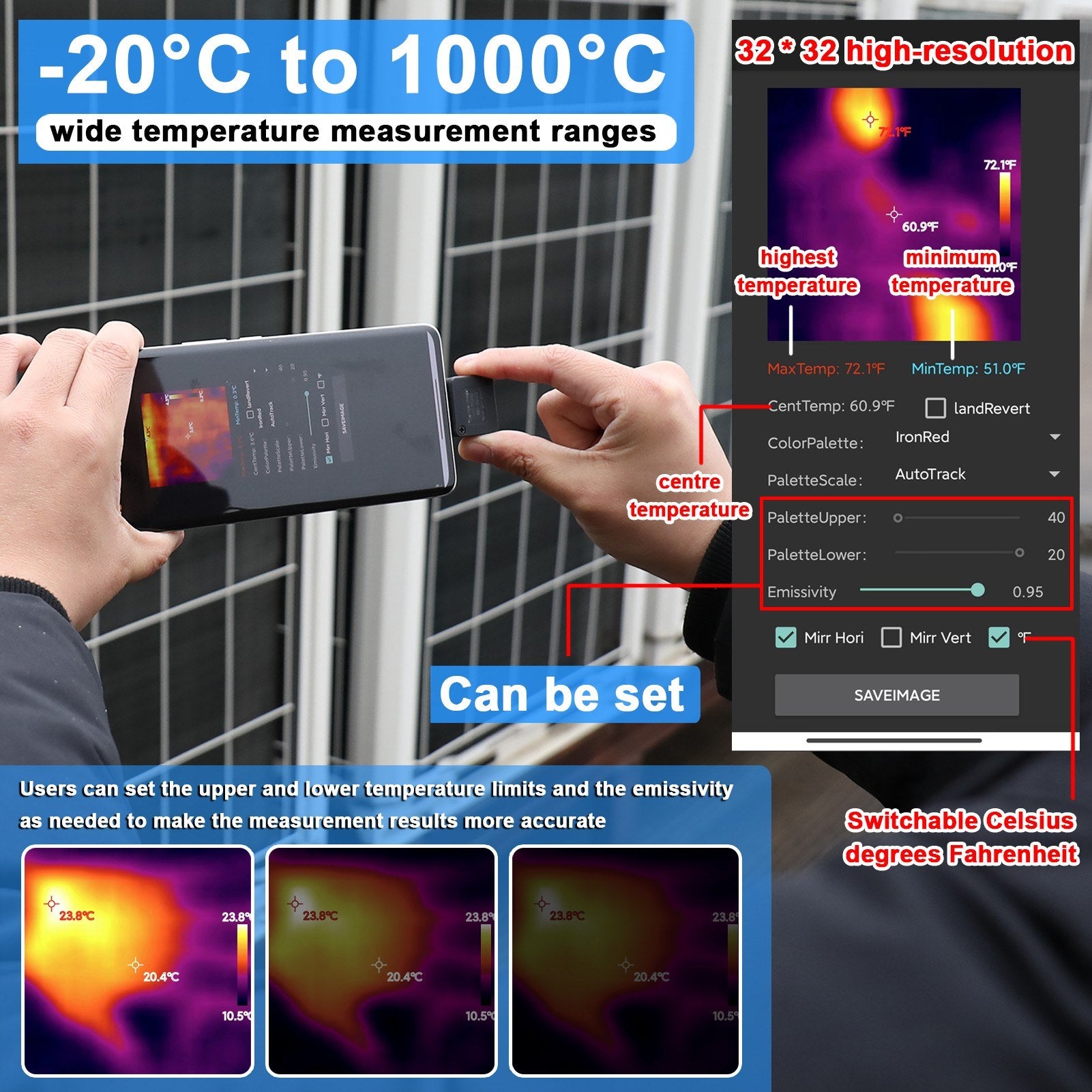

• Temperature Measurement & Display & Setting: Covering a wide temperature range of -20°C to 1000°C, this camera caters to diverse environments. Its 32x32 high-resolution design clearly displays maximum, minimum, and center temperatures, offering a comprehensive understanding. Users can adjust upper and lower temperature limits and emissivity for precise measurements.

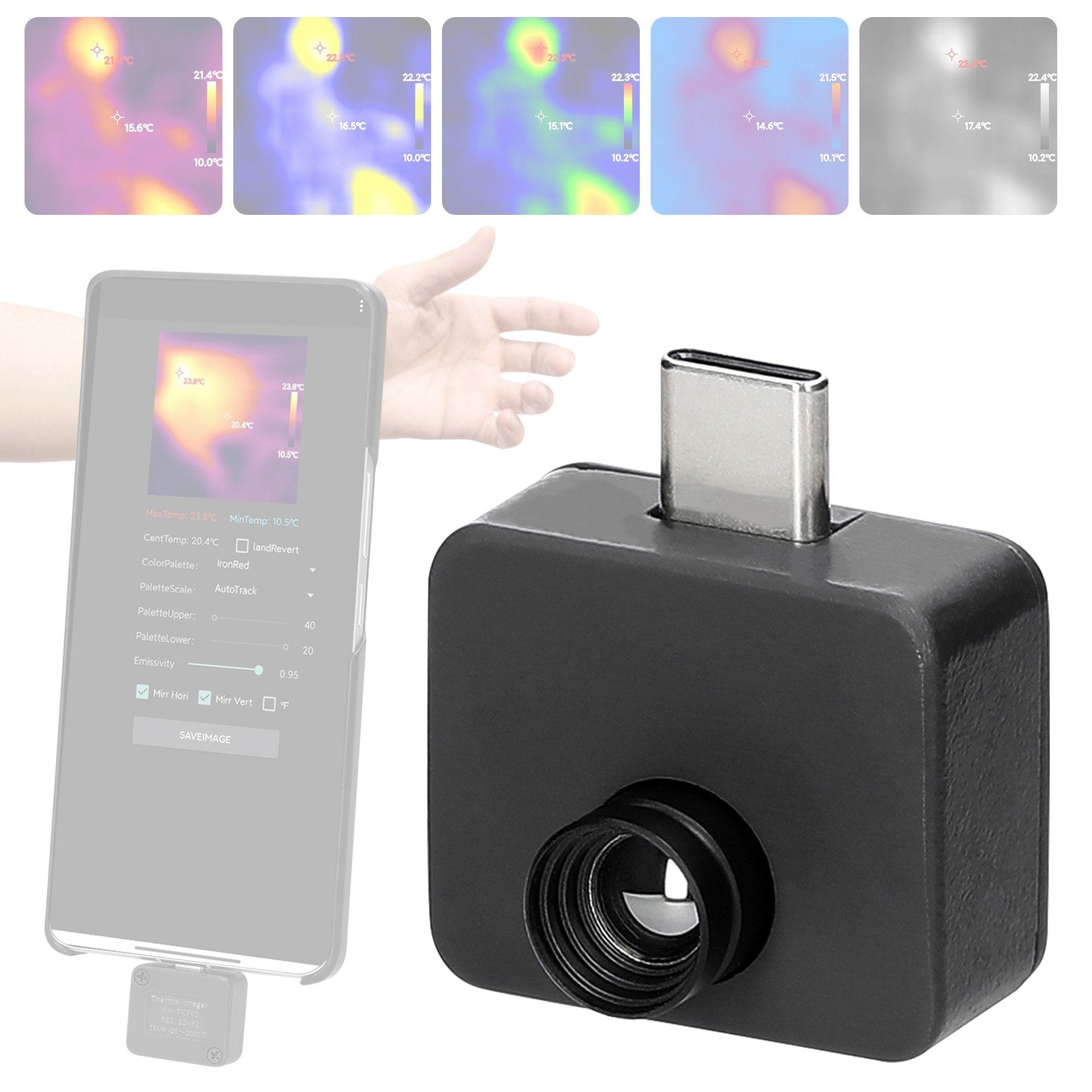

• 5 Color Palette Modes: Features five color palette modes: iron-red, rainbow, white-hot, blue-orange, and blue-yellow, adapting to different user needs and scenarios.

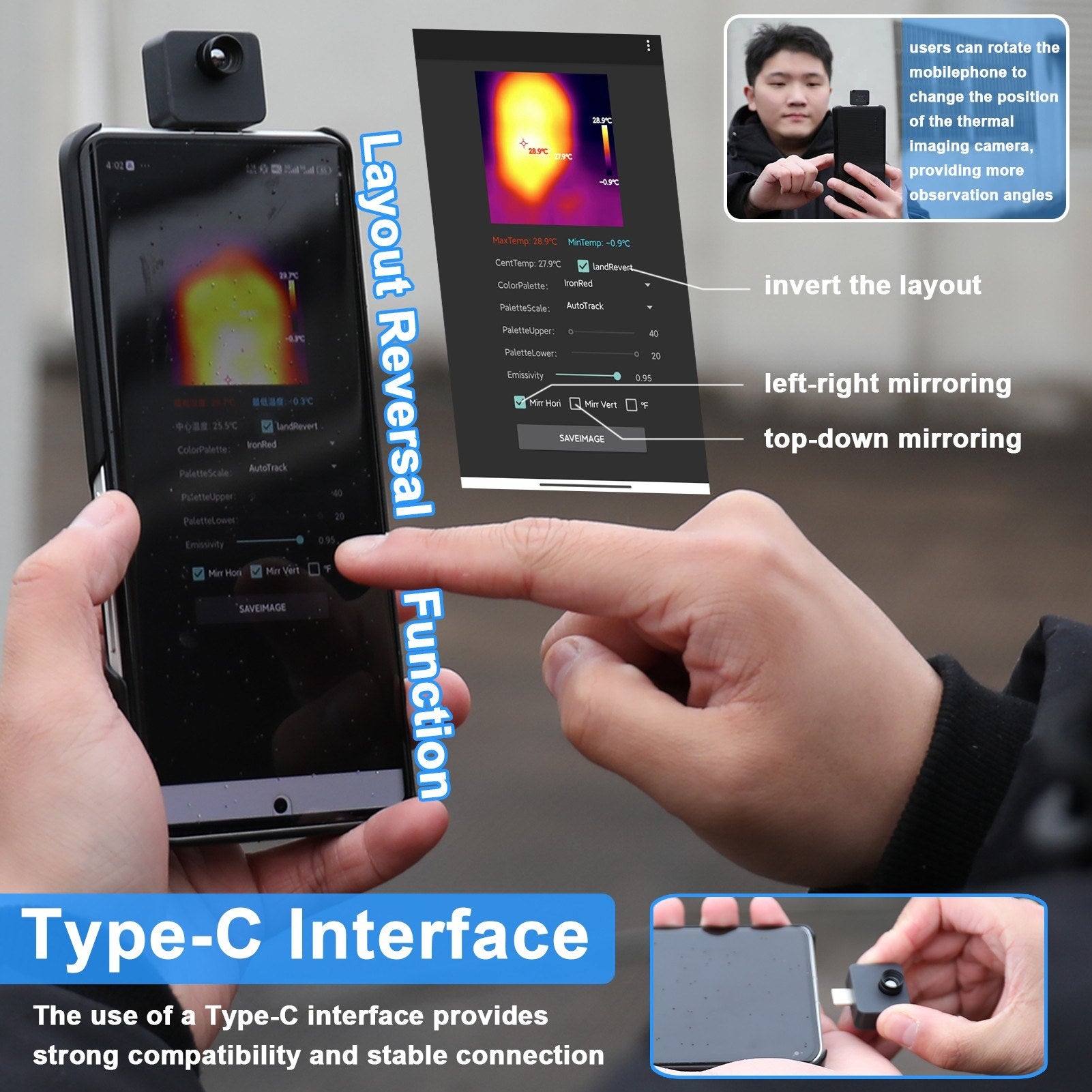

• Type-C Interface & Layout Reversal Function: Incorporates a Type-C interface for strong compatibility and stable connection. Its lightweight design allows users to rotate their device, changing the camera's orientation for various viewing angles. Note: Some devices may require enabling auto-rotation.

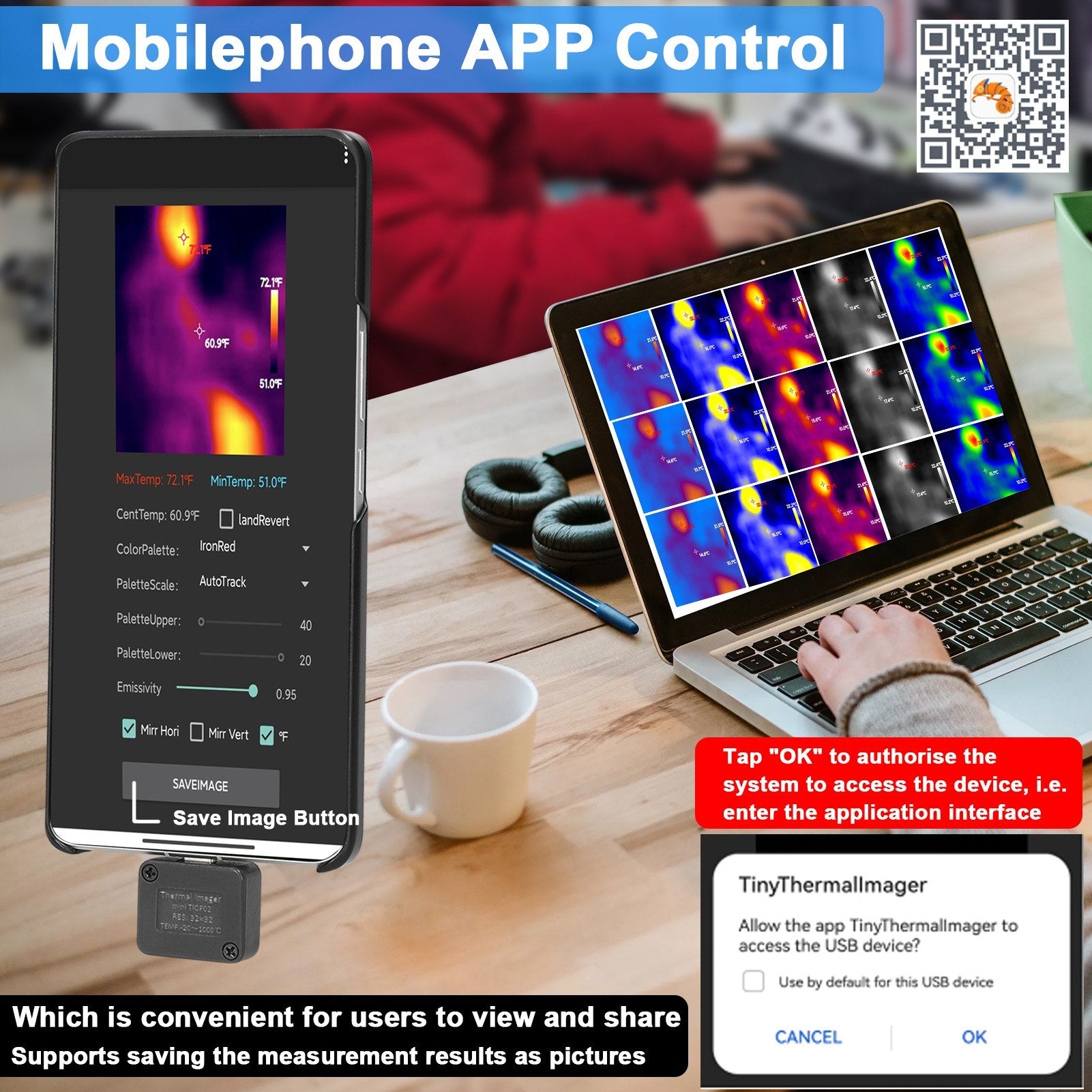

• Mobile App Control: Compatible with the TinyThermal app, it supports Android and Hongmeng systems, available in English and Simplified Chinese. Users can save measurements as images for easy viewing and sharing.

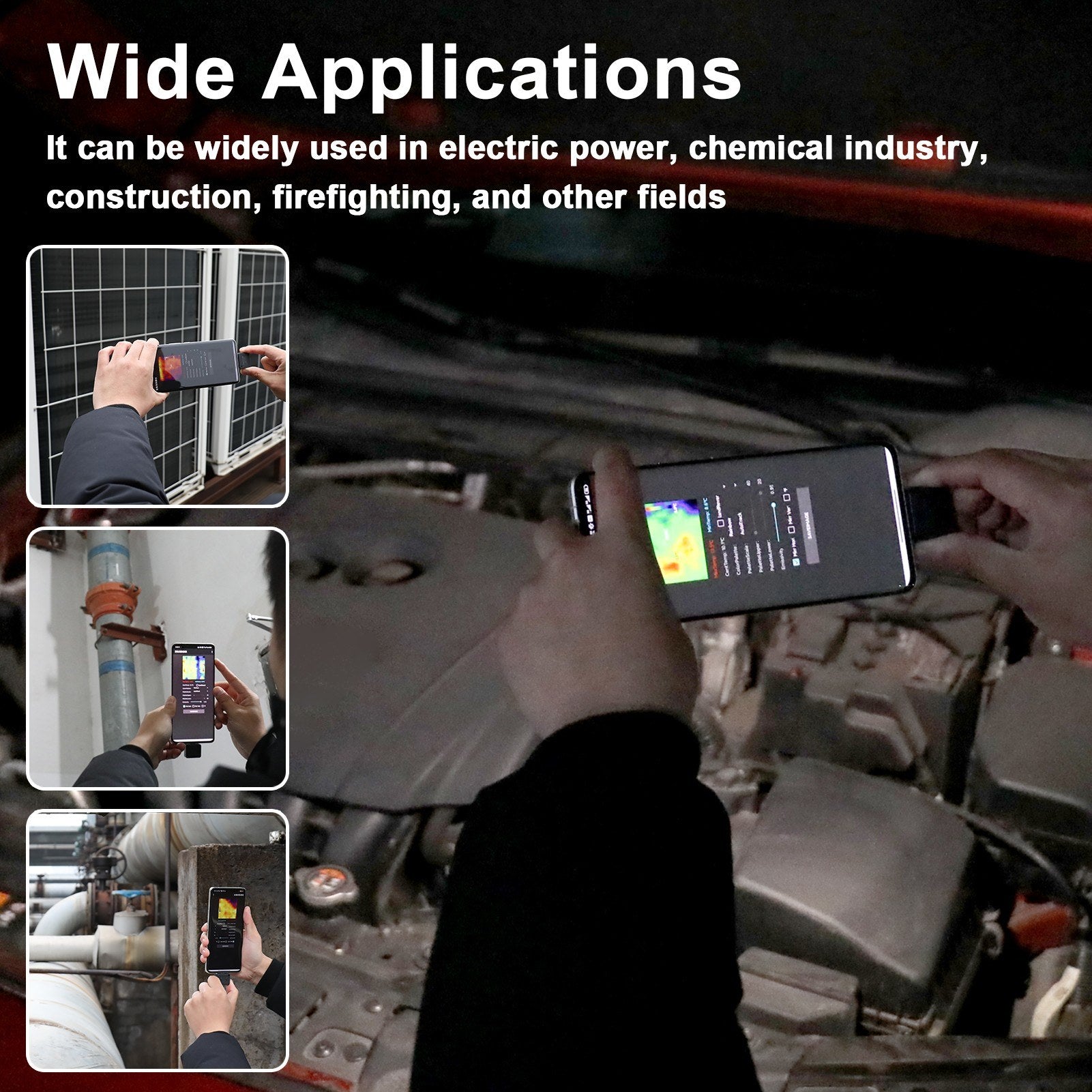

• Wide Applications: Ideal for analyzing thermal characteristics in materials, energy, environments, and industrial processes. It also serves educational and research purposes, highly applicable in electric power, chemical industry, construction, firefighting, and more.

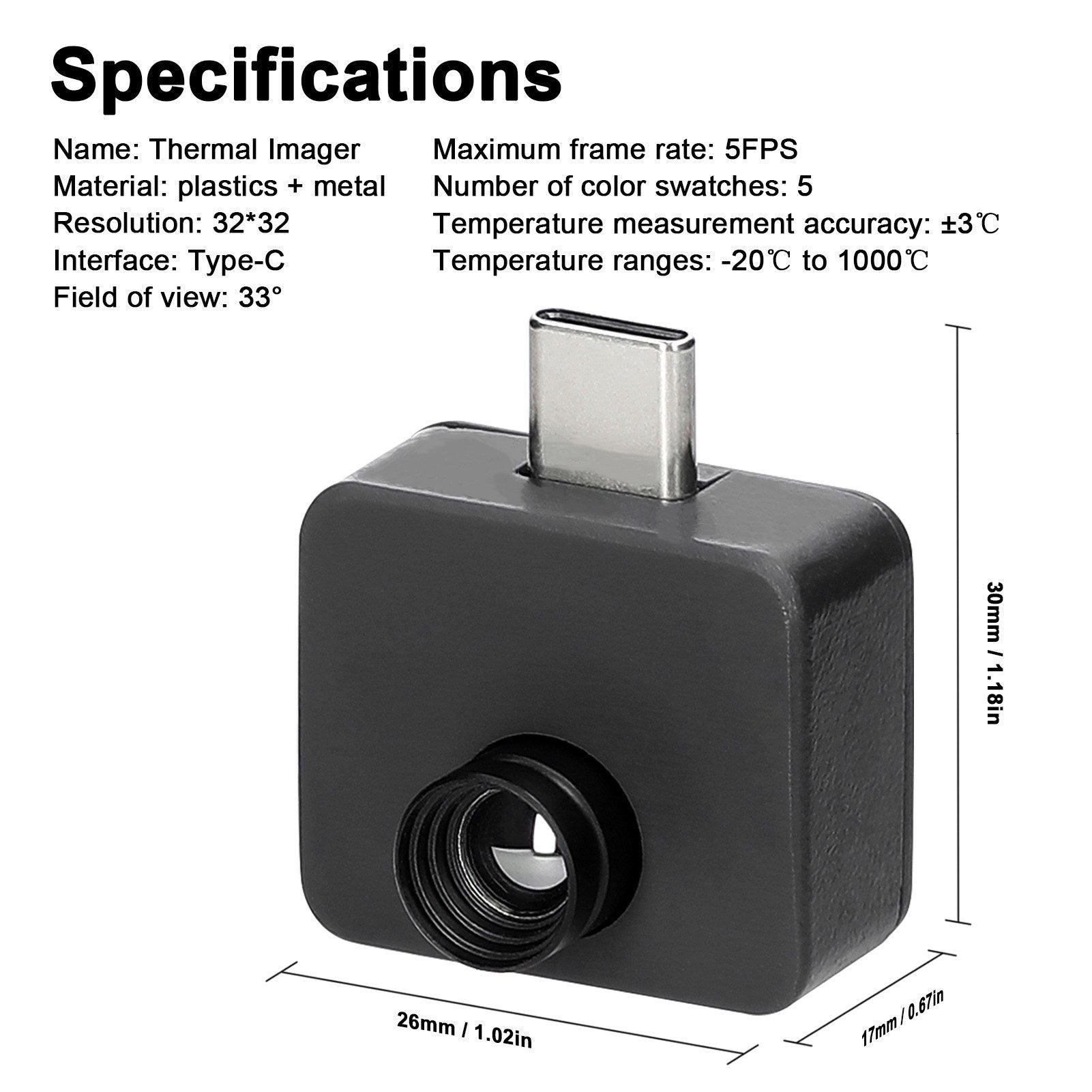

Specifications

• Name: Thermal Imager
• Material: Plastics + Metal
• Resolution: 32x32
• Interface: Type-C
• Supported Systems: Android 8-12, with local picture saving capability
• Field of View: 33°
• Maximum Frame Rate: 5 FPS
• Color Swatches: 5
• Temperature Measurement Accuracy: ±3°C
• Temperature Range: -20°C to 1000°C
• Operating Temperature: 0-50°C
• Storage Temperature: -40°C to 80°C
• Item Size: 26 x 30 x 17mm (1.02 x 1.18 x 0.67in)
• Item Weight: 10g (0.35oz)
• Package Size: 87 x 86 x 30mm (3.43 x 3.39 x 1.18in)
• Package Weight: 30g (1.06oz)

Packing List

• 1 x Thermal Imager
