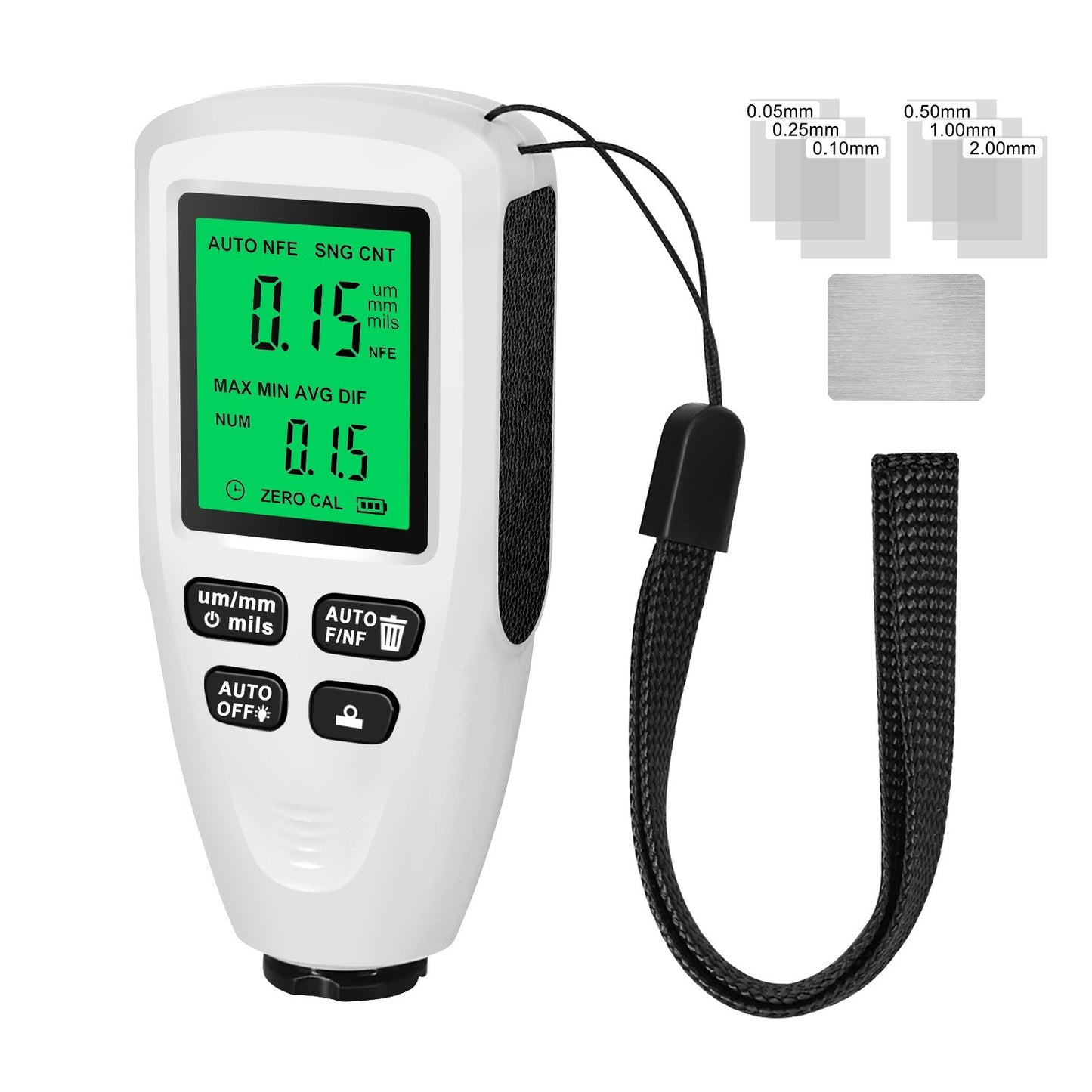

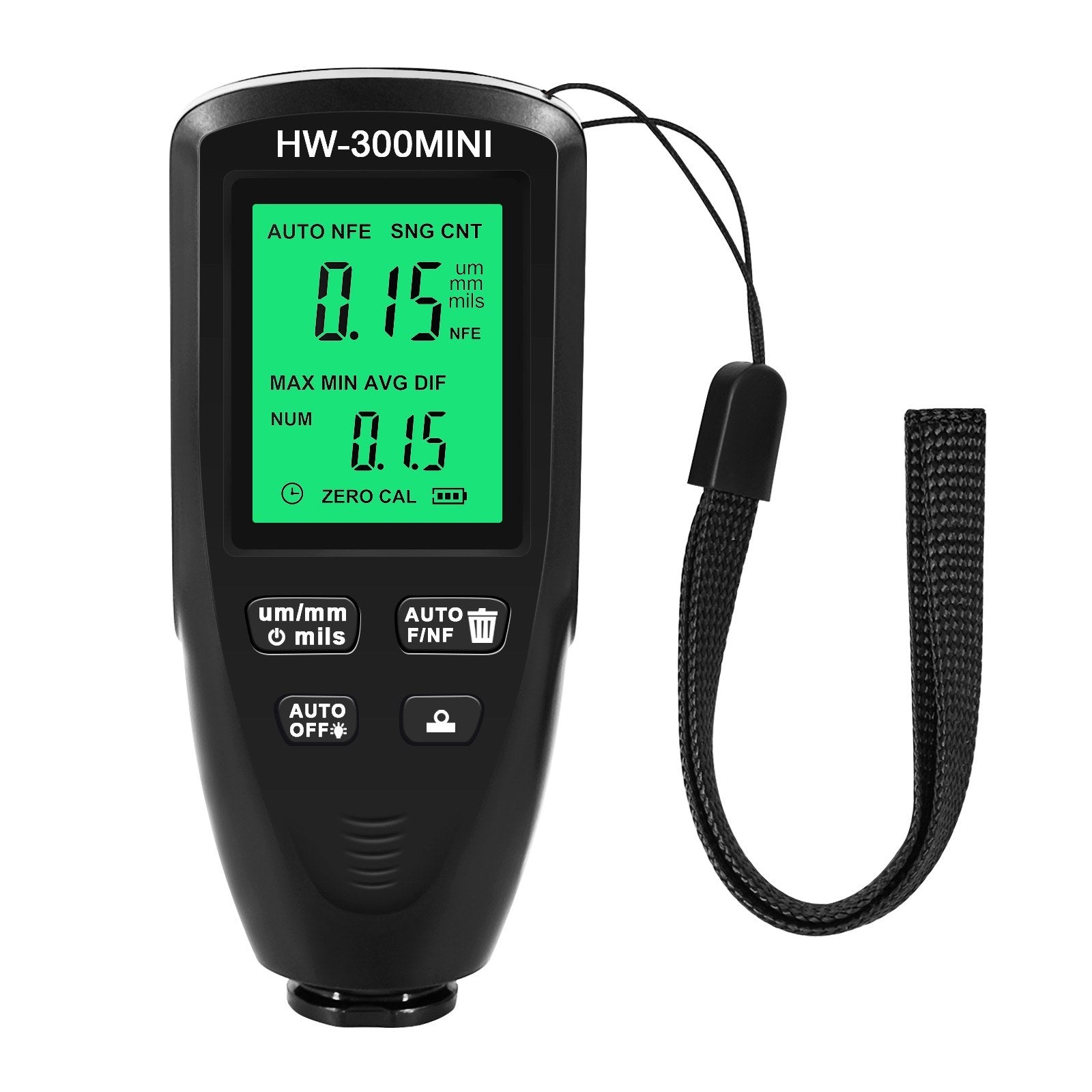

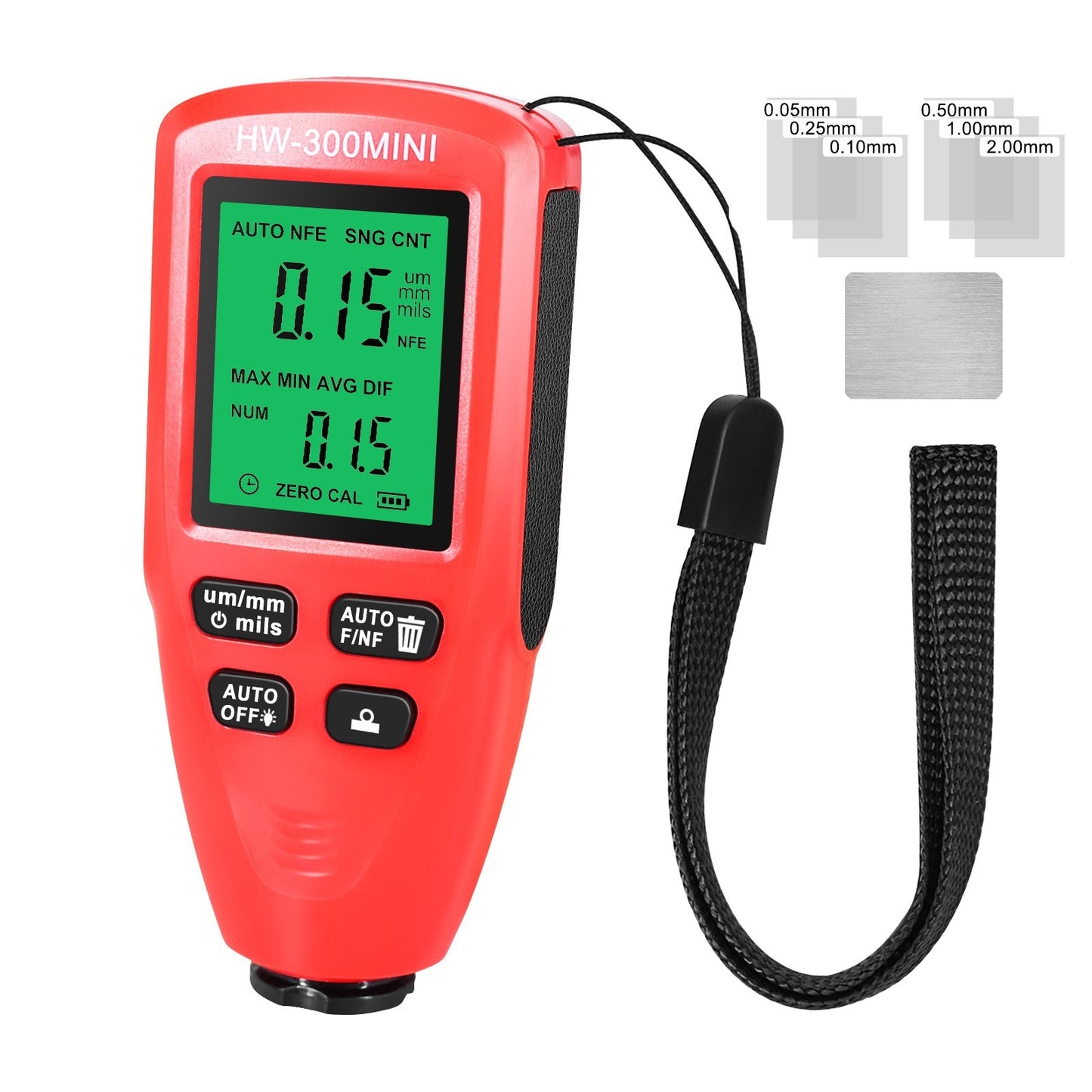

Paint Thickness Gauge

Features

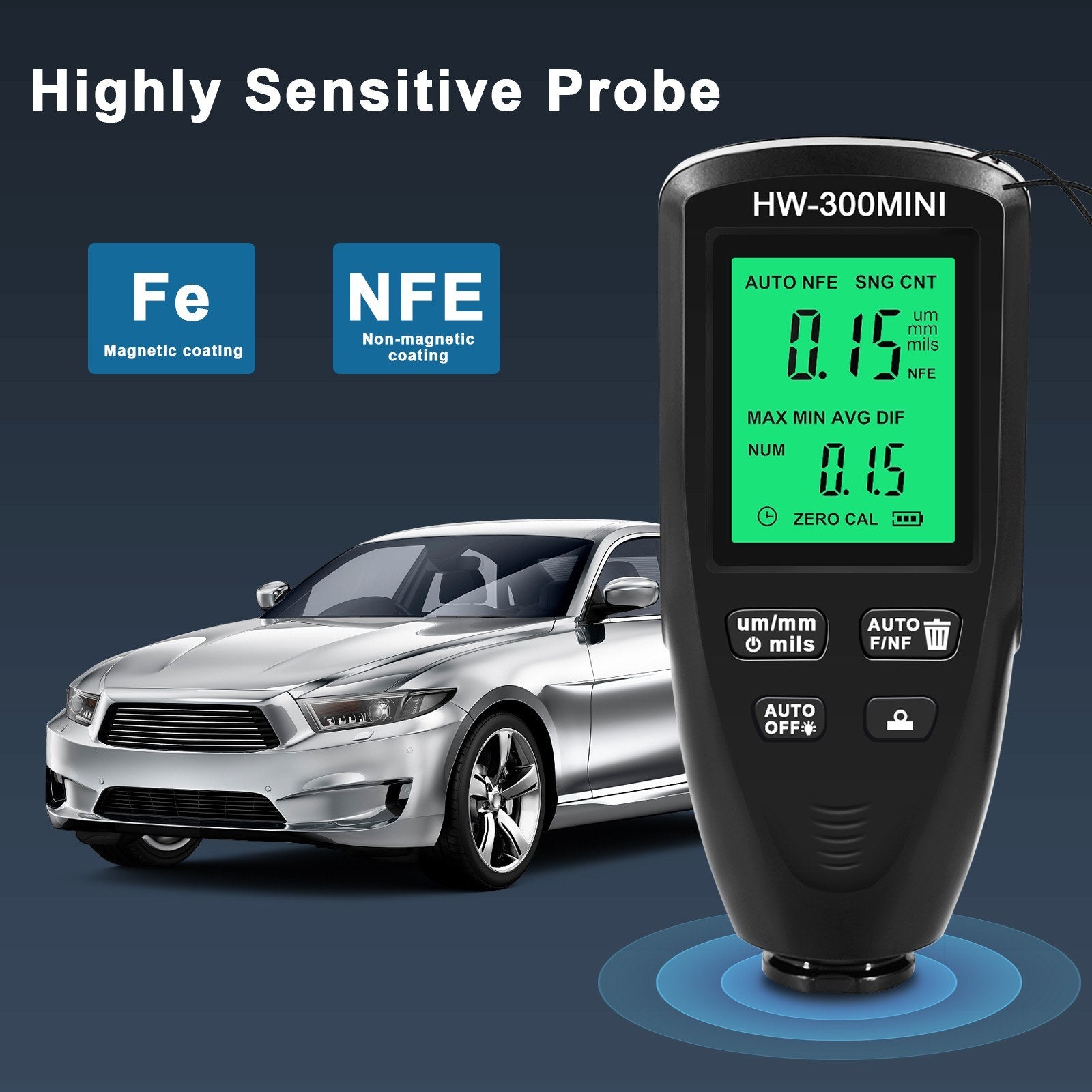

• Precision Measurement: Accurately measure the thickness of various coatings including paint, enamel, and chromium on steel, as well as paint and anodic oxidation coating on aluminum and copper. Automatically detects metal substrate properties for optimal use.

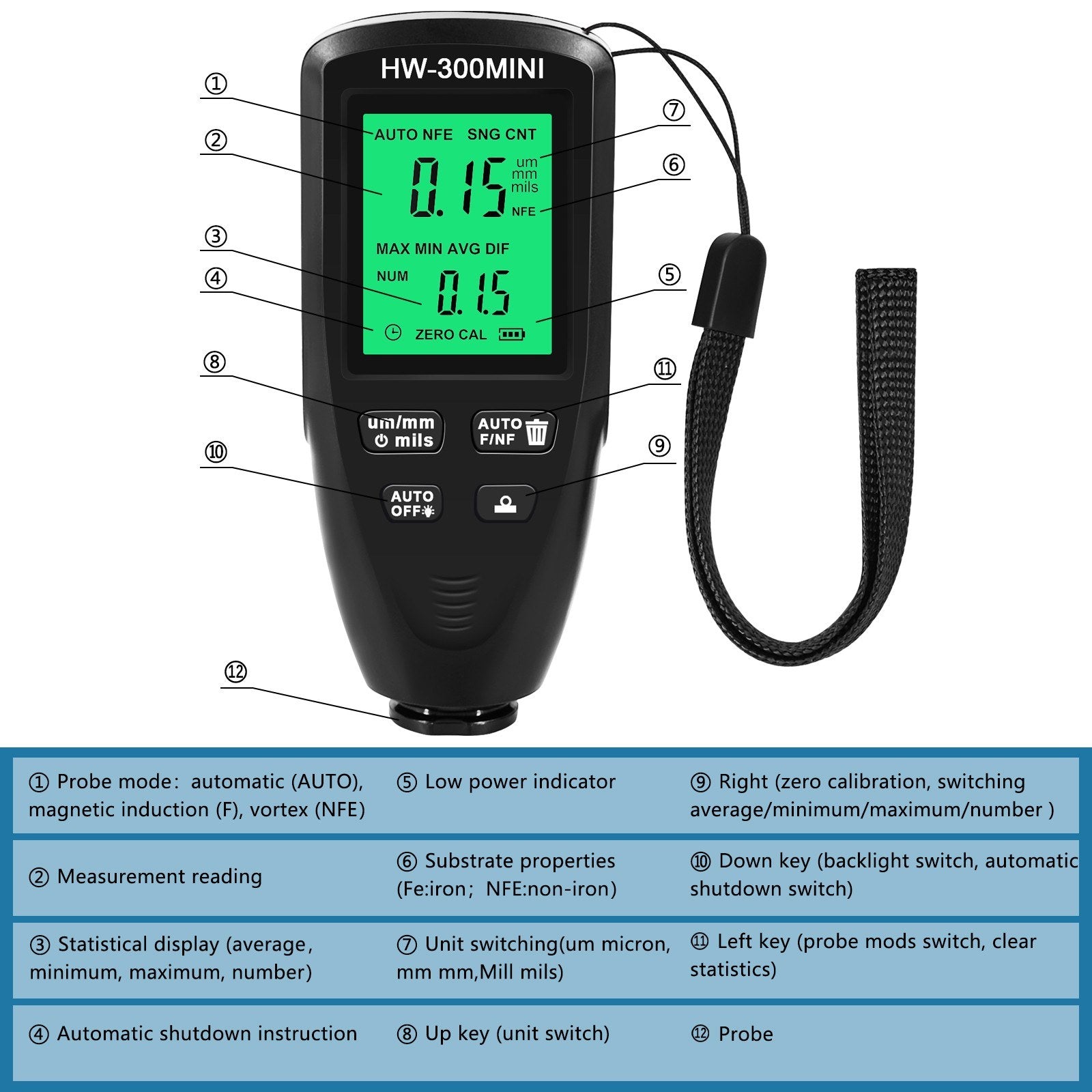

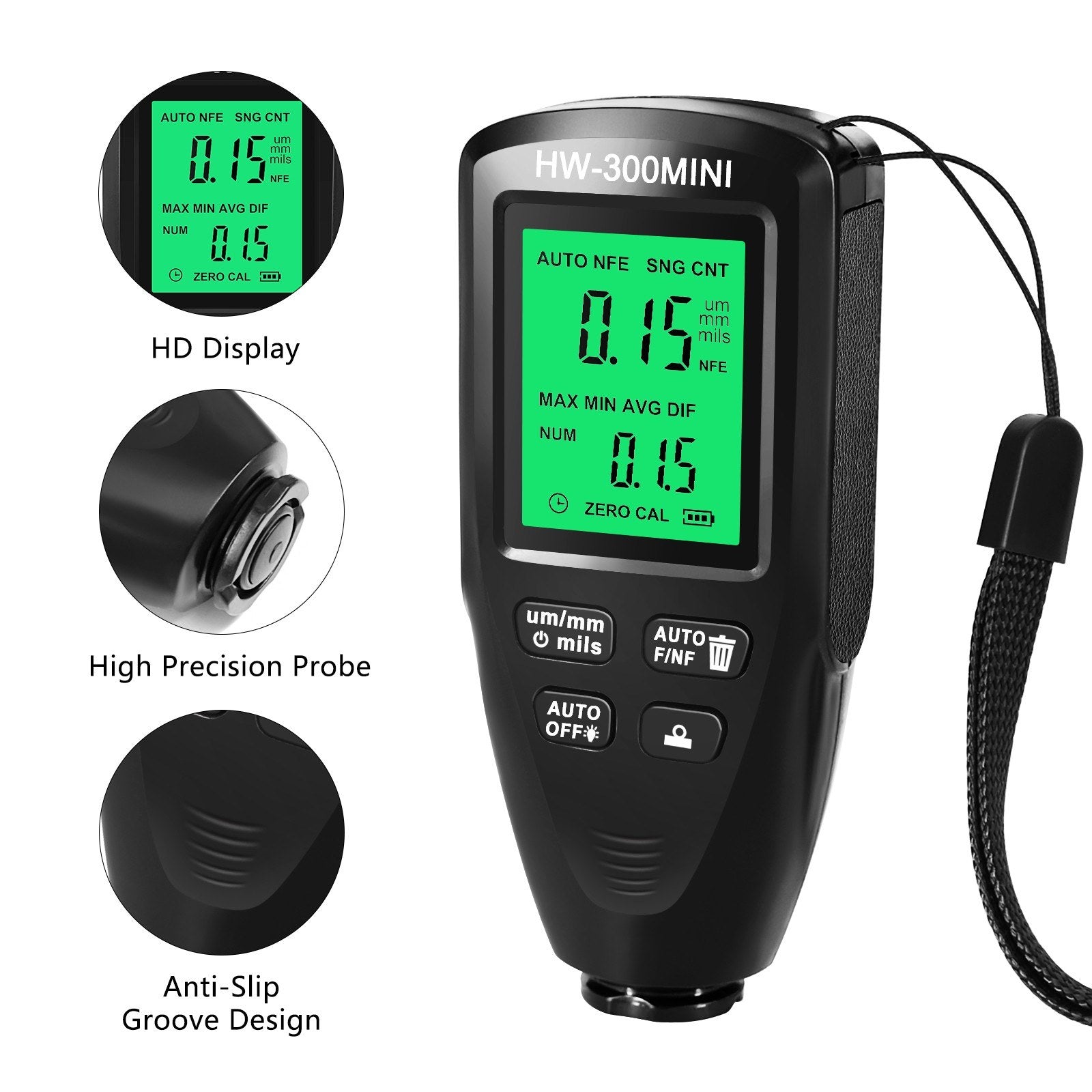

• Easy to Read: Equipped with an HD display, the gauge presents thickness readings clearly on a large screen. Easily switch between units (um, mm, mils) for quick and precise results.
• Ergonomic Design: Features an anti-slip groove for a comfortable grip during use. Its compact, palm-sized design ensures easy handling.

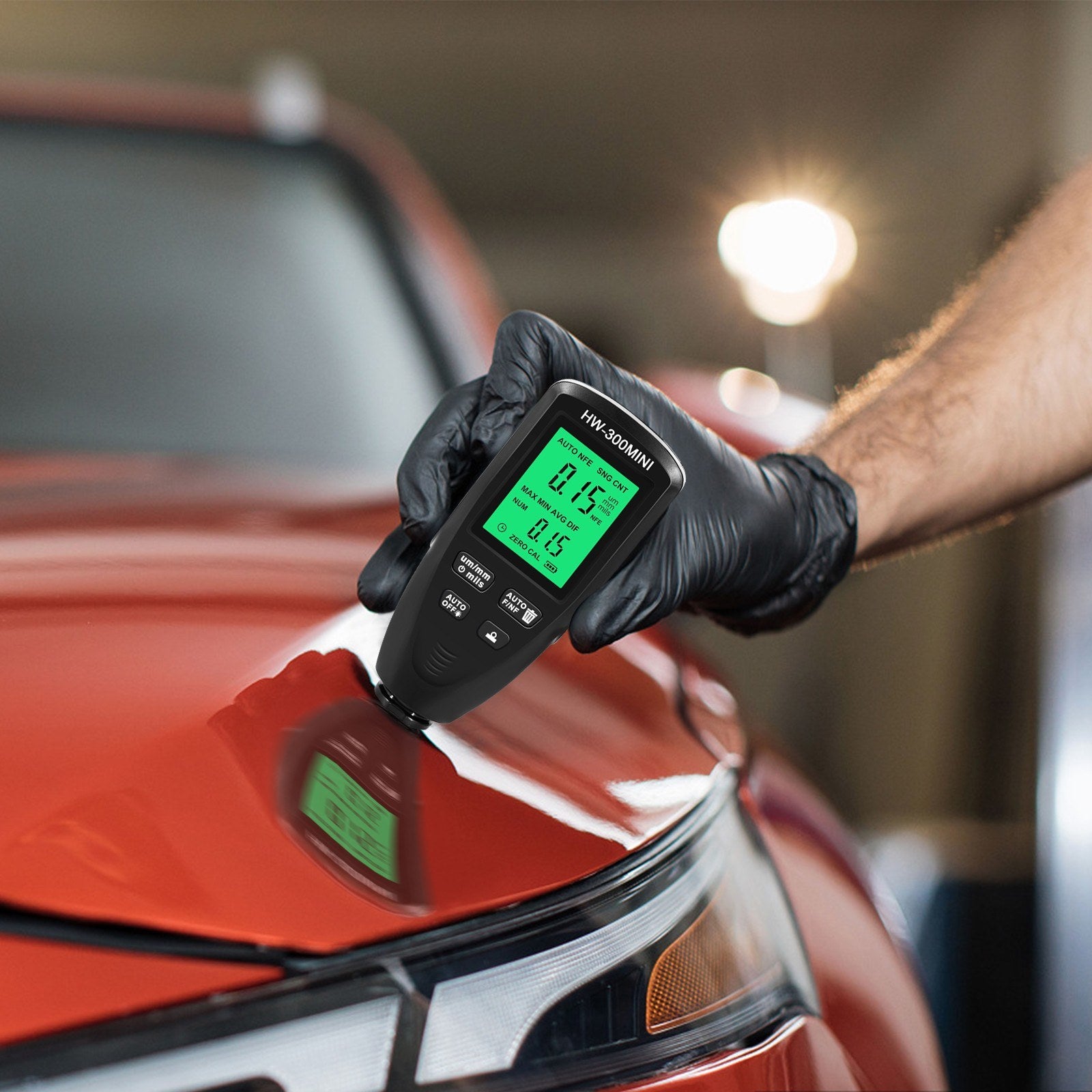

• Essential for Car Buyers: When purchasing a used car, ensure the paint thickness is consistent across panels to detect past collisions effectively.
• Versatile Application: Ideal for non-destructive coating and paint thickness measurements. Used widely in manufacturing, metal processing, and chemical industries, and suitable for laboratory, workshop, and outdoor environments.

Specifications

• Item: Paint Thickness Gauge
• Color: White
• Material: ABS
• Battery: 2 * AAA Battery (not included)
• Measuring Range: 0-2000UM
• Measurement Accuracy: ± (3%+1um)
• Resolution: 0um~99.9um(0.1um), 100um~999um(1um), >1000um(0.01mm)
• Minimum Convex Radian: 5mm
• Minimum Concave Radian: 25mm
• Minimum Measured Area: Diameter 20mm
• Minimum Substrate Thickness: 0.2mm, 0.05mm
• Maximum Measuring Speed: 2 readings per second
• Operating Temperature: -10℃ to 50℃

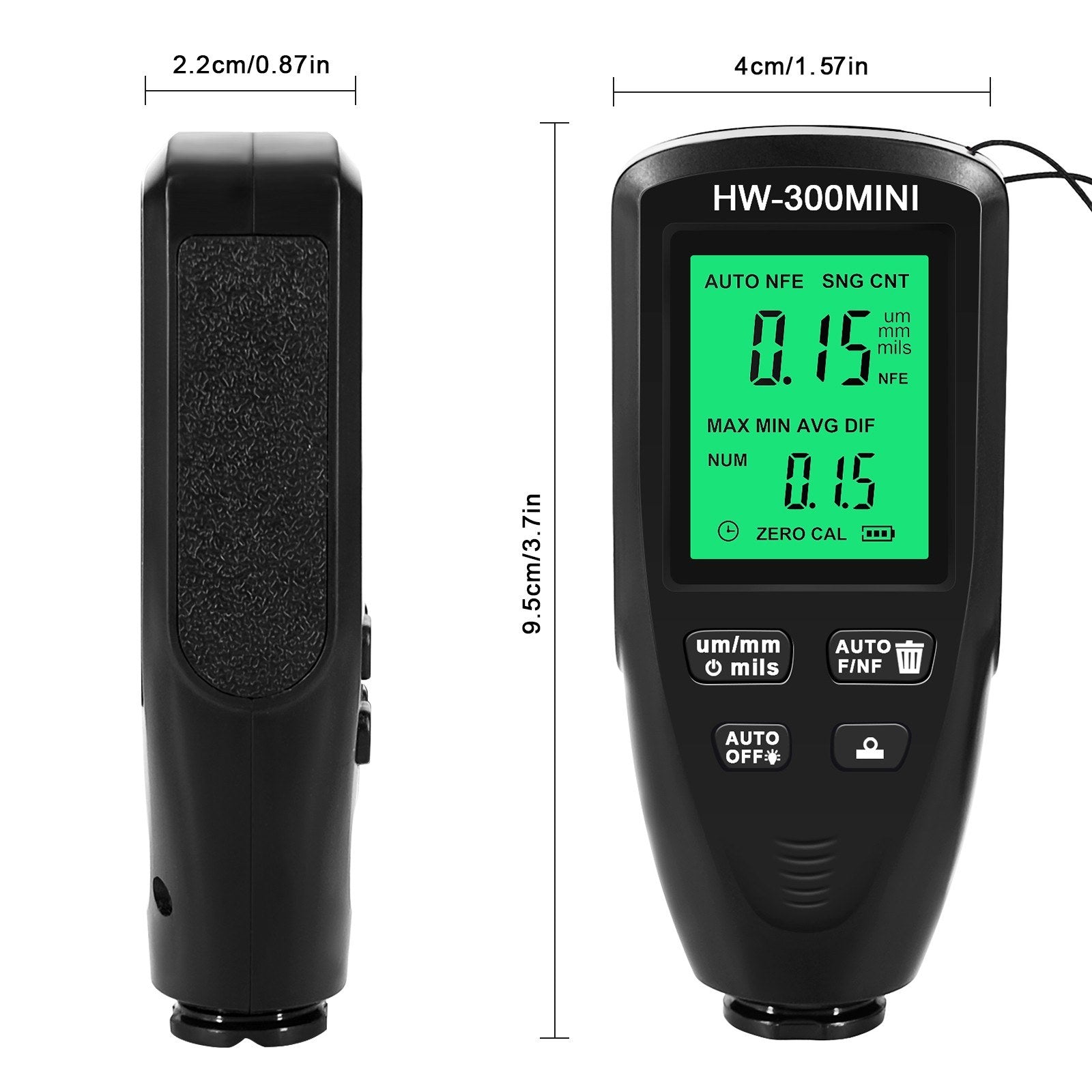

• Size: 9.5 x 4 x 2.2 cm
• Packing Size: 11.8 x 5.8 x 3 cm
• Packing Weight: 90g

Package List

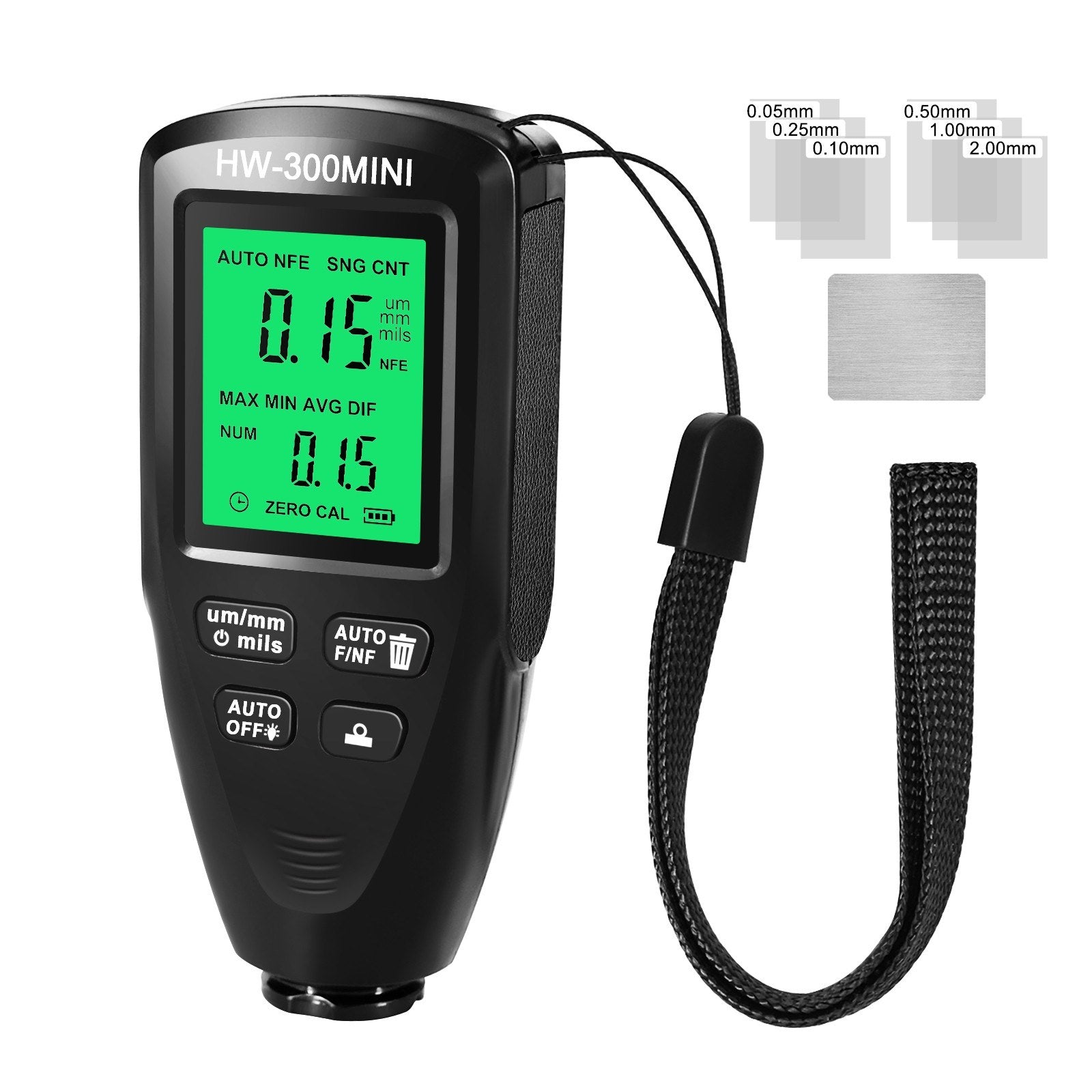

• 1 x Paint Thickness Gauge

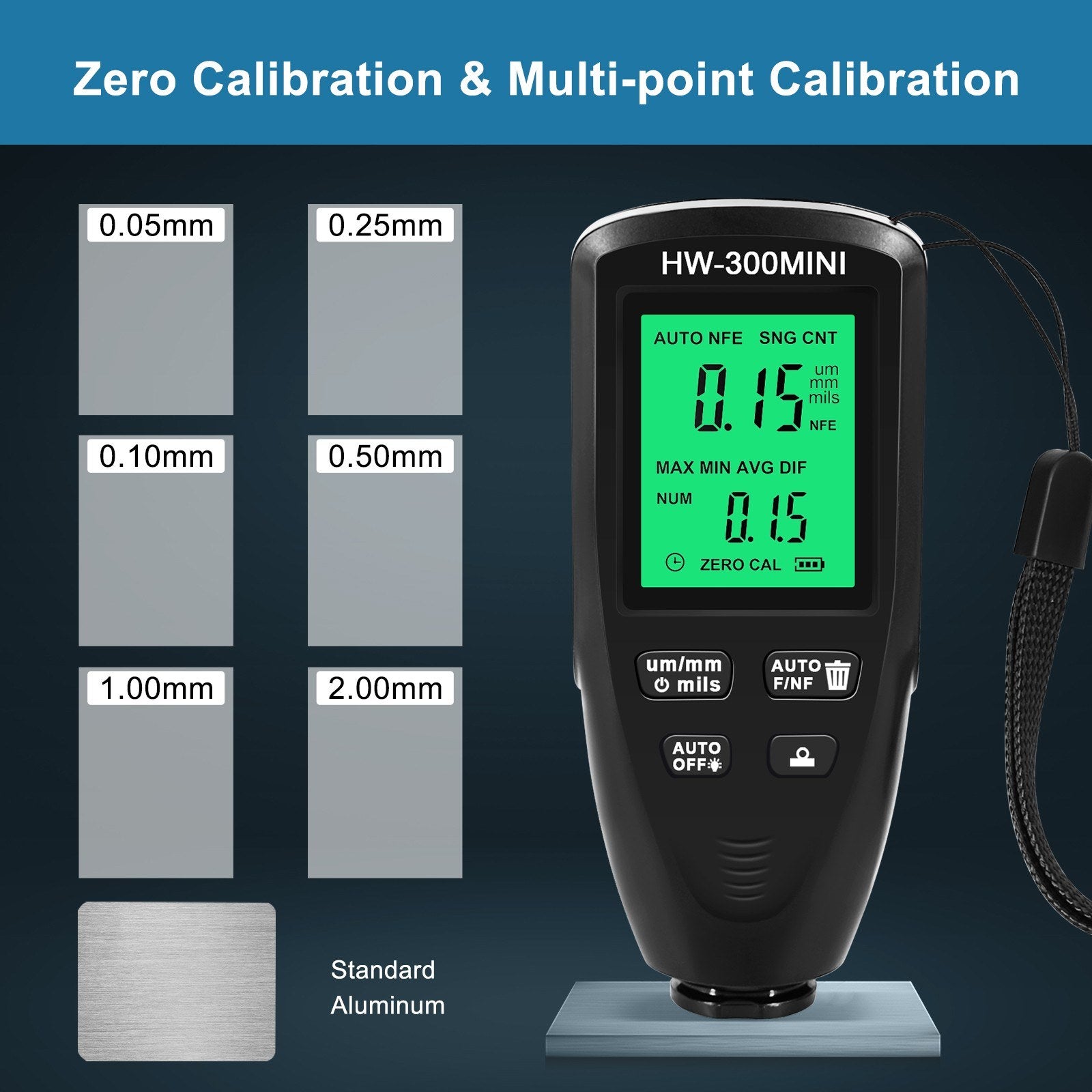

• 1 x Calibration Piece
• 1 x User Manual
