7.9 Ultra-Wide IPS Secondary Screen - 400x1280 LCD Temperature Monitor for PC Case

7.9 Ultra-Wide IPS Secondary Screen - 400x1280 LCD Temperature Monitor for PC Case

Regular price $69.99 USD
Regular price $0.00 USD Sale price $69.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Product Description

7.9-inch LCD Screen

Important Note

This item does not support long-running programming. Doing so may damage the screen and void the warranty.

Specifications

  • Model: LR79
  • Size: 7.9 inches TFT-LCD
  • LCD Type: IPS
  • Resolution: 400 x 1280
  • Touch Function: No
  • Dot Pitch: 0.1485(H) x 0.1485(V)
  • Signal Interface: MIPI
  • Refresh Rate: 60Hz
  • Viewing Direction: Free
  • Full View Angle: 170°
  • Size Ratio: 5:16
  • Response Time: 40ms (Typical, Tr+Tf)
  • Contrast Ratio: 900:1
  • Brightness: 500 cd/㎡

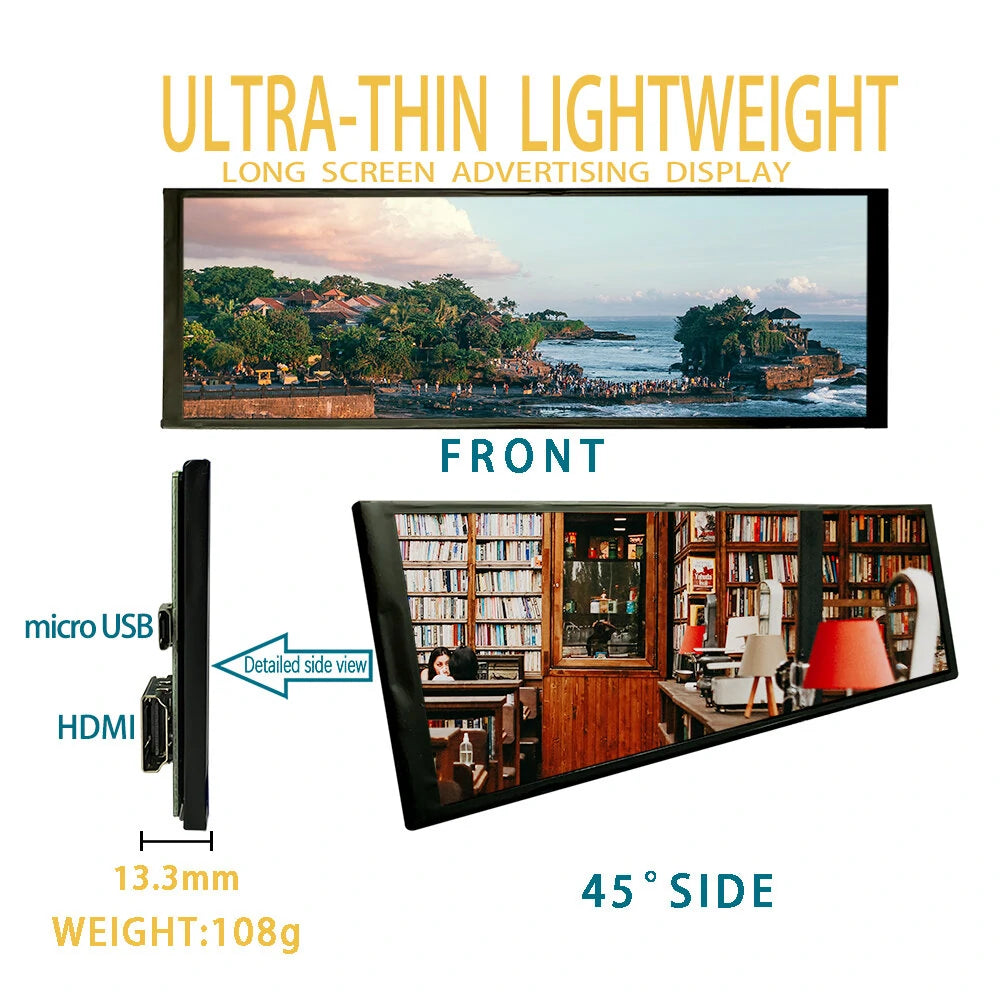

  • Outline Dimension: 67.6(W) x 205.8(H) x 13.3(T) mm
  • Active Area: 59.40(W) x 190.08(H) mm
  • Color Gamut: 70% NTSC
  • Display Colors: 16.7M
  • Backlight: WLED (19.2V Typ.)
  • Connector: 30 pins ZIF
  • Thickness: 16.5 mm
  • Display Input: HDMI 1.4
  • Audio Out: NO

Usage with Raspberry Pi

To use this screen with a Raspberry Pi, you need to modify the config.txt file by adding the following code:

max_usb_current=1
hdmi_group=2
hdmi_mode=87
hdmi_timings=400 0 100 10 140 1280 10 20 20 2 0 0 0 60 0 43000000 3


Note: For Raspberry Pi 4, you also need to comment out dtoverlay=vc4-fkms-V3D.

Package Includes

  • 1 x 7.9-inch LCD Screen
  • 1 x Cable
  • 1 x USB Cable
