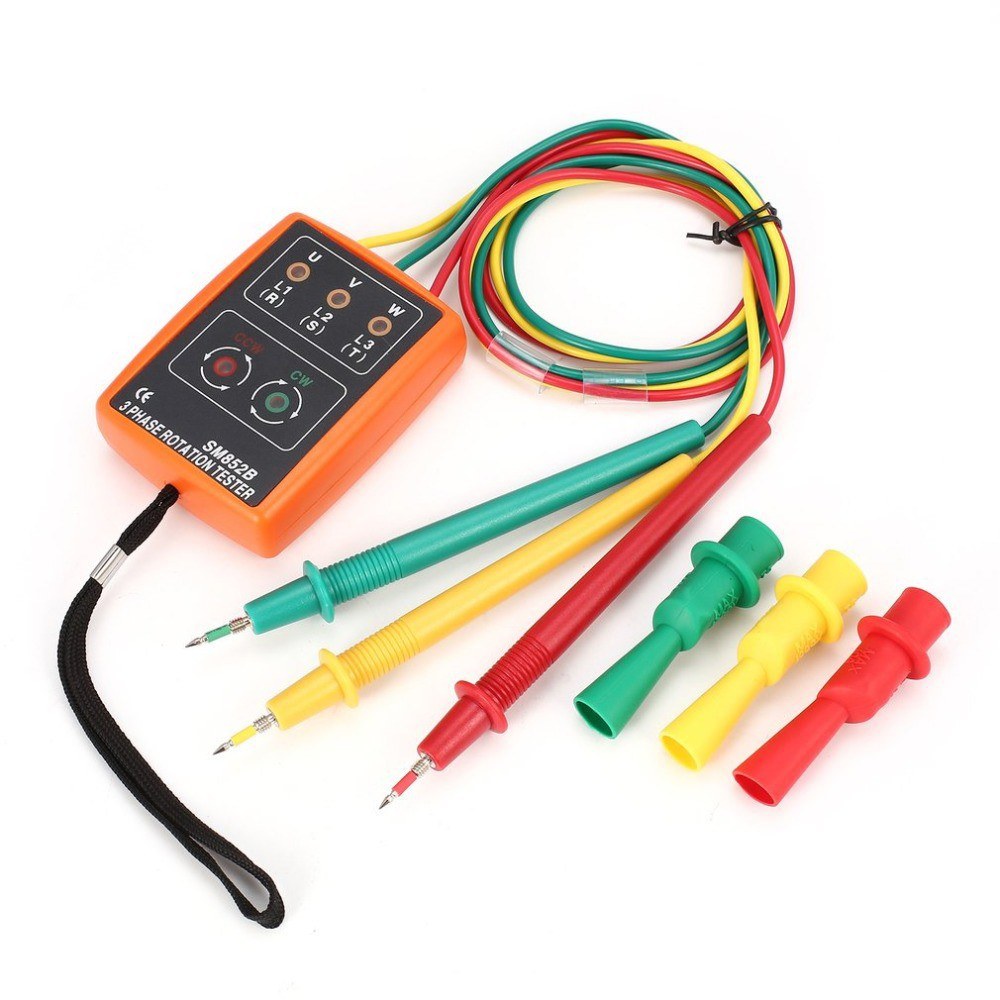

3-Phase Rotation Tester SM852B - Digital Phase Indicator & Sequence Meter with LED & Buzzer

This three-phase rotation tester is designed to check the phase sequence and indicate if any phase is open.

Features:

• Dual Functions: Check phase sequence and detect if a phase is open.
• Safe and Reliable: Equipped with clips for secure connection to control panel terminals.
• Wide Voltage Range: Tests voltages from 60V to 600V AC within three phases.
• User-Friendly: LED light and buzzer for easy phase condition indication.
• Portable Design: Compact and lightweight for convenient carrying.

Specifications:

• Material: Plastics and metal
• Operation Voltage: 60V - 600V AC three-phase
• Limit Support Voltage: 2000V/minute (impulse voltage 4000V)
• Operation Frequency Range: 20Hz - 400Hz
• Limit Time for Continuous Use:
  • 60 minutes maximum at 60V-AC
  • 4 minutes maximum at 600V-AC
• Phase Sequence Indicator LED:
  • Green for correct phase sequence, intermittent beep
  • Red for reverse phase sequence, continuous beep
• Item Size: 85 x 64 x 23mm (3.3 x 2.5 x 0.9in)
• Item Weight: 120g (4.2 ounces)
• Package Size: 120 x 100 x 50mm (4.7 x 3.9 x 2.0in)
• Package Weight: 200g (7.1 ounces)

Packing List:

• 1 x Phase Indicator
