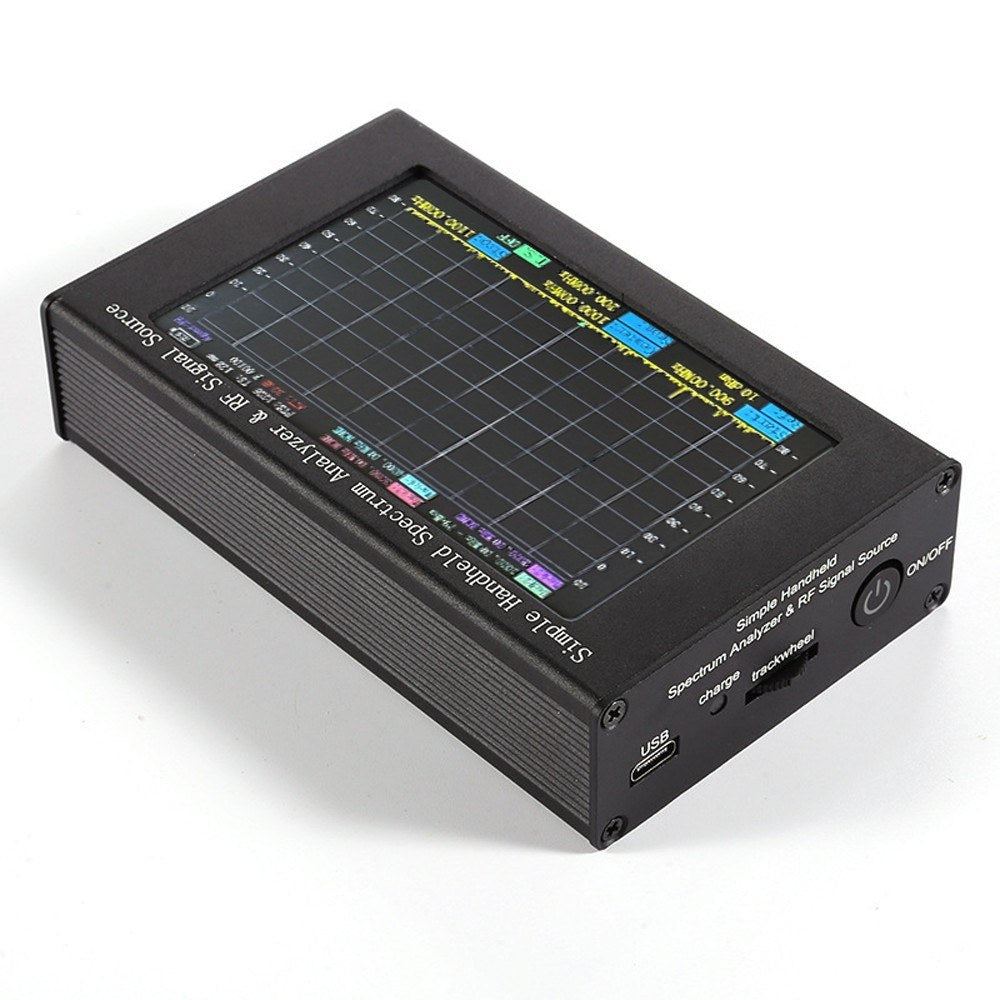

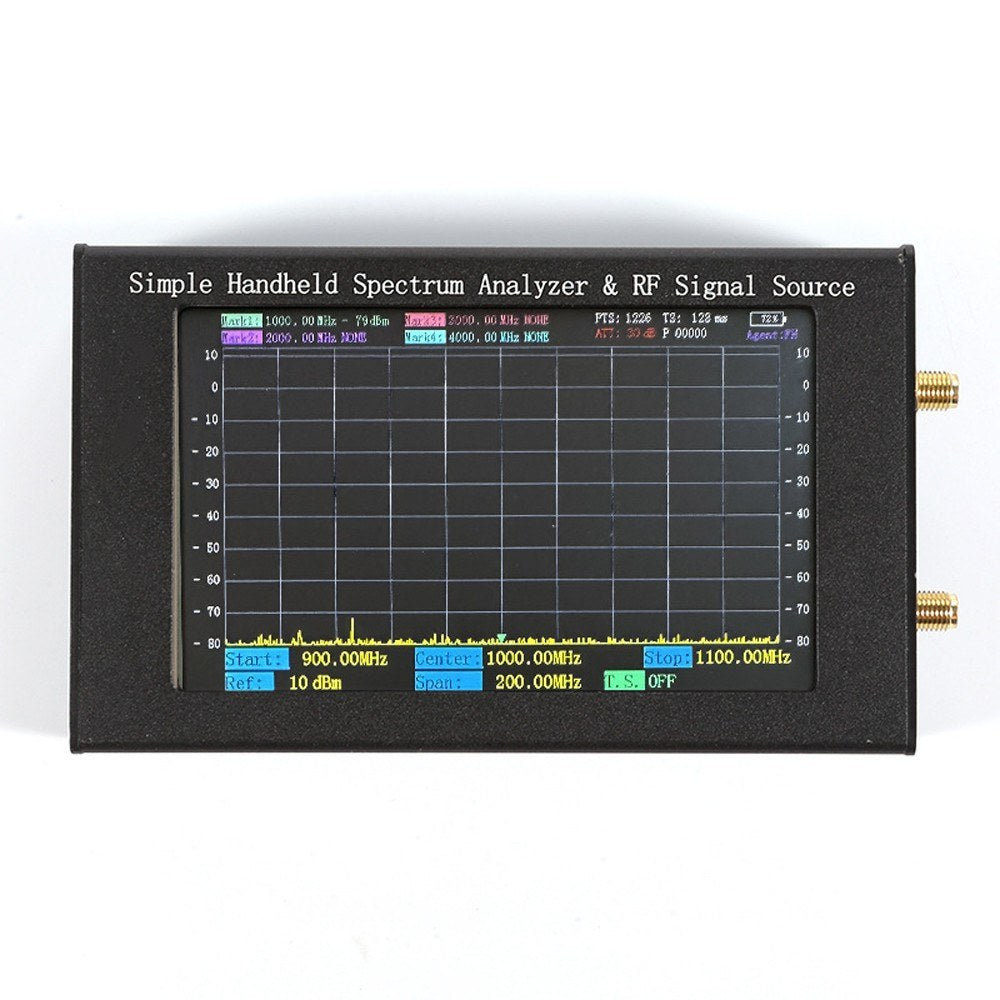

Handheld ZQ6 Spectrum Analyzer 35MHz-6000MHz with RF Signal & Tracking Source, 4.3 Touchscreen, Large Battery

This high-performance device is expertly engineered for precise signal measurement and analysis. Ideal for engineers and technicians, it ensures accurate identification and monitoring of signal frequencies. Equipped with a broad frequency range and high sensitivity, this Spectrum Analyzer offers dependable and comprehensive data for your intricate signal analysis requirements.

Features:

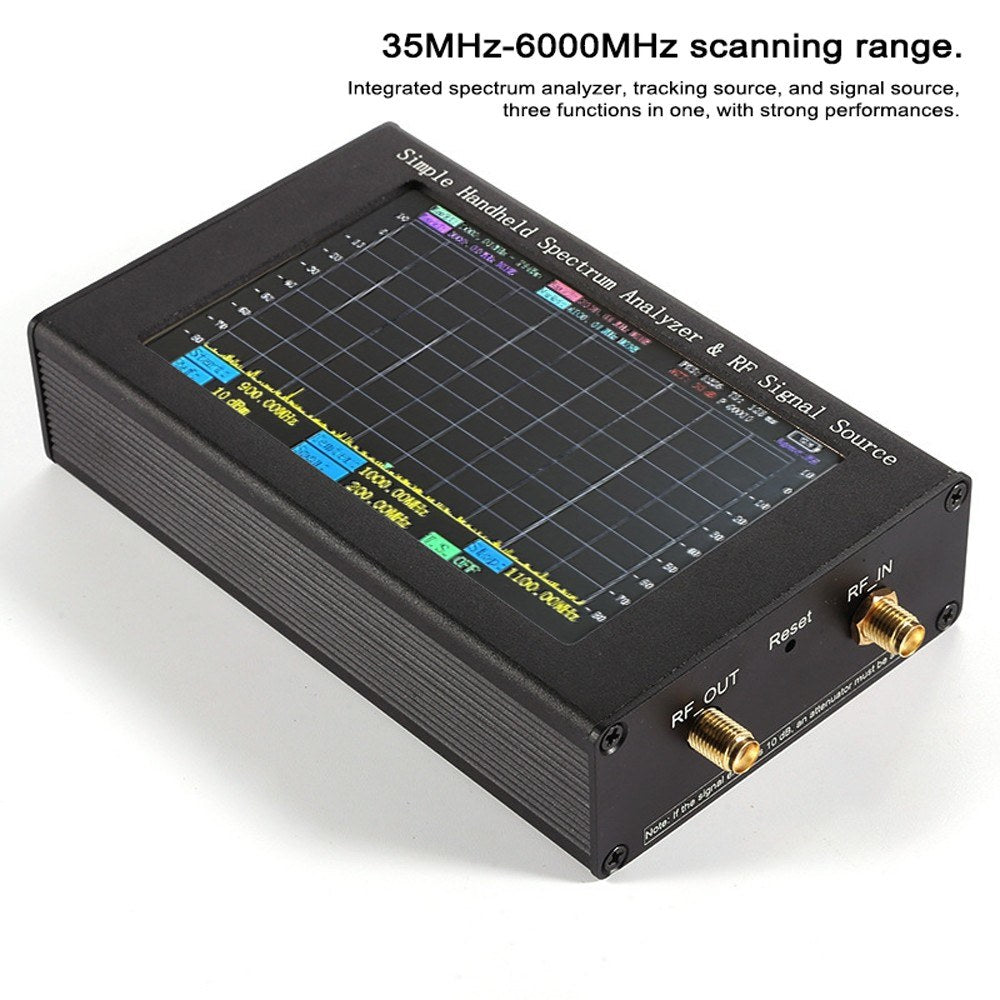

• Extensive 35MHz-6000MHz scanning range
• Integrated functionality: spectrum analyzer, tracking source, and signal source in one

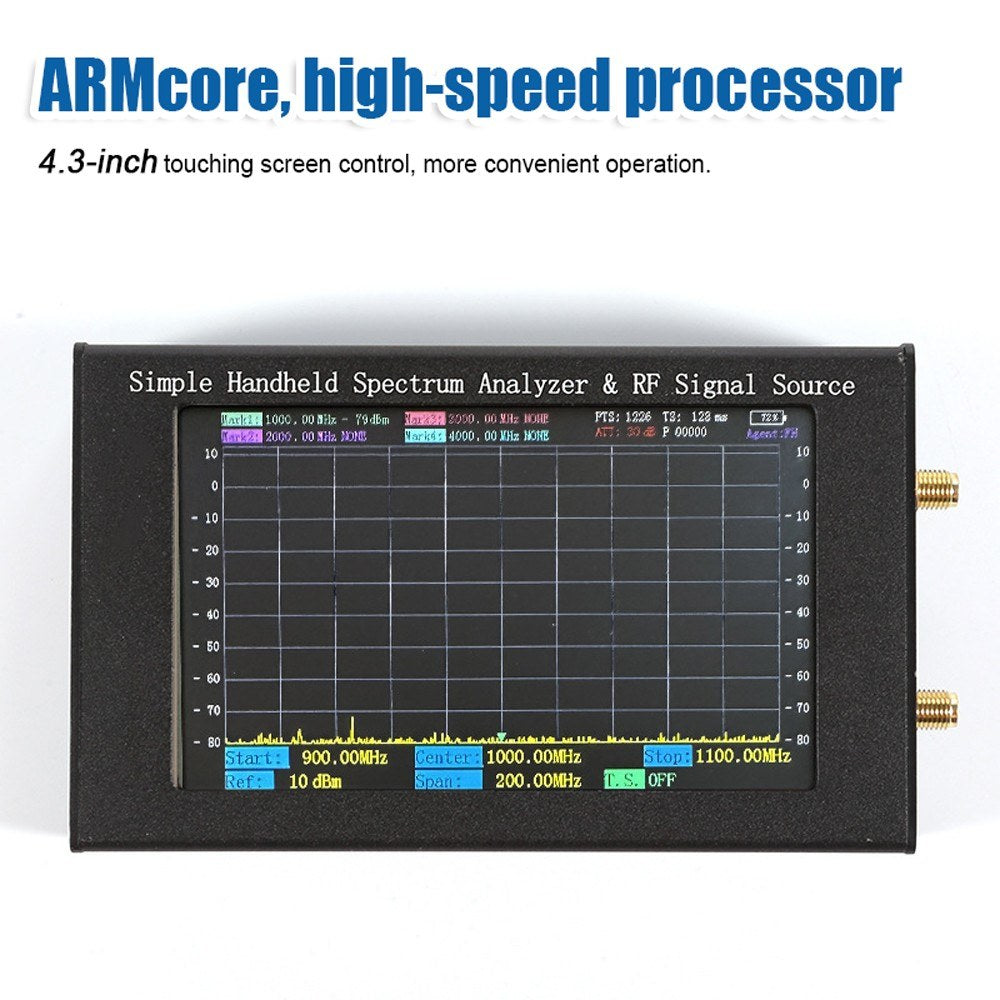

• Powered by an ARM-core, high-speed processor

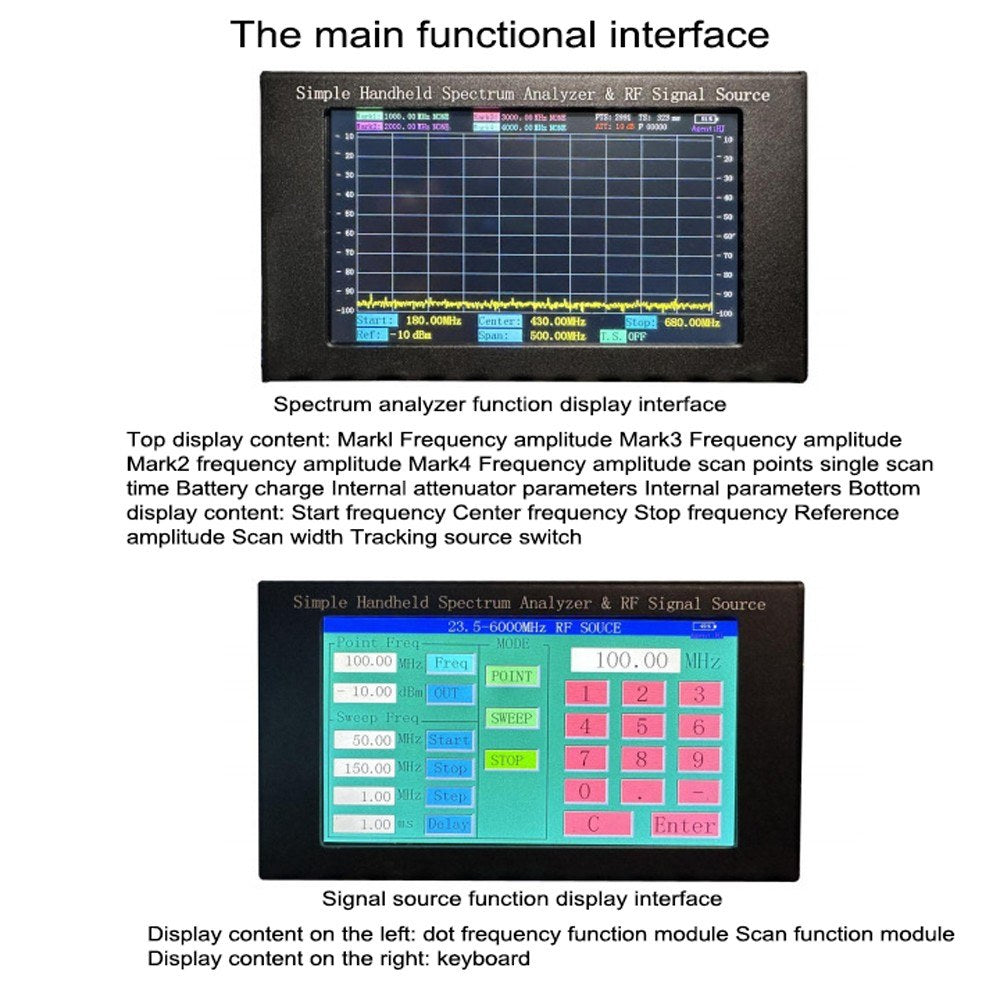

• 4.3-inch touchscreen for intuitive control and convenience
• 5000mAh large capacity battery for prolonged usage
• Compact design for easy portability and storage
• Built-in signal attenuator and amplifier
• Ability to display up to 4 MarkPoint markers

Specifications:

Spectrum Analyzer Functions:

• Scanning range: 35MHz to 6000MHz
• Maximum input signal light: 10dBm
• Minimum SingleScan width: 1MHz
• Maximum SingleScan width: 5965MHz
• 100MHz scanning time: ≤150ms
• Background noise: -115dBm
• Tracking source output range: 35MHz-6000MHz

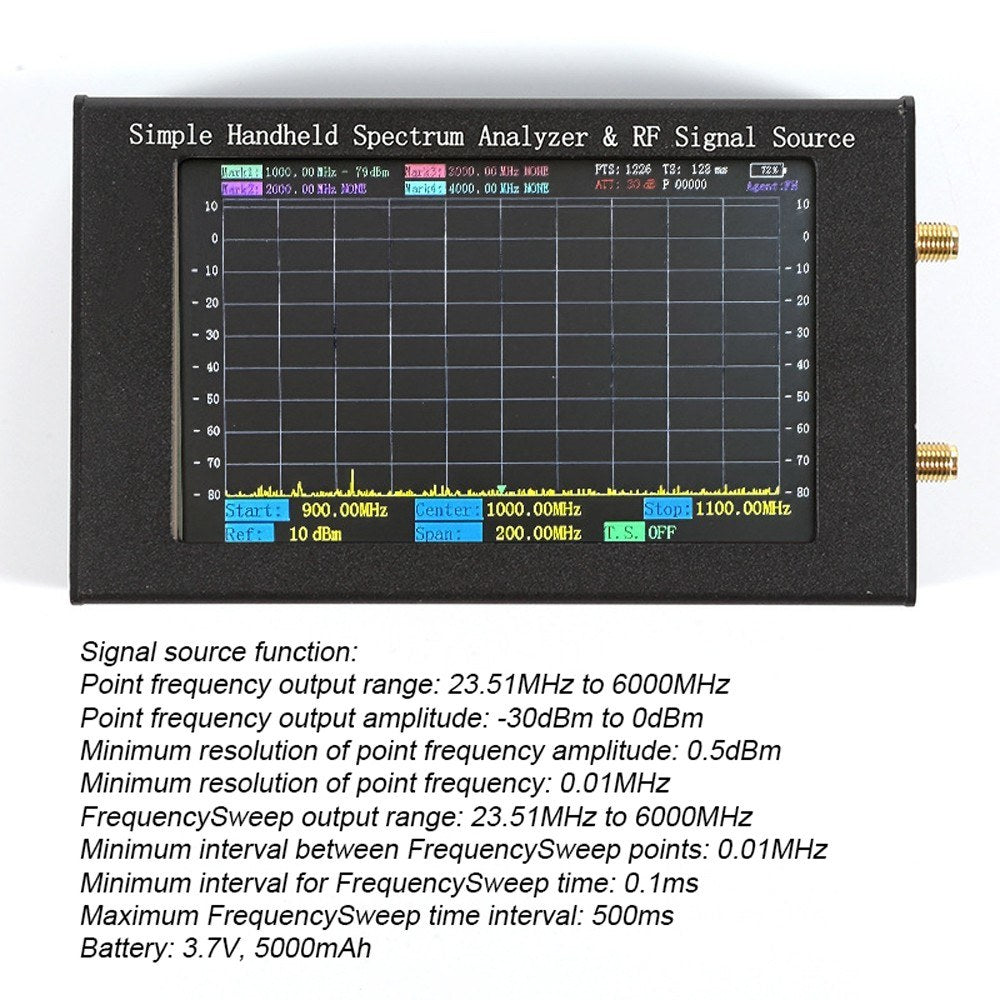

Signal Source Function:

• Point frequency output range: 23.51MHz to 6000MHz
• Point frequency output amplitude: -30dBm to 0dBm
• Minimum resolution of point frequency amplitude: 0.5dBm
• Minimum resolution of point frequency: 0.01MHz
• FrequencySweep output range: 23.51MHz to 6000MHz
• Minimum interval between FrequencySweep points: 0.01MHz
• Minimum interval for FrequencySweep time: 0.1ms
• Maximum FrequencySweep time interval: 500ms

Battery and Dimensions:

• Battery: 3.7V, 5000mAh
• Item size: 130 x 73 x 27mm / 5.1 x 2.9 x 1.1 inches
• Item weight: 400g / 0.9lb
• Package size: 180 x 110 x 50mm / 7.1 x 4.3 x 2.0 inches
• Package weight: 490g / 1.1lb

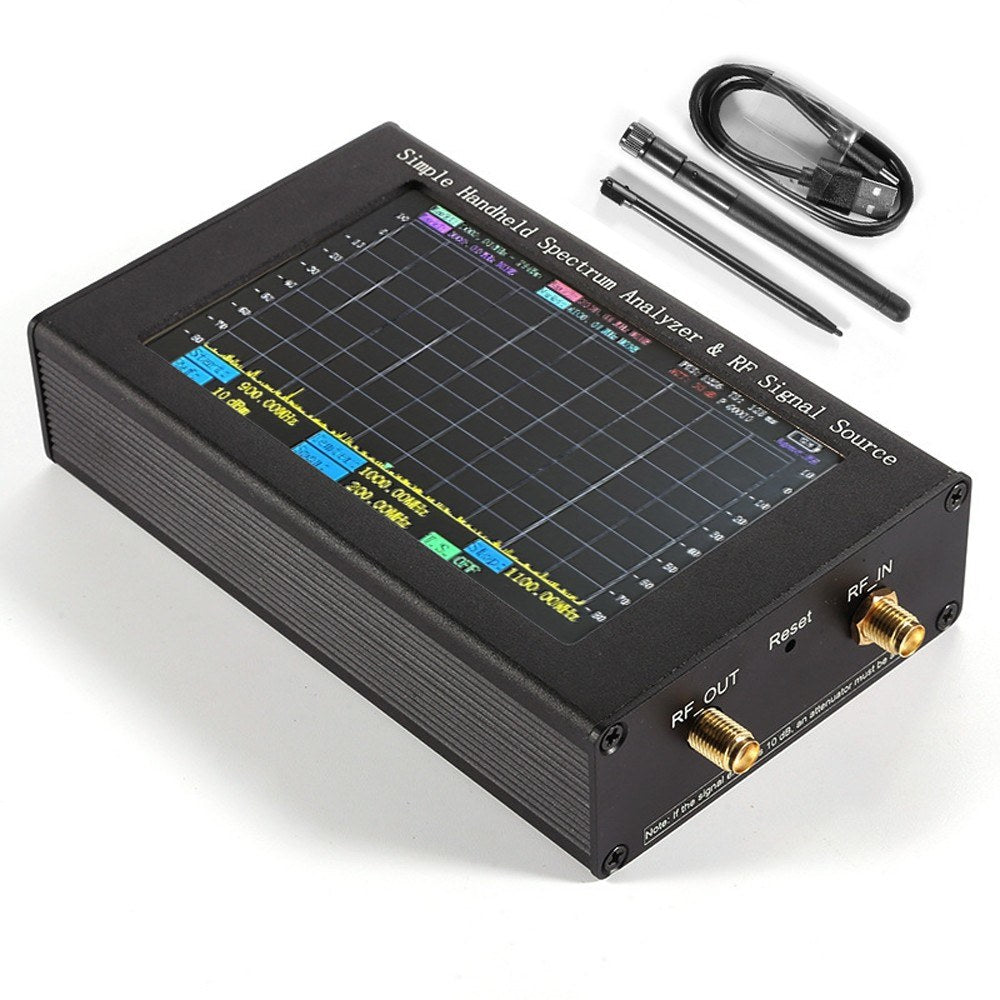

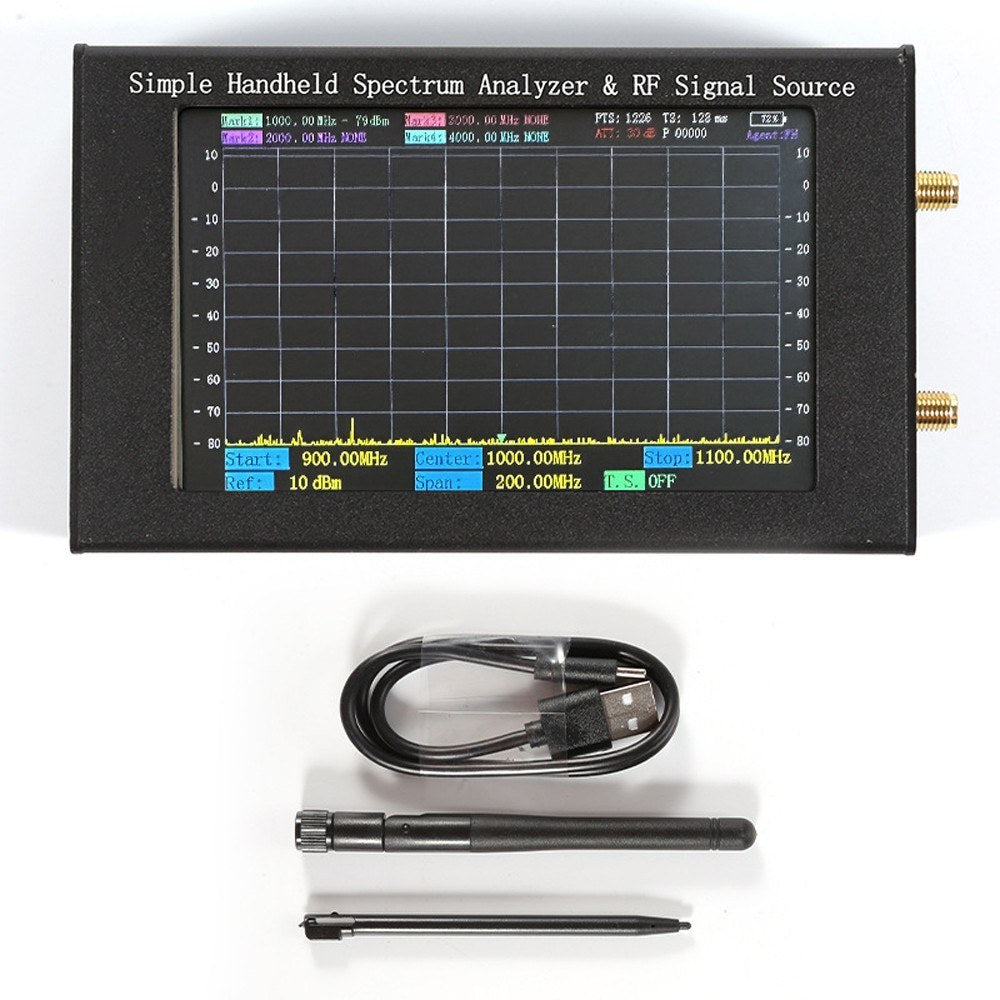

Packing List:

• 1 x Spectrum Analyzer
• 1 x USB Cable
• 1 x Antenna
• 1 x Touchscreen Pen
