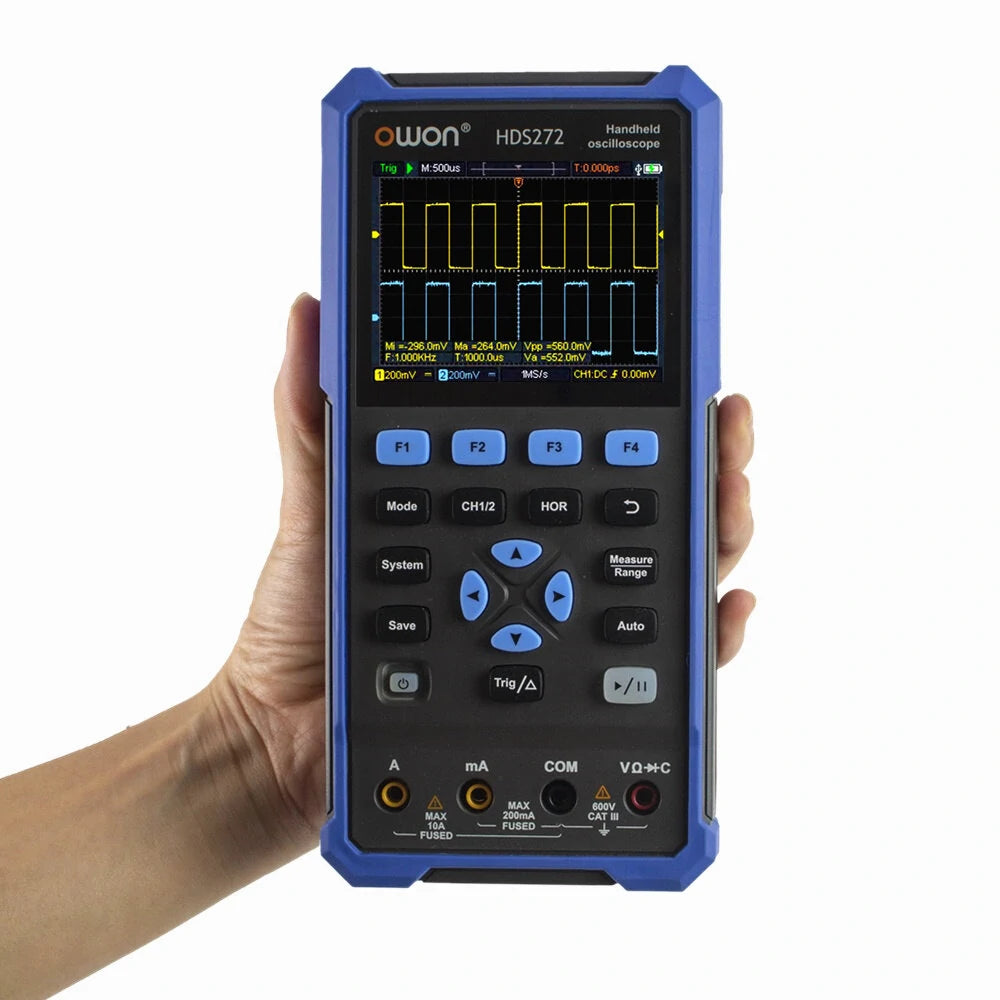

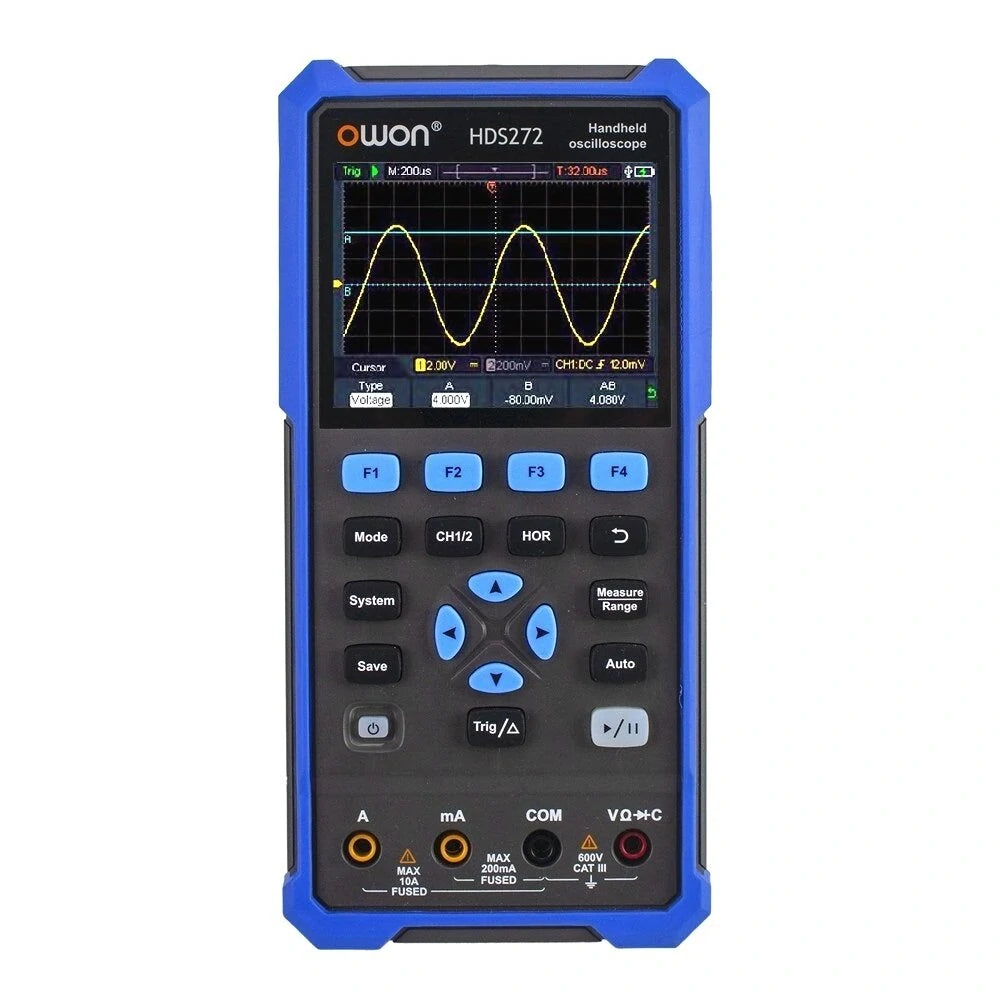

OWON® HDS200 Series 2-Channel Handheld Oscilloscope & Multimeter with Waveform Generator, 40/70/100MHz Bandwidth, 20,000 Counts - Ideal for Automobile Maintenance and Power Testing

Product Overview

Explore the dynamic capabilities of the HDS2102 & HDS2102S. Note: If your computer does not automatically install the software, please follow the manual's PDF instructions for manual installation.

Download: English Manual and Software

Features

• Combines an oscilloscope, multimeter, and waveform generator in one unit.
• Equipped with a 3.5-inch high-resolution, high-contrast color LCD for outdoor use.
• Powered by a 18650 lithium battery, offering a comprehensive power consumption of ≤3W and continuous operation for approximately 6 hours.

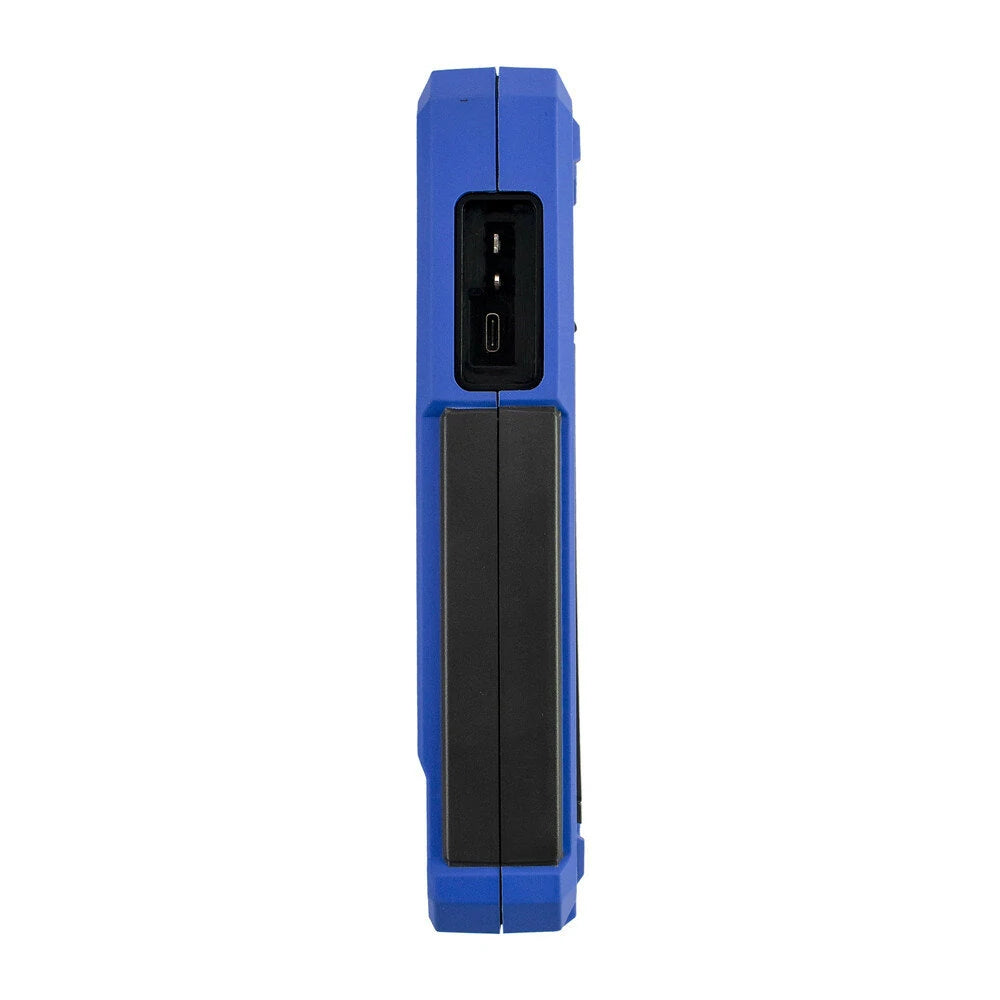

• USB Type-C interface supports power bank and PC software connection.
• Features a self-calibration function.
• Supports SCPI for convenient secondary development.

Specifications

Oscilloscopes

• Models: HDS242, HDS272, HDS2102, HDS242S, HDS272S, HDS2102S
• Bandwidth: 40MHz, 70MHz, 100MHz
• Channels: 2-CH Oscilloscope, 1-CH Generator
• Sample Rate: 250MSa/s, 500MSa/s
• Acquisition Model: Normal, Peak Test
• Record Length: 8K
• Display: 3.5-inch LCD
• Waveform Refresh Rate: 10,000 wfrms/s
• Input Coupling: DC, AC, and Ground
• Input Impedance: 1 MΩ+2%, in parallel with 16pF+10pF
• Probe Attenuation Factors: 1X, 10X, 100X, 1000X, 10000X
• Max. Input Voltage: 400V (DC+AC, PK PK, 1MΩ input impedance, 10:1 probe attenuation)
• Bandwidth Limit (typical): 20MHz
• Horizontal Scale: 5ns/div - 1000s/div, step by 1-2-5
• Vertical Sensitivity: 10mV/div - 10V/div
• Vertical Resolution: 8 bits
• Trigger Type: Edge
• Trigger Modes: Auto, Normal, Single
• Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
• Cursor Measurement: ΔV, ΔT, ΔT & ΔV between cursors
• Communication Interface: USB Type-C

Multimeter (Standard)

• Max. Resolution: 20,000 counts
• Testing Mode: Voltage, Current, Resistance, Capacitance, Diode, and Continuity test
• Input Impedance: 10MΩ
• Max Input Voltage: AC 750V, DC 1000V
• Max Input Current: DC: 10A, AC: 10A
• Diode Range: 0-2V

Waveform Generator

(Available only for models HDS242S, HDS272S, and HDS2102S)

• Frequency Output:
  • Sine: 0.1Hz - 25MHz
  • Square: 0.1Hz - 5MHz
  • Ramp: 0.1Hz - 1MHz
  • Pulse: 0.1Hz - 5MHz
  • Arbitrary: 0.1Hz - 5MHz
• Sampling Rate: 125MSa/s
• Channel: 1-CH
• Amplitude Range: 20mVpp-5Vpp
• Waveform Length: 8K
• Vertical Resolution: 14 bits
• Output Impedance: 50Ω

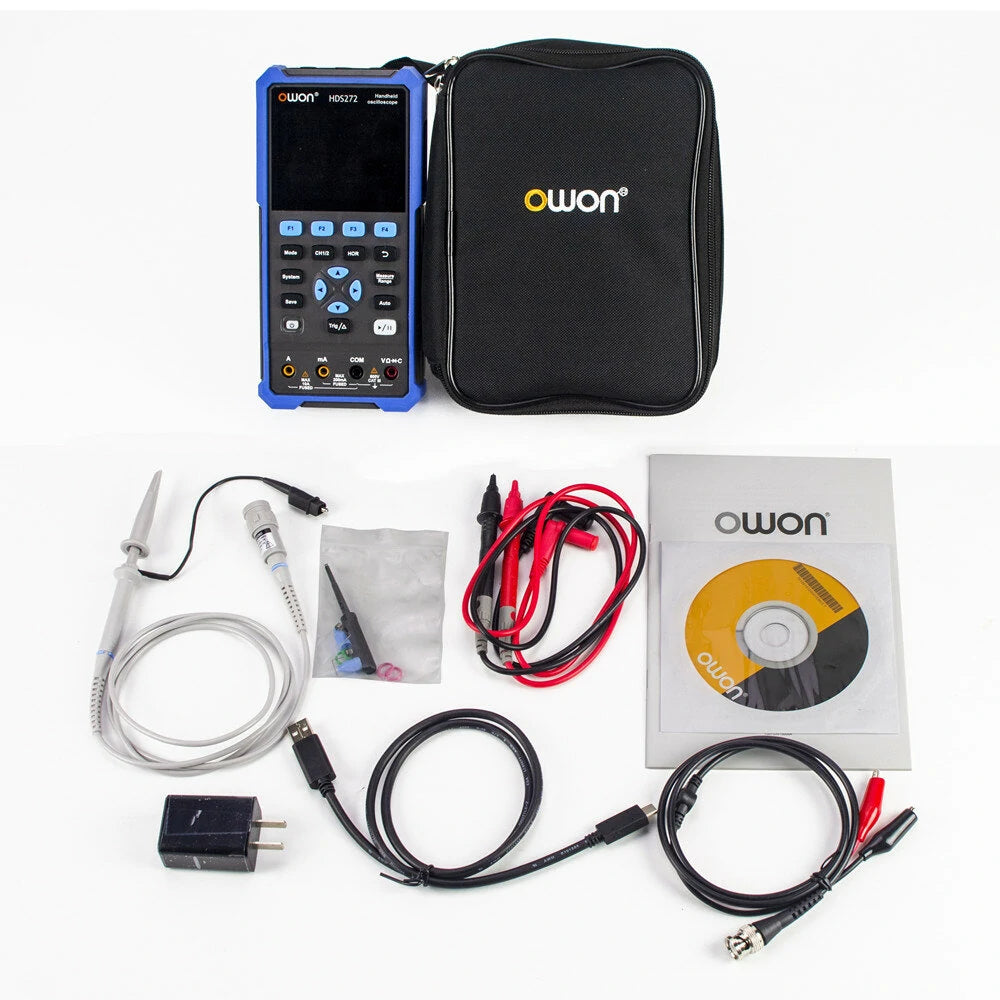

Package Includes

• 1 x Main Device
• 1 x Bag

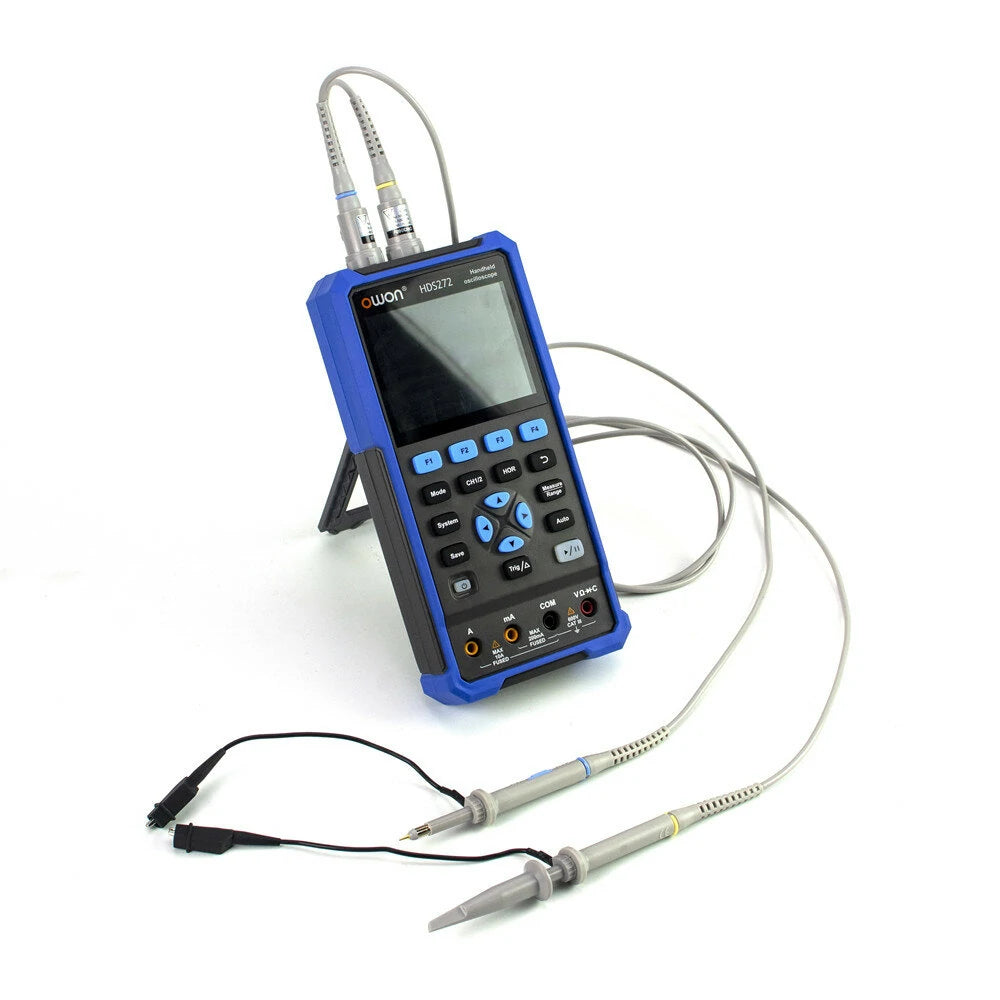

• 1 x Probe
• 1 x Power Plug (EU type)
• 1 x Probe Adjuster
• 1 x USB Cable

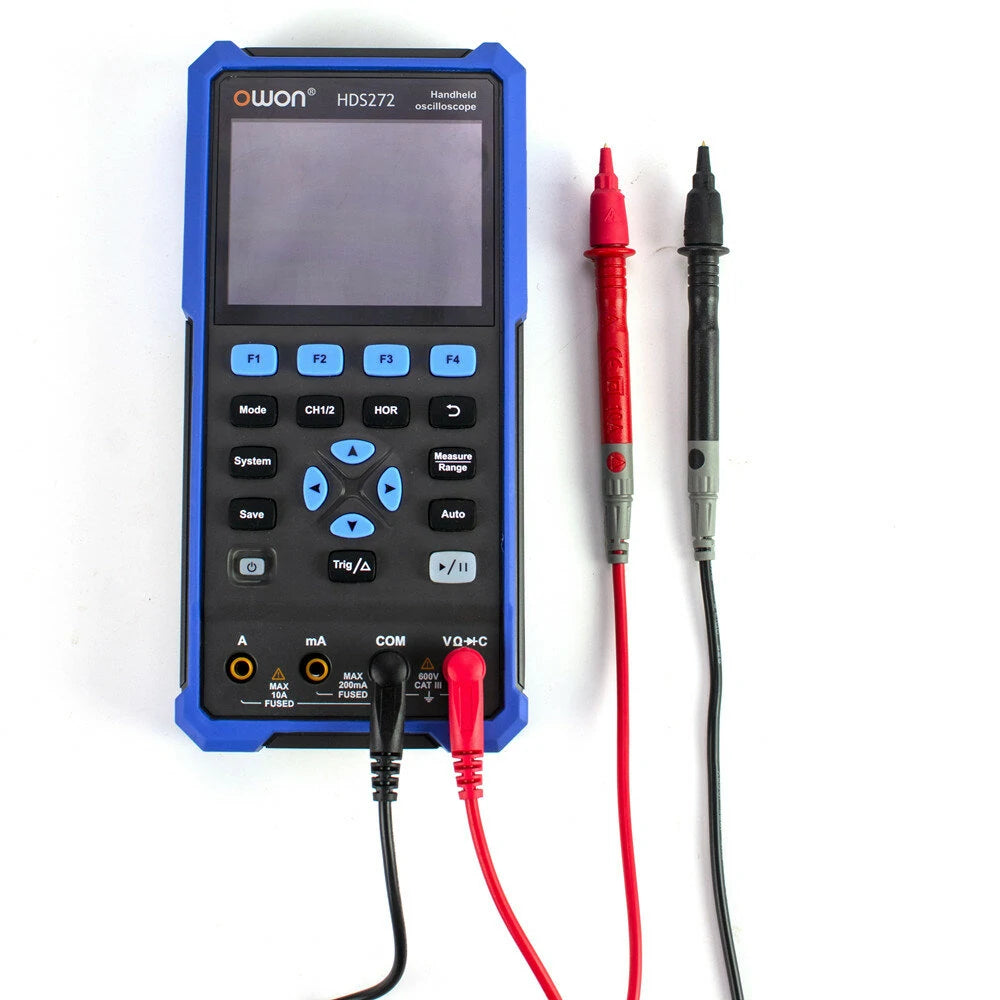

• 2 x Multimeter Leads
• 1 x Instructions
• 1 x CD-ROM
• 1 x BNC to Alligator Clip

Note: We will include a plug adapter suitable for your country.
