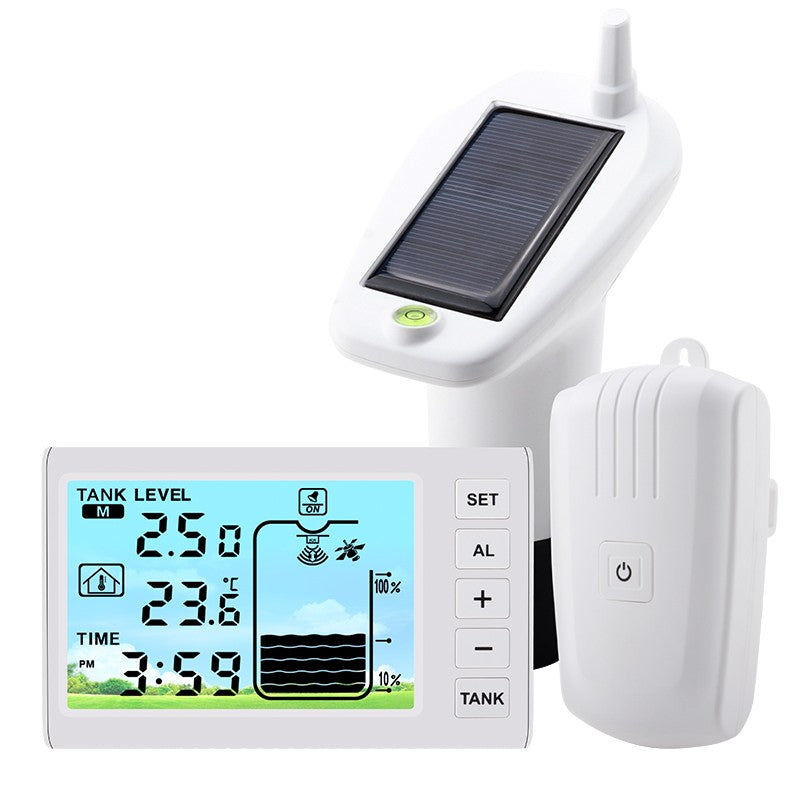

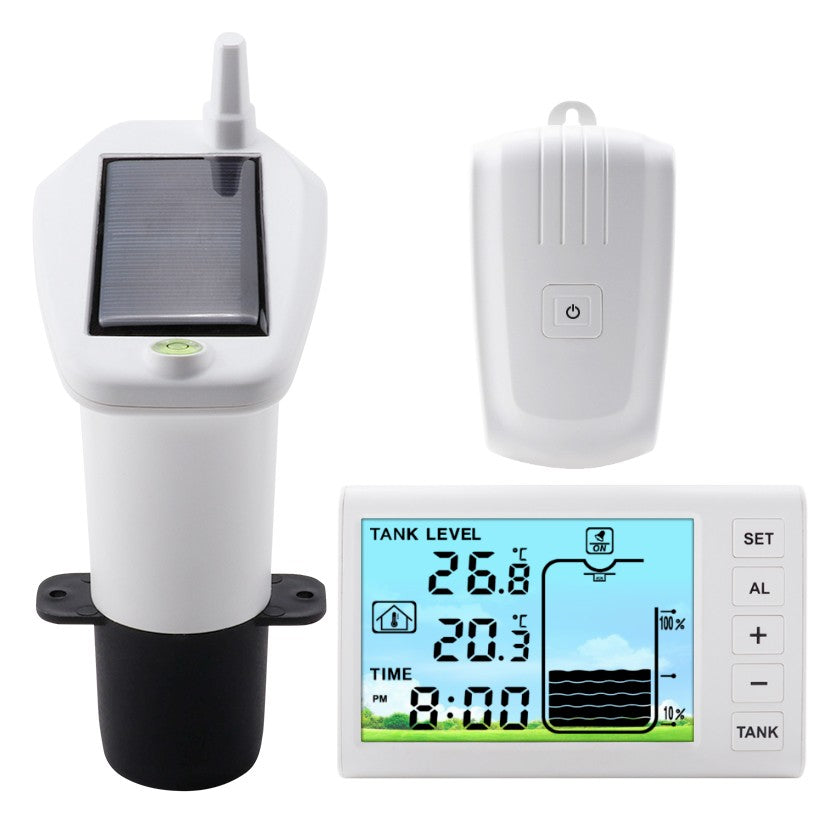

Ultrasonic Water Level Sensor with Temperature Display and Automatic Water Addition

Product Features

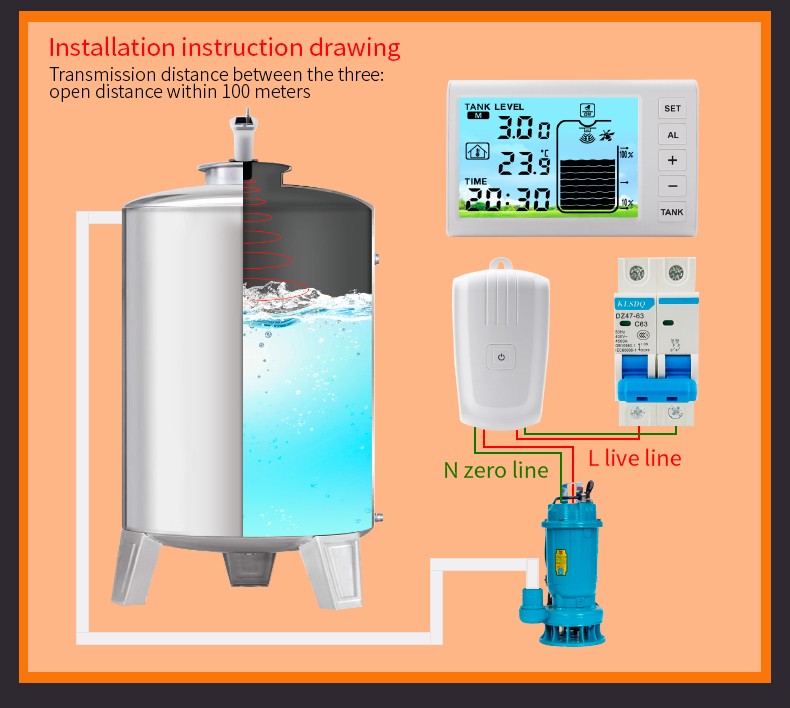

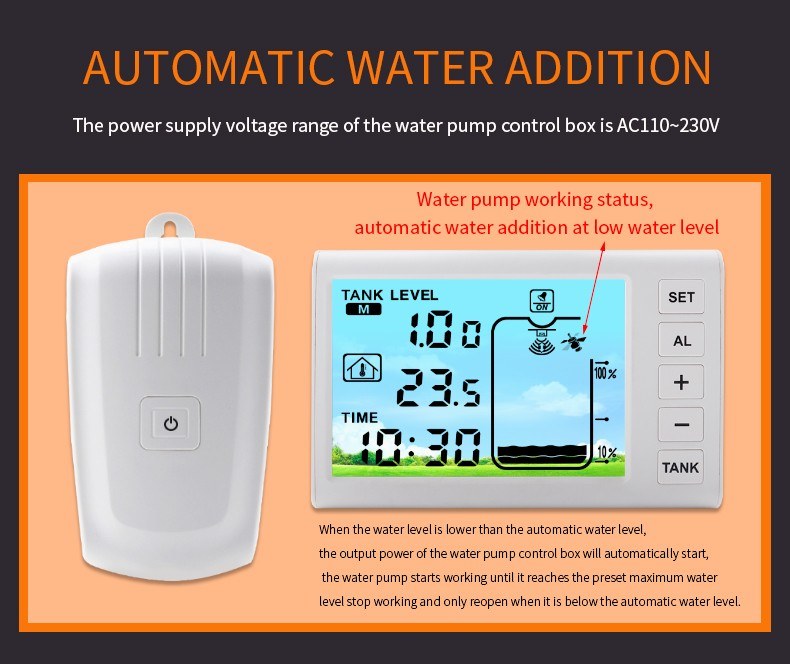

• Automatic Water Addition: Supports a wide power supply voltage range of AC110-230V for the water pump control box.

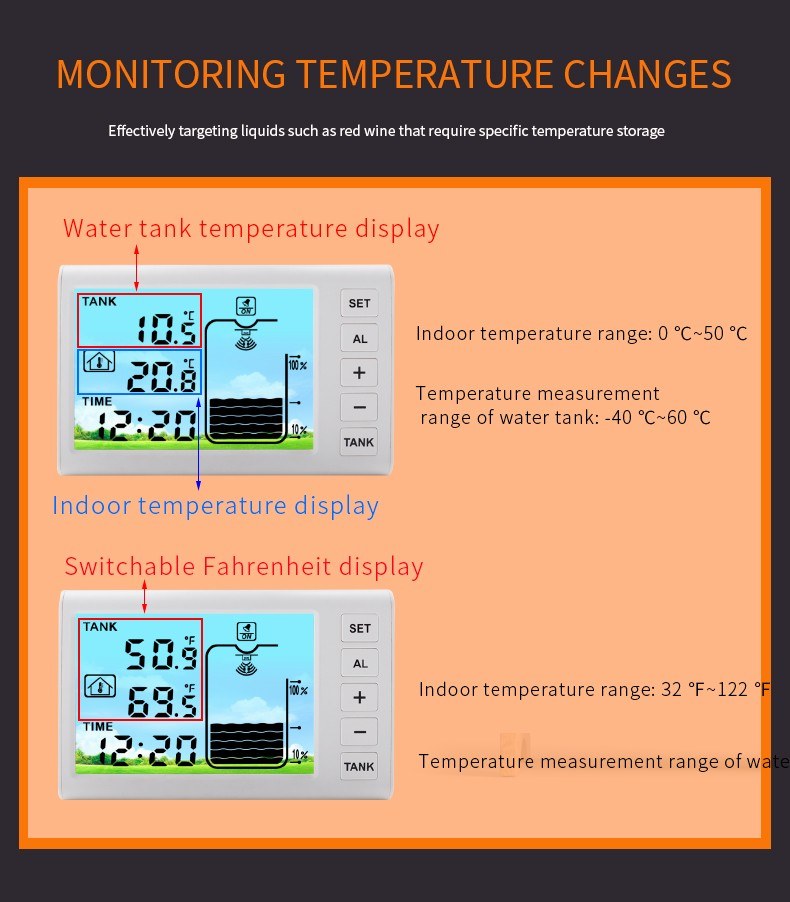

• Temperature Monitoring: Specially designed for liquids requiring precise temperature storage, including red wine.

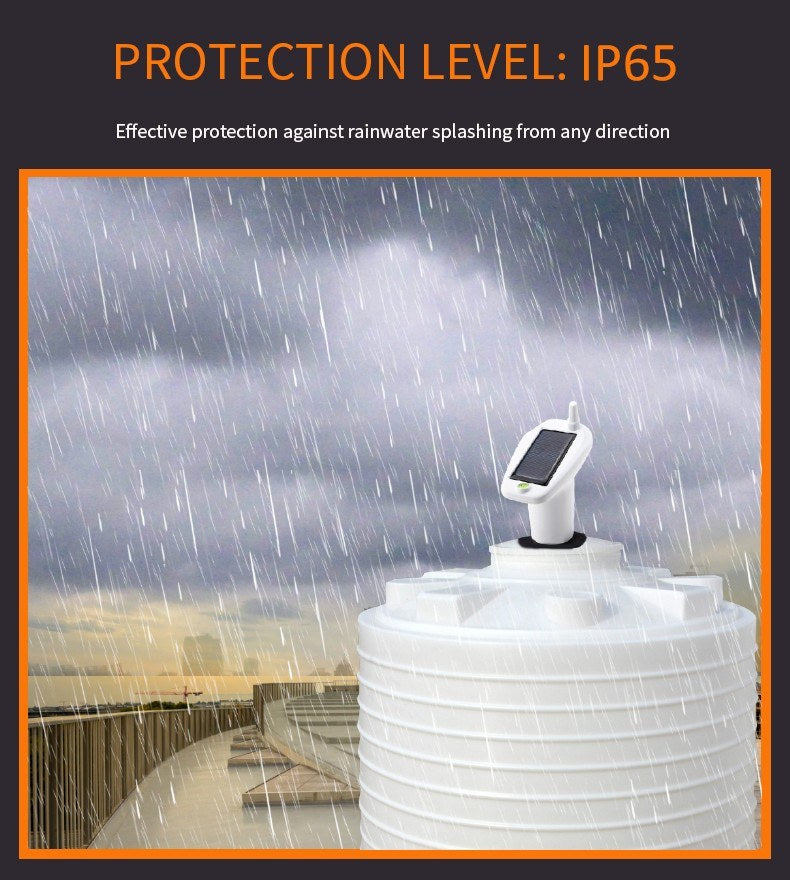

• IP65 Waterproof: Offers effective protection against rainwater from all directions.

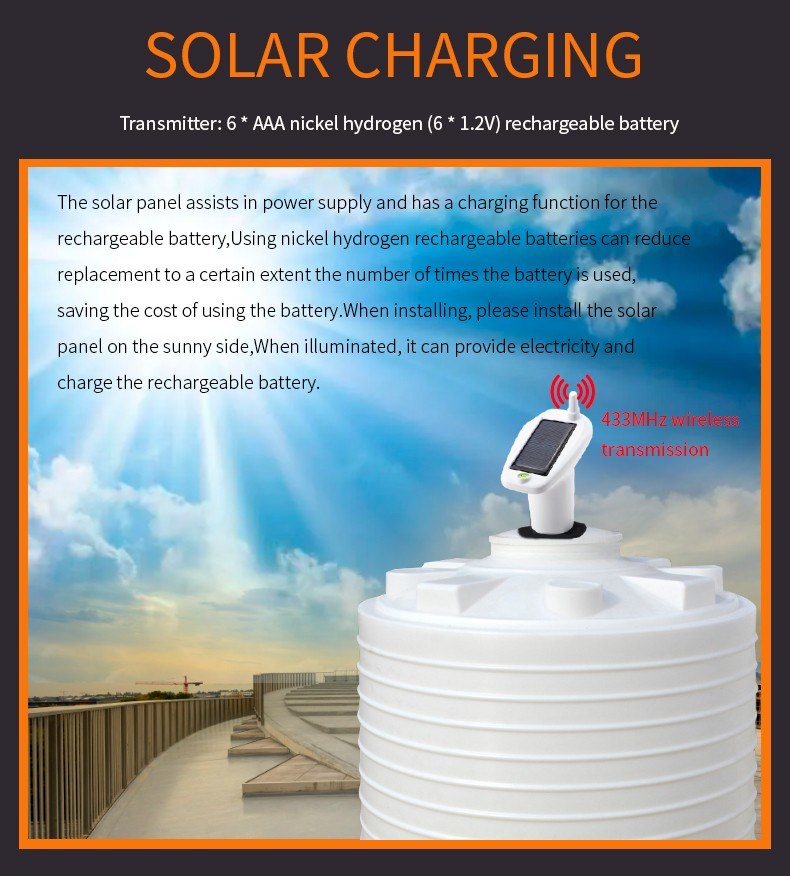

• Solar Charging: Equipped with a solar panel that powers and charges nickel hydrogen rechargeable batteries, reducing battery replacement frequency and cost. Ensure installation on a sunny side for optimal charging.

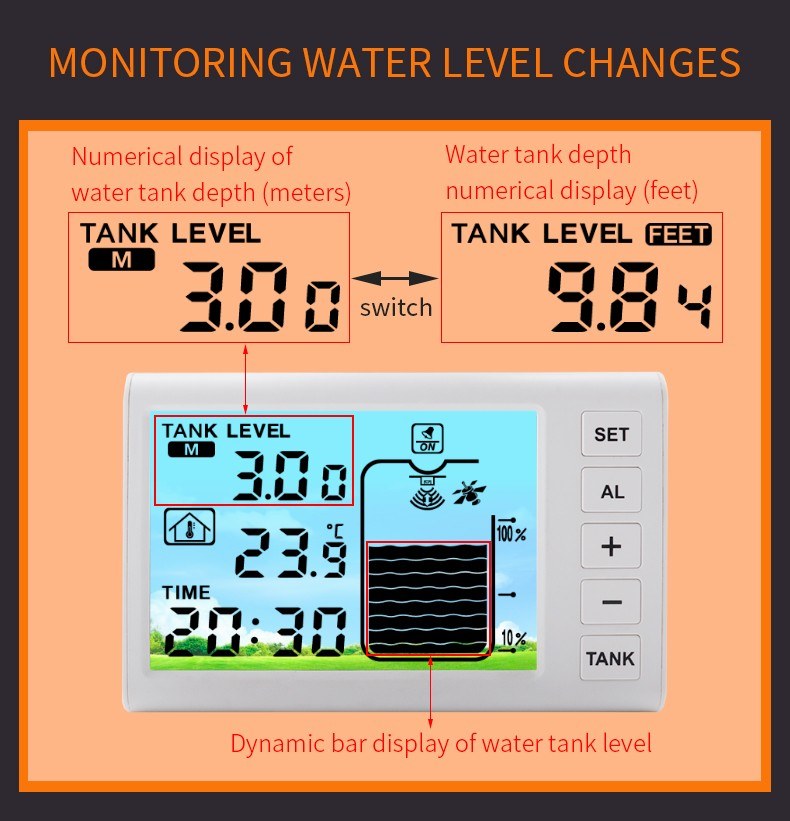

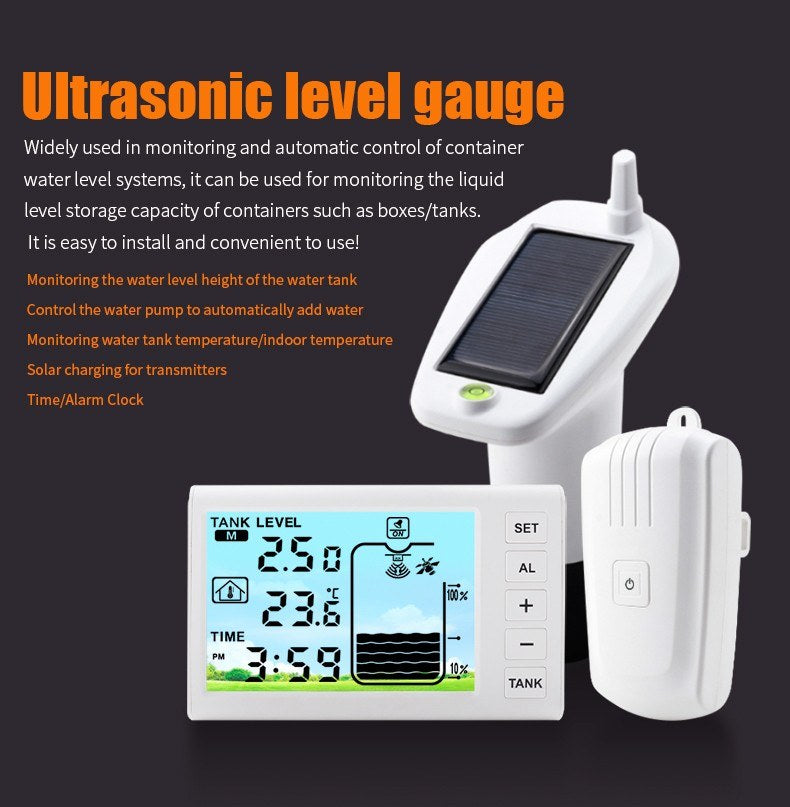

• Ultrasonic Level Gauge: Ideal for monitoring and controlling container water levels, suitable for use with boxes and tanks. Easy installation and user-friendly.

Specifications

• Model: TS-FT001
• Material: ABS
• Color: White
• Water Pump Control Box:
  • Operating Voltage: AC 110~230V
• Receiver:

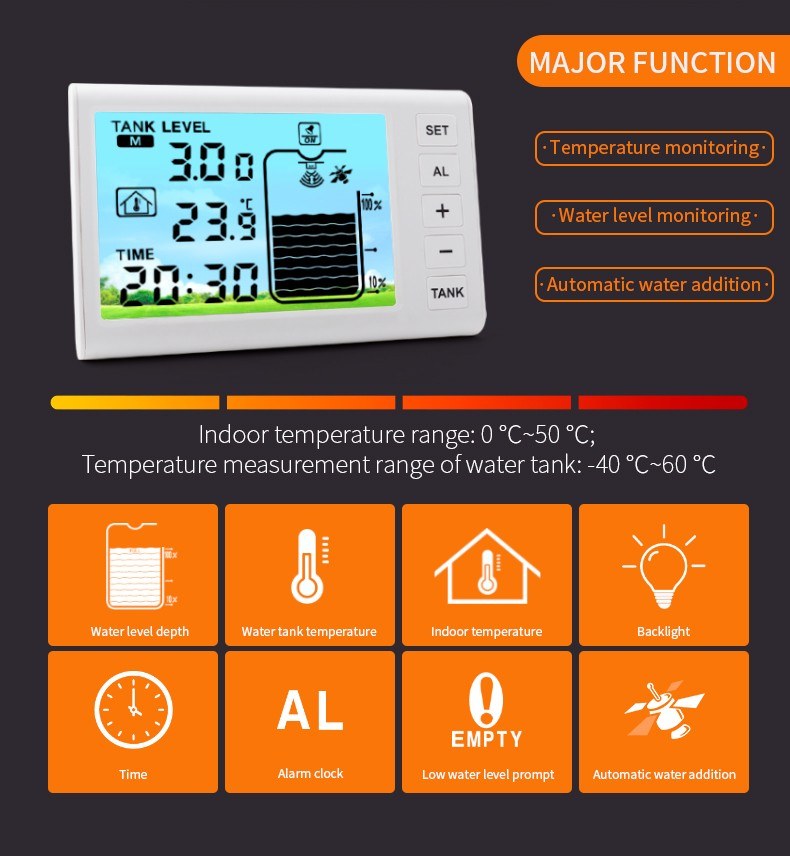

  • Indoor Temperature Range: 0℃~50℃, -32℉~122℉
  • Resolution: 0.1℃
  • Accuracy: ±1℃
  • Water Tank Temperature Range: -40℃~60℃, -40℉~140℉
  • Alarm Duration: 120 seconds
• Transmitter:
  • Temperature Resolution: 0.1℃
  • Accuracy: ±1℃
  • Water Level Resolution: 0.01m
  • Accuracy: ±0.05m
  • Water Level Measurement Range: 1~5m
• Battery Use:
  • Receiver: Powered by 3 * AAA 1.5V 900mAh batteries (not included) or Type-C power cord
  • Receiver Battery Life: Up to 12 months without backlight activation

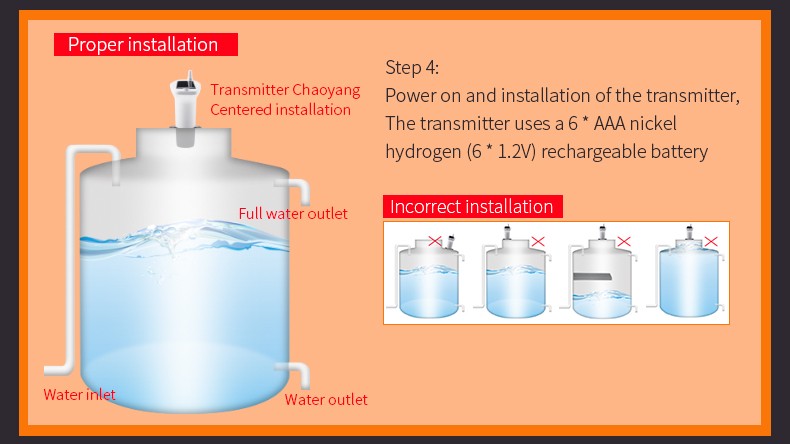

  • Transmitter: Powered by 6 * AAA batteries (not included); rechargeable batteries recommended for solar charging
  • Transmitter Battery Life: Up to 12 months without sunlight exposure

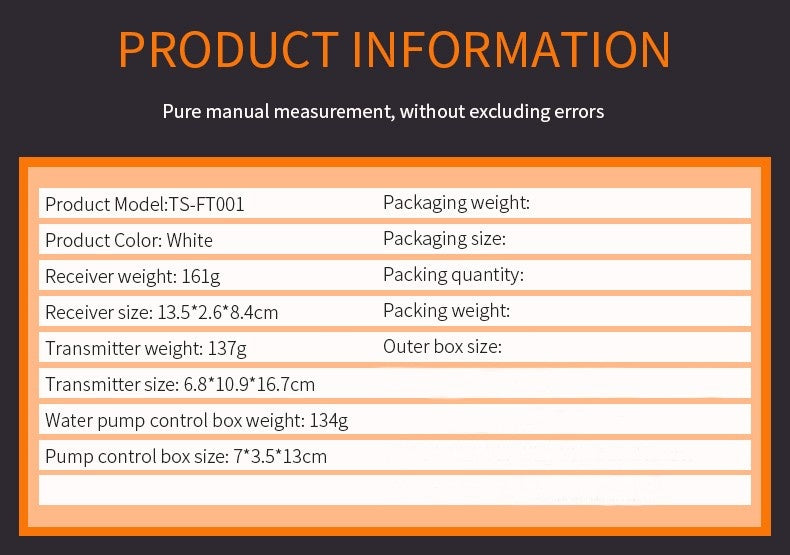

• Dimensions and Weight:
  • Receiver Weight: 161g
  • Receiver Size: 13.5 * 2.6 * 8.4cm
  • Transmitter Weight: 137g
  • Transmitter Size: 6.8 * 10.9 * 16.7cm
  • Water Pump Control Box Weight: 134g
  • Pump Control Box Size: 7 * 3.5 * 13cm
  • Package Weight: 633g / 22.32oz
  • Package Size: 14.5 * 12 * 16cm / 5.71 * 4.72 * 6.29in

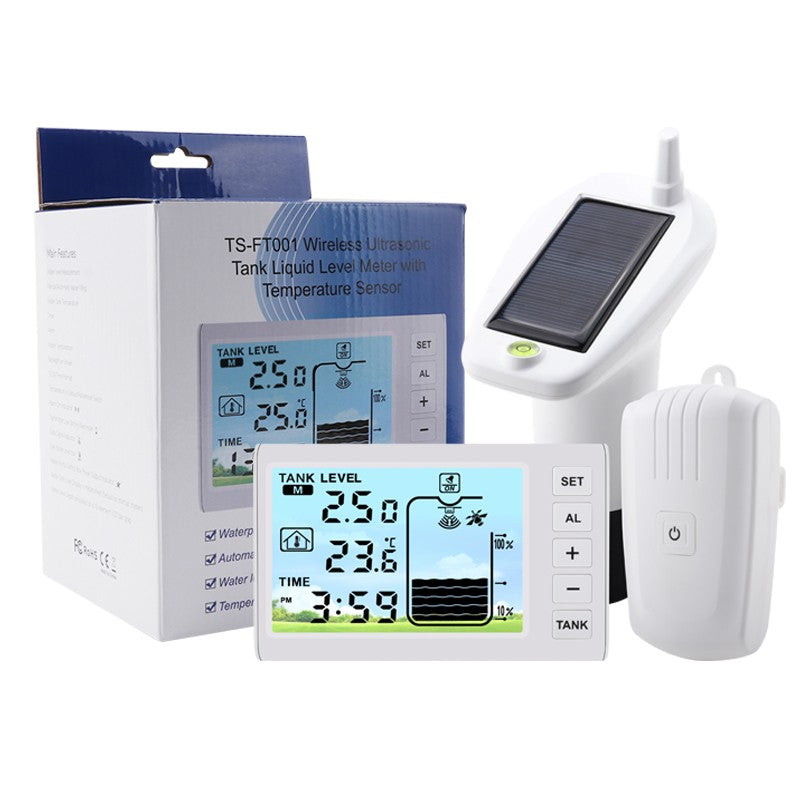

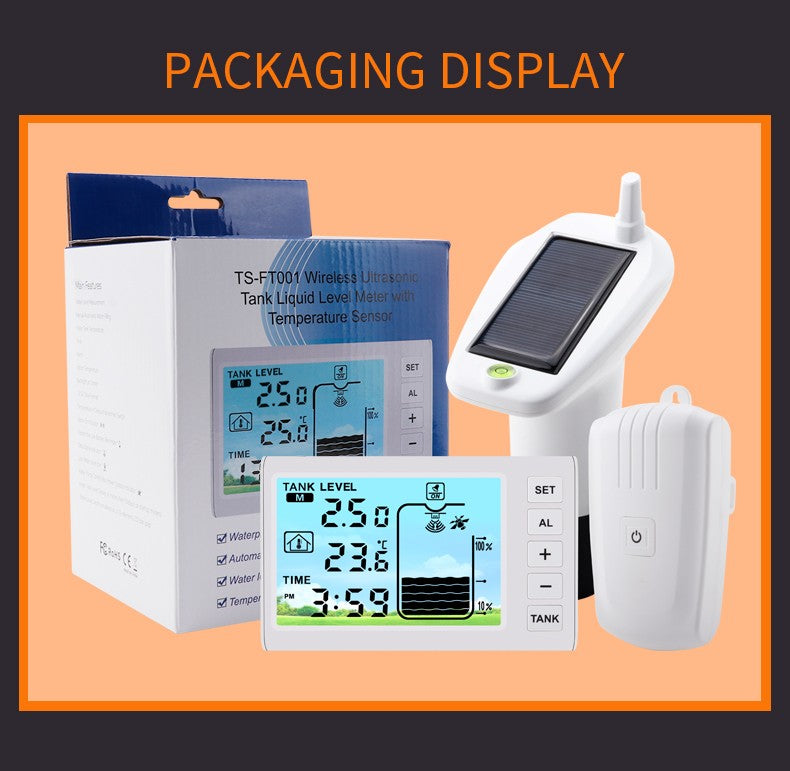

Package Contents

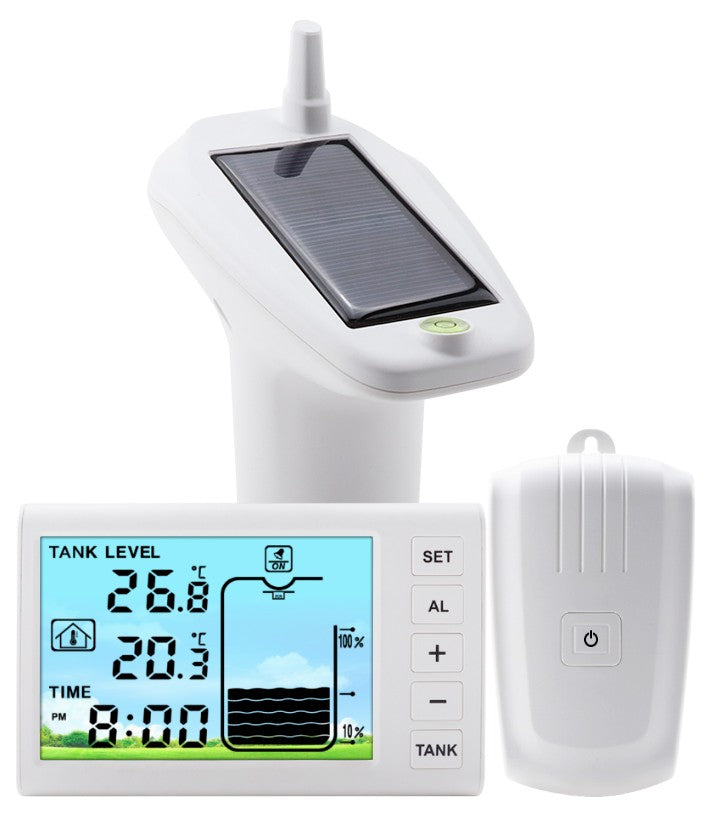

• 1 * Receiver
• 1 * Transmitter
• 1 * Water Pump Control Box
• 1 * Type-C Power Cord
• 3 * Mounting Screws
• 1 * User Manual (English)
