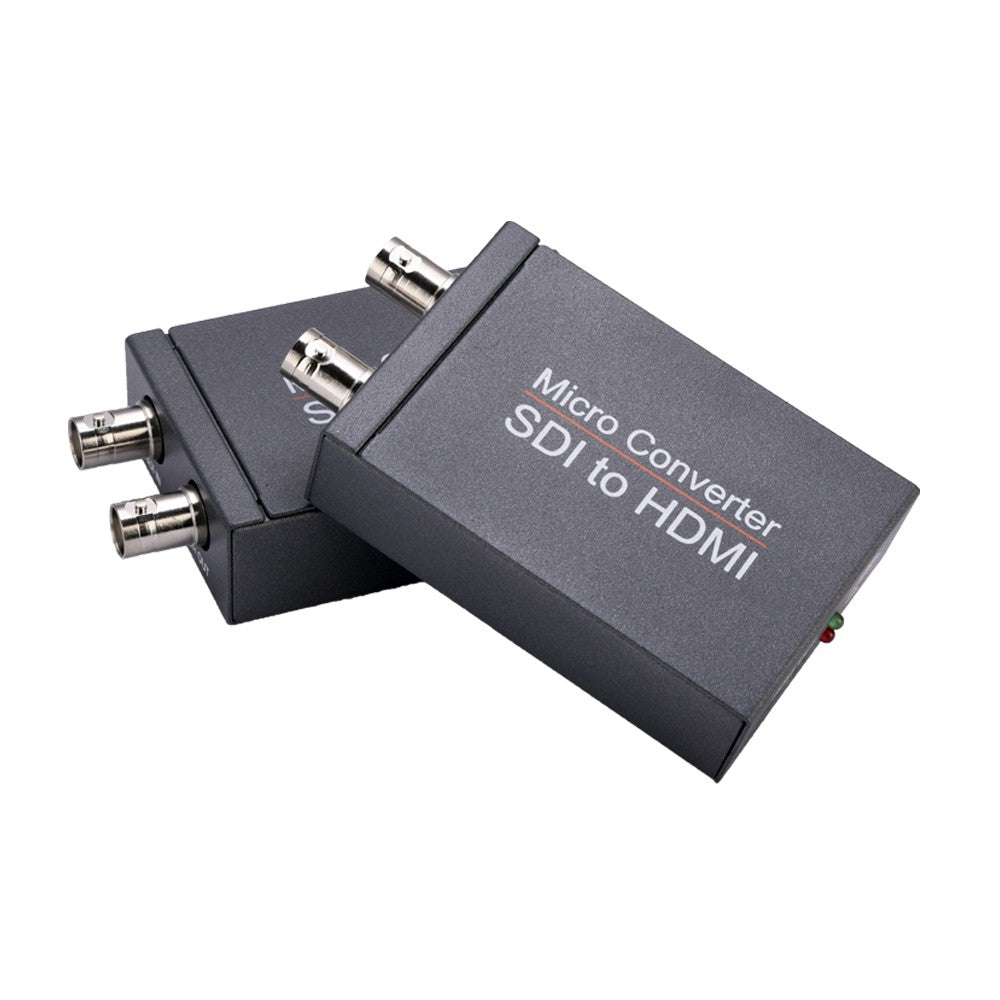

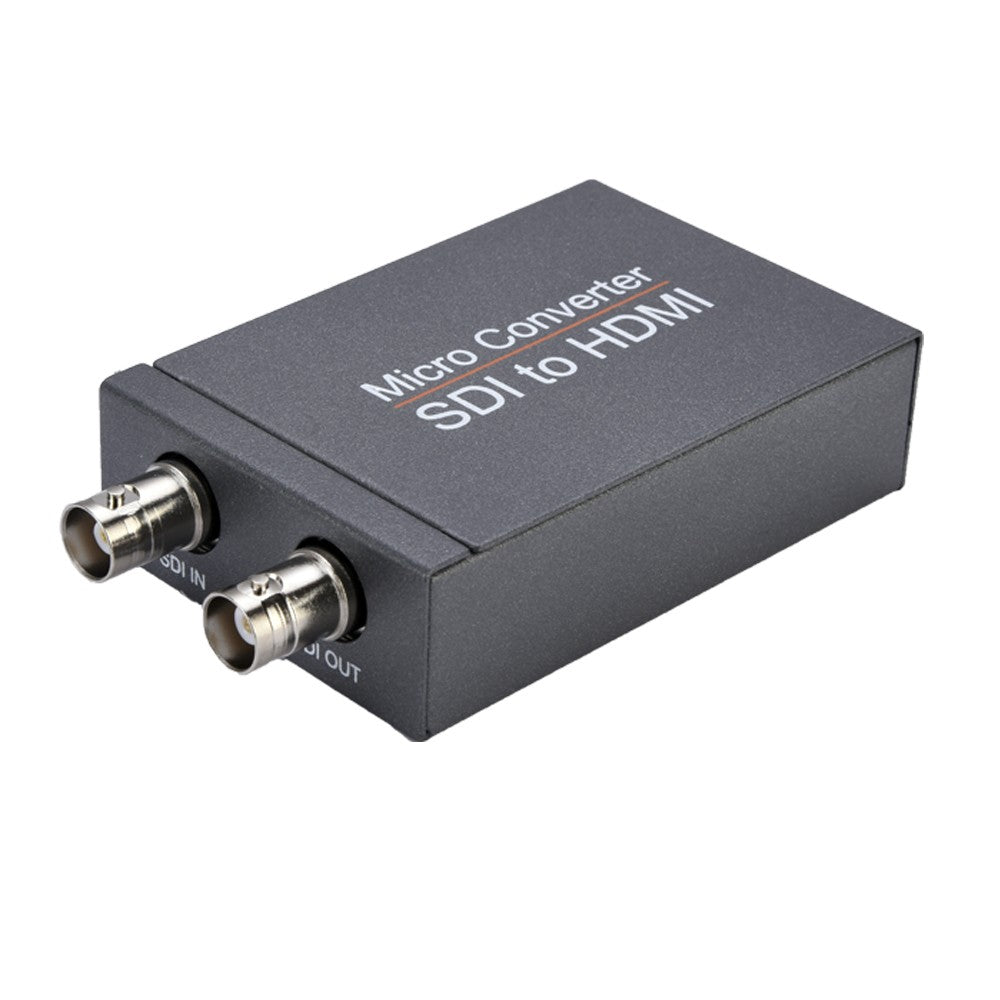

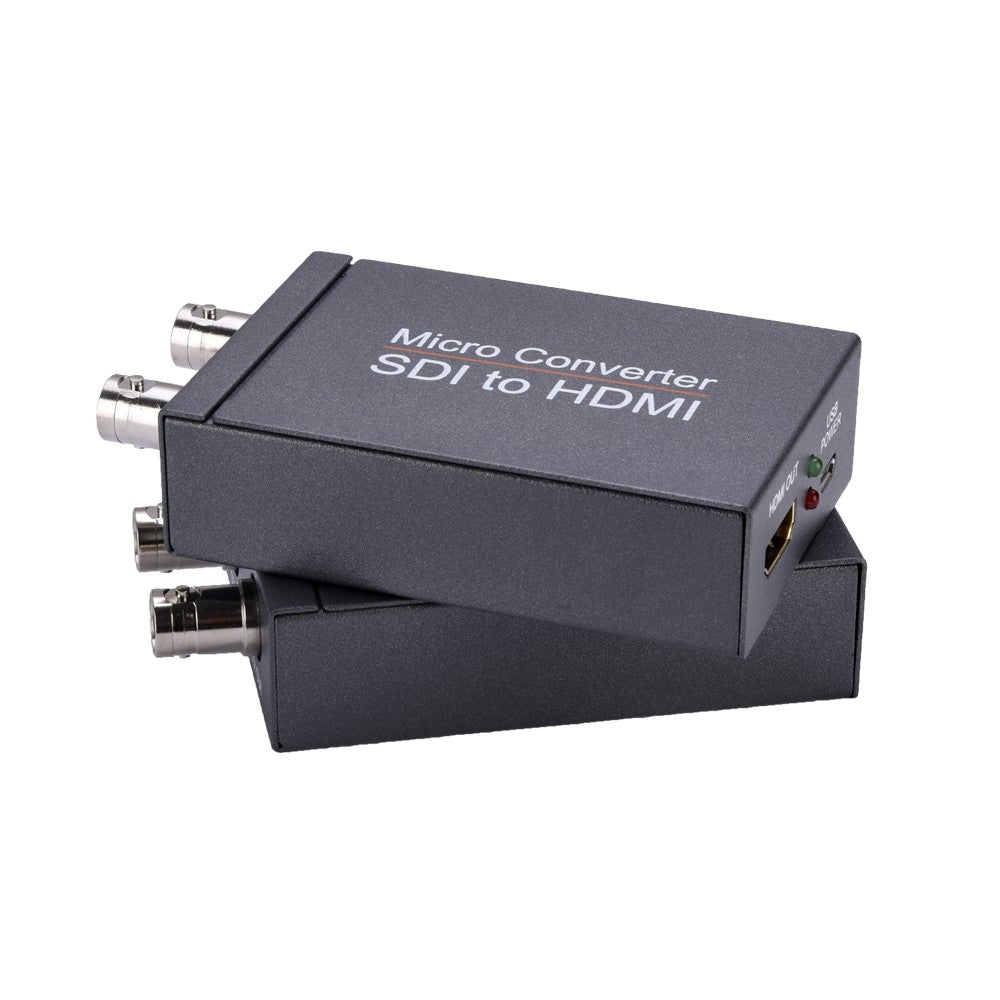

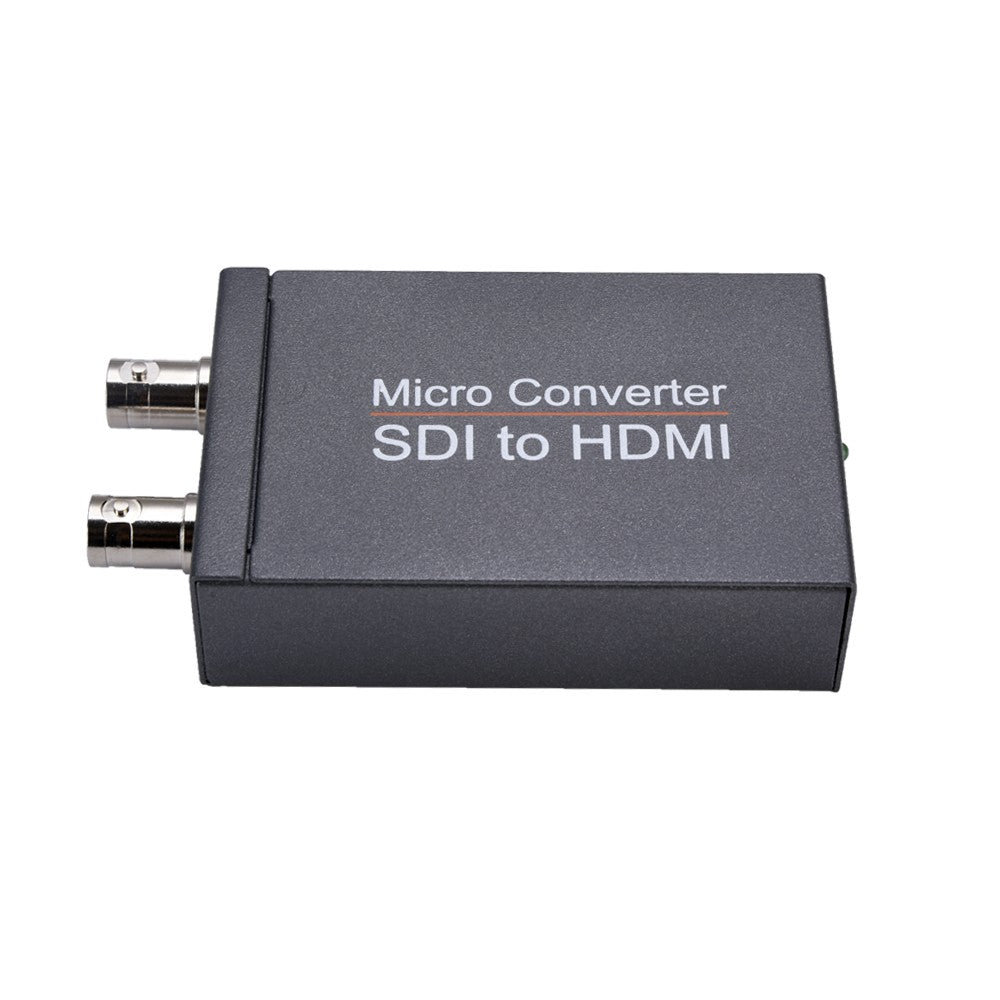

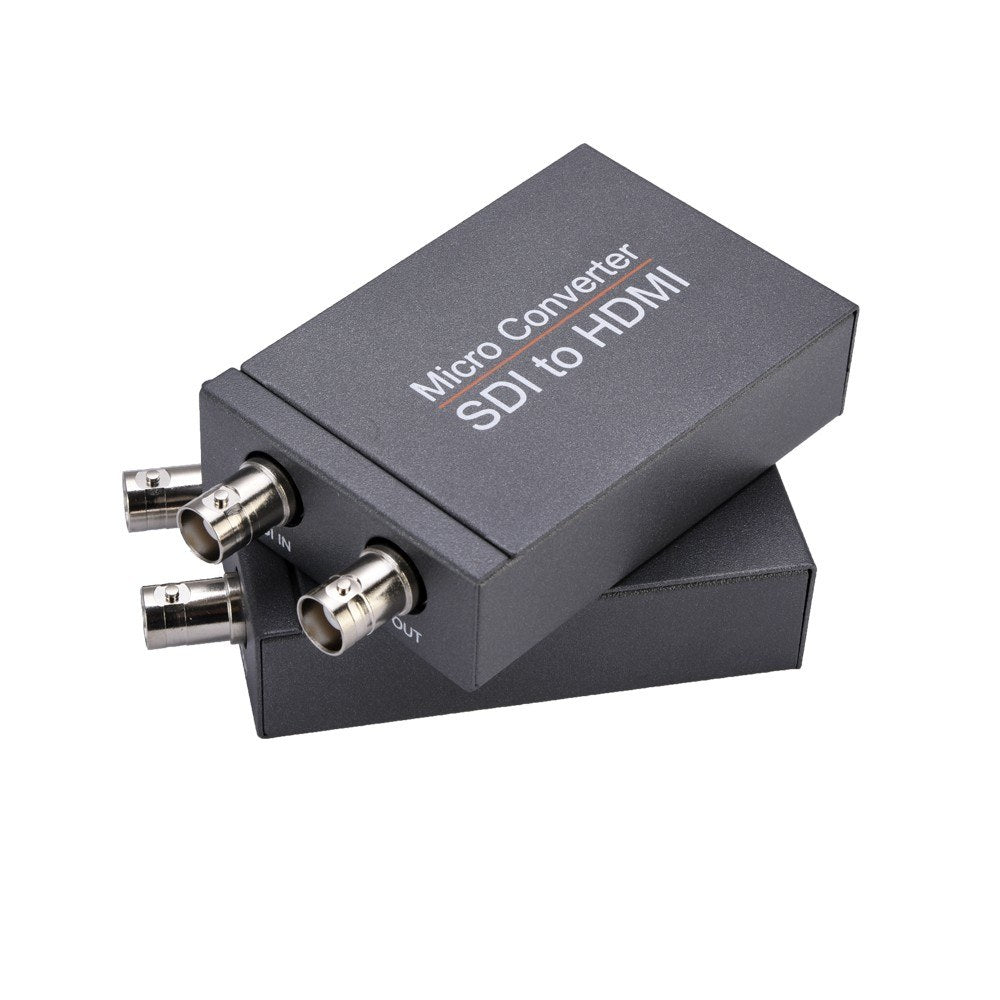

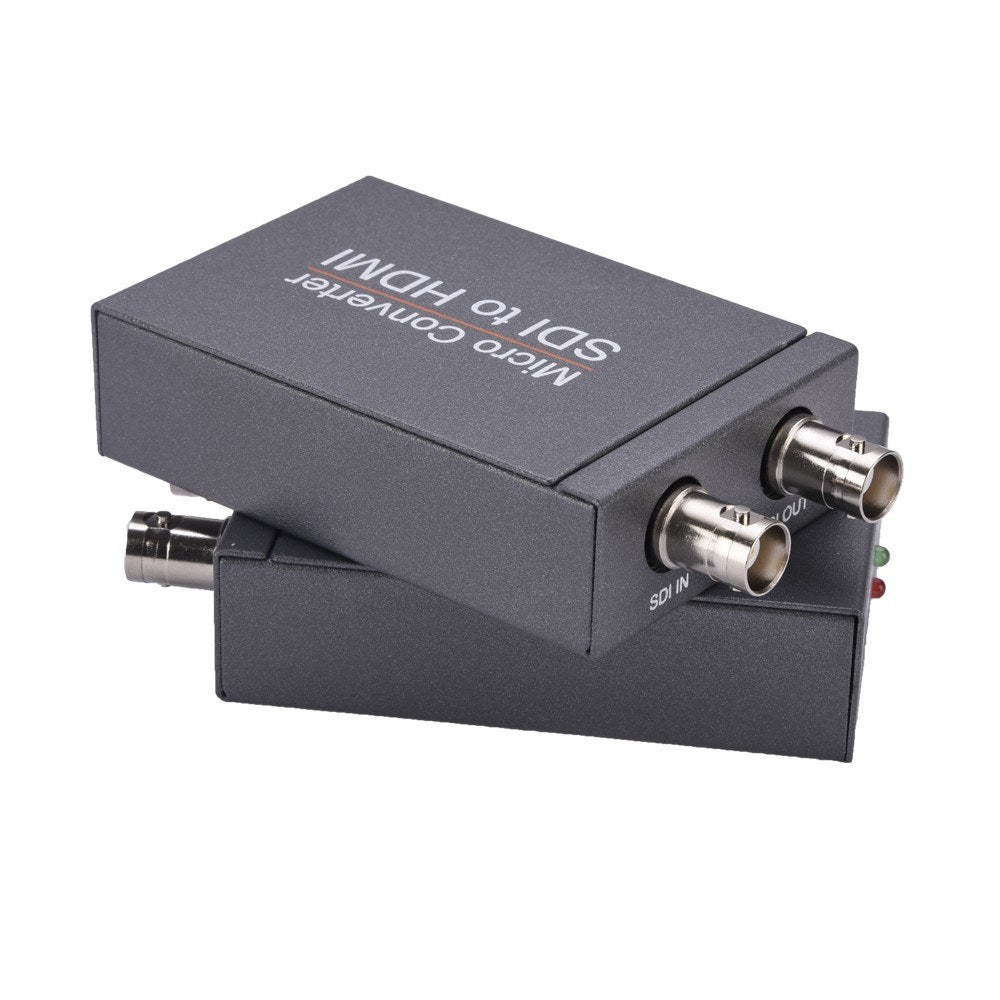

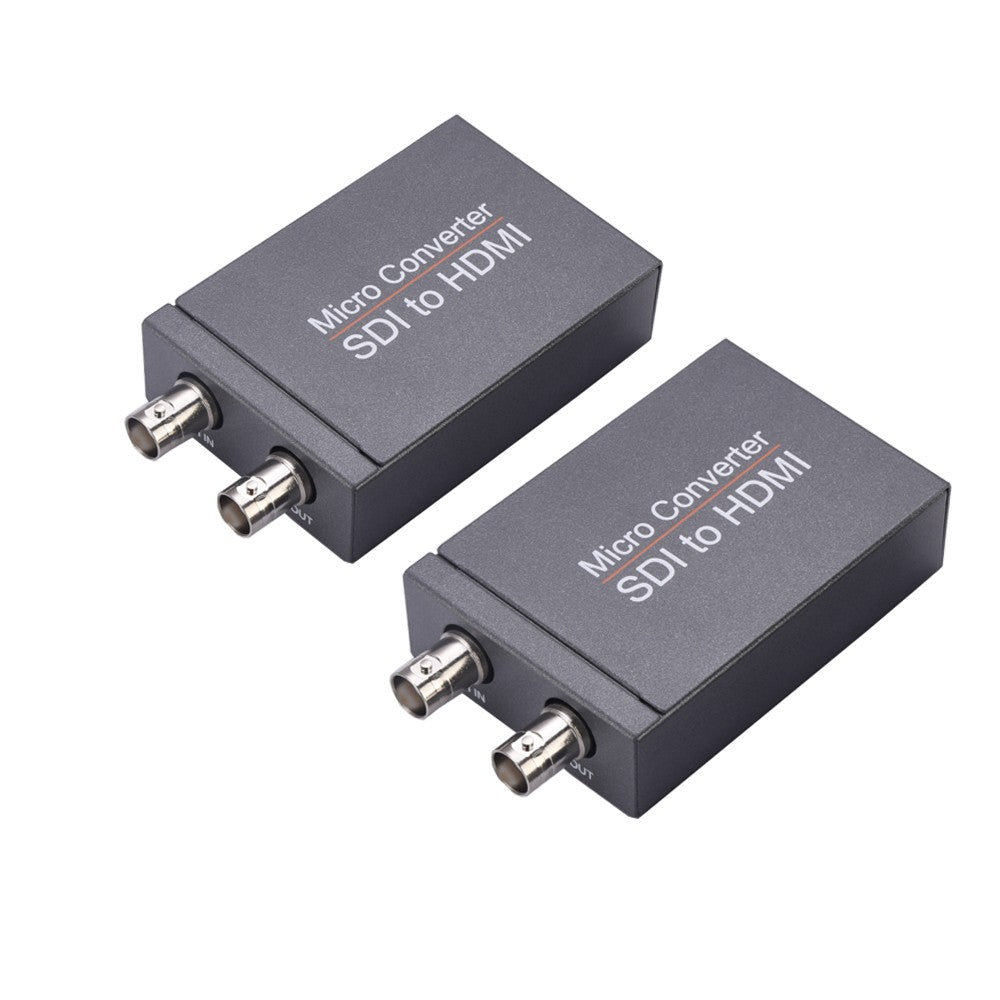

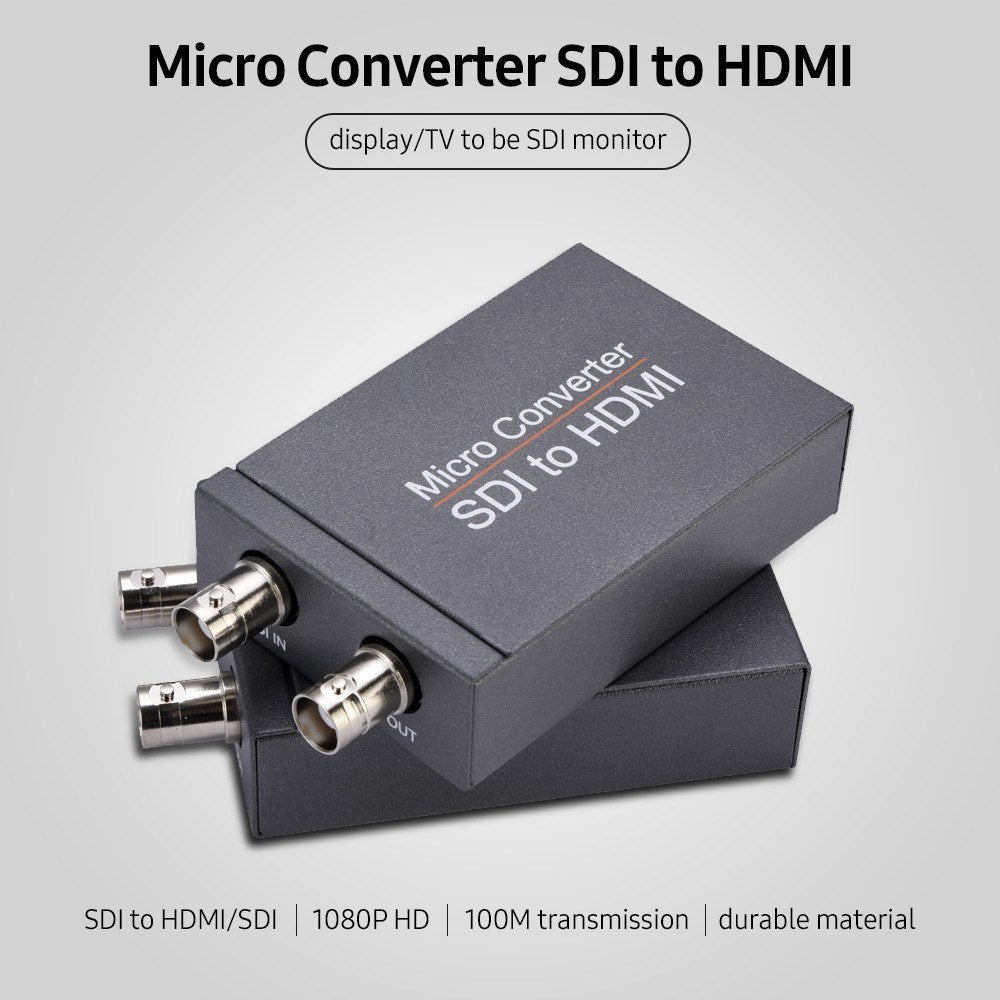

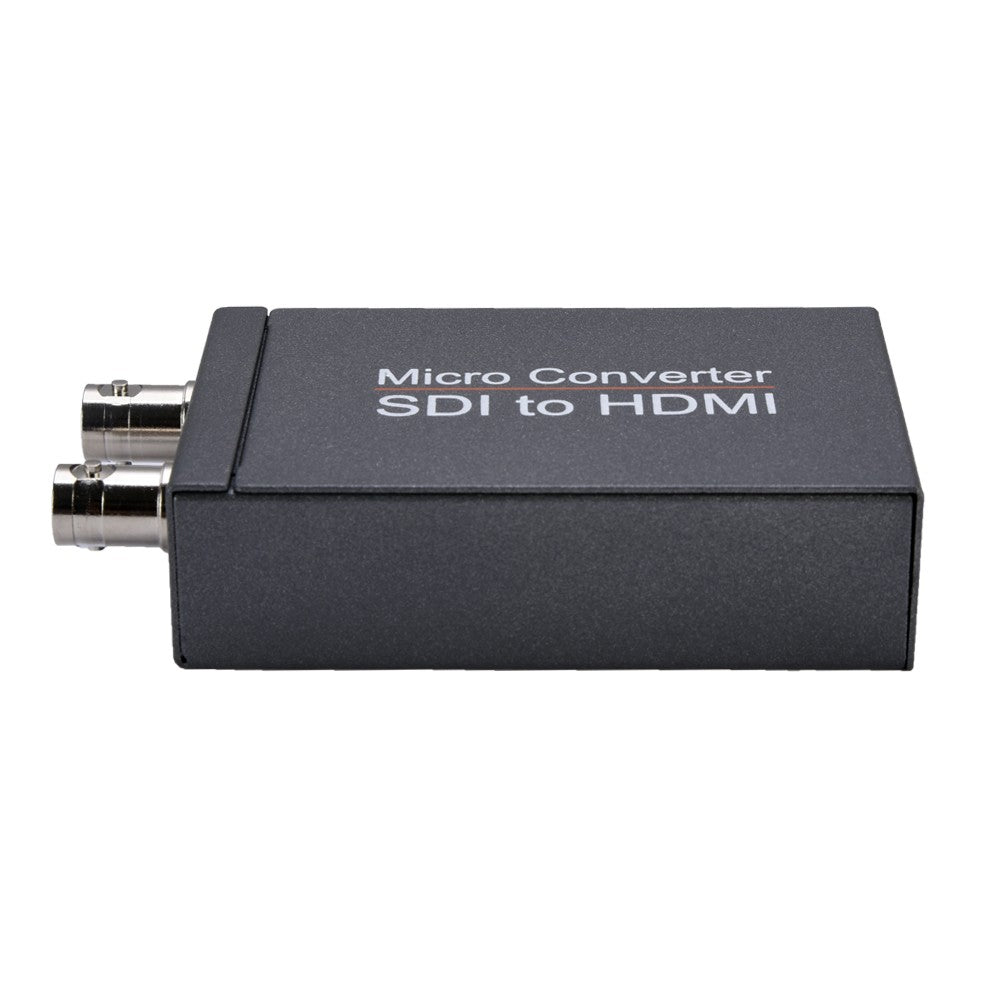

Micro SDI to HDMI Converter, Dual SDI Output, Mini HD 1080P, USB Powered

SDI to HDMI Converter

Upgrade your viewing experience with our SDI to HDMI Converter. This product allows HD-SDI and 3G-SDI signals to be displayed on HDMI monitors with high bit rates of up to 2.970 Gbit/s, ensuring fast and lossless signal transmission.

Key Features

• One-Way Conversion: Converts SDI to HDMI. Please note, this is not a bi-directional converter and should not be used for HDMI to SDI conversion.
• Versatile Use: Use your HDMI display or TV as an SDI monitor with synchronized audio and video playback.

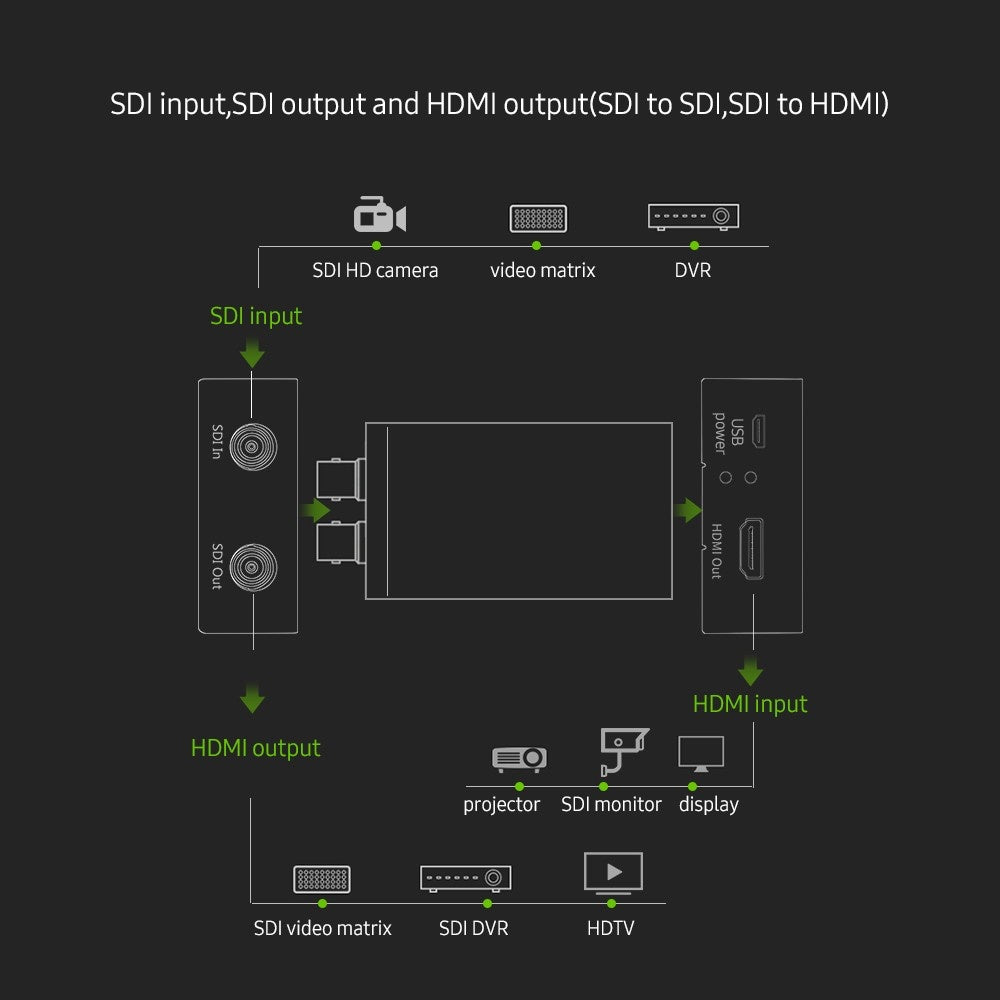

• Simultaneous Display: Connects to HD monitors and displays through both SDI and HDMI interfaces simultaneously.
• High Definition: Converts to HD 1080P for clear and detailed visuals.
• Extended Signal Range: Supports long-distance signal extension when connected with other units.

Specifications

• Model: NK-M008
• Color: Grey

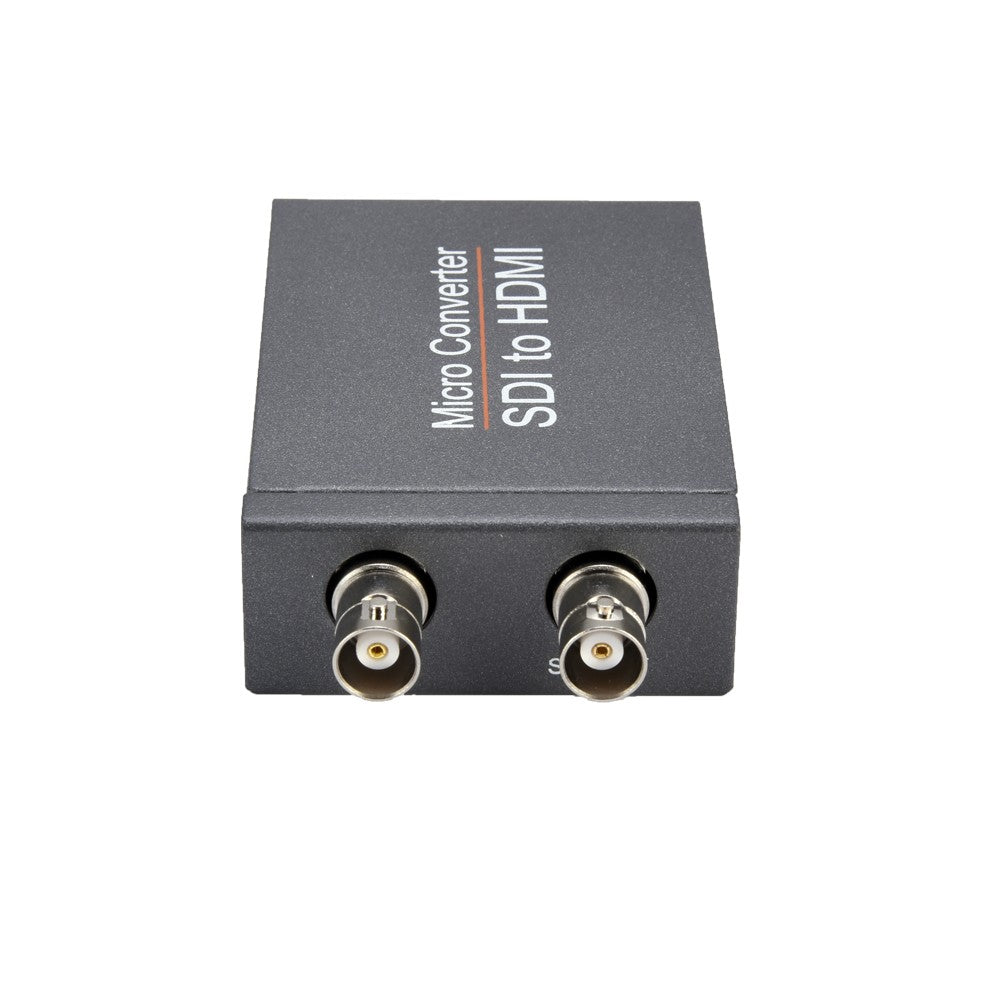

• Input Port: 1 x BNC (HD-SDI/3G-SDI)

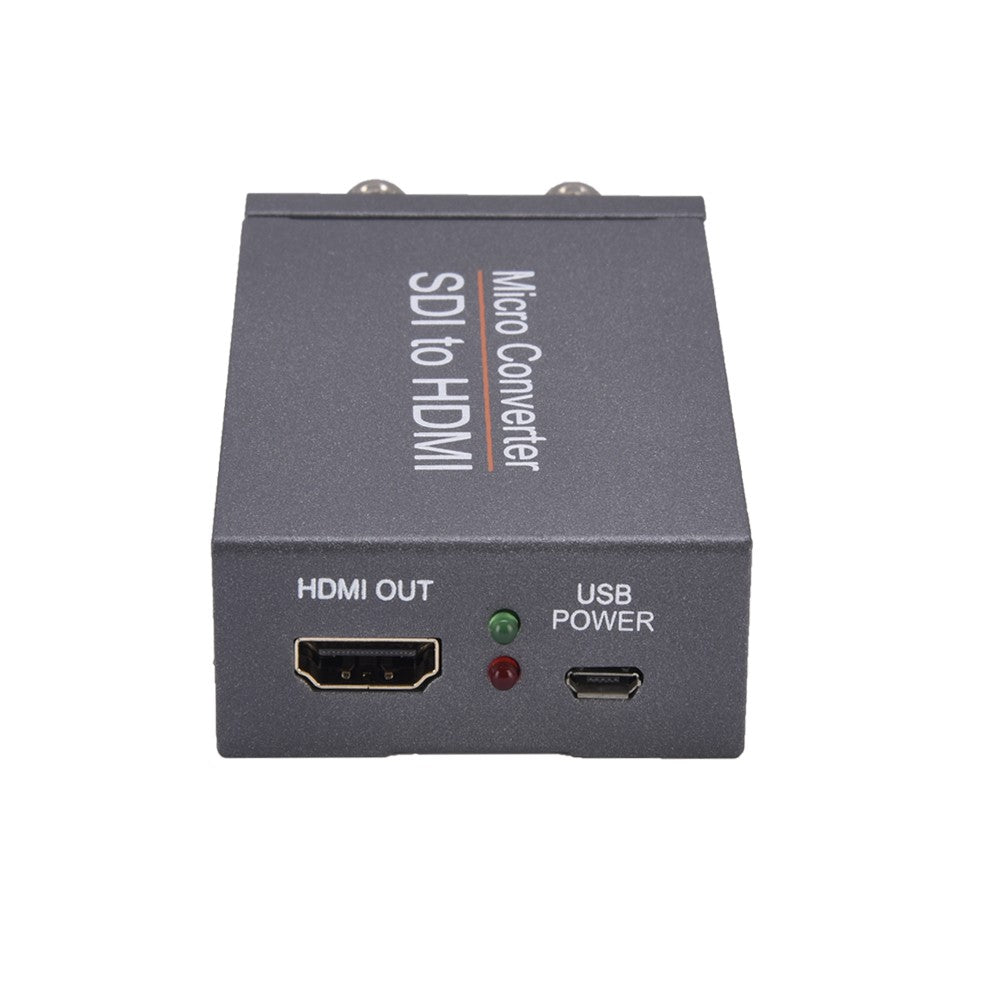

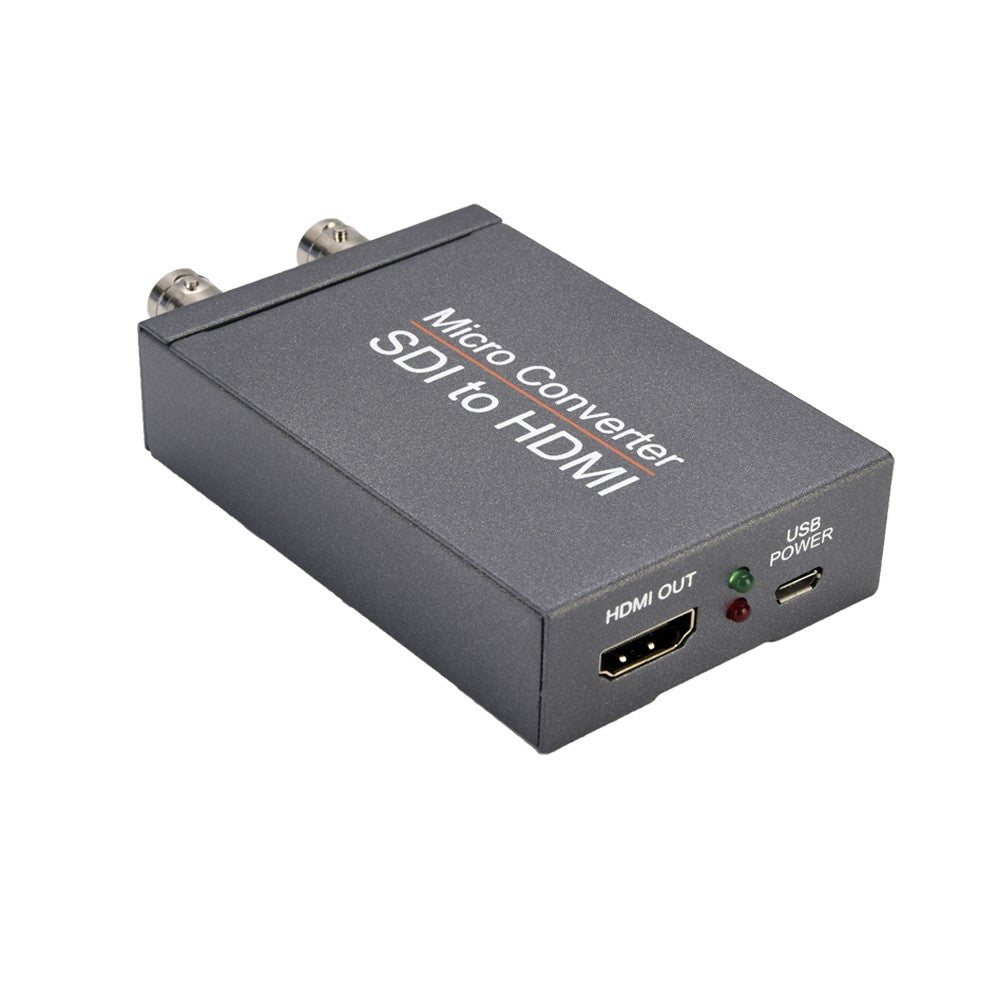

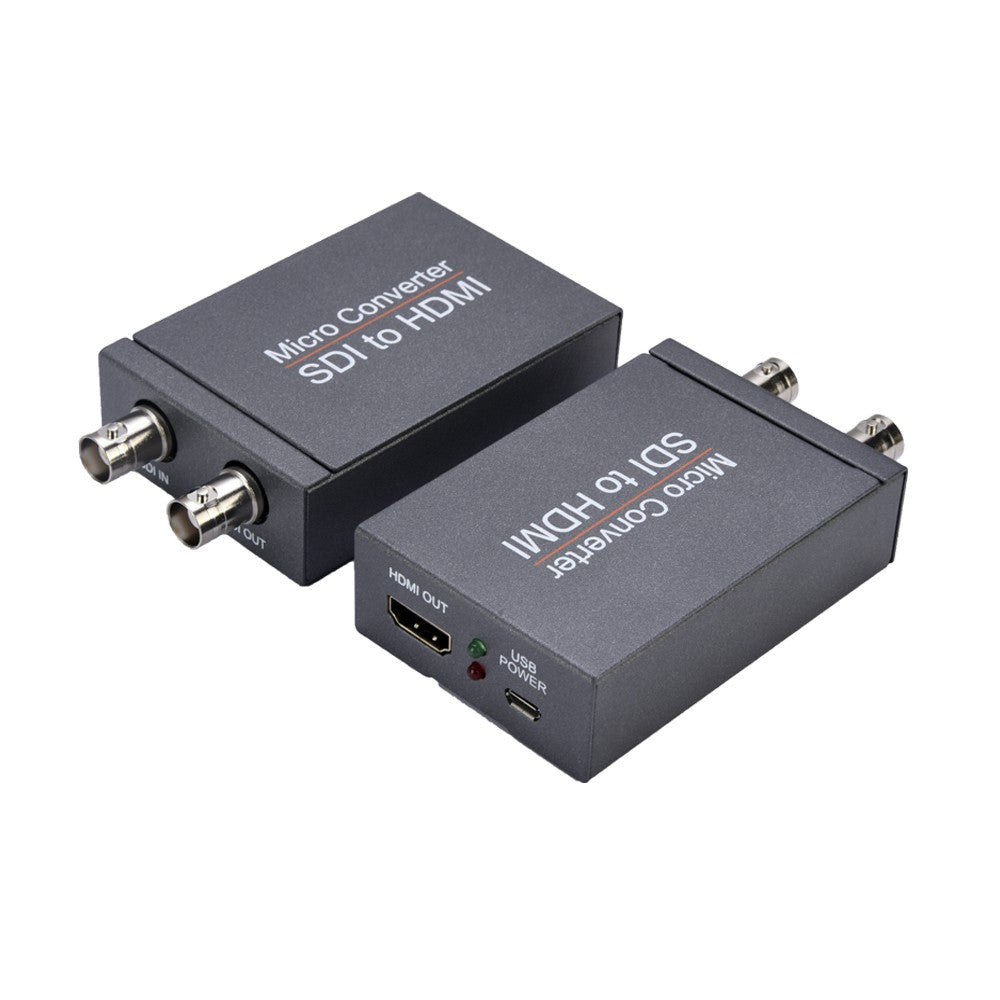

• Output Port: 1 x HDMI, 1 x SDI
• SDI Transmission Rates: 2.970 Gbit/s
• Supported Resolutions: 720p, 1080i, 1080p
• Operating Temperature: 0°C to 40°C / 32°F to 104°F
• Storage Temperature: -20°C to 60°C / -4°F to 140°F
• Relative Humidity: 20% to 90% RH (non-condensing)
• Power Consumption: Max 5W
• Supported Protocols: SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
• Dimensions: 9.7 x 5.5 x 2.3 cm / 3.8 x 2.2 x 0.9 in
• Weight: 127g / 4.5 oz
• Package Dimensions: 11 x 9 x 6 cm / 4.3 x 3.5 x 2.4 in
• Package Weight: 193g / 6.8 oz

Package Contents

• 1 x Converter
• 1 x Cable
• 1 x User Manual
