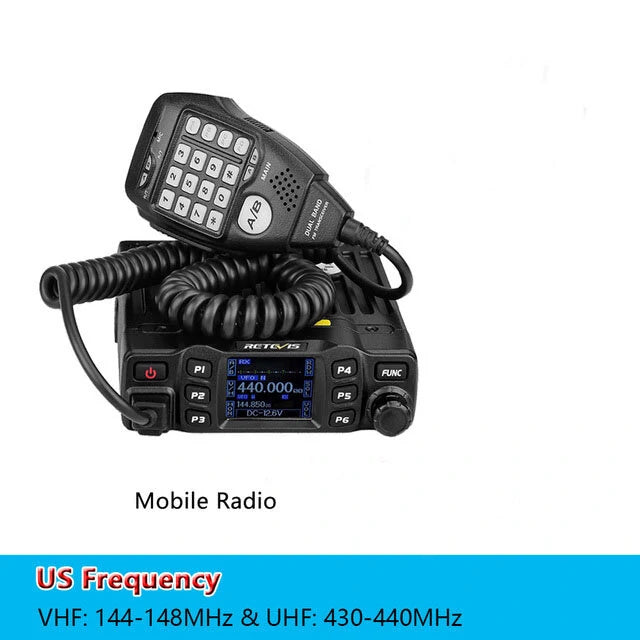

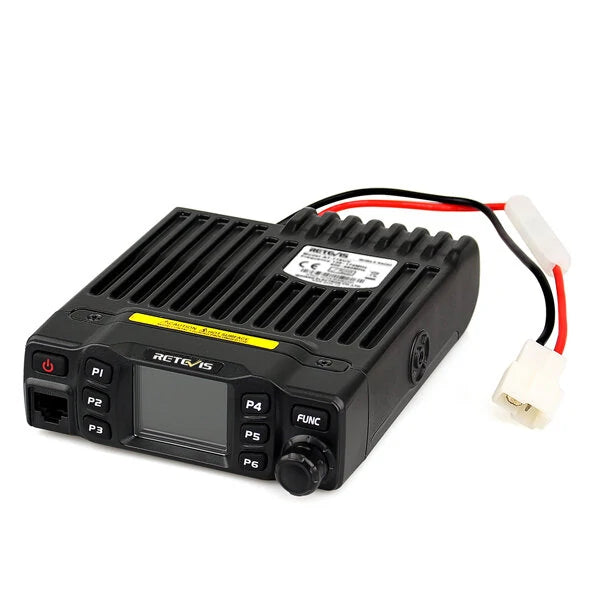

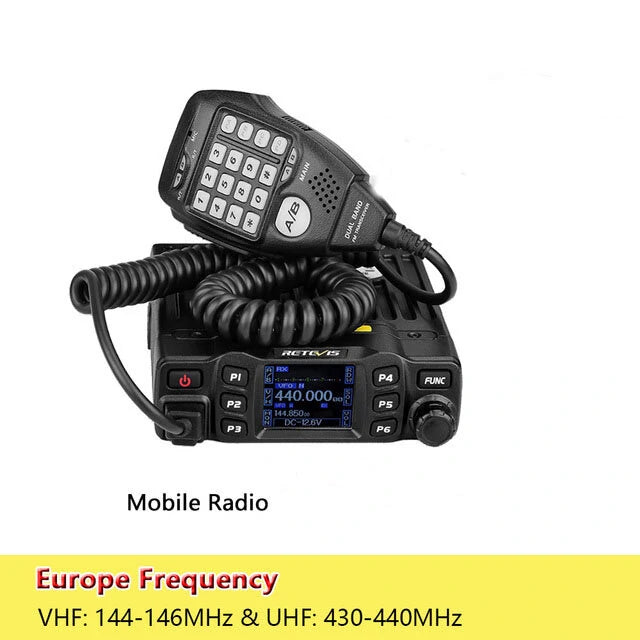

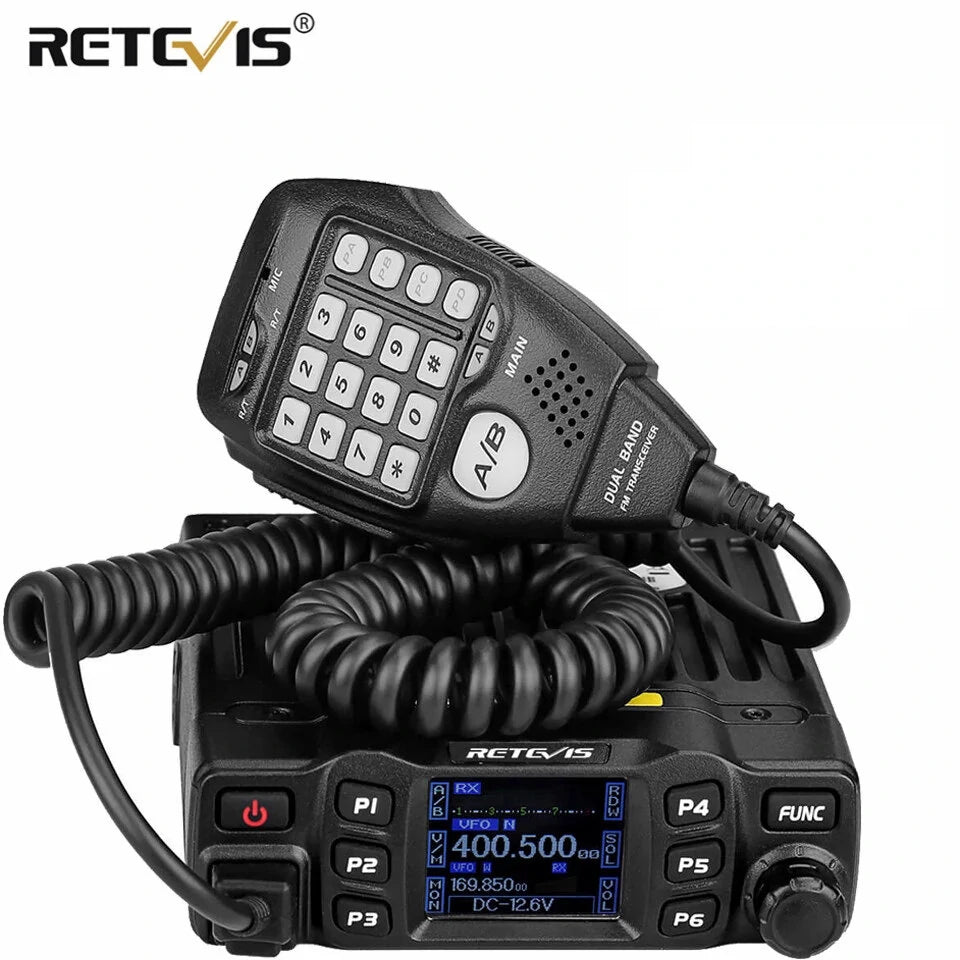

RETEVIS RT95 25W VHF UHF Car Mobile Ham Radio Transceiver - 200CH High Power Two-Way Radio, CHIRP Compatible

Note: The programming line needs to be purchased separately. Click here to buy.

Features:

• Constructed with superior quality materials and technology, featuring a high-quality radiator to ensure stable and durable operation.
• 180-degree rotatable TFT LCD display.
• Full alloy body designed for optimal heat dissipation.
• Offers both Amateur and Professional modes to suit different operational needs.
• Buttons are intuitively laid out for convenient operation.
• Separate bandwidth settings are available for individual channels: Wide (25K), Middle (20K), Narrow (12.5K).
• Includes 200 programmable memory channels, each identified with customizable names.
• Individual CTCSS, DCS, DTMF, and 5Tone settings are available for each channel, enabling rejection of unwanted communications.
• Features various scanning functions, including CTCSS/DCS scan functionality.
• Allows both smart menu control and PC programming control.
• Equipped with voltage level protection mechanisms.
• LCD brightness control for better visibility.
• Automatic power-on feature for ease of use.
• Main unit and microphone key lock functions for added security.
• Supports 5Tone signaling for data transfer, alarm, all-call, ANI, remote kill, and remote wake-up.
• DTMF-ANI or 5Tone-ANI for automatic call recognition.
• Integrated password function for increased security.
• Dual-watch function enables monitoring of two channels simultaneously.
• Talk-around function available.
• Frequency reverse function supported.
• Offset function enabled.

Specifications:

General

• Frequency Range: VHF: 144-148MHz, UHF: 430-440MHz
• Number of Channels: 200 channels
• Channel Spacing: 25K (Wide Band), 20K (Middle Band), 12.5K (Narrow Band)
• Phase-locked Step: 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz
• Operating Voltage: 13.8V DC ±15%
• Squelch: Carrier/CTCSS/DCS
• Frequency Stability: ±2.5 ppm
• Operating Temperature: -20℃ to +60℃
• Dimensions: 124mm (W) x 163mm (D) x 39mm (H)
• Weight: Approximately 0.64Kg

Transmitter

• Sensitivity (12dB Sinad): Wide Band ≤0.25μV, Narrow Band ≤0.35μV
• Adjacent Channel Selectivity: ≥60dB
• Audio Response: 1~-3dB (0.3~3KHz for wide band, 0.3~2.55KHz for narrow band)
• Hum & Noise: Wide Band ≥45dB, Narrow Band ≥40dB
• Audio Distortion: ≤5%
• Audio Power Output: >2W@8

Receiver

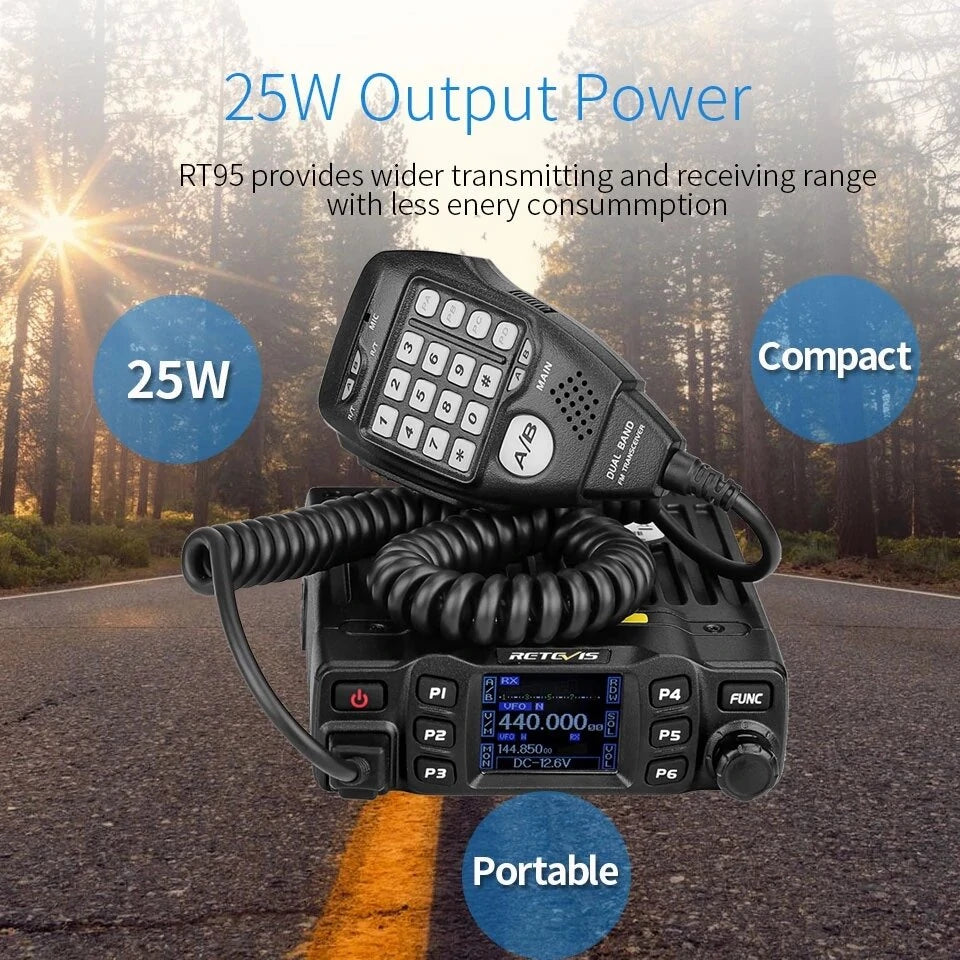

• Power Output: 25W / 15W / 5W
• Modulation: 16KΦF3E (Wide Band), 11KΦF3E (Narrow Band)
• Adjacent Channel Power: Wide Band ≥70dB, Narrow Band ≥60dB
• Hum & Noise: Wide Band ≥40dB, Narrow Band ≥36dB
• Spurious Emission: ≥60dB
• Audio Response: 1~-3dB (0.3~3KHz for wide band, 0.3~2.55KHz for narrow band)
• Audio Distortion: ≤5%

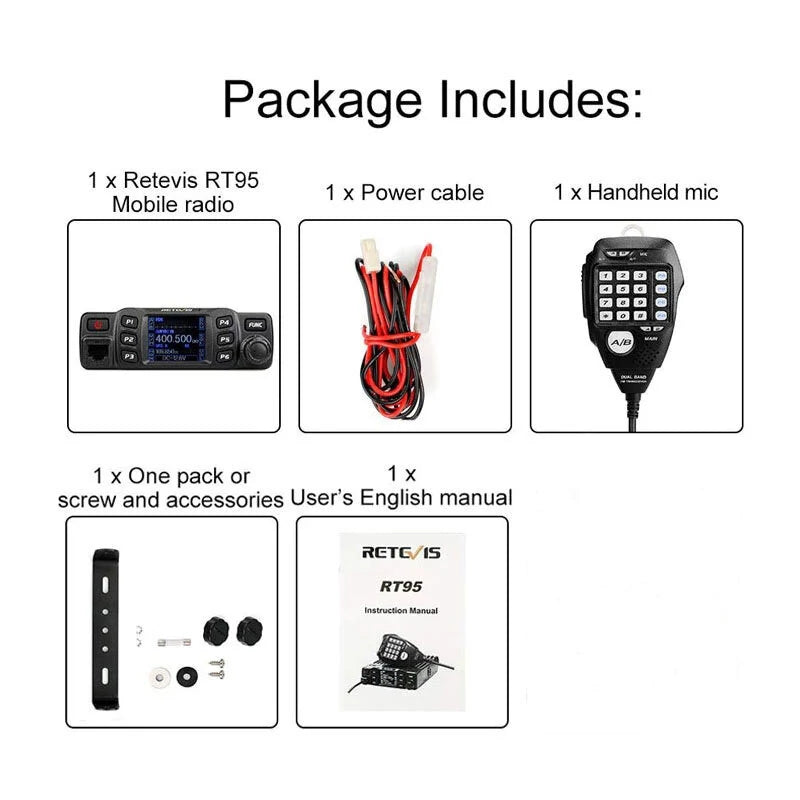

Package Includes:

• 1x Mobile Radio
• 1x Power Cable

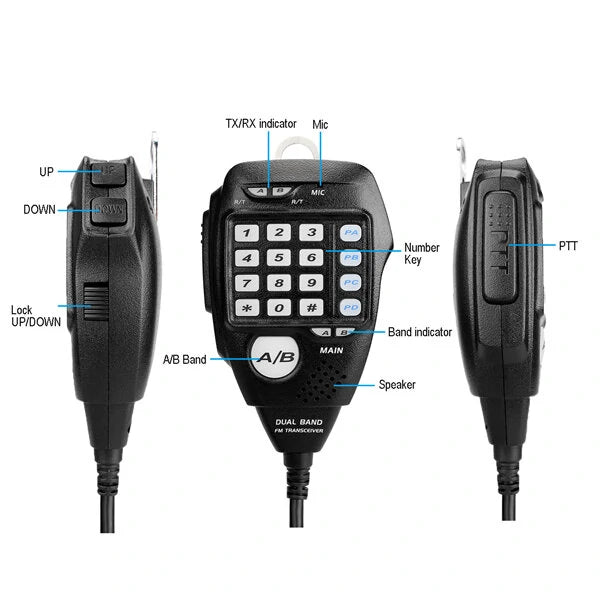

• 1x Handheld Microphone
• 1x Pack of Screws and Accessories
• 1x User's Manual
