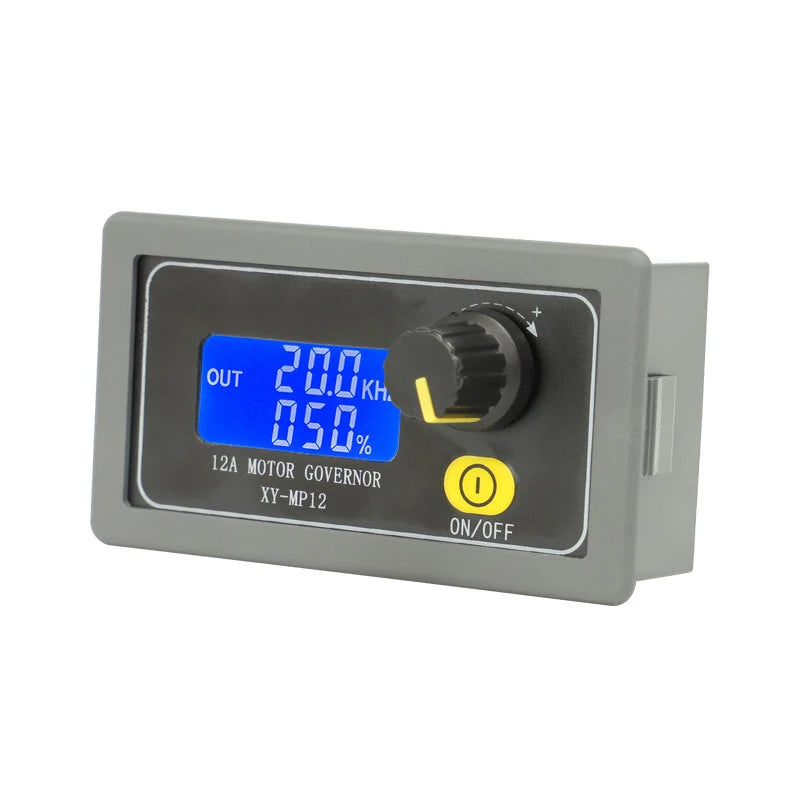

12A 360W DC Motor Speed Controller PWM Adjustable Regulator with LED Dimming & Slow Start/Stop Encoder
12A 360W DC Motor Speed Controller PWM Adjustable Regulator with LED Dimming & Slow Start/Stop Encoder
Regular price
$7.99 USD
Regular price
$0.00 USD
Sale price
$7.99 USD
Shipping calculated at checkout.
Estimated Delivery: -
Quantity
Couldn't load pickup availability
Guaranteed secure & safe checkout.
DC Motor Governor Specifications
Specifications:
- Working Voltage: DC 6-30V
- Operating Temperature: -10°C to 40°C
- Rated Current: 12A
- Maximum Power: 360W
- Working Frequency:
- Normal Mode: 1Hz to 150kHz
- Fine Mode: 1Hz to 15kHz
- Duty Cycle Accuracy:
- Normal Mode: 1% to 100% (accuracy 1%)
- Fine Mode: 0.1% to 100% (accuracy 0.1%)
- Soft Start Time: 00.0 to 99.9 seconds
- Soft Stop Time: 00.0 to 99.9 seconds
- Maximum Output Time: 00.0 to 999 seconds
- Analog Control: DC 0 to 10V
- Product Size: 79mm x 27mm x 43mm
- Product Weight: 47g
Features:
- Clear LCD display for frequency and duty cycle, along with shutdown and output, allowing easy monitoring.
- Employs digital encoder for precise frequency and duty cycle adjustments, ensuring convenience and reliability.
- Dual mode capability with a duty cycle step as precise as 0.1% in fine mode.
- Utilizes original low-resistance MOSFETs and pre-drivers for enhanced performance and stability, supporting high current and high frequency.
- Customizable upper and lower limits for working frequency and duty cycle for optimal motor or LED performance.
- Soft start/stop feature with adjustable time from 0.0 to 99.9 seconds to protect the motor by avoiding rush current.
- Equipped with a convenient start and stop button.
- Key lock feature to prevent accidental changes to settings.
- Supports analog input (0-10V) for diverse control needs.
- Supports A1, A2 level output, compatible with special motor drives.
- Features extendable options including forward/reverse rotation and braking; enables remote control via a mobile app when paired with the WiFi module.
Package Includes:
- No WiFi Type: 1× DC Motor Governor (No WiFi Remote Control)

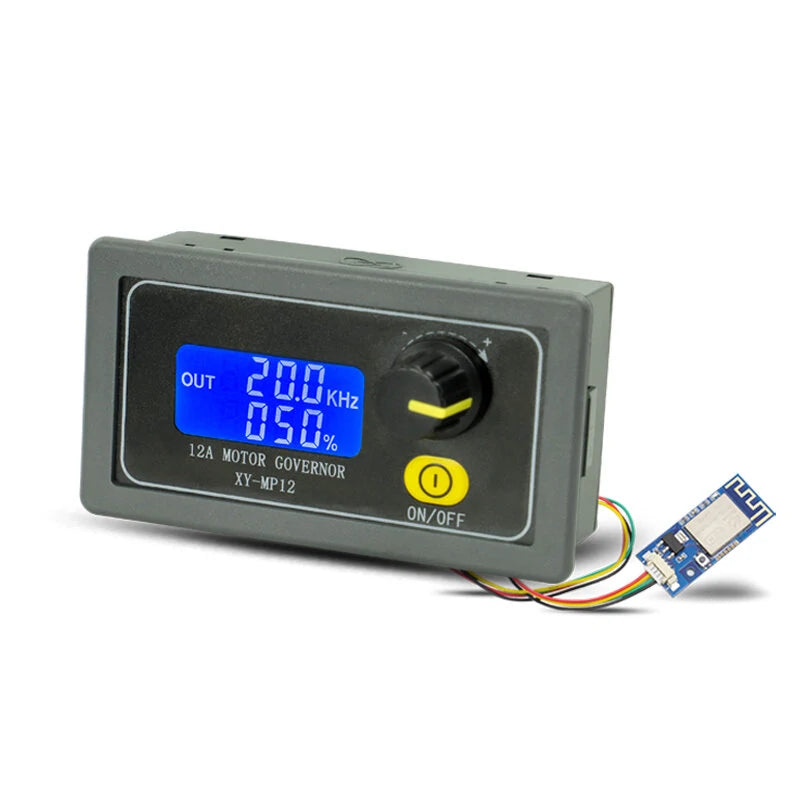

- With WiFi Remote Control Type: 1× DC Motor Governor (with WiFi Remote Control)
