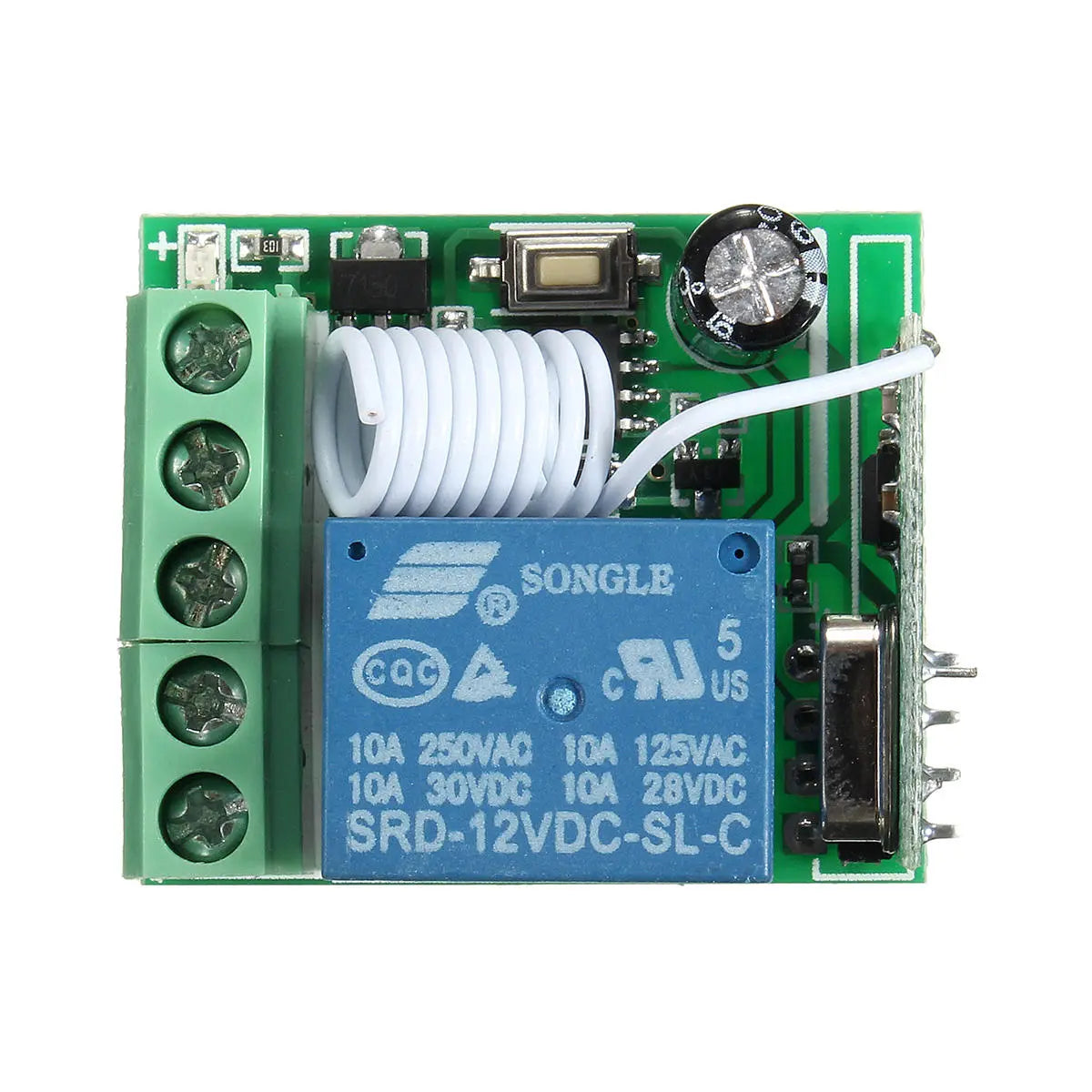

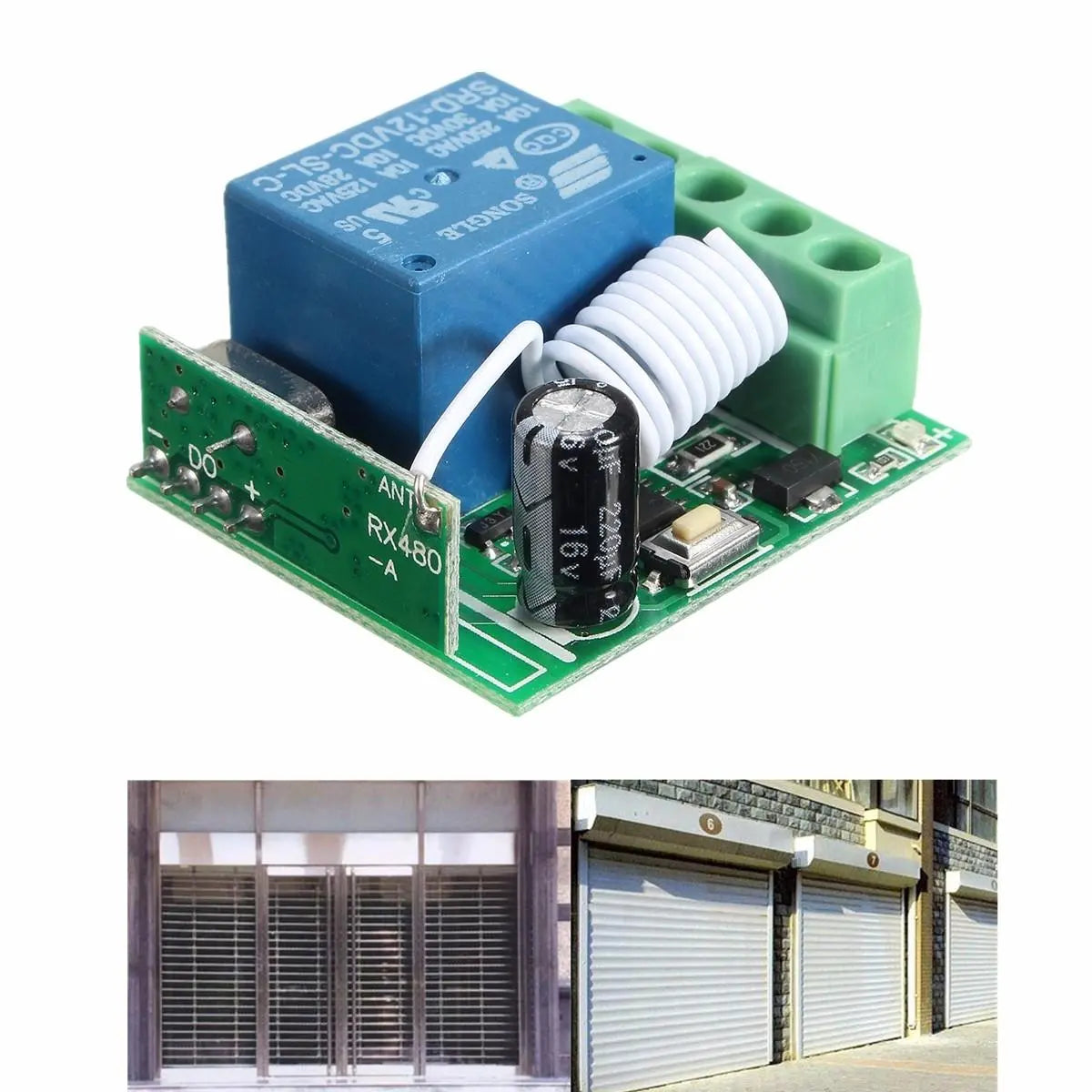

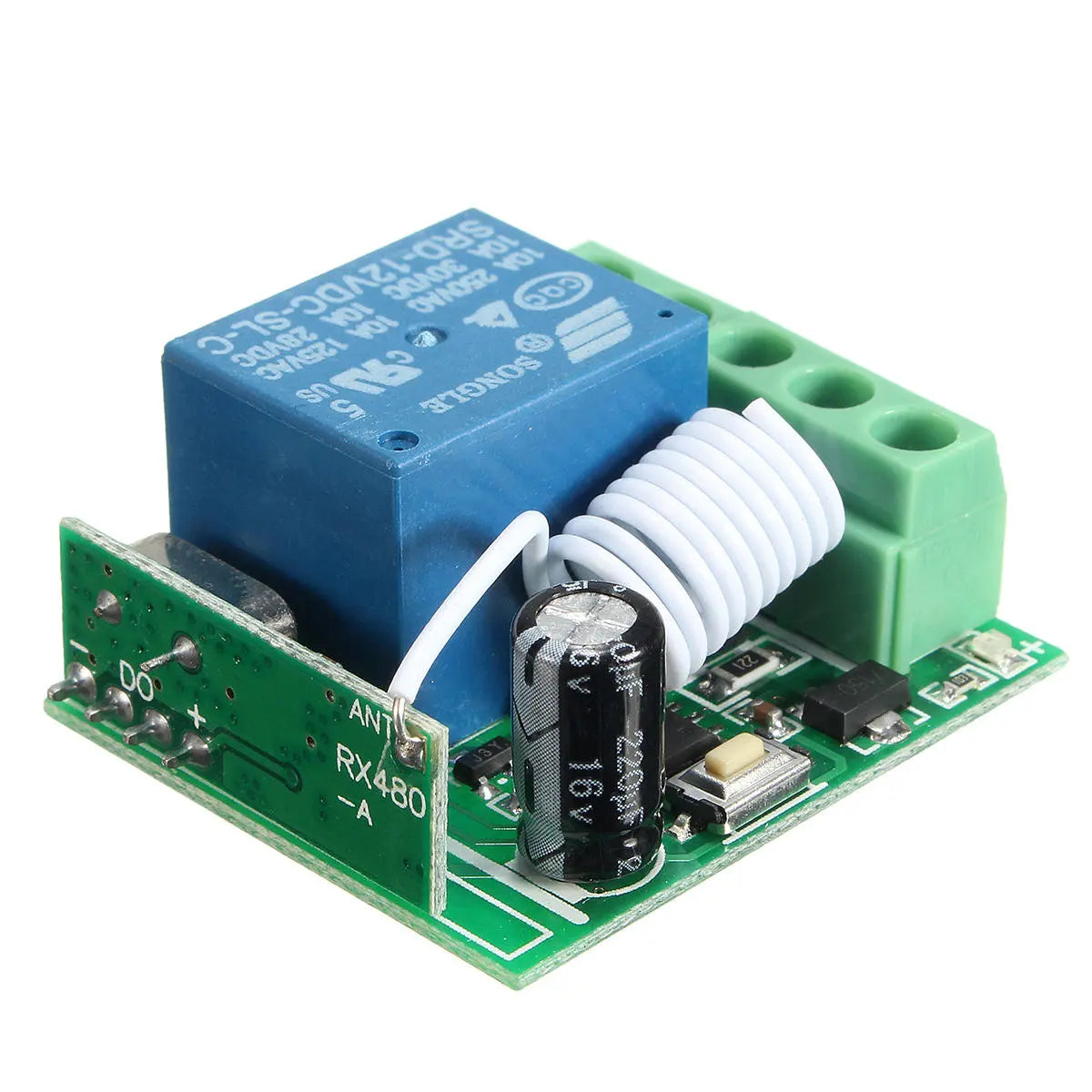

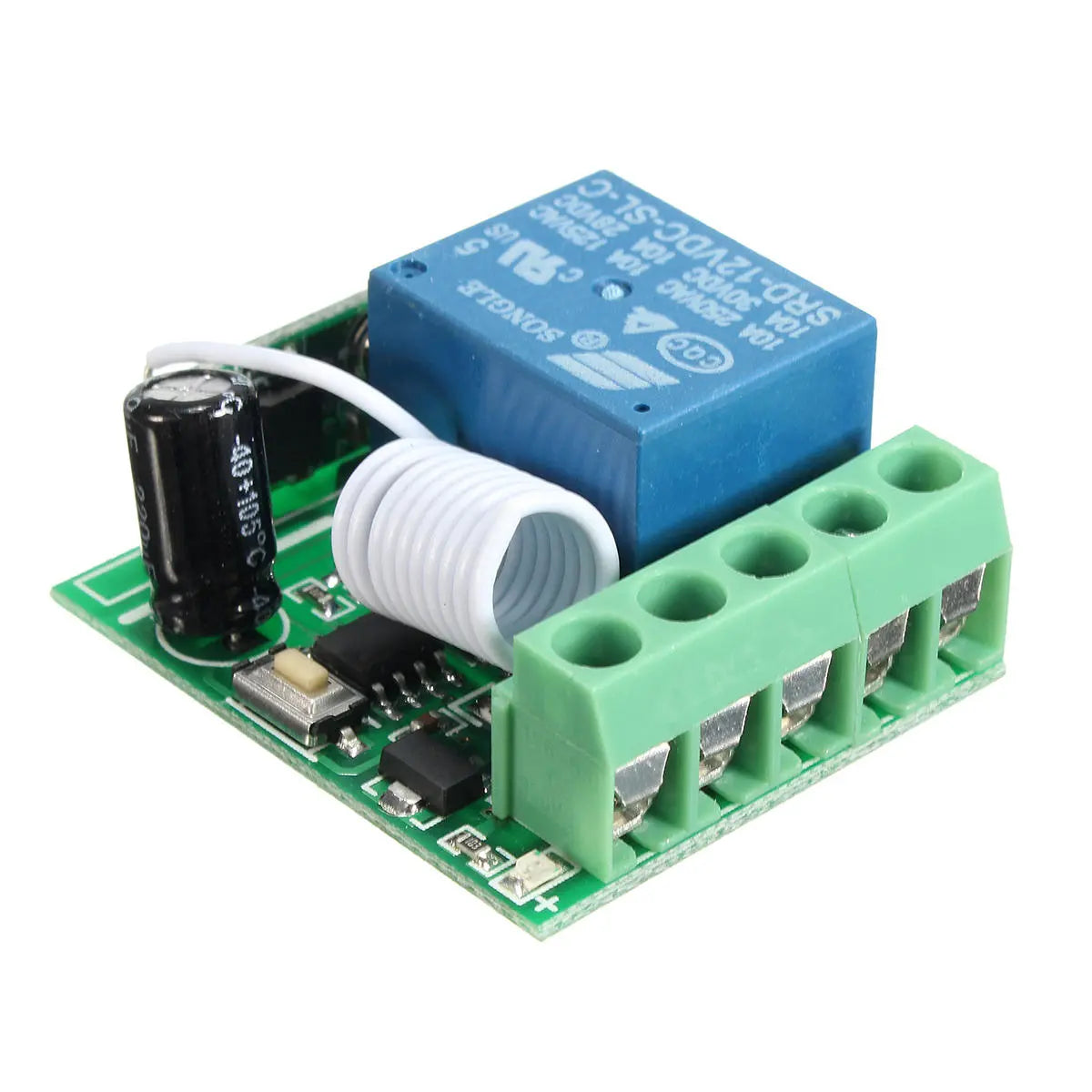

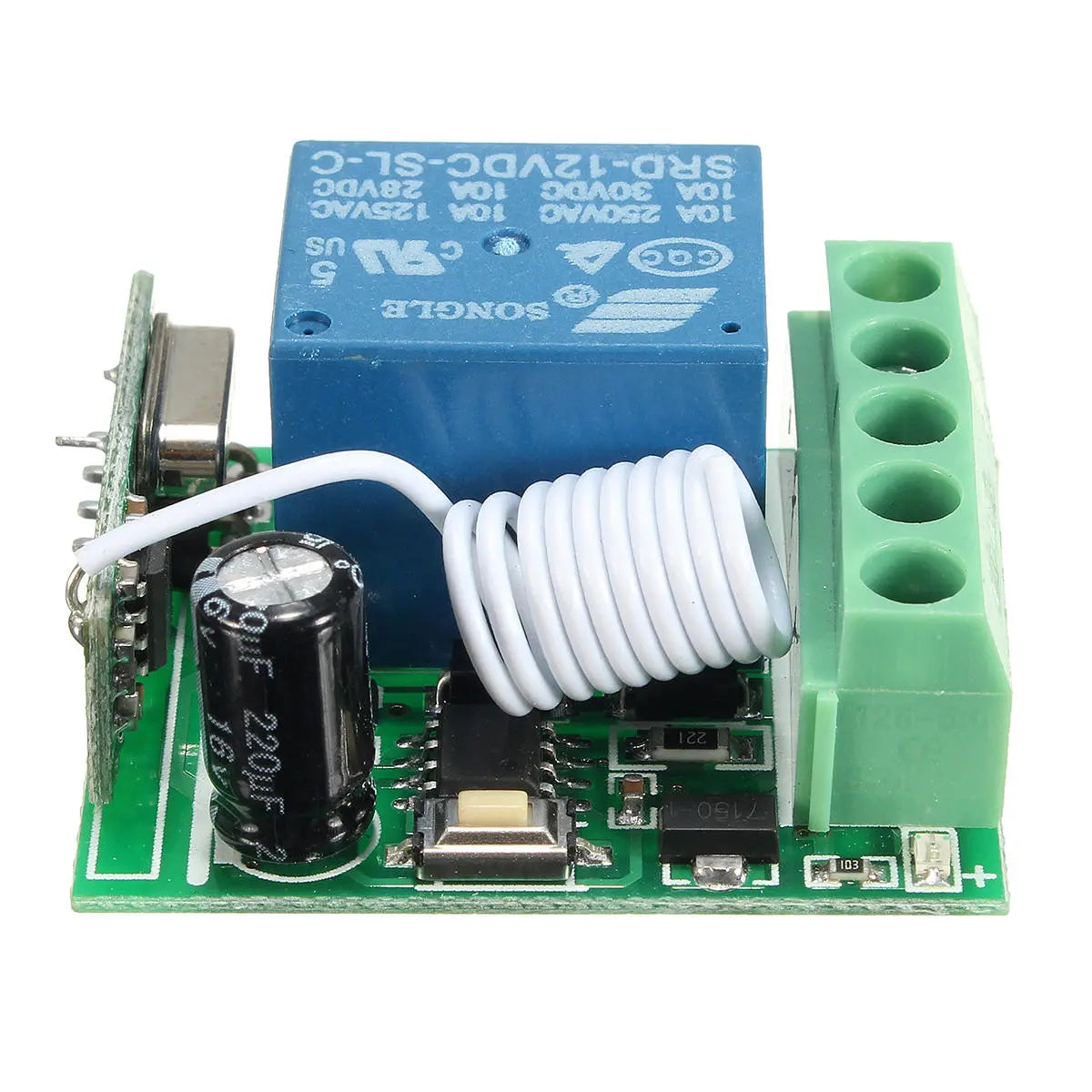

2-Pack DC12V 10A 1CH 433MHz Wireless RF Relay Remote Control Switch Receiver

Product Specifications

• Input Voltage: DC10-14V
• Standby Current: (Not specified)
• RF Frequency: 433MHz
• RF Working Mode: Super heterodyne receiver
• Receiver Sensitivity: >90dBm
• Remote Control Distance: >100 meters (in open environment)
• Decoding Way: MCU Software decoding
• Remote Control Storage Capacity: Up to 50
• Supported Remote Control Types: Fixed code, learning code
• Channel: 1CH
• Working Modes: Jog/Non-Latched, Inter-lock/Latched, Self-lock/Self-Latched, Delay off
• Wiring Method: Fixed wiring terminal
• Working Voltage: DC12V
• Output Current: 10A
• Rated Load:
  • 10A 250VAC
  • 10A 125VAC
  • 10A 30VDC
  • 10A 28VDC

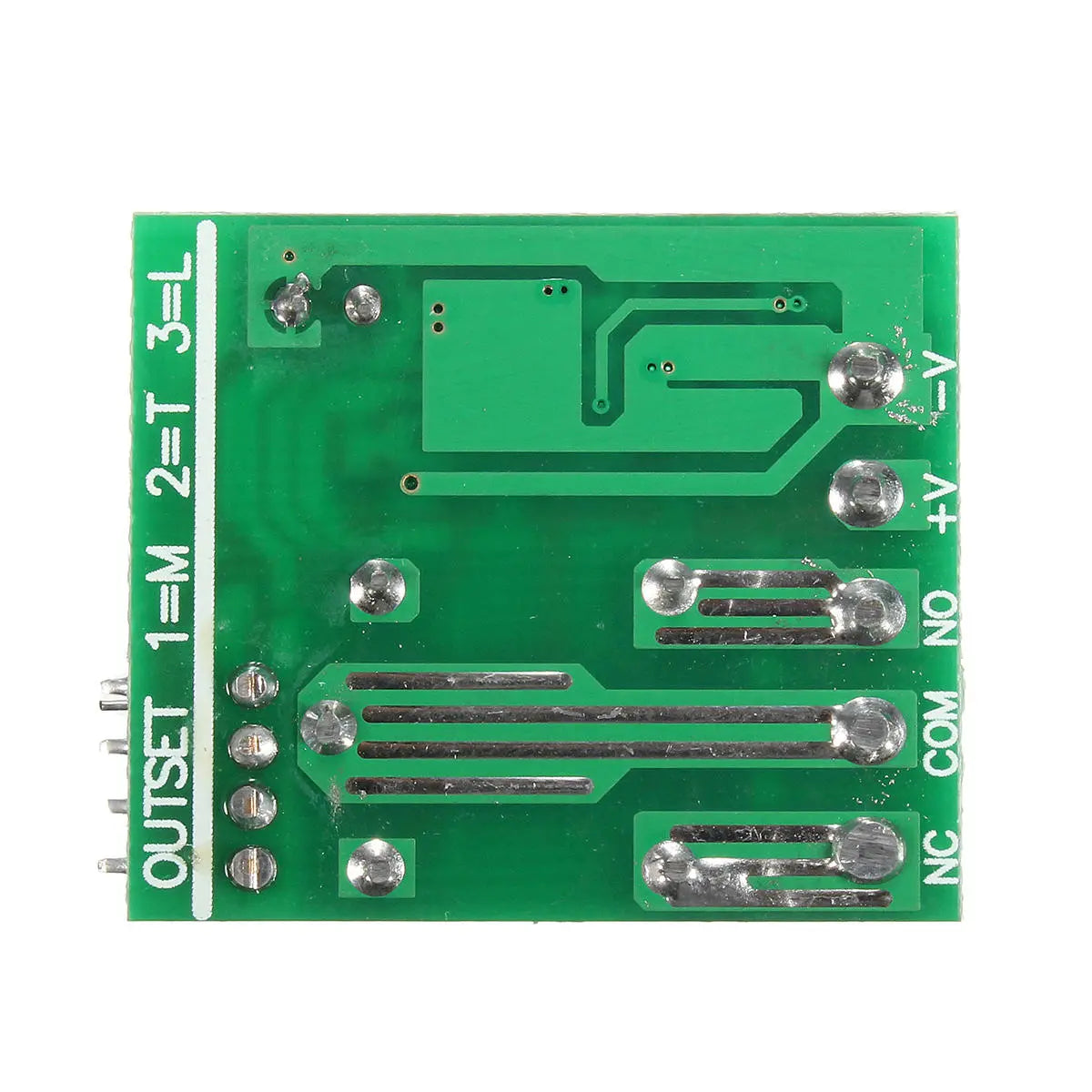

• Output Types: Normally open, Common, Normally closed
• Dimensions: 3.5cm x 3cm x 1.6cm

Working/Output Modes

• Jog/Non-Latched: Press one button to switch ON. Release to switch OFF. Requires one-button remote control.
• Self-lock/Self-Latched: Press once to switch ON. Press again to switch OFF. Requires one-button remote control.
• Inter-lock/Latched: Press one button to switch ON, another to switch OFF. Requires two-button remote control.
• Delay: Activate the relay with remote control, release to start timer, automatically deactivates after 5s, 10s, or 15s.

Description

• To learn a remote control, press the learning code button until the indicator flashes, then press any button on the remote until the indicator flashes twice and turns off.
• Supports learning for more than 12 PCS 2262 or 1527 chip remote controls with different codes at 433MHz.
• To clear stored data, press the learning button for about 8 seconds until the indicator turns on and then off, indicating successful removal of stored information.

Package includes:

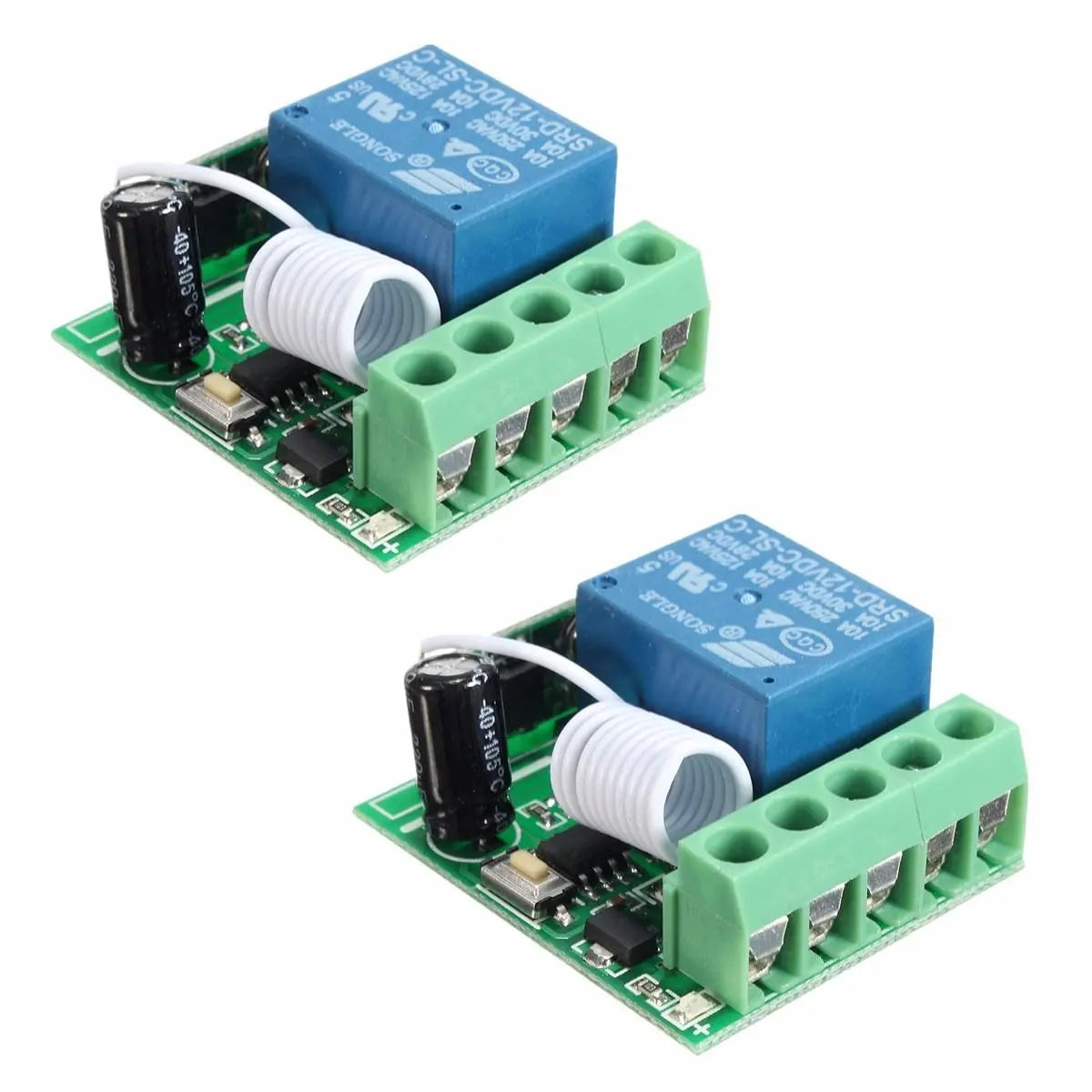

• 2 x 12V 1CH 433MHz Wireless Relay Switch Receiver
