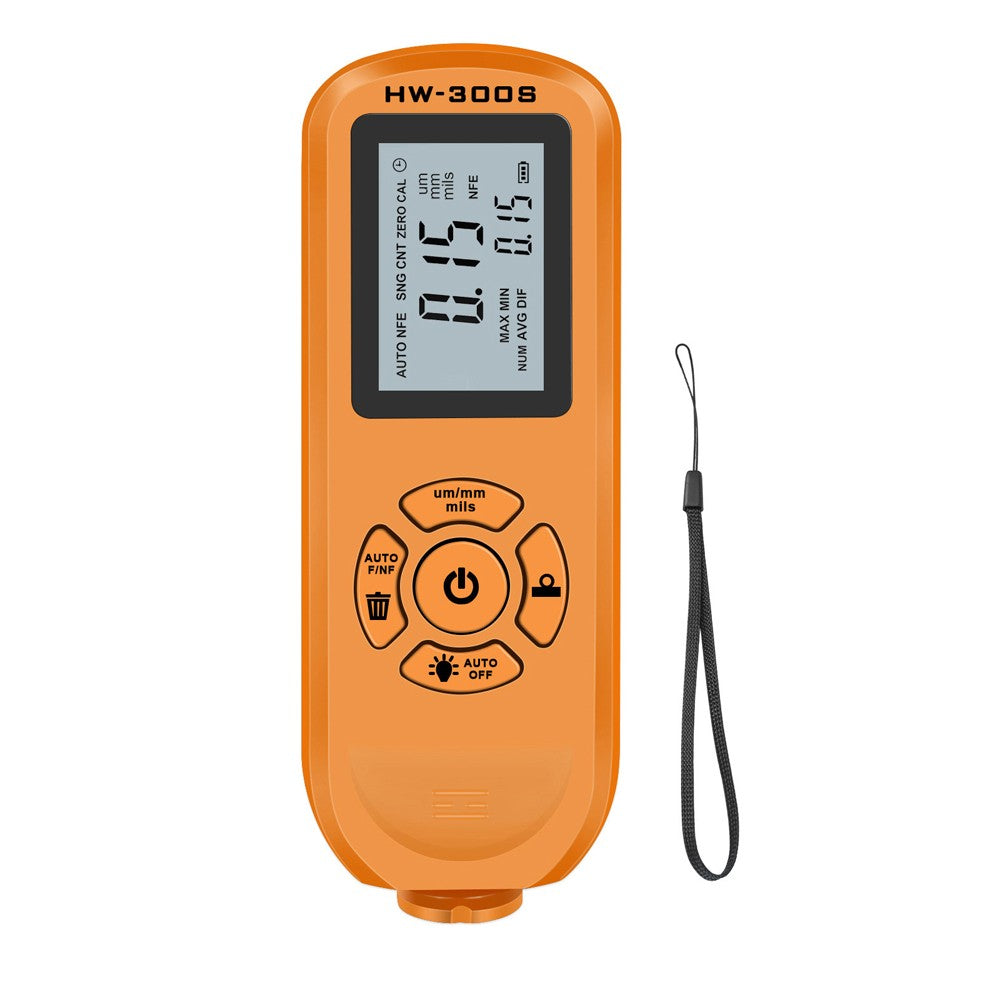

Coating Thickness Measurement Device

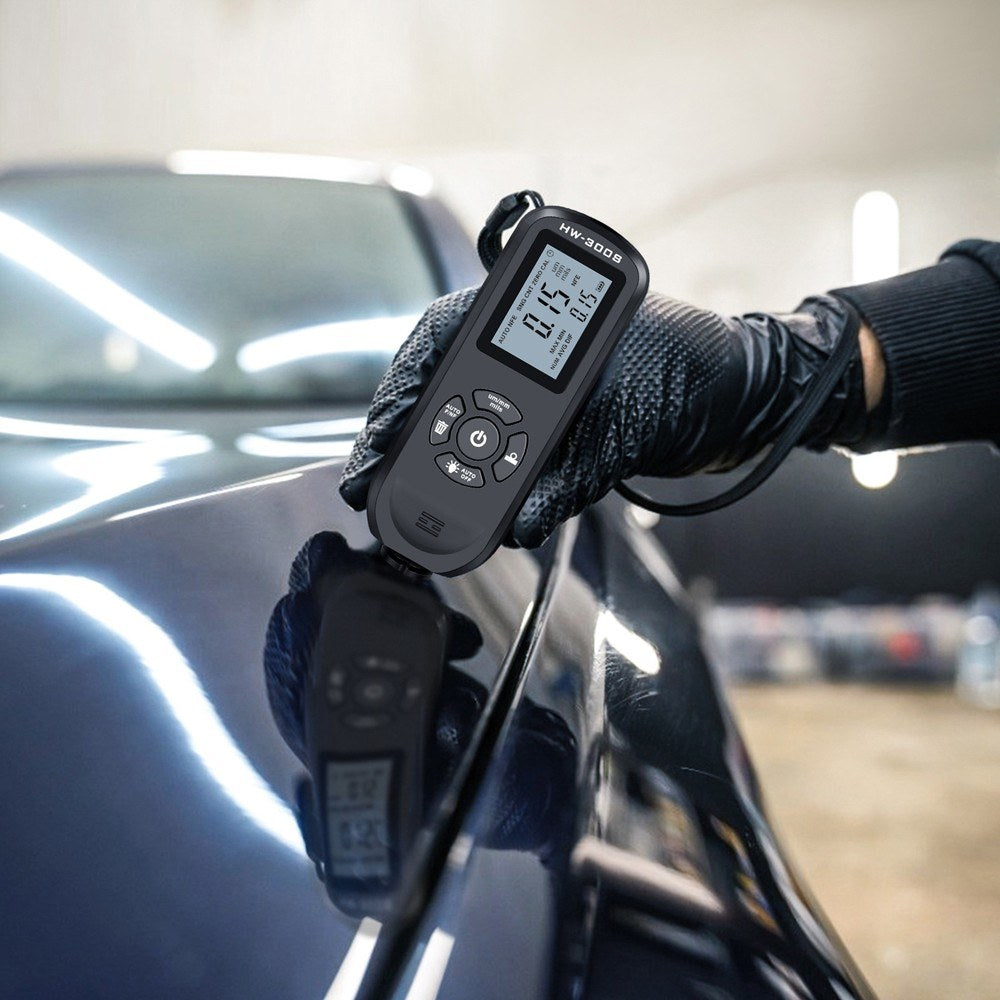

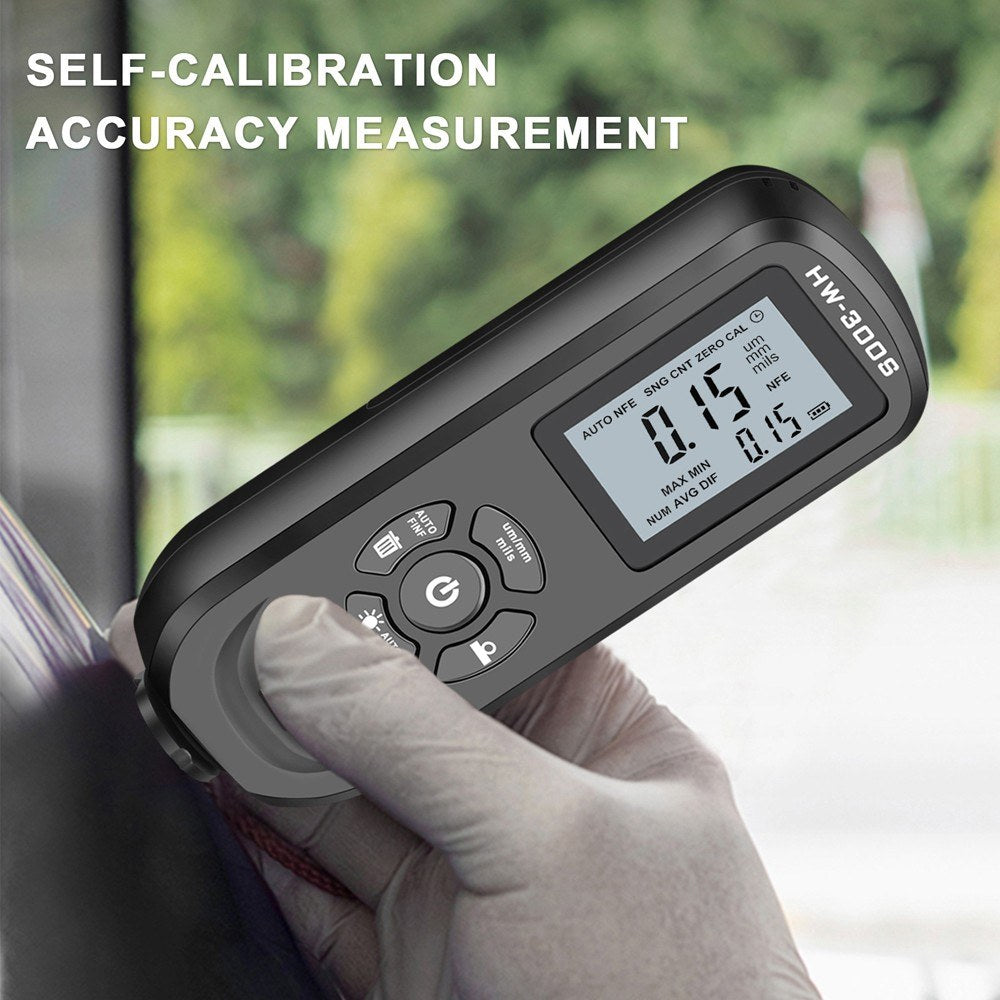

This device is an essential tool for measuring the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic coatings on ferromagnetic metals such as iron, nickel, and cobalt. It accurately determines the thickness of paint on automobile surfaces and coatings on metal parts.

Equipped with a dual principle probe based on magnetic induction and eddy current, the device can automatically identify the metal substrate being measured, providing effortless, automatic coating thickness calculations.

Features

• Accurately measures the thickness of plated and coated sheets on metal, including paint, enamel, and chrome on steel, as well as paint and anodizing coatings on aluminum and copper.
• Stable and precise measuring range.
• Utilizes electro-magnetic induction and eddy current effect principles for automatic substrate detection.
• Non-destructive testing for coating and painting thickness.
• Practical for material surface treatments, manufacturing, metal-processing, and commodity inspection, suitable for laboratories, workshops, and outdoor conditions.

Specifications

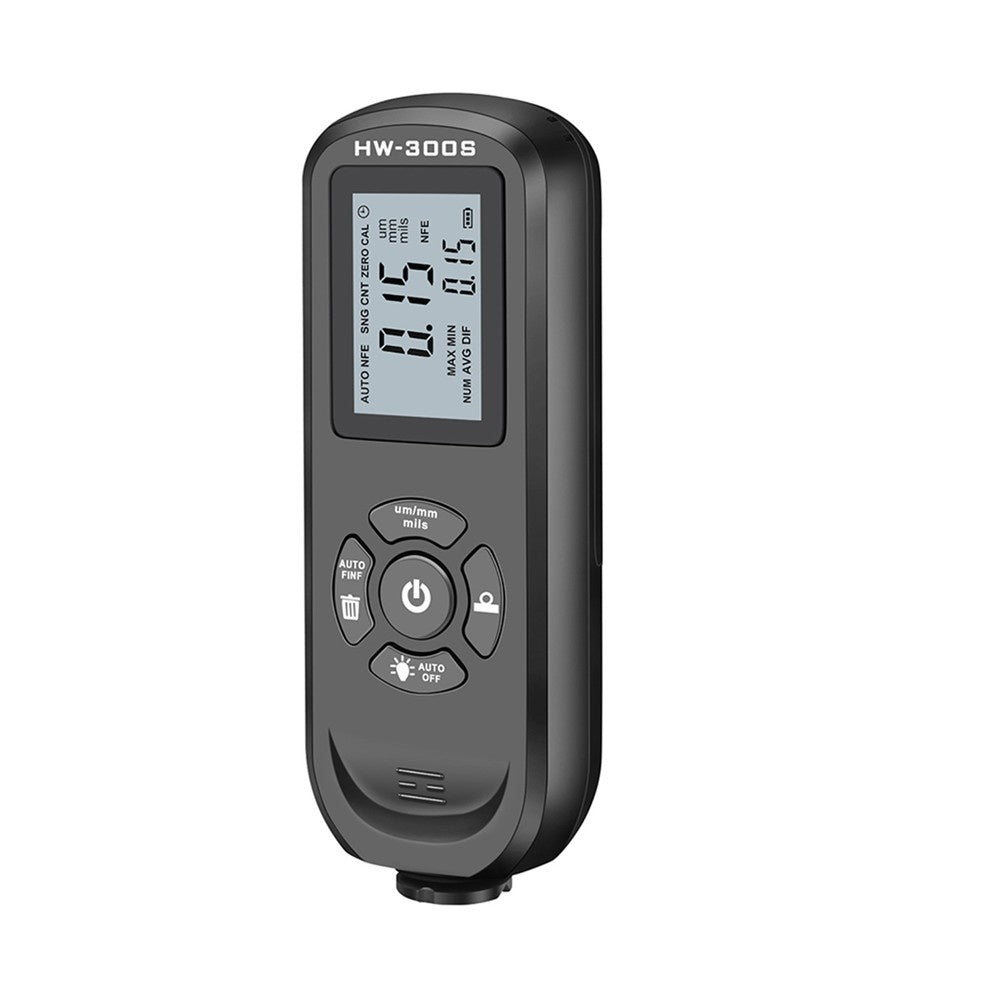

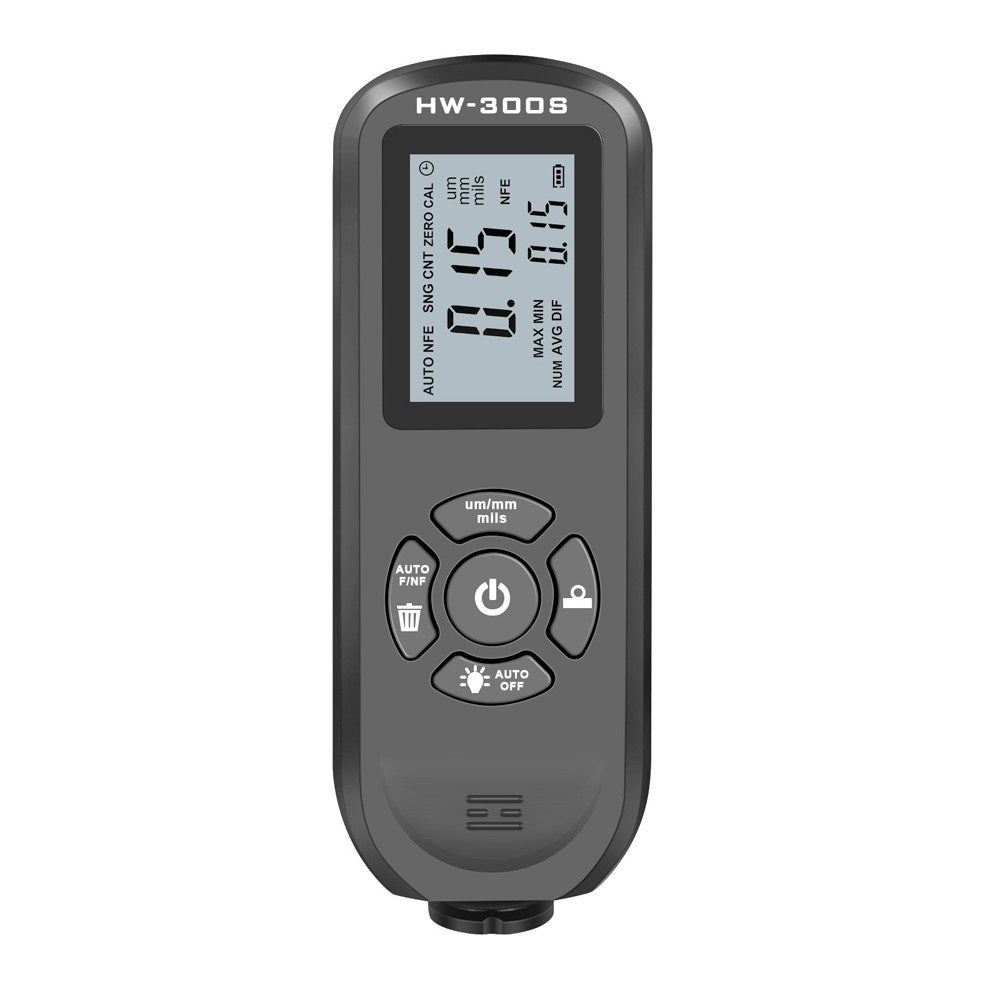

• Type: Horizontal screen, vertical screen (optional)

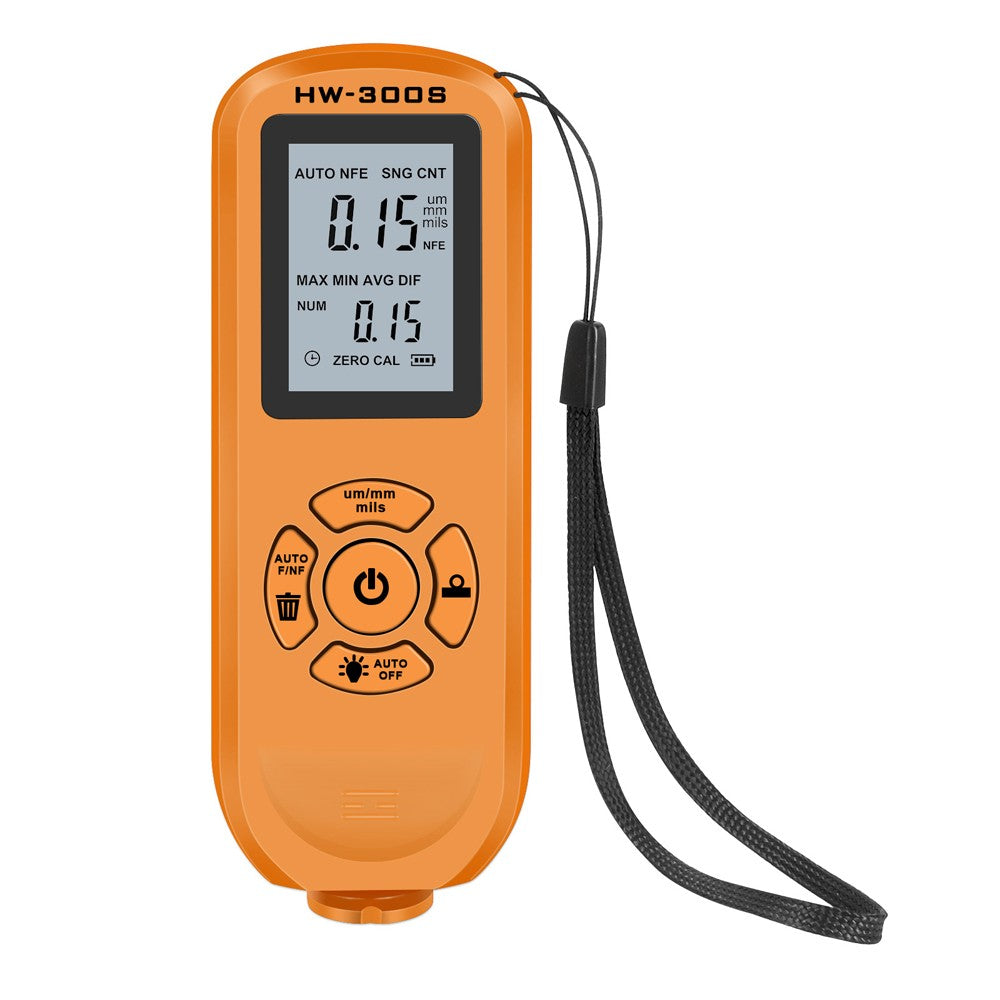

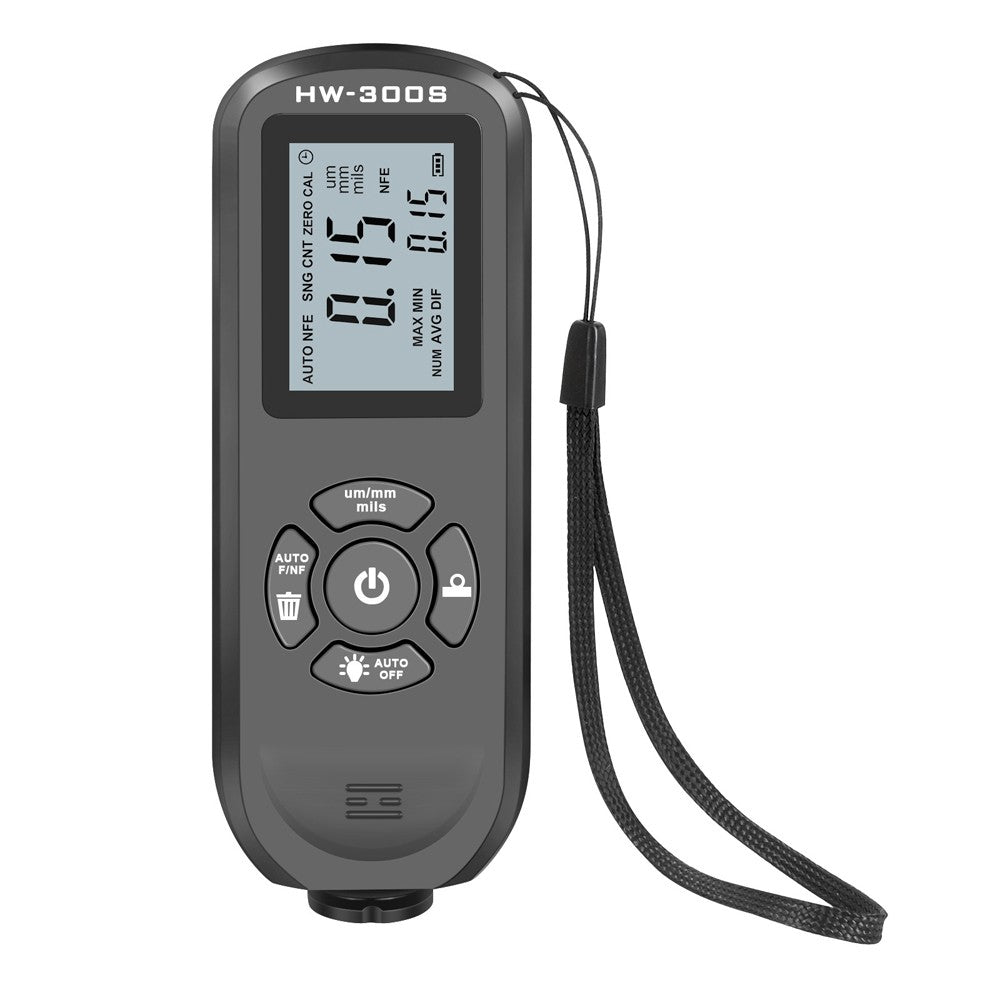

• Color: Black, orange (optional)
• Measuring range: 0-2000µm ±(3%+1µm)
• Resolution: 0.01mm/1mil
• Units: µm, mm, mils
• Material: ABS
• Operating temperature: -10°C to 50°C
• Battery: 2 AAA batteries (not included)

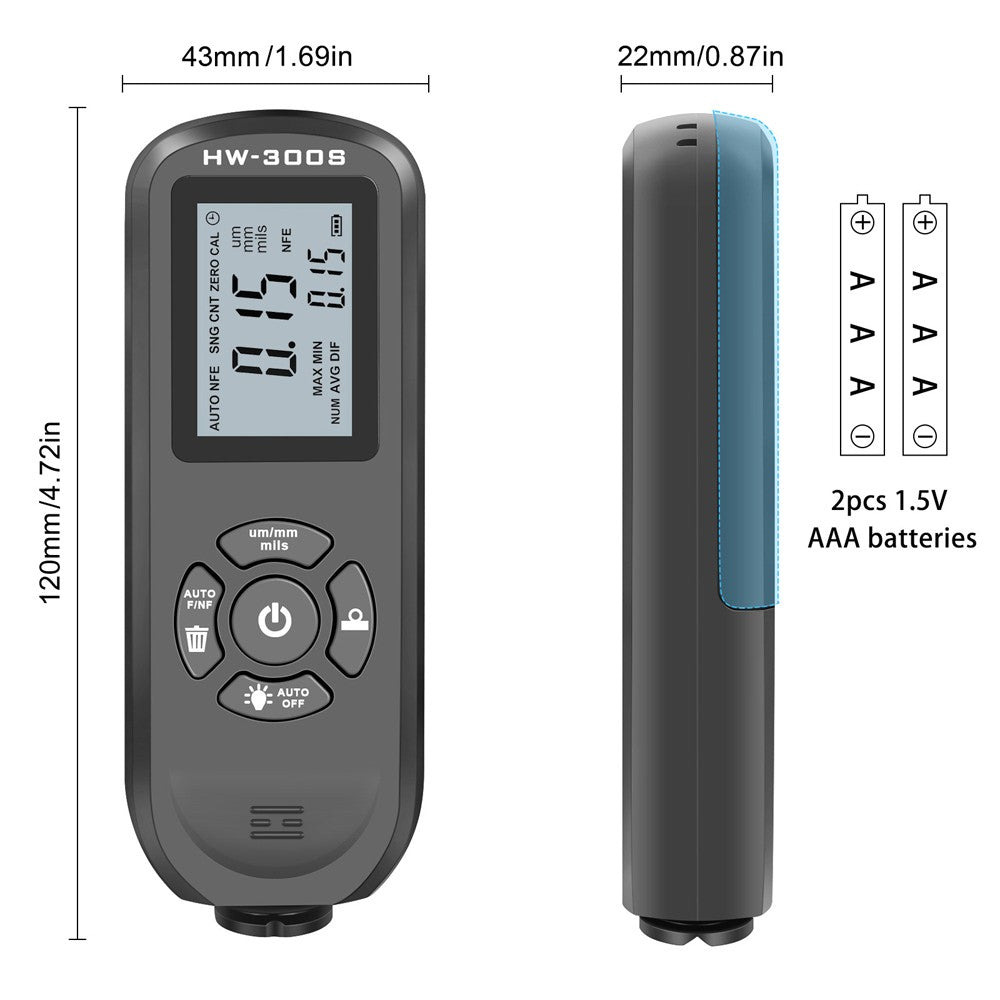

• Item size: 120 x 45 x 23mm / 4.7 x 1.8 x 0.9 inches
• Package size: 125 x 55 x 35mm / 4.9 x 2.2 x 1.4 inches
• Package weight: 100g / 3.5 ounces

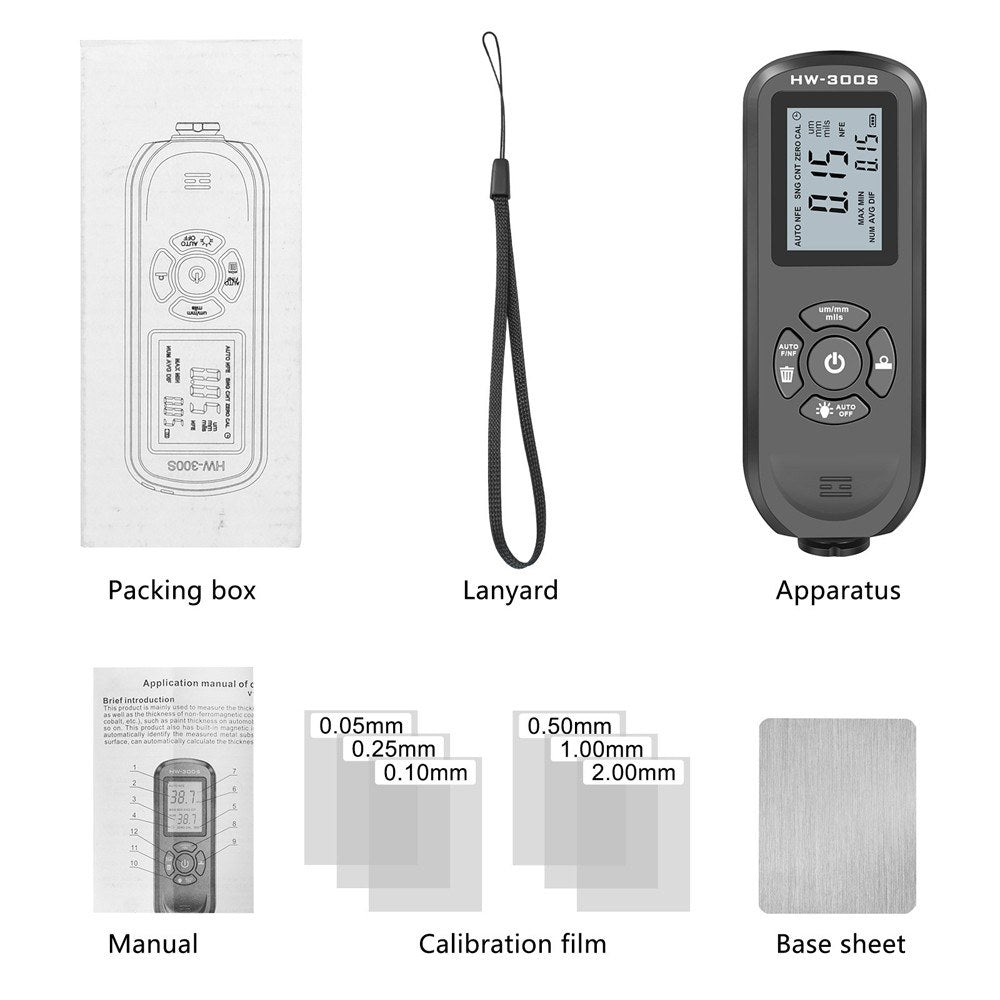

Packing List

• 1 Thickness Gauge
• 1 Rope
• 1 User Manual

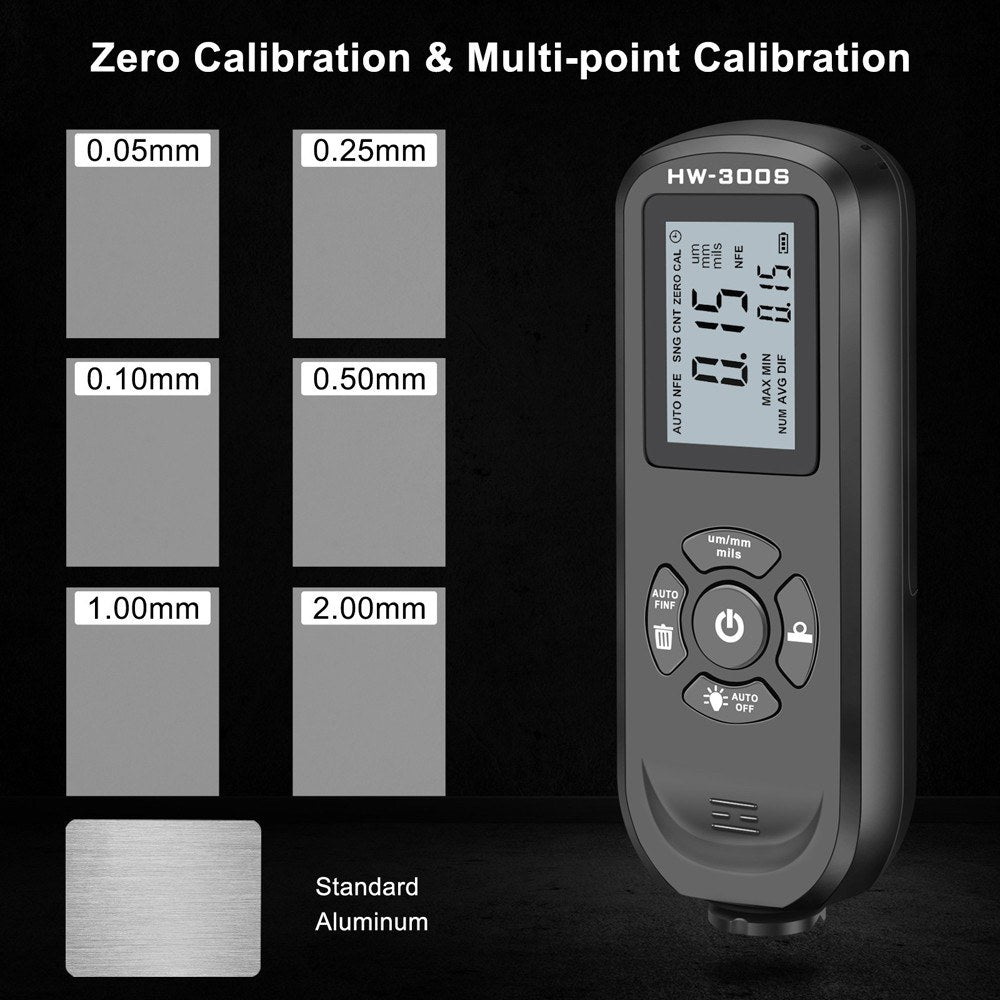

• 6 Calibration Films
• 1 Aluminium Plate
