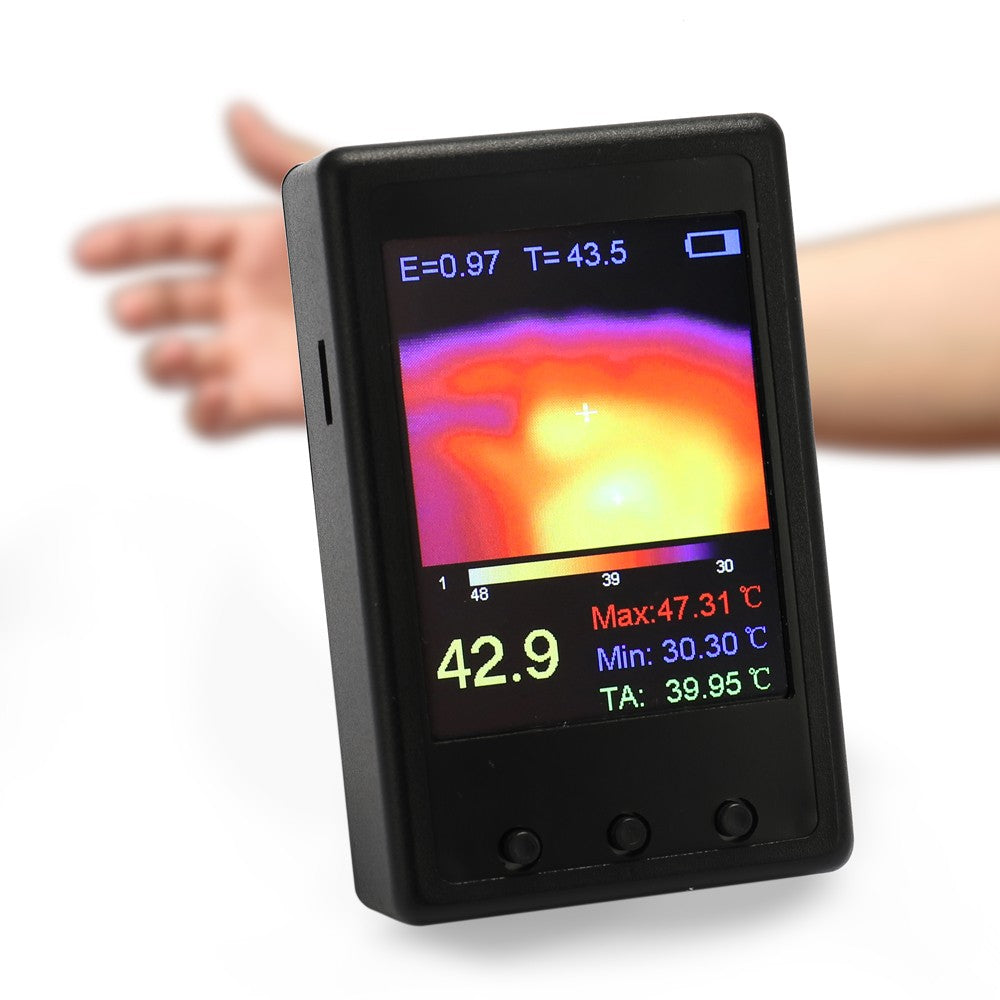

Portable Handheld Infrared Thermograph Camera with 2.4 Inch Display & High Precision Thermal Imager

Introducing our Handheld Multifunctional Thermal Imager — the perfect combination of compact design and powerful features. Lightweight and easy to carry, this indispensable tool is ideal for both household and industrial applications.

Key Features:

• Portable Design: Easy to use right out of the box, with a sensor resolution of 24x32 dot matrix.
• Rechargeable Battery: Built-in 1000mAh lithium battery with micro USB interface. Voltage does not exceed 5V for safe use.
• Wide Temperature Range: Measures temperatures from -40℃ to +300℃, suitable for environments between 0℃ and 50℃.
• Adjustable Emissivity: Set your desired range between 0.01 and 1.00 for accurate readings.
• Wide Field of View: Sensor probe field angle of 35° x 55°, utilizing the MLX90640ESF-BAB probe.

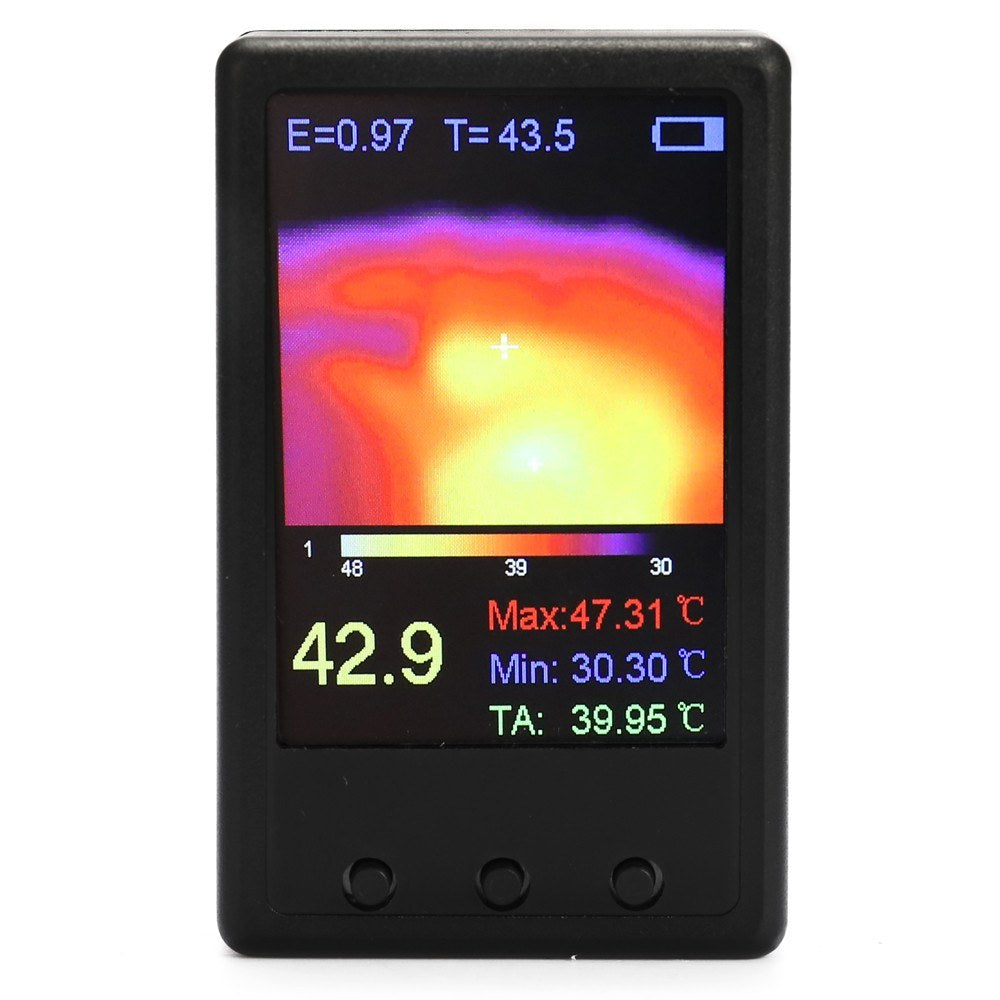

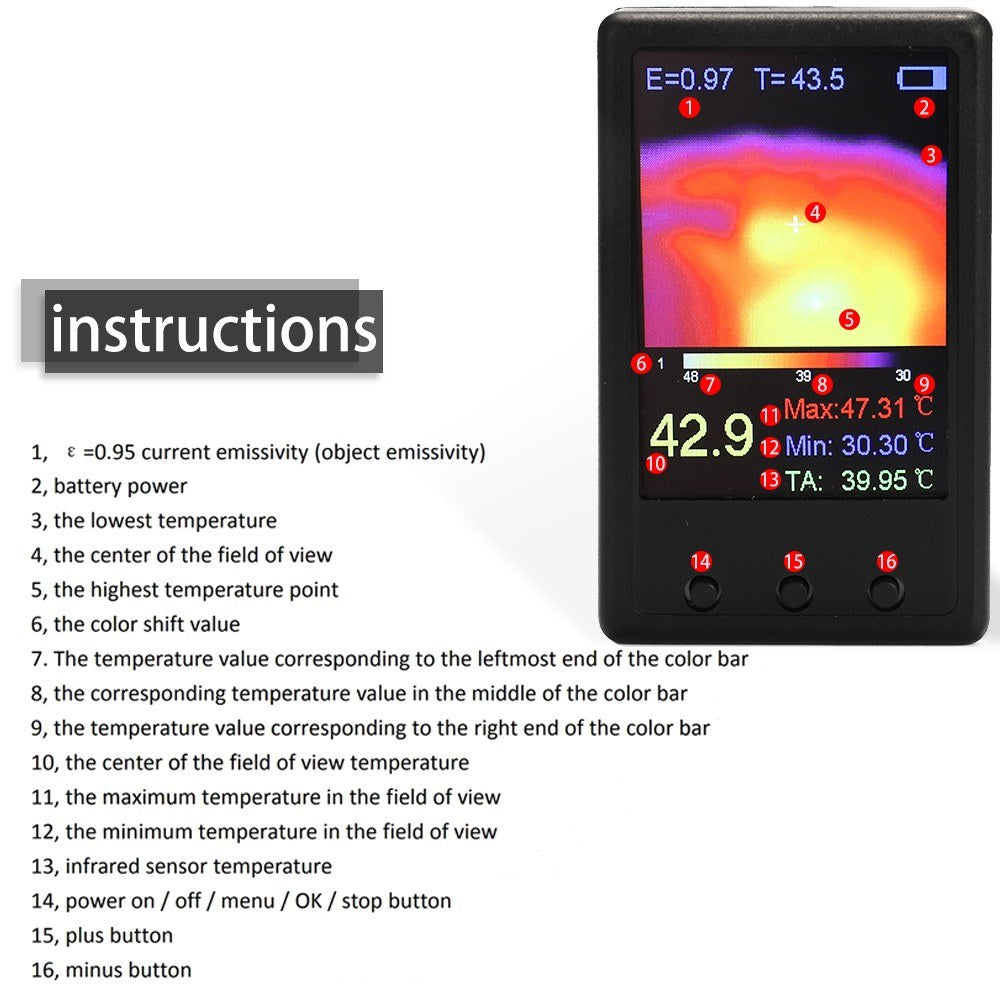

• Clear Display: 2.4 inch LCD with a 320x240 resolution, showing highest, lowest, and center point temperatures, along with coordinates.
• High Measurement Accuracy: Accuracy within ±2℃ ensures precise temperature detection.
• Screenshot Functionality: Pause the image for detailed analysis.
• Temperature-Colored Display: Customize colors to represent different temperatures for easy visualization.
• USB Interface for Data and Updates: Easily upgrade to the latest system version and transfer data as needed.

Applications:

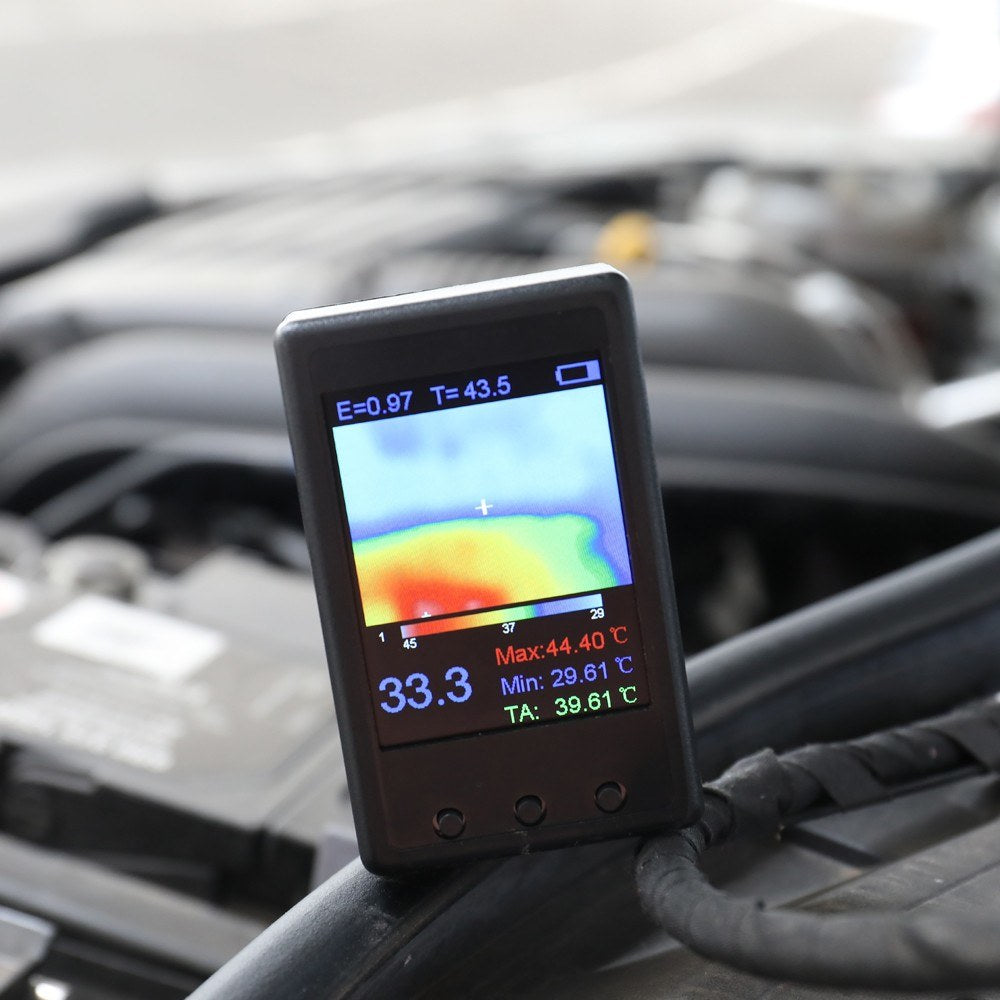

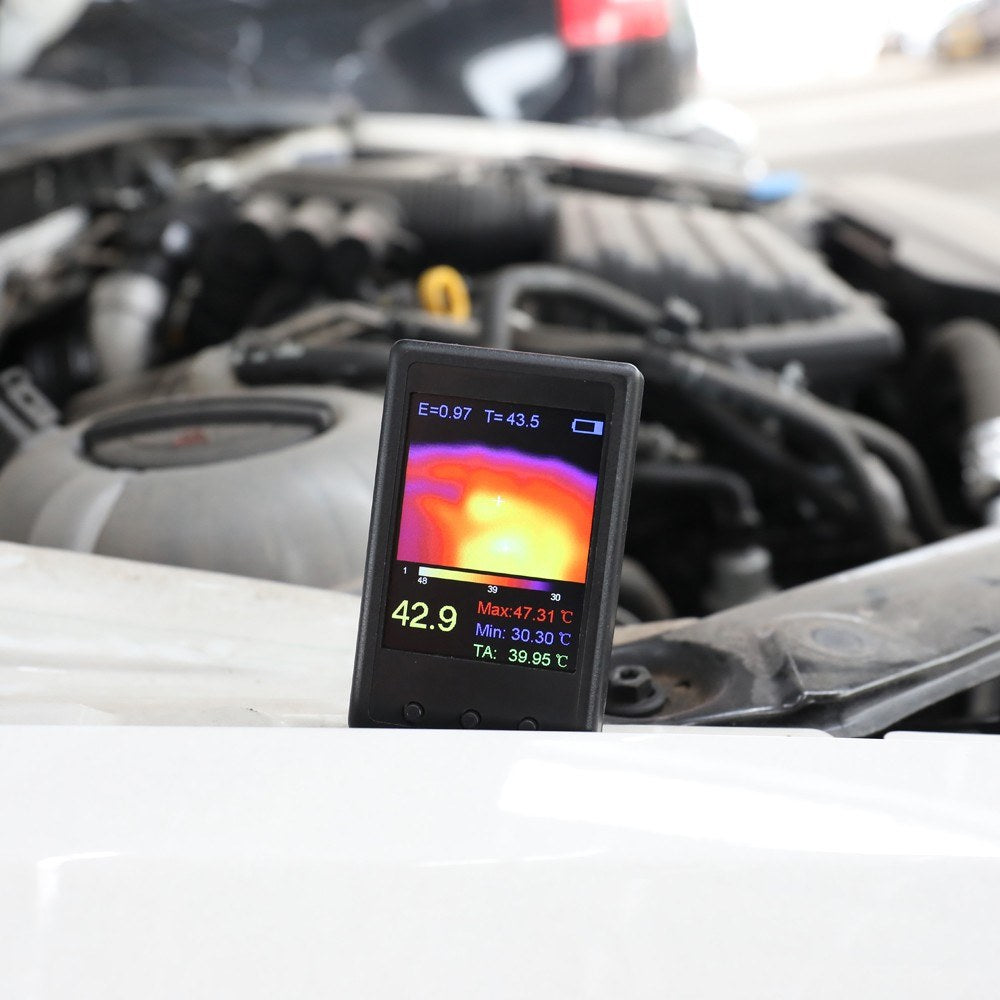

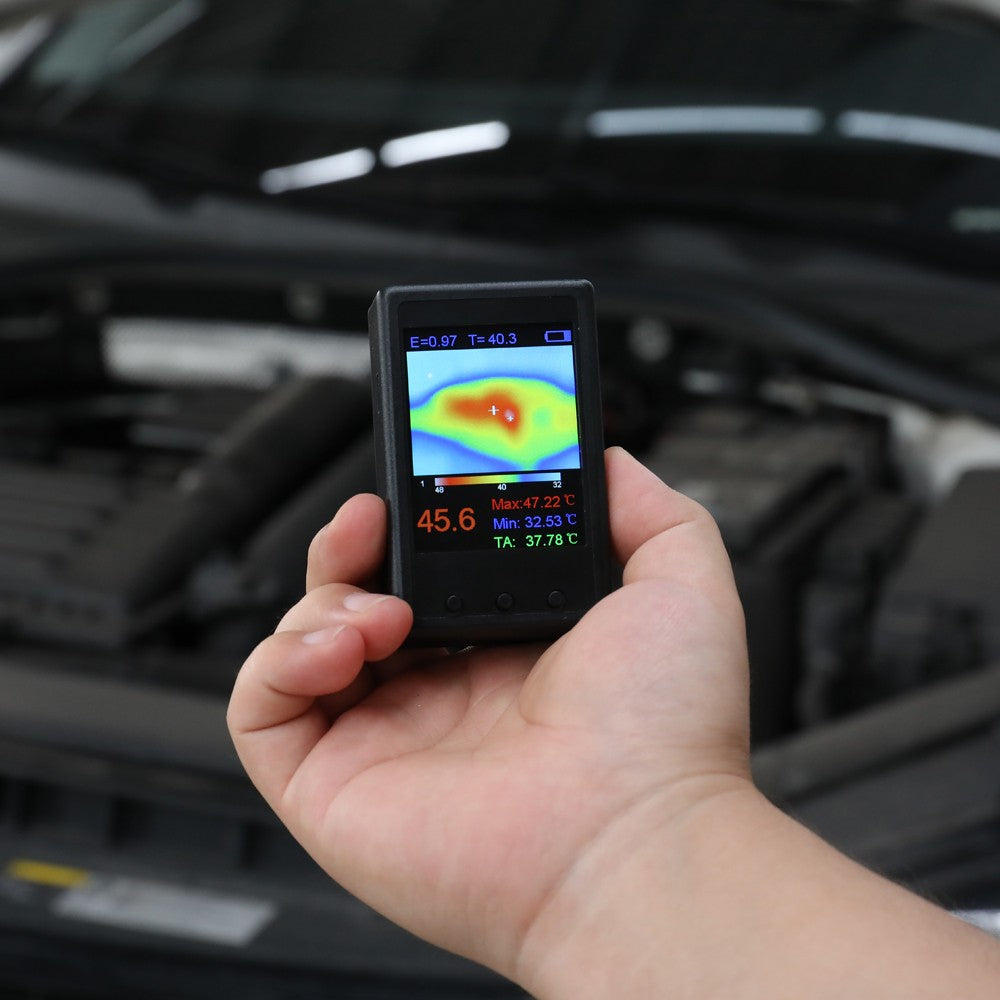

Useful for detecting human body temperature, heating in printed circuit boards, floor heating, automotive parts, electrical switches, and more.

Specifications:

• Material: ABS
• Color: Black
• Display: 2.4 inch color display, 320x240 resolution
• Resolution: 32x24
• FOV/Shortest Focal Length: 55° x 35°
• Temperature Range: -40℃ to 300℃
• Measurement Accuracy: ±2℃
• Imaging Frequency: 8Hz
• Emissivity: 0.01 to 1.00 adjustable
• Focus Mode: Fixed
• Power Supply: 1 rechargeable lithium battery, 1000mAh (included)
• Working Temperature: 0℃ to 50℃
• Storage Temperature: -40℃ to 70℃
• Humidity: <90% RH

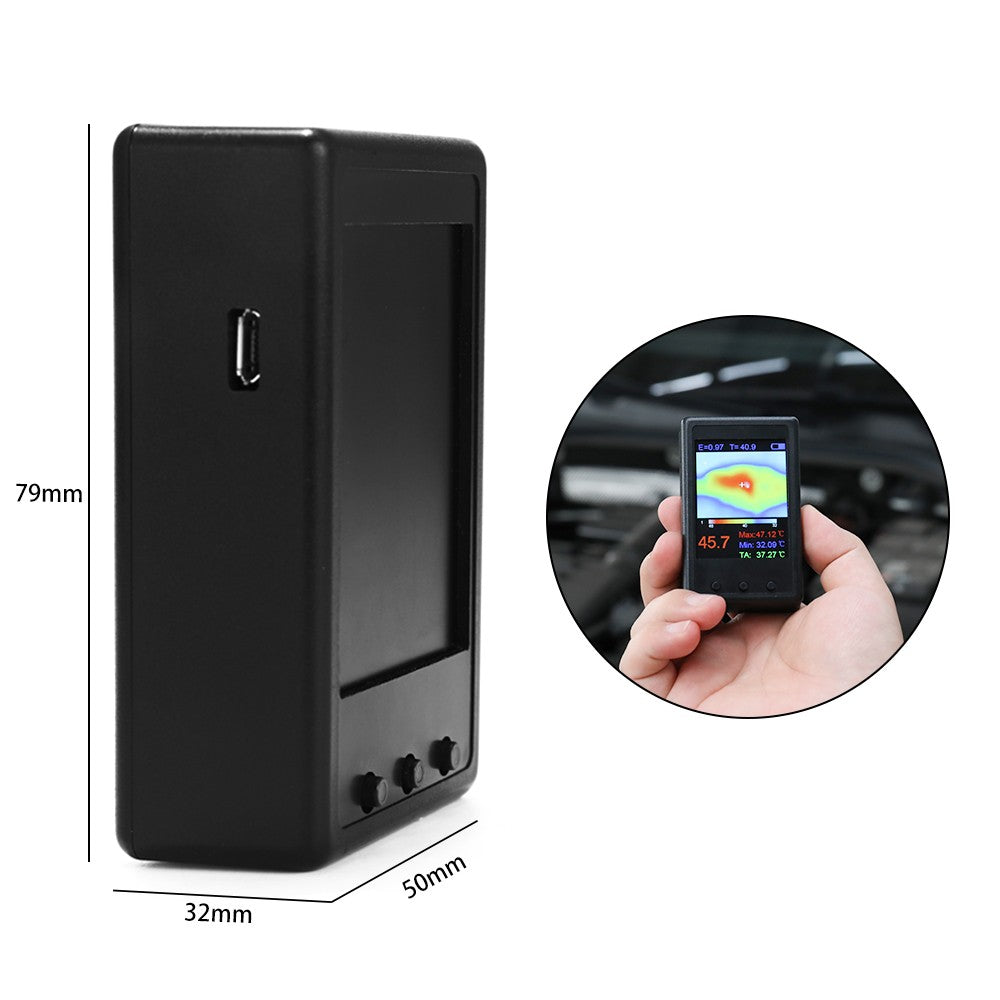

• Dimensions: 79 x 50 x 32 mm / 3.1 x 2.0 x 1.3 in
• Weight: 66g / 2.3oz
• Package Dimensions: 150 x 100 x 35 mm / 5.9 x 3.9 x 1.4 in
• Package Weight: 89g / 3.1oz

Package Includes:

• 1 x Thermal Imager
