Machifit CNC Milling Digital Readout with 50-1000mm Linear Scale - Precision Grating Tool

Product Description

Product Overview

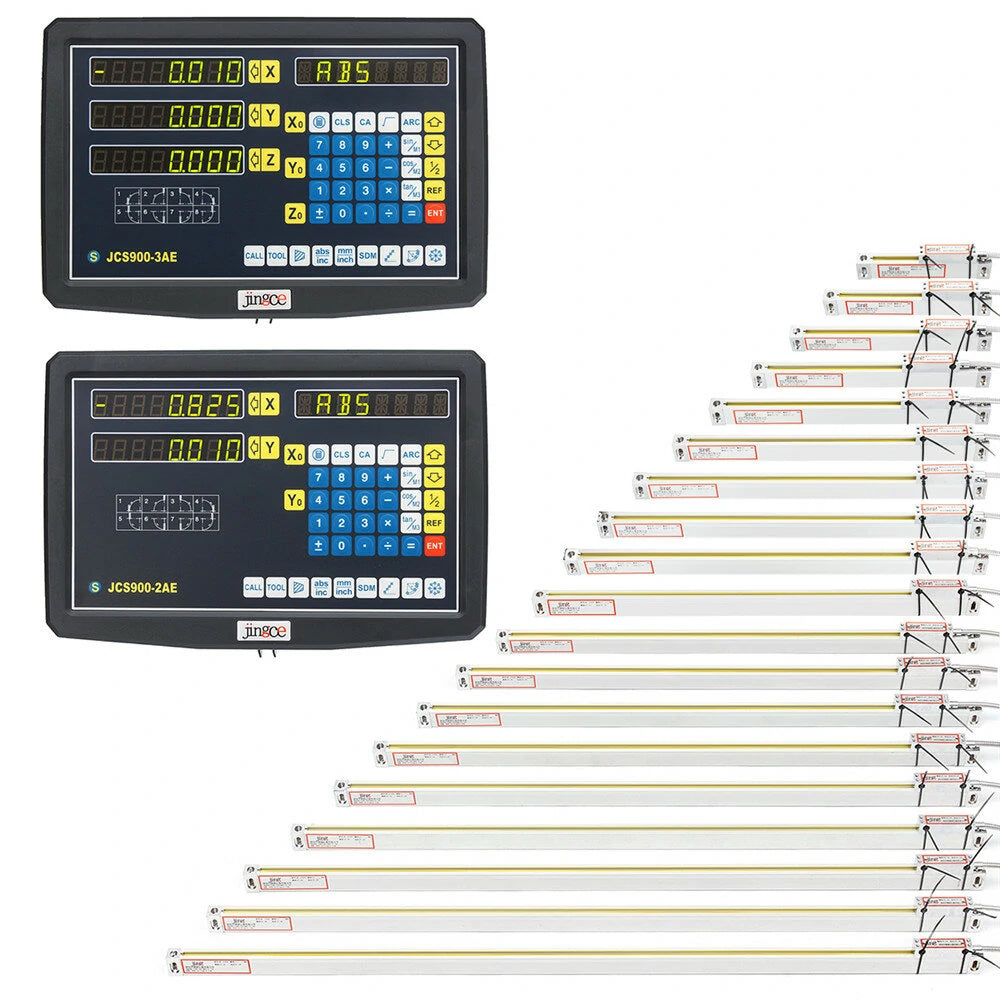

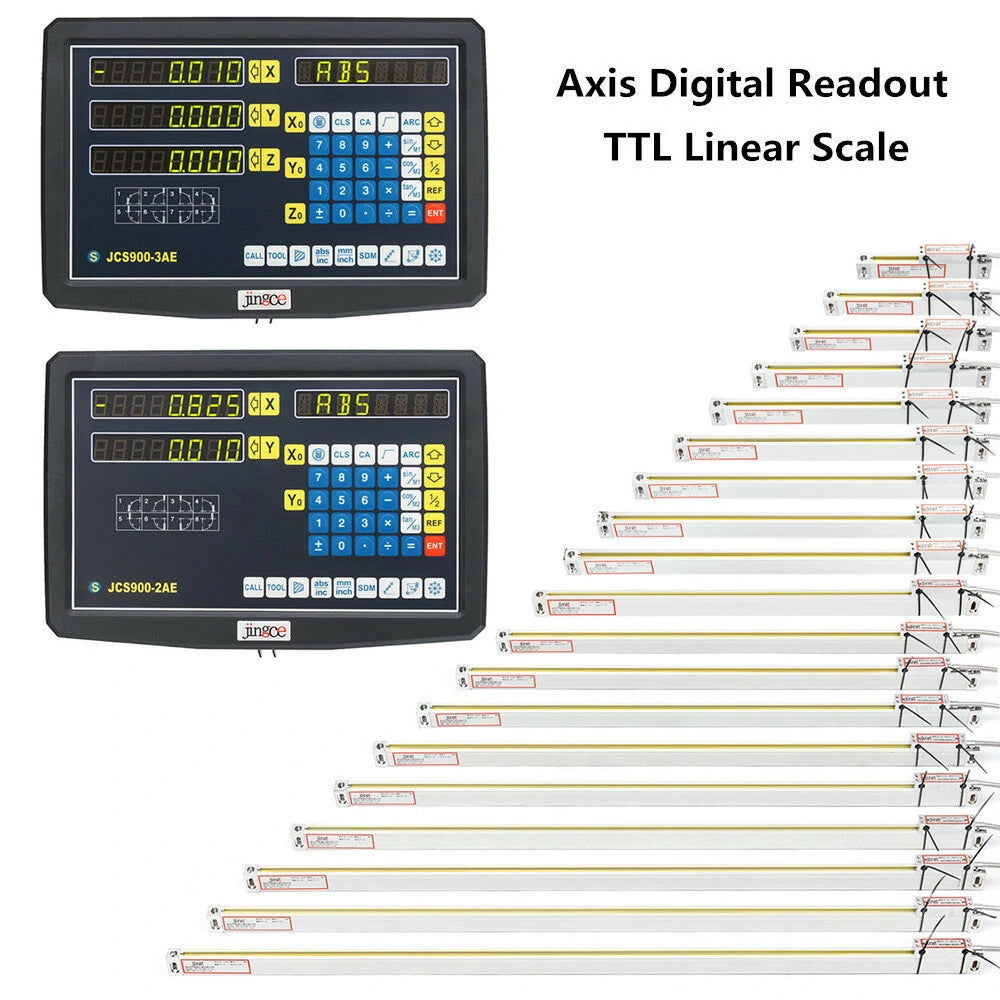

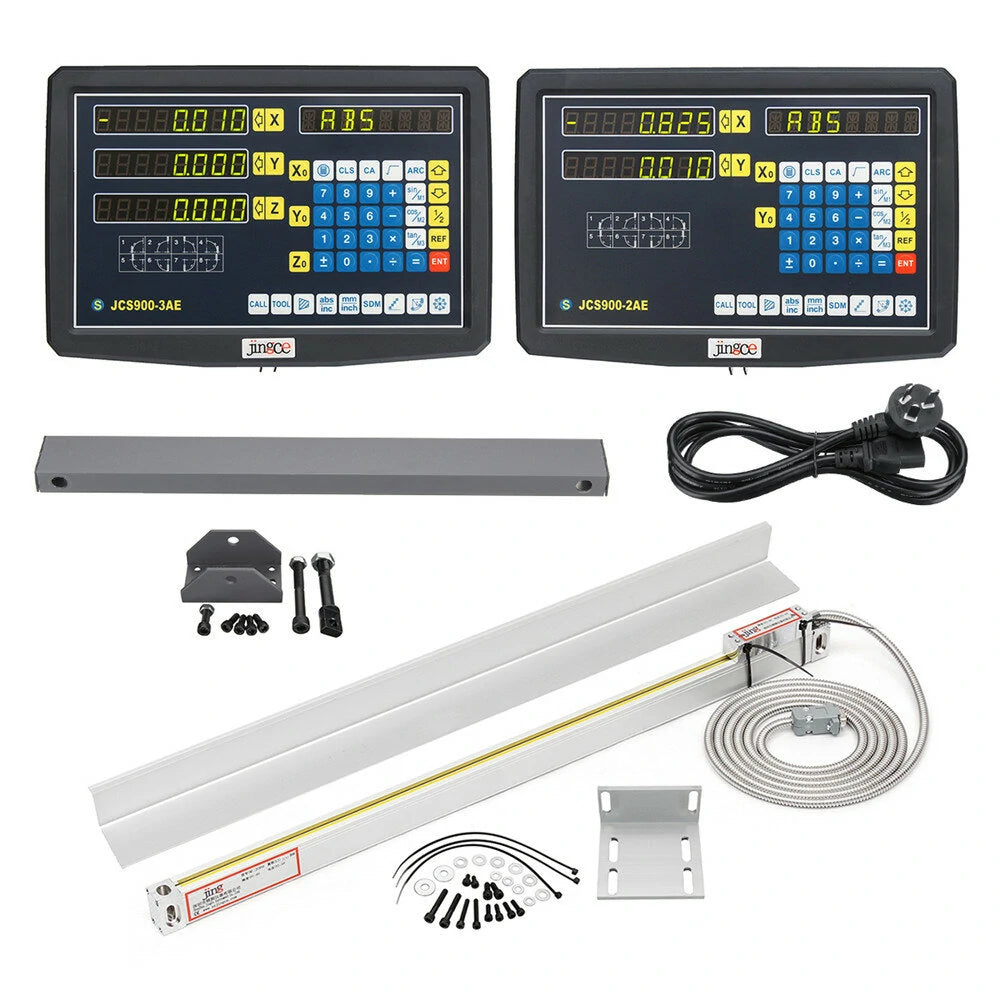

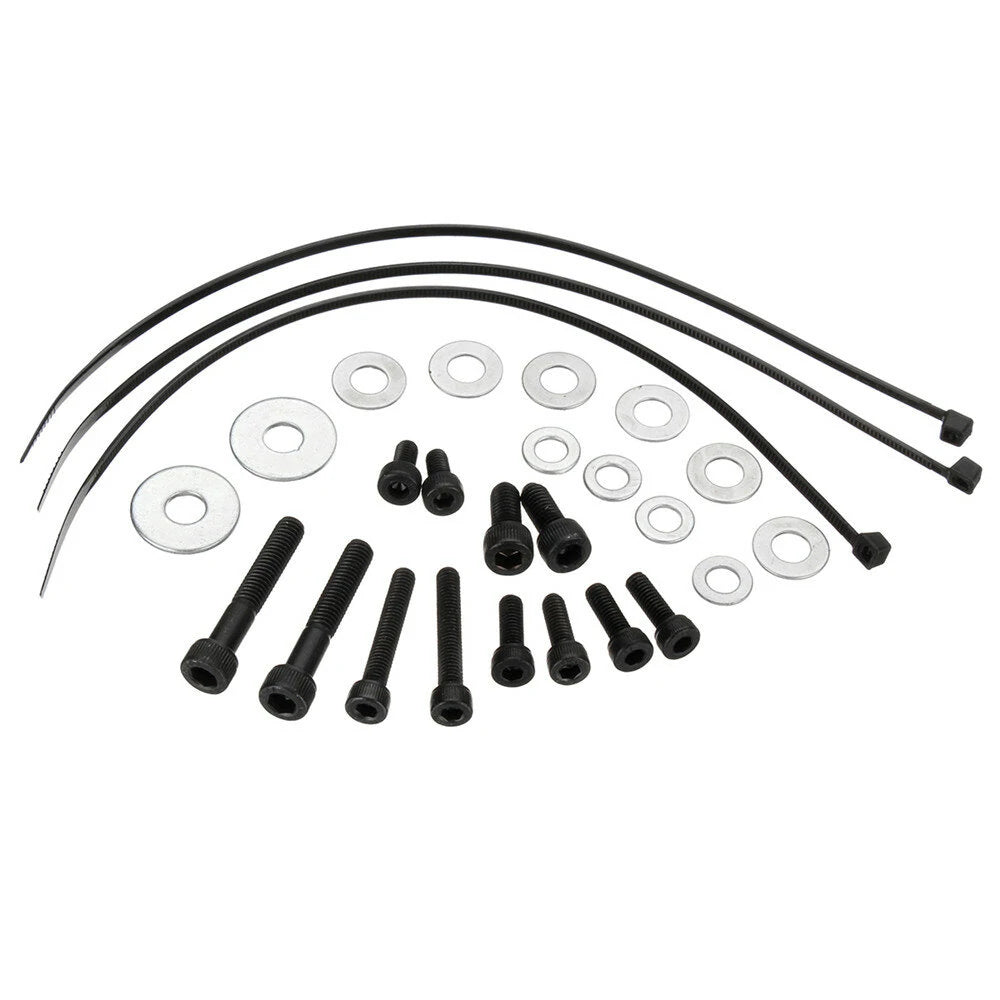

Experience precision like never before with our 2/3 Axis Grating CNC Milling Digital Readout Display featuring an electronic linear scale ranging from 50-1000mm, perfect for any lathe tool application. Please note, the package includes only one item as per your selection (JCS900-2AE/JCS900-3AE Readout/50-1000mm Linear Scale).

Specifications

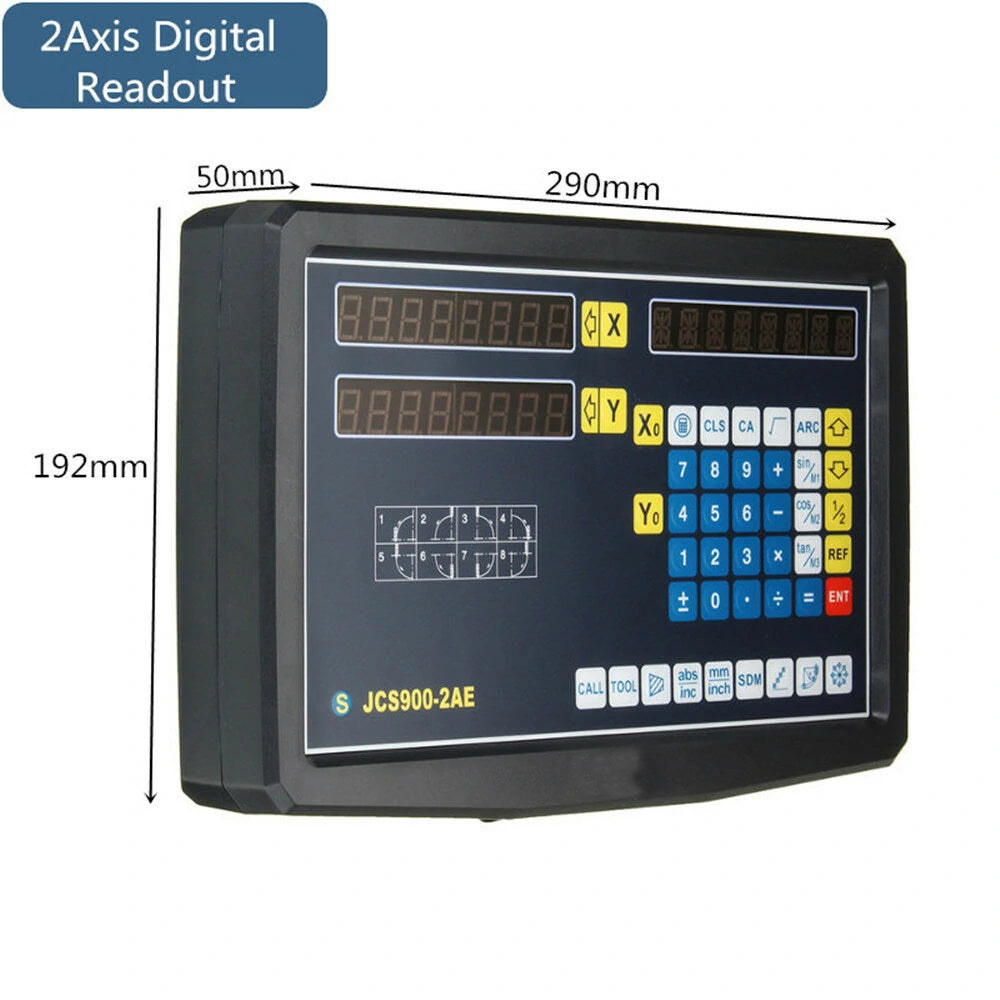

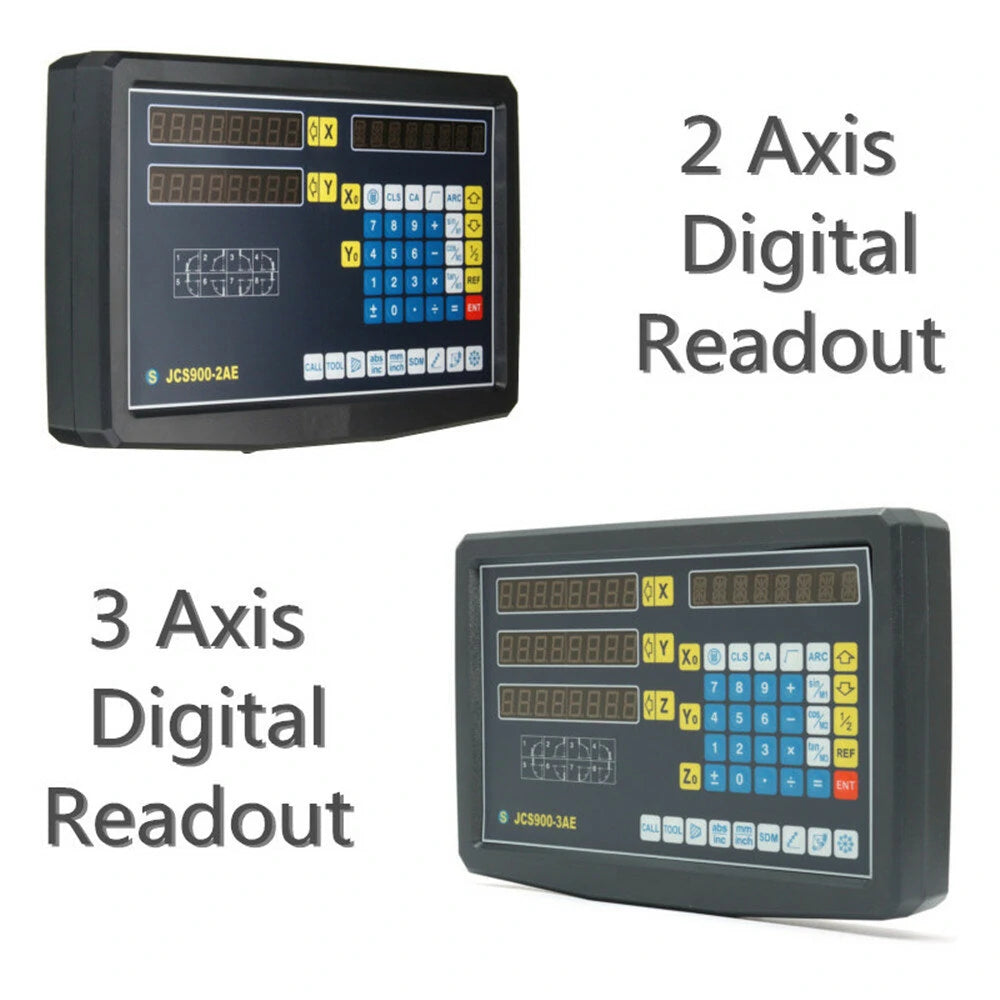

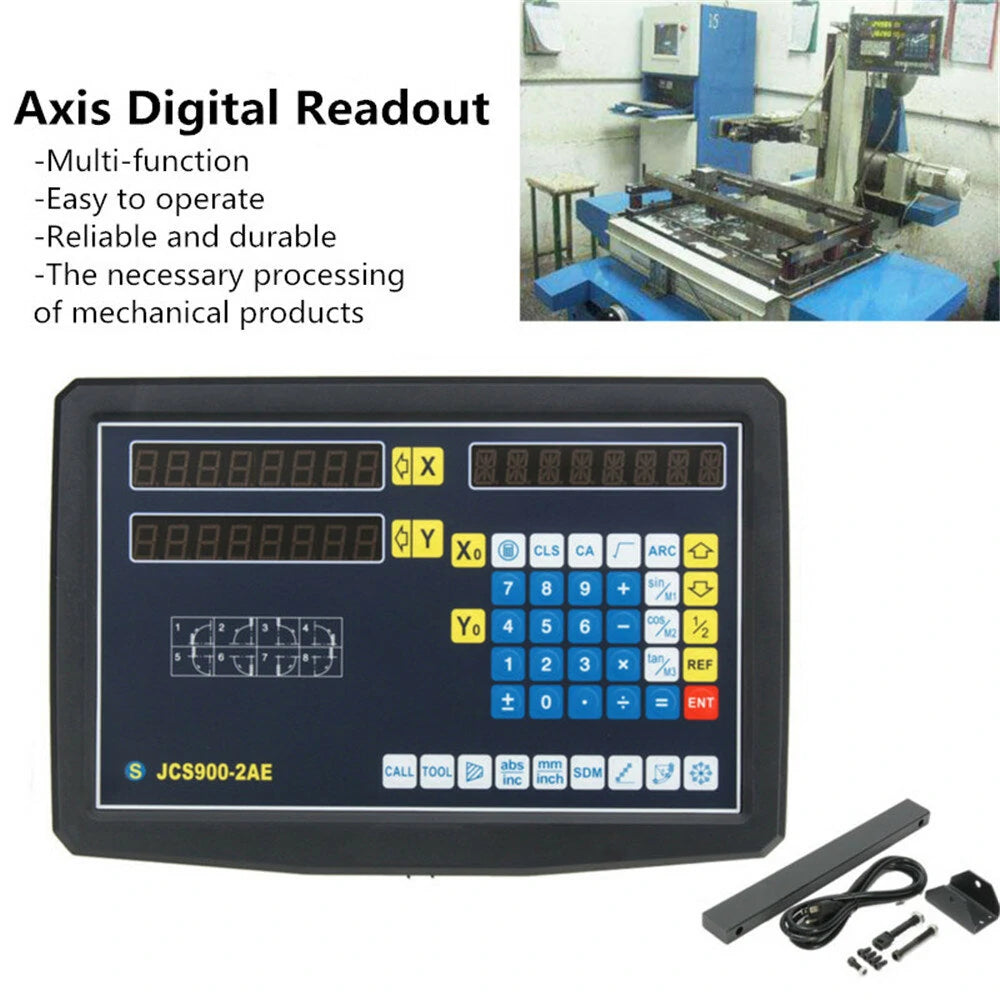

Axis Digital Readout (2 Axis/3 Axis)

Measuring Travel: 0-3020mm
Accuracy Class: ± 1µm
Measurement Standards: Engraved glass grating
Operating Voltage: 5V ± 5% DC
Working Speed: ≤1m/s (1µm)
Acceleration: ≤ 60m/s²
Reference Operating Humidity: ≤ 90% RH
Grating Pitch: 20µm (0.020mm)
Measurement Procedure: Incremental
Signal Mode: TTL
Circuit Characteristics: NPN
Grating Measurement System: Transmission infrared optical system, infrared wavelength 940nm
Scanning Frequency: ≤28kHz
Anti-Vibration: 50Hz-2KHz, ≤ 180m/s²
Impact: 16ms, ≤ 600m/s²
Displacement Frictional Resistance: ≤ 5N
Protection Class: IP53 / IP64

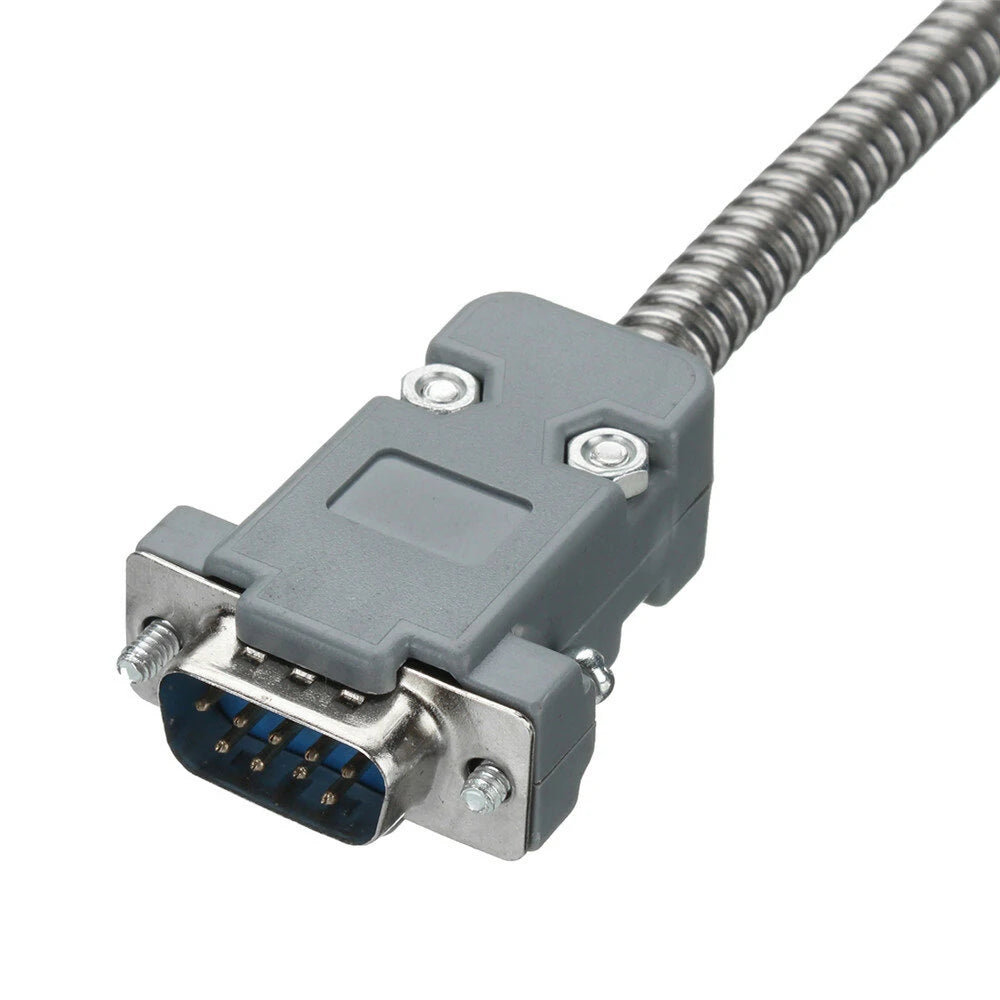

Signal Electrical Connection: Independent adapter cable (2.5M / 3M / 4M / 5M, up to 100M)

Note: The parameters above are measured under ideal conditions and may vary in practical use.

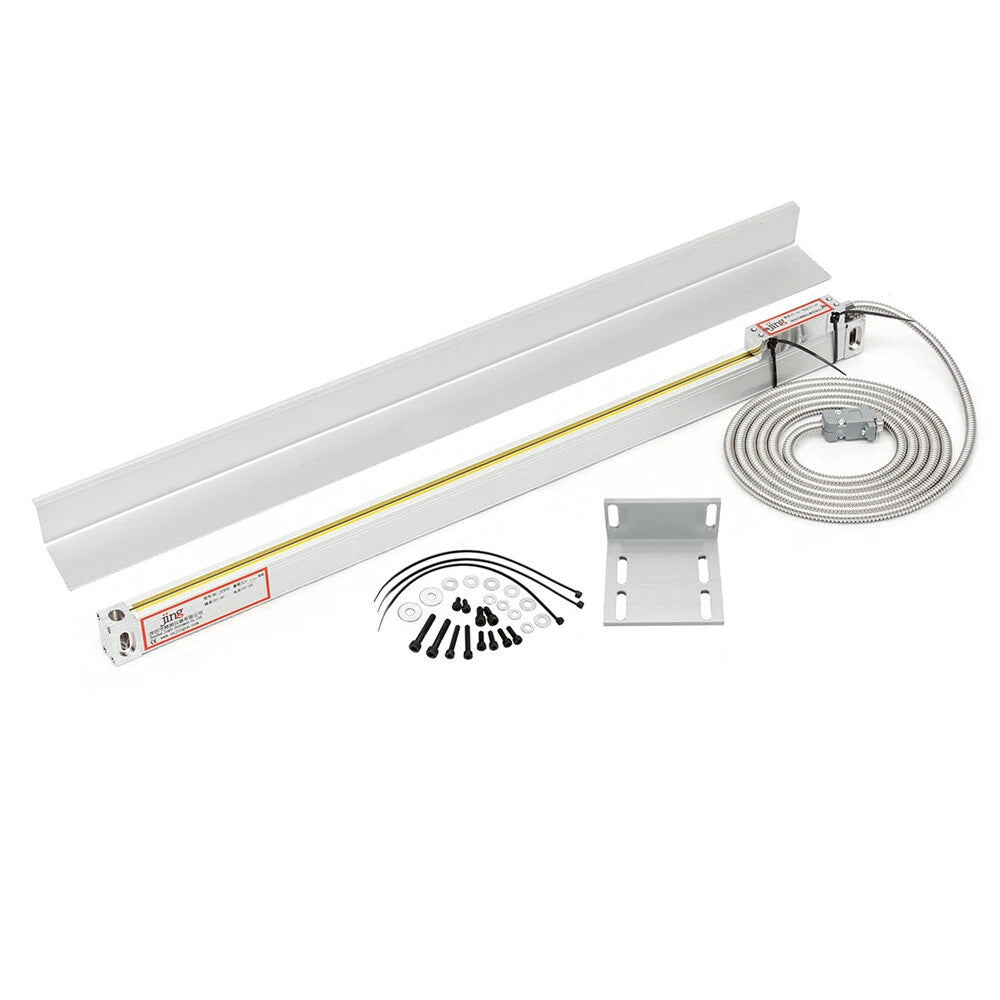

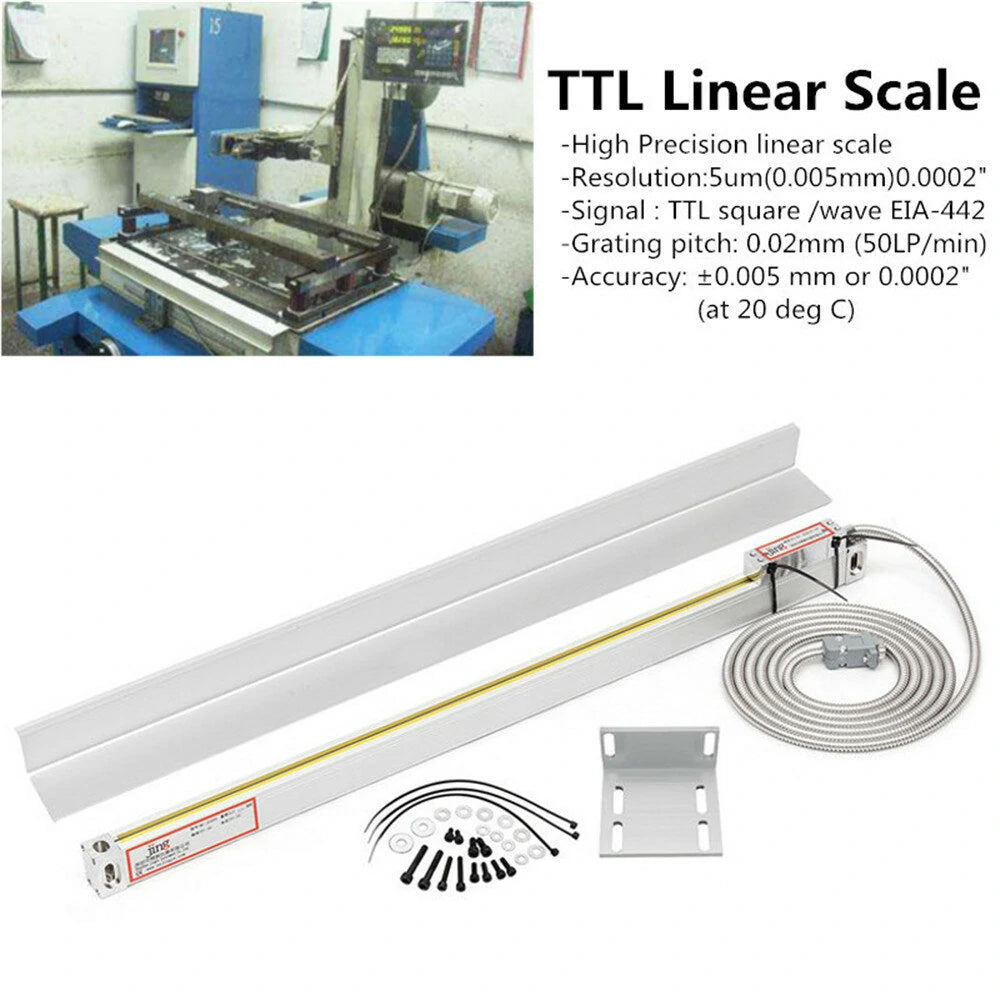

TTL Linear Scale (50-1000mm)

Physical Length: Longer than the travel length, options from 50-1000mm in 5µm increments
Resolution: 5µm (0.005mm) or 0.0002”
Signal: TTL square
Grating Pitch: 0.02mm (50 Lines Per Minute)
Accuracy: ±0.005mm or 0.0002” (at 20°C)
Reference Marks: 50mm intervals
Response Speed: 60m/min or 40 inches/sec

Note: Buyers can select any scale measuring length under 1000mm at this price. The actual physical length is 141mm longer than travel. One inch equals 25.4mm.

Features

The sliding part uses a reliable five-bearing system; the main grating is assembled at a 90-degree angle for increased accuracy.
Enhanced repeatability for more stable measurements.
Signal line protected by multi-layer isolation steel and metal soft shell, offering waterproof and anti-interference capabilities.
Aluminum die-cast ruler body with hard chrome plating for corrosion-resistant performance.
Special plastic dust bar, resistant to corrosion, scratches, and friction.
Independently replaceable parts facilitate easy installation and maintenance, offering long-term durability with excellent waterproof and dust-proof qualities.
The sensor uses a glass precision metrology grating as its measurement reference.
Multi-functional and user-friendly, adaptable to the essential processing of mechanical products.
