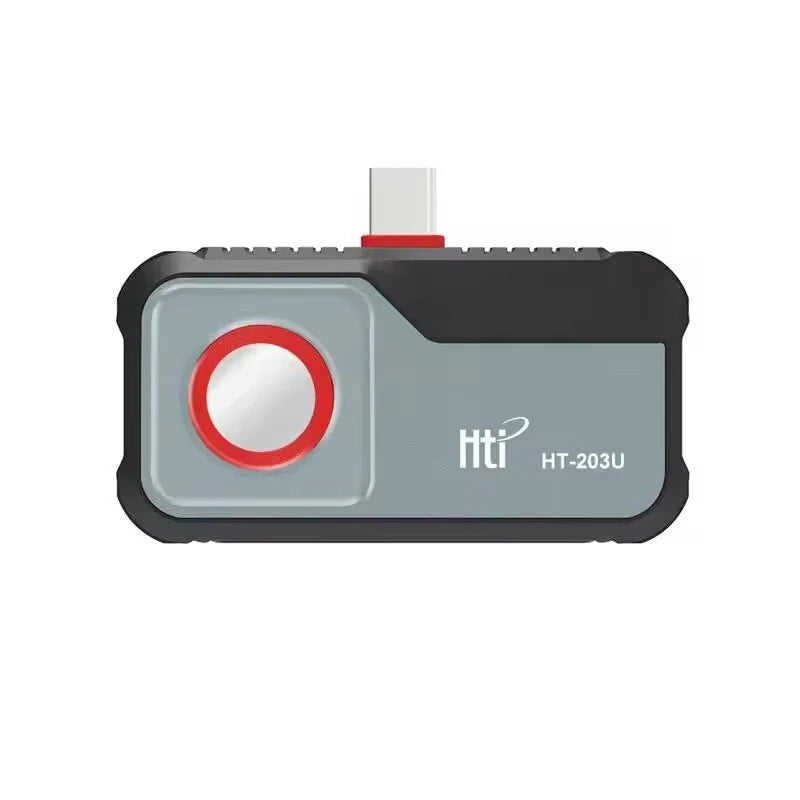

HT-203U Infrared Thermal Imager

Specifications

• Model: HT-203U
• Type: Infrared Thermal Imager
• Measurement Range: -20℃ to 550℃ (-4℉ to 1022℉)
• Accuracy: ± 2℃ or ± 2%
• Thermal Image Resolution: 256x192 pixels
• Wavelength Coverage: 8 ~ 14μm
• Pixel Size: 12μm
• Focal Length: 3.2mm
• Frame Rate: 25Hz
• Temperature Measurement Mode: Center/Hot and Cold Spot Tracking
• Temperature Measurement Methods: Point, Line, and Surface
• Palettes: Rainbow, Iron Red, Cool, White Hot, Black Hot
• NETD Lens Focus: ≤ 40mK @ 25℃, @ f/1.2
• Field of View: 50.0° × 37.2°
• Tester Type: Uncooled Amorphous Silicon Infrared Focal Plane
• Emissivity Adjustment: 0.01 ~ 1.00 adjustable
• Focus Mode: No Focusing Required
• Thermal Sensitivity: 0.1℃
• Operating Temperature: -20℃ to 50℃
• Storage Temperature: -30℃ to 70℃
• Weight: 28g
• Size: 46 x 70 x 14mm

---

Features

• High-Resolution Thermal Imaging: The 256x192 pixel resolution with 12μm pixel size provides clear and detailed thermal images for enhanced diagnostics.
• Wide Temperature Range: Measures temperatures from -20℃ to 550℃ (-4℉ to 1022℉) with an accuracy of ± 2℃ or ± 2%, suitable for diverse applications.

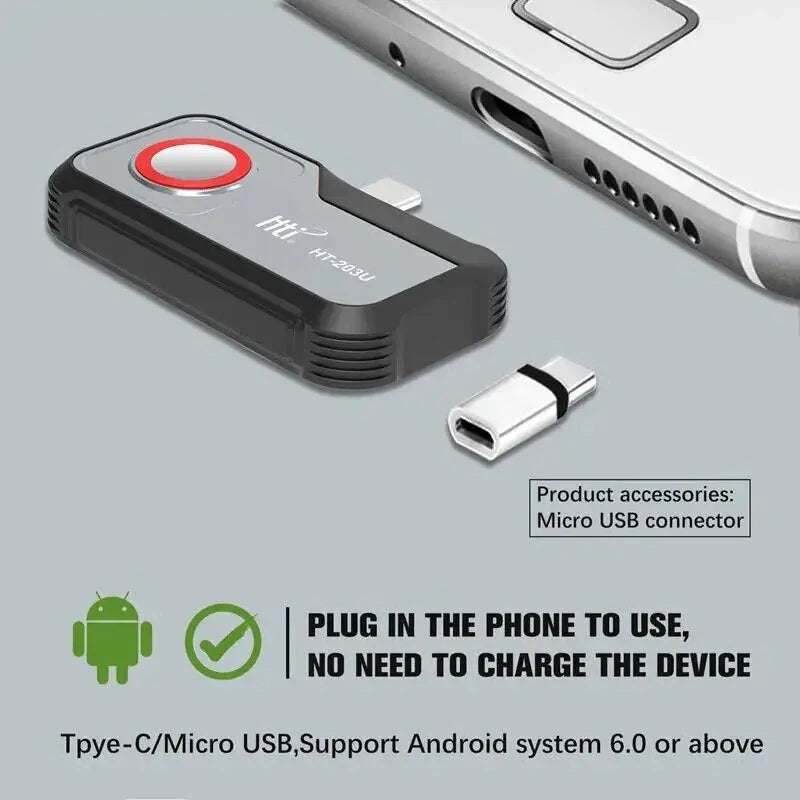

• Compact and Lightweight: Weighs only 28 grams and measures 46x70x14mm, making it easy to carry and use with Android Type-C smartphones.

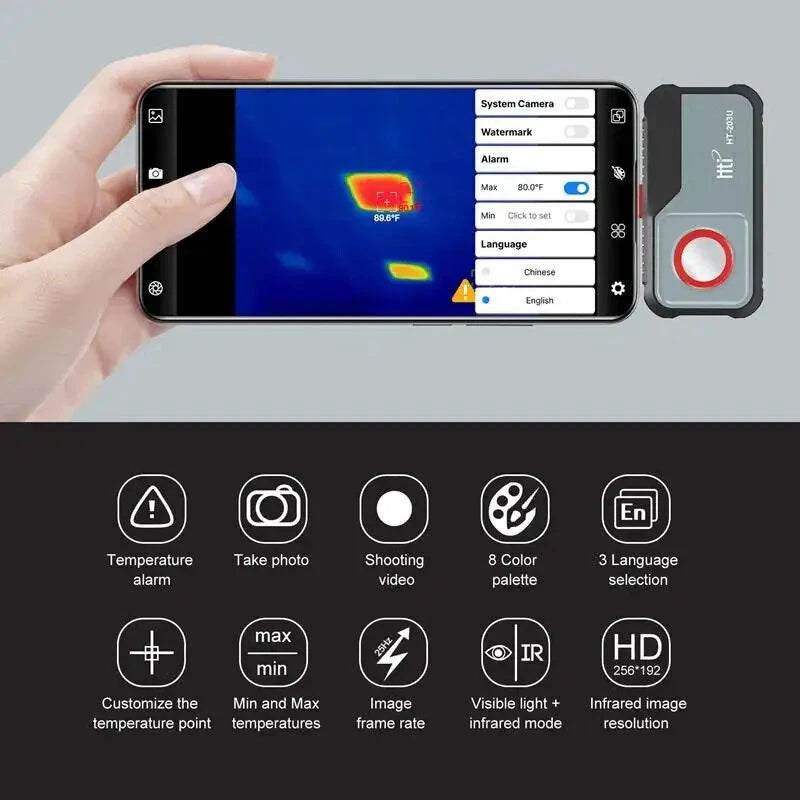

• Advanced Test Modes: Features center, hot and cold spot tracking, and various temperature measurement methods such as point, line, and surface.

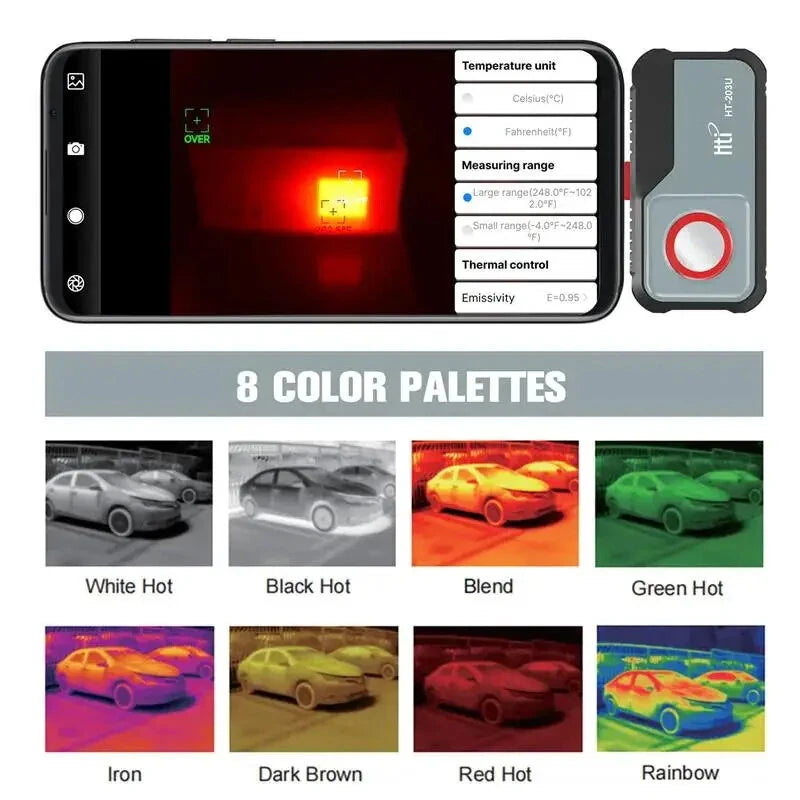

• Multiple Color Palettes: Offers different color palettes including rainbow, iron red, cool, white hot, and black hot, providing flexibility in thermal analysis.

---

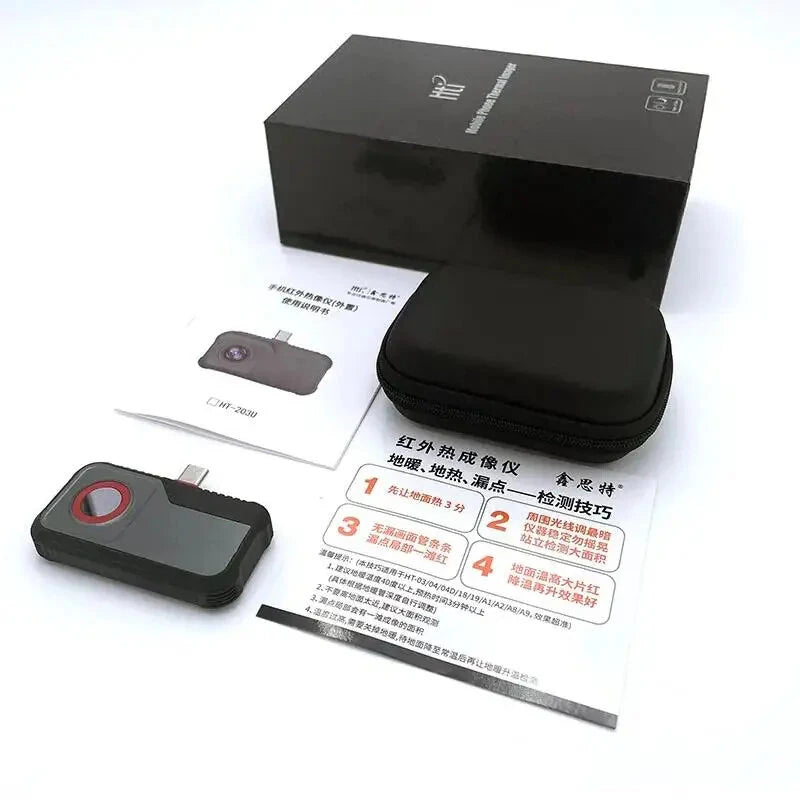

Package Included

• 1 x HT-203U Thermal Imaging Camera
• 1 x USB Type-C Cable
• 1 x User Manual
