ESP32-CAM-MB WiFi Development Board with CH340G, Bluetooth, OV2640 Camera, 2.4G Antenna, IPX, Micro USB - 5V Serial to WiFi

ESP32-CAM-MB WiFi Development Board with CH340G, Bluetooth, OV2640 Camera, 2.4G Antenna, IPX, Micro USB - 5V Serial to WiFi

Regular price $7.58 USD
Regular price $0.00 USD Sale price $7.58 USD
Sale Sold out
Shipping calculated at checkout.
Antenna Type

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

Product Details

Important Note:

This product includes a built-in antenna. For external antenna use, you need to re-solder the resistance with a soldering iron:

  1. Weld the two parts indicated in the blue box.
  2. Fuse the positions selected in the green boxes in the picture.
  3. Weld the resistor.

2.4G WIFI Antenna

  • Model: SMA connector 2.4GHz 2dBi Wireless WLAN Antenna Aerial
  • Gain: 2dBi
  • Connector: RP SMA Male (female pin) Connector
  • Color: Black
  • Antenna Length: 11cm

ESP32-CAM-MB Introduction

The HK-ESP32-CAM-MB module is a compact camera module measuring 39.8 x 27 mm. This module functions independently and is built on an advanced WiFi+Bluetooth dual-mode development board based on ESP32. It features a PCB on-board antenna, two high-performance 32-bit LX6 CPUs, a 7-level pipeline architecture, and a main frequency range of 80MHz to 240MHz. It boasts ultra-low power consumption with a deep sleep current as low as 6mA, making it an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module.

  • Micro USB interface for convenient and reliable connections suitable for various IoT hardware applications.

Technical Specifications

  • Low-power dual-core 32-bit CPU for use as an application processor
  • Main frequency up to 240MHz and computing power up to 600 DMIPS
  • Built-in 520 KB SRAM, external 2MB PSRAM
  • Supports UART, SPI, I2C, PWM, ADC, DAC interfaces
  • Compatible with OV2640 and OV7670 cameras, includes built-in flash
  • WiFi picture upload support
  • TF card support
  • Multiple sleep modes available
  • Embedded Lwip and FreeRTOS
  • STA/AP/STA+AP operational modes support
  • Smart Config/AirKiss one-click network configuration support
  • Secondary development capability

Application Scenarios

  • Home smart device image transmission
  • Wireless monitoring
  • Smart agriculture
  • QR wireless recognition
  • Wireless positioning system signal
  • Other IoT applications

Specifications

  • Working voltage: 4.75-5.25V
  • SPI Flash: Default 32Mbit
  • RAM: Internal 520KB + External 8MB PSRAM
  • WiFi: 802.11b/g/n/e/i
  • Bluetooth: Bluetooth 4.2 BR/EDR and BLE standard
  • Supports interface (2Mbps) UART, SPI, I2C, PWM
  • Supports TF card, maximum 4G
  • IO ports: 9
  • Serial port rate: Default 115200bps
  • Spectrum range: 2400 ~ 2483.5MHz
  • Antenna form: Onboard PCB antenna, gain 2dBi
  • Image output formats: JPEG (only OV2640 support), BMP, GRAYSCALE
  • Packaging: DIP-16
  • Transmit power:
    • 802.11b: 17±2dBm (@11Mbps)
    • 802.11g: 14±2dBm (@54Mbps)
    • 802.11n: 13±2dBm (@MCS7)
  • Receiving sensitivity:
    • CCK, 1Mbps: -90dBm
    • CCK, 11Mbps: -85dBm
    • 6Mbps(1/2BPSK): -88dBm
    • 54Mbps (3/464-QAM): -70dBm
    • MCS7 (65Mbps, 72.2Mbps): -67dBm
  • Power consumption:
    • Turn off the flash: 180mA @ 5V
    • Turn on the flash with maximum brightness: 310mA @ 5V
    • Deep-sleep: Lowest 6mA @ 5V
    • Modem-sleep: Lowest 20mA @ 5V
    • Light-sleep: Lowest 6.7mA @ 5V
  • Security: WPA/WPA2/WPA2-Enterprise/WPS
  • Working temperature: -20°C ~ 70°C
  • Storage environment: -40°C ~ 125°C
  • Weight: 10g

Package Includes (Optional)

Type 1:

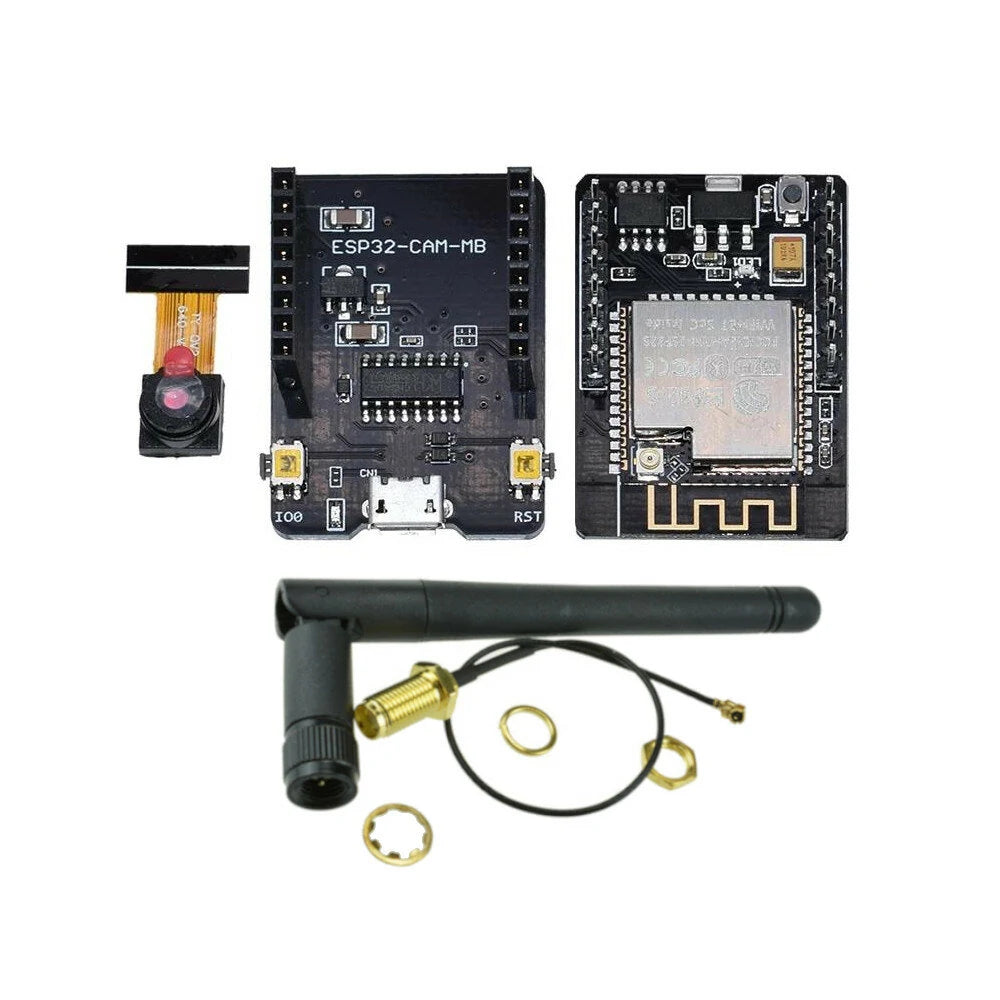

  • 1 x ESP32-CAM-MB WIFI
  • 1 x ESP32-CAM Development Board

Type 2:

  • 1 x ESP32-CAM-MB WIFI
  • 1 x ESP32-CAM Development Board
  • 1 x 2.4G Antenna IPX
