Polyimide Tape - Heat Resistant, Electrical Insulation, No Residue, 5-50mm x 33m, 200°C

Polyimide Tape - Heat Resistant, Electrical Insulation, No Residue, 5-50mm x 33m, 200°C

Regular price $25.79 USD
Regular price $0.00 USD Sale price $25.79 USD
Sale Sold out
Shipping calculated at checkout.
Quantity
Size

Shipping Icon Estimated Delivery: -

Product Description

Specifications

  • Material: Polyimide
  • Color: Metallic Brown
  • Length: 33m
  • Weight: 12.5g / 25g / 55g / 85g / 140g
  • Thickness: 0.055mm
  • Elongation: 50%
  • Tensile Force: ≥42N/25mm
  • Peeling Force: ≥26N/25mm
  • Initial Adhesion: 24#
  • Sticky Force: 48H
  • Long-term Temperature Resistance: 200°C
  • Short-term Temperature Resistance: 220°C

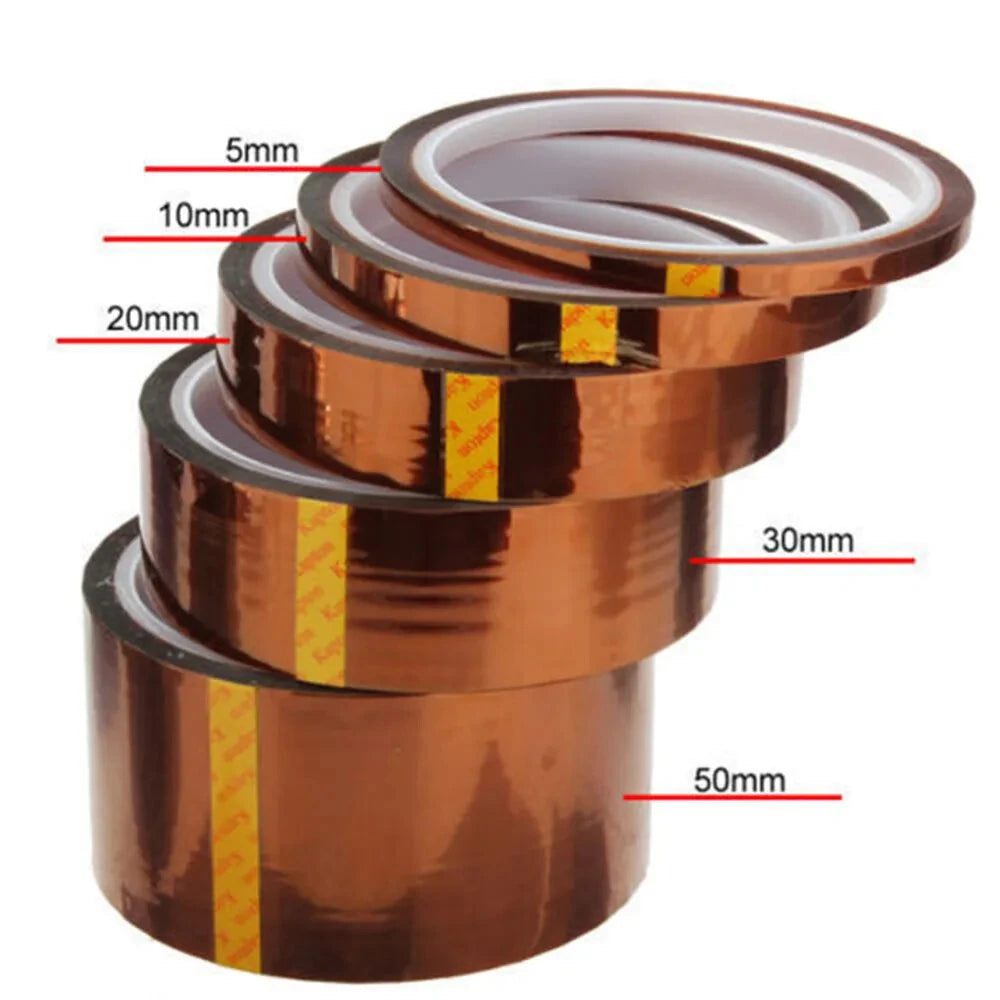

  • Width: 5mm / 10mm / 20mm / 30mm / 50mm (According to your purchase selection)
  • Quantity: 1/5/10PCS

Features

  • High Temperature Resistance: Made of polyimide film, the tape withstands long-term temperatures up to 200°C and short-term temperatures up to 220°C without losing adhesiveness.
  • Electrical Insulation: Provides excellent electrical insulation properties, making it ideal for use in transformers, motors, coils, capacitors, and variable frequency power supplies.
  • No Residue: Special adhesive treatment ensures that the tape can be removed cleanly without leaving any residue on the surface, maintaining the integrity of the applied areas.
  • Chemical and Mechanical Resistance: Resistant to acids, alkalis, abrasion, and tearing, providing robust performance in challenging environments.
  • Versatile Applications: Ideal for PCB protection during SMT tin furnace and wave solder processes, painting, baking, sealing, and welding protection, and more.

Package Included

  • Type 1: 1 x Heat Resistant Tape (5mm)
  • Type 2: 1 x Heat Resistant Tape (10mm)
  • Type 3: 1 x Heat Resistant Tape (20mm)
  • Type 4: 1 x Heat Resistant Tape (30mm)
  • Type 5: 1 x Heat Resistant Tape (50mm)
  • Type 6: 5 x Heat Resistant Tapes (5/10/20/30/50mm)
  • Type 7: 10 x Heat Resistant Tapes (5mm)
  • Type 8: 10 x Heat Resistant Tapes (10mm)
  • Type 9: 10 x Heat Resistant Tapes (20mm)
  • Type 10: 10 x Heat Resistant Tapes (30mm)
  • Type 11: 10 x Heat Resistant Tapes (50mm)
