PCBA Infrared Thermal Imaging Analysis System

Enhance your circuit board analysis with our cutting-edge PCBA Infrared Thermal Imaging Analysis System. This comprehensive tool seamlessly integrates with your computer to identify and troubleshoot critical circuit board issues such as short circuits and component leaks, ensuring your device's architecture is optimal.

Key Features:

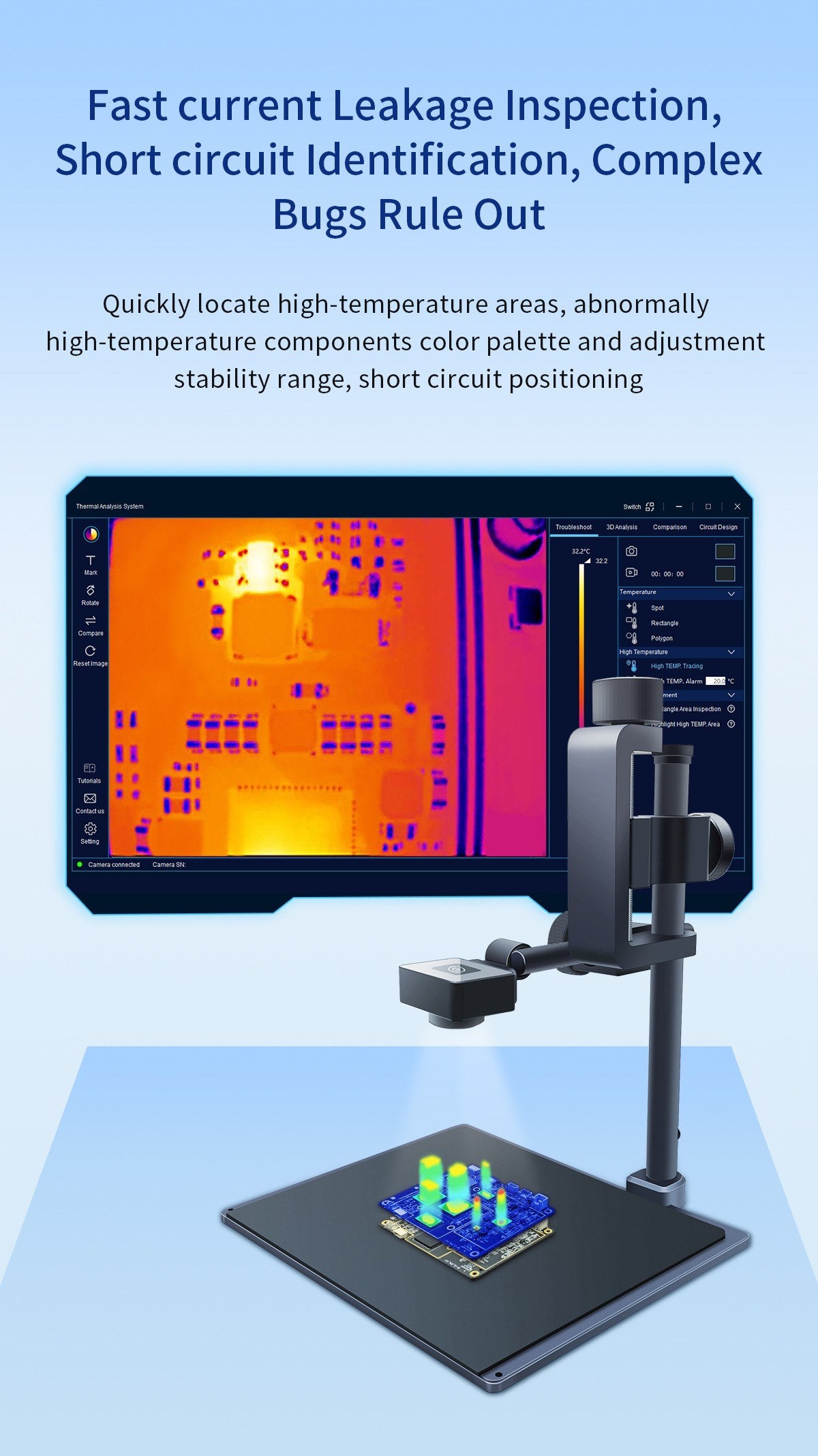

• Fast Current Leakage Inspection & Short Circuit Identification:

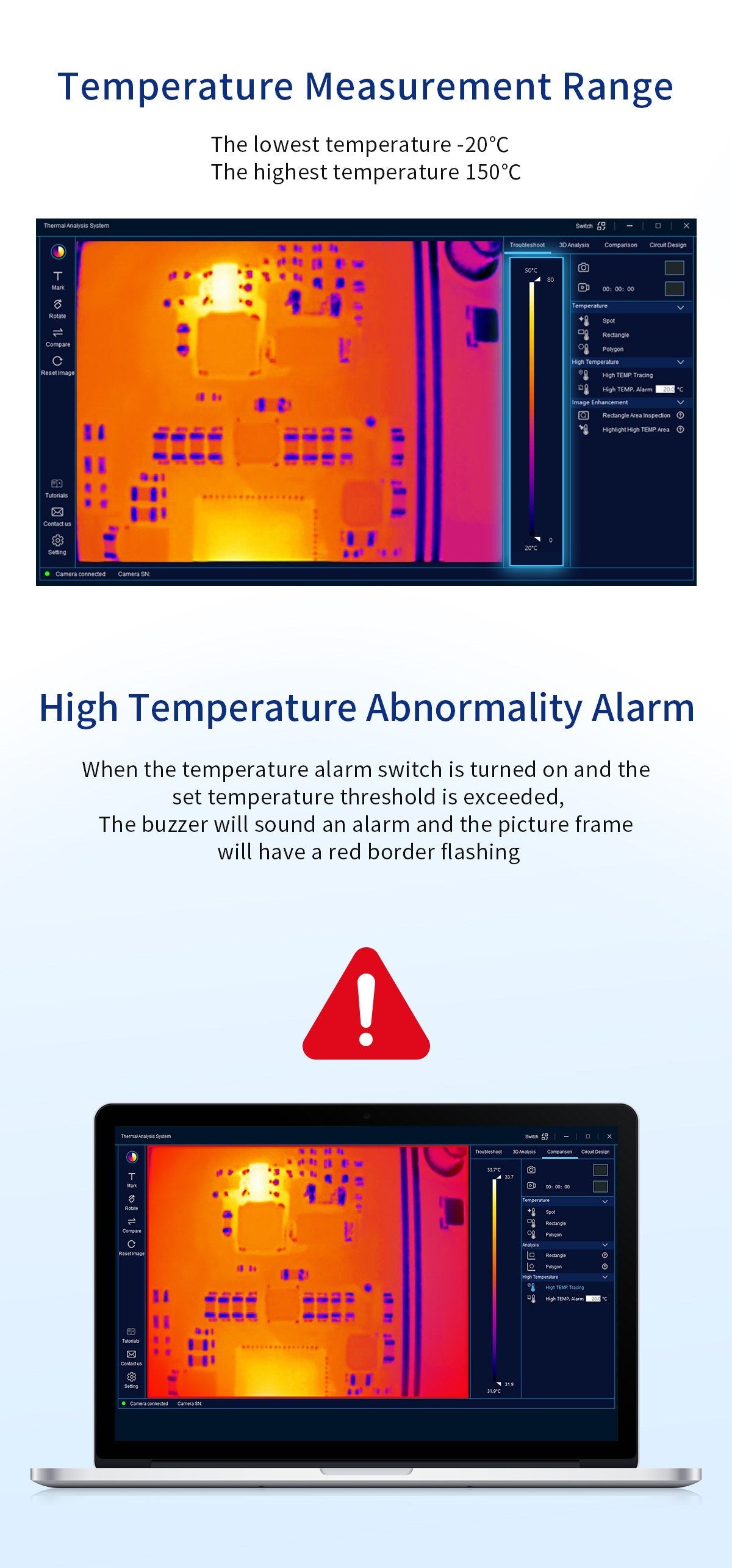

  Quickly detect high-temperature zones and abnormal component temperatures, facilitating rapid short-circuit localization.

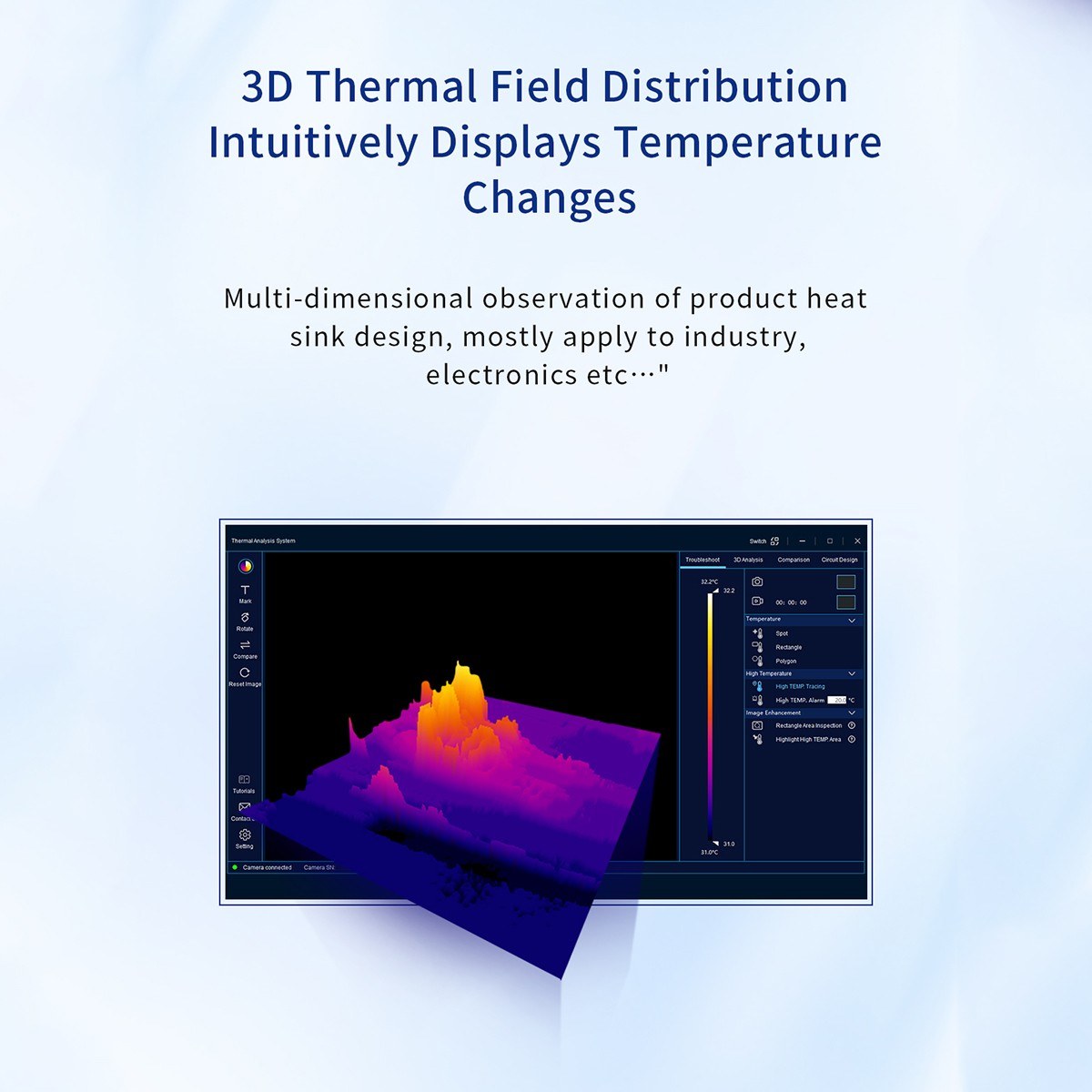

• Intuitive 3D Imaging:
  Offers 3D visualization of circuit boards for precise identification of small current variations. Ideal for applications in industrial and electronic sectors.

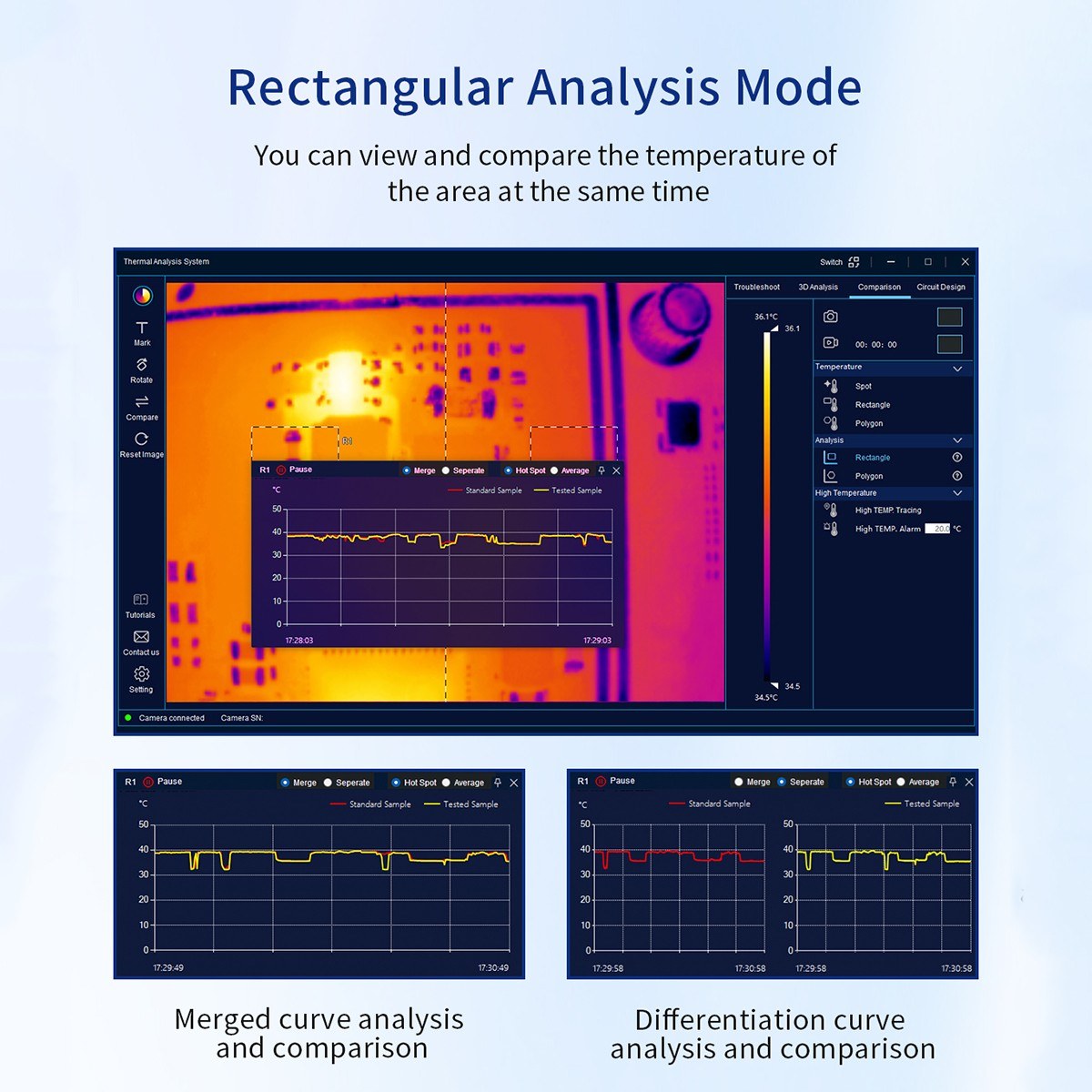

• Rectangular Analysis Mode:
  Enables detailed contrasting and monitoring of color variations across different areas, with temperature curve visualization for historical temperature data.

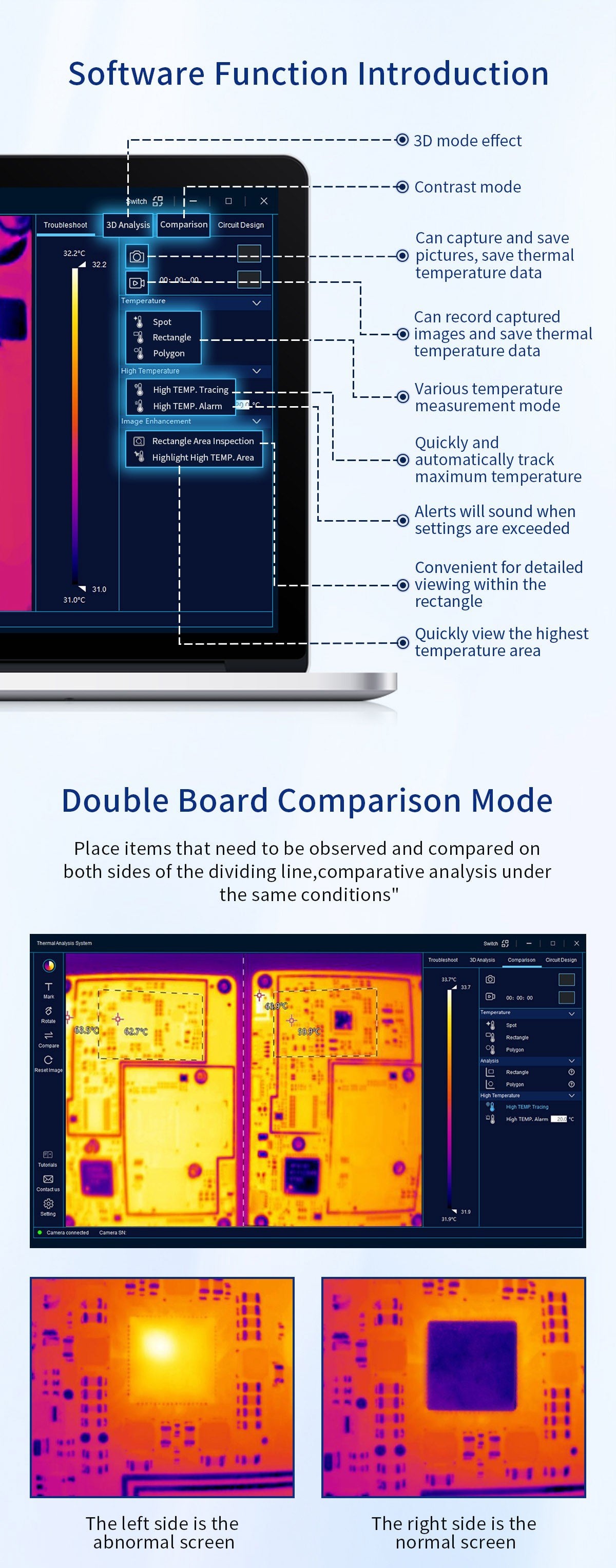

• Double-board Comparison Mode:
  Compare functional and defective boards side-by-side under identical conditions to expedite fault detection.

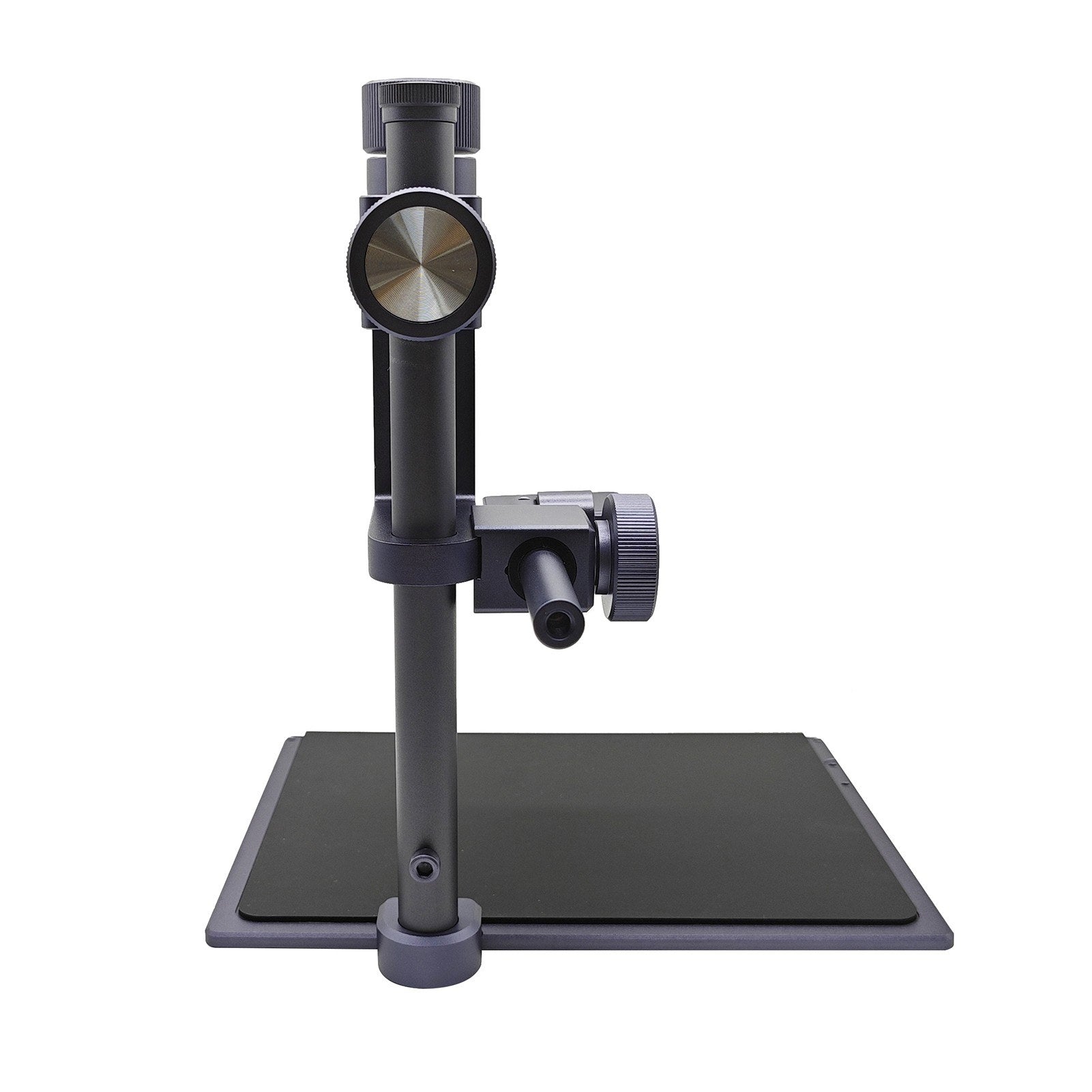

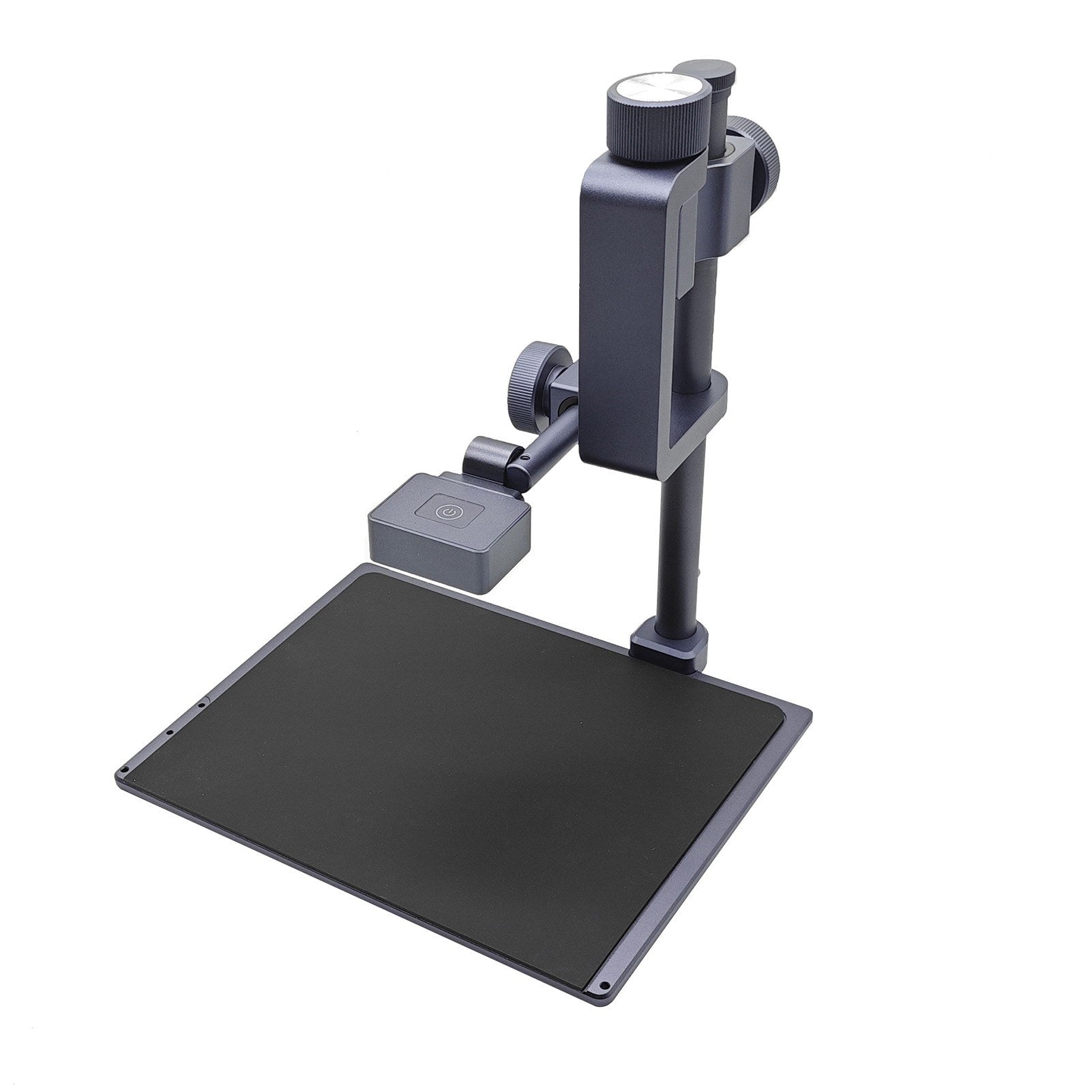

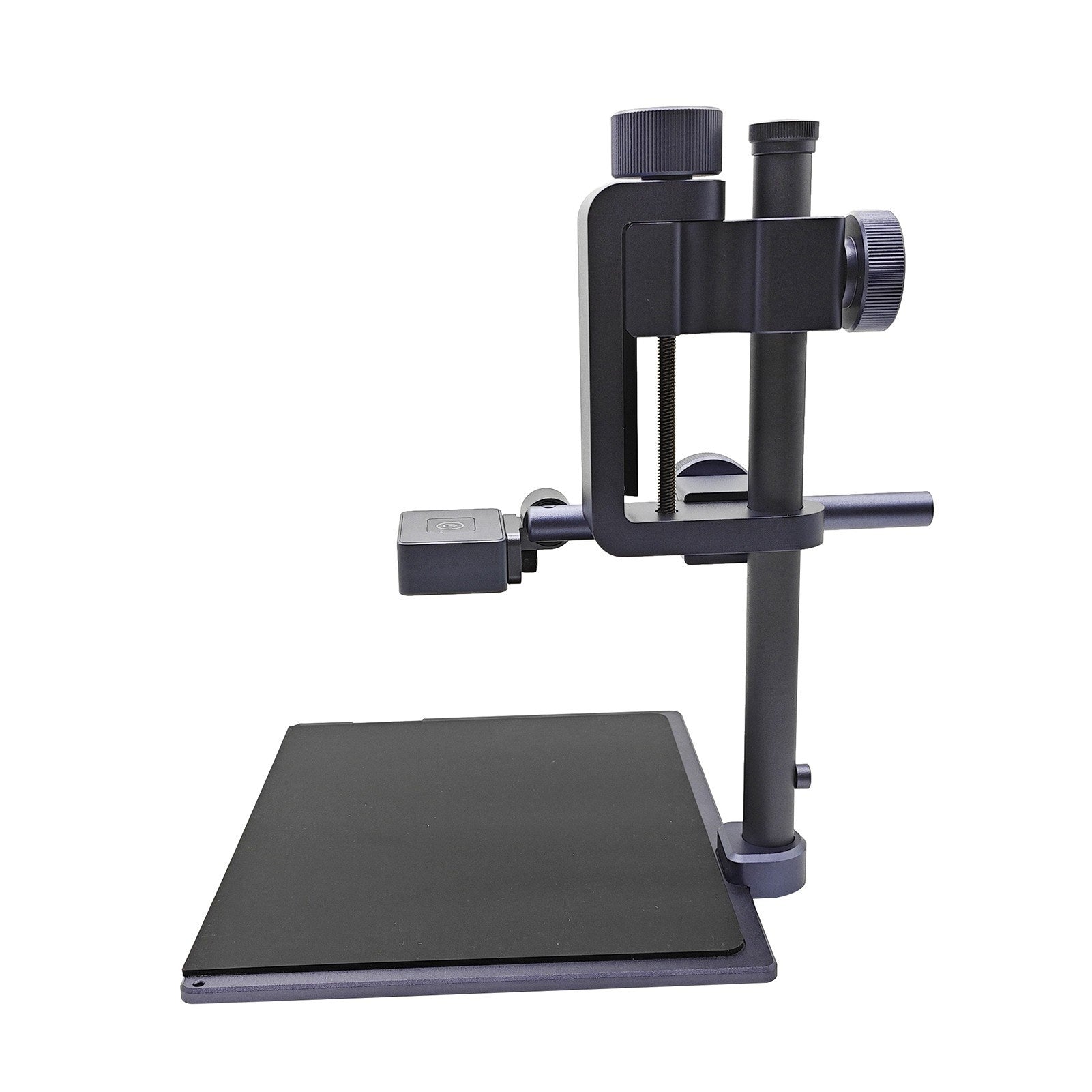

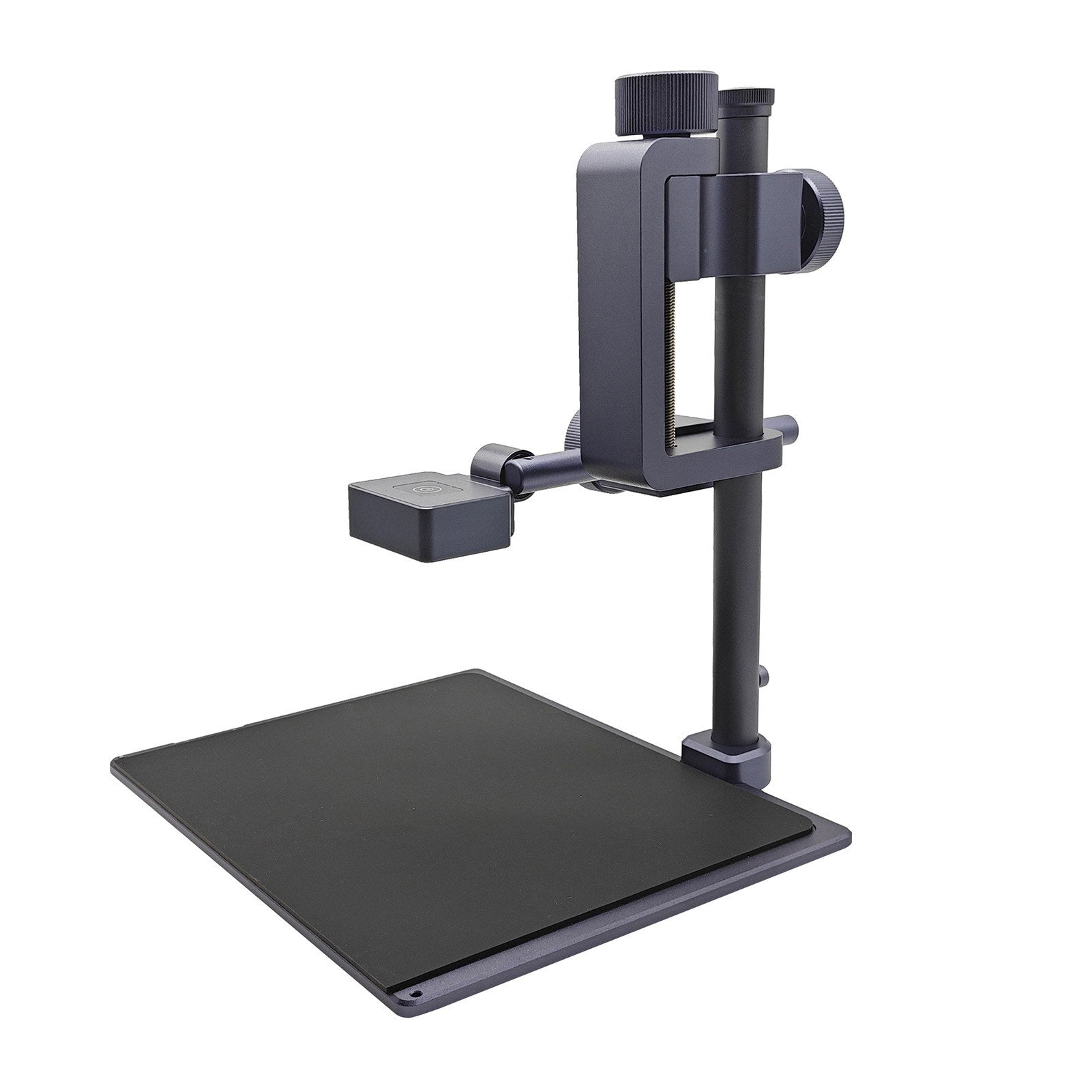

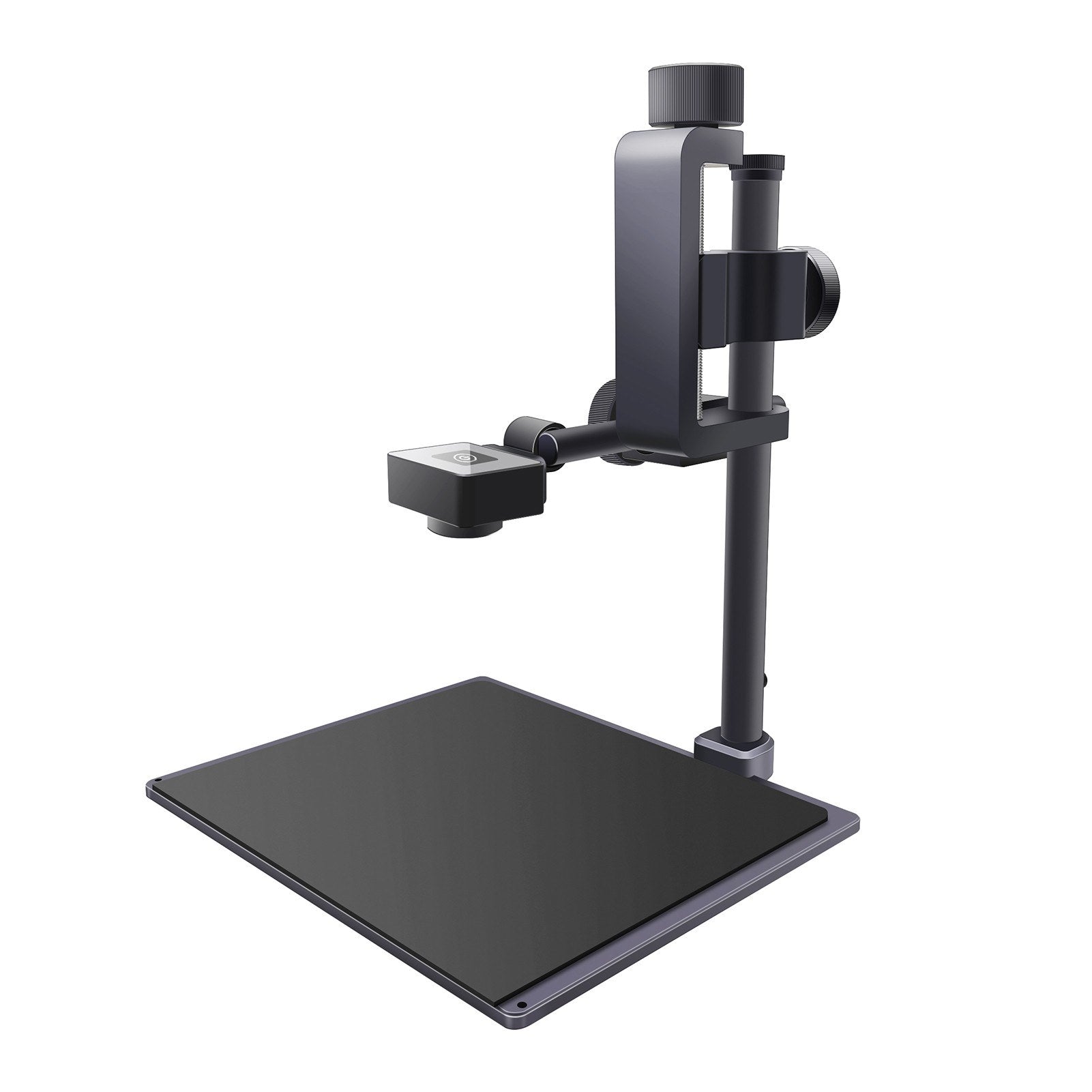

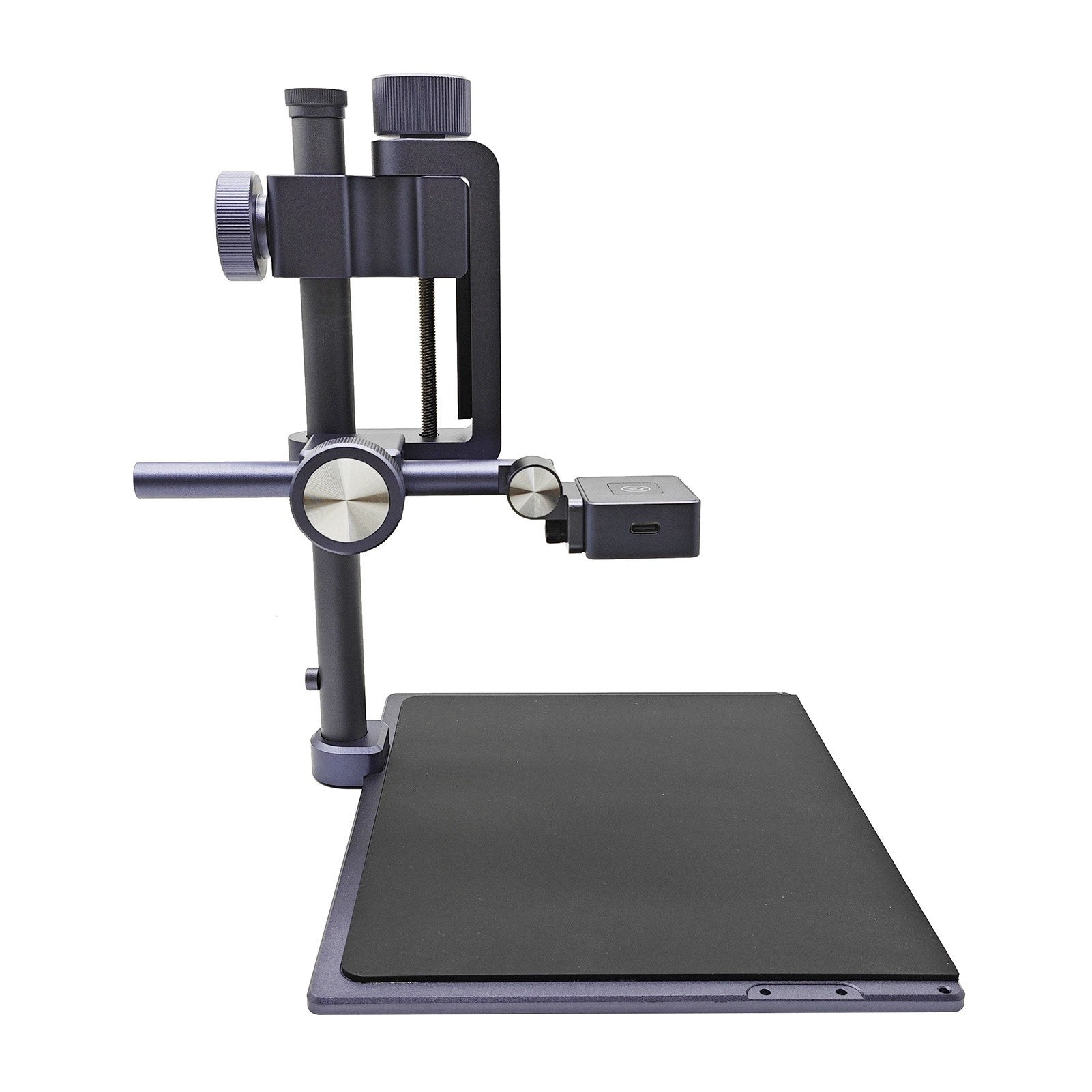

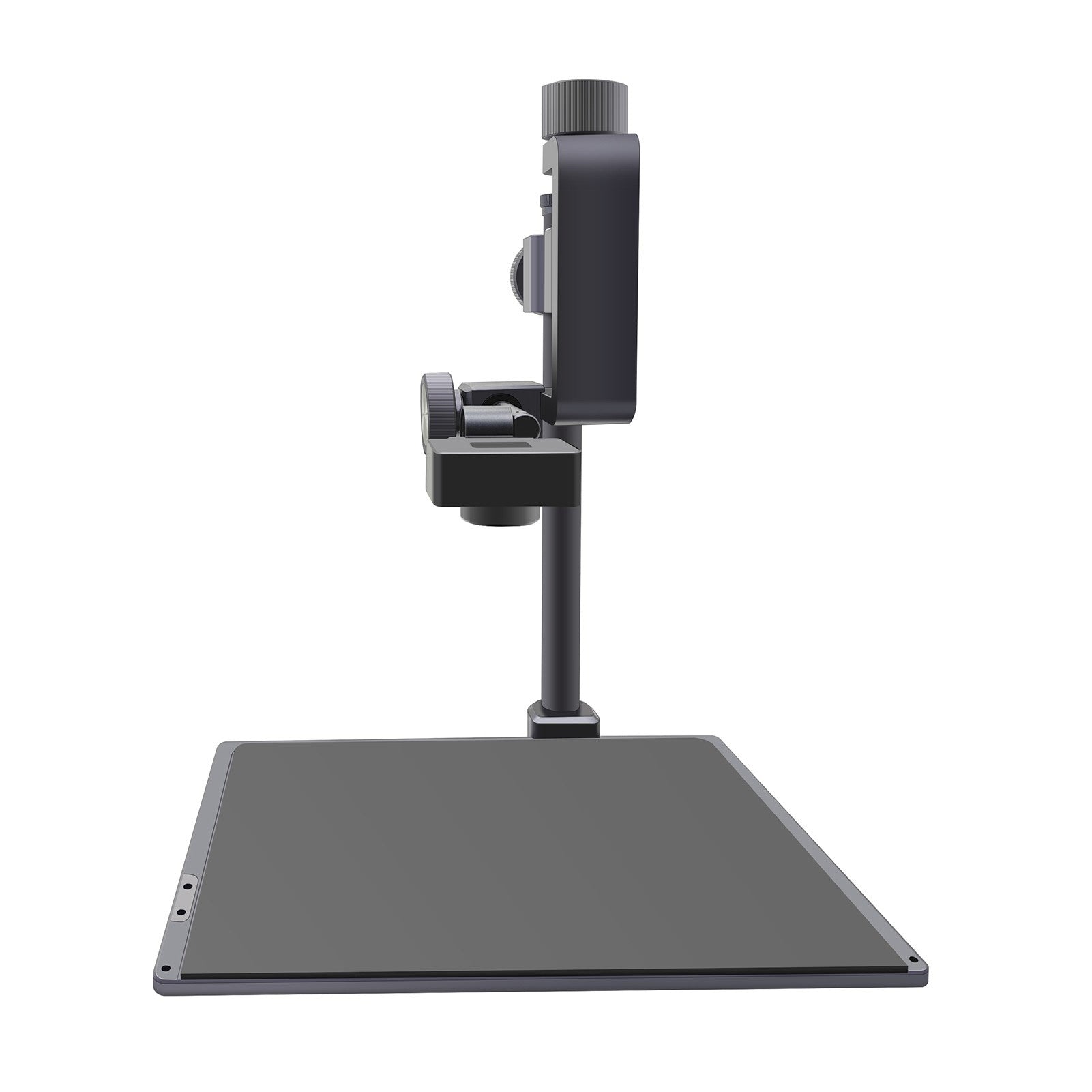

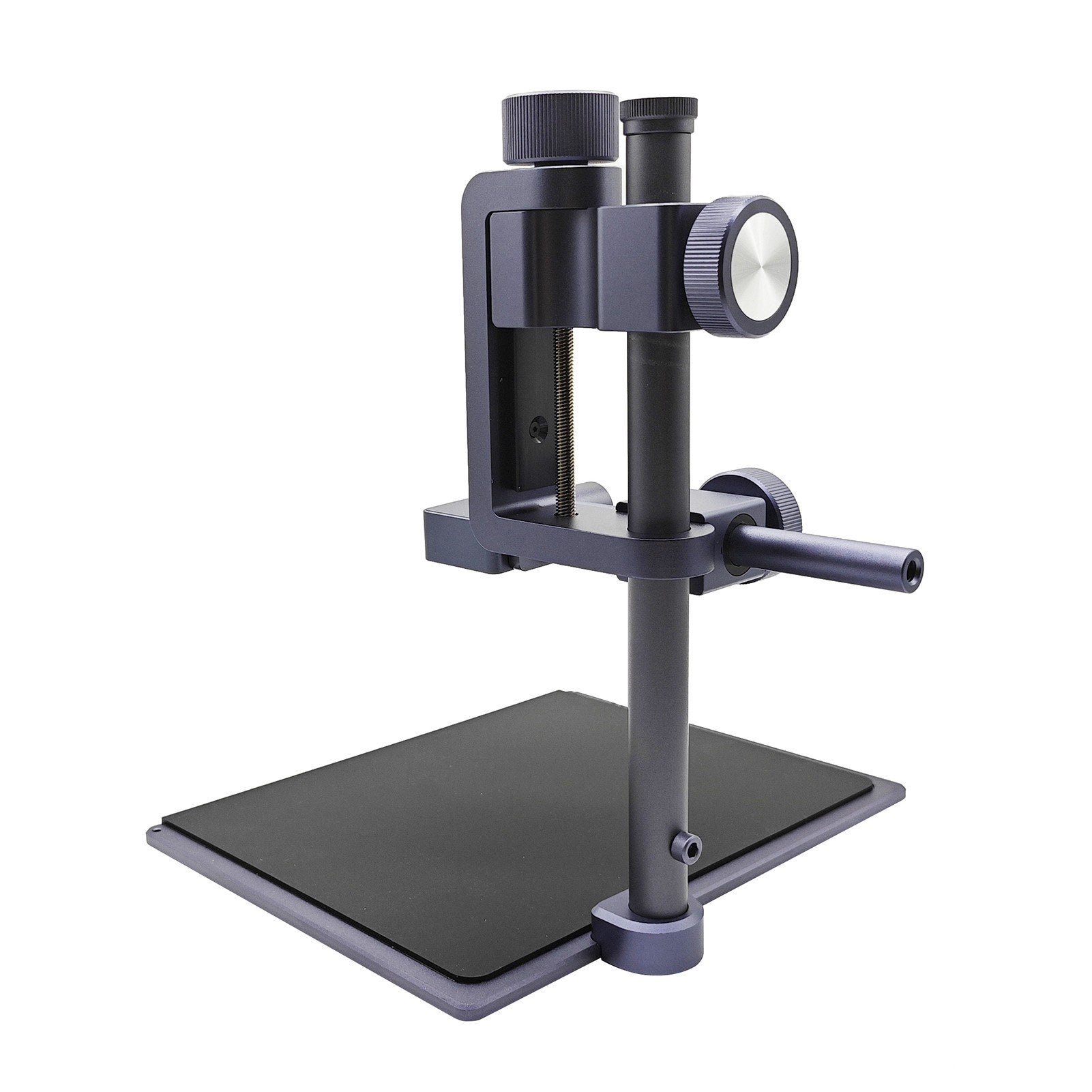

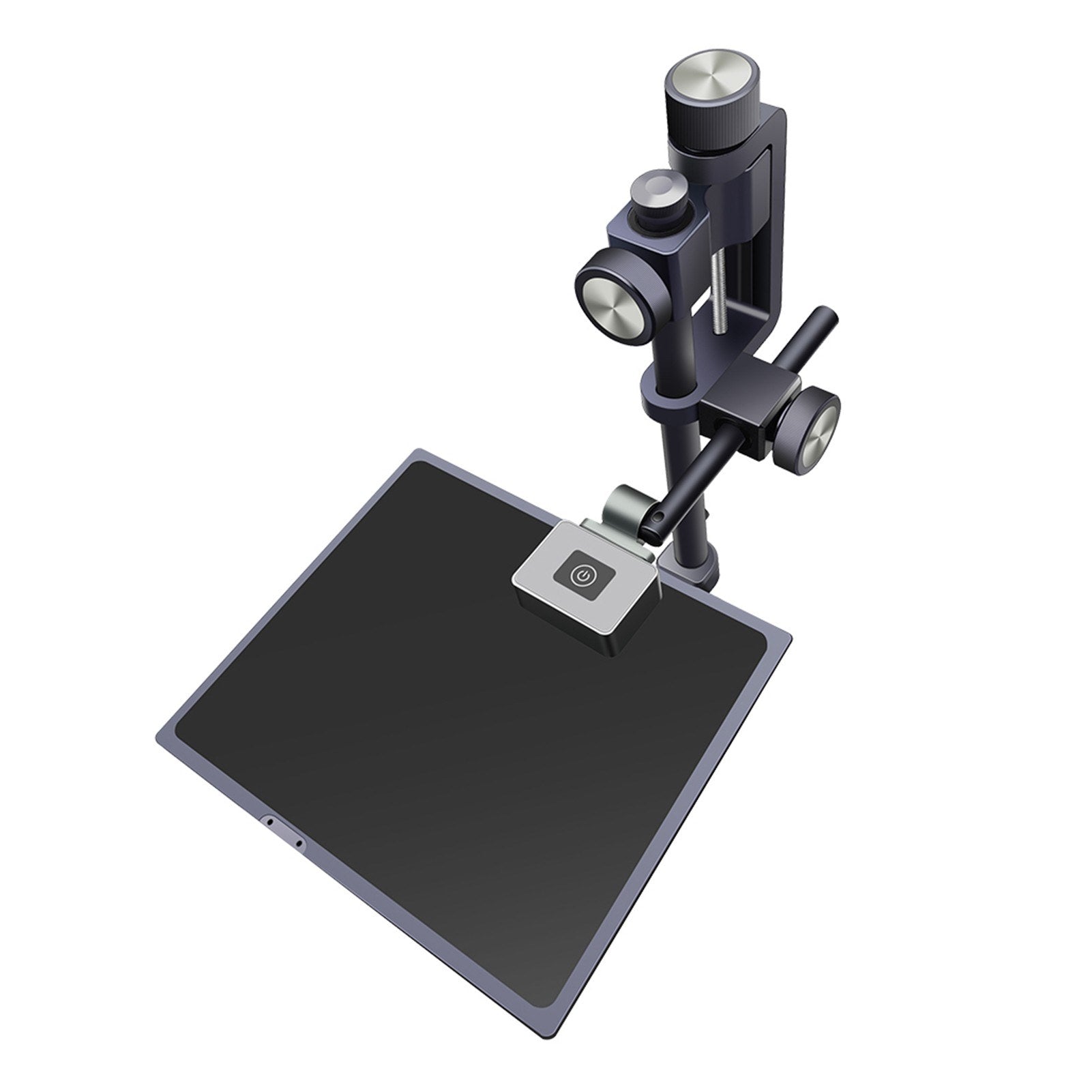

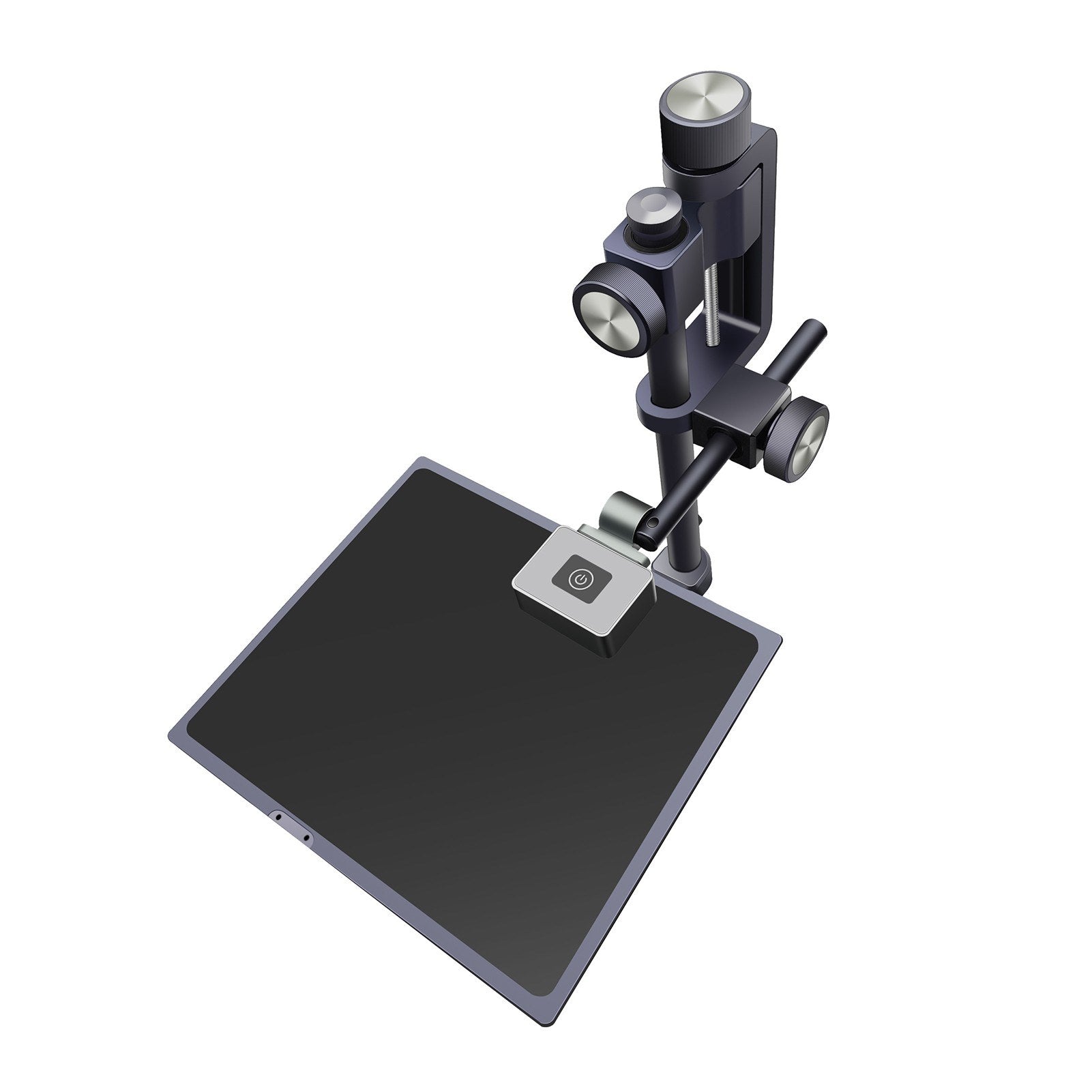

• Adjustable Stand:
  Features a durable metal stand with a high-temperature resistant workbench, which is easy to install, adjust, and rotate. Allows precise control of the measuring distance.

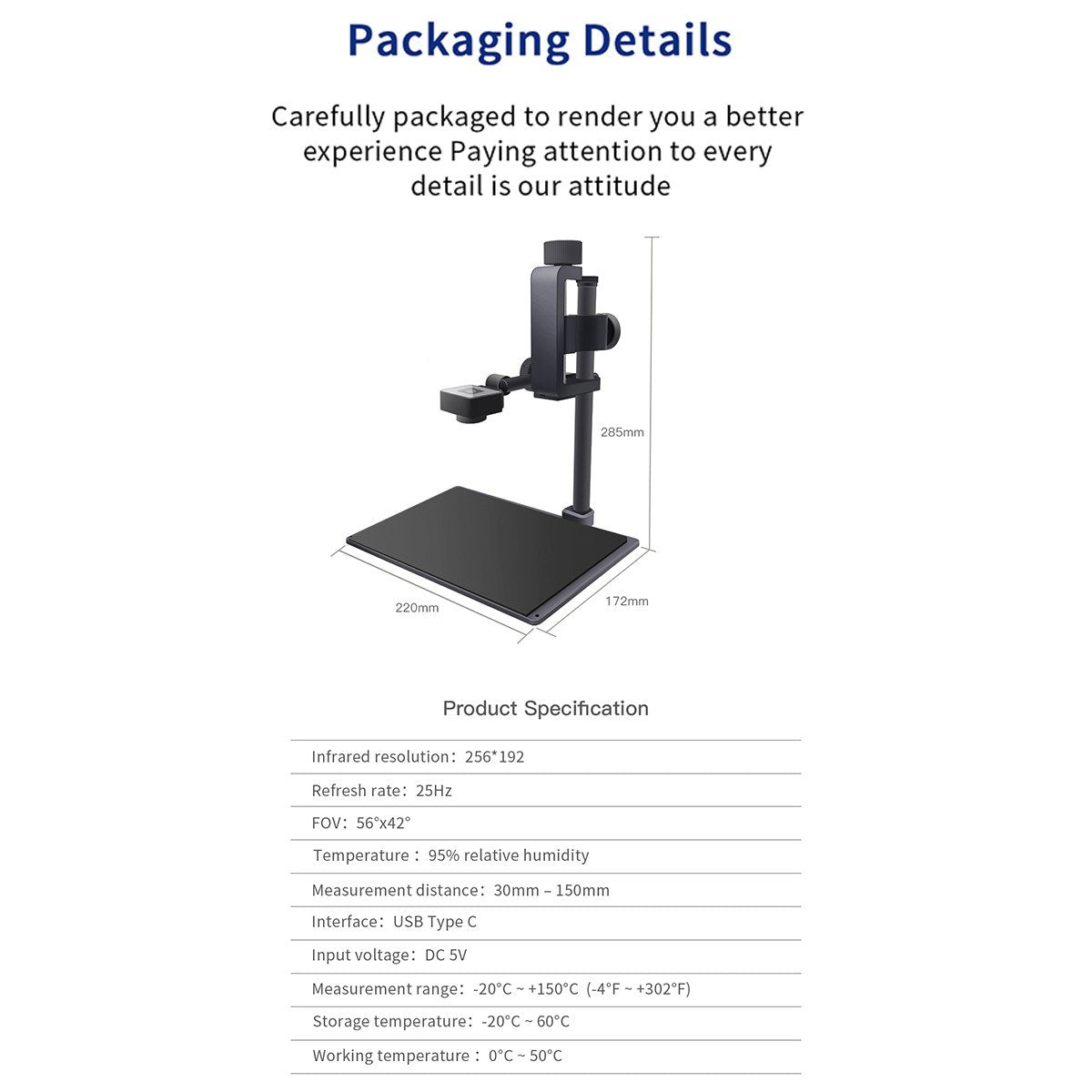

Specifications:

• Material: Aluminum Alloy
• Infrared Resolution: 256 x 192 pixels
• Refresh Rate: 25Hz
• Field of View (FOV): 56° x 42°
• Temperature: Operates at 95% relative humidity
• Measurement Distance: 30mm-150mm
• Interface: USB Type-C
• Input Voltage: DC 5V
• Storage Format: Pictures in JPG, Videos in MP4
• Measurement Range: -20℃ to 150℃ / -4℉ to 302℉
• Storage Temperature: -20℃ to 60℃
• Working Temperature: 0℃ to 50℃
• Humidity: 95% relative humidity
• Item Size: 220 x 172 x 285mm / 8.66 x 6.77 x 11.22in
• Item Weight: 1285g / 2.83lb
• Package Weight: 1750g / 3.85lb
• Package Size: 27 x 20.5 x 9.5cm / 10.63 x 8.07 x 3.74in

Package List:

• 1 x Infrared Thermal Imager Analyzer
• 1 x Bracket
• 1 x Data Cable
• 1 x User Manual (English)
