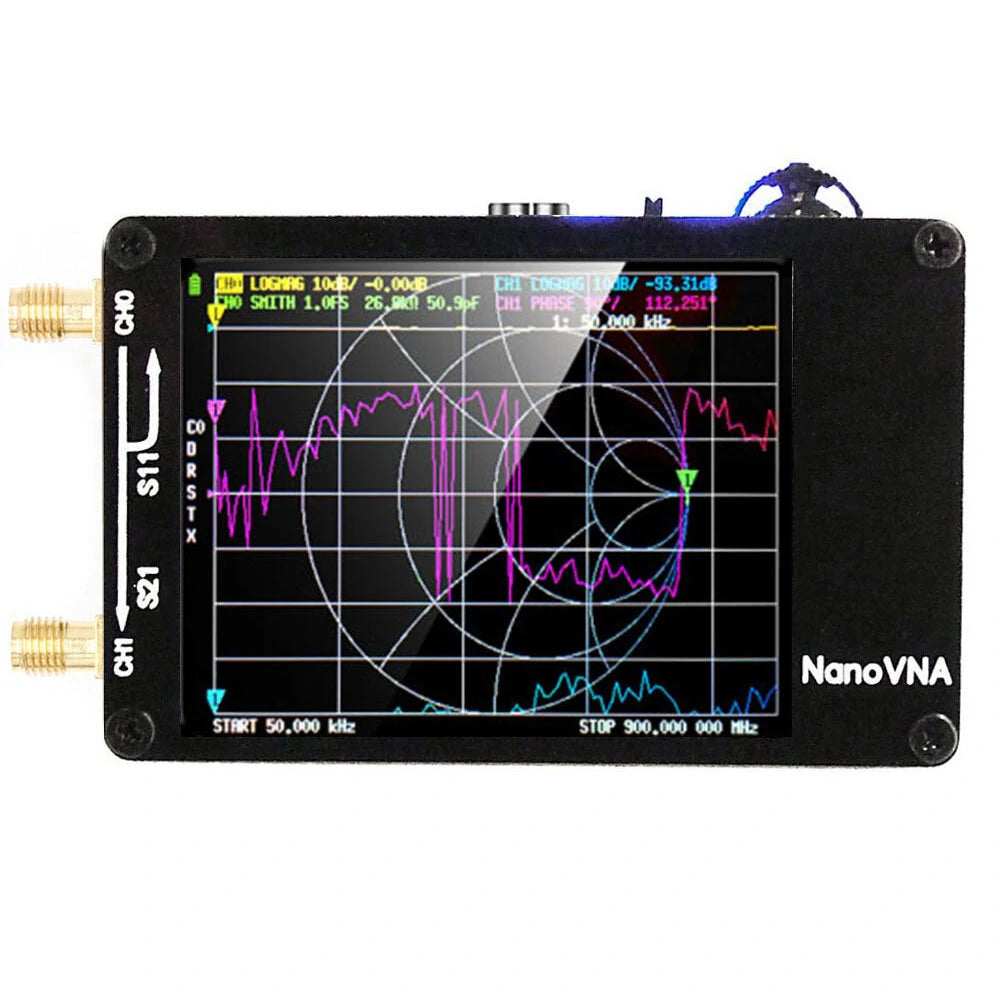

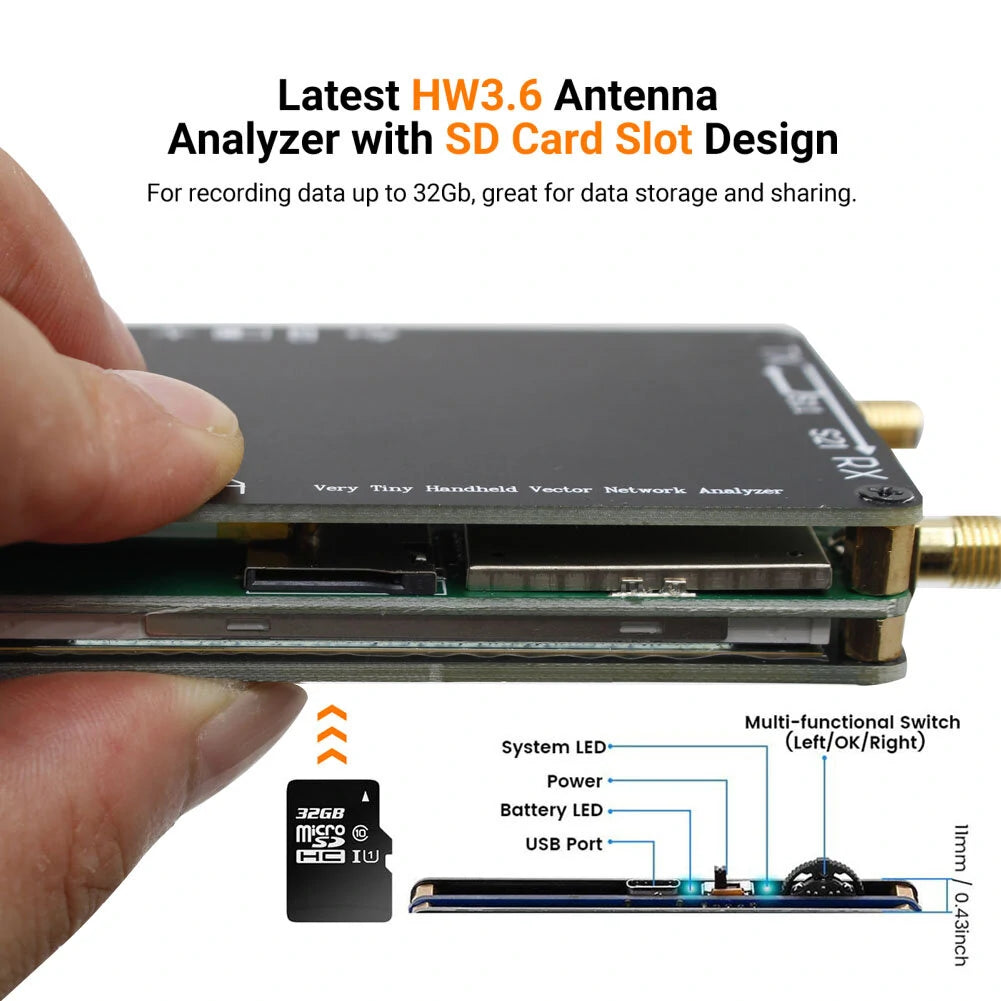

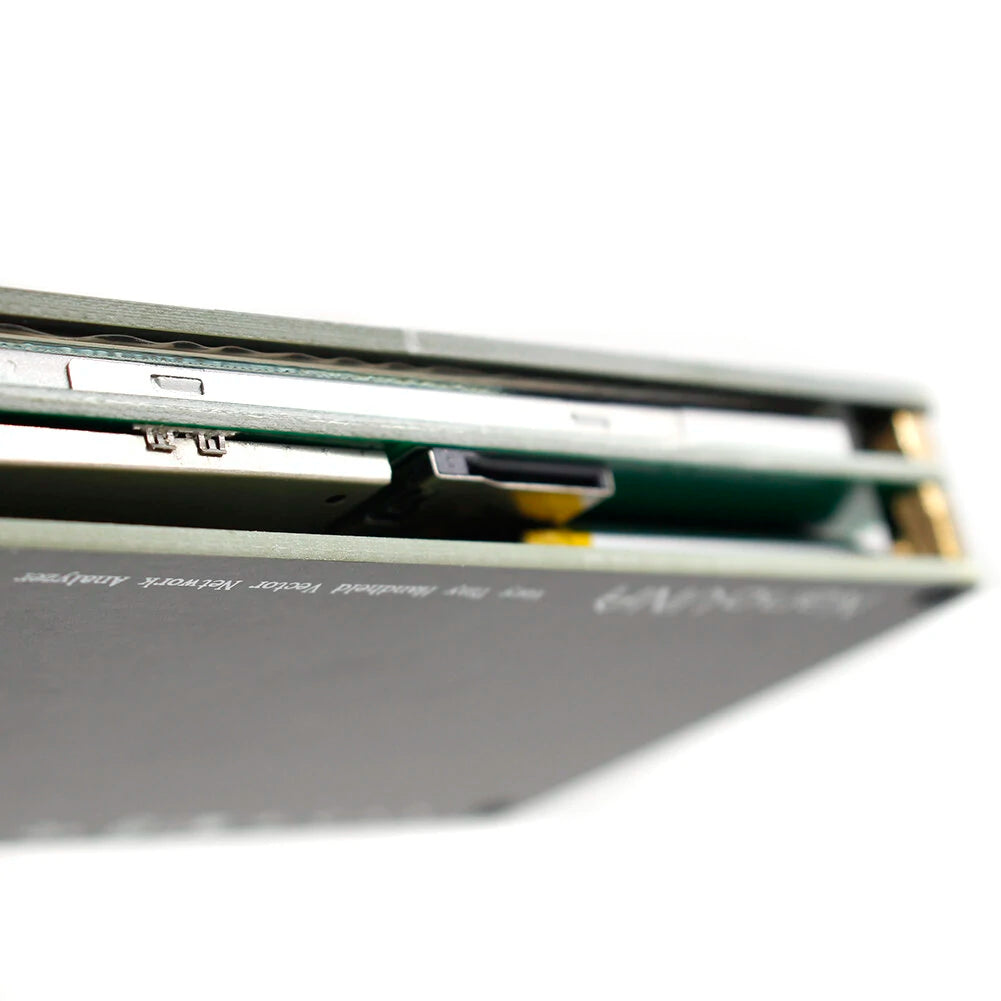

NanoVNA-PCB 10KHz-1.5GHz Digital Vector Network Analyzer with 32G SD Support

Product Features

• Enhanced with ABS casing and improved packaging, offering cost savings over 3D printed housings.

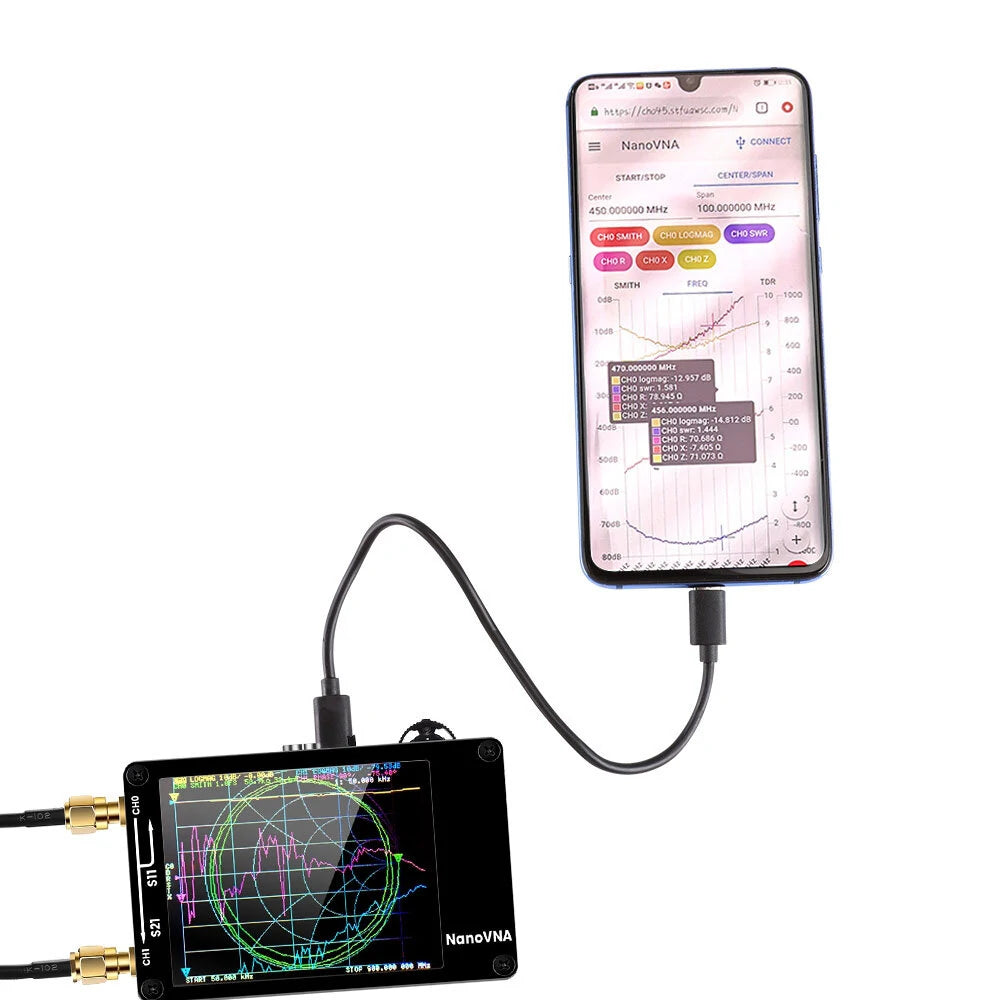

• Compatible with Type-C to Type-C connections for convenient connectivity with most Android phones, allowing same-screen display (Not compatible with iPhone). Solves issues like small screens and insufficient brightness.
• Integrated time domain analysis function (TDR).
• Battery usage is prominently displayed on the interface.
• Each product features a unique serial number on the back.
• New packaging includes a world cover hot stamping carton with plastic inner protection, reducing transport-related damages.
• Various other detail improvements for enhanced performance.

Technical Specifications

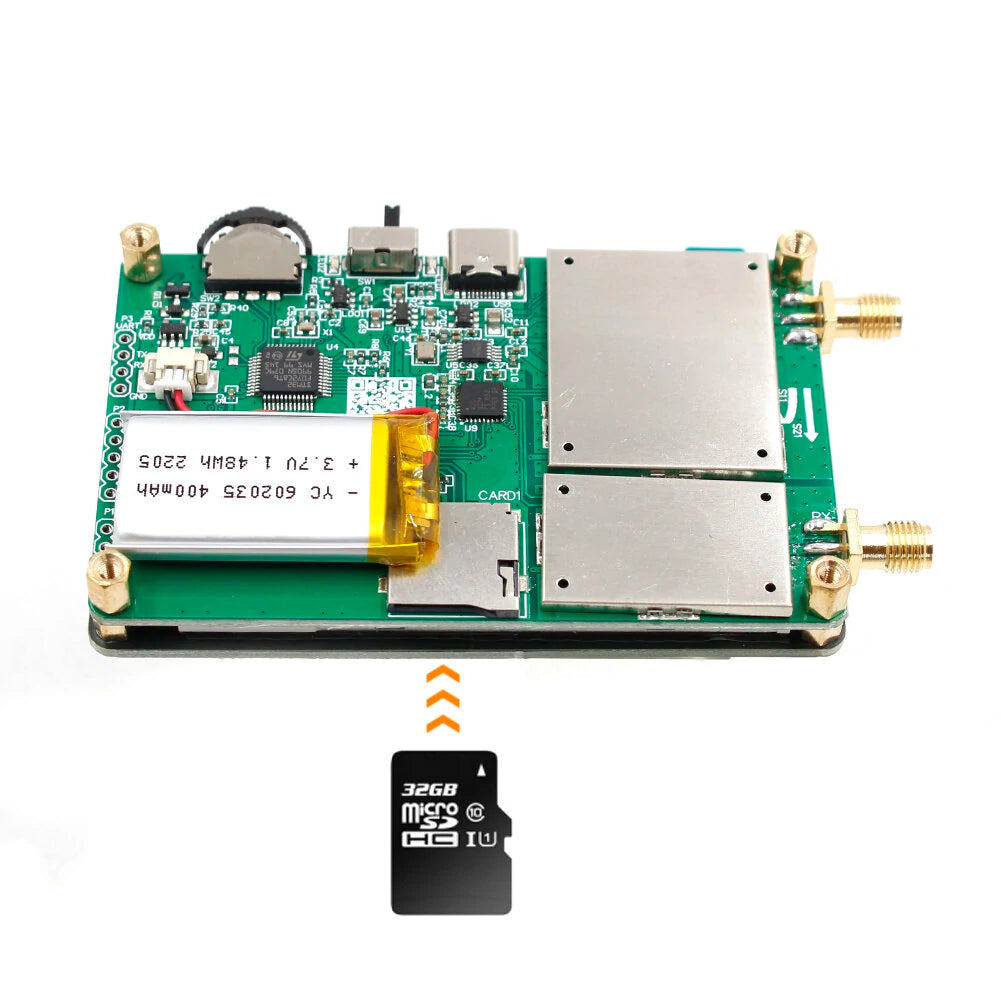

• PCB Dimensions: 54mm x 85.5mm x 11mm (excluding connectors and switches)
• Measurement Frequency Range: 10KHz to 1.5GHz
• RF Output: -13dBm (maximum -9dBm)
• Measurement Range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz with extended firmware)
• Display: 2.8-inch TFT (320x240 resolution)
• USB Interface: USB Type-C; Communications Mode: CDC (Serial)
• Power Supply: USB 5V 120mA, with a built-in 650mAh battery and a maximum charging current of 0.8A
• Calibration Points: 101 (Fixed)
• Scanning Points: 101 (Fixed)
• Display Tracking: 4, Marking: 4, Save Setting: 5
• Capability to measure S parameters, voltage standing wave ratio, phase, delay, Smith chart, and more.

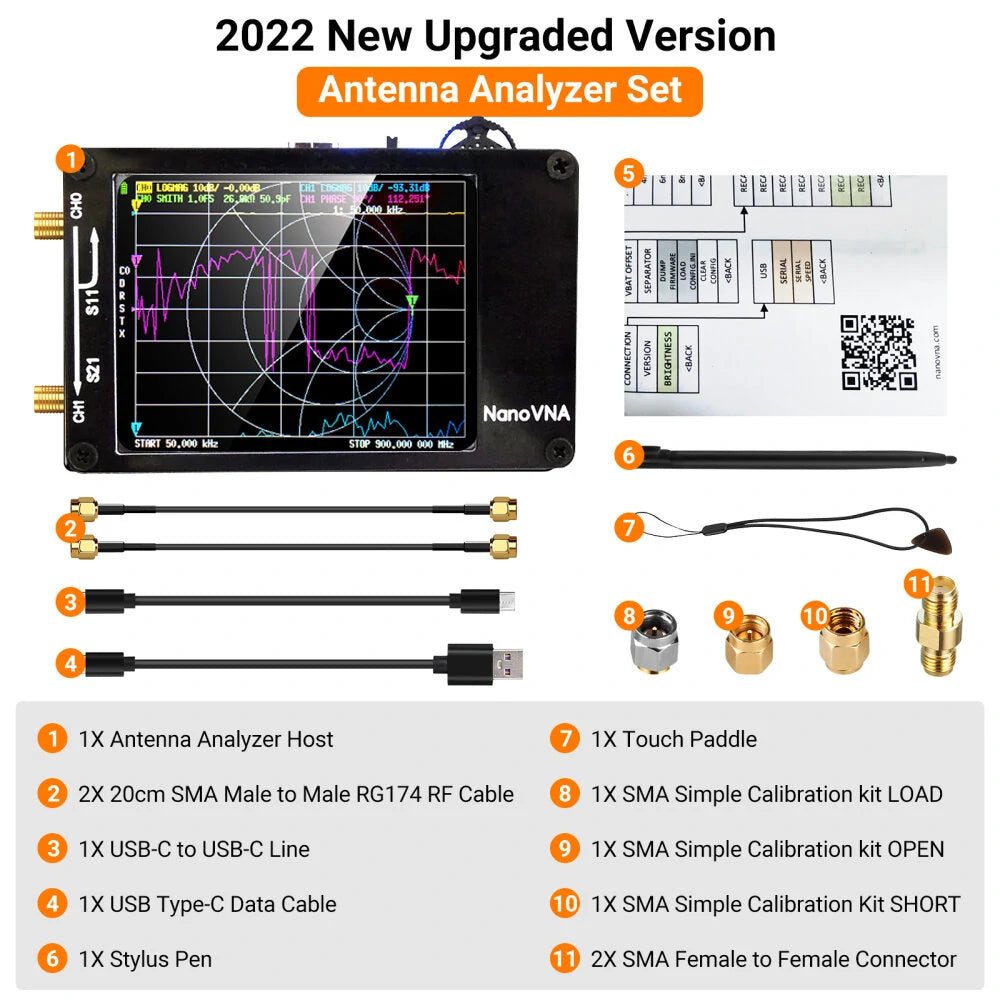

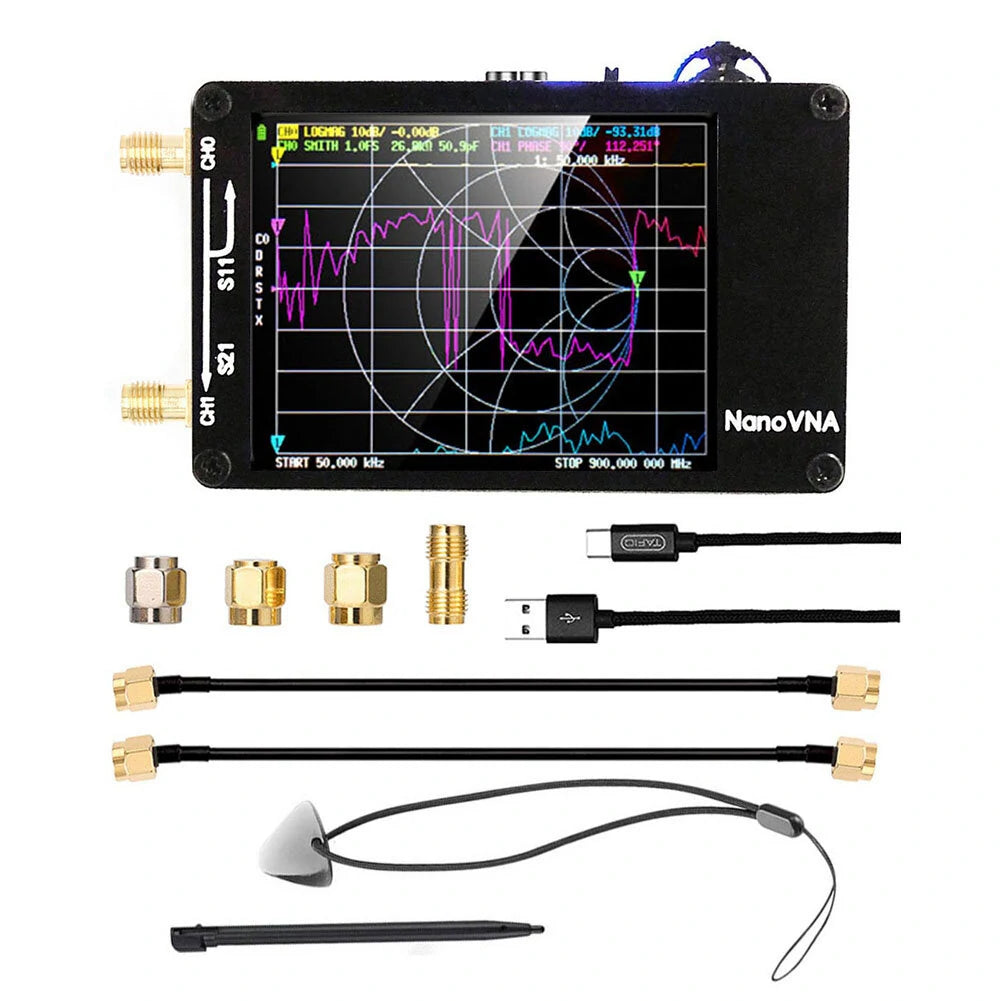

Package Includes

• 1 x NanoVNA Host (includes a 2.8-inch touch screen and 650mAh battery)
• 2 x 20cm SMA Male to Male RG174 RF Cable
• 1 x USB Type-C Data Cable
• 1 x Type-C to Type-C Line
• 1 x Stylus Pen
• 1 x Touch Paddle
• 2 x SMA Female to Female Connector
• 1 x SMA Simple Calibration Kit SHORT
• 1 x SMA Simple Calibration Kit OPEN
• 1 x SMA Simple Calibration Kit LOAD
• 2 x SMA Female to Female Connector
