NF-826 Underground & In-Wall Cable Detector

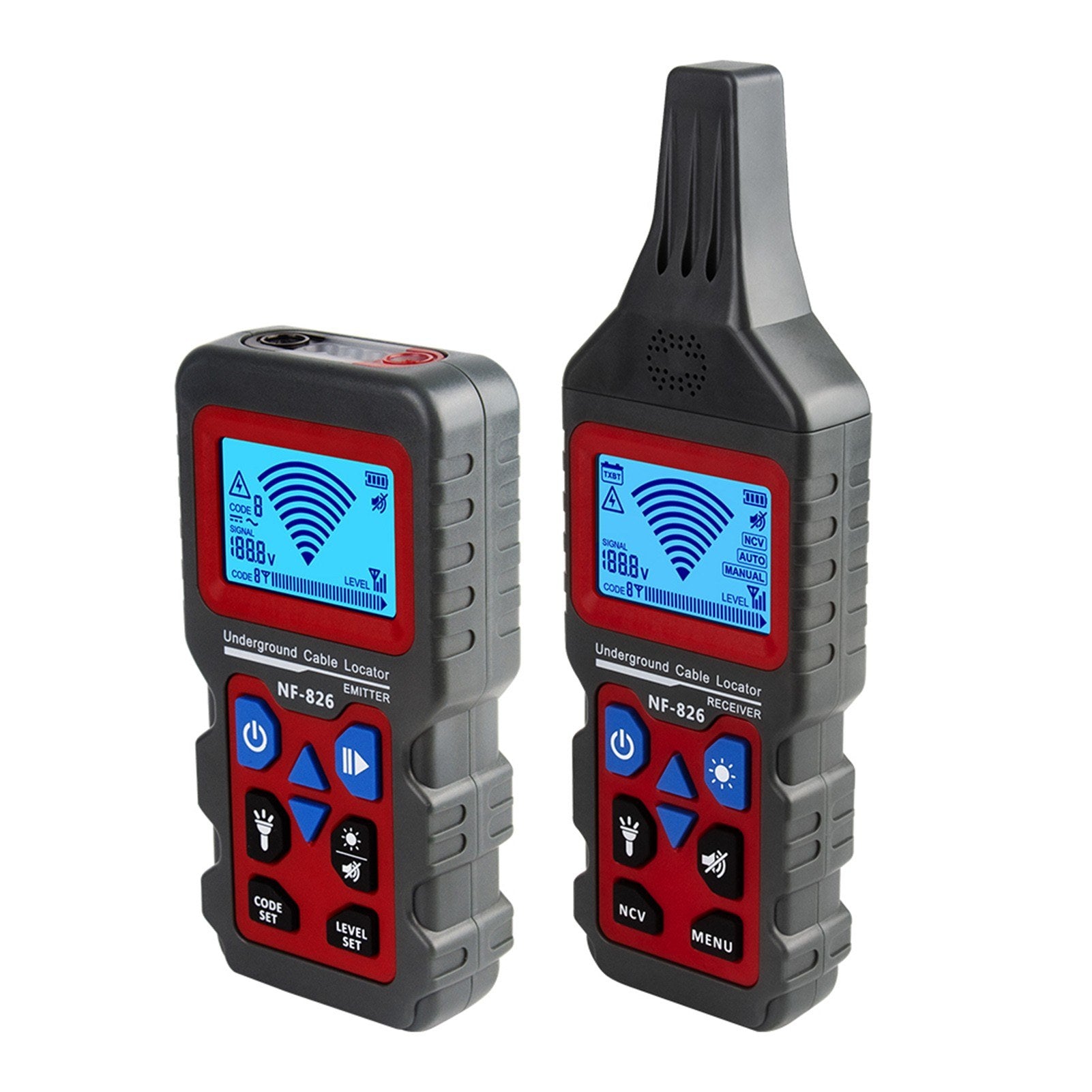

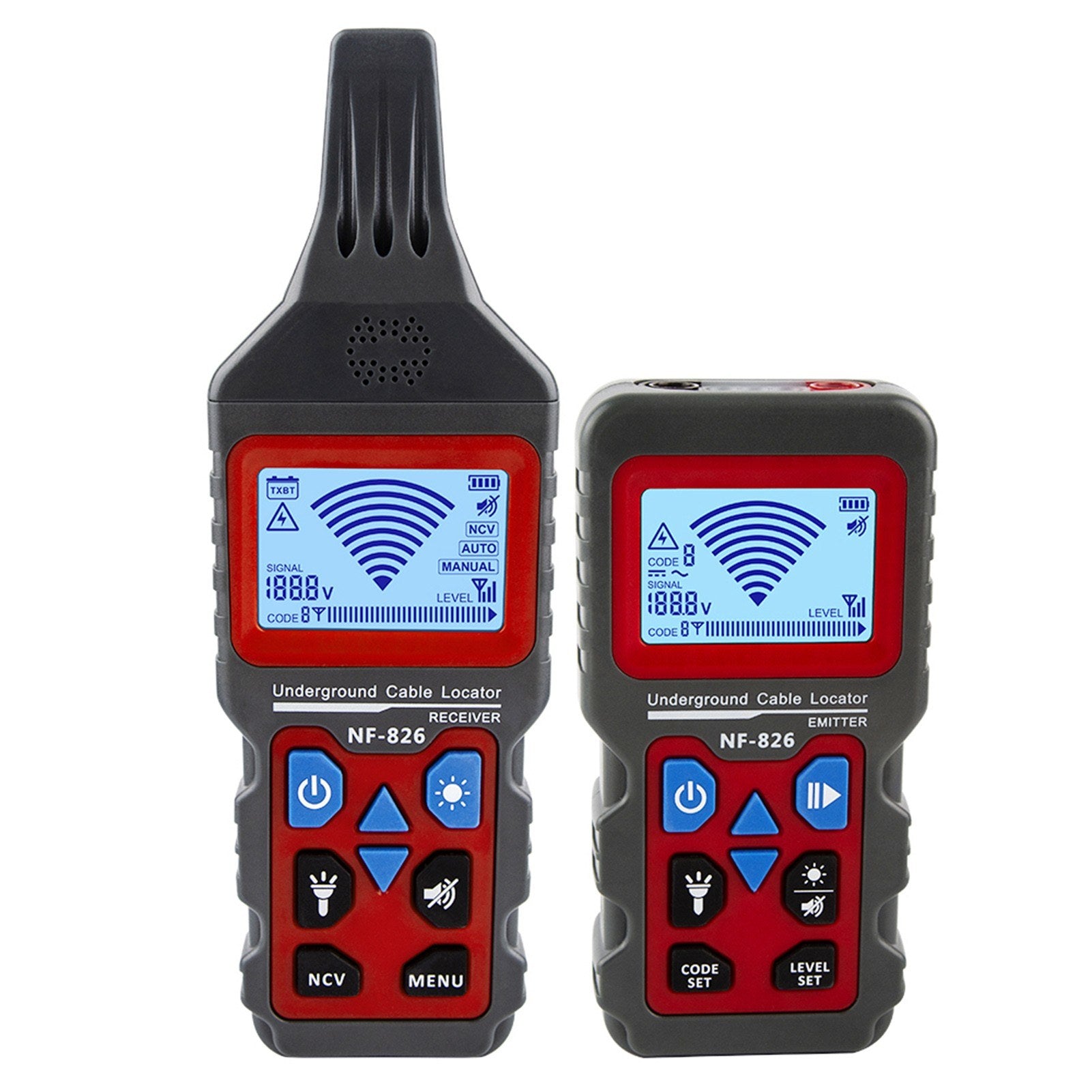

The NF-826 is a portable cable detector, combining a transmitter, receiver, and accessories.

• Utilizes new integrated devices and digital circuit technology for stable and reliable performance.
• Detects the specific location and faults of buried cables or pipelines according to signal changes.
• Ideal for the maintenance of communication cables, power cables, building pipelines, and more.

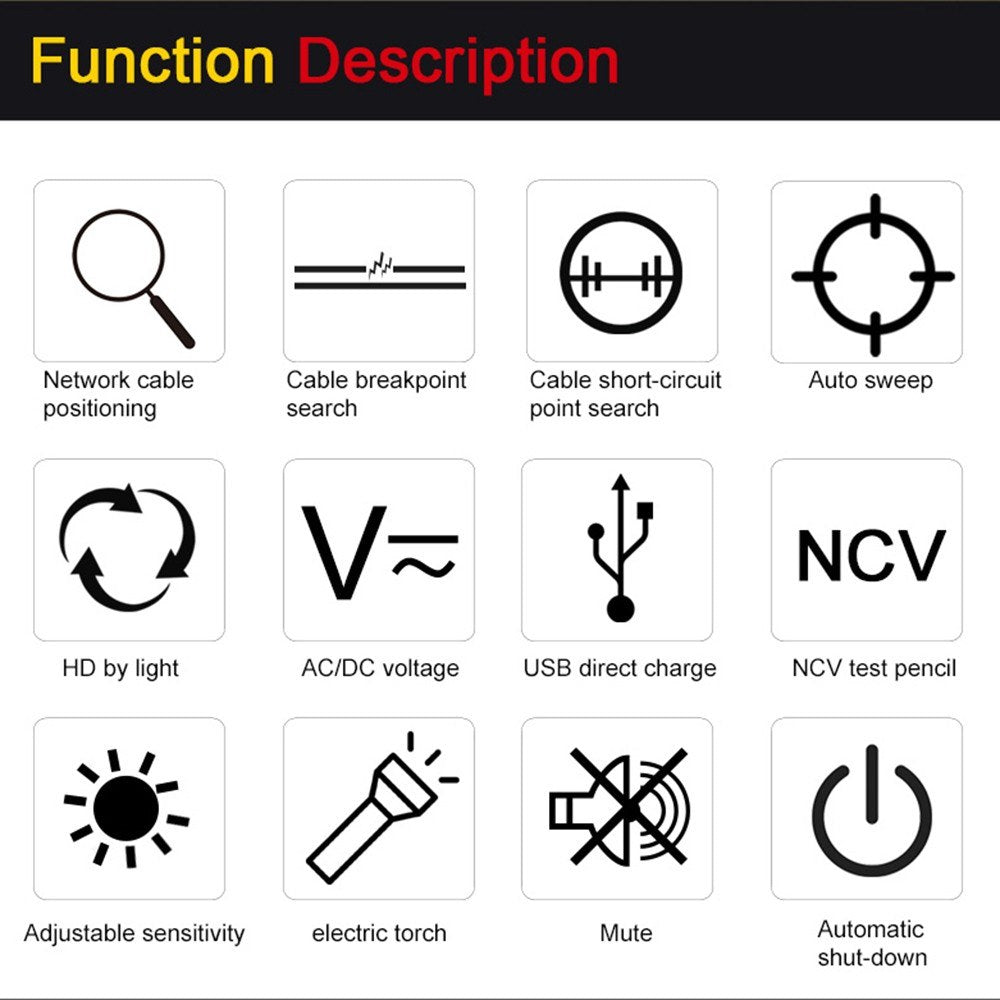

Features

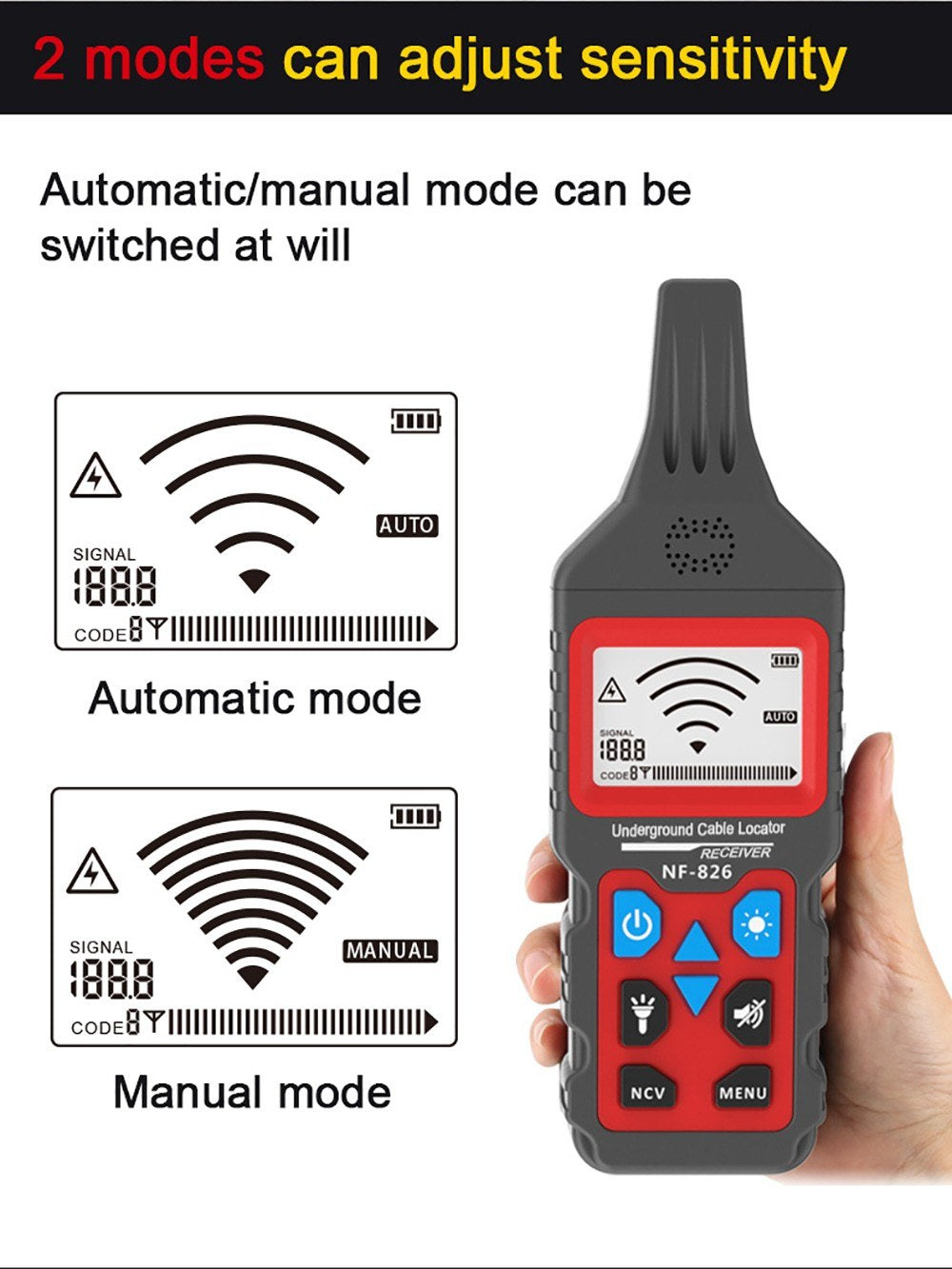

• Underground Wire Locator: Detects breaks and shorts in underground cables and walls, features a built-in flashlight for dark environments, and adjustable sensitivity.
• Buried Detector: Identifies fuses and circuits distributing currents, tracks outlets and junction boxes hidden by plaster.
• Wire Break Locator: Equipped with a built-in AC/DC voltmeter function to measure AC/DC voltage from 12V to 400V.

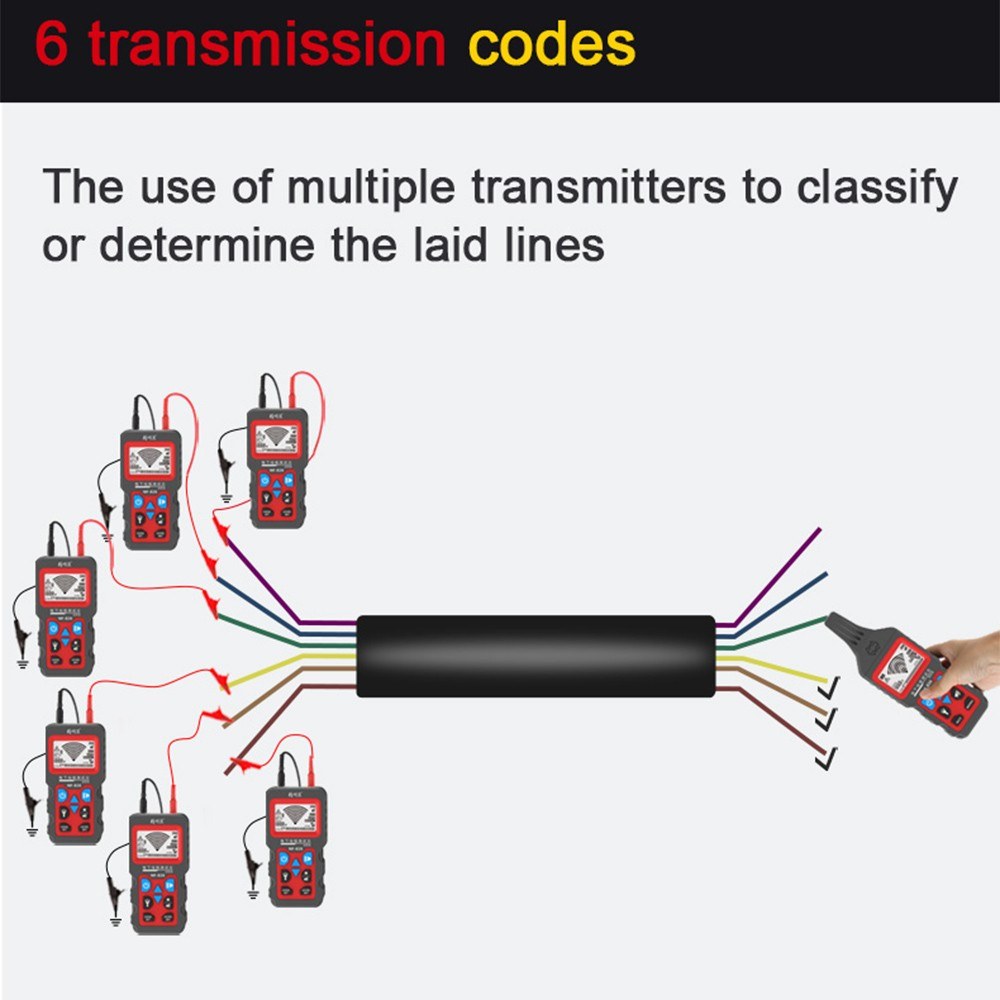

• Underground Cable Locator: Detects interruptions and shorts in floor heating. Displays power level, code, battery status, voltage type, and value, with a high voltage alarm.
• Wide Application: Suitable for various constructions and maintenance tasks, an essential tool for professionals and families.

Specifications

Material

• ABS

Transmitter

• Output Signal: 125kHz
• External Voltage Identification Range: DC 12~400V, ±2.5%; AC 12~400V (50-60Hz), ±2.5%
• Dielectric Strength: Max 400V AC/DC
• Overvoltage Type: CAT III 300V
• Pollution Degree: 2
• Power Consumption: Min Current: 80mA; Max Current: 300mA
• Fuse: F0.5A 500V, 6.3x32mm
• Temperature Range:
  • Work: 0℃~40℃, Max relative humidity 80% (non-condensation)
  • Storage: -20℃~60℃, Max relative humidity 80% (non-condensation)
• Altitude: Max 2000m

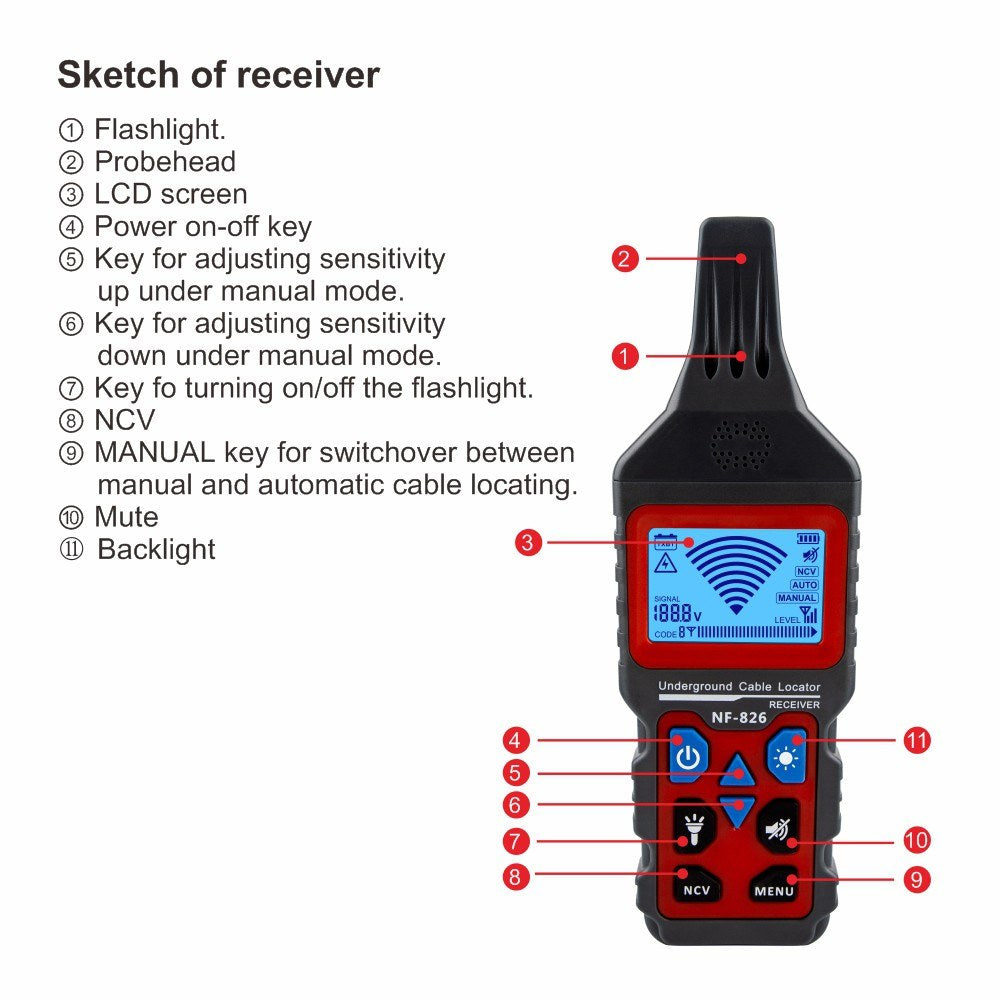

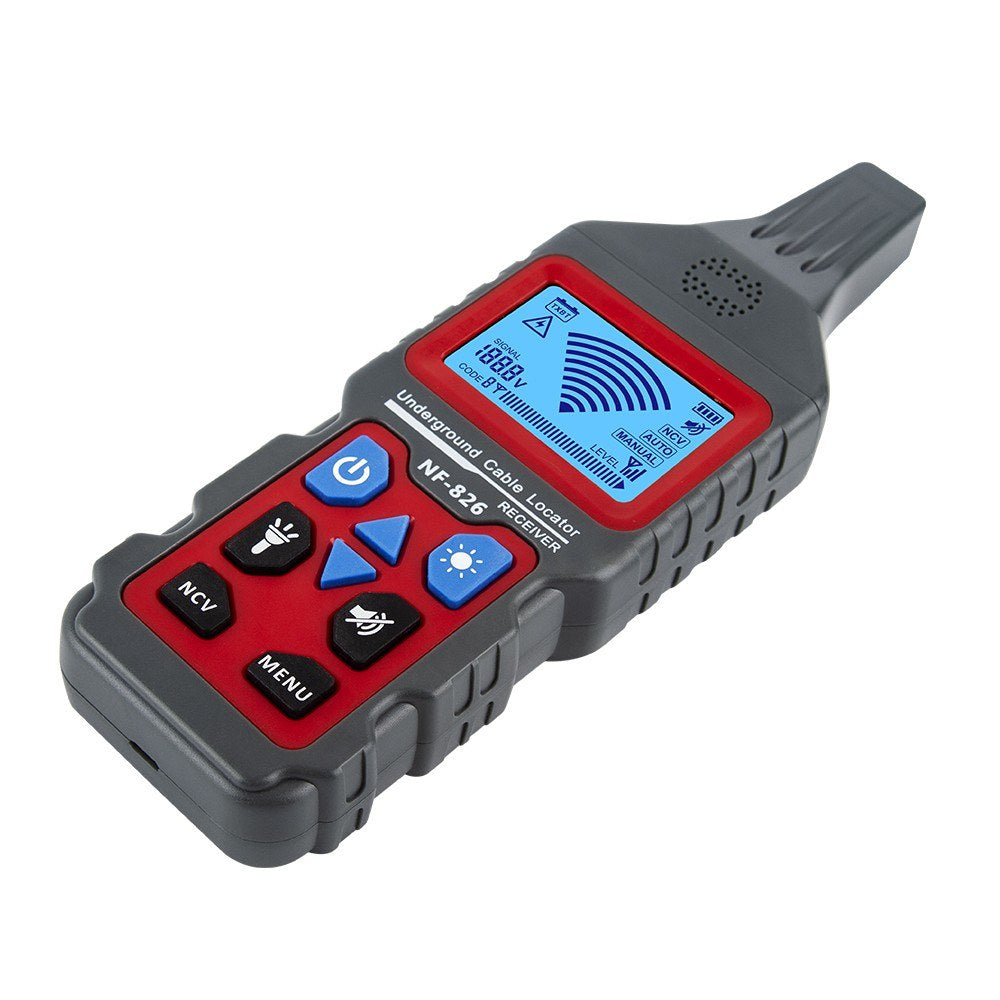

Receiver

• Depth of Tracking: Depends on material and specific applications
• Cable Locating Mode:
  • Signal Pole Application: About 0~1m
  • Dual Pole Application: 0-0.5m
  • Signal Loop Line: Up to 2.5m
• Grid Voltage Identification: About 0~0.4m
• Display: LCD with function display and column chart
• Power Supply: 3.7V, 1400mAh Lithium battery
• Power Consumption: Min Current: 100mA; Max Current: 300mA
• Temperature Range:
  • Work: 0℃~40℃, Max relative humidity 80% (non-condensation)
  • Storage: -20℃~60℃, Max relative humidity 80% (non-condensation)
• Altitude: Max 2000m

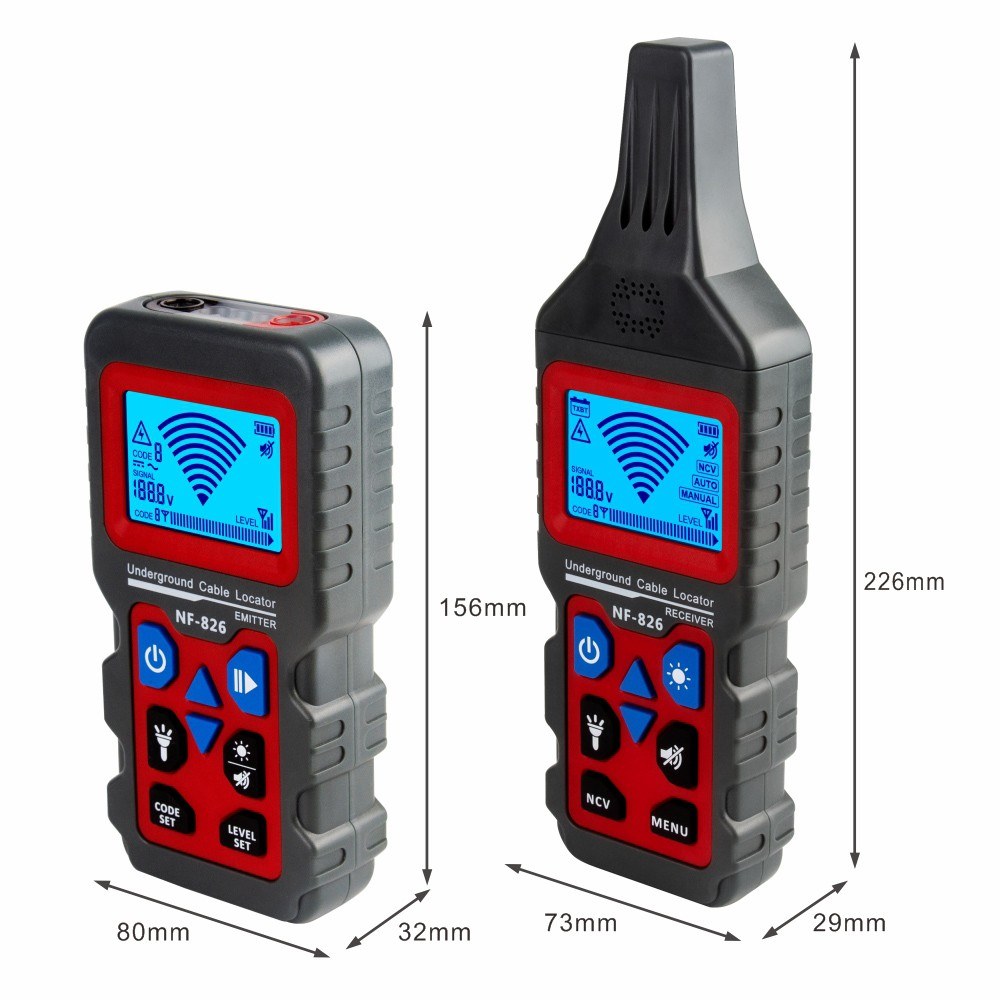

Dimensions and Weight

• Transmitter Size: 156 * 80 * 32mm
• Transmitter Weight: 235g (with battery)
• Receiver Size: 226 * 73 * 29mm
• Receiver Weight: 235g (with battery)
• Package Weight: 1050g
• Package Size: 25.7 * 18.4 * 6.5cm

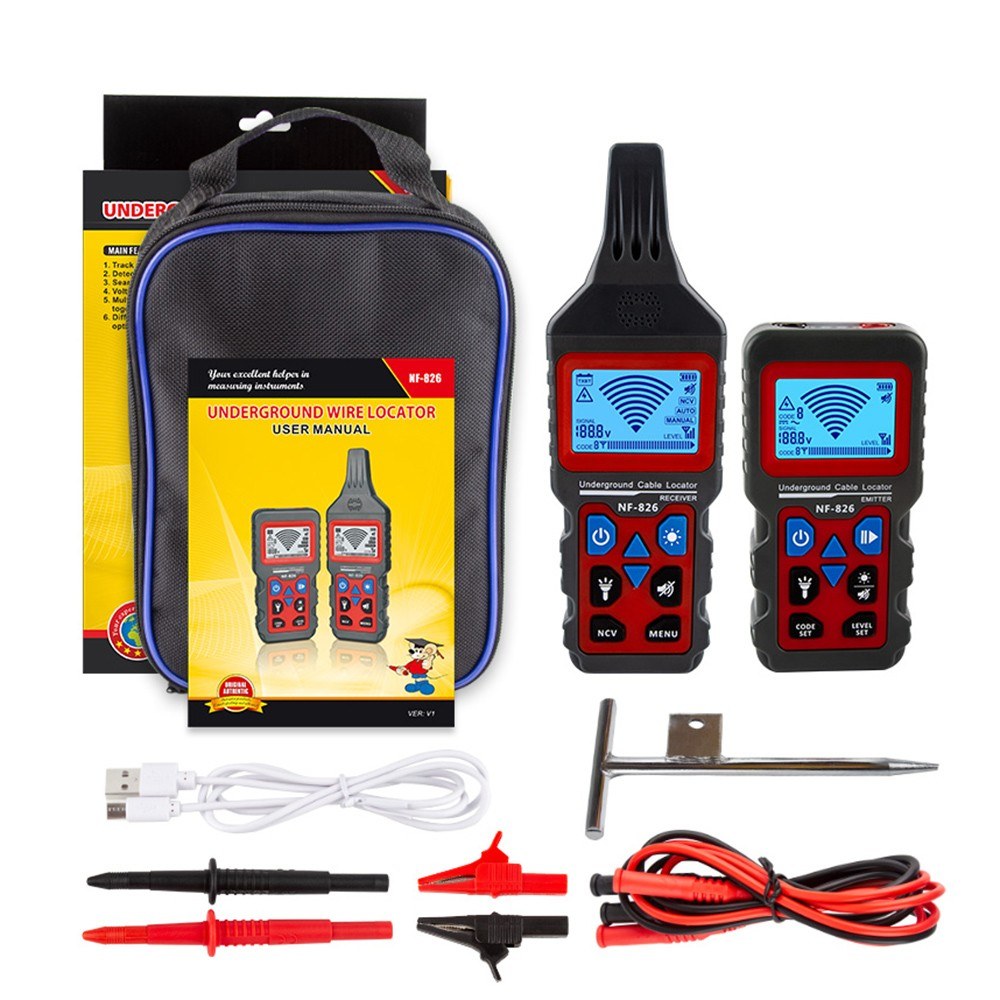

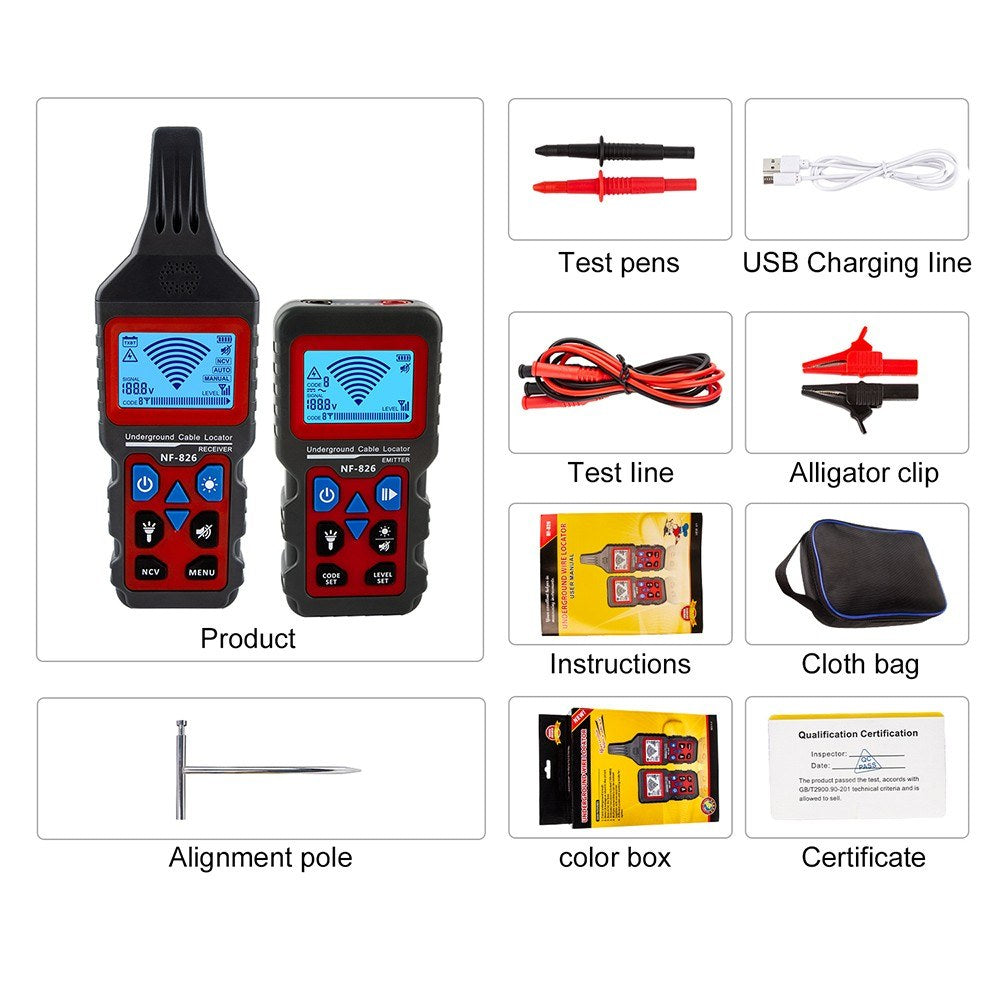

Package List

• 1 * Transmitter
• 1 * Receiver
• 1 * User Manual (English)
