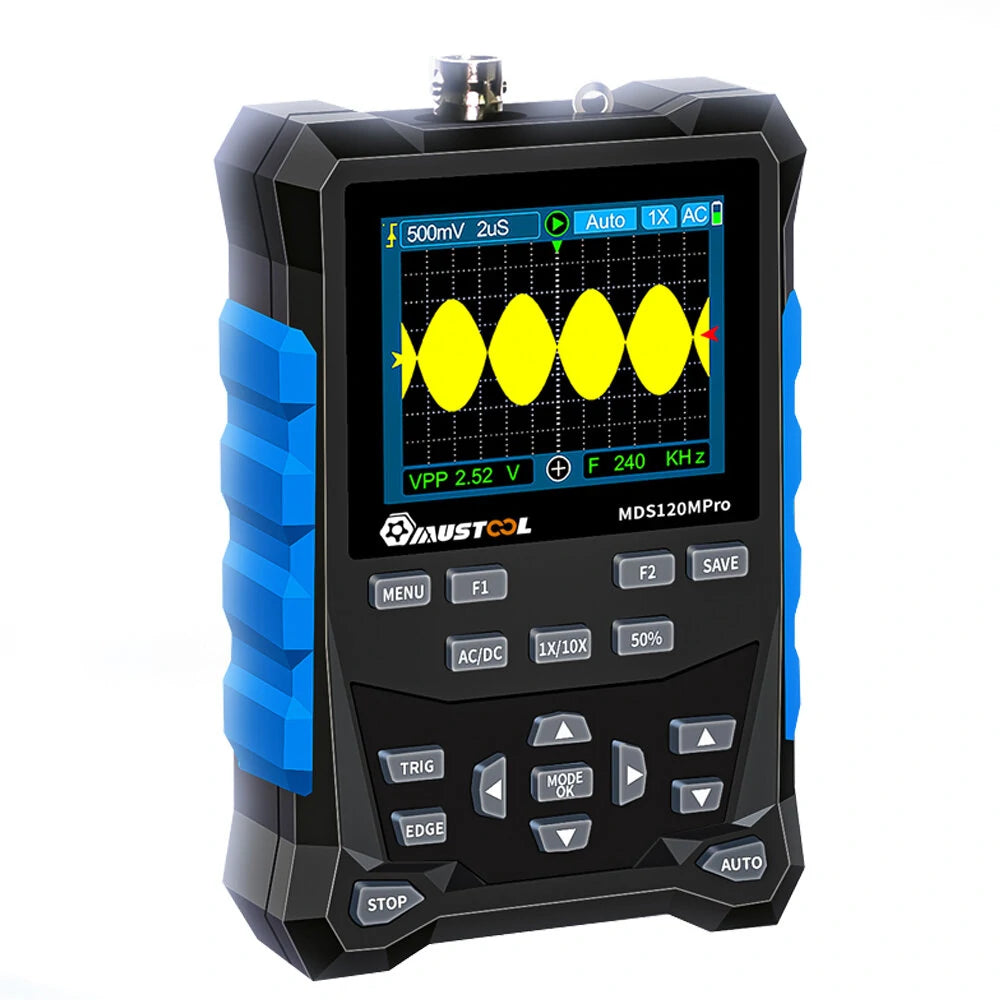

Mustool MDS120MPro 120MHz Digital Oscilloscope with 3MHz Signal Generator, 500MS/s, 2-in-1 Automotive Tool

Features

• High-Speed Testing: Experience exceptional testing with the Mustool MDS120MPro Auto Oscilloscope, featuring a maximum test voltage of 1X: 80 Vpp and 10X: 800 Vpp. With waveform bandwidth coverage up to 120MHz, it's perfect for diverse testing applications.
• Advanced Signal Output: The device offers three types of signal source outputs: square, sine, and triangle, with adjustable parameters. Notably, it delivers a square wave frequency from 10Hz to 3MHz and a square wave duty cycle from 10% to 90%.
• Comprehensive Automatic Measurement: Benefit from automatic measurements including Vpp, Vrms, Vavg, Vp, Vmax, Vmin, and timing intervals, ensuring thorough and accurate testing and analysis.
• Lightweight and Portable: Weighing just 187g and powered by a lithium battery with approximately 5 hours of standby time, this oscilloscope is compact and functional, ideal for off-site testing and diagnostics.
• Versatile Application: Perfect for various purposes including home appliance testing, automobile diagnostics, scientific research and education, device debugging, and product development.

Specifications

• Brand: Mustool
• Model: MDS120MPro
• Display Technology: TFT
• Weight: About 187g
• Use Conditions: 0°C ~ +40°C
• Battery: Lithium battery
• Auto Shutdown: No operation for 15 mins
• Save Conditions: -10°C ~ +60°C
• Accessories: 100MHz Probe, Charging Cable, User Manual, Cloth Bag
• Waveform Bandwidth: 120MHz
• Channel Quantity: 1
• Max Test Voltage: 1X: 80 Vpp, 10X: 800 Vpp
• Coupling Method: DC/AC
• Standby Time: About 5 hours
• Screen Resolution: 320×240
• Voltage Accuracy: 10%
• Frequency Accuracy: 1%
• Storage Depth: 12.8div
• Input Impedance: 1MΩ
• Vertical Sensitivity: 50mV ～ 100V
• Time Base Range: 6nS ~ 50S
• Trigger Mode: Auto/Normal/Single
• Trigger Slope: Rising / Falling
• Charging: DC5V/1A/2A
• Maximum Sampling Rate: 500MSa/S

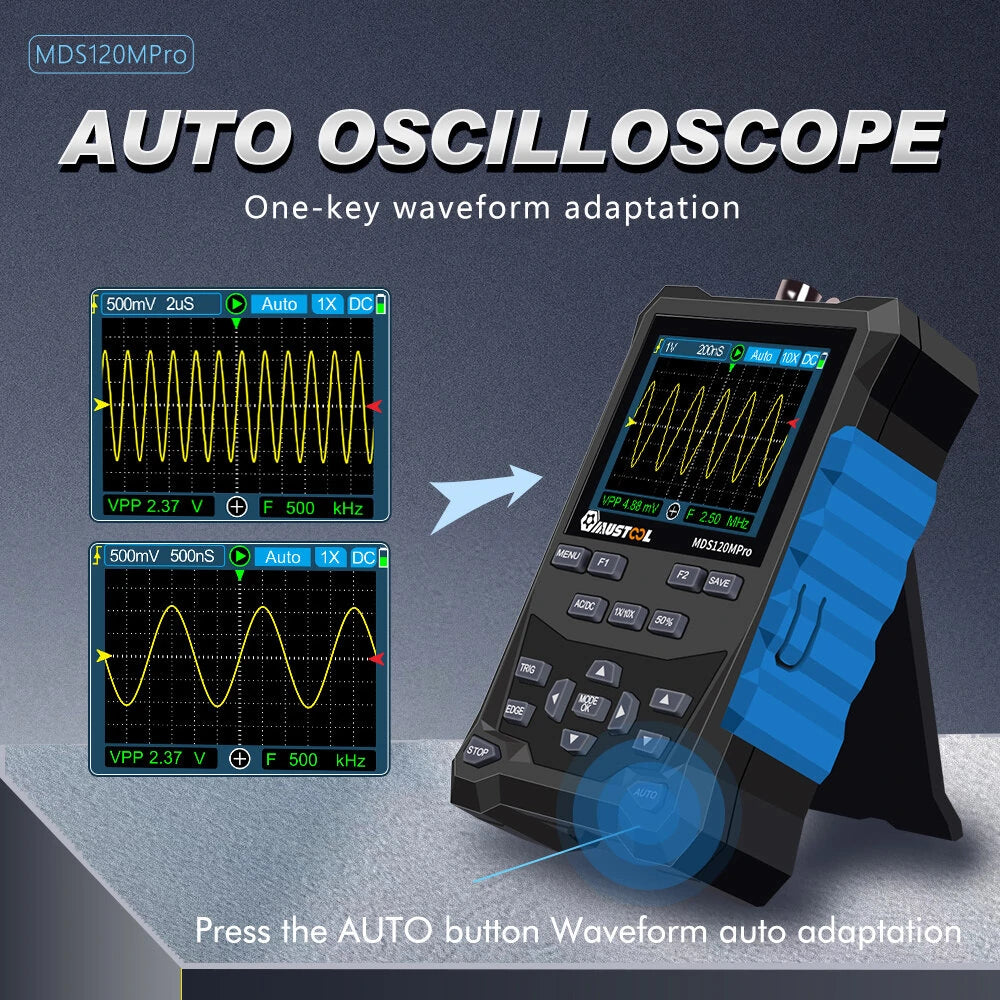

• Auto Configuration: Automatically sets time base and vertical sensitivity

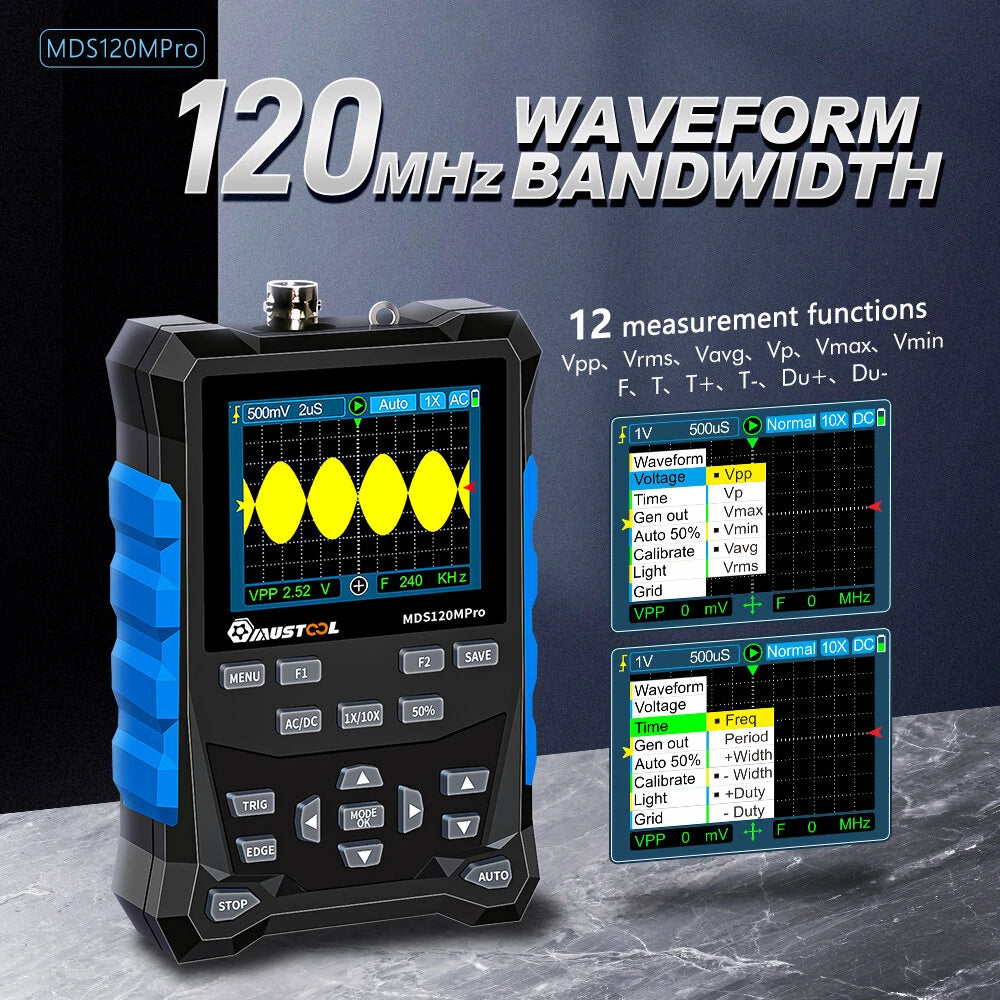

• Automatic Measurement Function: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, Du-

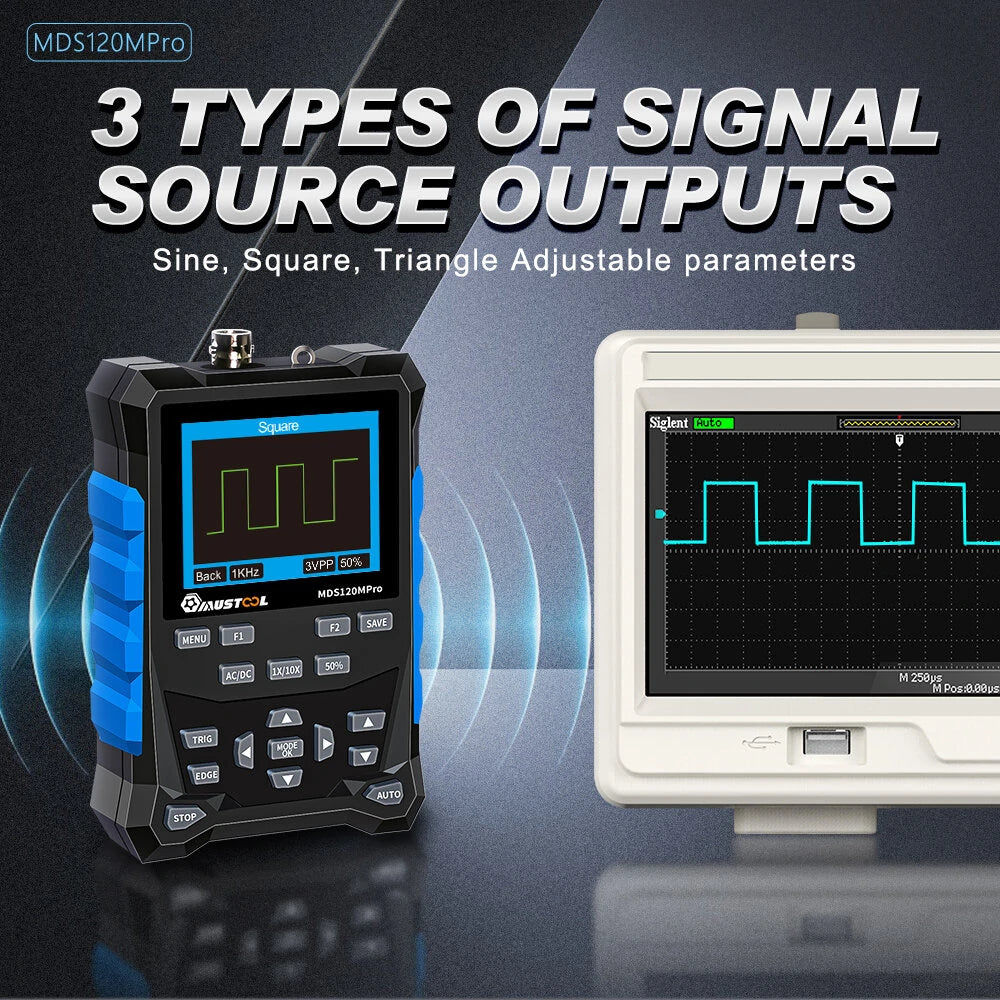

• Signal Output: Sine/triangle wave: 10Hz to 100KHz; Square wave: 10Hz~3MHz; Square Wave Duty Cycle: 10% ~ 90%; Output Voltage: 0~3Vpp
• Applicable Occasions: Home appliance testing, automobile diagnosis, scientific research and education, product development, equipment debugging

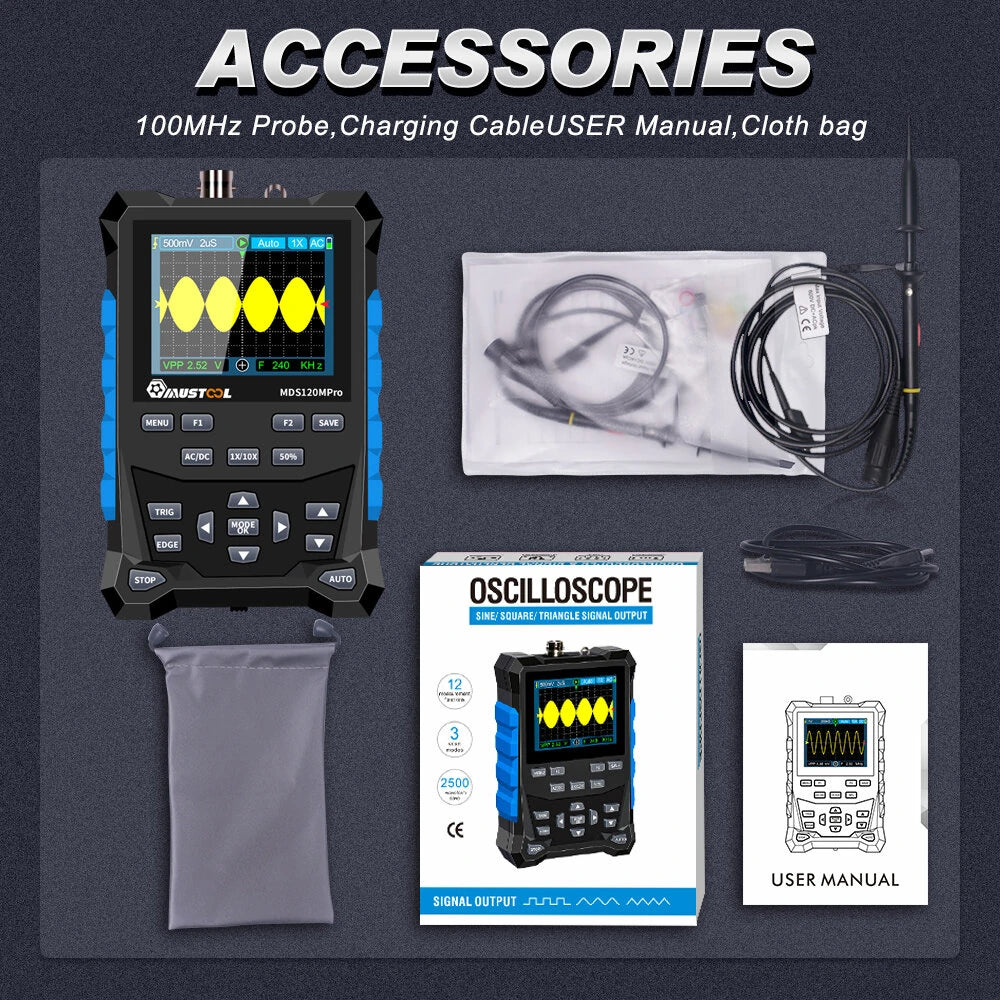

Package Includes

• 1 x Mustool MDS120MPro Auto Oscilloscope
• 1 x 100MHz Probe
• 1 x Charging Cable
• 1 x User Manual
• 1 x Cloth Bag
