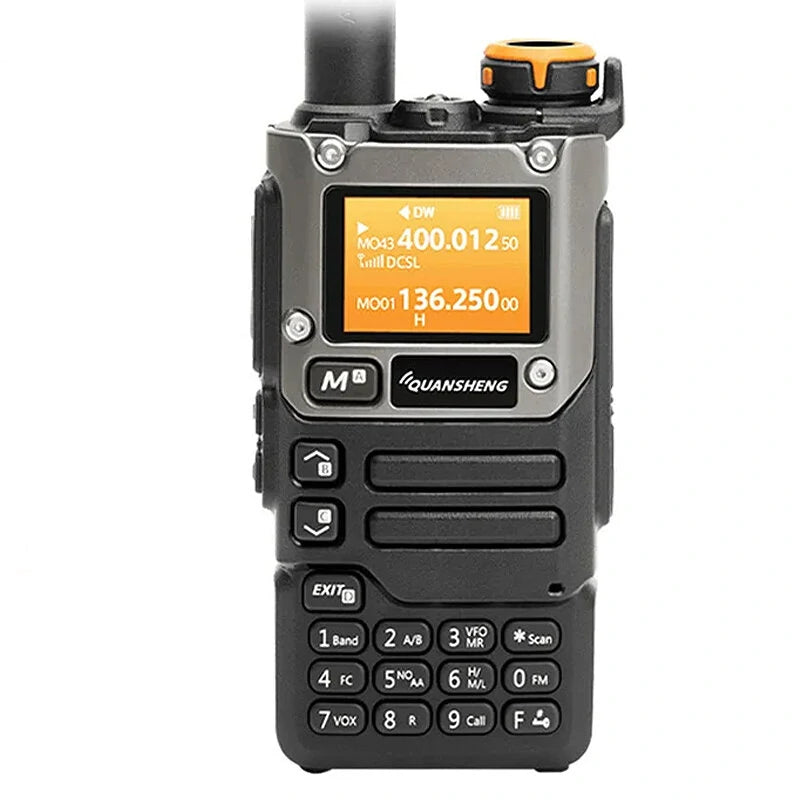

Quansheng UV-K6 Dual Band 5W Walkie Talkie, UHF VHF, Air Band Radio with NOAA Weather Alarm, DTMF, FM, Ham Transceiver, Two Way Radio, EU Plug

Product Details & Specifications

Specifications:

• Channels: 200
• FM Storage: 20
• NOAA Channels: 10
• Frequency Stability: ±1ppm
• Size: 115mm x 60mm x 37.5mm
• Weight: 234g
• Voltage: 7.4V
• Temperature Range: -20°C to +60°C
• Resistance: 500
• Transmit Power: ≤5W
• Transmit Current: ≤1.5A

Sensitivity:

• FM (12dB SINAD):
• F1 (50-76MHz): -121dBm
• F2 (108-135.9975MHz): -121dBm
• F3 (136-173.9975MHz): -123dBm
• F4 (174-349.9975MHz): -123dBm
• F5 (349-399.9975MHz): -123dBm
• F6 (400-469.9975MHz): -123dBm
• F7 (470-599.9975MHz): -121dBm
• WFM (76-108MHz, 20dB SINAD): -110dBm
• AM (10dB S/N): -113dBm

• Audio Power: ≥0.5W
• Audio Distortion: ≤10%
• Frequency Band: 144-148MHz/430-440MHz
• Output Power: ≤5W
• Output Current: ≤1.5A
• Frequency Offset: ≤5KHz (25KHz) / ≤2.5KHz (12.5KHz)
• Distortion: ≤5%
• Spurious: -7.5µW
• Imminent Power: 70dB (25KHz) / 60dB (12.5KHz)
• Residual: 40dB

Features:

• Wide range of channels: Offers 200 channels for a diverse range of communication options.
• FM Storage: Store up to 20 FM radio stations for entertainment.
• NOAA Channels: Access 10 NOAA channels for weather updates and alerts.
• Frequency Stability: Maintains accurate communication with a stability of ±1ppm.
• Compact and lightweight: Easy to carry at 115mm x 60mm x 37.5mm in size and 234g weight.
• Wide operating voltage: Flexible power source compatibility with 7.4V voltage.
• Wide temperature range: Operates efficiently between -20°C and +60°C.
• High resistance: Durable with a resistance rating of 500.
• High transmit power: Clear long-range communication with ≤5W transmit power.
• Low transmit current: Energy-efficient with ≤1.5A current during transmission.
• Enhanced sensitivity: Provides excellent FM, WFM, and AM signal reception.
• High-quality audio: Delivers clear sound with ≥0.5W audio power and ≤10% distortion.

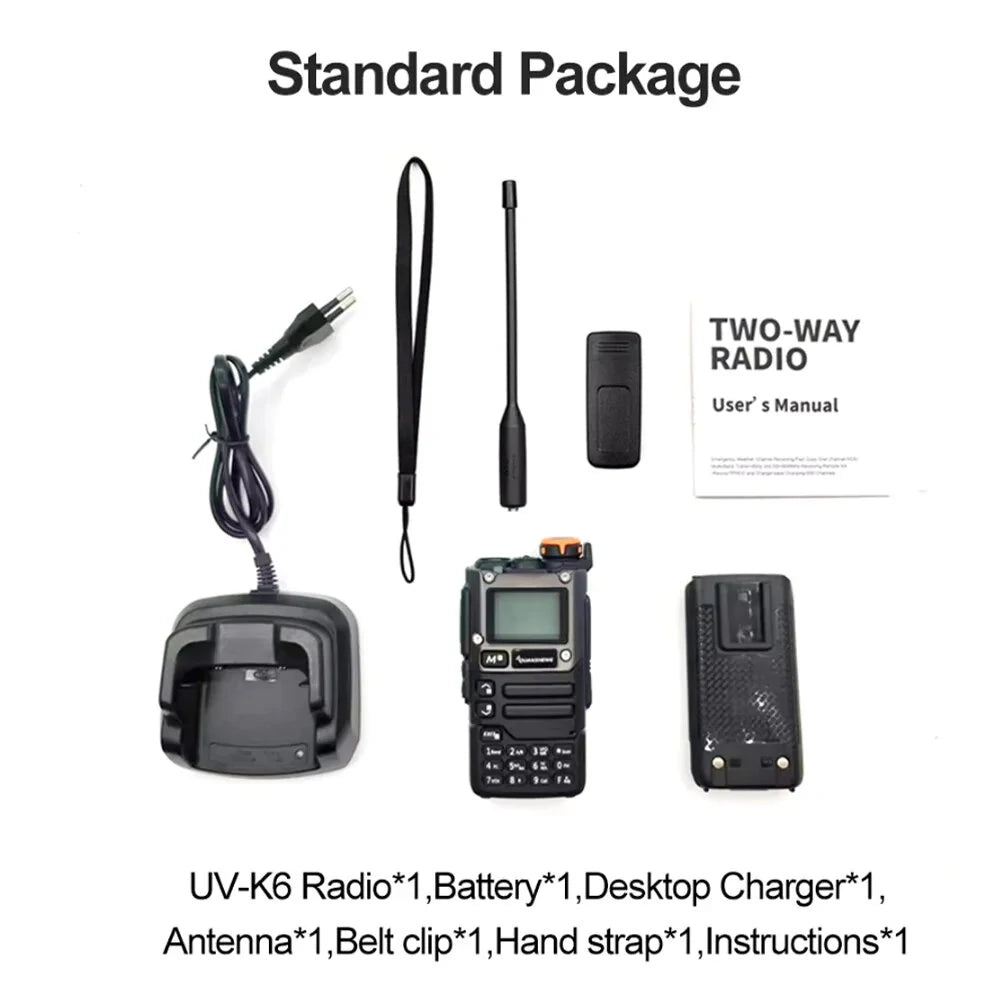

Package Includes:

• 1 × Quansheng UV-K6 Walkie Talkie
• 1 × Battery
• 1 × Back Clip
• 1 × Lanyard
• 1 × Antenna
• 1 × Charging Dock
• 1 × Manual
