PON Power Meter Optical Fiber Tester with 10 Data Storage for 1310/1490/1550nm Video FTTX ONT OLT Signal Measurement

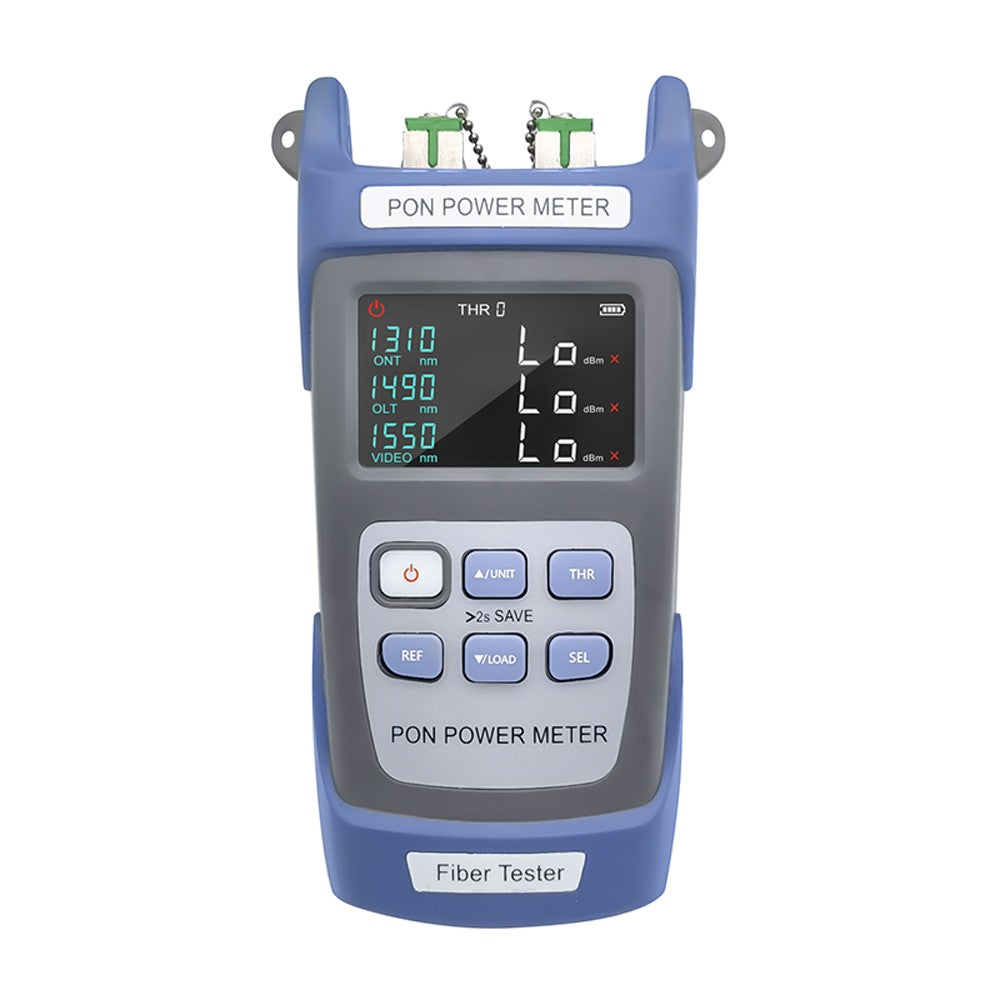

PON Optical Power Meter

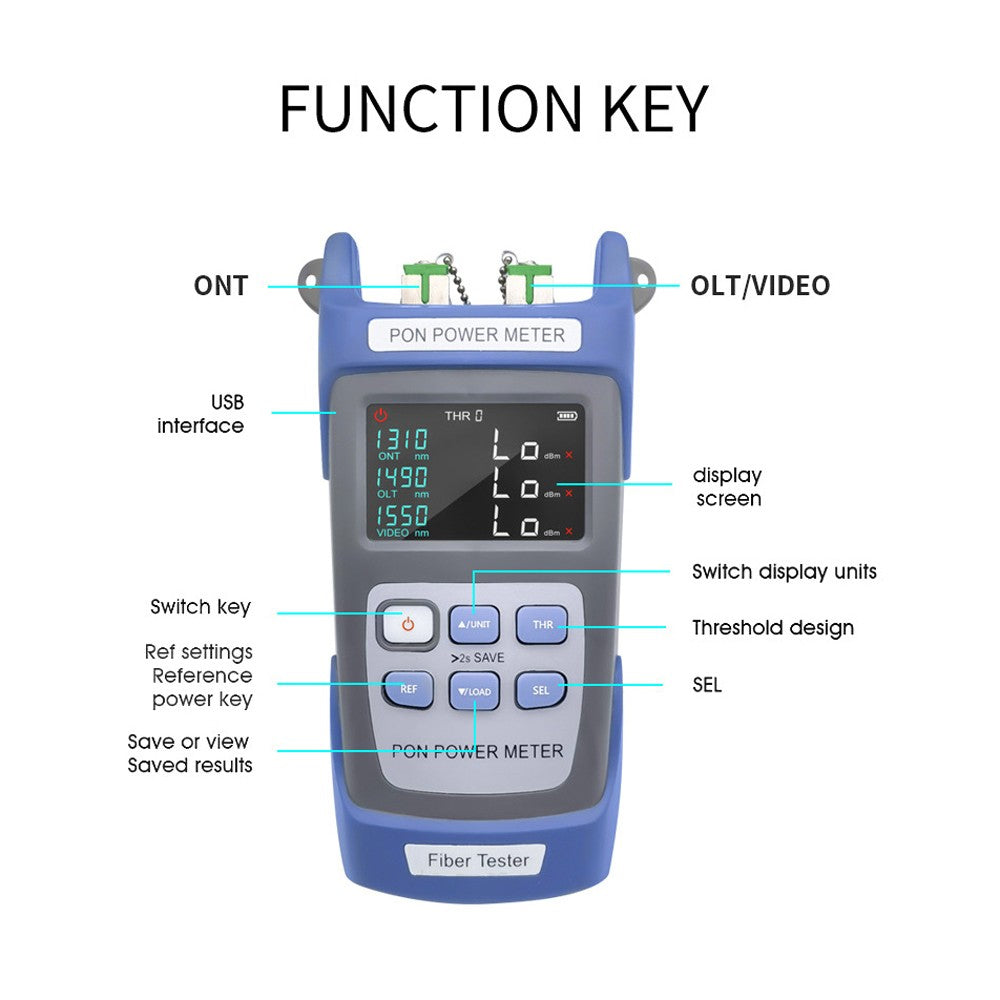

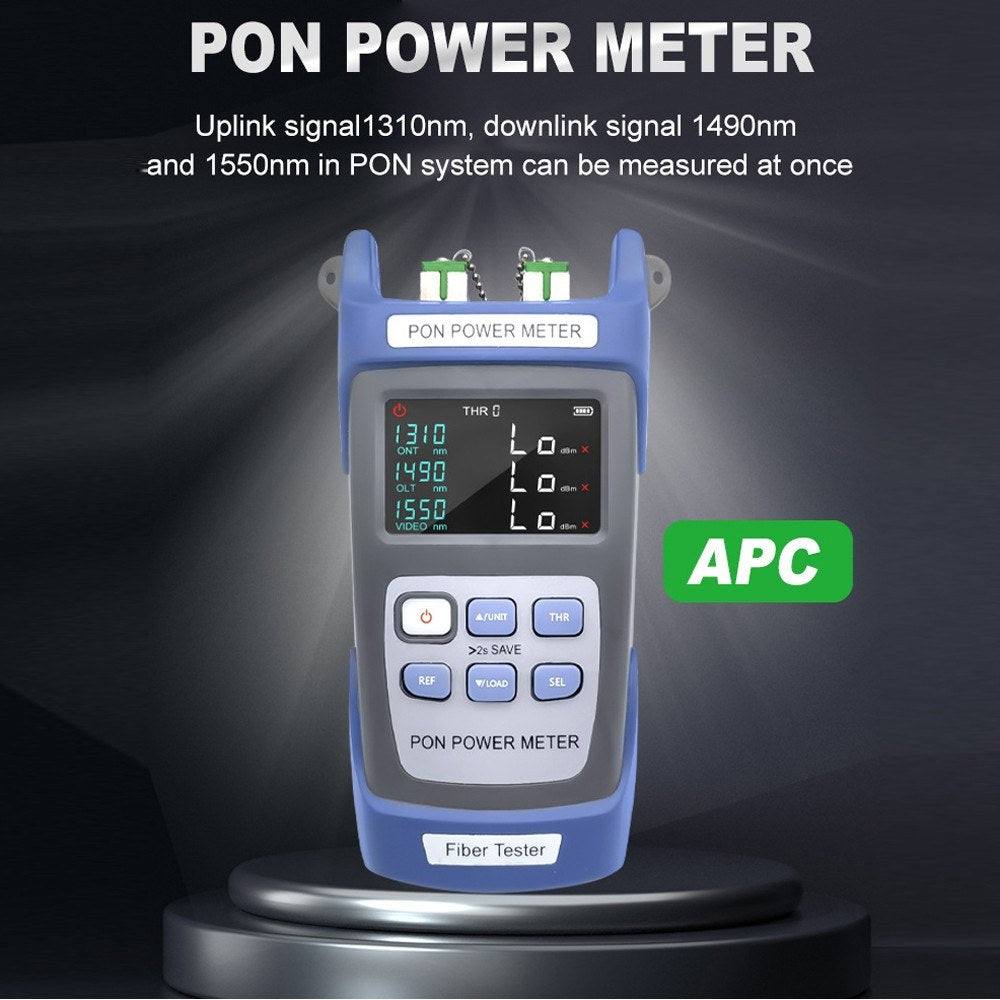

This PON optical power meter is an essential tool for the installation, operation, and maintenance of fiber optic networks. It features a color LCD screen capable of measuring and displaying voice, data, and video signals simultaneously on the PON architecture. It also tests the 1310nm uplink and 1490nm & 1550nm downlink signals in the PON system. The device supports ten data storage entries. Save the current power value with a long press on V/LOAD, or view saved values with a short press on the same button.

Features:

• Ideal for fiber optic network installation, operation, and maintenance.
• LCD screen displays simultaneous measurements for voice, data, and video signals on the PON architecture.
• Tests 1310nm uplink and 1490nm & 1550nm downlink signals simultaneously.

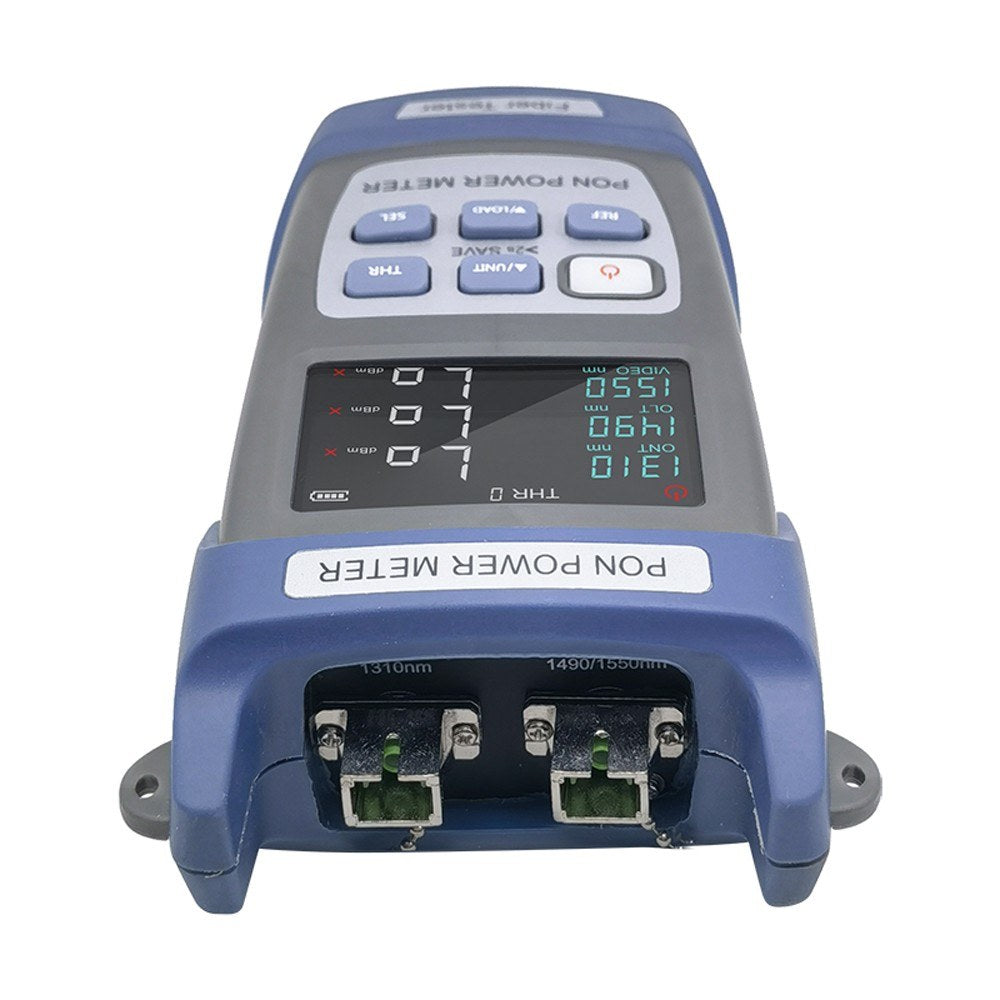

• Removal port for weak light remediation; release port checks optical modem connectivity.

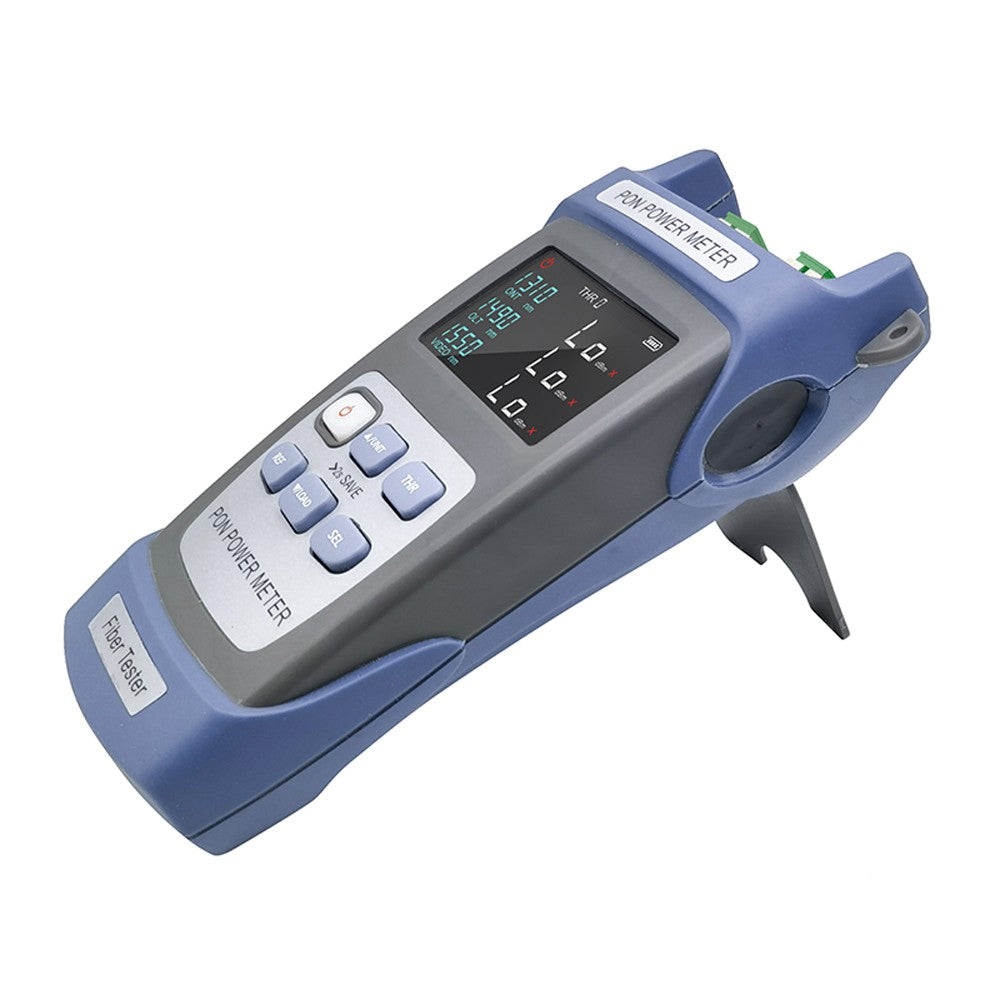

• USB port supports charging; rear bracket aids desktop placement.
• Ten data storage capacity, with easy save and view functionality via V/LOAD button.
• Self-calibrate with a manual mode by pressing EEF+SEL simultaneously.
• Timer shutdown function: hold the power button for 2s during startup to activate, with indicators for automatic shutdown.

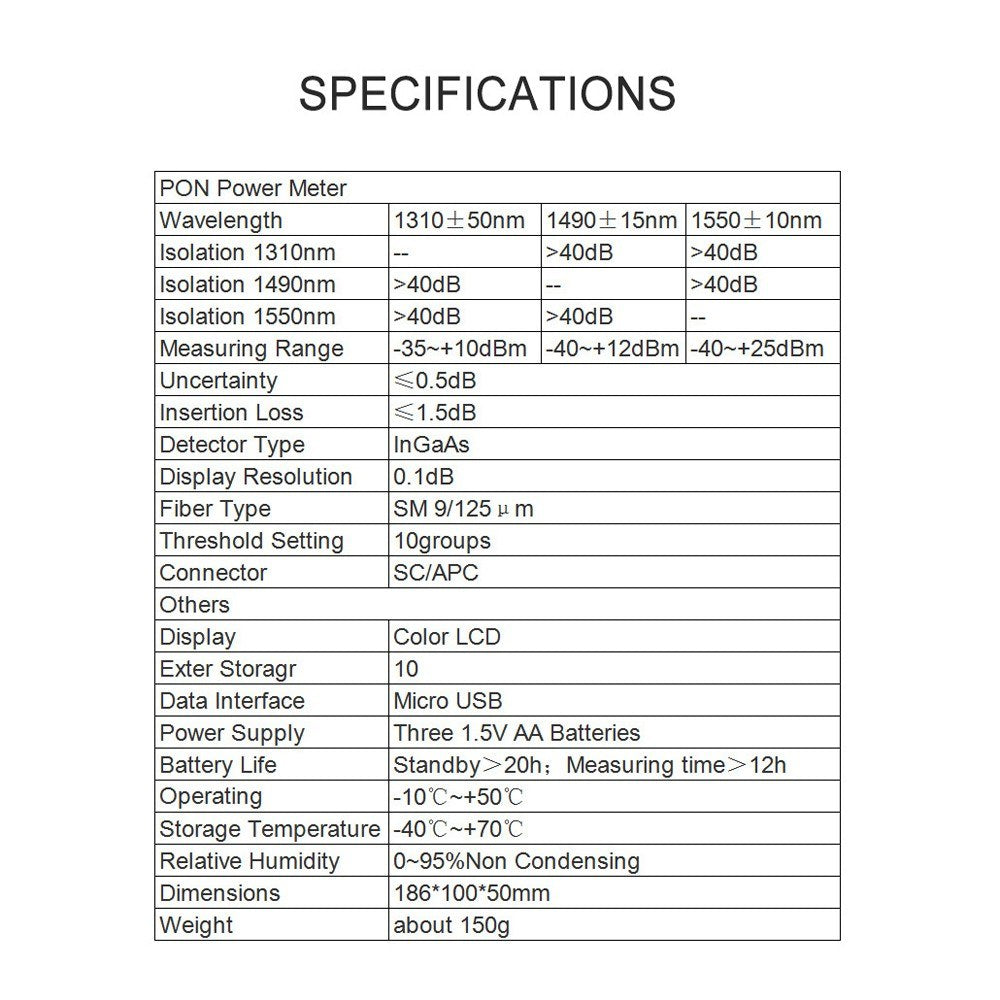

Specifications:

• Name: PON Power Meter
• Material: Plastics
• Optical Interface: Angled Physical Contacts, UPC (optional)
• Test Wavelength: 1310±50nm / 1490±15nm / 1550±10nm
• Isolation: 1310nm: >40dB / 1490nm: -- / 1550nm: >40dB
• Measurement Ranges: -35 to +10dBm / -40 to +12dBm / -40 to +25dBm
• Measurement Uncertainty: ≤0.5dB
• Insertion Loss: ≤1.5dB
• Detector Type: InGaAs
• Display Resolution: 0.1dB
• Reading Value Setting: 10 groups
• Optical Connector: SCIAPC
• Display: Color LCD screen
• Data Storage: 10
• Data Interface: USB

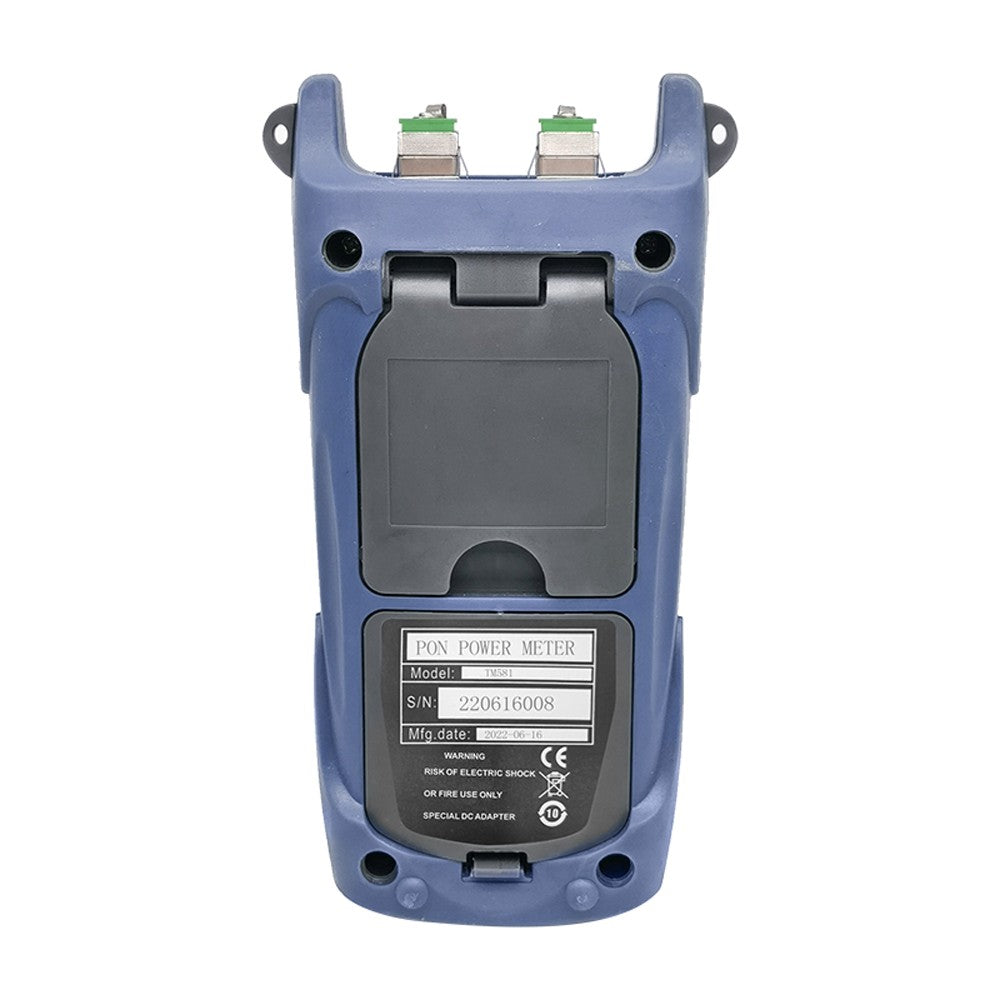

• Power Supply: 3 * 1.5V 1200mAh batteries (included)
• Battery Lifespan: Standby > 20 hours; Measurement > 12 hours
• Operating Temperature: -10℃ to +50℃
• Storage Temperature: -40℃ to +70℃
• Relative Humidity: 0-90% without condensation
• Item Size: 180 * 100 * 50mm / 7.09 * 3.94 * 1.97in
• Item Weight: 150g / 5.29oz
• Package Size: 210 * 122 * 70mm / 8.27 * 4.80 * 2.76in
• Package Weight: 581g / 20.49oz

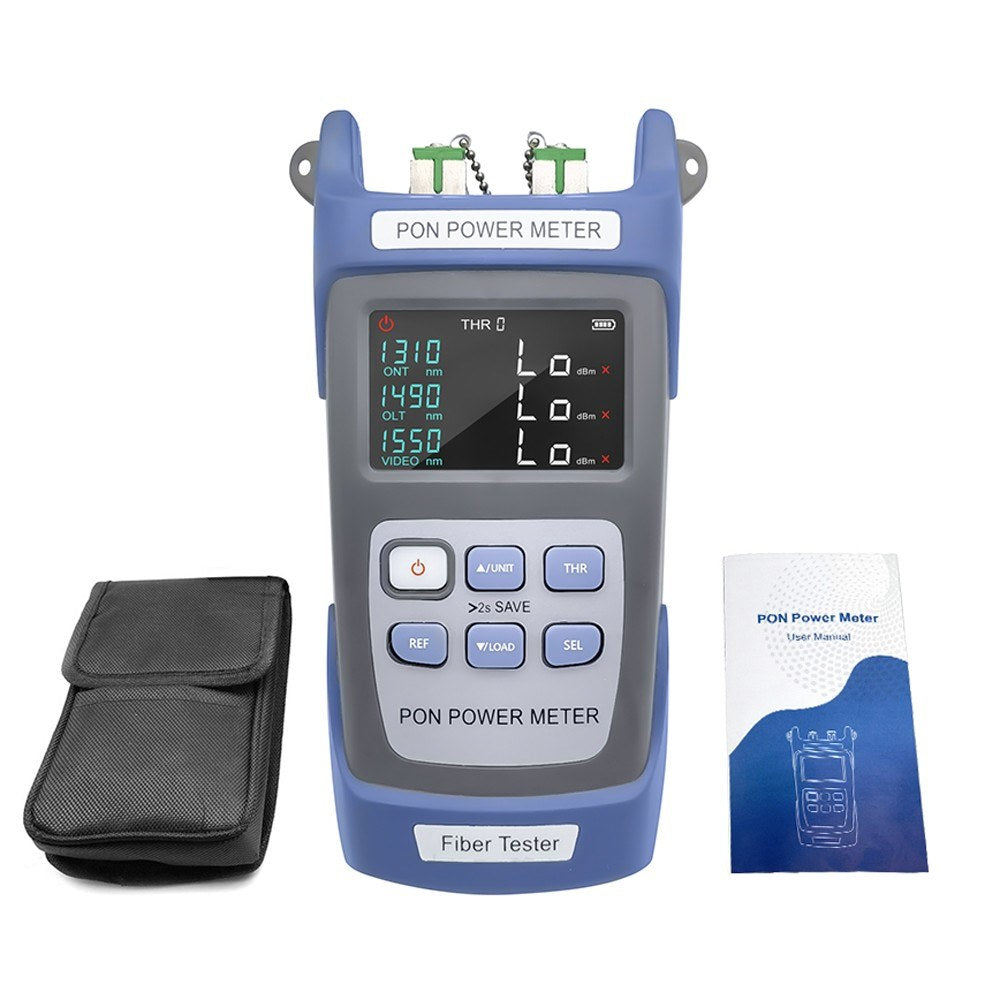

Packing List:

• 1 * PON Power Meter
• 1 * Storage Bag
• 1 * Guideline
