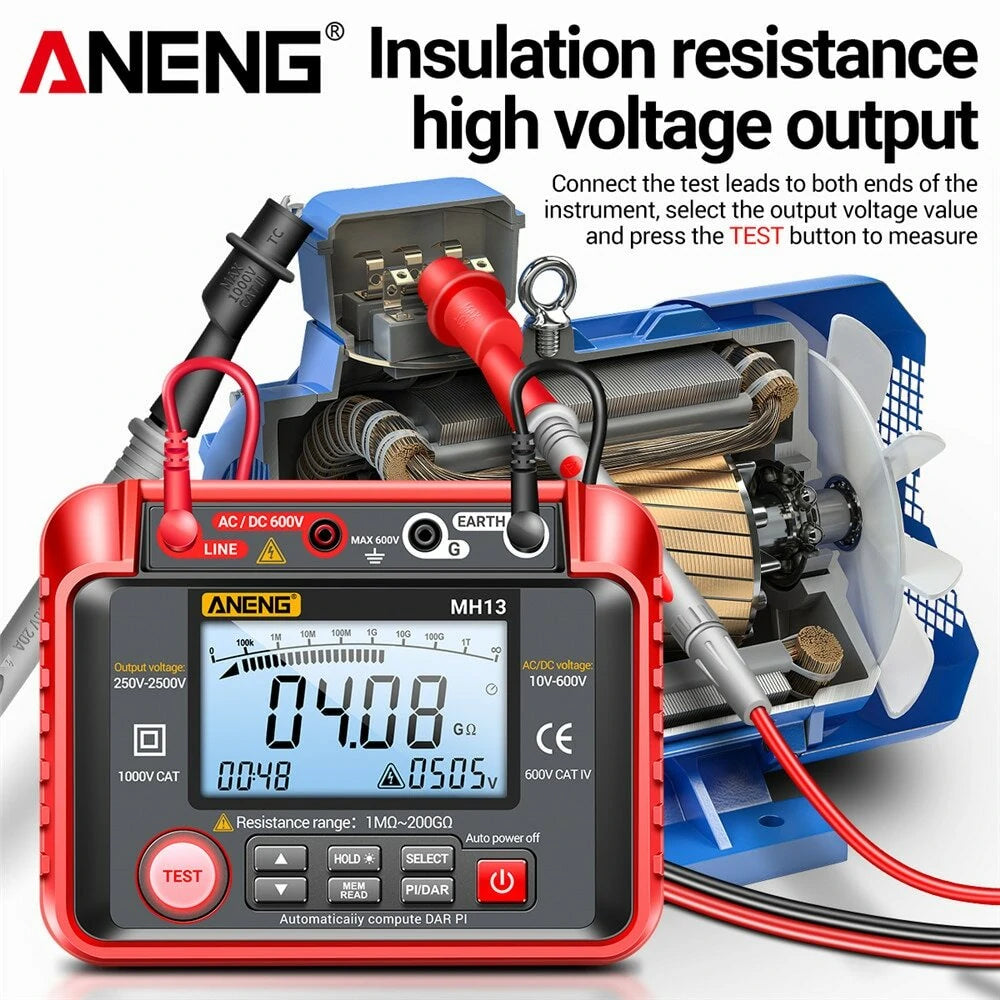

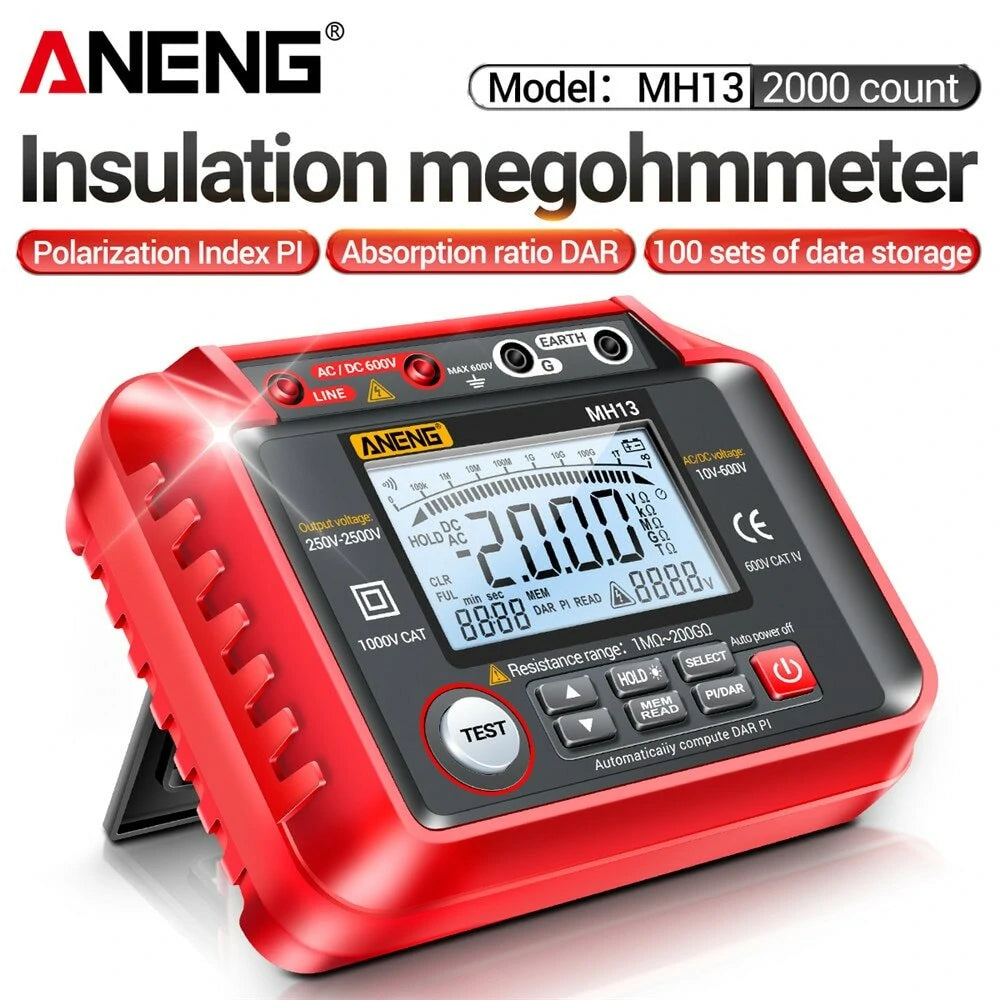

ANENG MH13 Megohmmeter Ohm Tester

Explore the capabilities of the ANENG MH13 Megohmmeter, a digital multimeter designed for measuring insulation resistance with precision and ease. Suitable for large generators, high-voltage motors, power capacitors, and more, this tool is the ideal companion for your high voltage resistance measurement needs.

Key Features:

• Designed for measuring insulation resistance.
• Perfect for use with generators, high-voltage motors, power capacitors, and power cables.
• High voltage testing capability.

Technical Parameters:

Output Voltage	250V / 500V / 1000V / 2000V / 2500V
Measuring Range	1MΩ - 200GΩ
Precision	±(5%+10d)
Short Circuit Current	1.8mA
AC Voltage Range	10-600V ±(1%+5d)
DC Voltage Range	10-600V ±(0.8%+5d)
Data Storage Capacity	100 sets
Max Count	2000 Counts
Display	HD backlit screen
Power Source	8 x AA5 batteries
Material	Silica gel/ABS
Weight	640g
Autoranging	Yes
Pen Material	PVC/brass
Automatic Discharge	Yes
Test Leads Length	108cm
Additional Indicators	High/Low voltage indication, Measurement time display

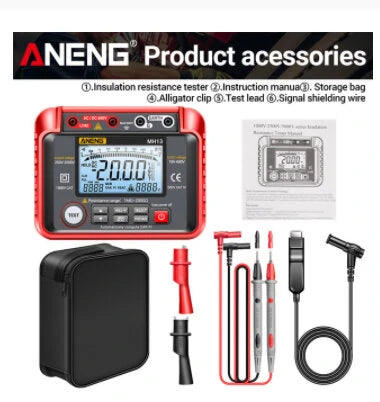

Package Includes:

• 1 x Packing Box
• 1 x Resistance Megohmmeter
• 1 x Alligator Clip
• 1 x Storage Bag
• 1 x Instruction Manual
• 1 x Test Lead
• 1 x Wire
