WINAPEX 268B True RMS Leakage Current Clamp Meter 0.1mA High Resolution AC/DC Multimeter

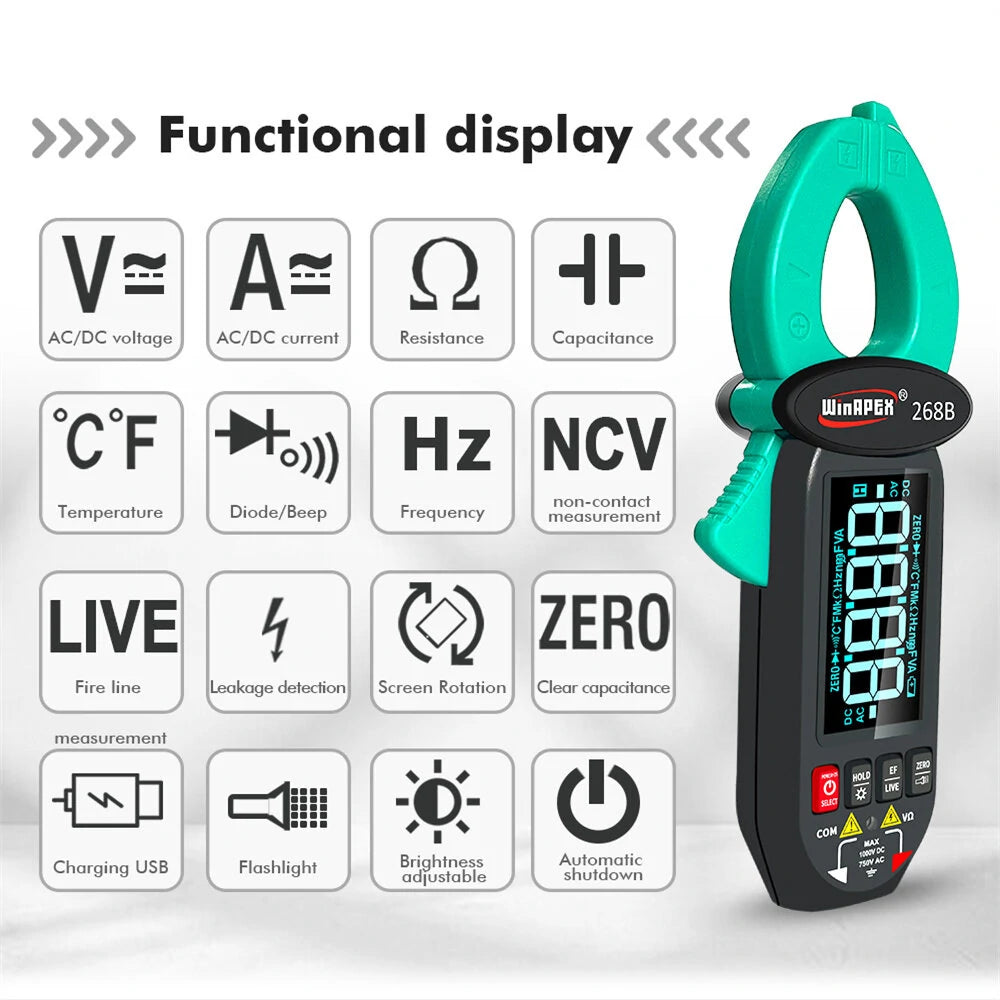

Product Features

Swift and Safe Leakage Detection

Enjoy hassle-free and precise leakage detection with the WINAPEX 268B. By simply clamping onto the live and neutral wires, you can easily detect AC and DC leakage currents. This allows you to quickly assess the safety of your home or workplace circuits.

Precision Meets Versatility

Dive into detailed measurements without sacrificing precision. The WINAPEX 268B offers a high-resolution measurement capability down to 1mA for DC and 0.1mA for AC currents. It’s not just for home use; its rapid measurement of automotive starting currents also makes it a valuable tool for professionals.

User-Centric Screen Display

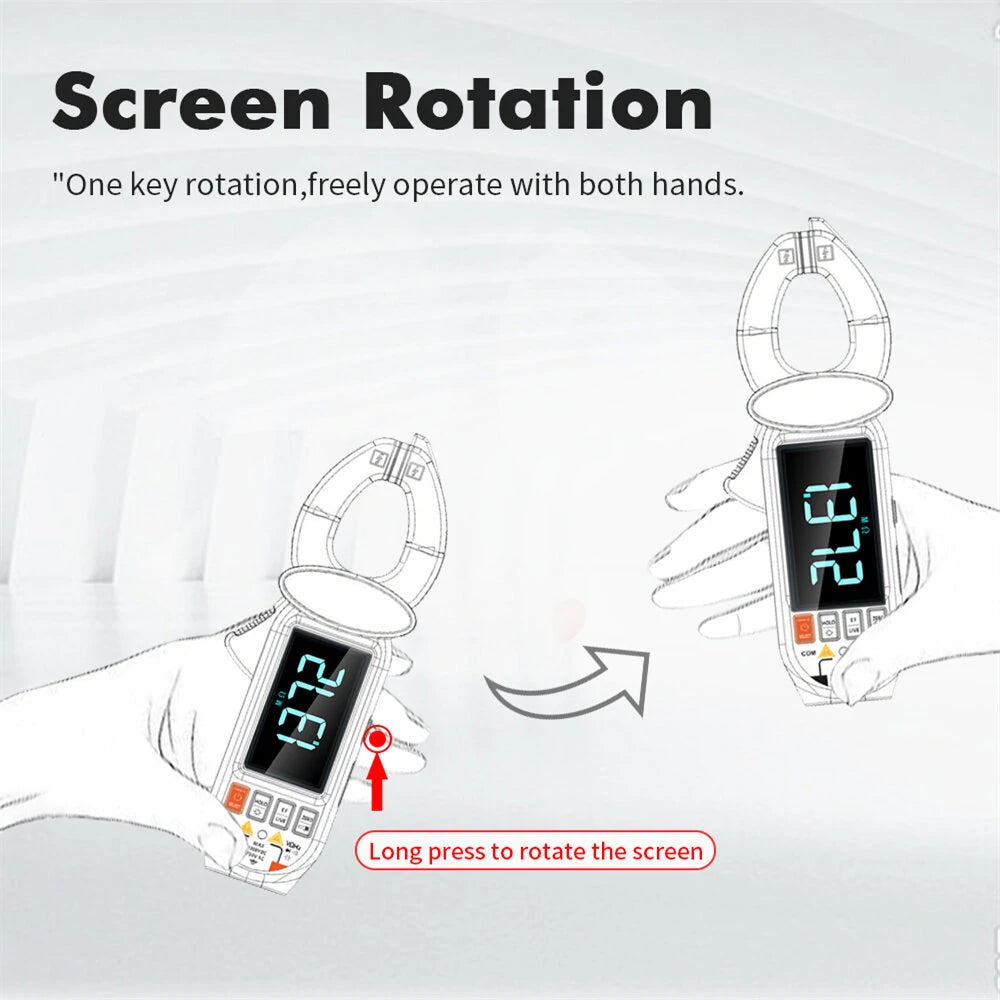

Experience unmatched convenience with the one-button screen rotation feature, ensuring a clear view irrespective of your operational hand. The 17mm character-height LCD display provides clear readings with adjustable brightness, enhancing user comfort.

Sustained and Seamless Operation

Forget battery worries with the built-in battery supporting Type-C charging, offering an impressive 20-hour battery life. The WINAPEX 268B ensures uninterrupted operation for all your tasks.

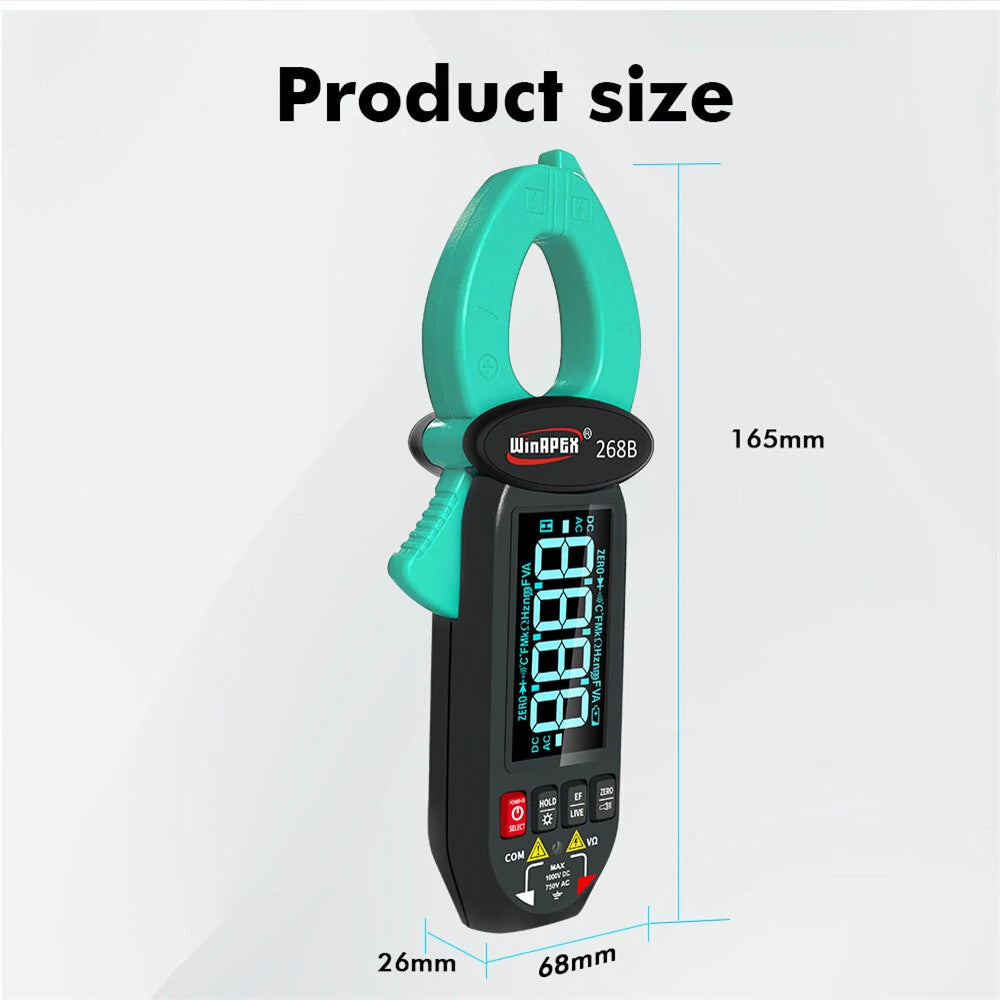

Compact and Portable Design

Say goodbye to bulky tools. The lightweight and compact design makes storage simple, and it comes with a special carrying bag for effortless portability.

Specifications

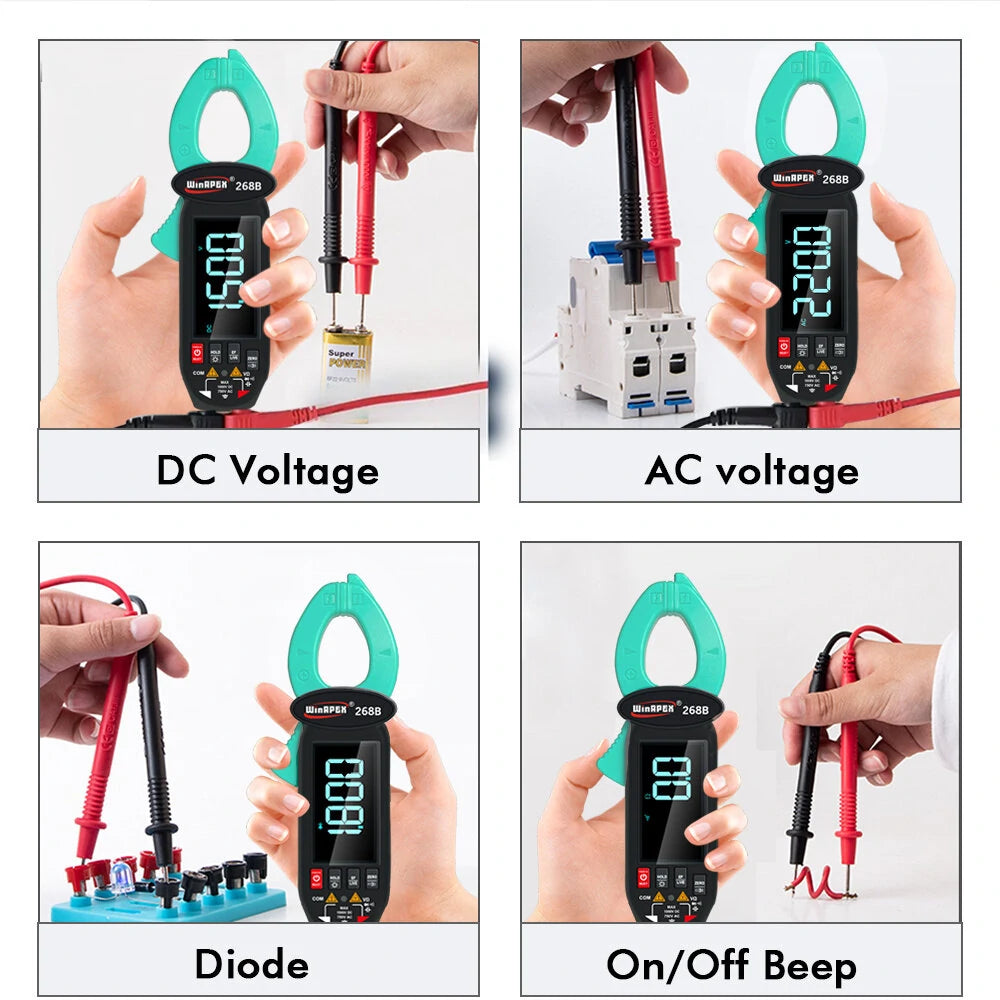

• DC Voltage (DCV):
  • 6V (0.5%+3) - 1mV Resolution
  • 60V - 10mV Resolution
  • 600V - 100mV Resolution
  • 1000V (0.8%+10) - 1V Resolution
• AC Voltage (ACV) RMS:
  • 6V ±(0.8%+3) - 1mV Resolution
  • 60V - 10mV Resolution
  • 600V - 100mV Resolution
  • 750V ±(1.2%+10) - 1V Resolution
• DC Current (DCA) Clamp:
  • 6A ±(2.0%+5) - 1mA Resolution
  • 60A - 600mA Resolution
• AC Current (ACA) Clamp Type:
  • 600mA ±(2.0%+5) - 0.1mA Resolution
  • 6A - 1mA Resolution
  • 60A - 10mA Resolution

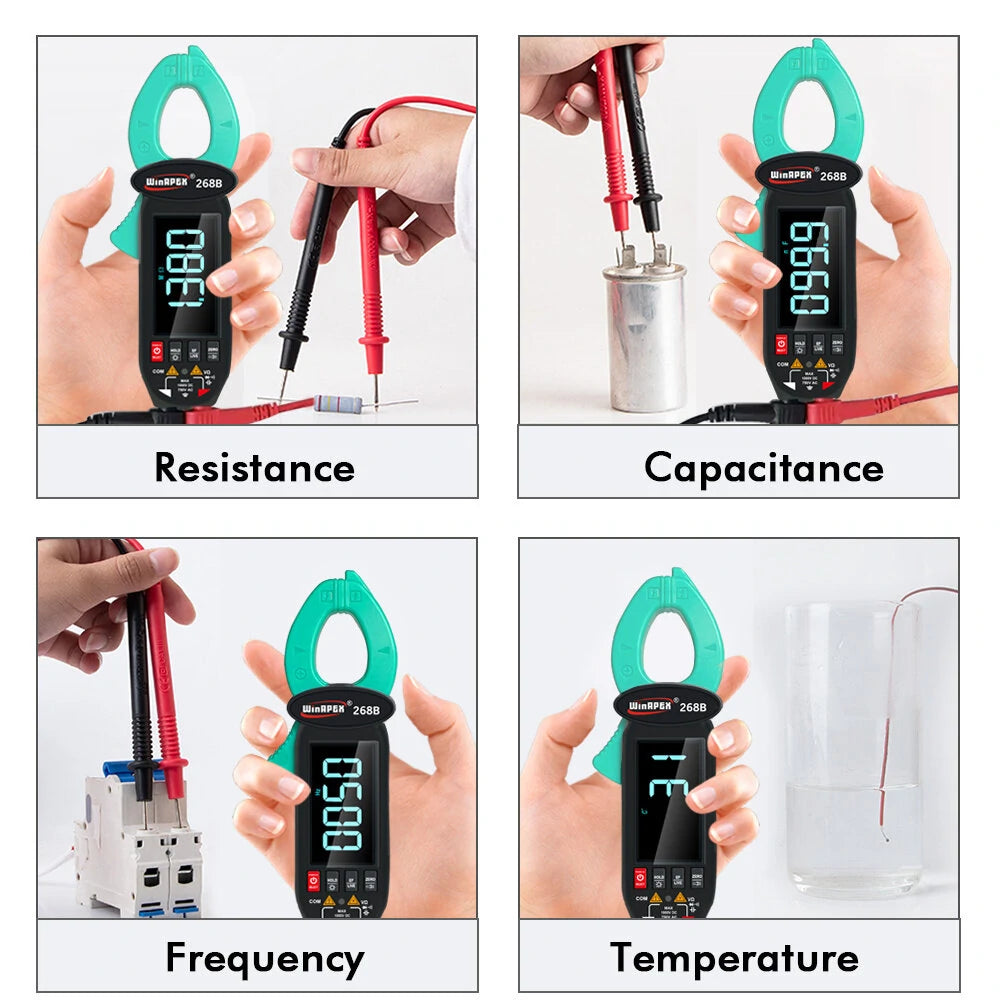

• Resistance:
  • 600Ω ±(0.8%+5) - 0.1Ω Resolution
  • 6kΩ ±(0.8%+3) - 1Ω Resolution
  • 60kΩ - 10Ω Resolution
  • 6000kΩ - 100Ω Resolution
  • 6mΩ ±(2.5%+15) - 1kΩ Resolution
  • 60mΩ - 10kΩ Resolution
• Diode and On/Off Test:
  • Diode forward voltage drop
  • Forward DC current is about 1mA
  • The buzzer emits a sound when resistance is less than a threshold
  • Open circuit voltage approximately 3V
• Capacitance (C):
  • 6nF ±(3.5%+20) - 1pF Resolution
  • 60nF - 10pF Resolution
  • 600nF - 100pF Resolution
  • 6uF - 1nF Resolution
  • 60uF - 10nF Resolution
  • 600uF - 100nF Resolution
  • 6mF - 1uF Resolution
  • 60mF ±(5.0%+20) - 10uF Resolution
• Frequency Measurement (Hz):
  • 6Hz ±(0.5%+5) - 0.001Hz Resolution
  • 60Hz - 0.01Hz Resolution
  • 600Hz - 0.1Hz Resolution
  • 6kHz - 1Hz Resolution
  • 60kHz - 10Hz Resolution
  • 600kHz - 100Hz Resolution
  • 6MHz - 1kHz Resolution
  • 10MHz - 10kHz Resolution
• Temperature Measurement (℃/°F):
  • (-20-1000)℃ ±(1.0%+5) ℃
  • (400-1000)℃ ±(1.5%+15) ≥400℃
  • (0-1832)°F ±(0.75%+5) ±(1.5%+15) ≥750°F

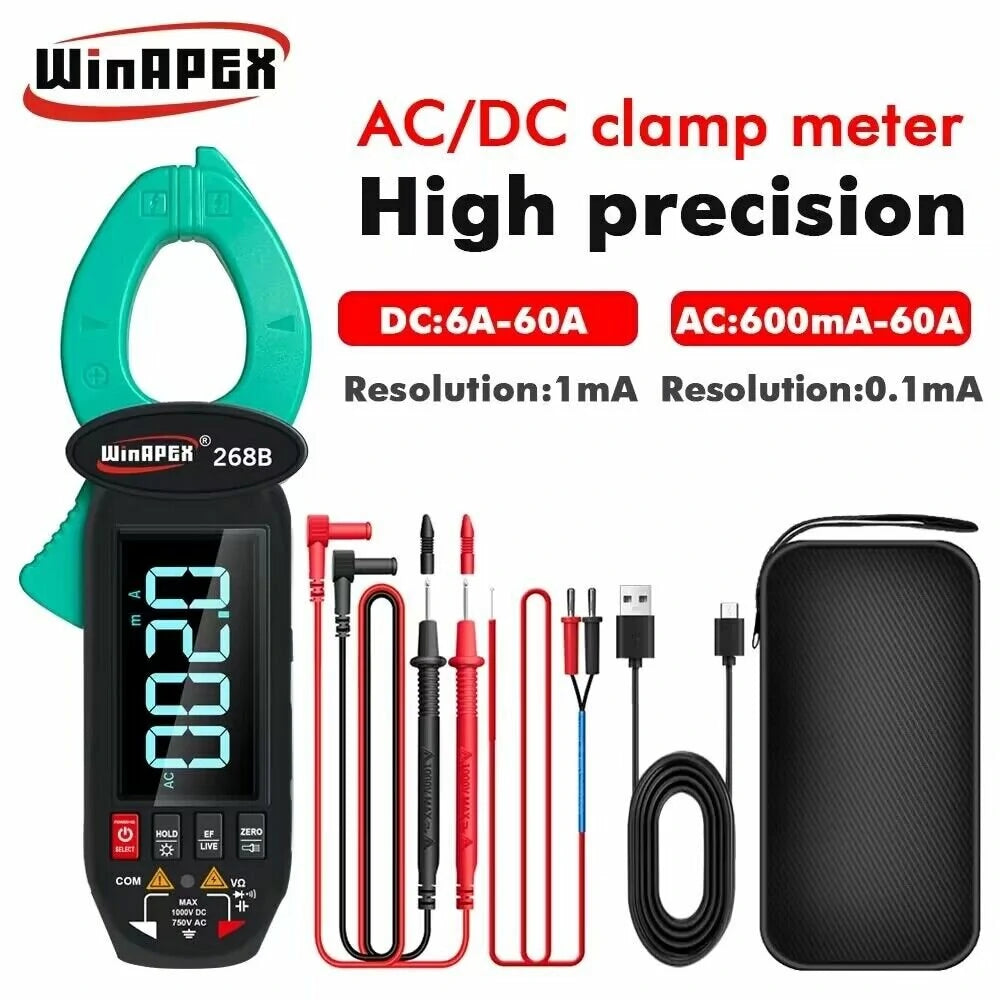

Package Includes

• 1 x Clamp Meter
• 1 x Pair of Test Leads
• 1 x User Manual
• 1 x Thermocouple
• 1 x Type-C Cable
• 1 x Storage Bag
