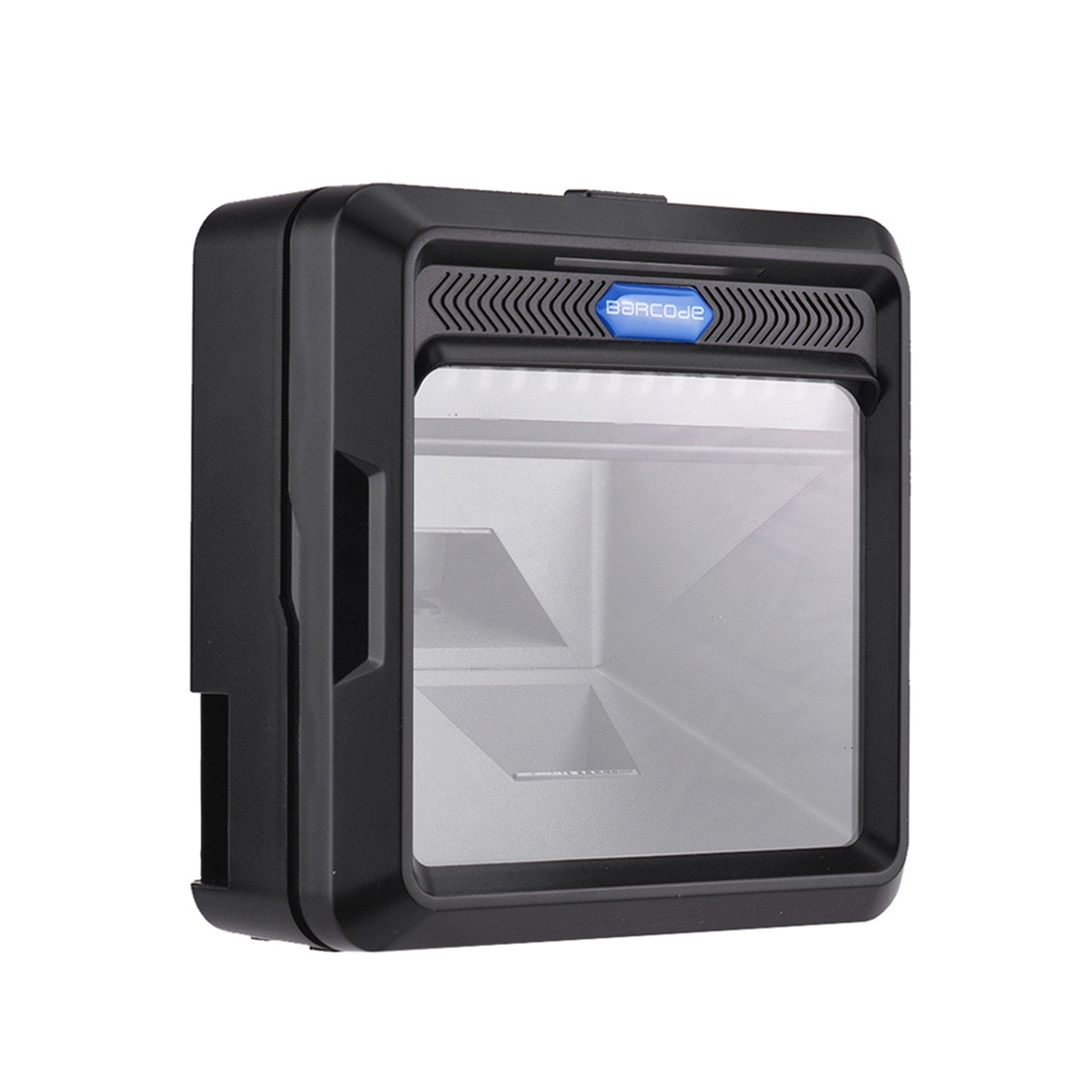

Ultra-Fast Barcode Reader

Key Features

• Fast and Accurate Scanning: With a large target area, the scanner quickly reads barcodes.

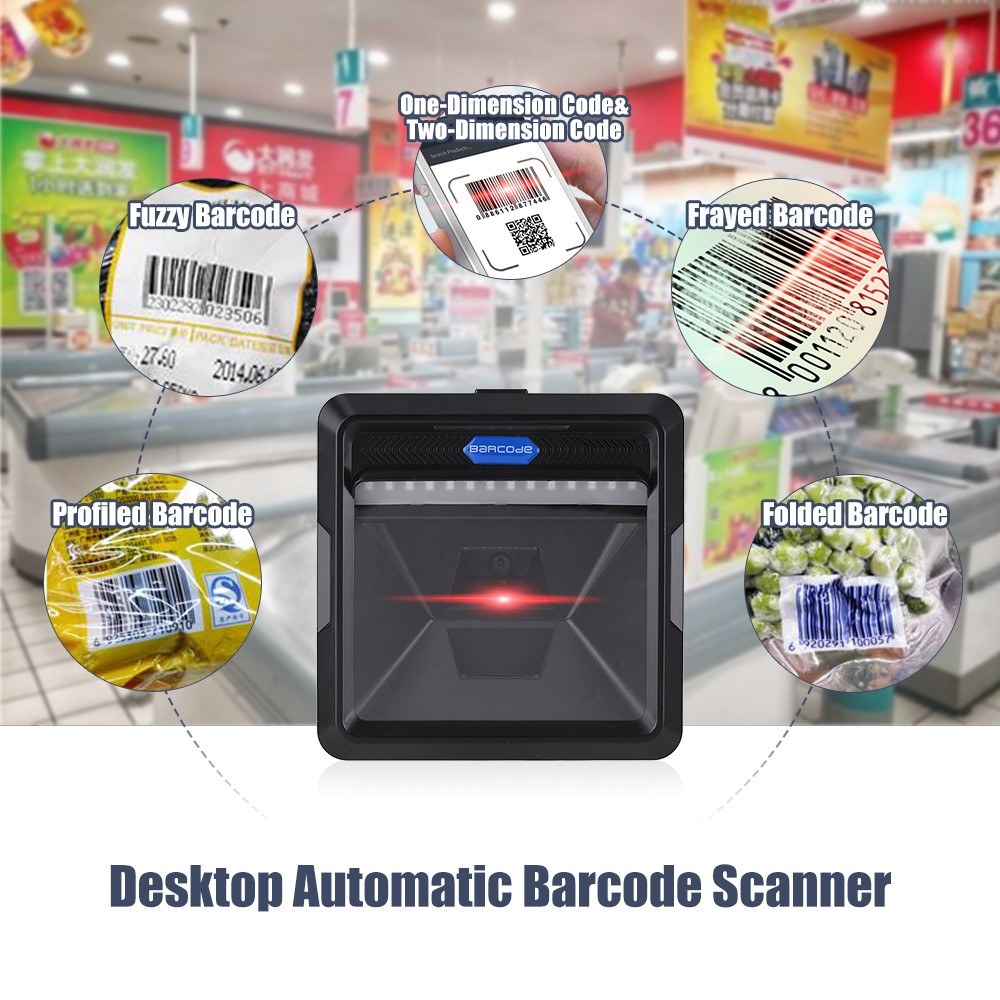

• High Identification Capability: Capable of reading 1D and 2D barcodes on labels, paper, and electronic displays with sensitivity and precision.
• Low Light Performance: Thanks to intelligent lighting technology, the scanner functions well even in low light conditions.
• Multi-angle Scanning: The three-dimensional CMOS sensor and reflecting mirror facilitate scanning over a wider range and longer distances, enhancing speed.

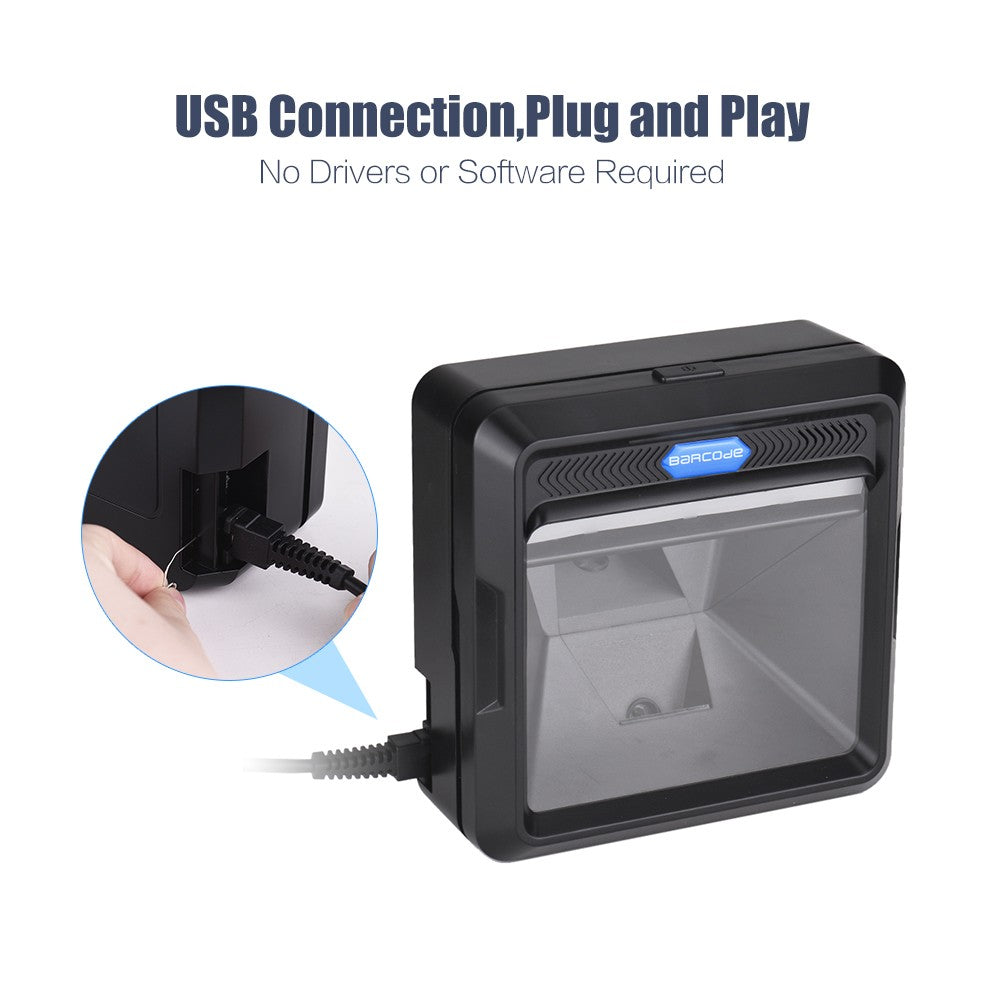

• Easy Setup: Plug and play with a USB connection; no additional drivers or software are necessary.

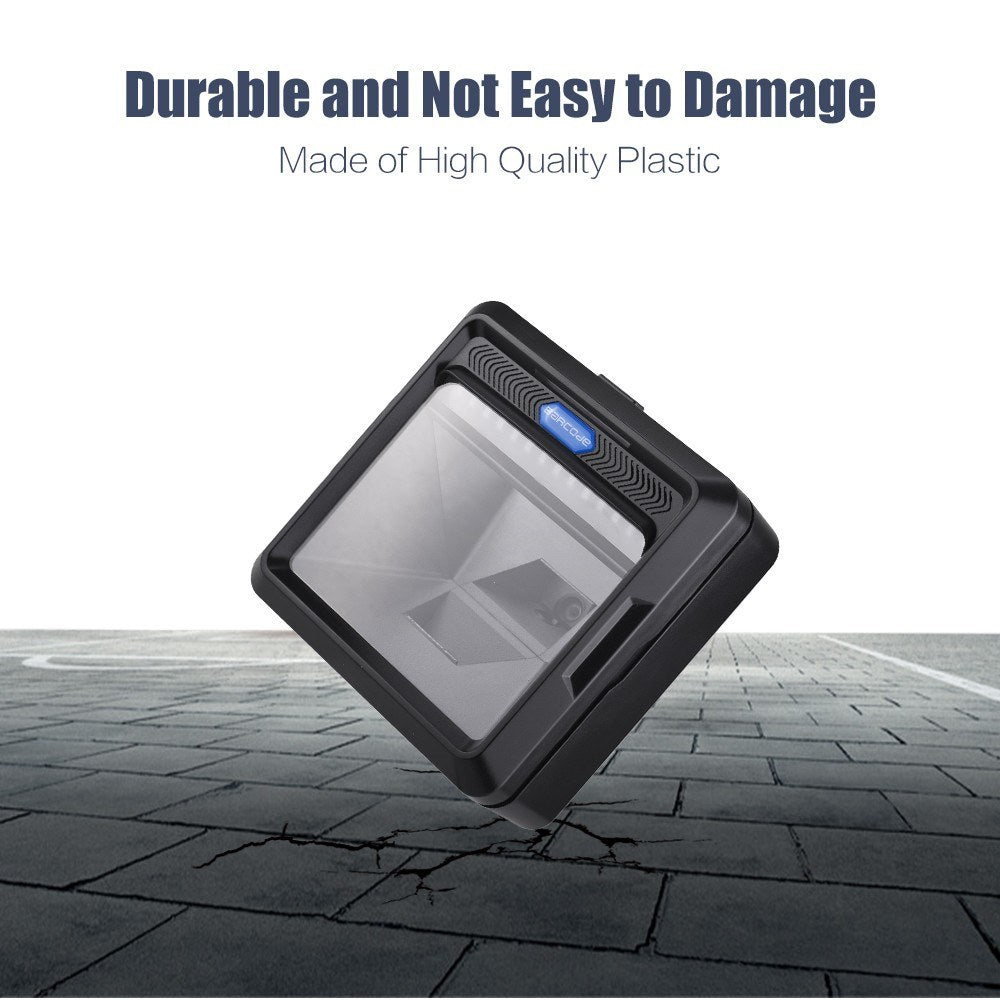

• Durable Design: Made with high-quality materials, the scanner is built to last.
• Buzzer Alert: A clear "di" sound indicates a successful scan.

Specifications

• Model: MP8000
• Resolution Ratio: 1280 x 1024 CMOS
• Scannable Code Systems:
  • 1D Codes: EAN-8, EAN-13, ISBN, UPC-A, Code 39, Code 128, Codabar, and many more.
  • 2D Codes: PDF417, MicroQR, Data Matrix, QR code, Aztec.
• System Compatibility: Windows XP, 7, 8, 10, MAC, Linux, Android
• Minimum Identification Accuracy: Code 39 at 4 mil
• Exercise Tolerance: 4.0 m/s
• Scanning Mode: Self-sensing continuous code-reading
• Multi-language Support: Yes
• Prefixes and Suffixes Support: Yes
• Print Contrast Signal: 20%
• Scanning Angles: Roll ±360°, Pitch ±60°, Yaw ±70°
• Laser Frequency: 0.9mW

Indicators and Controls

• Indicator Light: Red for reading prompt, Blue for charging prompt.
• Buzzer: Alerts for starting and successful reading.
• Button Functions: Start and 2D Code scanning.

Durability and Environmental Specs

• Drop Resistance: Withstands up to 5 free falls from 1.5m
• Waterproof and Dustproof: IP54 Standard
• Operating Temperature: -20°C to 55°C
• Storage Temperature: -20°C to 60°C
• Humidity: Operating and storage at 5% to 95%
• Ambient Light Intensity: 0-70000LUX

Power and Connectivity

• Communication Interface: USB (free driver)
• USB Interface:
  • Standby Power: 200mA/1W
  • Working Power: 362mA/1.81W
  • Maximum Power: 416mA/2.08W
• USB Cable Length: 180cm (±3cm)

Physical Dimensions

• Target Area: 12.7 x 10.6cm / 5 x 4.17in
• Item Size: 16.6 x 16.6 x 7.8cm / 6.54 x 6.54 x 3.1in
• Item Weight: 748g / 26.38oz
• Package Size: 29.2 x 21.9 x 10cm / 11.5 x 8.62 x 3.94in
• Package Weight: 1359g / 47.94oz

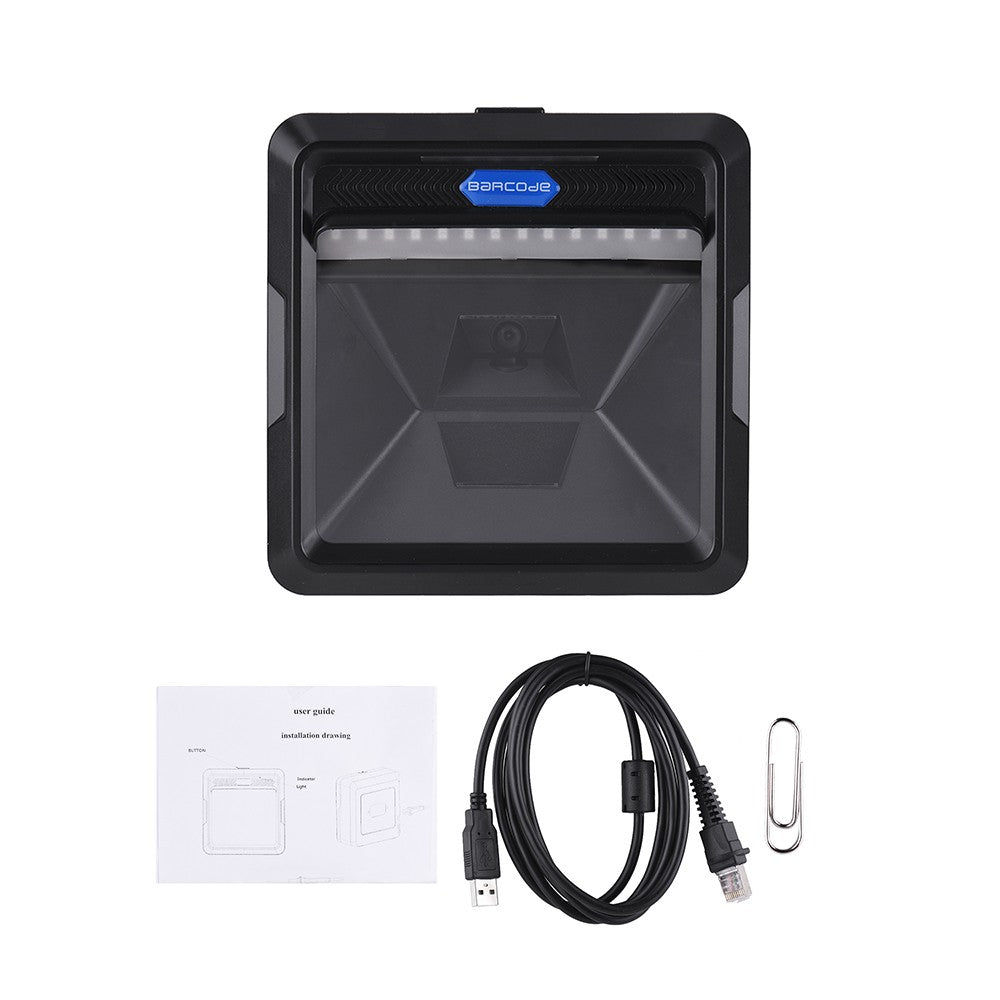

Package Includes

• 1 x Scanner
• 1 x User Guide
• 1 x USB Cable
• 1 x Clip
