ET616 / ET618 Professional Network Cable Tester with Digital Tracing, PoE Test & Cable Length Measurement

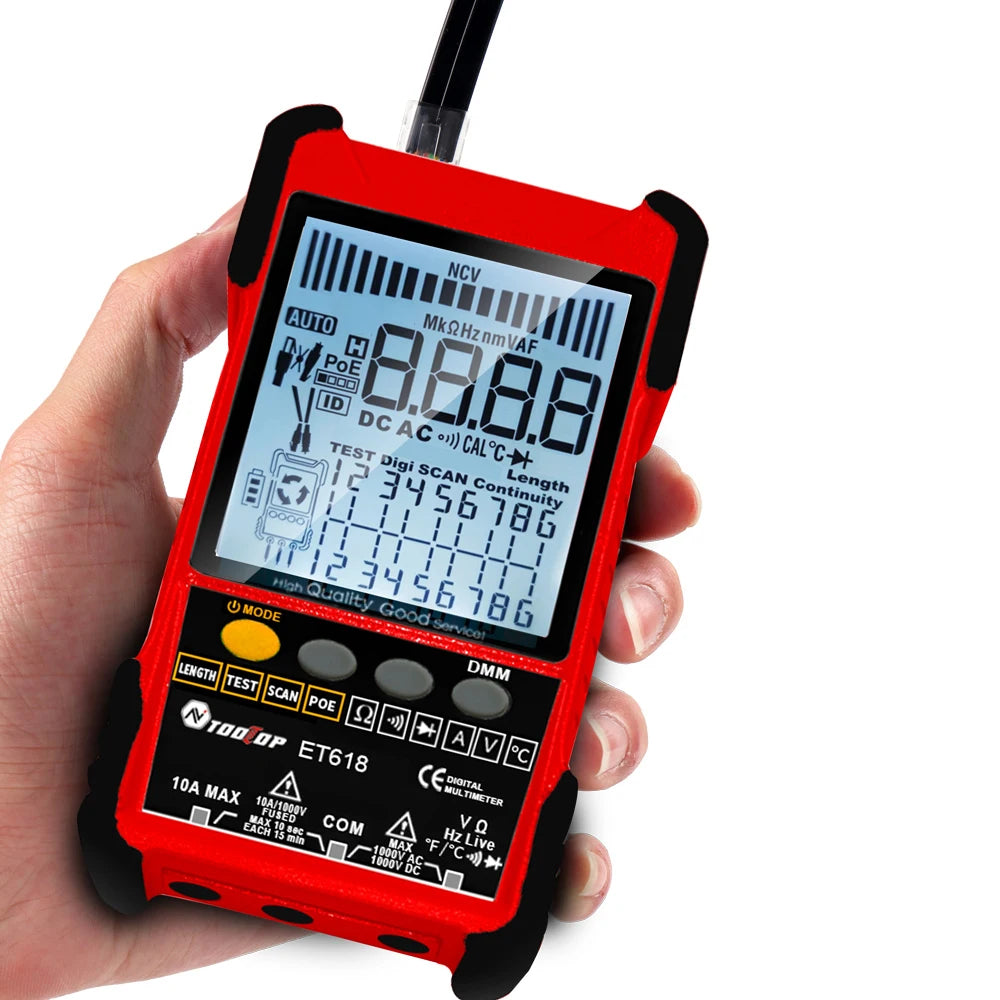

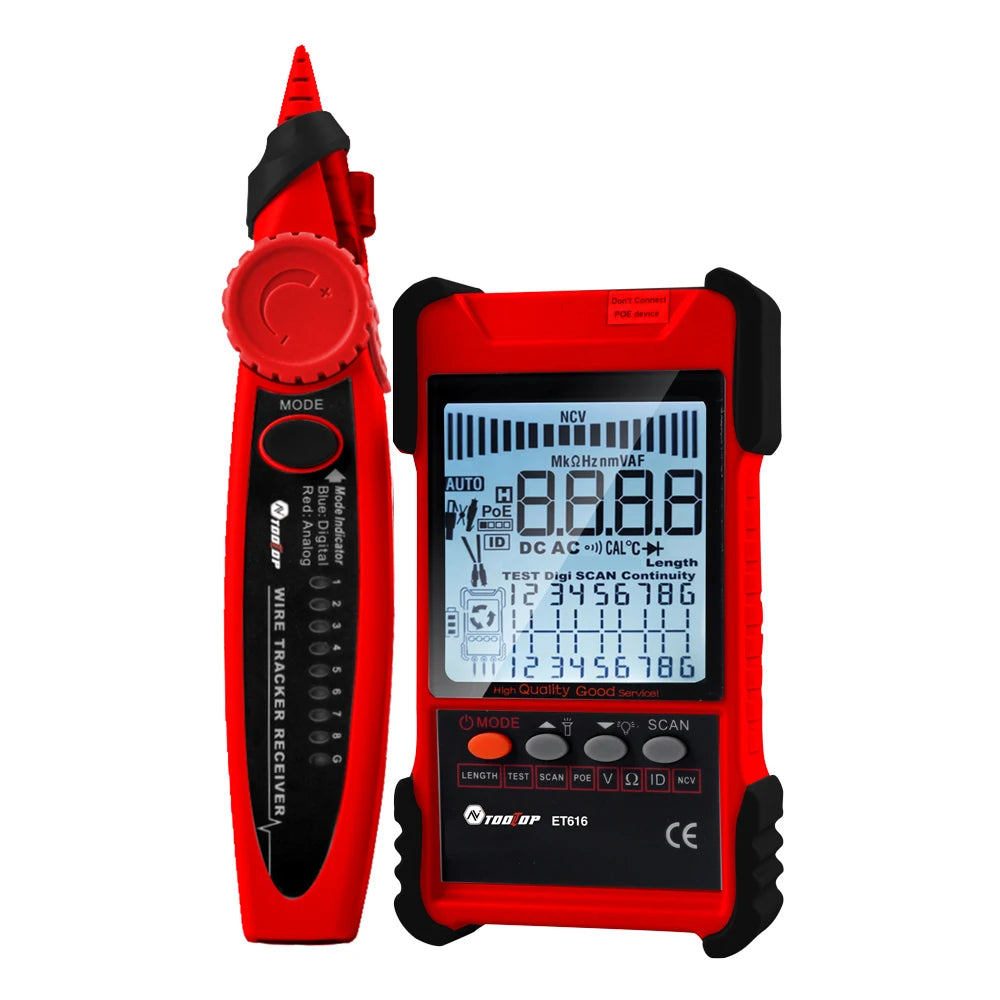

ET616 / ET618 Professional Network Cable Tester

The ET616 / ET618 Network Cable Tester is a professional-grade tool designed for network engineers, installers, and technical personnel. It combines digital cable tracing, cable length measurement, PoE testing, and multimeter functions (ET618 only), making it ideal for network installation, maintenance, and troubleshooting.

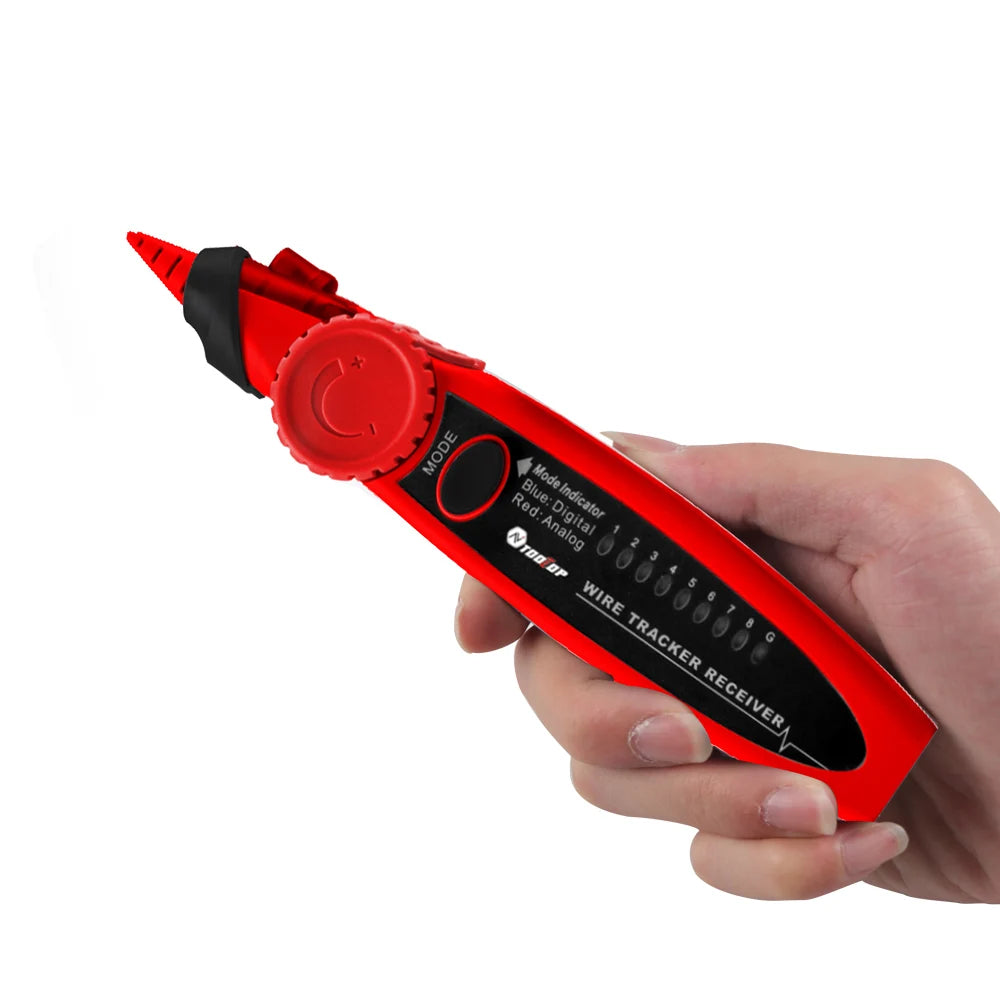

🔍 Cable Tracing & Identification

• Quickly locate target cables among large bundles
• Supports Ethernet cables, telephone lines, BNC cables, and other metal cables
• Advanced digital noiseless tracing technology for clear signal detection
• Adjustable tracing sensitivity for different environments

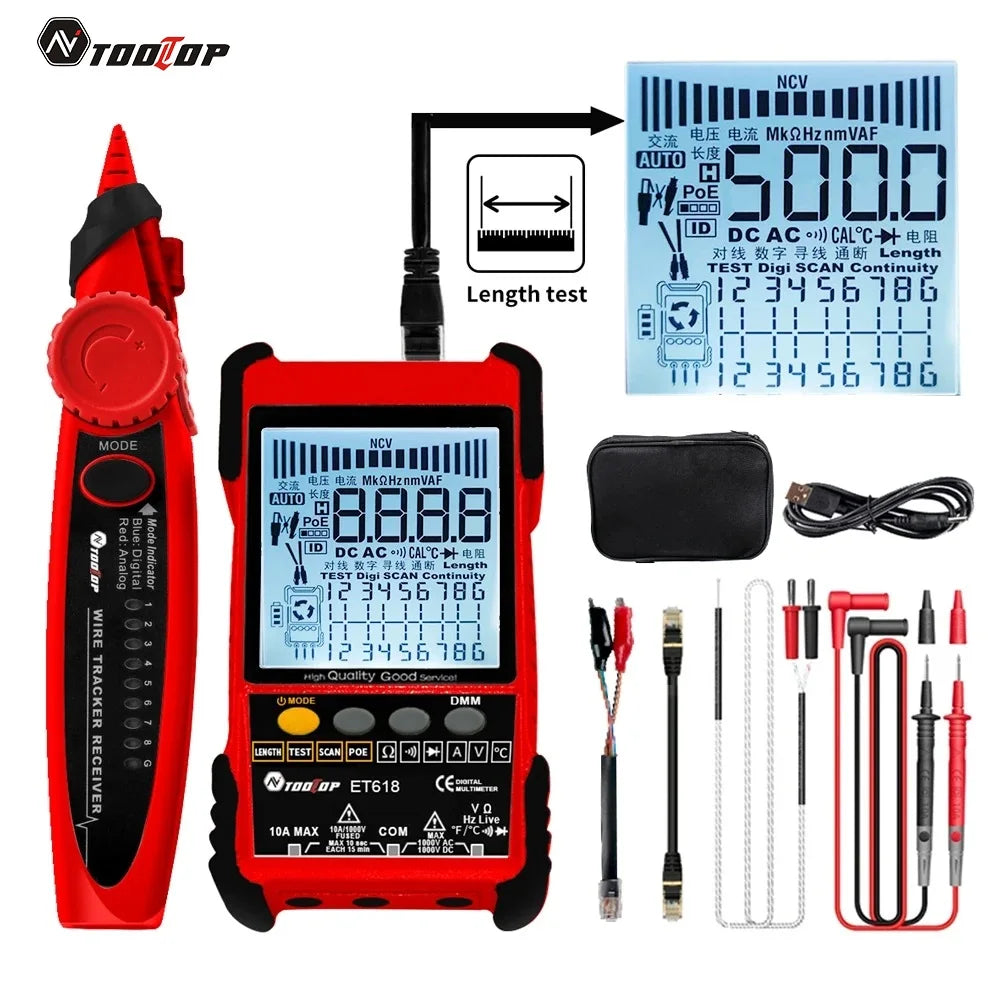

📏 Cable Length Measurement

• Real-time measurement of cable length, open circuit, and short circuit
• Works with metal cables containing at least 2 cores
• ET616: Up to 400 meters
• ET618: Up to 600 meters, supports meter / inch unit switching

⚡ PoE Testing

• Detects PoE voltage and polarity
• Checks cable mapping for PoE network switches

🔌 Network Cable Functions

• Cable mapping
• Switch port indicator flashing
• NCV (Non-Contact Voltage) detection
• Analog bar graph display

🔧 Multimeter Functions (ET618 Only)

• DC & AC voltage and current measurement
• Resistance and continuity testing
• Diode testing
• Temperature measurement (K-type probe supported)

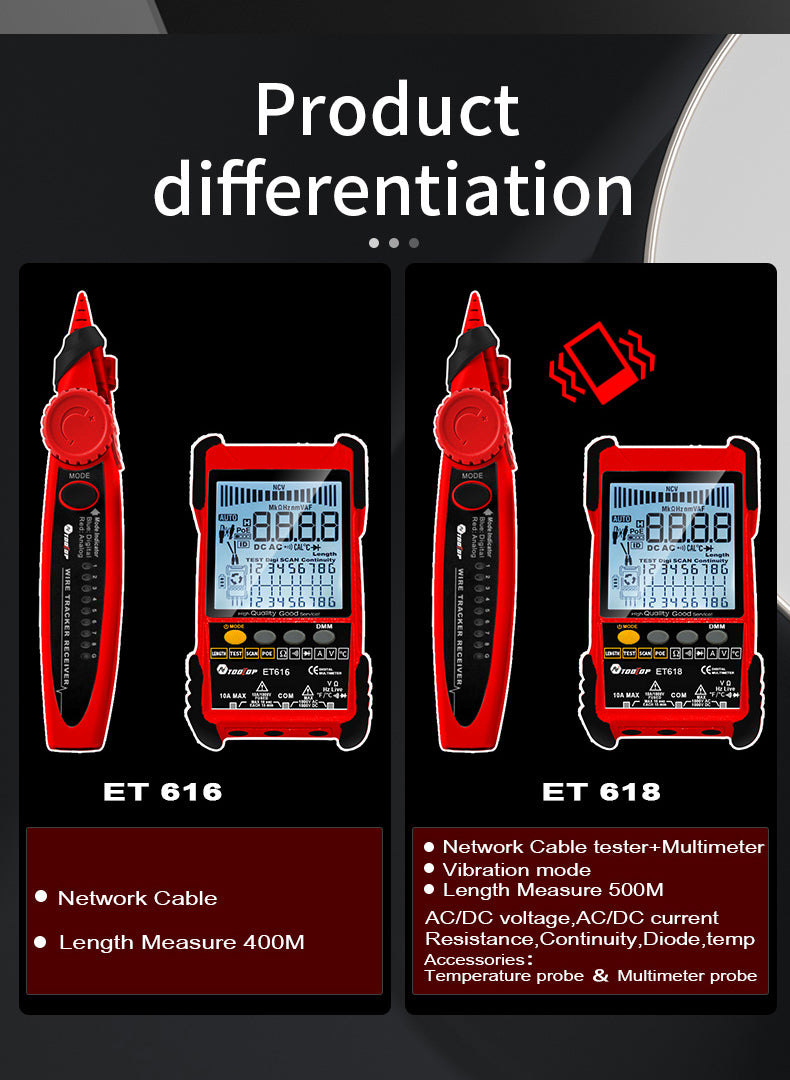

📊 Model Comparison

📌 Specifications

• Material: ABS
• Models: ET616 / ET618 (Optional)
• Analogue Tracing: Yes
• Switch Tracing (with PoE): Yes
• Cable Mapping: Yes
• Power Supply:
• Host: Built-in 1250mAh lithium battery (included)
• Receiver: 1 × 9V battery (not included)

📐 Multimeter Specifications (ET618 Only)

• DC Voltage: 400mV – 1000V ±(0.8%+3)
• AC Voltage: 4V – 400V ±(1.5%+5)
• DC Current: 1.0A – 10.0A ±(1.2%+4)
• AC Current: 1.0A – 10.0A ±(2.0%+5)
• Resistance: 200Ω – 20MΩ ±(2%+6)
• Continuity: <50Ω buzzer
• Temperature (K-type): -20°C to 1000°C ±(2.0%+15)

⚠ Important Note

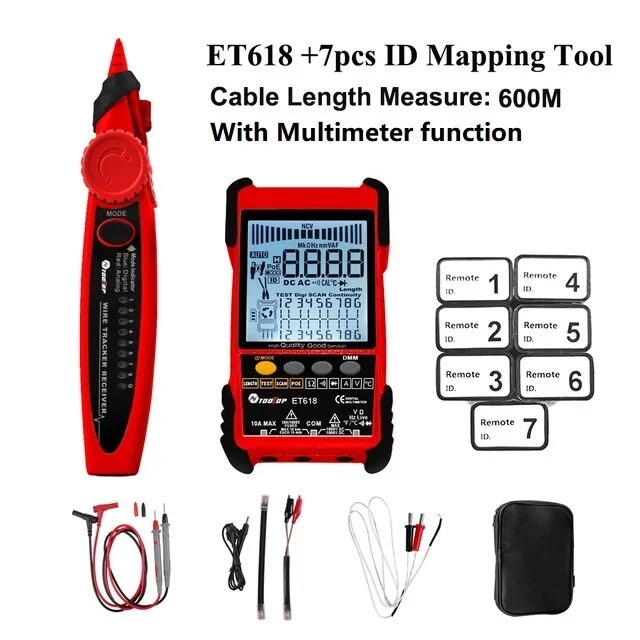

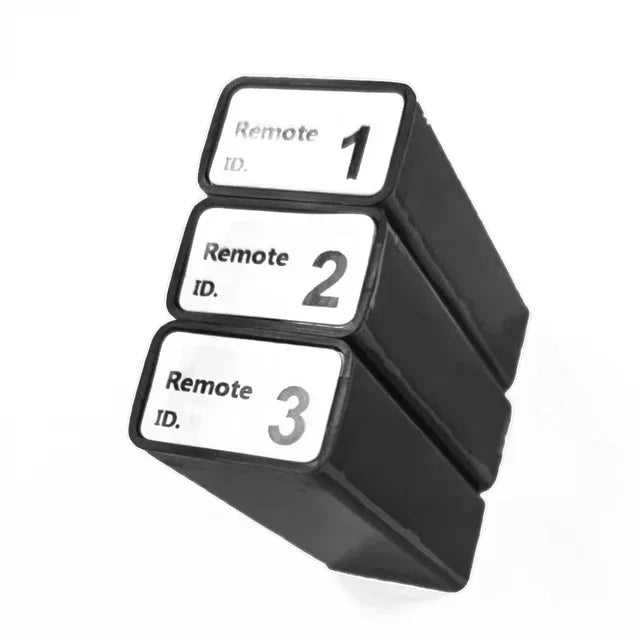

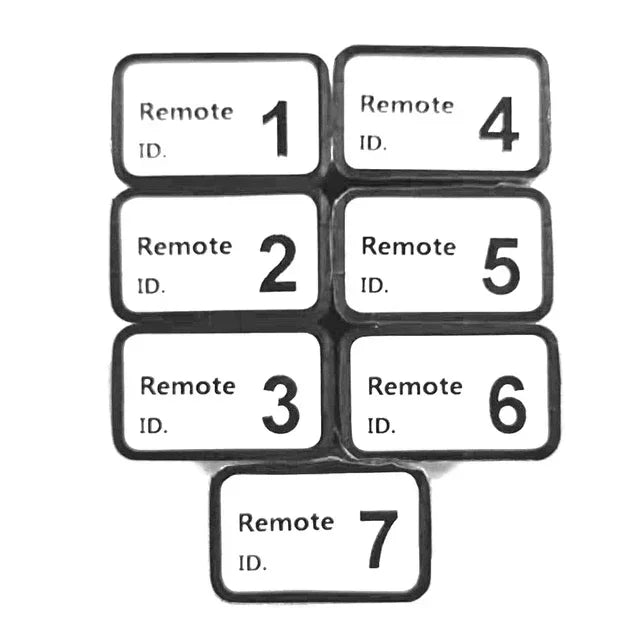

The ID pairing function requires a remote ID mapping accessory, which is not included and must be purchased separately.

📦 Packing List

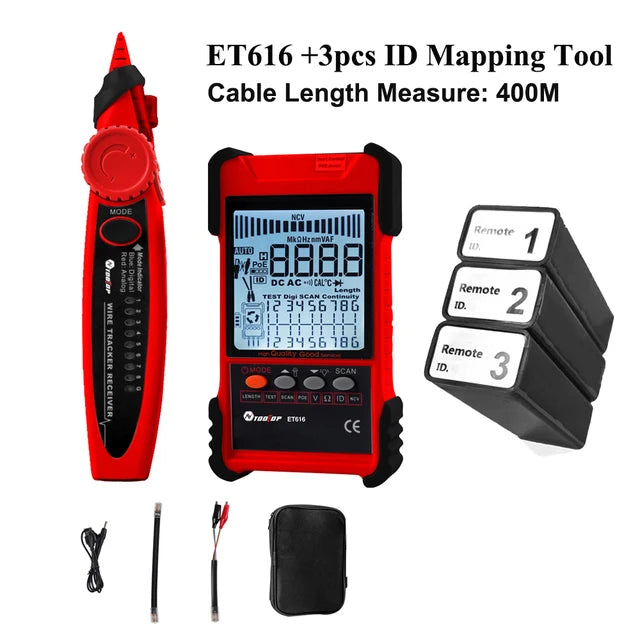

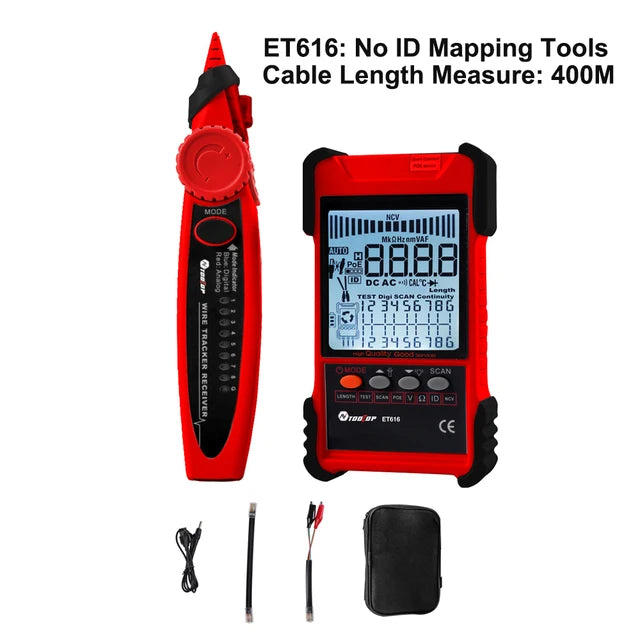

ET616 Package Includes

• 1 × Host
• 1 × Receiver
• 1 × Storage Bag
• 1 × User Manual
• 1 × Testing Clip Line
• 1 × Network Cable
• 1 × Charging Cable

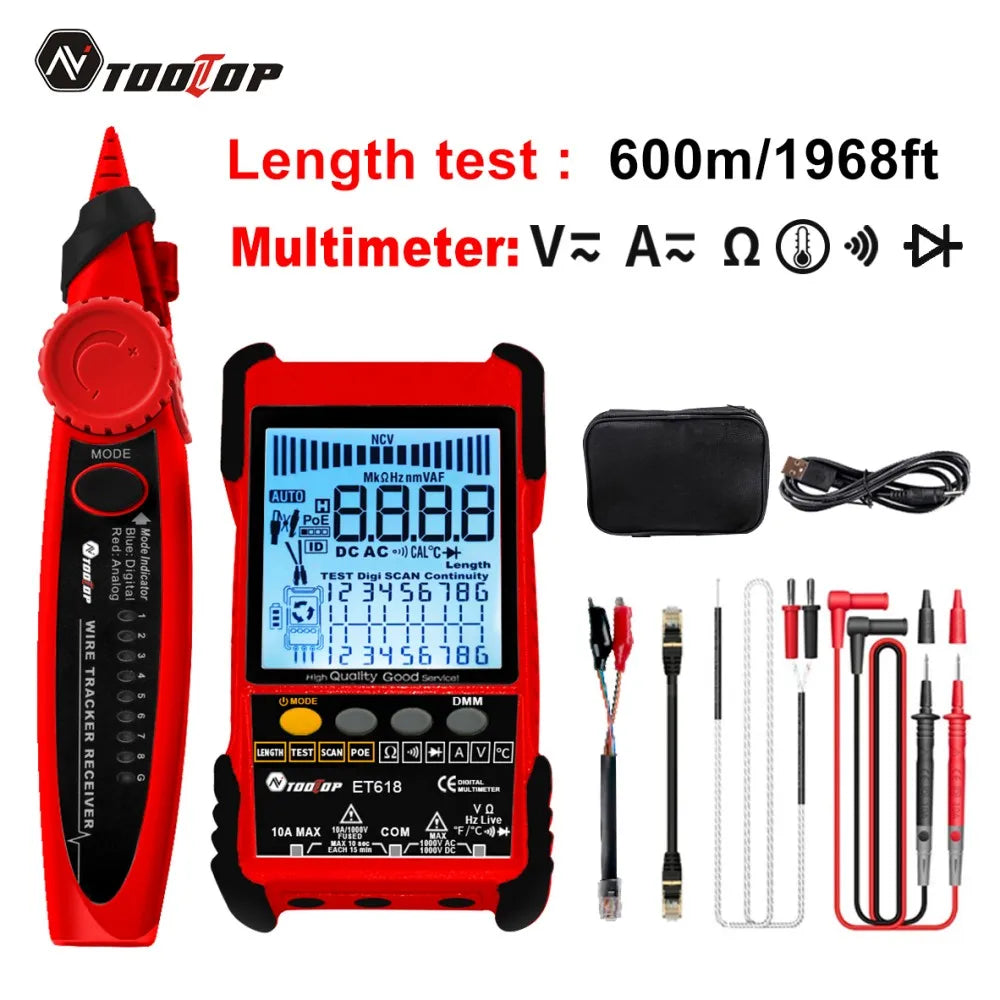

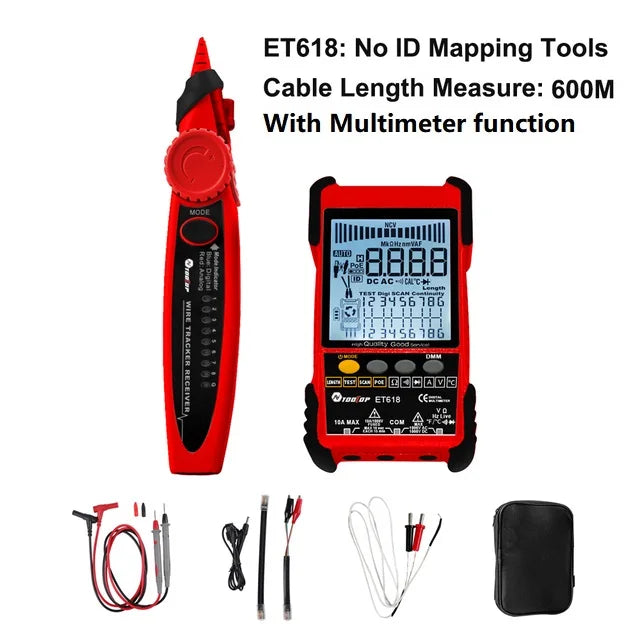

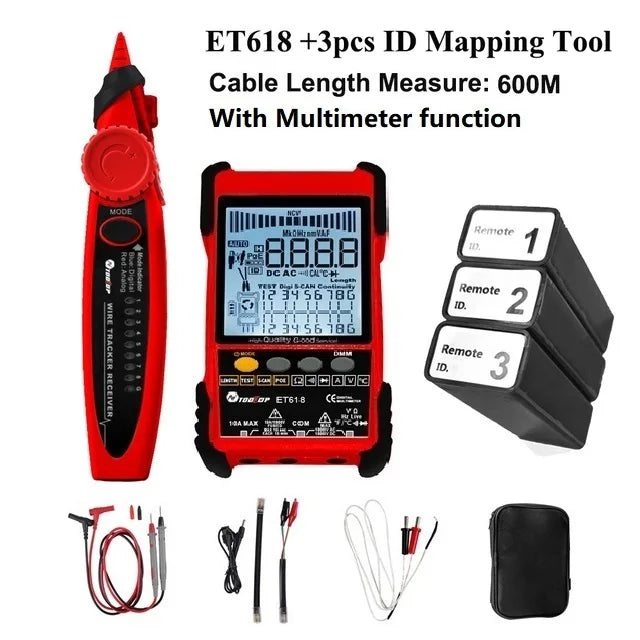

ET618 Package Includes

• 1 × Host
• 1 × Receiver
• 1 × Storage Bag
• 1 × User Manual
• 1 × Testing Clip Line
• 1 × Network Cable
• 1 × Charging Cable
• 1 × Temperature Probe
• 1 × Multimeter Probes
