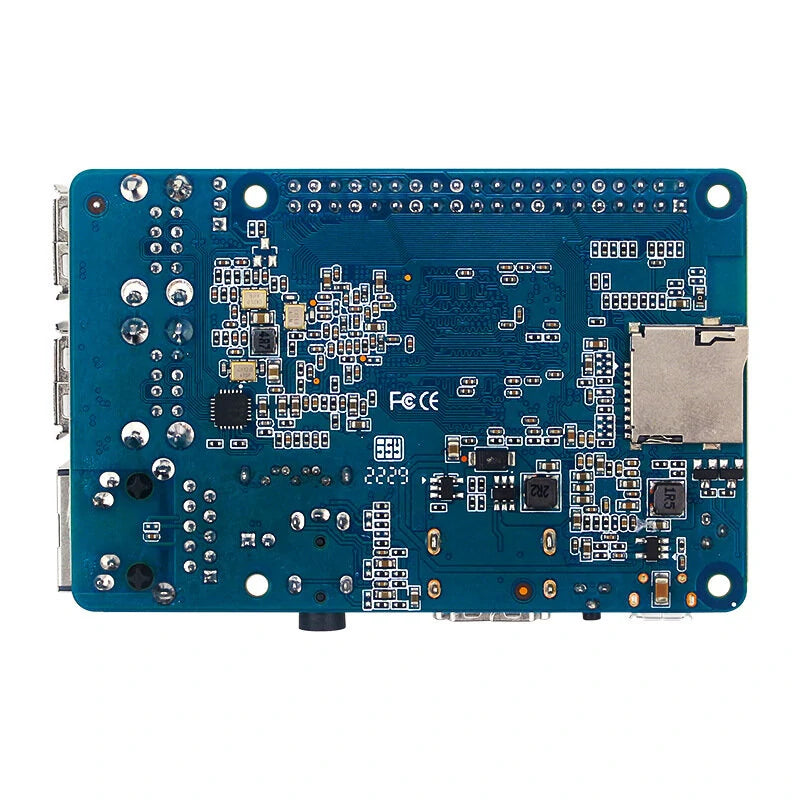

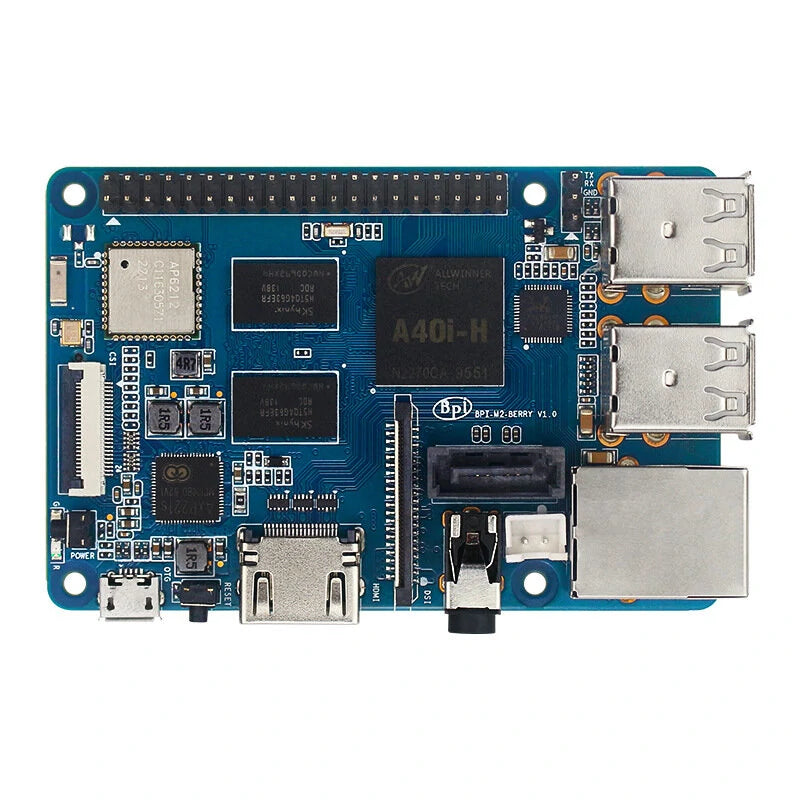

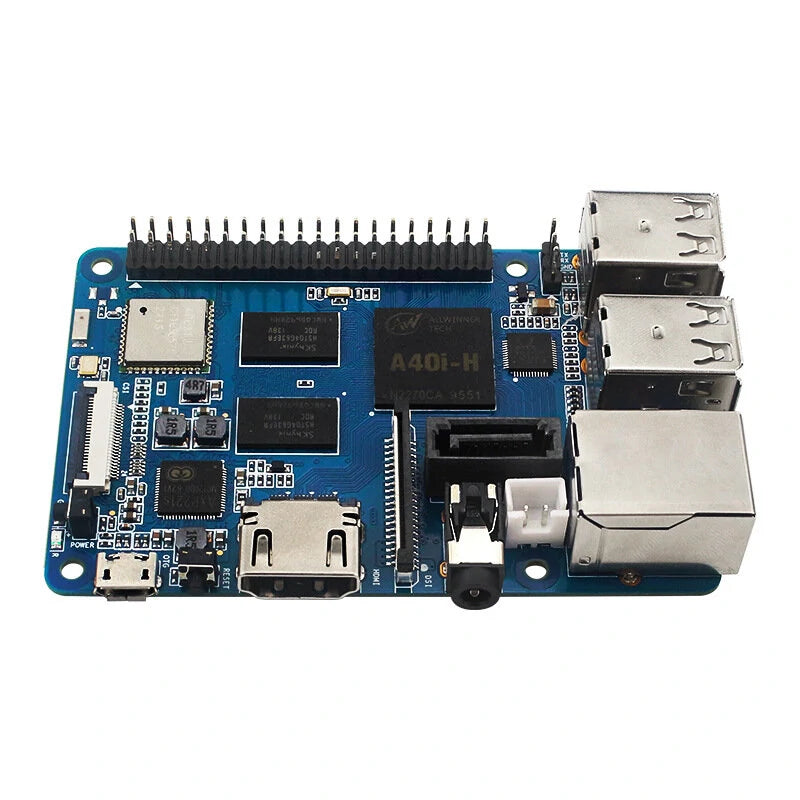

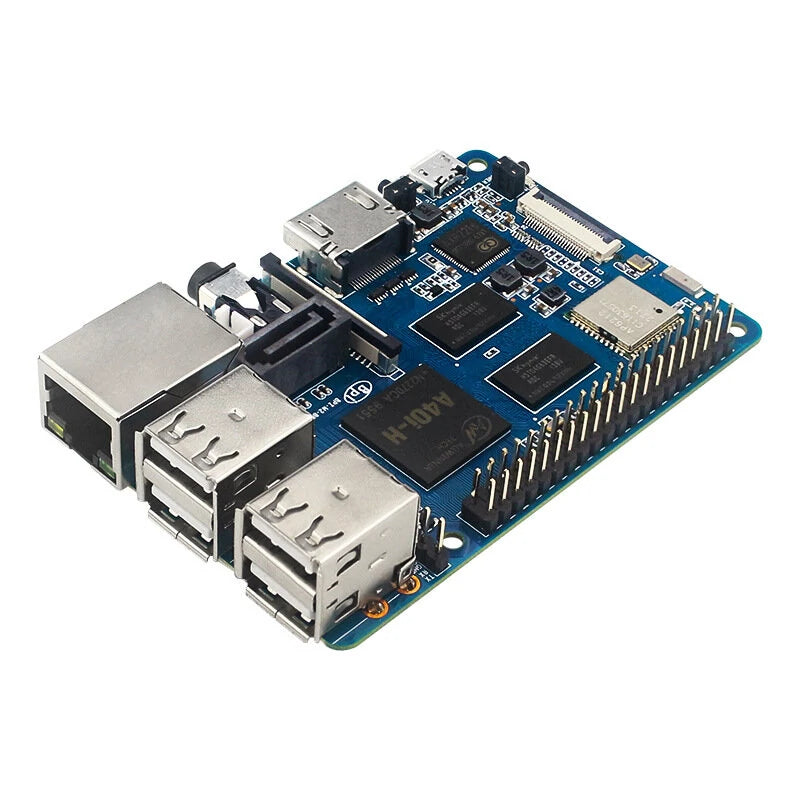

Banana Pi BPI-M2 Berry Quad Core Development Board with WiFi, Bluetooth, SATA, Gigabit Ethernet, Allwinner R40 CPU, 1GB DDR

Banana Pi BPI-M2 Berry Quad Core Development Board with WiFi, Bluetooth, SATA, Gigabit Ethernet, Allwinner R40 CPU, 1GB DDR

Regular price $54.99 USD
Regular price $0.00 USD Sale price $54.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Product Description

Precise Details

Specifications

  • SoC: Allwinner R40/V40
  • CPU: Quad-core Cortex-A7, designed for power efficiency
  • GPU: Dual-core MALI-400 MP2, 500MHz, approximately 1.1 Gpixel/s throughput; supports OpenGL ES 2.0 and hardware-accelerated OpenVG, 1080p H.264 high-profile encoding and decoding
  • SDRAM: 1GB DDR3 at 733MHz, shared with GPU
  • SATA: Supports SATA interface
  • GPIO: 40 Pins Header, 28×GPIO; includes UART, I2C, SPI, PWM, I²S functionalities
  • Network: 10/100/1000Mbps Ethernet (Realtek RTL8211E/D)
  • WiFi Module: WiFi 802.11 b/g/n (AP6212 module)
  • Bluetooth: BT4.0
  • Storage: MicroSD (TF) card slot, no onboard eMMC
  • Display: Supports 4-lane MIPI DSI, RGB, or LVDS panel, TV-out via HDMI V1.4
  • Video: Multi-format FHD video decoding (MPEG-2, H.263, H.264, etc.), supports H.264 video encoding up to 1080P@45fps
  • Audio Outputs: HDMI, analog audio (3.5 mm TRRS jack), I²S audio
  • Camera: Supports 8-bit YUV422 CMOS sensor, CCIR656 protocol for NTSC/PAL, 5M pixel sensor, video capture up to 1080p@30fps
  • Audio Input: Onboard microphone
  • USB: 4 USB 2.0 host ports, 1 USB 2.0 OTG port
  • Buttons: Reset, Power, U-boot
  • LEDs: Power status and RJ45
  • IR: No onboard IR receiver
  • Power: 5V/2A via micro USB port; no 3.7V lithium battery support
  • Dimensions: 85mm x 56mm (same size as Raspberry Pi 3)
  • Weight: 40g

Features

  1. The BPI-M2 Berry is a quad-core single-board computer by Banana Pi, featuring the Allwinner R40/V40 chip, onboard WiFi and Bluetooth, SATA interface, and microSD card socket for system booting.
  2. The BPI-M2 Berry is compatible with various operating systems such as Android, Debian Linux, Ubuntu Linux, Raspberry Pi OS, and Allwinner Tinalinux.
  3. Powered by the Allwinner R40/V40 processor with 1GB LPDDR3 memory, Gigabit Ethernet, and 4 USB interfaces, it runs Android 5.1 smoothly.
  4. The board is the same size as the Raspberry Pi 3, compatible with Raspberry Pi 3 cases, and its GPIO is compatible with Raspberry Pi 3, enabling it to run Raspbian.

Package Includes

  • 1× Development Board
