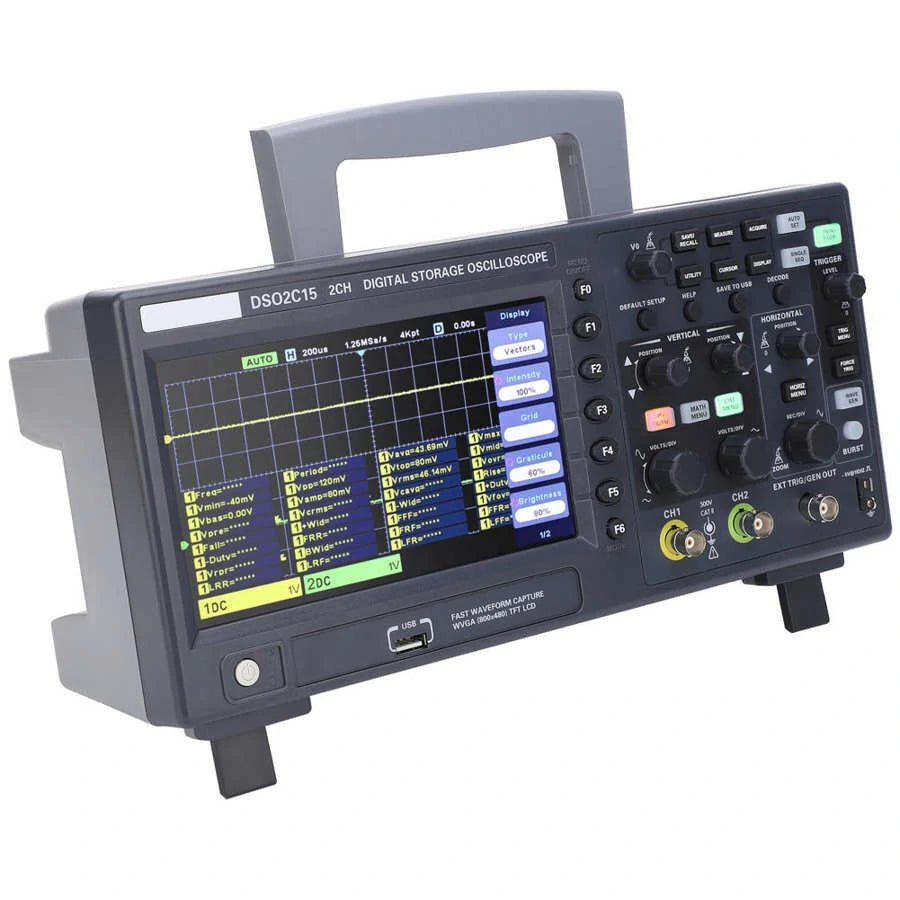

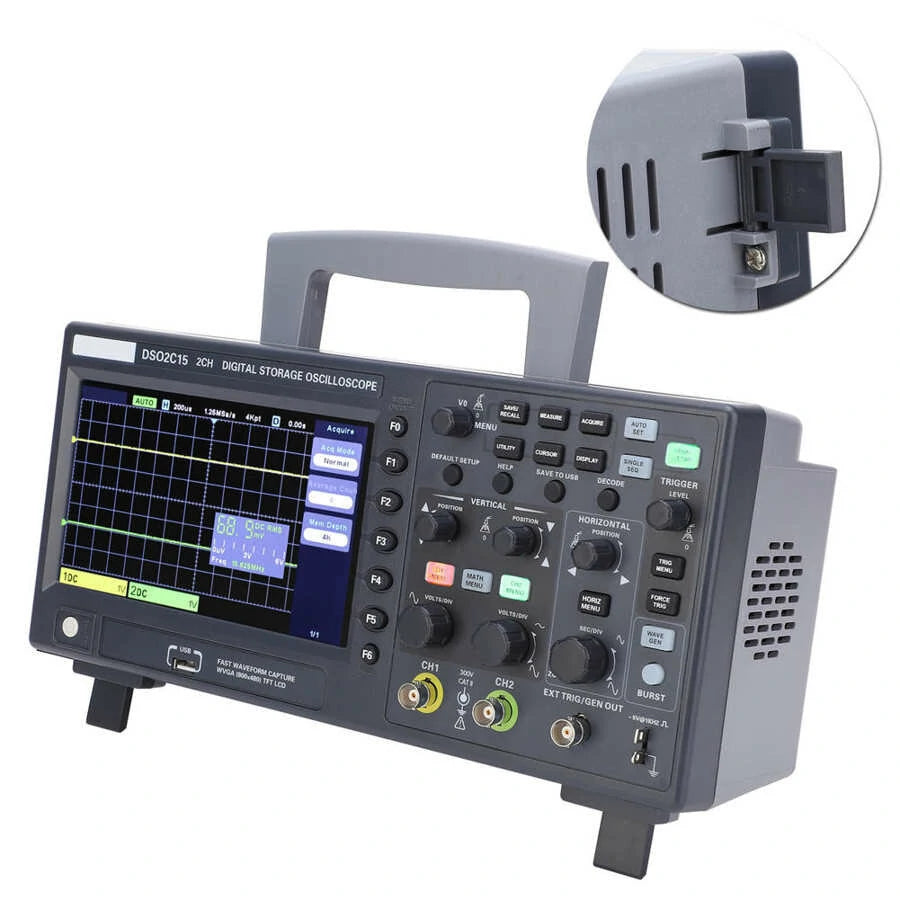

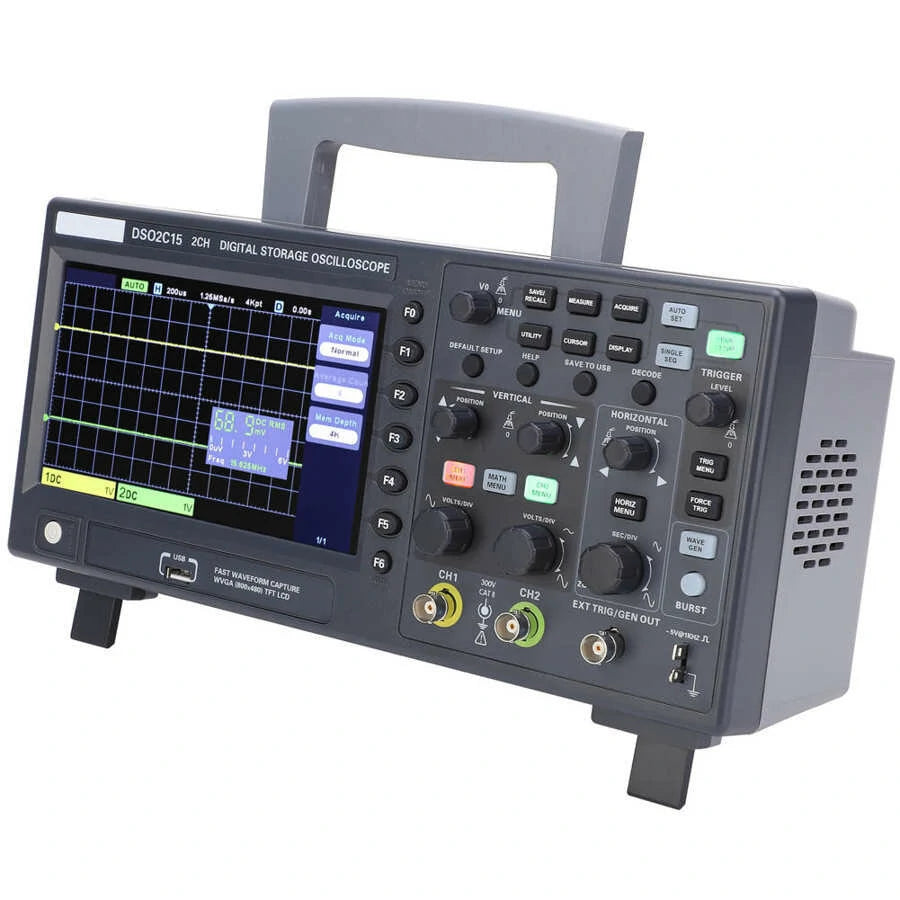

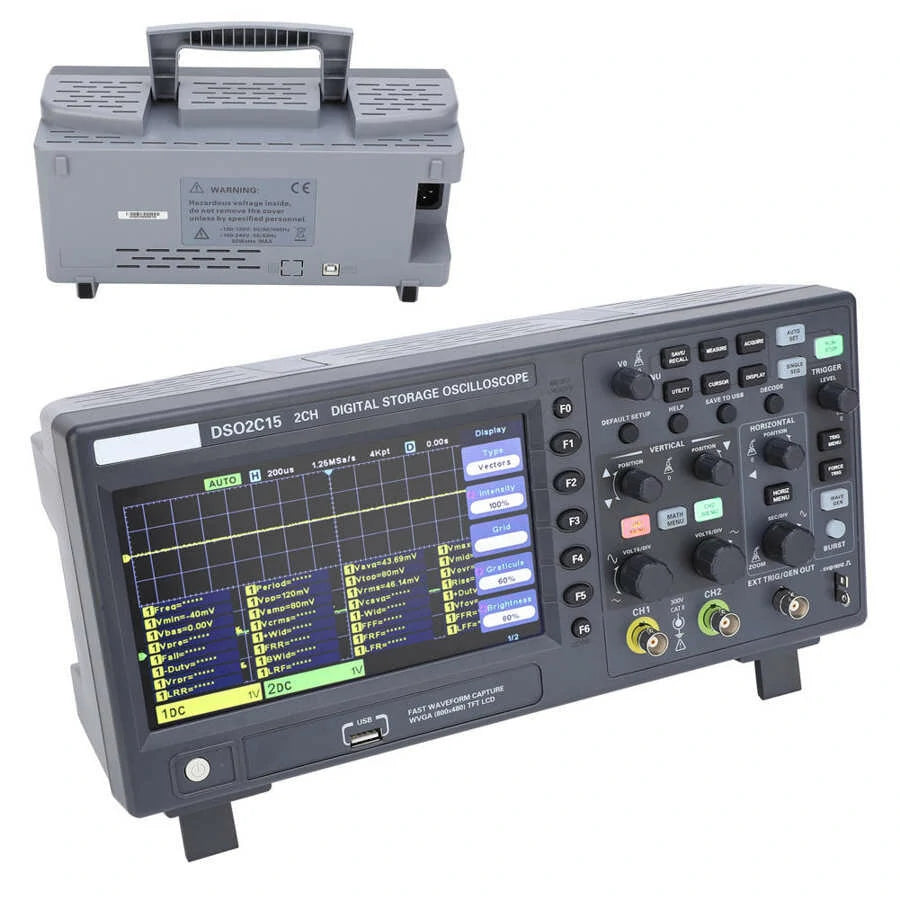

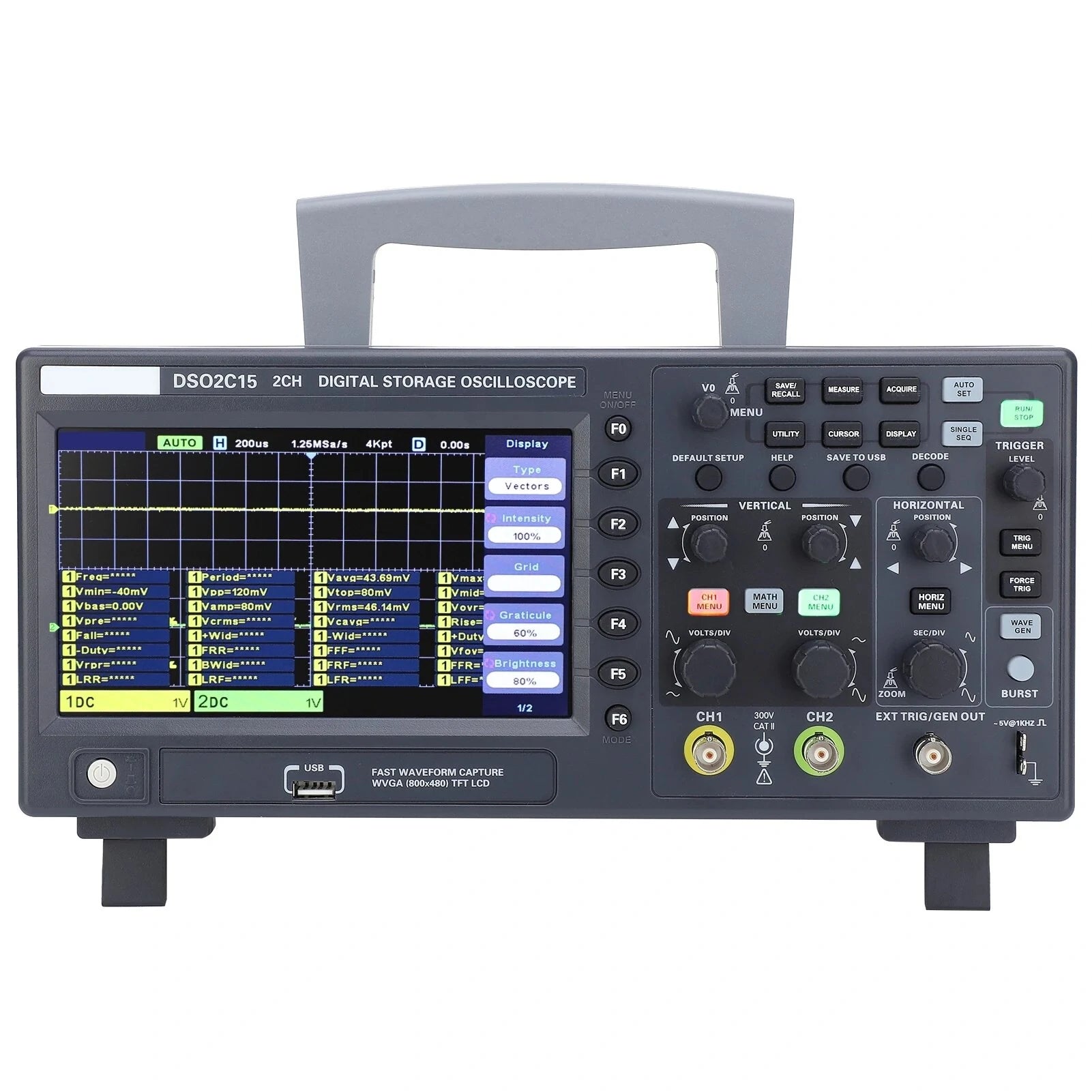

Hantek DSO2C15 150MHz Dual-Channel Digital Storage Oscilloscope, 1GSa/s Sampling Rate

Product Description: DSO2C15

Introducing the DSO2C15, a high-performance oscilloscope designed for precision and ease of use. With two independent channels, this model offers unparalleled accuracy and versatility for your measurement needs.

Key Features:

• Channels: 2 channels with independent control.
• Bandwidth: 150MHz for clear signal capture.
• Sample Rate: Up to 1 GSa/s for real-time analysis.
• Memory Depth: 8M to store extensive data.
• Vertical Range & Resolution: 2mV/div ~ 10V/div with 8-bit resolution.
• Trigger Options: Includes Edge, Pulse width, Video, UART, LIN, and more.
• Protocol Support: Analyze RS232/UART, I2C, SPI, CAN, and LIN protocols.
• Data Saving: Save settings, waveforms, CSV, and images.
• Measurement: Equipped with a 5-bit digital voltmeter and a 6-bit frequency indicator.
• Statistical Analysis: Features 32 types of auto measurements with comprehensive statistics.
• Remote Control: Supports SCPI remote command control with multiple external interfaces like USB.

Model Options:

Model	Channels	Bandwidth	Sampling Rate	Storage Depth
DSO2C10	2CH	100MHz	1GSa/S	8M
DSO2C15	2CH	150MHz	1GSa/S	8M
DSO2D10	2CH + 1CH	100MHz	1GSa/S	8M
DSO2D15	2CH + 1CH	150MHz	1GSa/S	8M

Technical Specifications:

Model: DSO2C15

• Channel: 2 CH
• Bandwidth: 150MHz
• Sample Rate: 1GSa/s (single channel); 500MSa/s (two channels)
• Memory Depth: 8M

Input:

• Coupling: DC, AC, GND
• Impedance: 1MΩ±2% ‖20pF±3pF
• Maximum Voltage: 300V RMS (10X)

Vertical:

• Sensitivity: 2mV/div to 10V/div
• Gain Accuracy: ±3% for 10V/div to 10mV/div

Trigger:

• Type: Edge, Pulse width, Video, Slope, etc.
• Level Range: ±5 divisions from the center of the screen

Display:

• Type: 7'' diagonal TFT liquid crystal
• Resolution: 800 x 480 pixels

For a comprehensive guide, please download the English User Manual.
