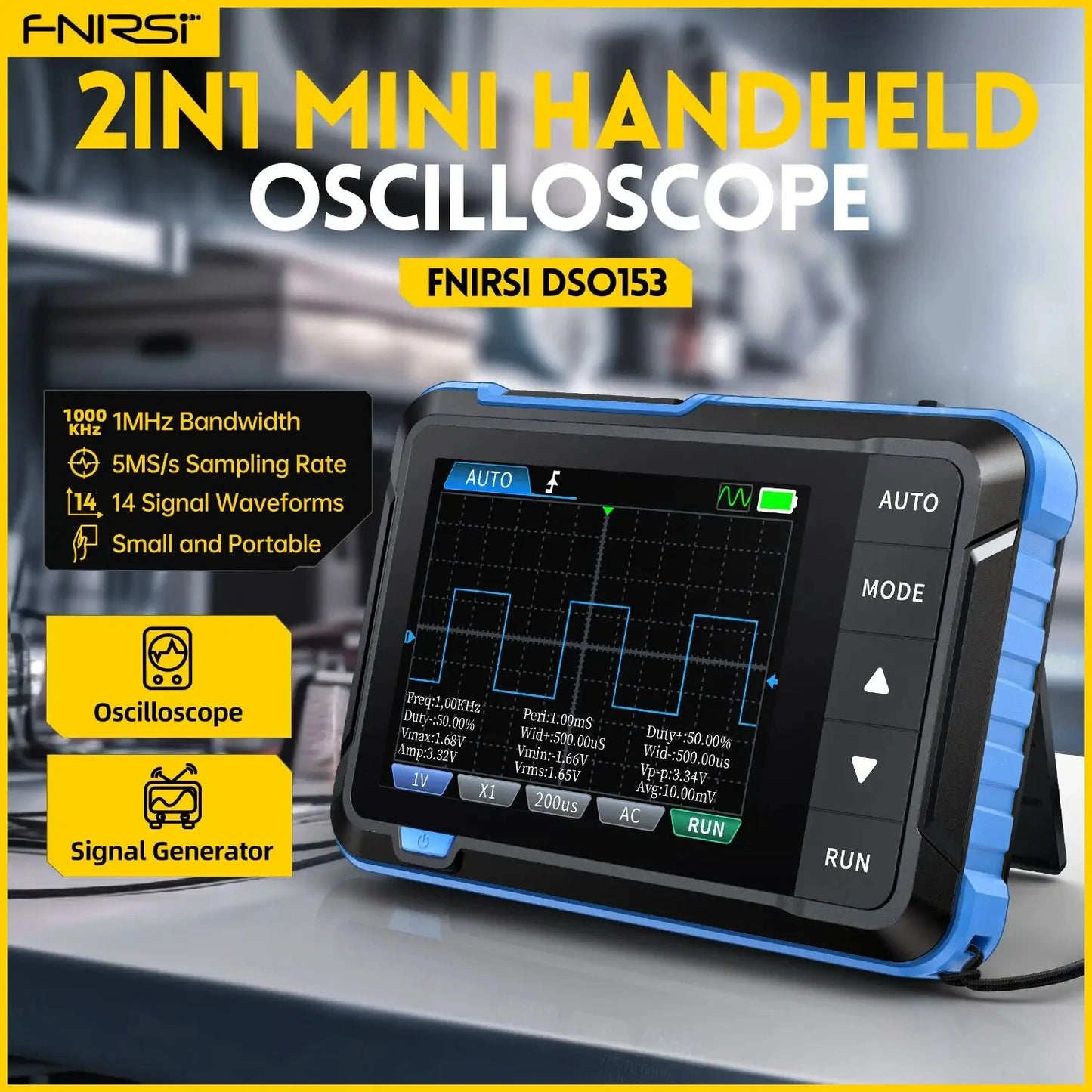

FNIRSI DSO153 Oscilloscope & Signal Generator, 1MHz Bandwidth, 5MS/s Sampling Rate, Multiple Waveforms

$29.99 USD

~~$0.00 USD~~ $29.99 USD

Sale Sold out

Shipping calculated at checkout.

Option Name Standard Upgrade

Shipping Icon Estimated Delivery: -

Quantity

Features

High-performance: Portable oscilloscope with a 1 MHz bandwidth and 5 MSa/s sampling rate for accurate and rapid results in electronics repair and maintenance.
Versatile Signal Generator: Integrated signal generator produces a wide range of waveforms, including sine, rectangular, and sawtooth waves, with a 0-100% duty cycle.
Compact and Lightweight: Weighs just 100 grams and measures 99 x 68.3 x 19.5 mm, making it perfect for engineers on the go.
User-friendly Interface: Equipped with a 2.8-inch display with 320 x 240 PPI resolution for a clear view of readings and waveforms.
Long-lasting Battery: Powered by a 1000mAh lithium battery, chargeable via USB (5V/1A) for sustained use.

Brand: FNIRSI
Model: DSO153
Sampling rate: 5MSa/s
Bandwidth: 1MHz
Vertical Sensitivity: 10mV/Div-20V/Div (Progress as per the 1-2-5 way)
Time Base Range: 500ns/Div-20s/Div (Progress as per the 1-2-5 way)
Voltage Range: X1: ±40V (Vpp: 80V), X10: ±400V (Vpp: 800V)
Trigger Method: Auto / Normal / Single
Coupling Method: AC/DC
Signal Generator Frequency: 0-10KHz
Duty Cycle: 0-100% (rectangular and sawtooth waves)
Amplitude: 0.1-3.3V
Waveforms: Sine, rectangular, sawtooth, half wave, full wave, step wave, anti step wave, noise wave, exponential rise/drop, DC, multi-tone, sink pulse, Lorentz wave.
Display: 2.8 inches / 320x240 PPI
USB Charging: 5V/1A
Battery Capacity: 1000mAh
Size: 99x68.3x19.5mm
Weight: 100g
