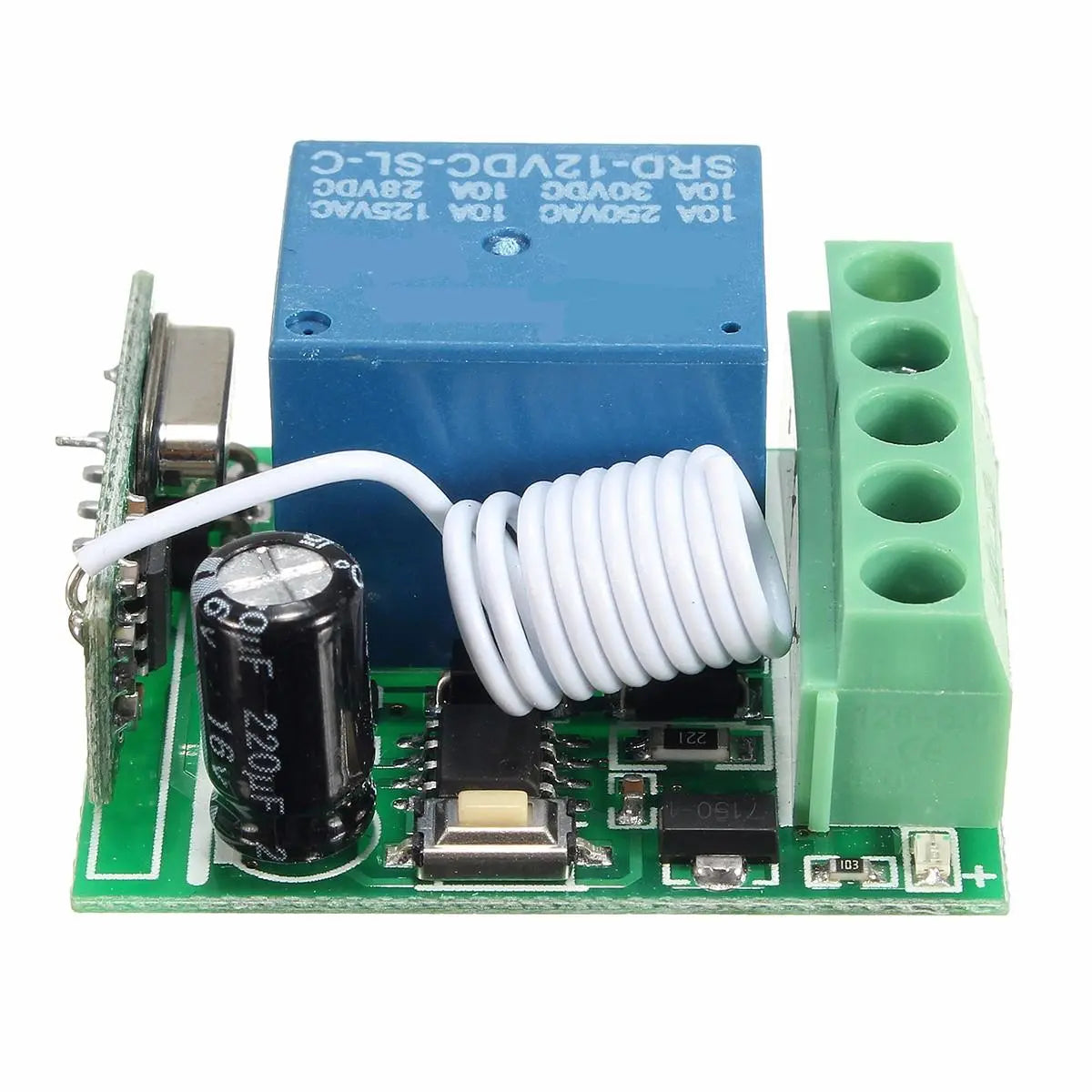

3-Pack DC12V 10A 433MHz Wireless Relay RF Remote Control Receiver Board
3-Pack DC12V 10A 433MHz Wireless Relay RF Remote Control Receiver Board
Regular price
$4.99 USD
Regular price
$0.00 USD
Sale price
$4.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Compatibility
To ensure this part fits your vehicle, please enter your vehicle's details below:
- Year: [Select]
- Make: [Select]
- Model: [Select]
- Submodel: [Select]
- Trim: [Select]
- Engine: [Select]
This part is compatible with 0 vehicle(s).
Show all compatible vehiclesThis part is compatible with 1 vehicle(s) matching your details.
This part is not compatible with some configurations.
Recent searches:
- Year
- Make
- Model
- Submodel
- Trim
- Engine
Specifications
- Input Voltage: DC10-14V
- Standby Current: TBD
- RF Frequency: 433MHZ
- RF Working Mode: Super heterodyne receiver
- Receiver Sensitivity: >90dBm
- Remote Control Distance: >100 meters (in open environment)
- Decoding Way: MCU Software decoding
- Can Store Number of Remote Controls: 50
- Support Remote Control Type: Fixed code, learning code
- Channel: 1CH
- Multiple Working Modes: Jog/Non-Latched, Inter-lock/Latched, Self-lock/Self-Latched, Delay off
- Wiring Method: Fixed wiring terminal
- Working Voltage: DC12V
- Output Current: 10A
- Rated Load: 10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC
- Output: Normally open, Common, Normally closed
- Dimensions: 3.5cm x 3cm x 1.6cm
Working/Output Way
- Jog: Press the learning button and release it. The mode is set automatically to action mode. When the board LED switches off, it's in learning state. Press the remote control, and after a few seconds, the LED indicates learning success.
- Self-locking: Press the learning button and release it, then press twice to set self-locking mode. After a learning period, the LED confirms success.
- Interlock: Press the learning button and release it, then press thrice to set the interlock mode.
- Delay: Press the remote control relay pull-in, then release to begin timing (5s, 10s, 15s), after which the relay closes automatically.
Description
- To learn a remote control, press the learning code. The indicator will flash; release your finger, then press any button on the remote control. The indicator flashes twice and then turns off, indicating success.
- This device can learn more than twelve 2262 or 1527 chip types with different code wireless 433MHz remote controls.
- To remove/clean a remote setup, press the learning button for about 8 seconds. The indicator will turn off, indicating successful removal.
Package Included
- 3 x 12V 1CH 433MHz Wireless Relay Switch Receiver
