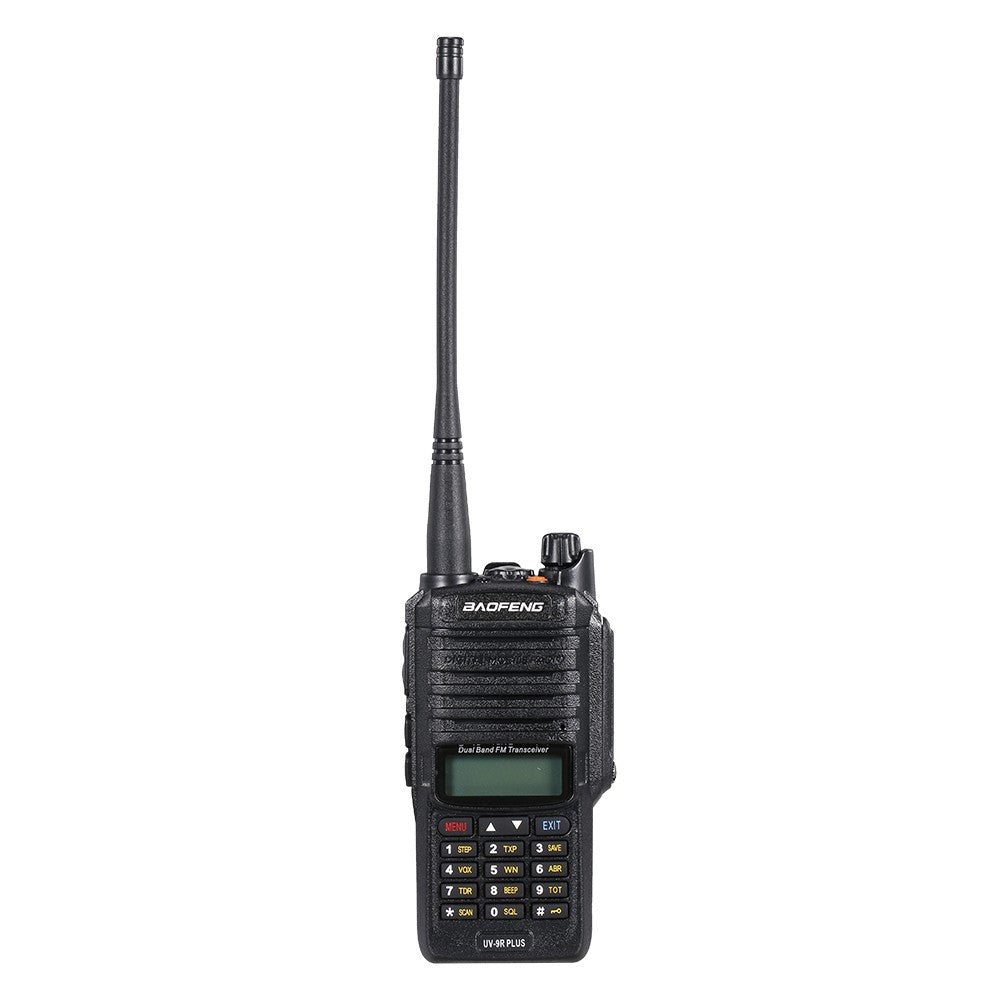

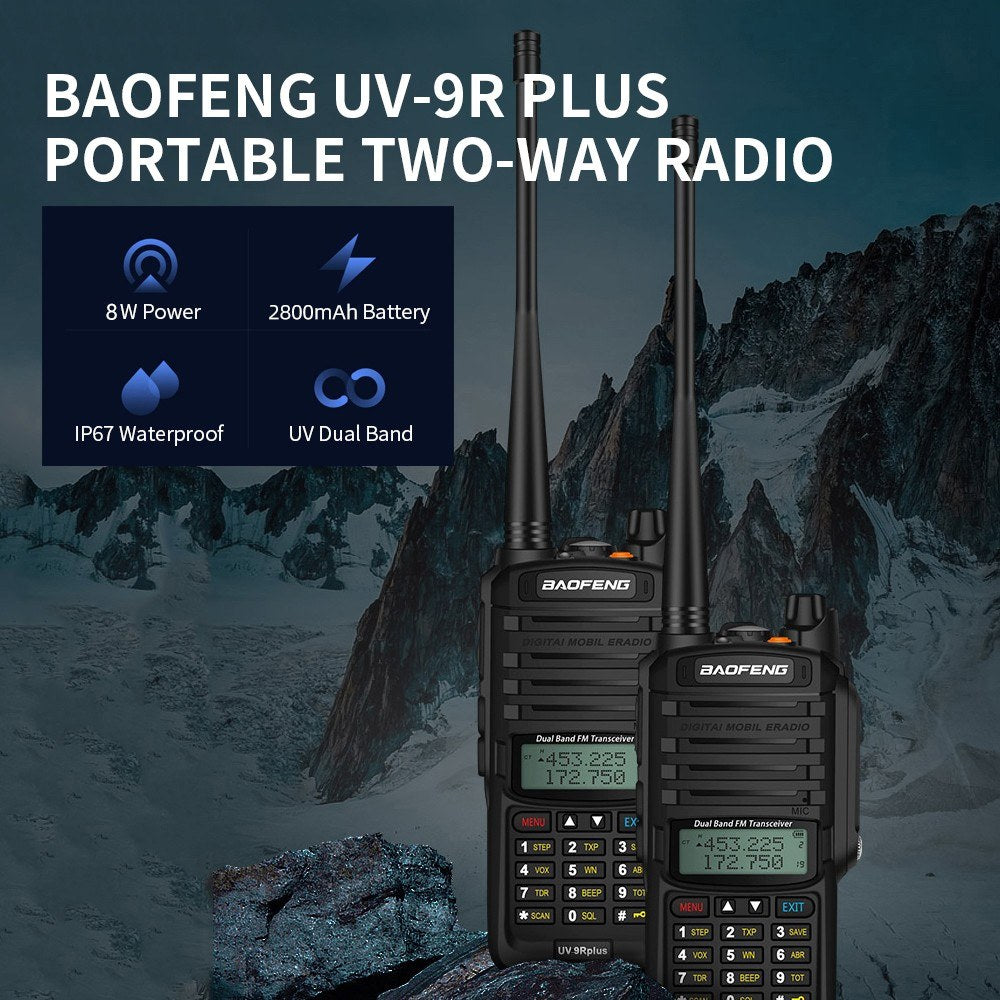

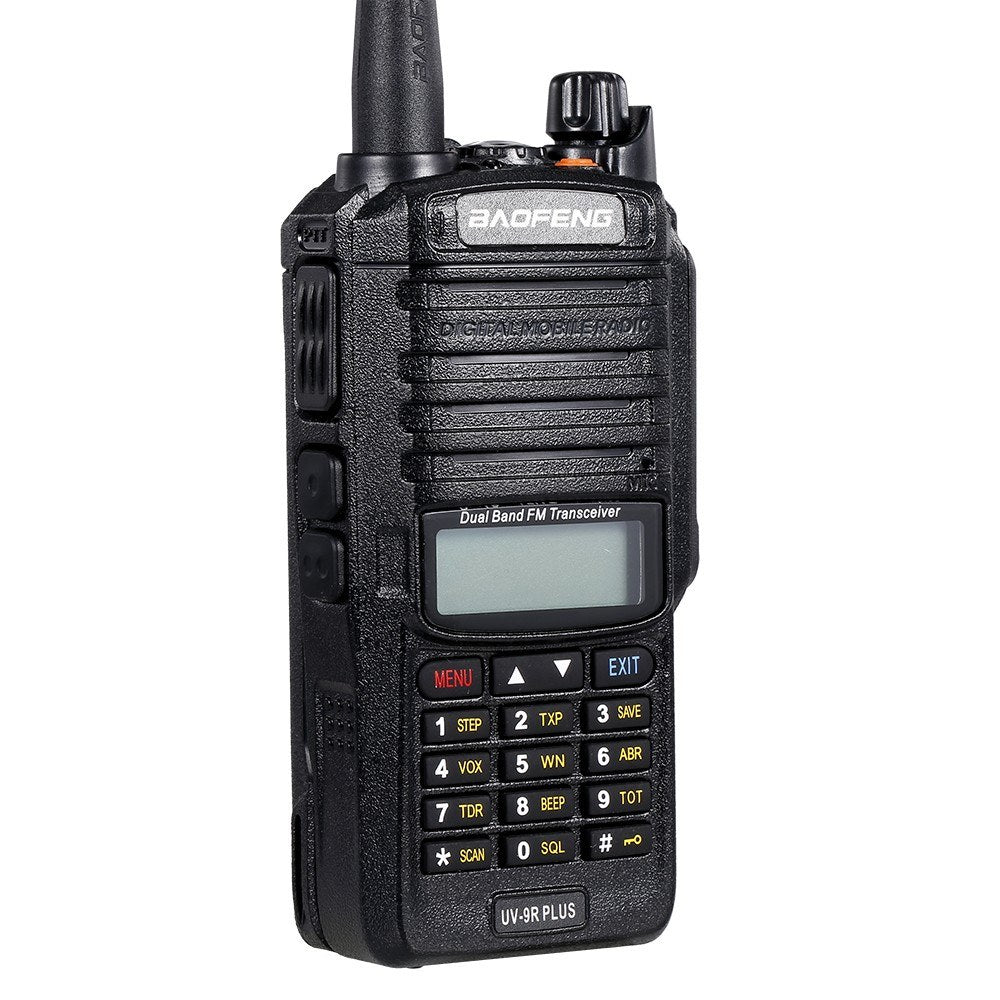

BAOFENG UV-9R Plus Dual Band Two-Way Radio Handheld Walkie Talkie, IP67 Waterproof & Dustproof, EU Plug

Features

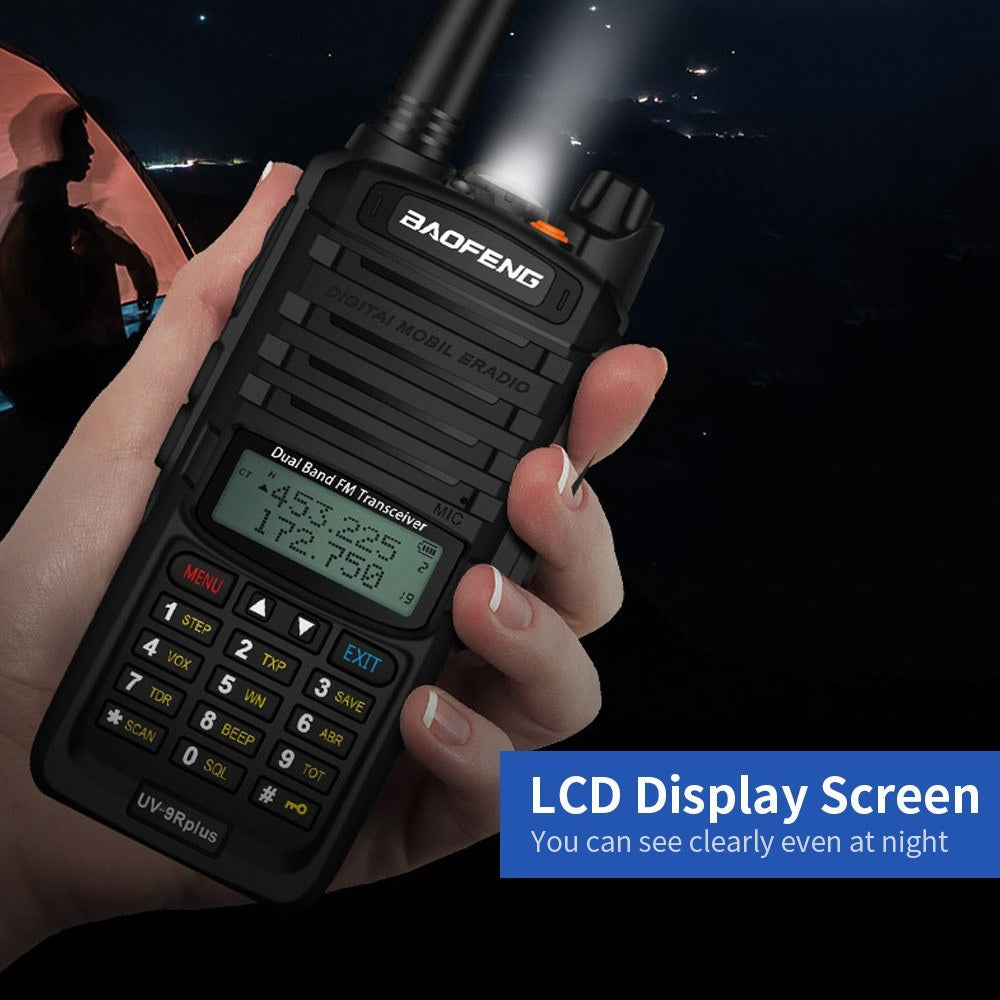

• Equipped with dual frequency bands and an LCD display screen:
• VHF 136-174MHz (Rx/Tx)
• UHF 400-520MHz (Rx/Tx)

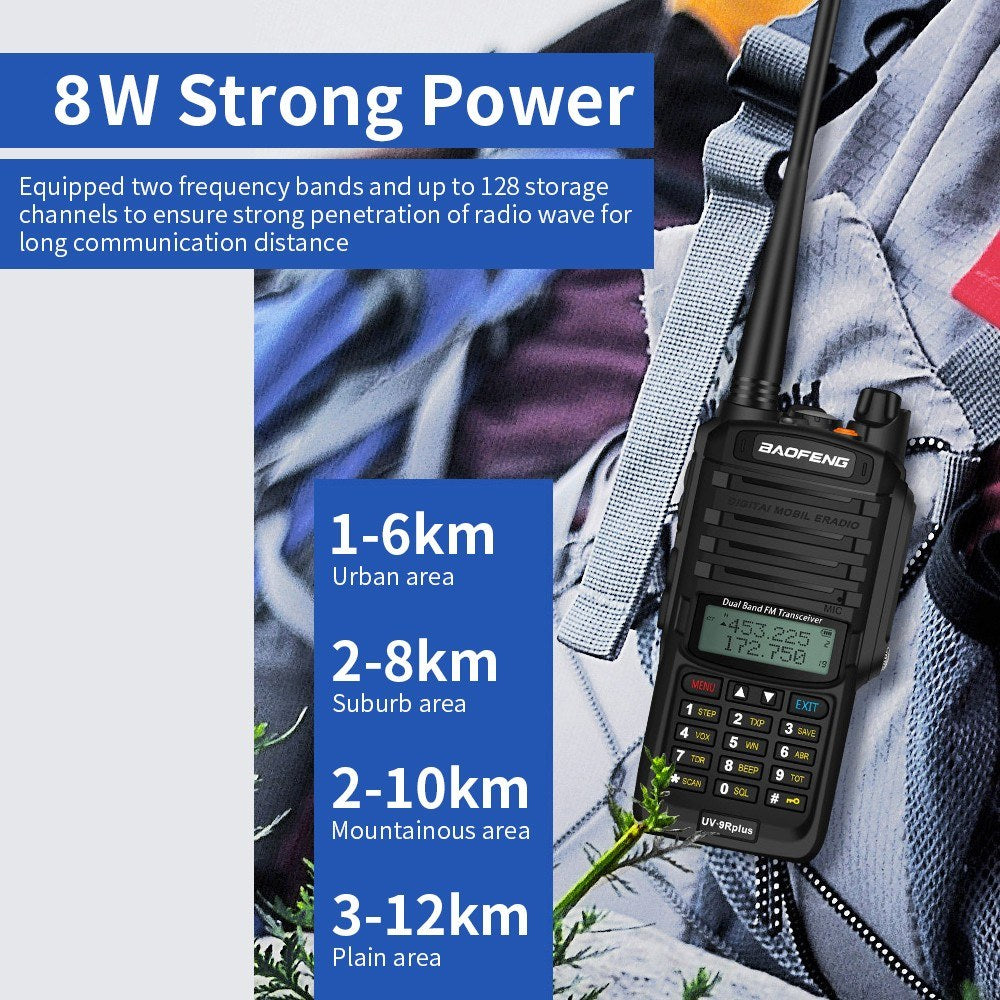

• Supports up to 128 channels ensuring strong radio wave penetration to suit different areas:
• 1-6 km in urban areas
• 2-8 km in suburban areas
• 2-10 km in mountainous areas
• 3-12 km in plain areas
• Compact design with a comfortable grip and a detachable antenna for strong signal reception

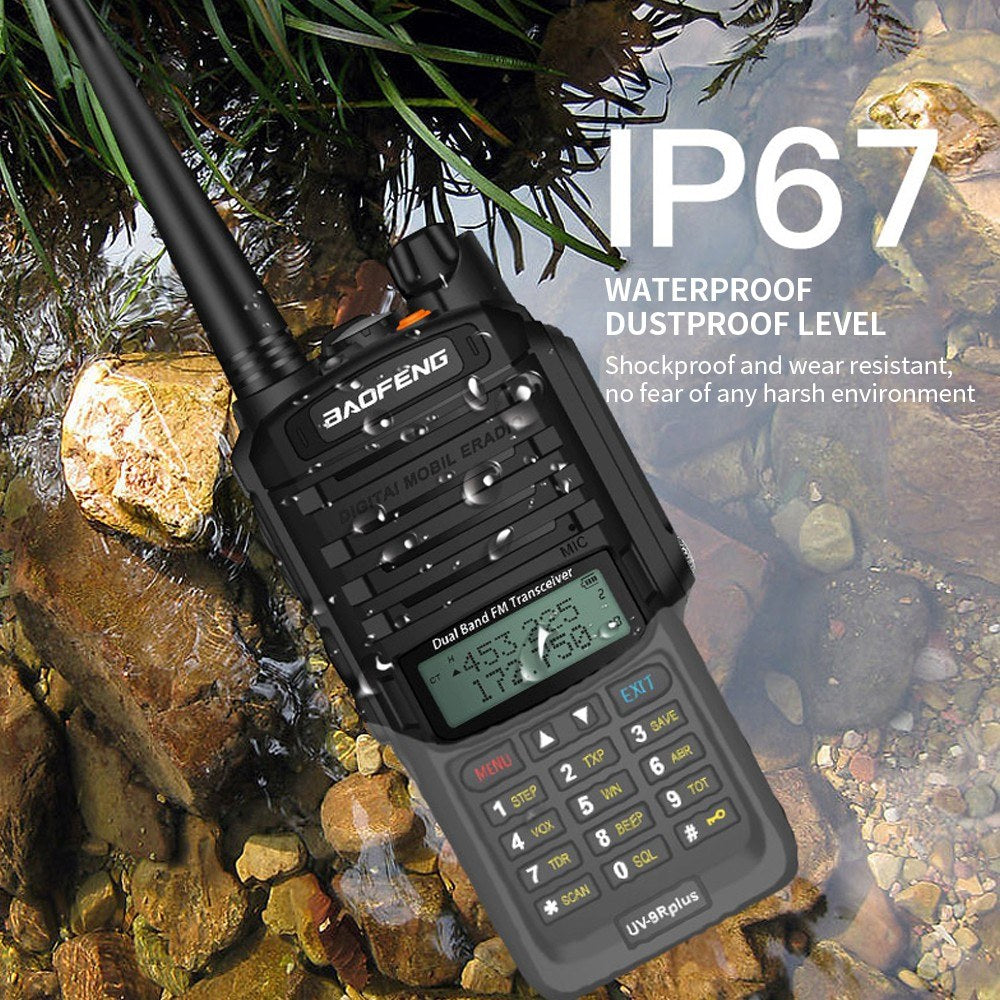

• IP67 rated for waterproof and dustproof performance, shockproof and wear-resistant for harsh environments

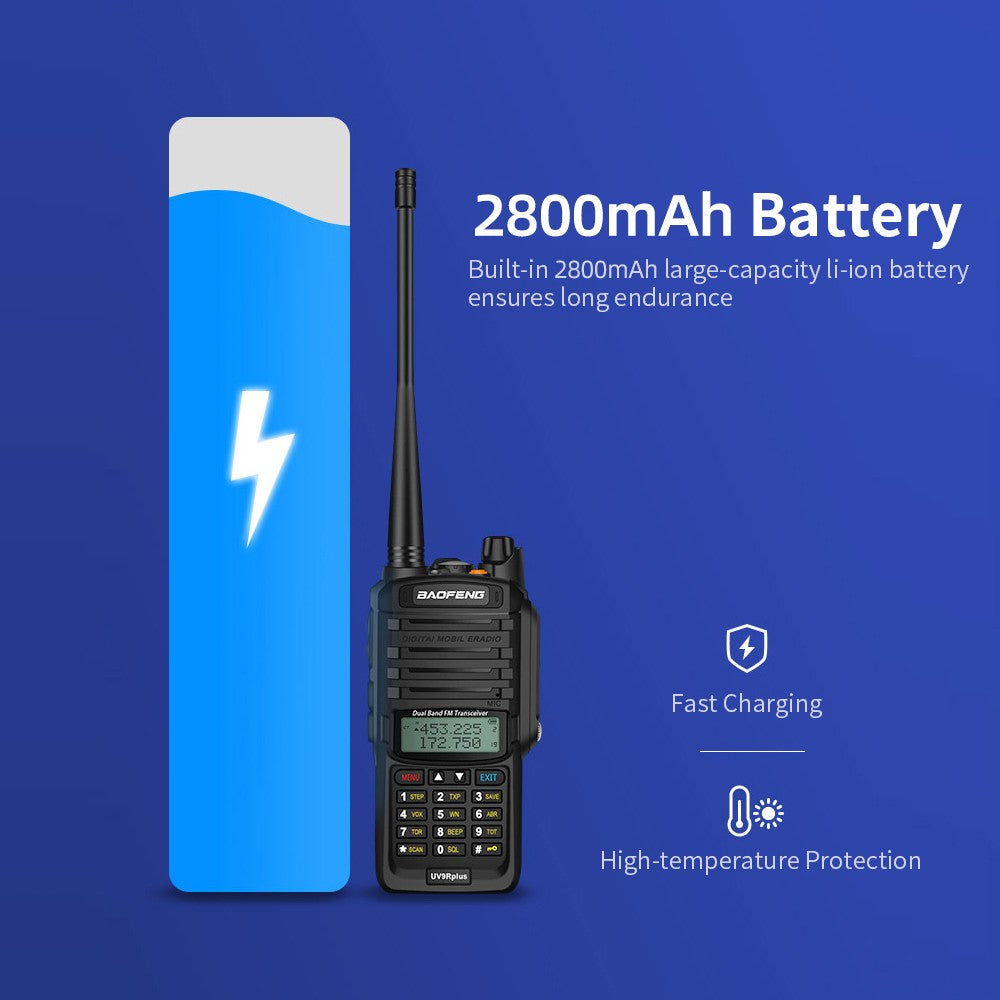

• Includes a built-in 2800mAh large-capacity Li-ion battery with over-charge, over-discharge, and circuit protection for safety and environmental protection
• Ideal for various uses such as construction sites, hotels, plants, bars, warehouses, supermarkets, and activities like self-driving, campus communication, field survival, biking, hiking, road trips, camping, and hunting

Specifications

General

• Brand: BAOFENG
• Model: UV-9R Plus
• Color: Black

Frequency Range

• 65MHz-108MHz (FM radio reception only)
• VHF: 136-174MHz (Rx/Tx)
• UHF: 400-520MHz (Rx/Tx)

Memory Channels

• Up to 128 channels

Other Specifications

• Frequency stability: 2.5ppm
• Frequency step: 2.5-25kHz
• Antenna impedance: 50Ω
• Operating temperature: -20℃ to 60℃
• Battery: Li-ion battery, DC 7.4V/2800mAh
• Consumption in reception: 380mA
• Consumption in transmission: ≤1.4A
• Operation mode: Simplex or semi-duplex
• Duty cycle: 03/03/54min (Rx/Tx/Standby)

Transmitter

• RF power: 5W/1W
• Type of modulation: FM
• Maximum deviation: ≤±5kHz/≤±2.5kHz (W/N)
• Spurious emissions: < -60dB

Receiver

• Intermodulation: 60dB
• Audio output: 1W
• Spurious radiation: ≥65dB

Dimensions & Weight

• Item size: 13.4 x 6.5 x 4 cm / 5.28 x 2.56 x 1.57 in
• Item weight: Approx. 256g / 9.03oz

Packing List

• 1 x Two-way radio
• 1 x Battery
• 1 x Antenna
• 1 x Power adapter

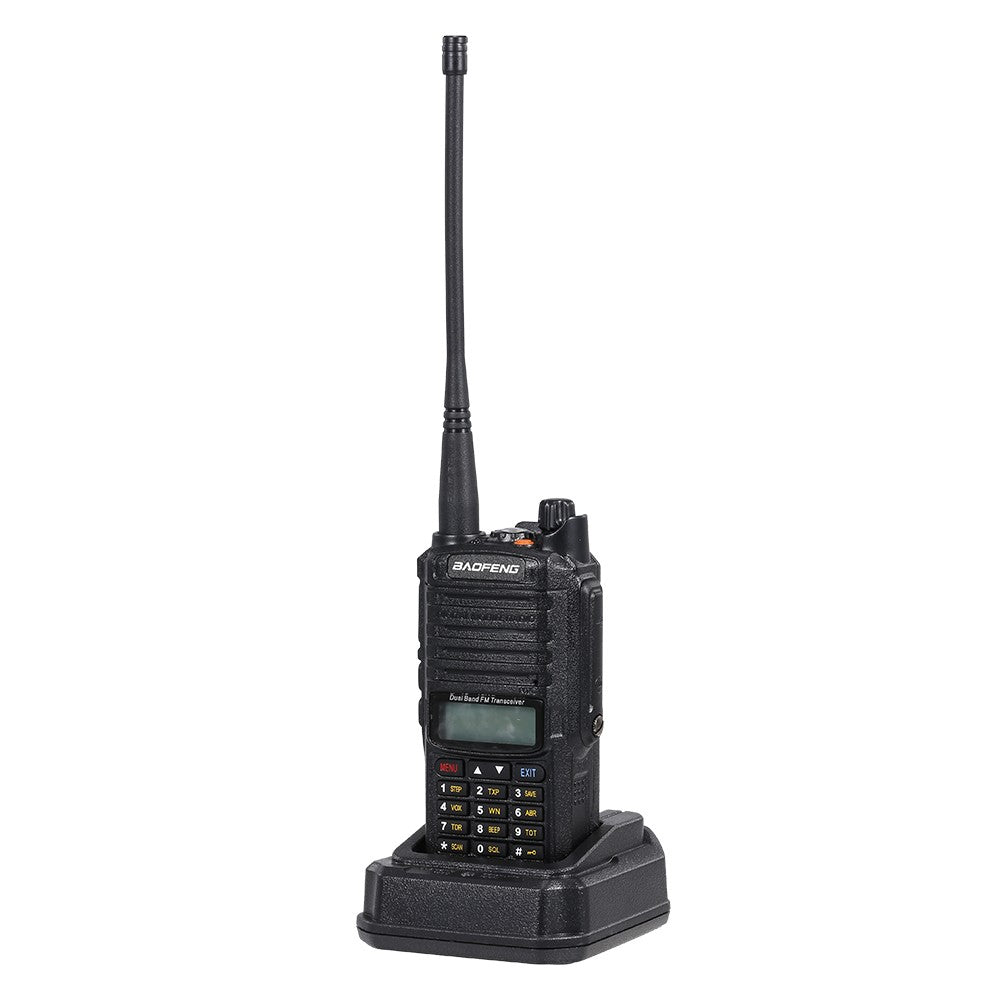

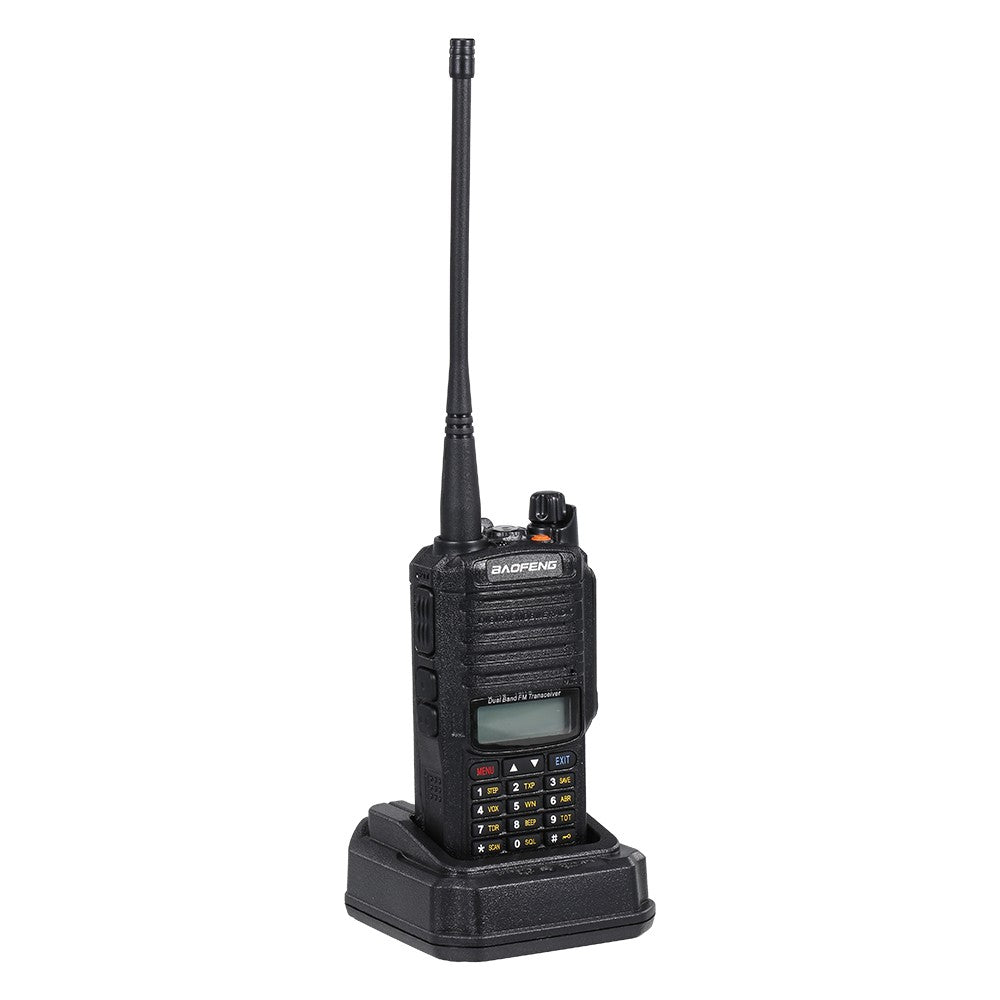

• 1 x Charging base
• 1 x Belt clip
• 1 x Hand strap
• 1 x User manual
