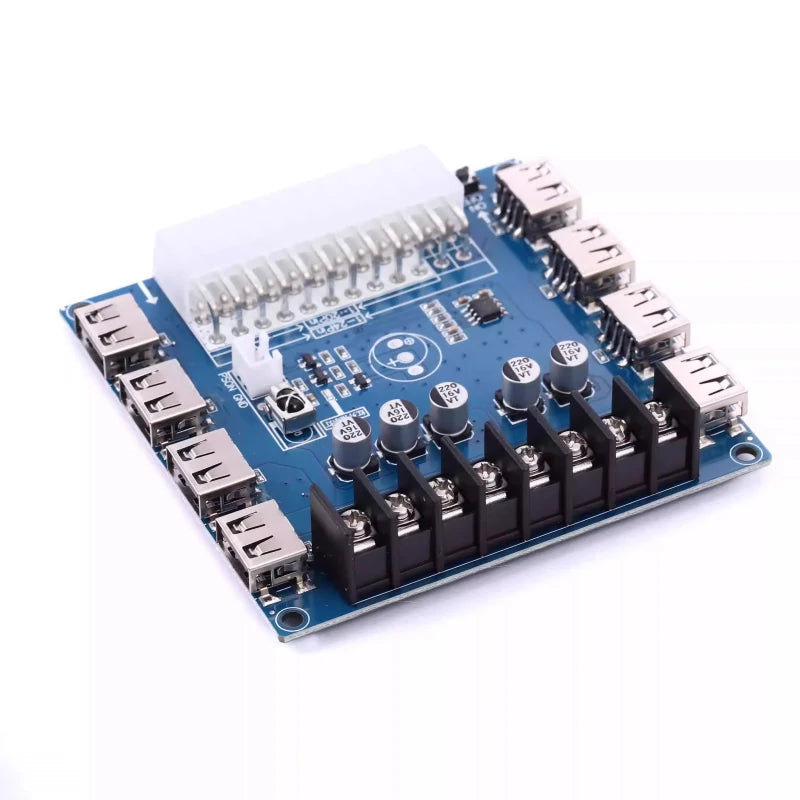

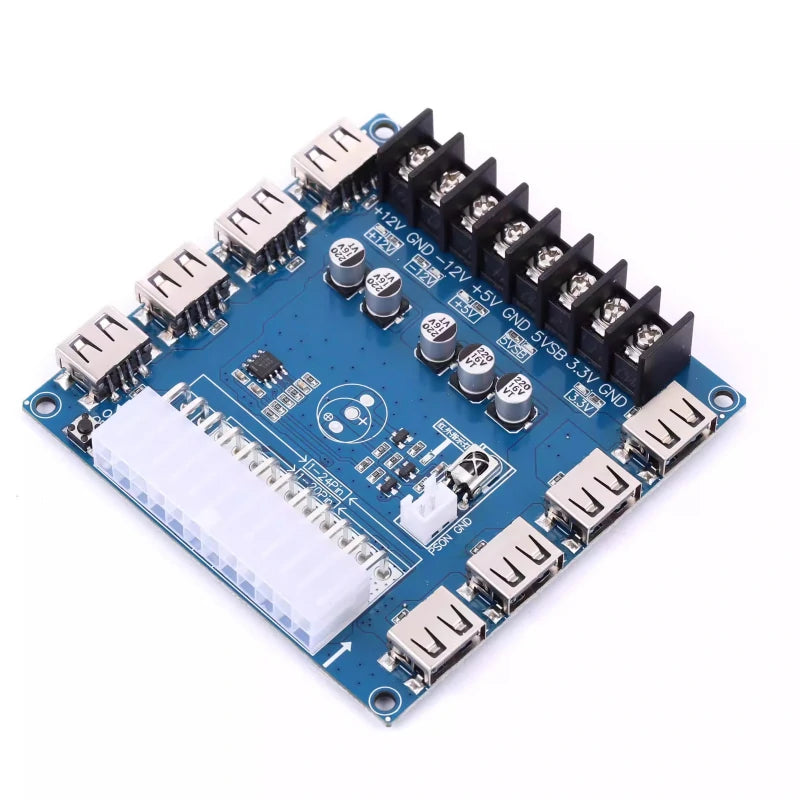

ATX Power Supply Adapter Board XH-M229 - USB Charging, 20/24 Pin Compatible

Product Description:

Discover the versatile ATX Power Supply Breakout Board, designed for both convenience and enhanced functionality in your electronics projects.

• Infrared Functionality: Easily test remote controls for TVs, air conditioners, water heaters, and power amplifiers to ensure they are working properly.
• Broad Compatibility: The module board is compatible with all 20-pin and 24-pin ATX computer power supplies, making it a versatile addition to your toolkit.
• Durable Touch Switch: Equipped with a touch switch boasting a long service life of up to 550,000 operations—providing convenient and reliable use.
• Flexible Control Options: The reserved XH2.54-2P terminal allows connection of external lines for ATX power switch control through an Io port (5V) or single-chip computer switch, aiding in easy shell modification.
• Ample USB Ports: Featuring 8 USB ports, each capable of delivering 5V and a maximum current of 2.1A, providing power to mobile phones, tablets, flashlights, aging electronic products, and more.
• Secure High-Current Connections: Utilizes high-current terminal blocks capable of handling up to 300V and 20A, ensuring secure and reliable wiring compared to traditional terminal posts and screw terminals.
• Comprehensive Power Outputs: After startup, the module delivers +12V, -12V, +5V, 5VSB, and 3.3V power supplies, optimizing ATX power supply usage and simplifying your electronic project needs.

Technical Parameters:

• Output: 5V/2A
• Terminal Block: Maximum 20A output
• USB Ports: 8 groups
• Power Outputs: +12V, -12V, +5V, 5VSB, and 3.3V
• Power Output Indicators:
  • 12V normal output: Blue light
  • -12V normal output: Blue light
  • 5V normal output: Red light
  • 5VSB normal output: Red light
  • 3.3V normal output: Red light
• Compatibility: Works with all 20-pin and 24-pin computer power supplies

Package Includes:

• 1x 20/24 Pins ATX Power Supply Breakout Board
