USRP B210

The USRP B210 offers a versatile, single-board platform ideal for software-defined radio (SDR) projects. With its continuous frequency coverage from 70 MHz to 6 GHz and low-cost design, this device is perfect for experimentation.

Integrated Features

• Extensive Frequency Range: 70 MHz to 6 GHz continuous coverage.
• High Bandwidth: Real-time bandwidth of up to 56 MHz.
• USB 3.0 Connectivity: Fast and convenient bus-powered connection.
• Open Software Support: Seamless integration with USRP Hardware Driver (UHD), GNU Radio, and OpenBTS.
• Advanced Signal Processing: Reprogrammable Spartan6 FPGA for demanding applications.
• Dual-channel RFIC: Uses the Analog Devices AD9361, enabling full duplex MIMO capabilities.

Specifications

• Dimensions: 150mm x 98mm
• Frequency Support: 70 MHz to 6 GHz

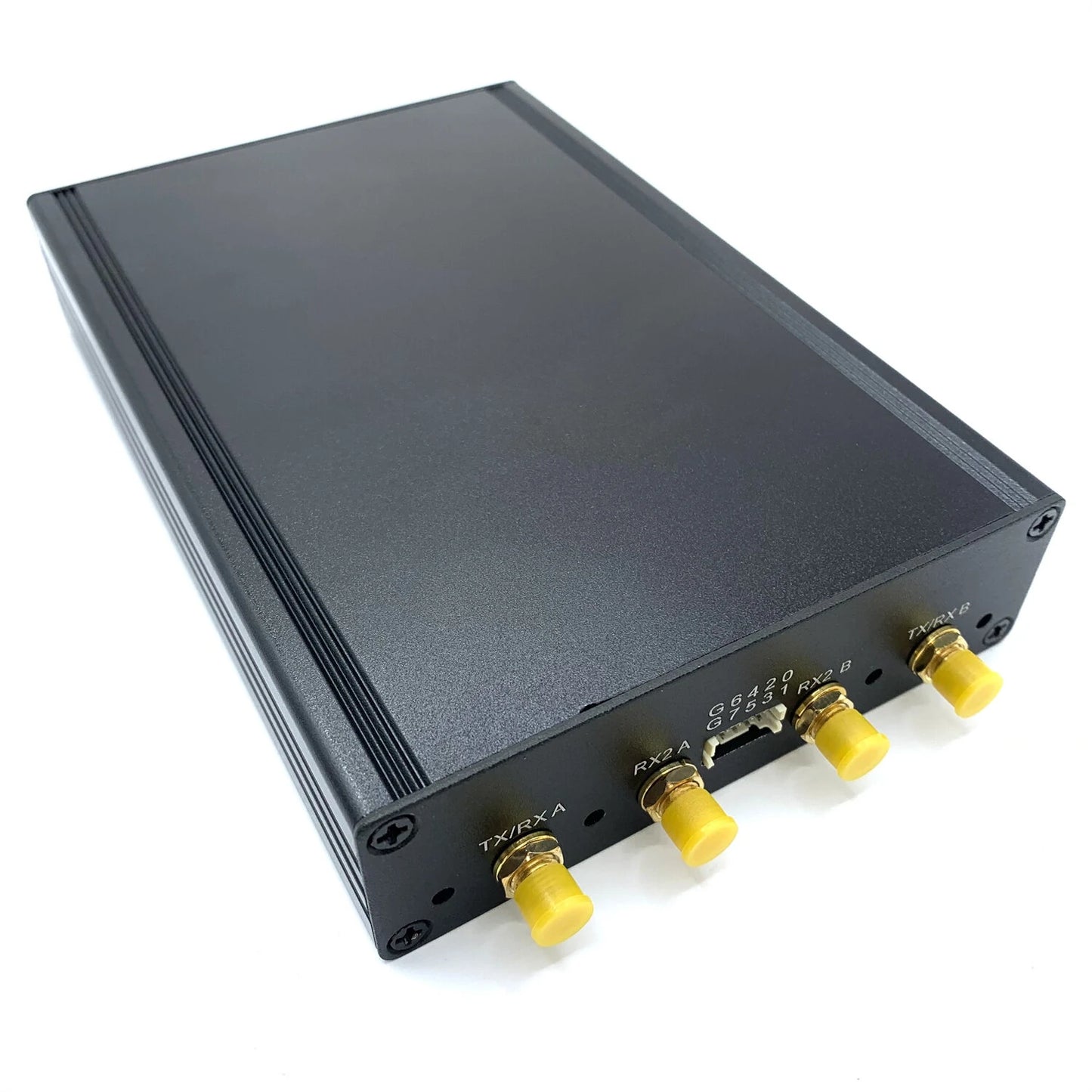

• Ports: 2 TX and 2 RX

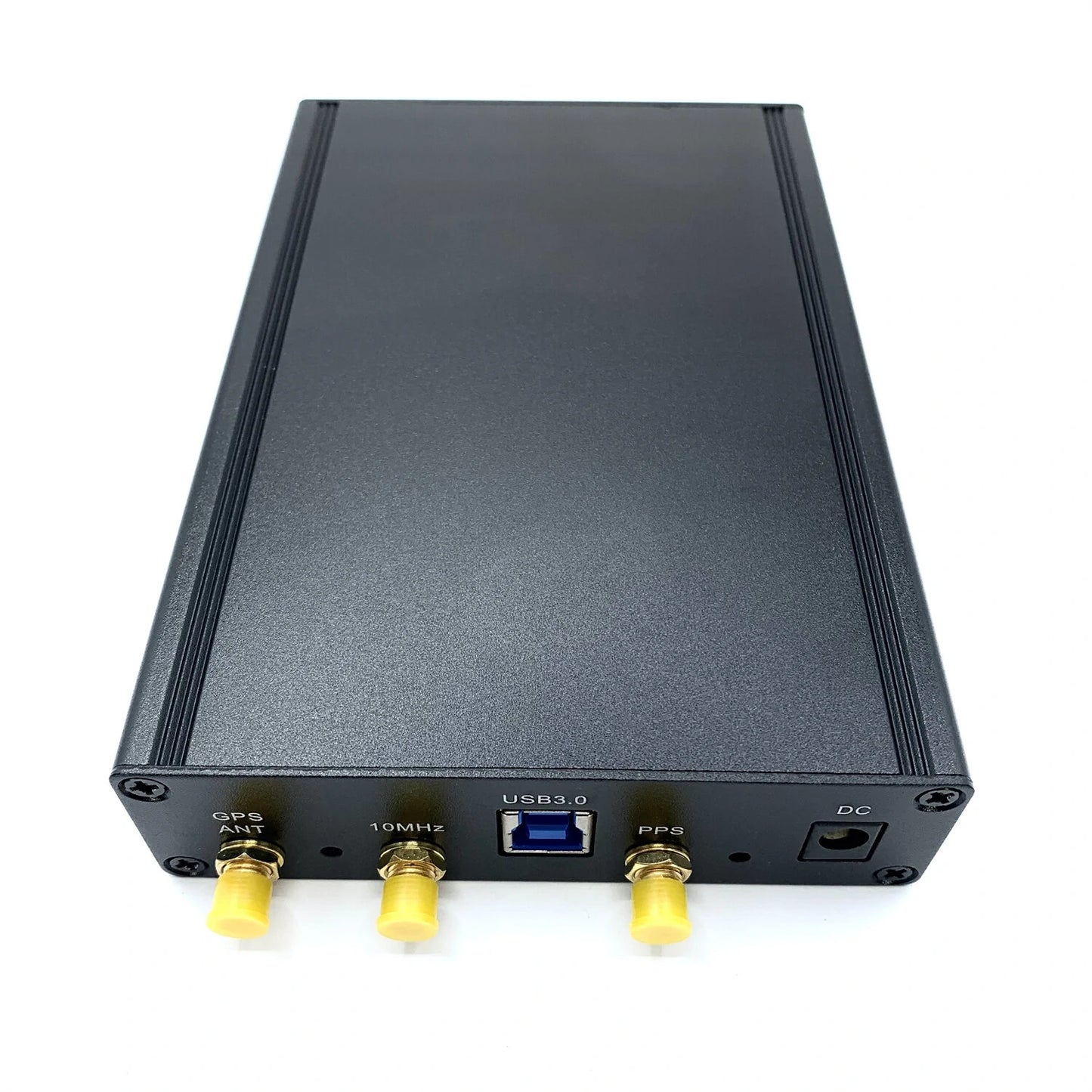

• Interface: 1 USB 3.0
• Power Requirements: External power needed for GPSDO or dual-channel transceiver mode
• FPGA: Spartan6 XC6SLX150
• RF Transceiver: AD9361 chip, max 61.44 MS/s
• Clock Precision: Built-in clock with 2 PPM precision, up to 1 PPB with GPSDO or external reference

Applications

The USRP B210 supports applications ranging from FM and TV broadcasting to GPS, WiFi, ISM, and more. Users can start prototyping immediately, leveraging the open-source SDR community with full UHD software support, compatible with applications like HDSDR and OpenBTS.

Architecture

The USRP B210's integrated RF frontend features the AD9361 transceiver, allowing up to 56 MHz of real-time RF bandwidth. The Spartan6 XC6SLX150 FPGA provides onboard signal processing while connected to a host PC via USB 3.0. For detailed information on throughput capabilities, refer to the USRP B200/B210 Benchmark Table.

Package Contents

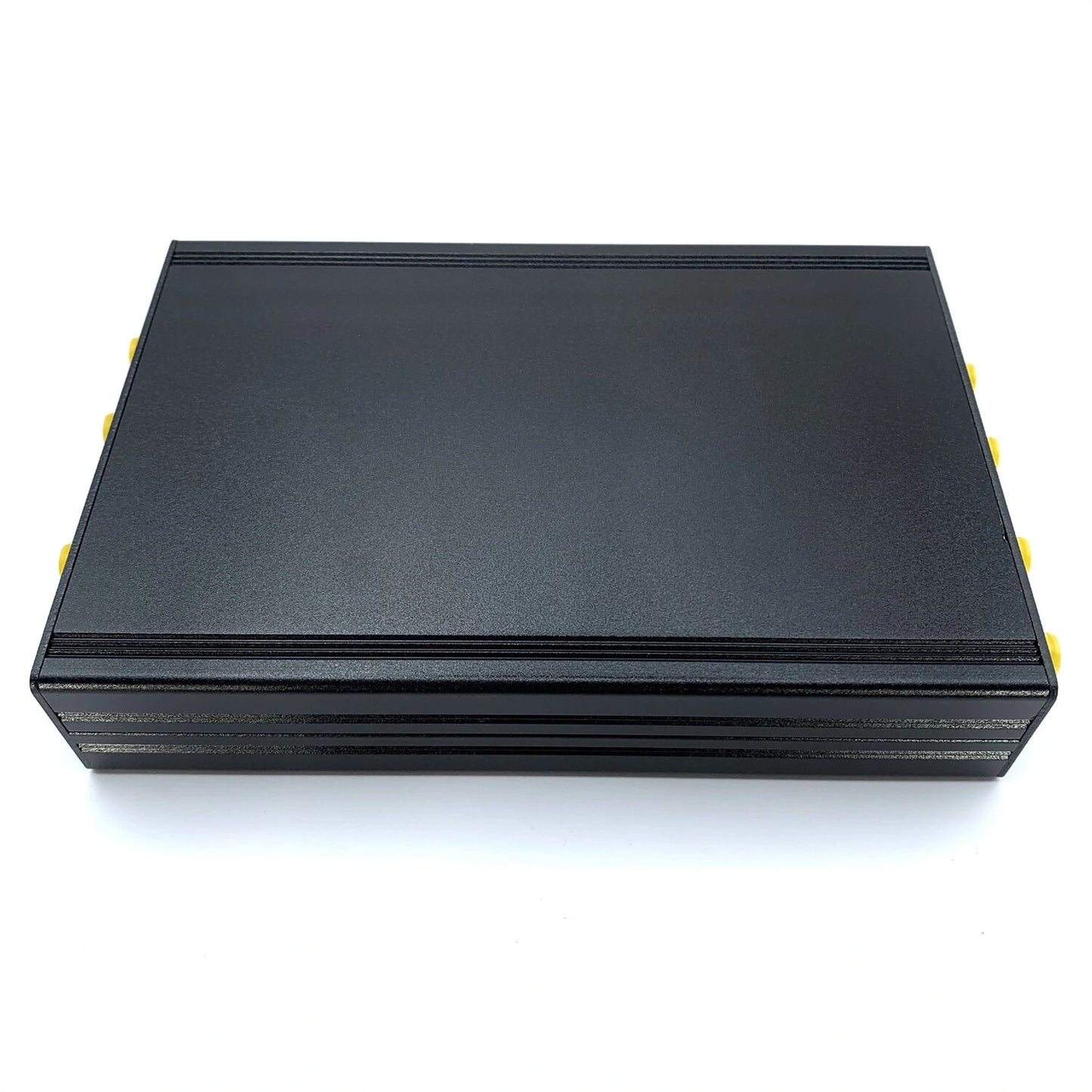

• 1 x Software Defined Radio Unit

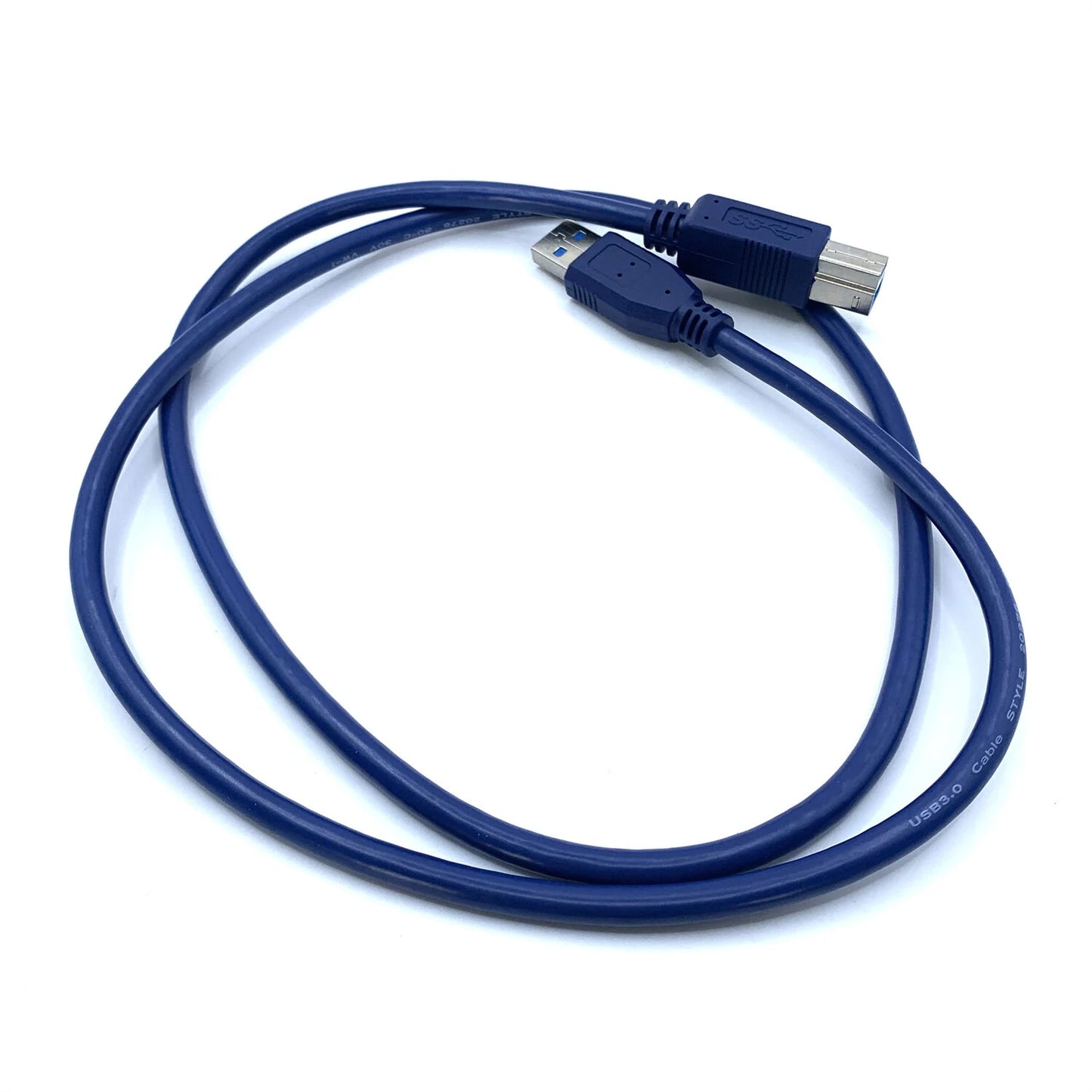

• 1 x USB 3.0 Cable
