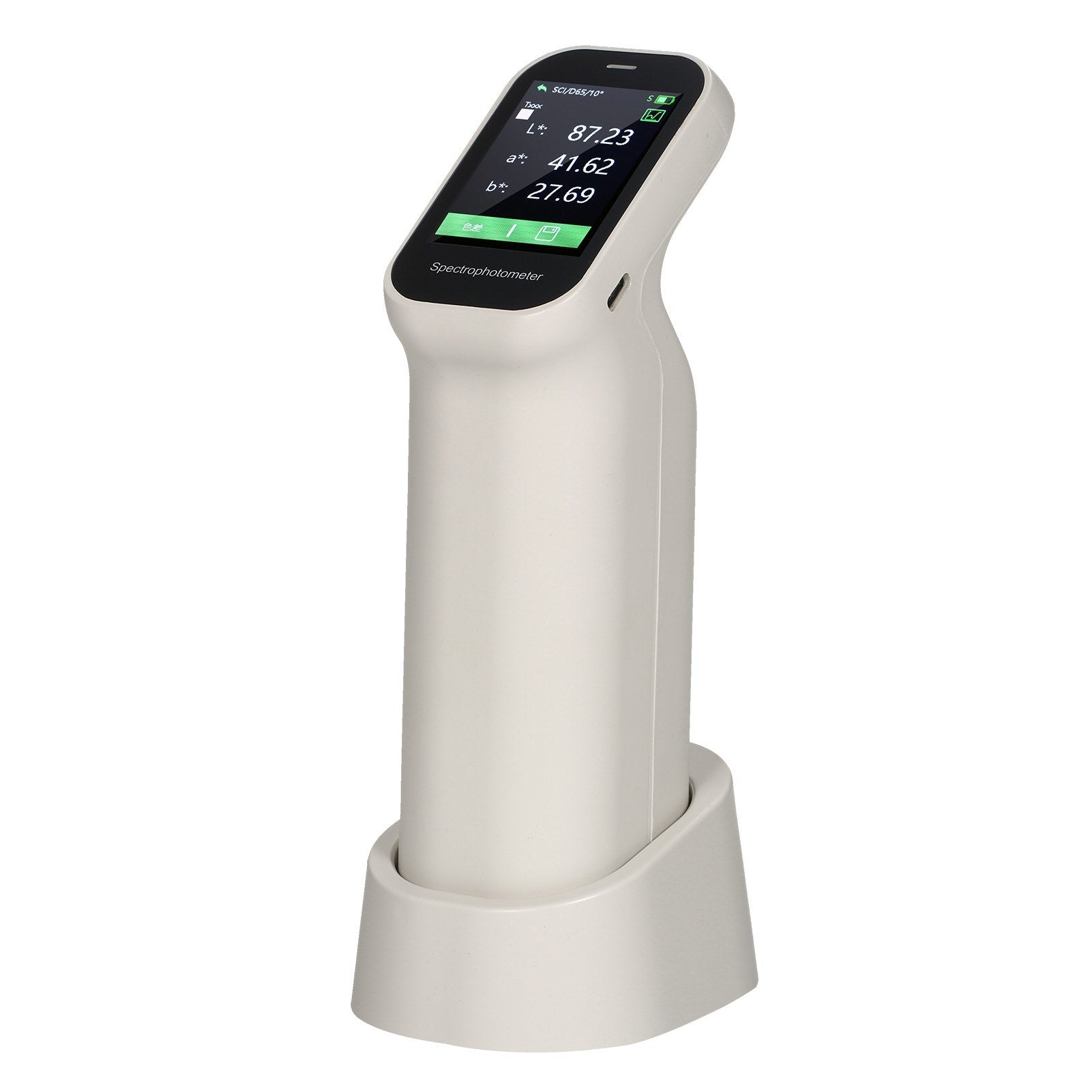

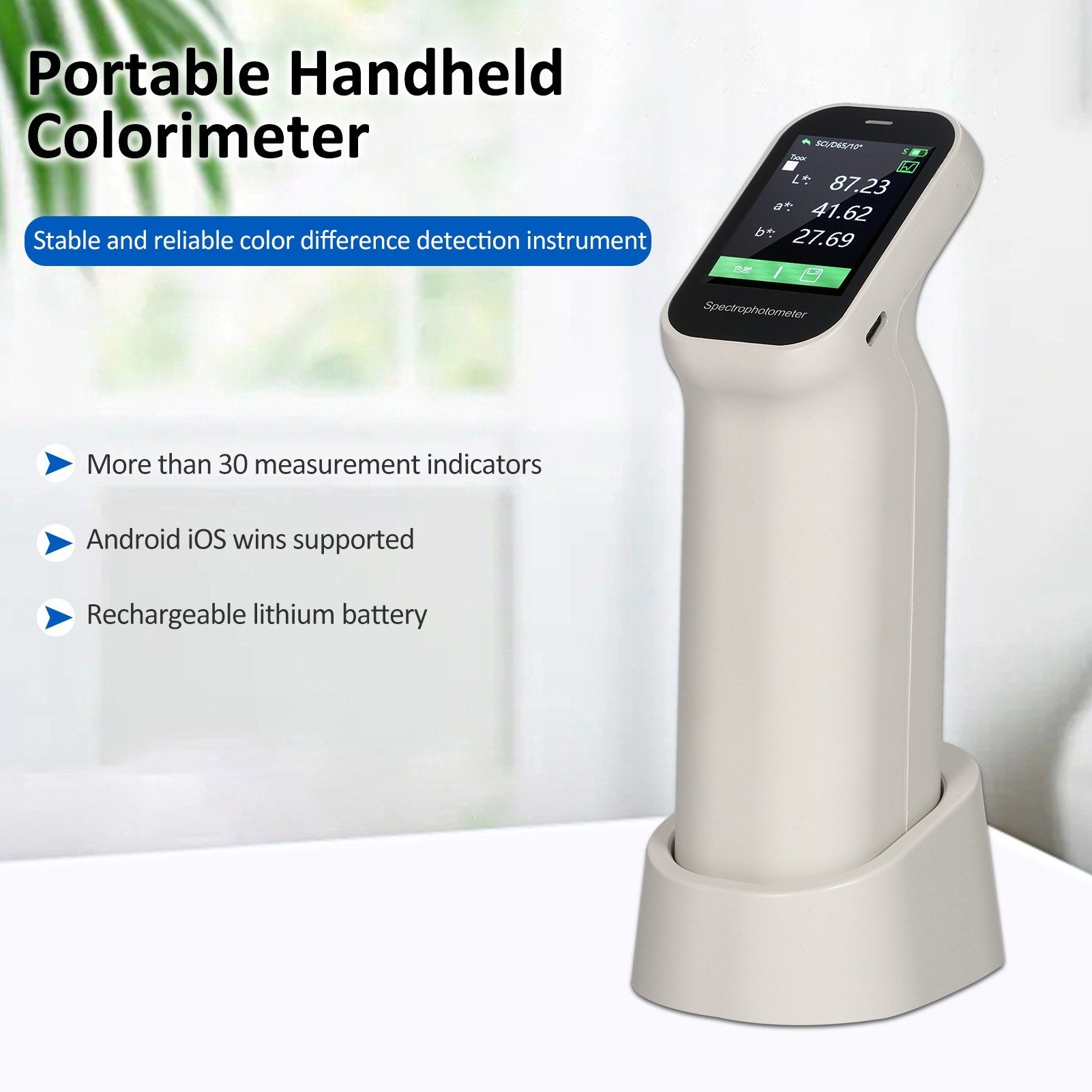

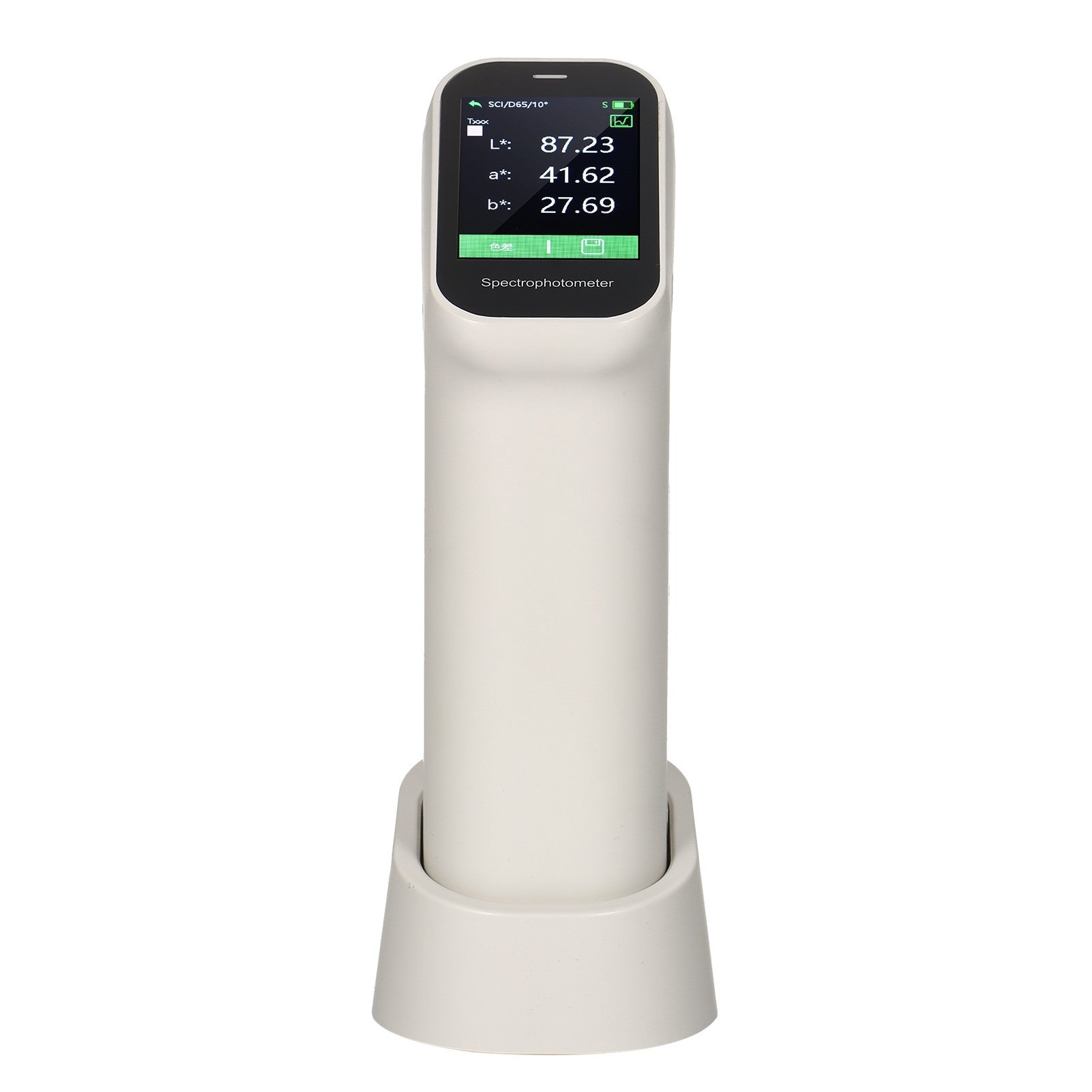

Portable Spectral Colorimeter

This portable spectral colorimeter features automatic calibration and is incredibly easy to use. Equipped with a built-in rechargeable battery, it finds versatile applications in color matching and color separation measurements across various industries.

Features:

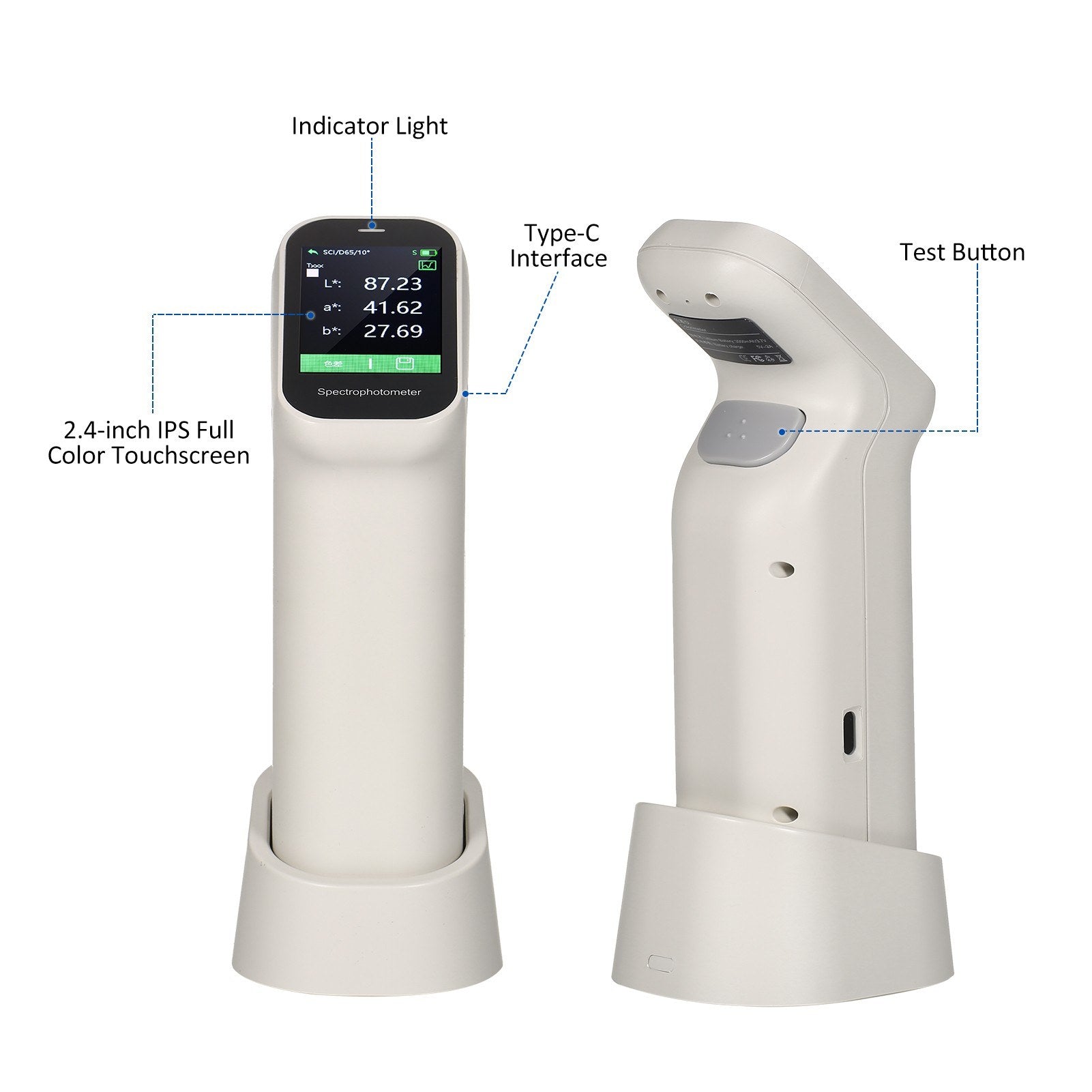

• 2.4-inch IPS full color touchscreen for effortless reading.
• 6mm test aperture with automatic calibration, start testing with one button.
• Instantly obtain color differences between different targets.
• International D/8, SCI measuring conditions for handling highly reflective samples.
• APP-based mass storage of data records, USB data transmission supported.
• Compatibility with computer software enhances data analysis.
• Convenient magnetic base with a self-adhesive design simplifies placement and storage, ensuring colorimeter safety.

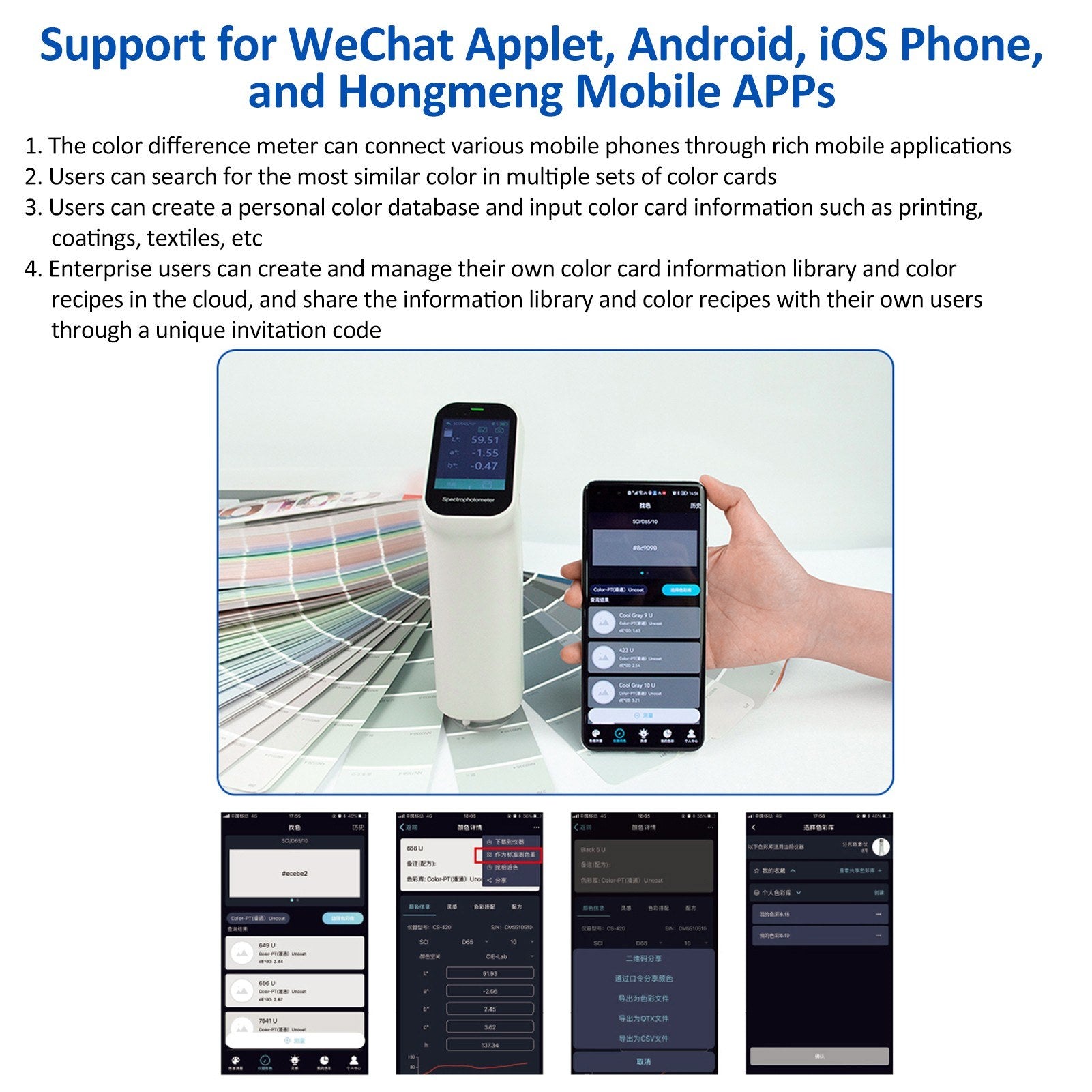

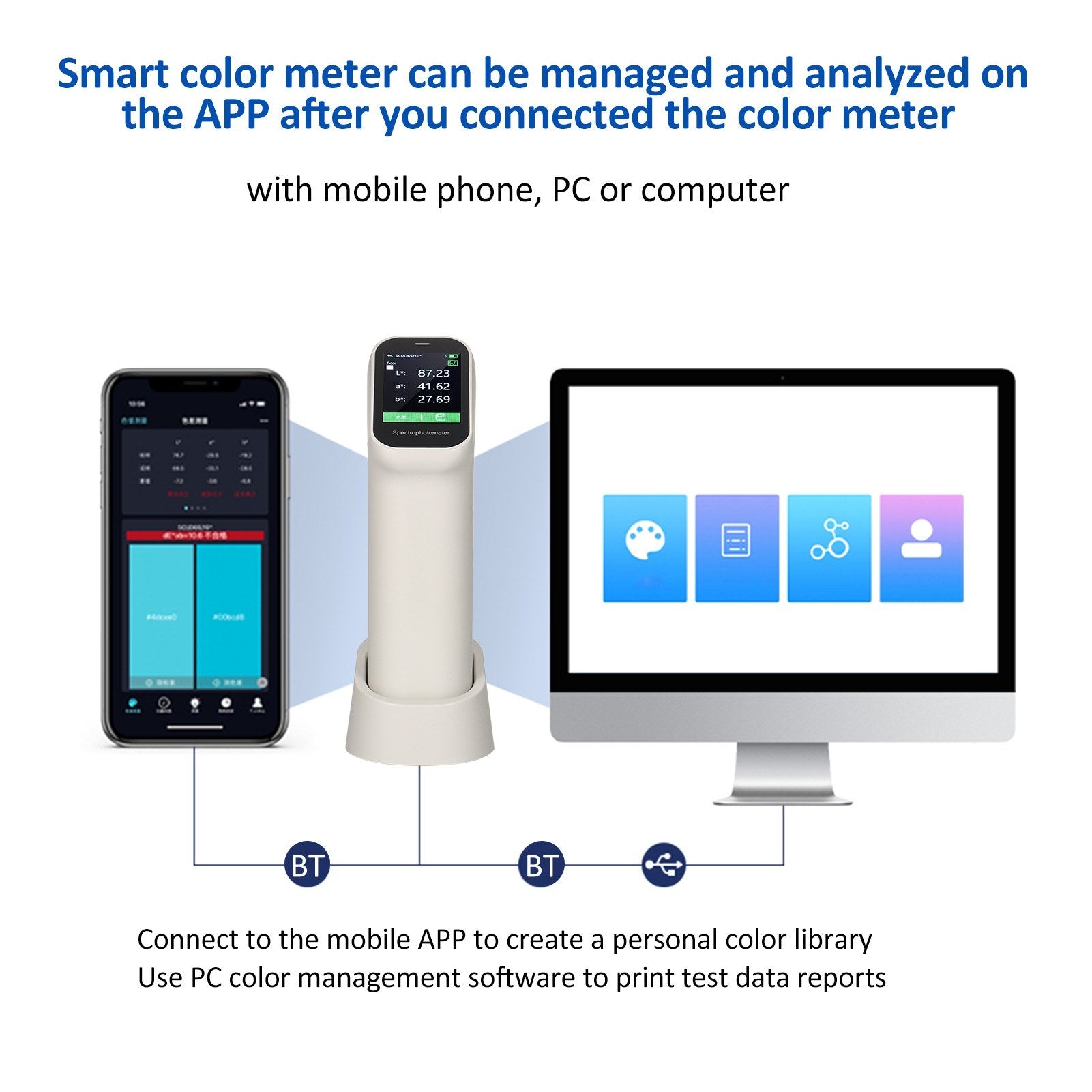

• Manage and analyze data via APP after connecting to mobile devices or computers.
• 3000mAh lithium battery for longevity, chargeable via Type-C USB interface. Use a 5V 2A adapter to avoid damage.

Applications:

Ideal for color matching and color separation measurement in industries such as plastics, paint, printing, packaging, automotive, textiles, food, and more.

Specifications:

• Material: ABS
• Measurement Area/Aperture Size: MAV: φ11mm

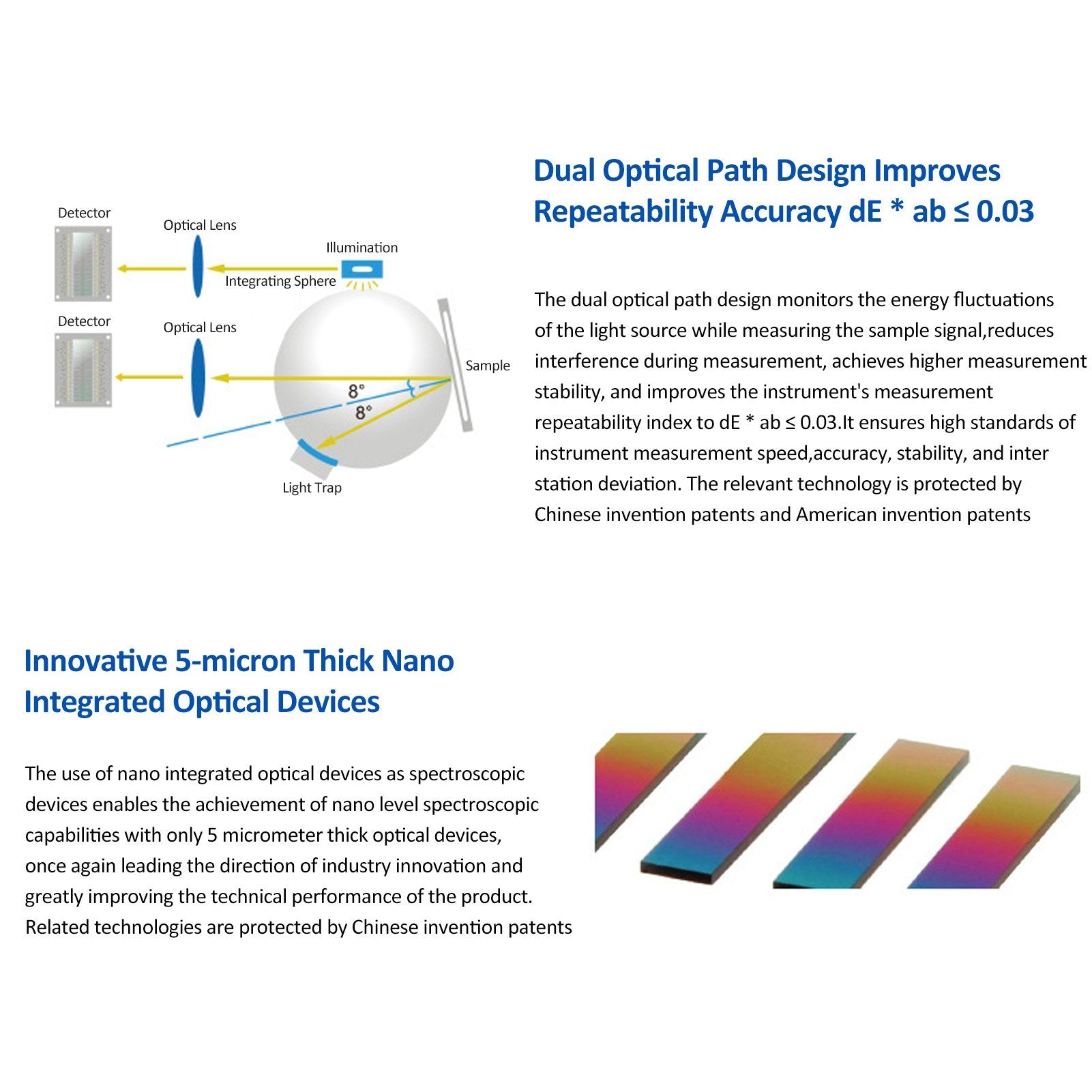

• Geometry and Angle: d/8 (diffused illumination, 8-degree viewing), SCI (specular component included)
• Standards Complaint: CIE No. 15, GB/T 3978, GB 2, GB/T 18833, IS07724-1, ASTM E1164, DIN5033 Teil7
• Spectroscopic Method: Integrated optical component
• Sensor: CMOS sensor

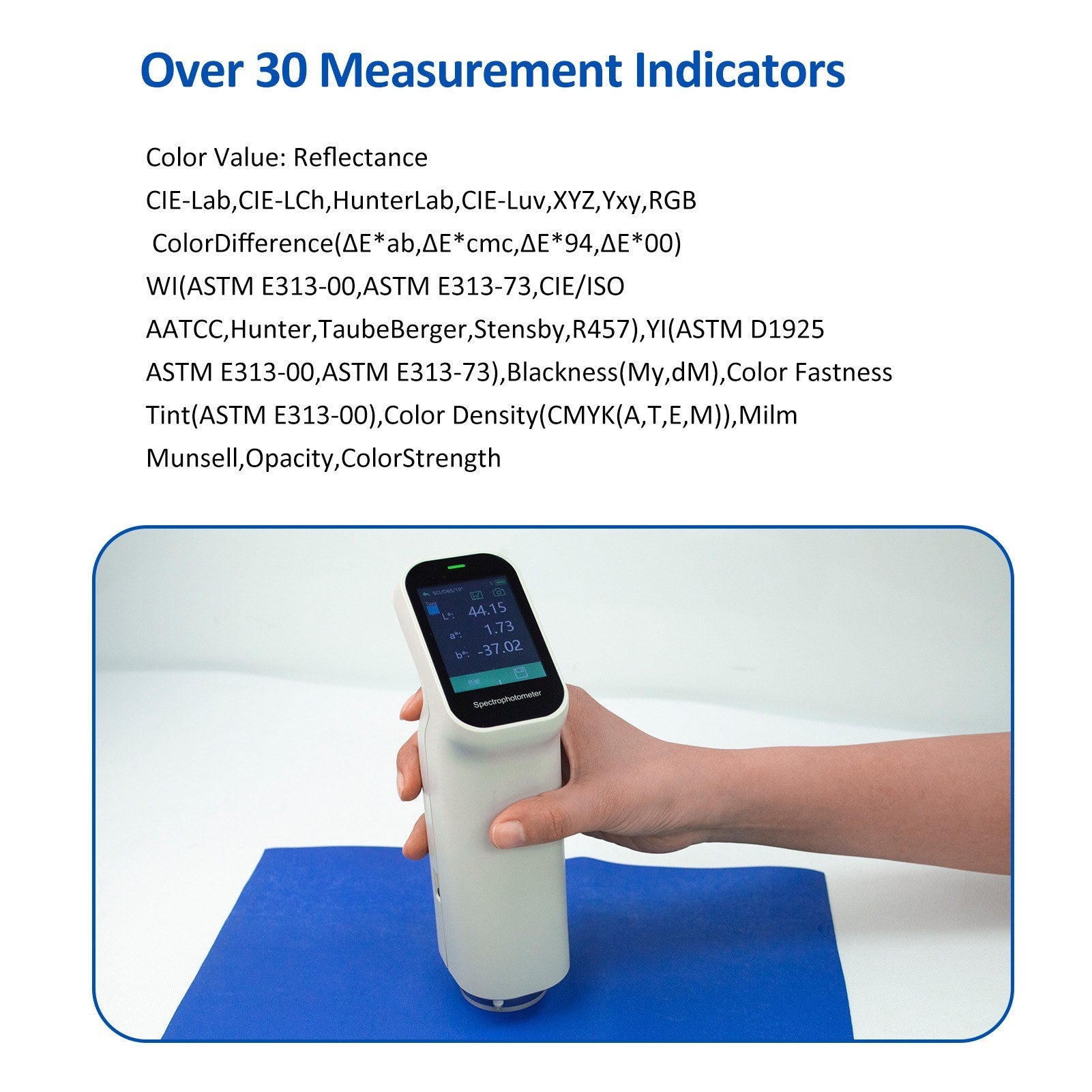

• Color Value: Reflectance, CIE-Lab, CIE-LCh, HunterLab, and more
• Integrating Sphere Diameter: 40mm
• Lighting Source: LED (Full band balanced LED light source)
• Wavelength Interval: 10nm
• Wavelength Range: 400-700nm
• Reflectance Measurement Range: 200%
• Reflectance Resolution: 0.01%
• Measurement Accuracy: 0.01
• Repeatability: ΔE*ab ≤ 0.03
• Measurement Time: About 1 second
• Interface: USB, BT

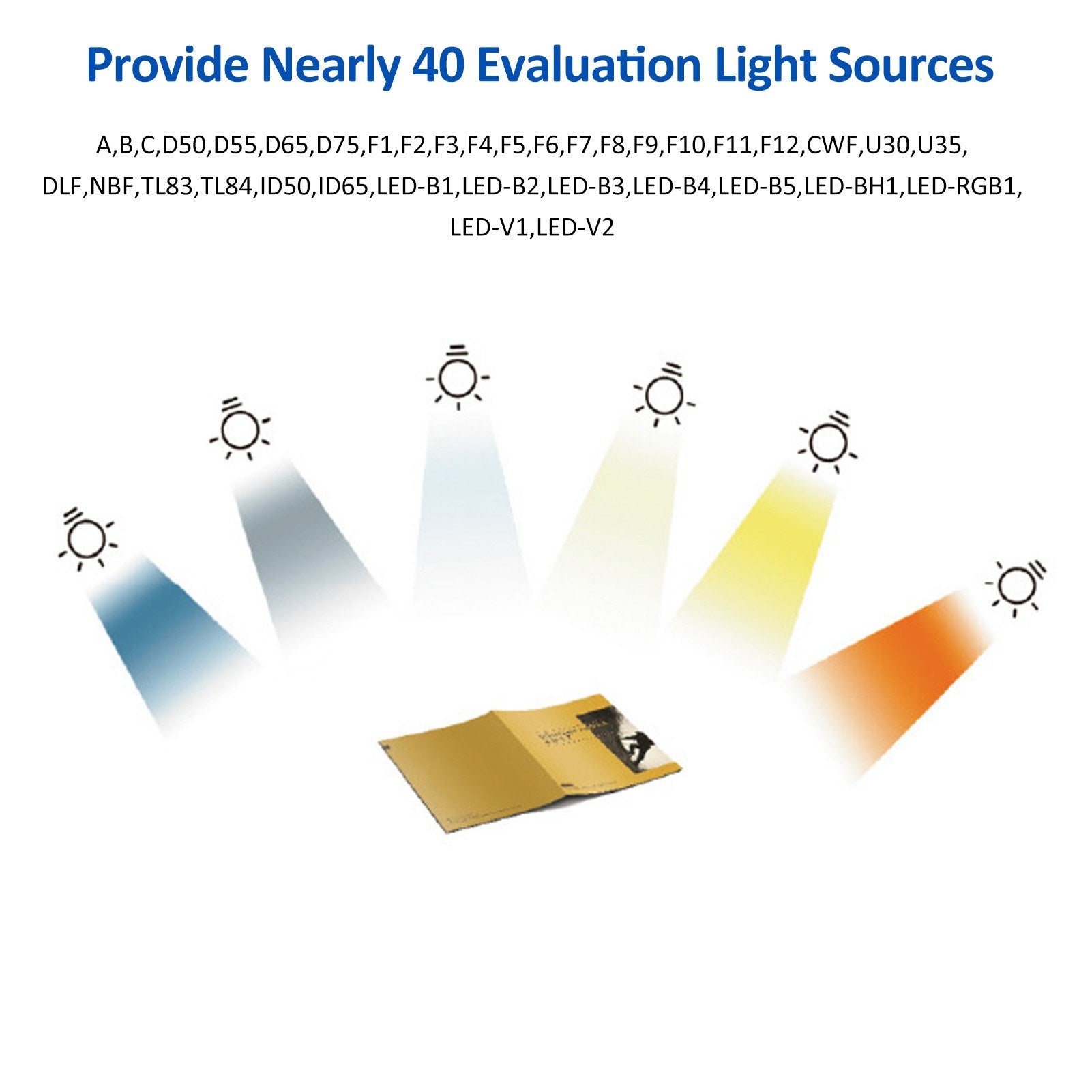

• Illuminants: Variety including A, B, C, D50, D55, D65, and more
• Observer Angle: 2°, 10°
• Screen: IPS full color screen, 2.4 inches
• Battery: Rechargeable, 8,000 continuous tests, 3.7V/3000mAh
• Light Source Lifetime: 10 years or 3 million tests
• Language: Chinese, English
• Calibration: Automatic
• Software Support: Android/iOS/Windows/WeChat applet
• Pass Metrology: Yes
• Storage: App mass storage
• Built-in Battery: 3.7V 3000mAh lithium battery

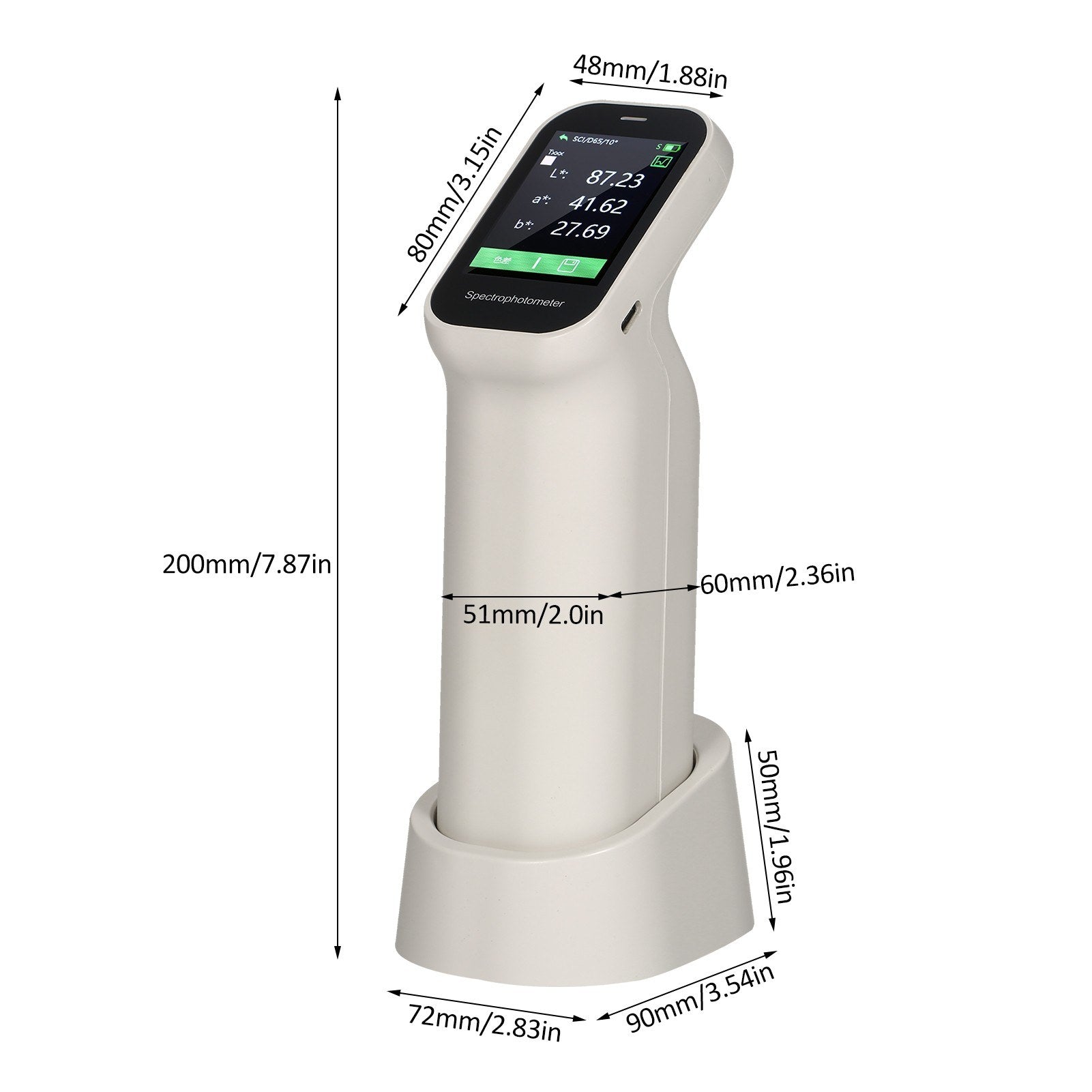

• Base Size: 90 x 72 x 50 mm / 3.54 x 2.83 x 1.97 in
• Item Size (without base): 185 x 75 x 52 mm / 7.28 x 2.95 x 2.05 in
• Item Weight (with base): 330g / 0.73 lb
• Package Weight: 861g / 1.90 lb
• Package Size: 29 x 28 x 10 cm / 11.42 x 11.02 x 3.94 in

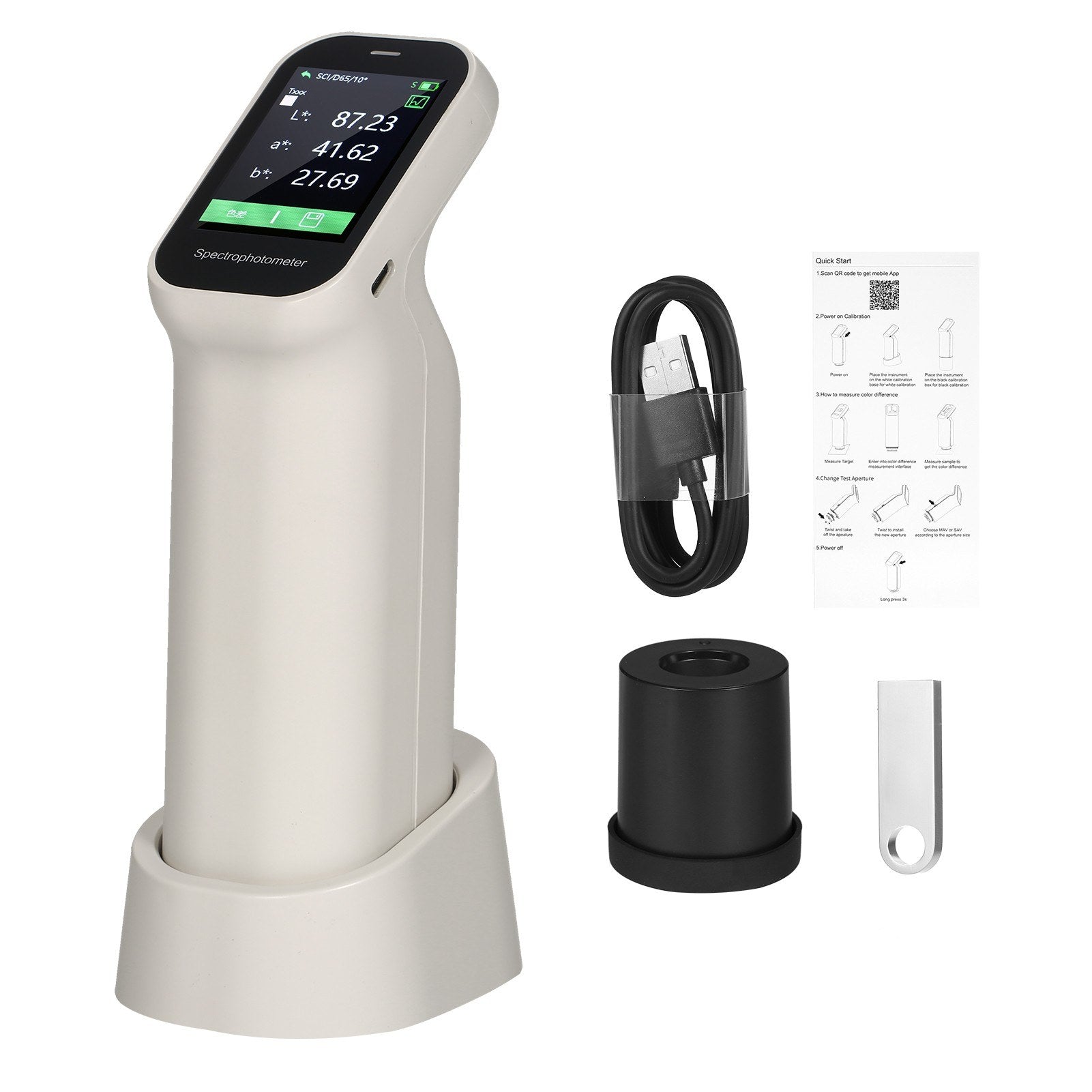

Package Includes:

• 1 x Color Meter
• 1 x Calibration Base
• 1 x Black Calibration Box
• 1 x 6mm Aperture
• 1 x U Disk
• 1 x Type-C Cable
• 1 x Manual (English)
