Bluetooth Amplifier Board ZK-1002S 200W Dual Channel, 12-24V, USB & 3.5mm Audio Inputs

Product Specifications

• Model: 1002S
• Bluetooth Version: 5.1
• Power Output: 100W + 100W (peak power)

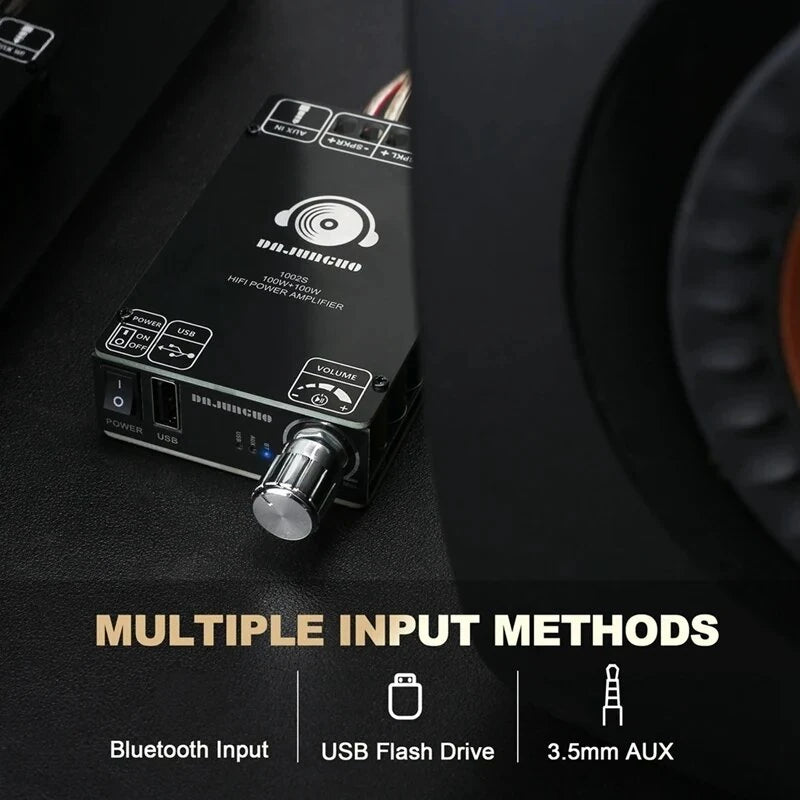

• Audio Input: Bluetooth, AUX, USB

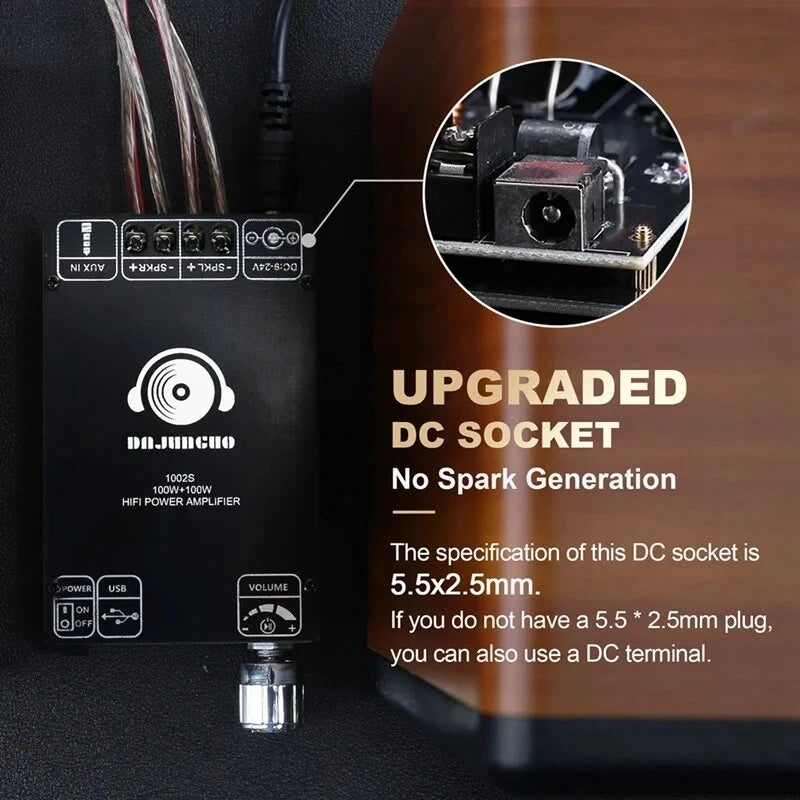

• Power Supply: DC 9-24V / 5A or above
• U Disk Format: FAT32, Less than 32GB
• Supported Music Formats: WAV, FLAC, APE, MP3
• App Control: Yes

Channel Output Power

• 2 x 10W @ 8Ω / 12V
• 2 x 30W @ 8Ω / 24V
• 2 x 20W @ 4Ω / 12V
• 2 x 50W @ 4Ω / 21V
• 2 x 70W @ 4Ω / 24V
• 2 x 100W @ 2Ω / 21V

Protection Mechanisms

• Overvoltage
• Overcurrent
• Undervoltage
• Clipping
• Short Circuit
• Overheating

Multi-Function Knob

• Single Click: Pause/Play
• Double Click: Next Song
• Triple Click: Previous Song
• Quadruple Click: Switch Input Mode (Bluetooth/AUX/USB)
• Five Clicks: Restore Factory Settings
• Long Press: Power On/Off

Product Details

• Size: 95 x 60 x 23 mm
• Colour: Black
• Material: ABS
• Type: A: Without Line / B: With Line

Package Includes

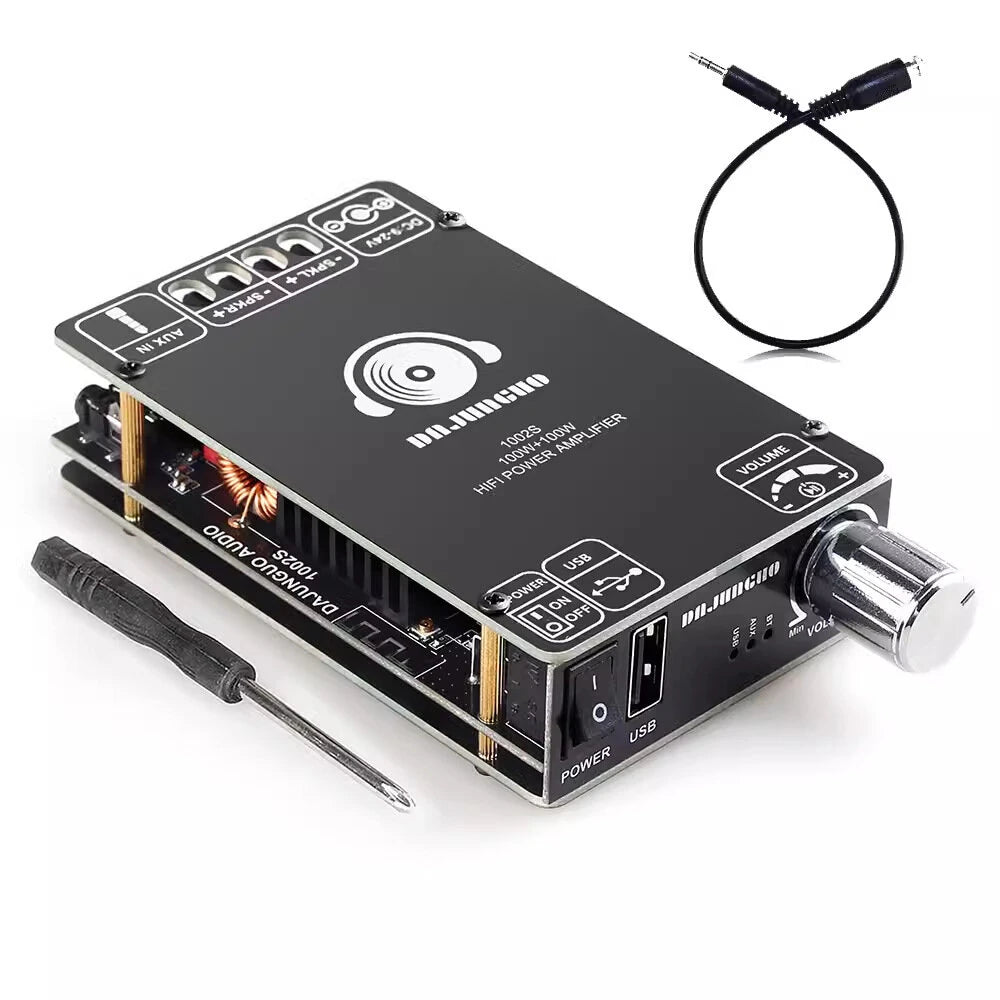

• 1 x Bluetooth Amplifier Board
