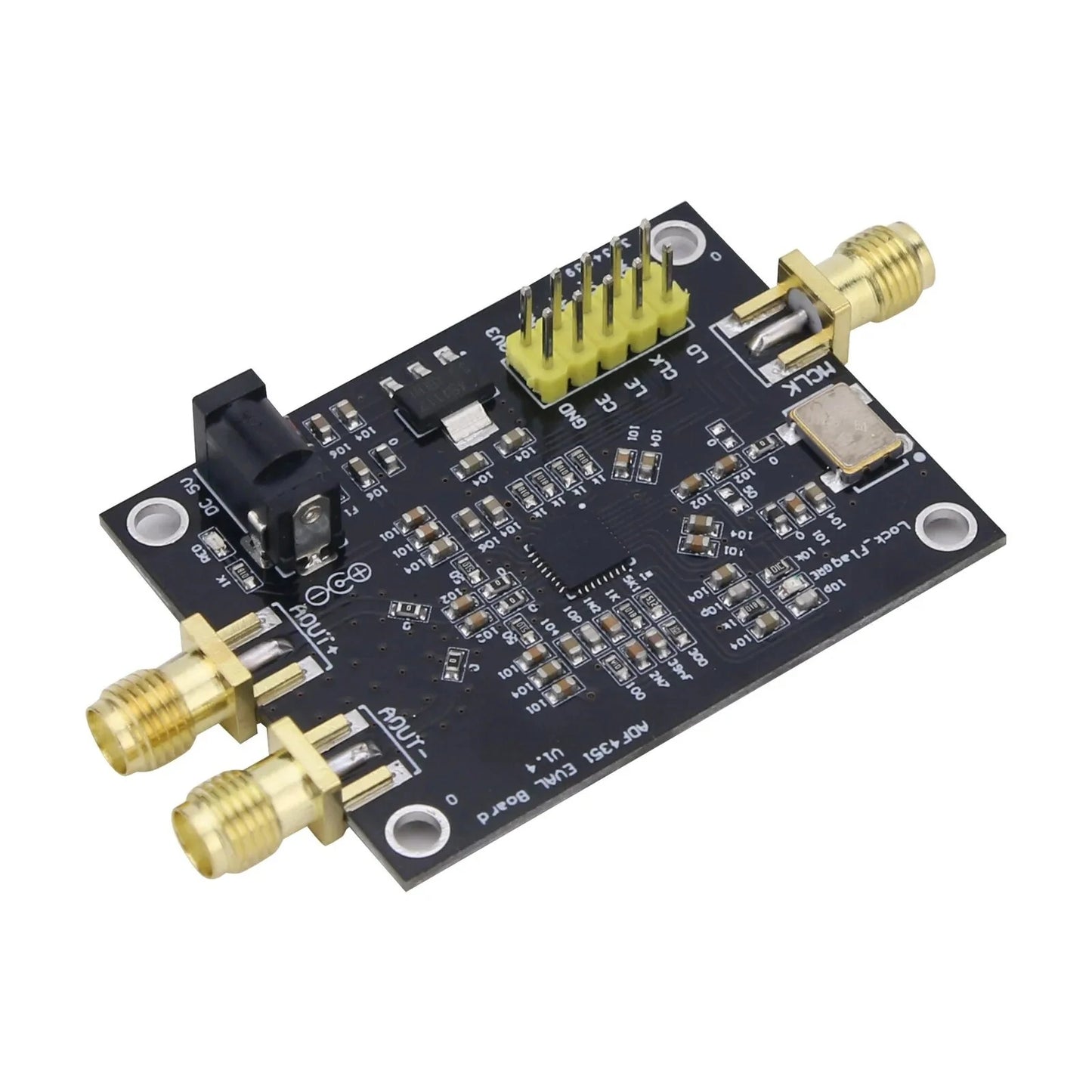

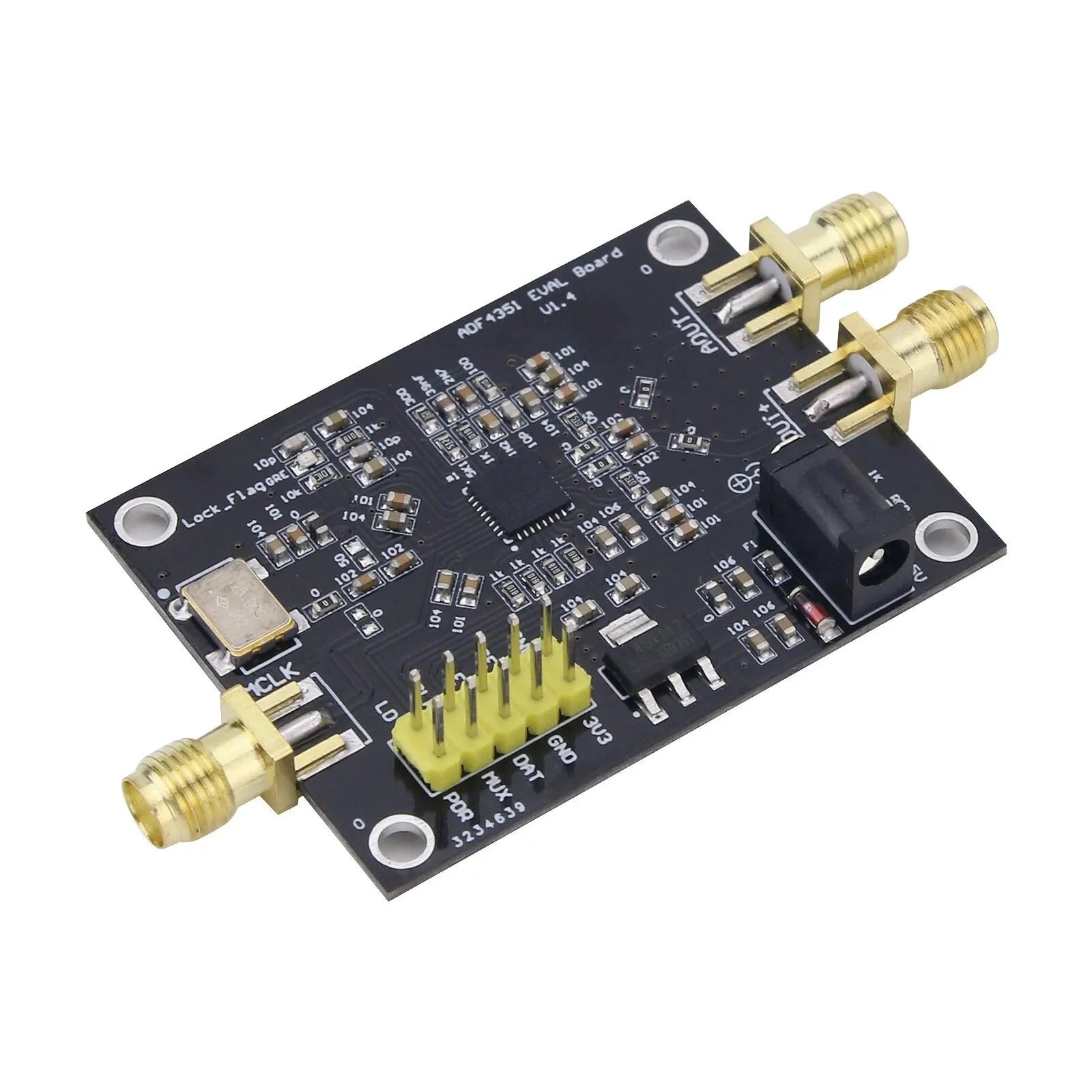

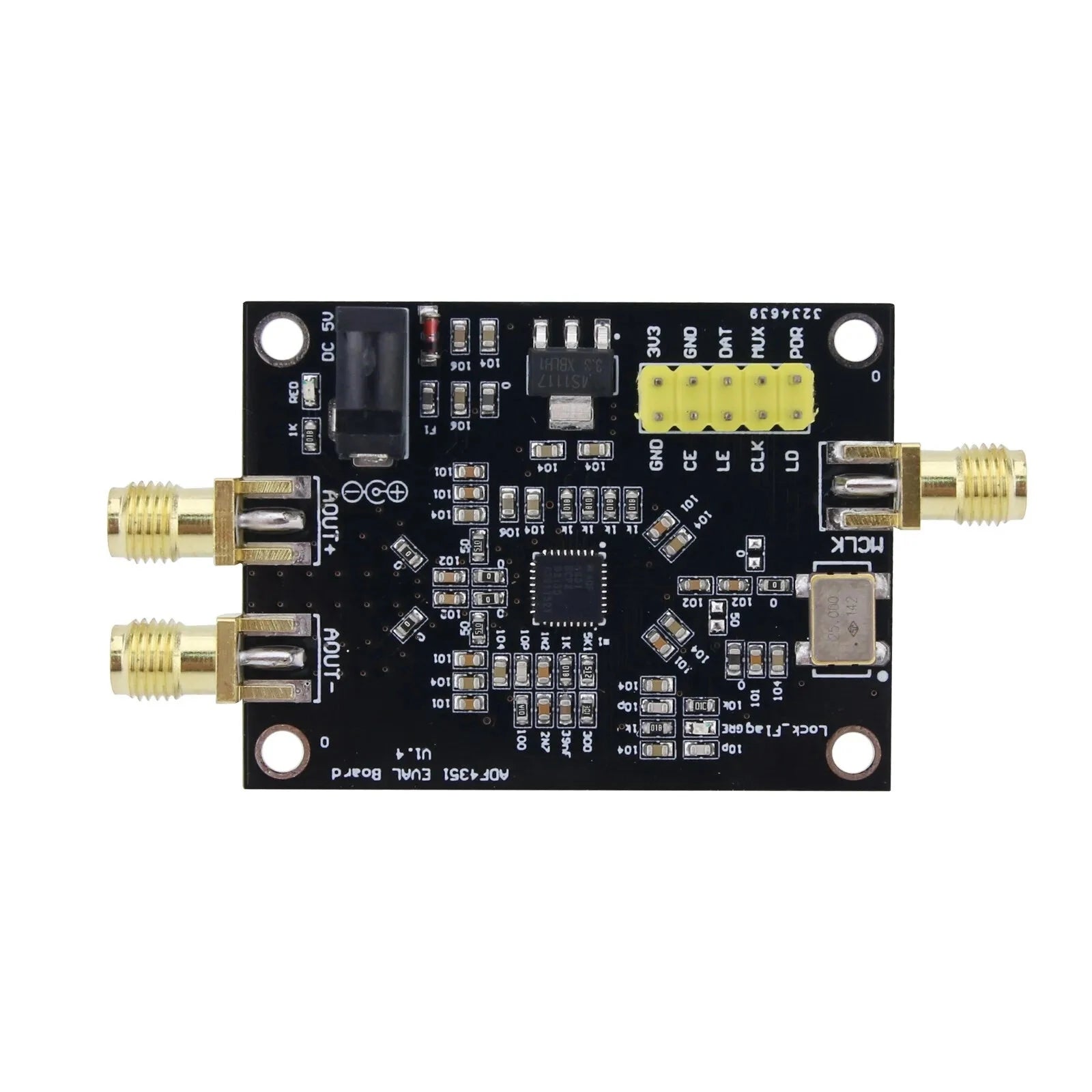

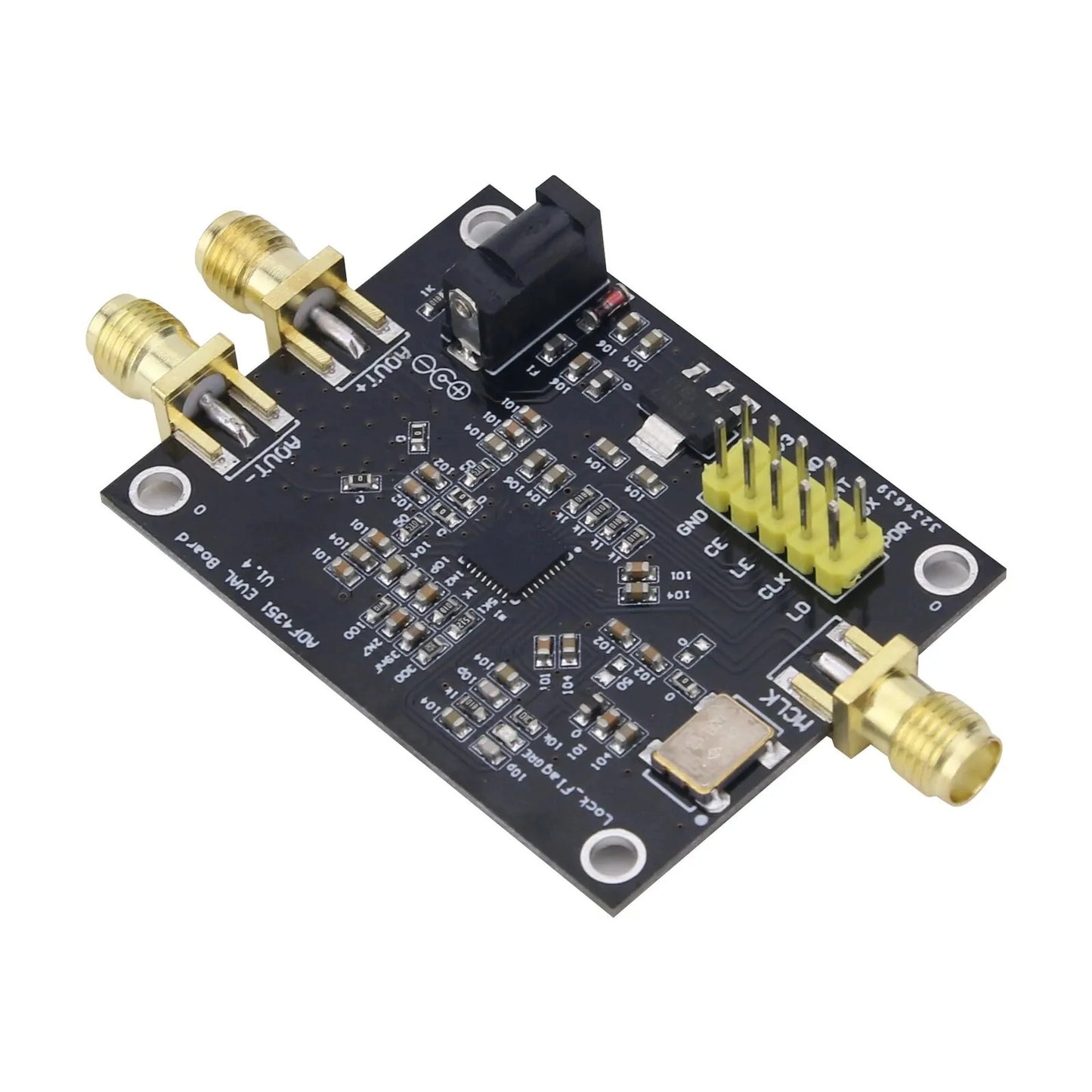

ADF4351 RF Signal Source Development Board, Phase Locked Loop, 35MHz-4.4GHz Signal Generation Module

Product Description

Explore the advanced capabilities of our RF Signal Generation Module, featuring the ADF4351 core chip, meticulously optimized for exceptional power flatness across its operational frequency band.

Key Features

• Output Frequency Range: 35MHz to 4400MHz (4.4GHz)
• Output Signal Types:
  • 2200MHz to 4400MHz: Fundamental wave (sine wave)
  • 35MHz to 2200MHz: Frequency division (square wave)
• Signal Interface: SMA female connector
• Frequency Control: Achieve point frequency, frequency sweep, and frequency hopping with a three-wire SPI control method
• Crystal Oscillator: +\-50ppm 25MHz imported active crystal oscillator included
• Includes circuit diagram and STM32 test program in PDF format
• Package Weight and Size: 30 grams, dimensions 13cm x 8.5cm x 2.5cm

Operating Instructions

• Power via 3.3V pin; ensure power supply provides at least 500mA current.
• Typical power supply: 5V

Package Contents

• 1 x 35M-4400M RF signal generation module

Additional Resources

Access the full manual and additional technical support materials online to maximize your module's capabilities.
