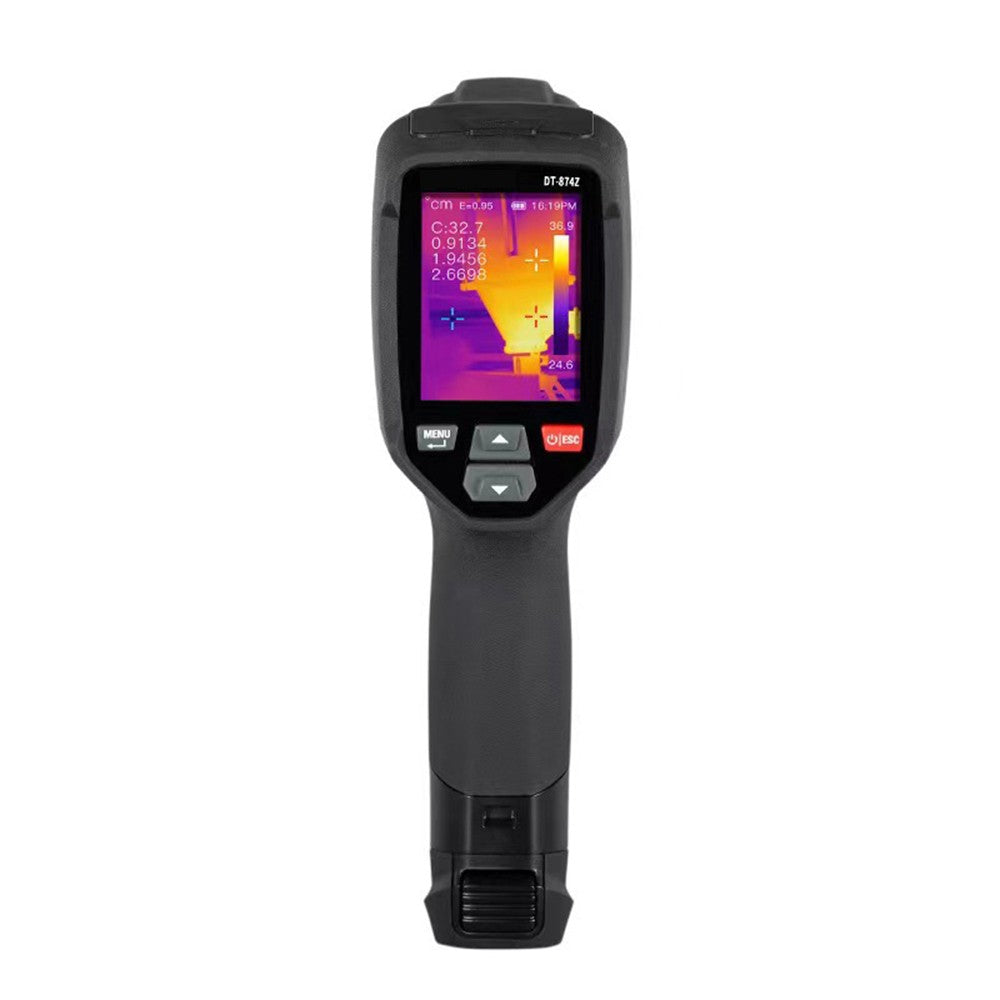

Rechargeable Handheld IR Thermal Camera 120x90, Free Focus 2.4-inch LCD, -4℉~752℉, Auto Tracking with 8GB Card & 8 Palettes, Temp Alarm

Versatile and Robust Thermal Imager

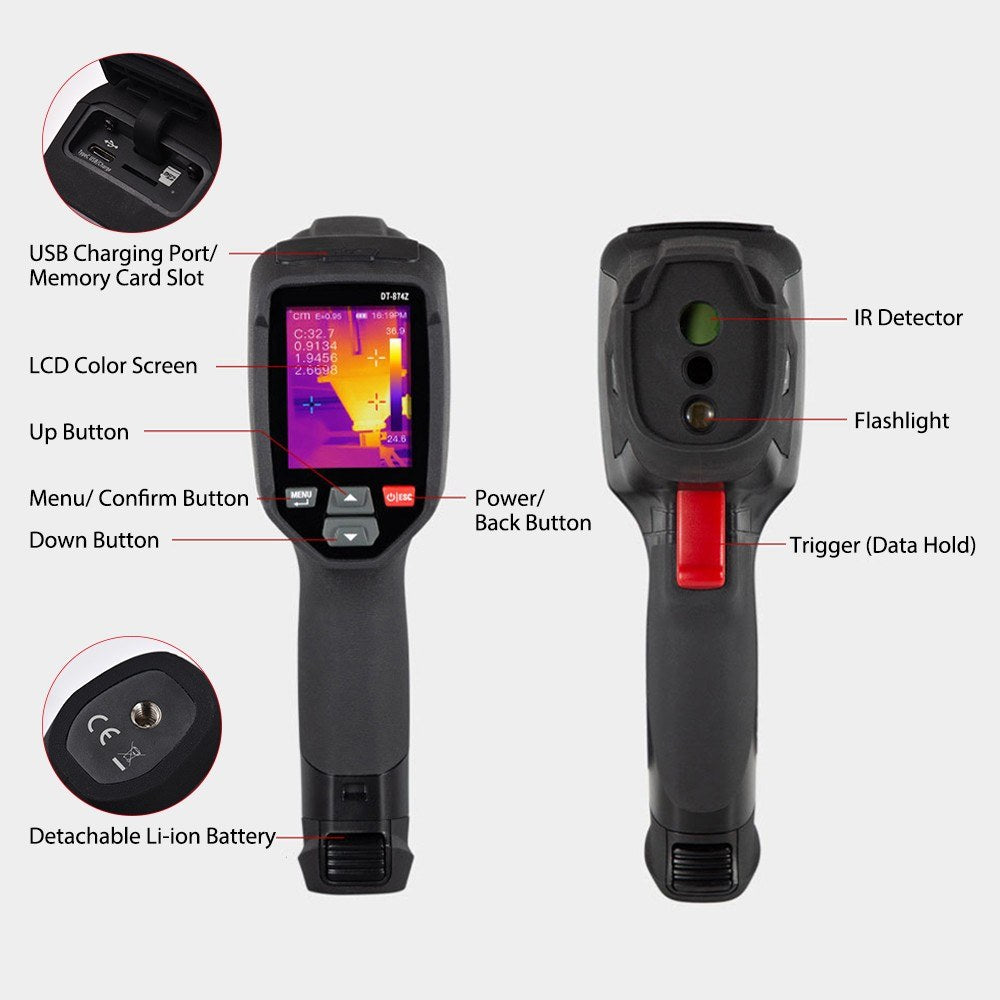

This thermal imager is a versatile, durable, and ergonomically designed device that delivers outstanding performance. It is equipped with a sensitive detector and a clear LCD screen, ensuring excellent infrared resolution and a broad range of color modes. With features like measurement calibration, temperature alarms, and image transmission, it is ready for various applications.

Key Features

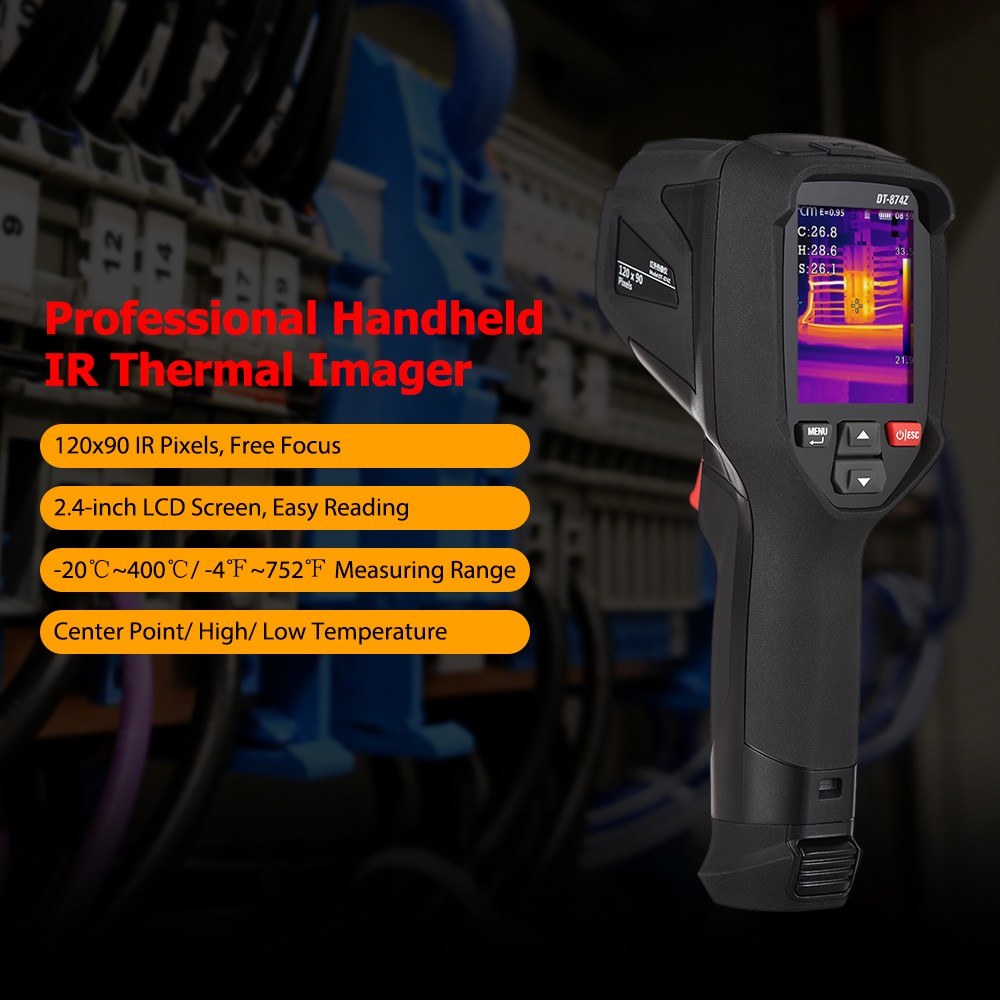

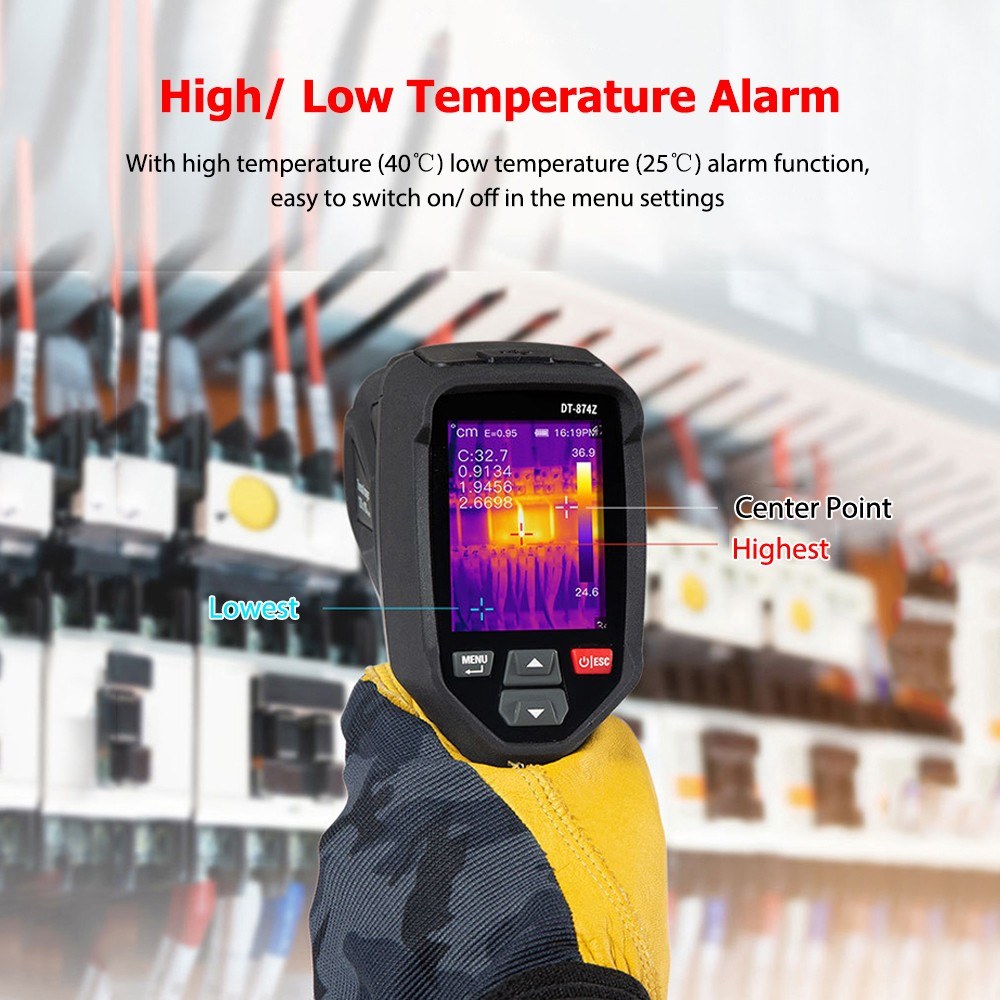

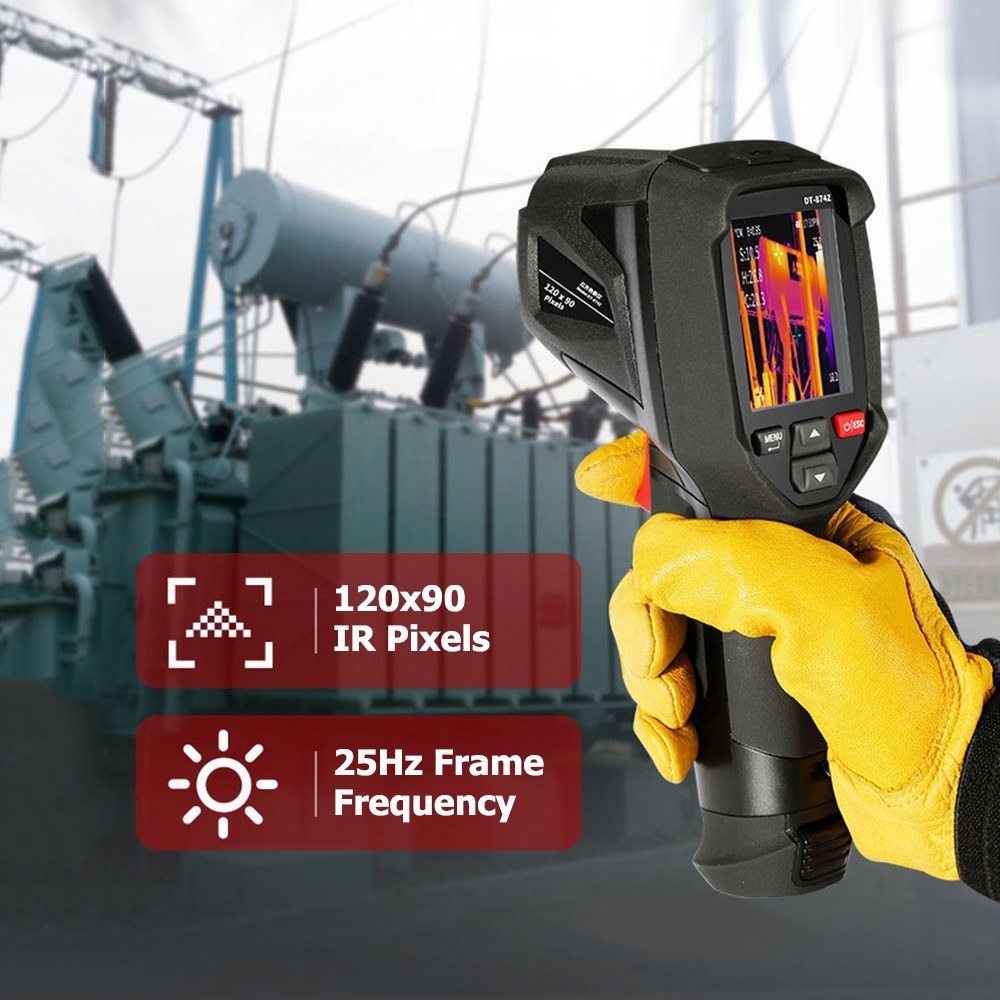

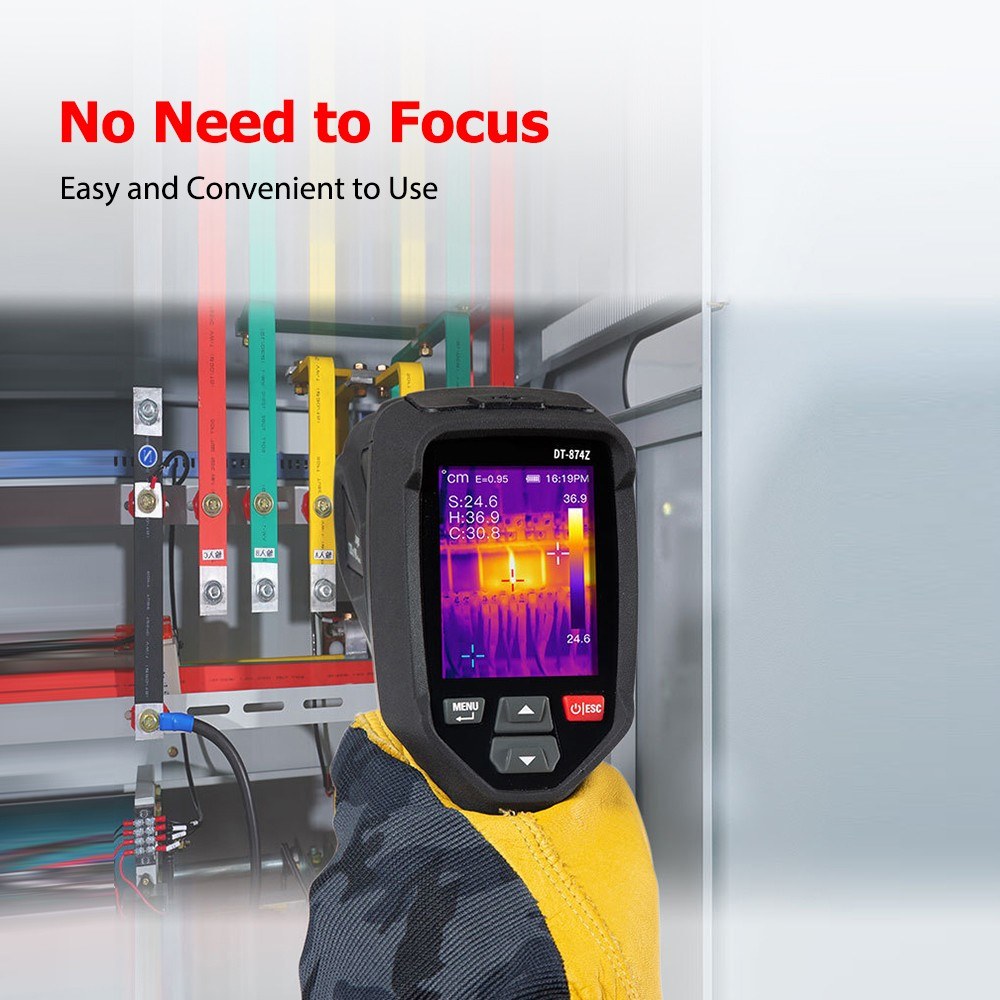

• 120x90 IR Pixels with Alarm: Effortlessly capture images with a no-focus 120x90 IR pixel sensor, covering a temperature range of -20℃ to 400℃ (-4℉ to 752℉). It offers three types of temperature measurement displays: center point, high temperature, and low temperature. The device includes both high (40℃) and low (25℃) temperature alarms, making it incredibly user-friendly. Measurement calibration options include emissivity, reflection temperature, infrared compensation, and distance settings.

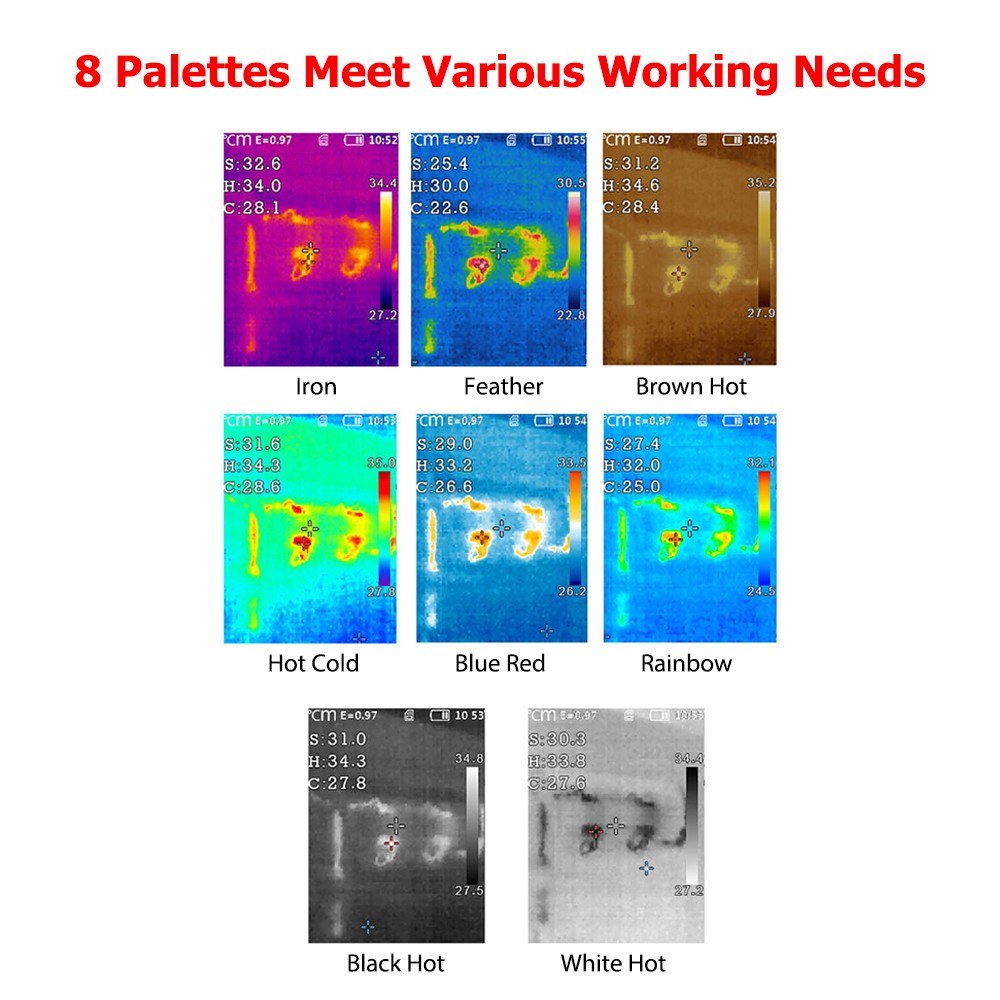

• 2.4-Inch LCD Screen & 8 Color Modes: The bright LCD screen displays data, images, and interfaces clearly, supporting temperature unit conversions between ℃, ℉, and K. Enjoy versatile color modes including Iron, Rainbow, White Hot, Black Hot, Brown Hot, Blue Red, Hot Cold, and Feather.

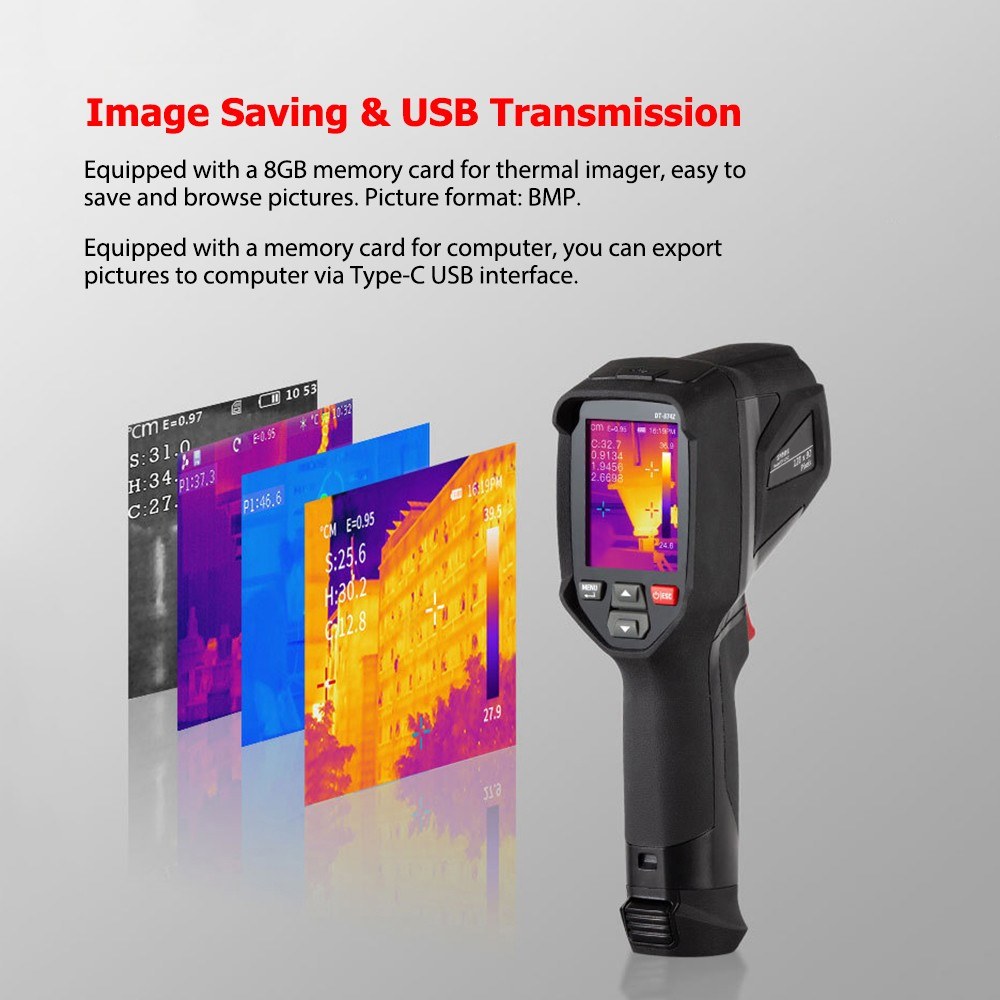

• Image Saving & USB Transmission: Comes with an 8GB memory card, offering easy storage and access to pictures in BMP format. Images can be seamlessly exported to a computer using a Type-C USB interface.
• Rechargeable Battery & Auto Shutdown: Powered by a detachable 2600mAh Li-ion battery, it offers prolonged operation time and quick recharging via Type-C USB, compatible with power adapters, laptops, and power banks. The auto-shutdown feature preserves battery life with adjustable brightness levels.
• Premium Quality & Wide Application: Constructed from high-quality materials for an ergonomic design, featuring a wear-resistant, durable shell, and a non-slip grip. With a 2-meter drop resistance and IP54 waterproof and dustproof protection, it is suitable for a variety of uses including home inspections, firefighting, agriculture, electronics manufacturing, traffic analysis, archaeology, and more.

Note: Sizes and colors may vary slightly due to manual measurement and lighting conditions. Thank you for your understanding.

Specifications

• Color: Black
• Material: ABS
• Screen: 2.4-inch LCD, 240x320 Pixels
• IR Resolution: 120x90 Pixels
• FOV/ Minimum Focusing Distance: 50°x37°/ 0.5m
• Sensitivity: ＜0.06℃@+30℃ (+86℉)/ 60mK
• Image Frame Frequency: 25Hz
• IFOV: 7.6mrad
• Wavelength Range: 7.5μm~14μm

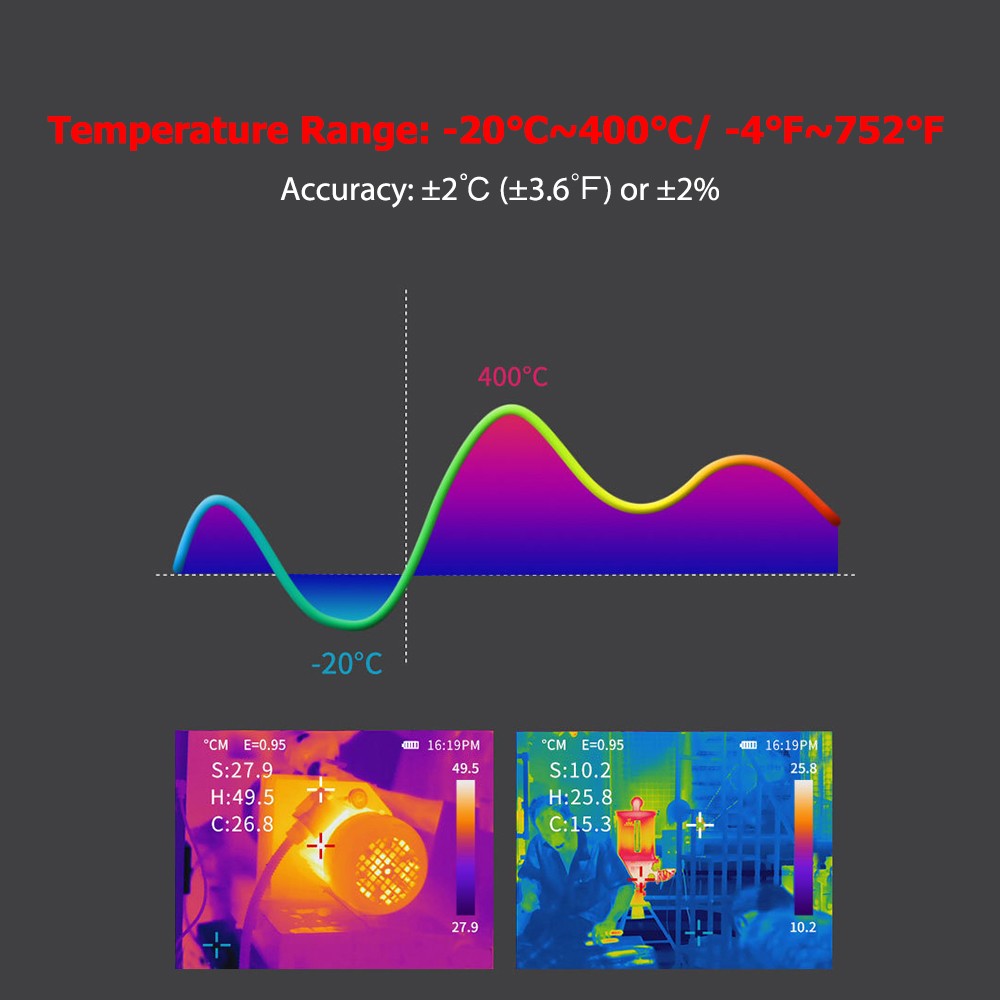

• Temperature Range: -20℃~400℃/ -4℉~752℉
• Accuracy: ±2℃ (±3.6℉) or ±2%
• Best Measuring Distance: 50cm

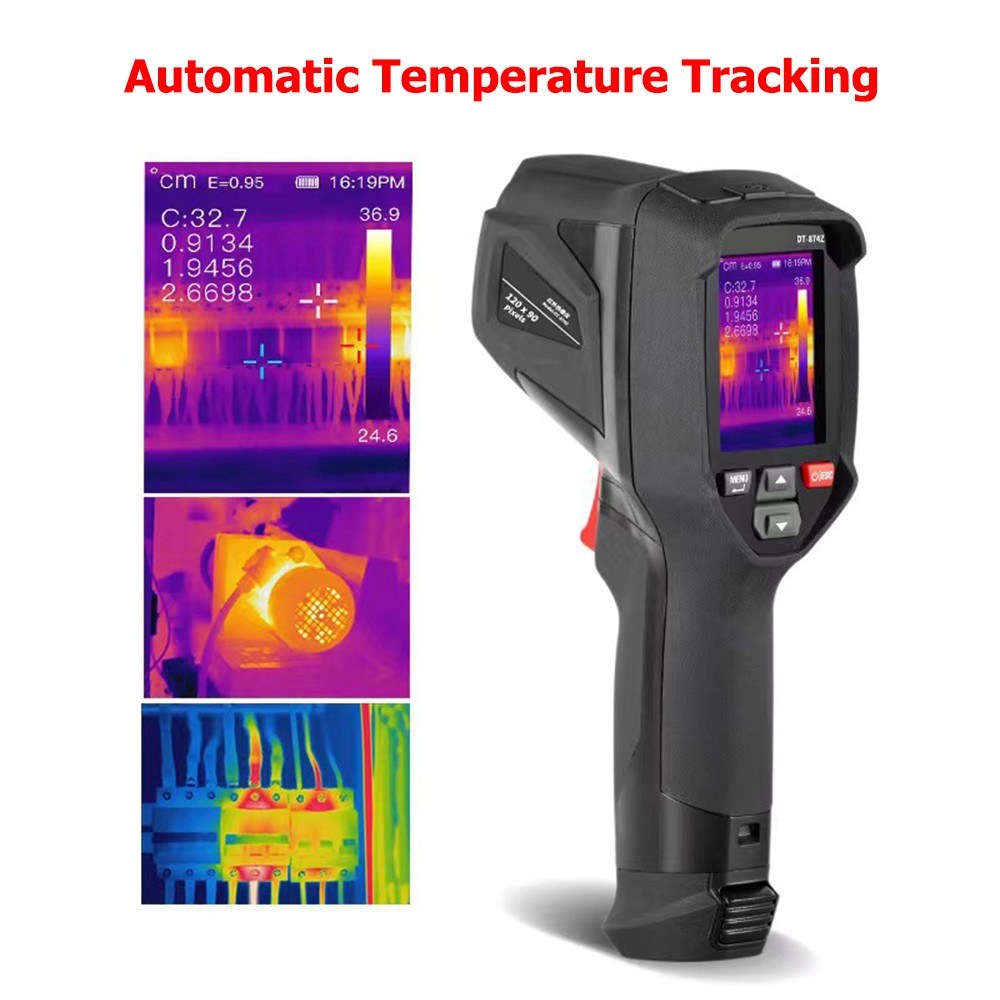

• Measurement: Center Point/ High and Low Temperature

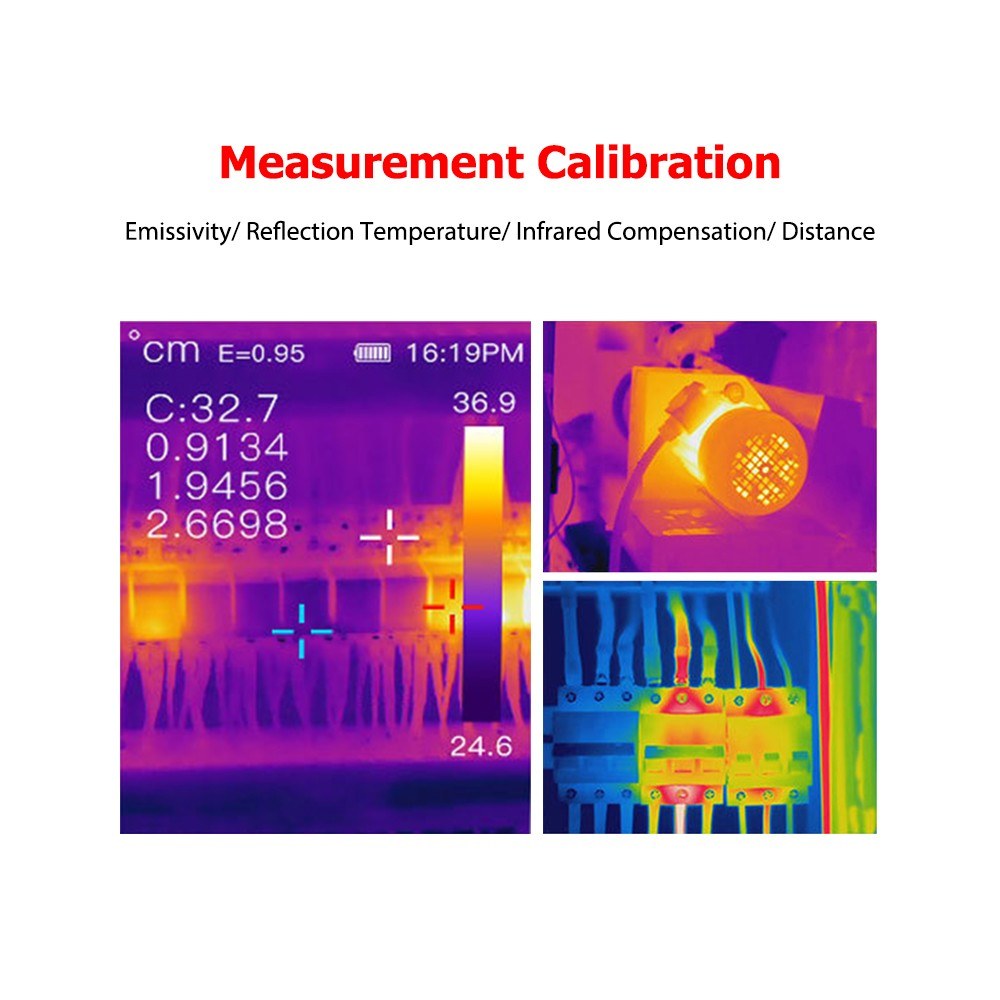

• Measurement Calibration: Emissivity/ Reflection Temperature/ Infrared Compensation/ Distance
• High/ Low Temperature Alarm: Yes
• Support Language: Simplified Chinese, Traditional Chinese, English, German, Spanish, Dutch, Turkish, Portuguese
• Picture Format: BMP (＞6000 Pictures)
• Date/ Time Display: Yes
• Auto Shutdown: Yes
• Brightness: Low/ Medium/ High
• Flashlight: Yes
• Detachable Battery: 3.7V 2600mAh Li-ion Battery
• Charging/ Data Transmission Port: Type-C USB Port
• Protection Grade: IP54

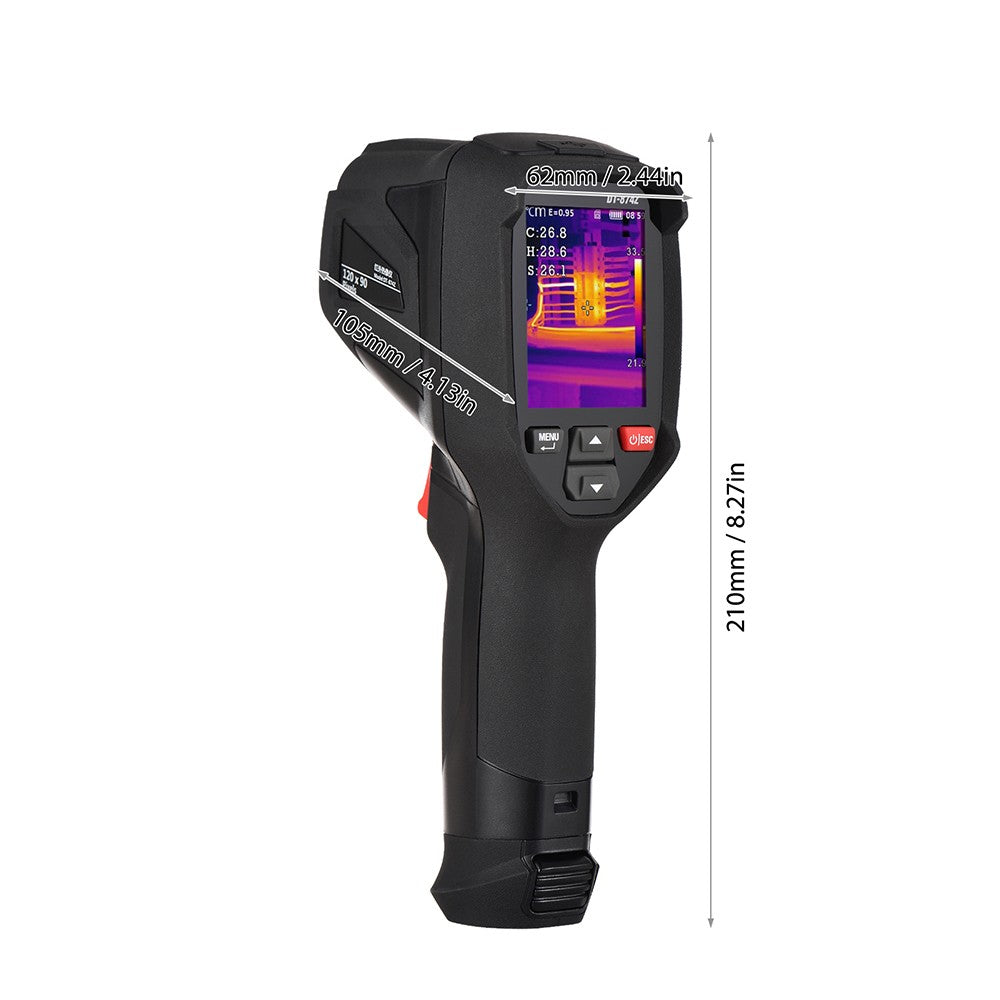

• Item Size: 210 * 105 * 62mm / 8.27 * 4.13 * 2.44in
• Item Weight: 337g / 11.87oz
• Package Size: 29.5 * 17 * 10.5cm / 11.61 * 6.69 * 4.13in
• Package Weight: 617g / 21.76oz

Package List

• 1 x Handheld Thermal Imager
• 1 x Li-ion Battery
• 1 x USB Cable (Type-C)
• 1 x 8GB Memory Card
• 1 x PC Memory Card
• 1 x User Manual (English)
