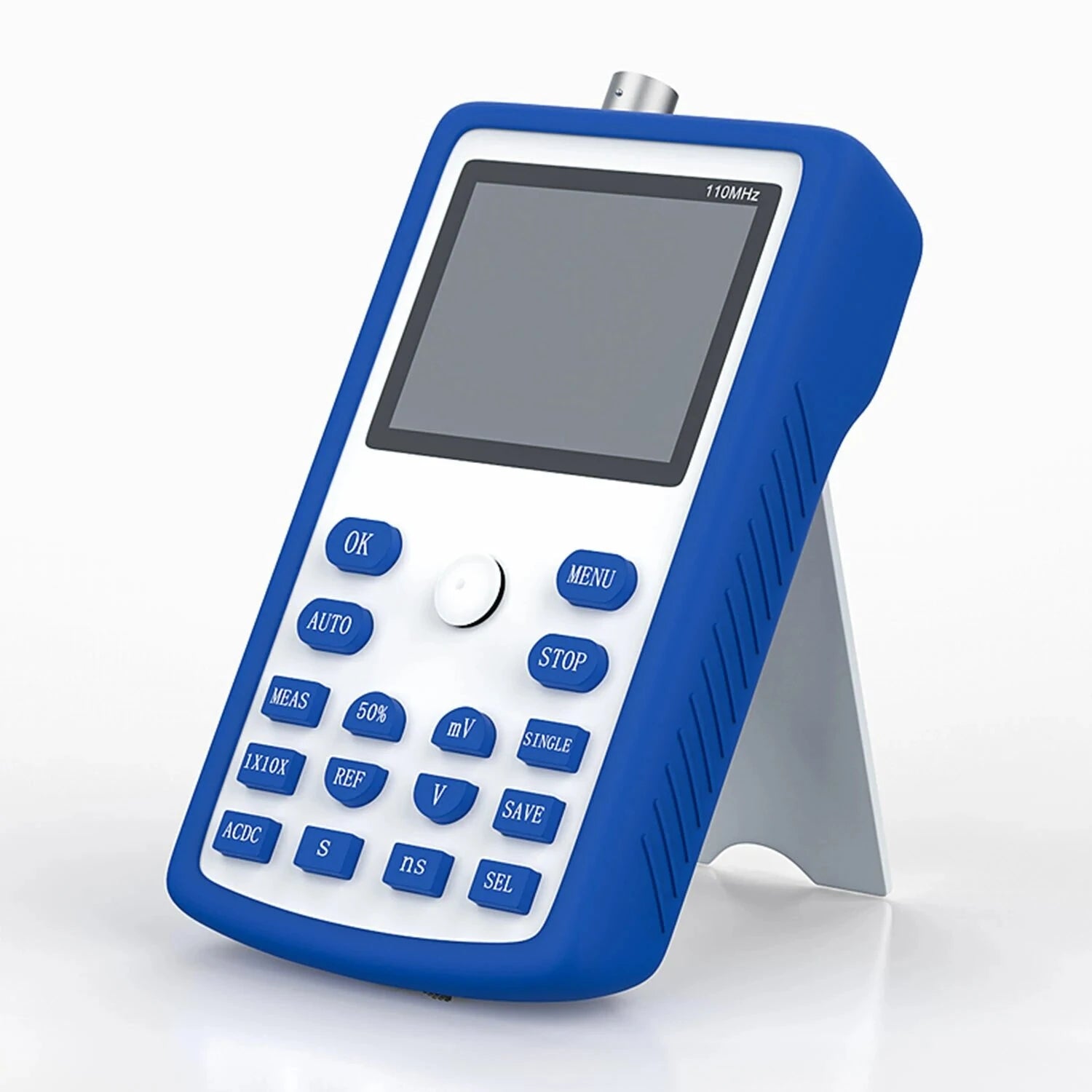

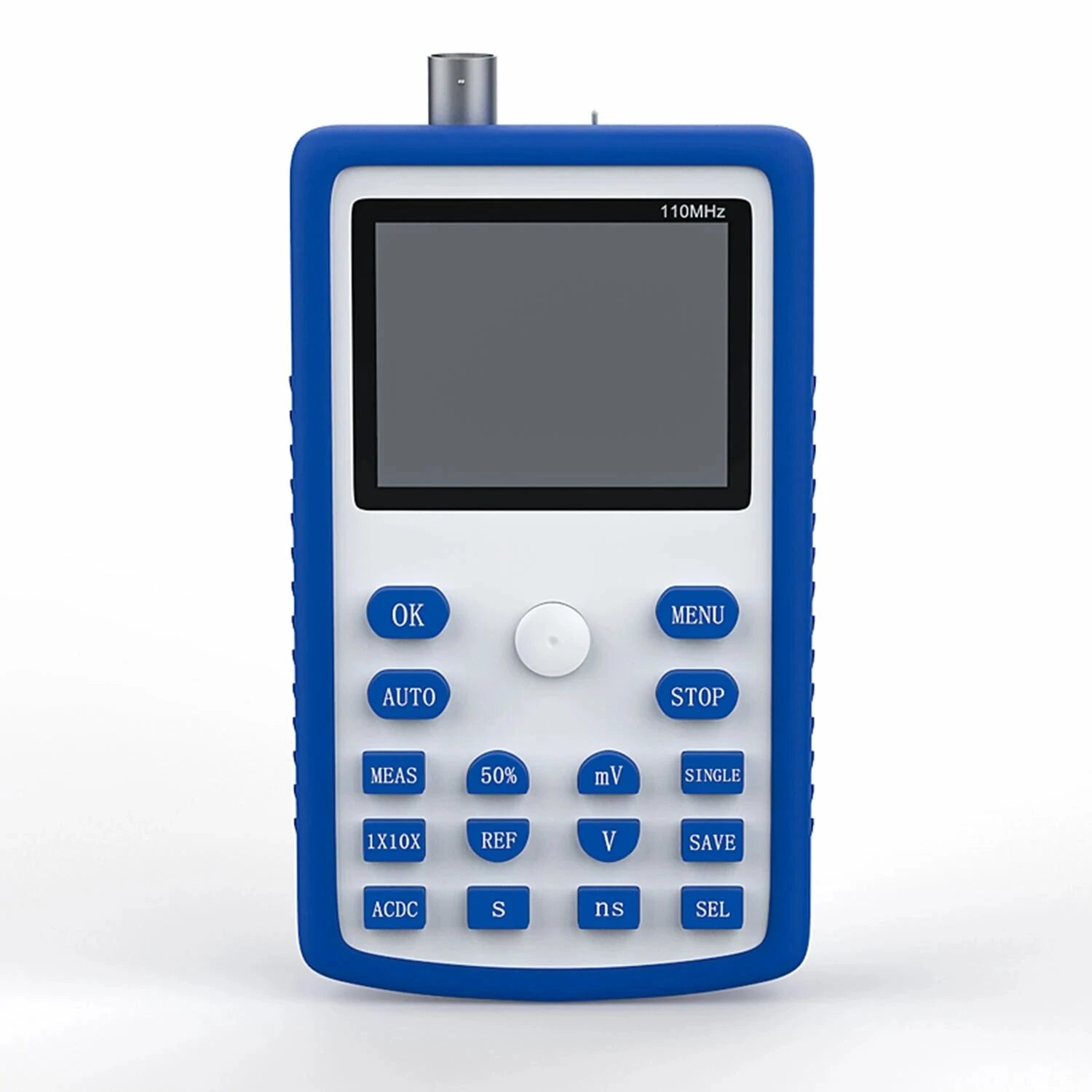

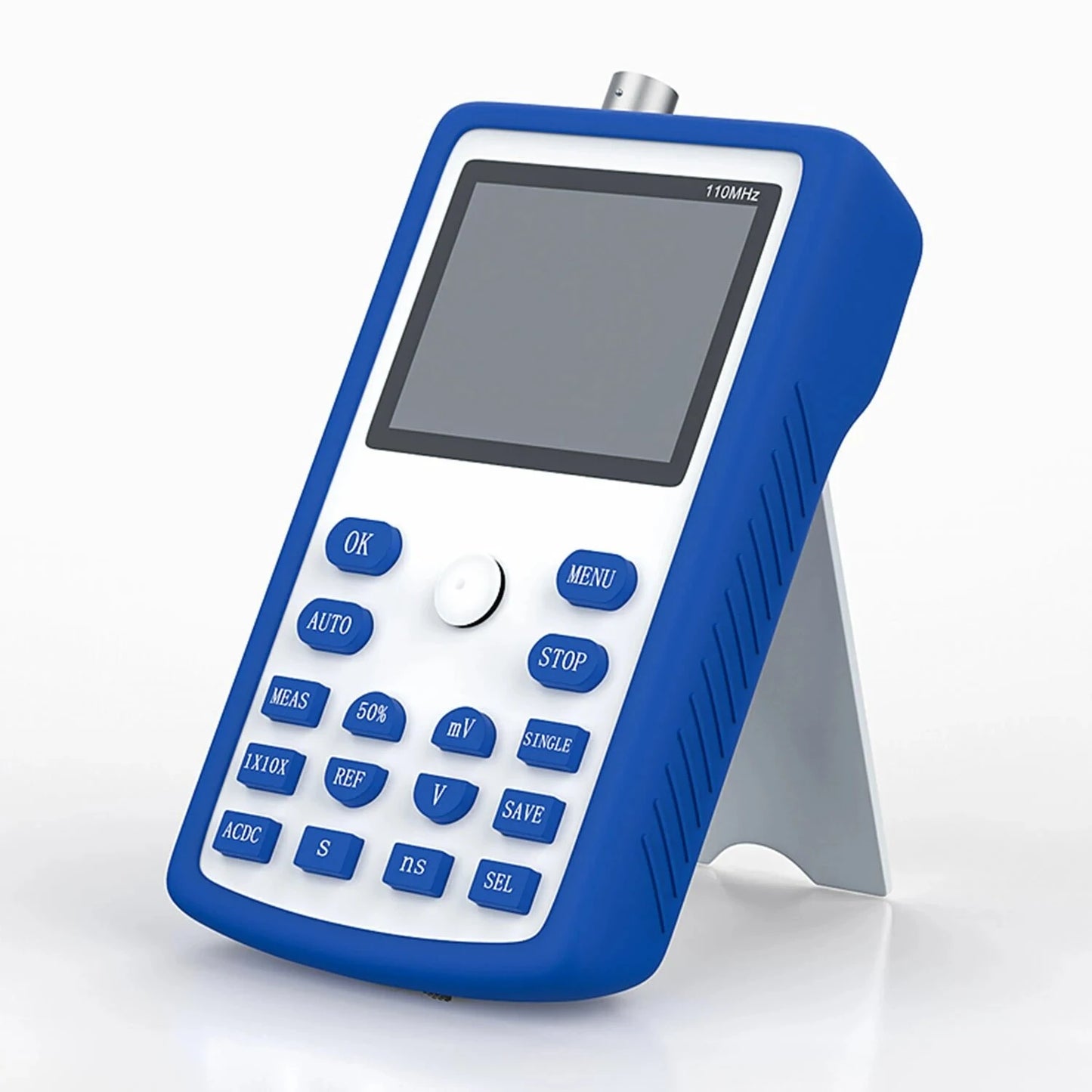

FNIRSI-1C15 Handheld Oscilloscope

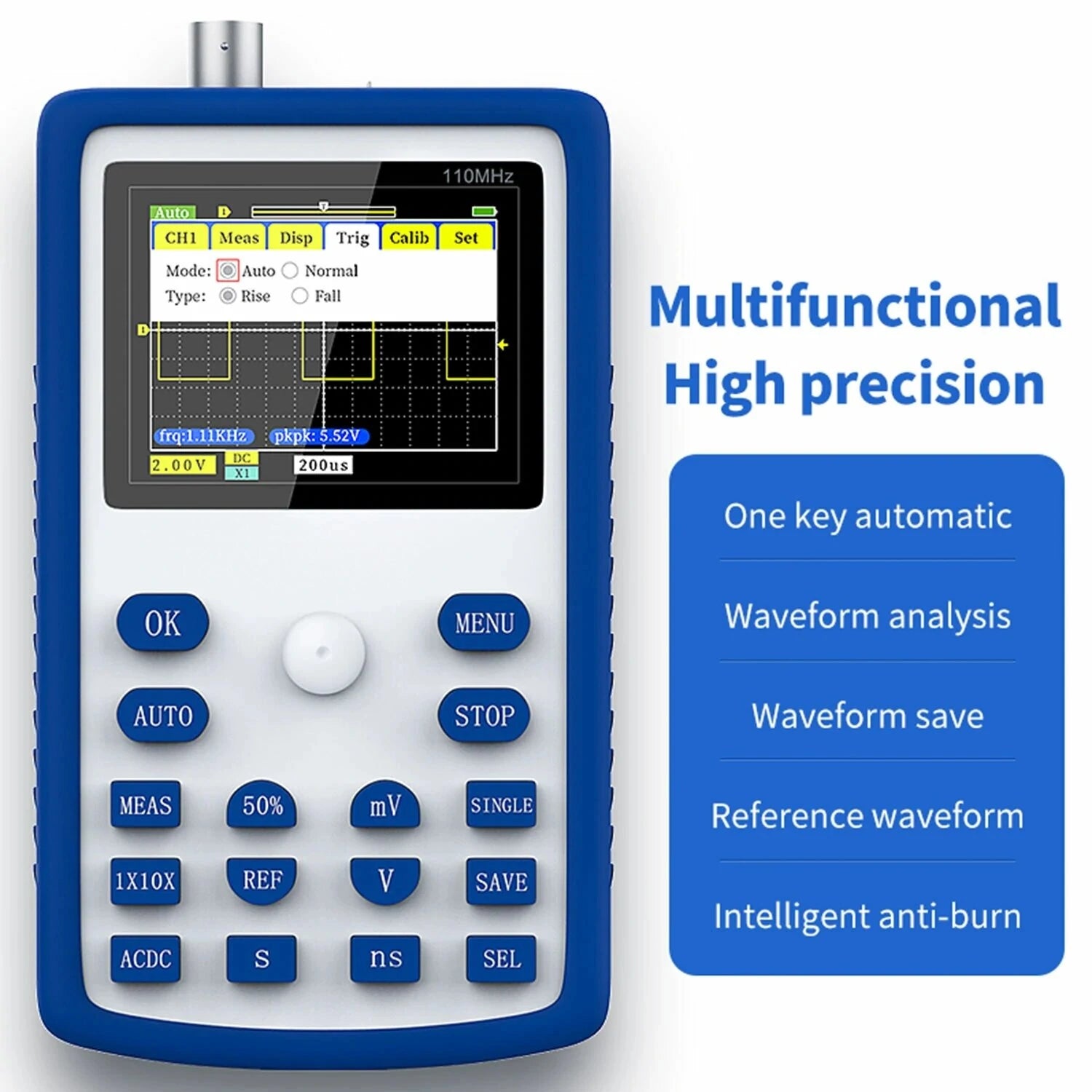

Discover the FNIRSI-1C15, a new sophisticated and budget-friendly handheld oscilloscope from FNIRSI. It delivers a real-time sampling rate of 500M and an analog bandwidth of 110MHz. This oscilloscope not only retains the functionalities of conventional models but also introduces a one-key quick auto function for easy waveform capture akin to a desktop computer.

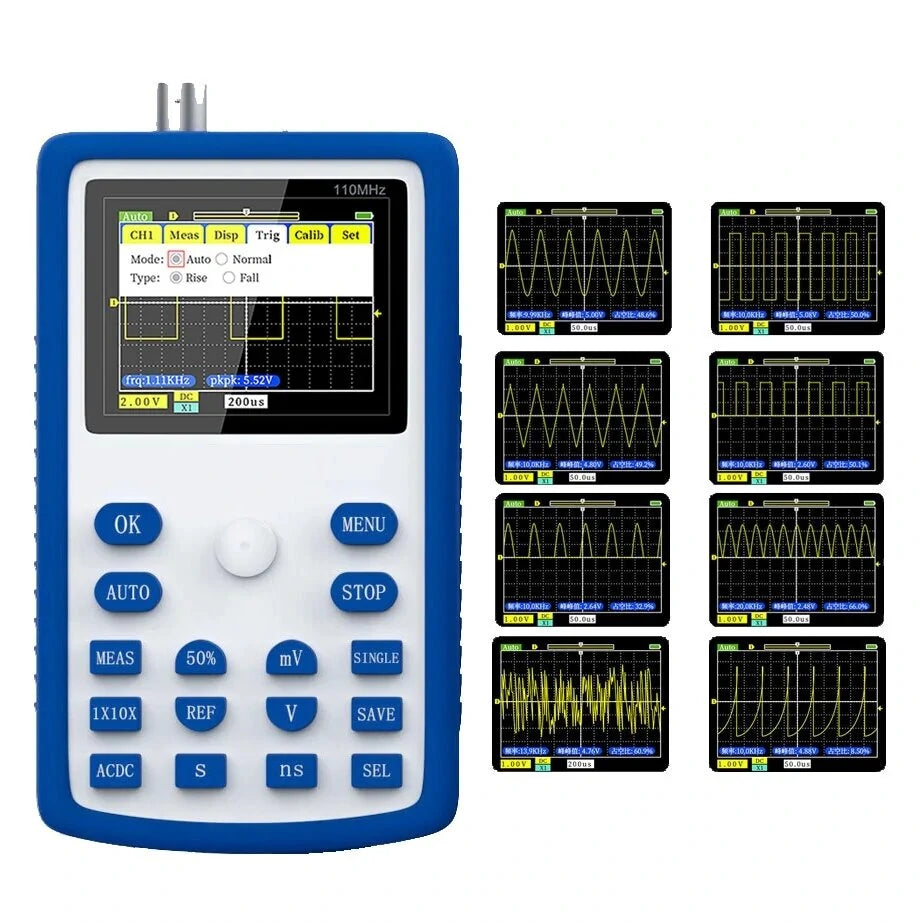

The FNIRSI-1C15 features a 1k Hz self-test square wave and an enhanced storage depth of 12kpts. With the ability to pause and save previous frame waveforms on-screen, you can conveniently compare them with live updates. Additionally, enjoy the ease of detecting and recording waveforms thanks to the afterglow and scroll modes.

Powering this device is a robust 3000mAH rechargeable battery, ensuring continuous operation for over 10 hours on a full charge. The durable body is protected with a high-quality silicone sleeve that offers anti-slip and anti-drop properties. Simplify your operations with the inclusion of a joystick replacing traditional arrow keys.

Product Specifications

• Model: FNIRSI-1C15
• Number of Channels: 1
• Screen Size: 2.4 inches
• Screen Resolution: 320x240
• Analog Bandwidth: 110M
• Sampling Rate: 500M
• 1k Hz Self-Checking Square Wave: Stand by
• Storage Depth: 12 Kpts
• Time Base Range: 5ns-10s
• Vertical Sensitivity: 20mv/div - 100v/div
• Trigger Mode: Auto/Normal
• Trigger Type: Rising/Falling
• Display Mode: YT/Scroll
• Afterglow Time: None/1s/∞
• Charging Method: 5V/800mA
• Voltage Measurement Range: ±40v (x1 file); ±400v (x10 file)
• Channel Coupling: AC-DC
• One-Button Automatic: Stand by
• Waveform Measurement: 14 types
• Measurement Accuracy: ±2%
• Reference Waveform: Stand by
• Waveform Save: Stand by
• Frequency Accuracy: ±0.01%

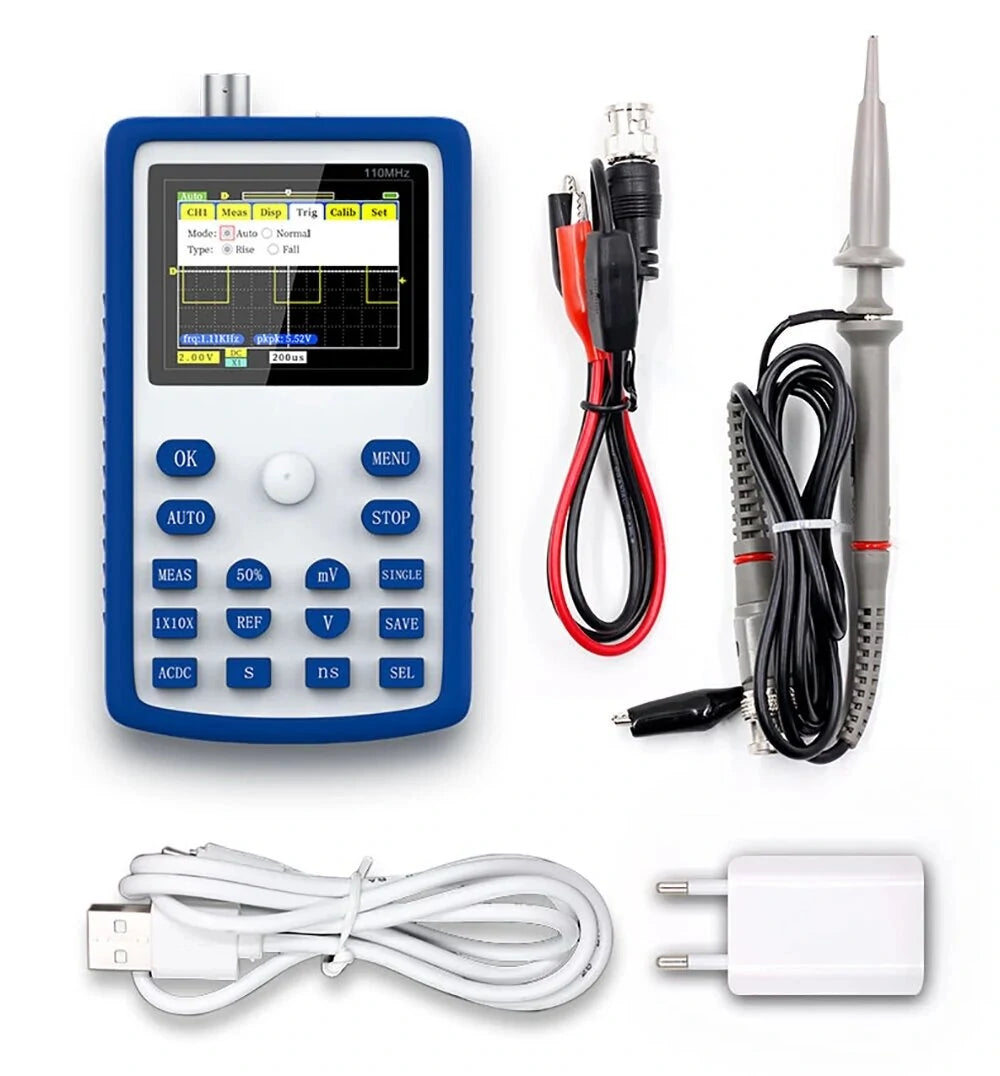

Package Includes

• 1 x Digital Oscilloscope
• 1 x Alligator Clip Probe
• 1 x Data Cable
• 1 x Charger
