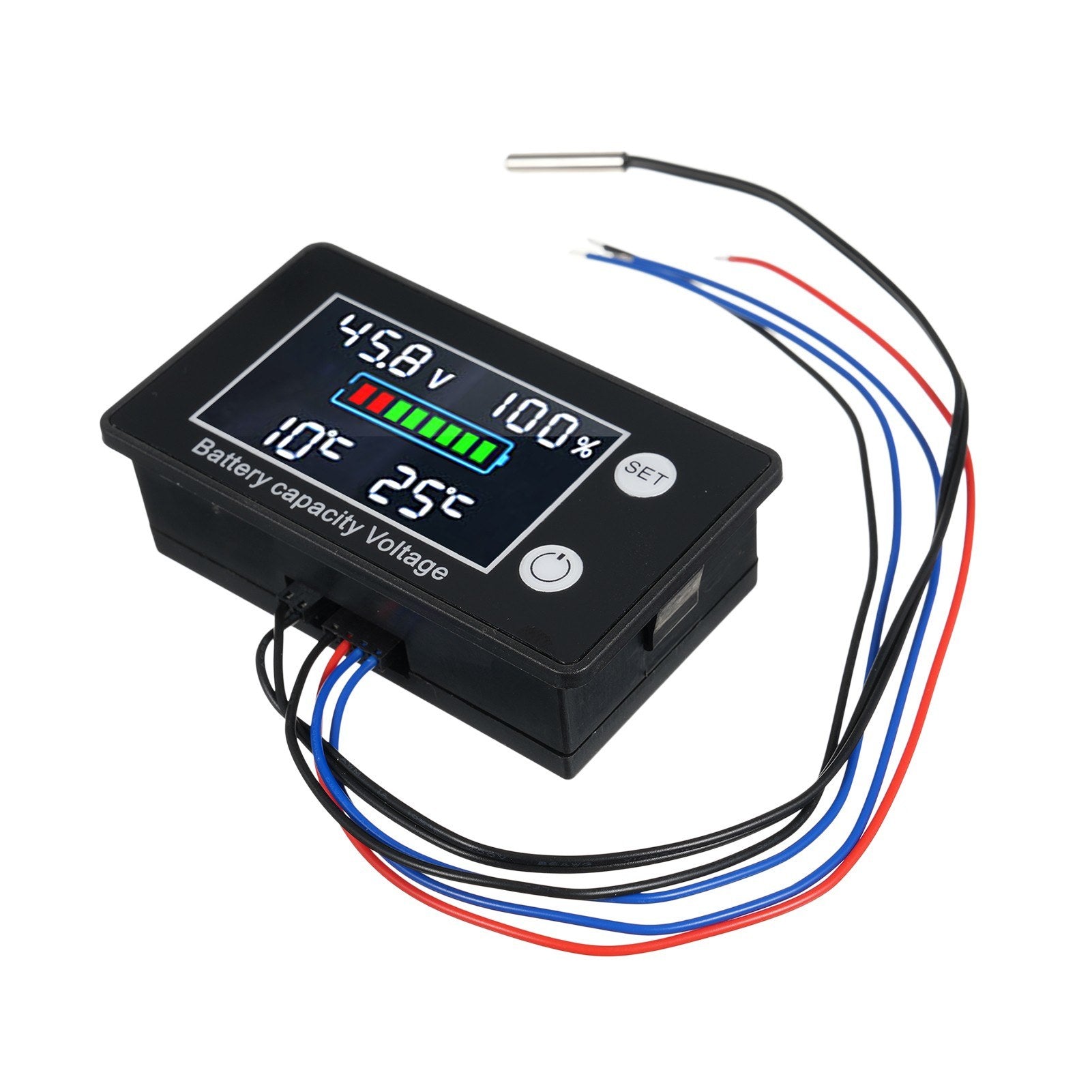

Digital Battery Capacity & Voltage Tester 9V-100V with LCD Backlight for Lithium, Lead-acid, and LiFePO4 Batteries

Product Features

• Fireproof and Flame Retardant PVC Shell: Features a thickened shell with excellent fire-resistant, heat-resistant, and wear-resistant properties for a long service life.

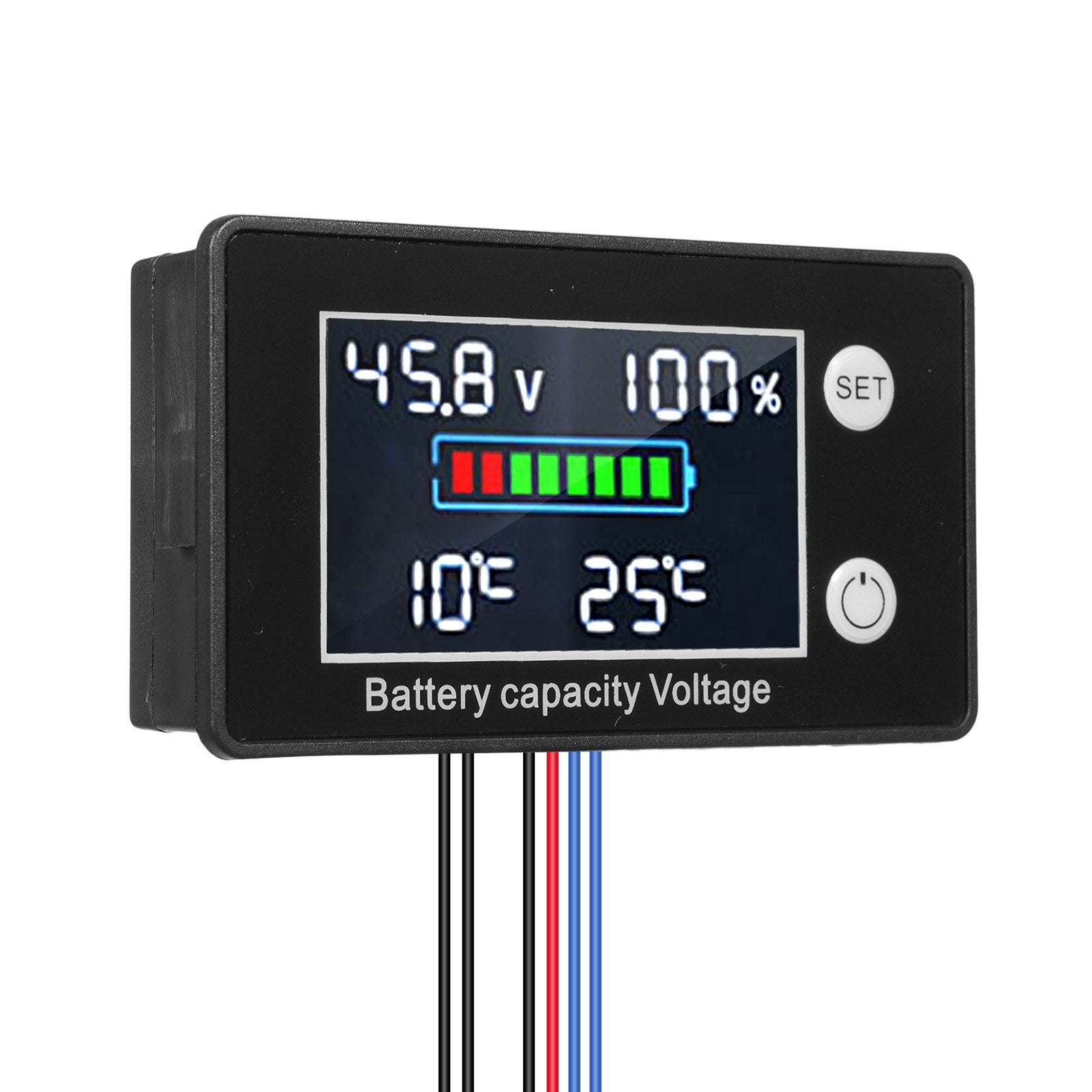

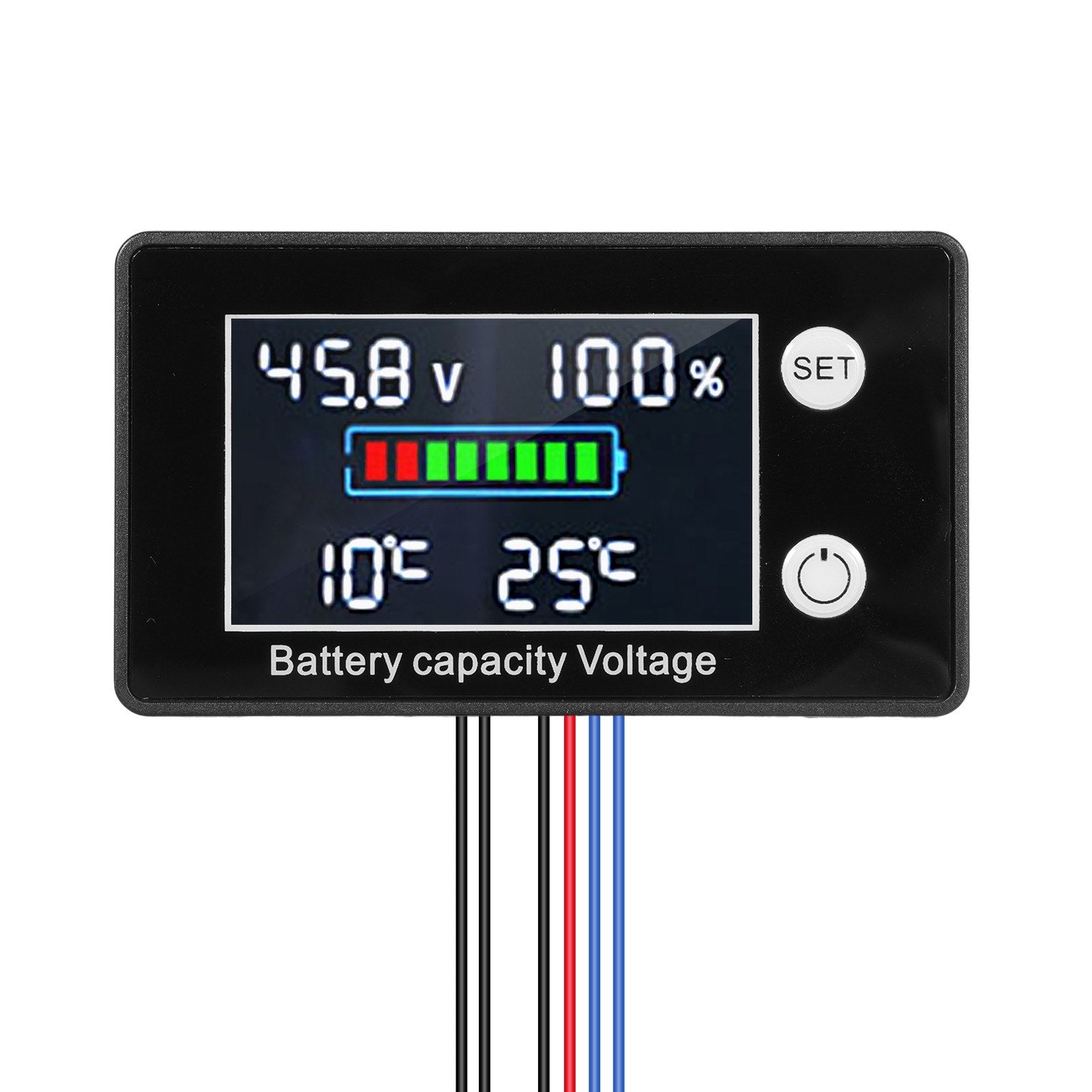

• LCD Display: The clear LCD color screen displays battery voltage, percentage, and temperature for easy monitoring.
• Buzzer Alarm: Set customizable buzzer alarms for high/low voltage and temperature alerts.
• Power-off Memory: Retains your settings during power interruptions for continuous performance.

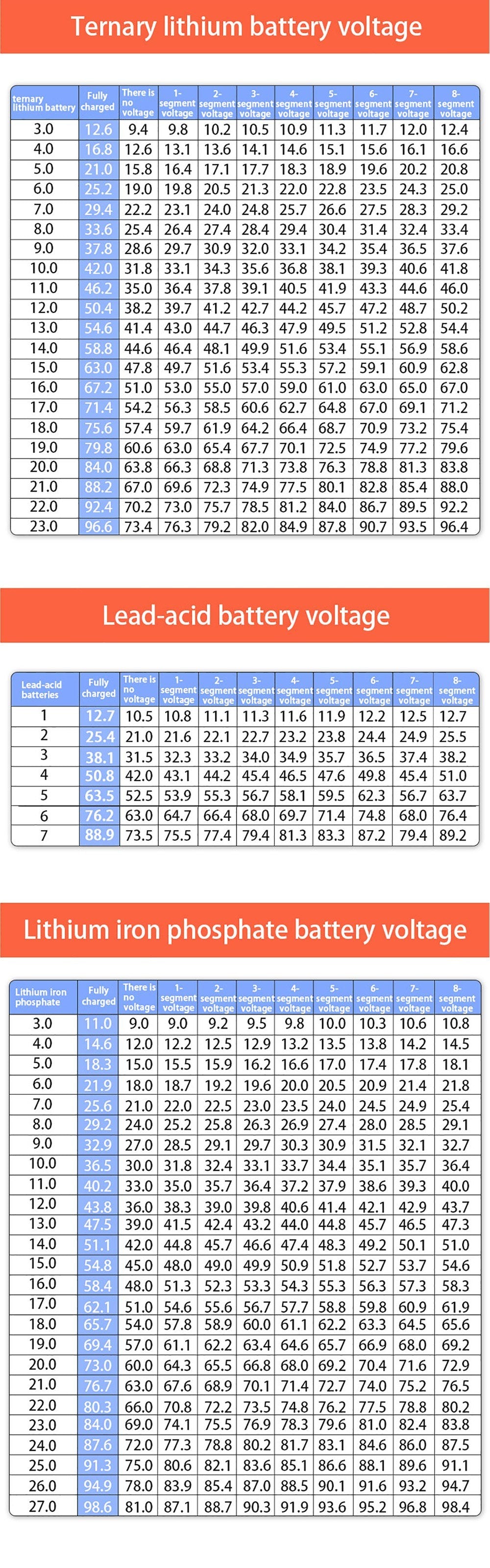

Compatible Batteries

Suitable for 9V-100V batteries, including lithium, lithium ternary, lead-acid, and lithium iron phosphate varieties.

Wide Application

Ideal for electric motorcycles, motorcycles, golf carts, automotive, marine, RVs, boats, and more.

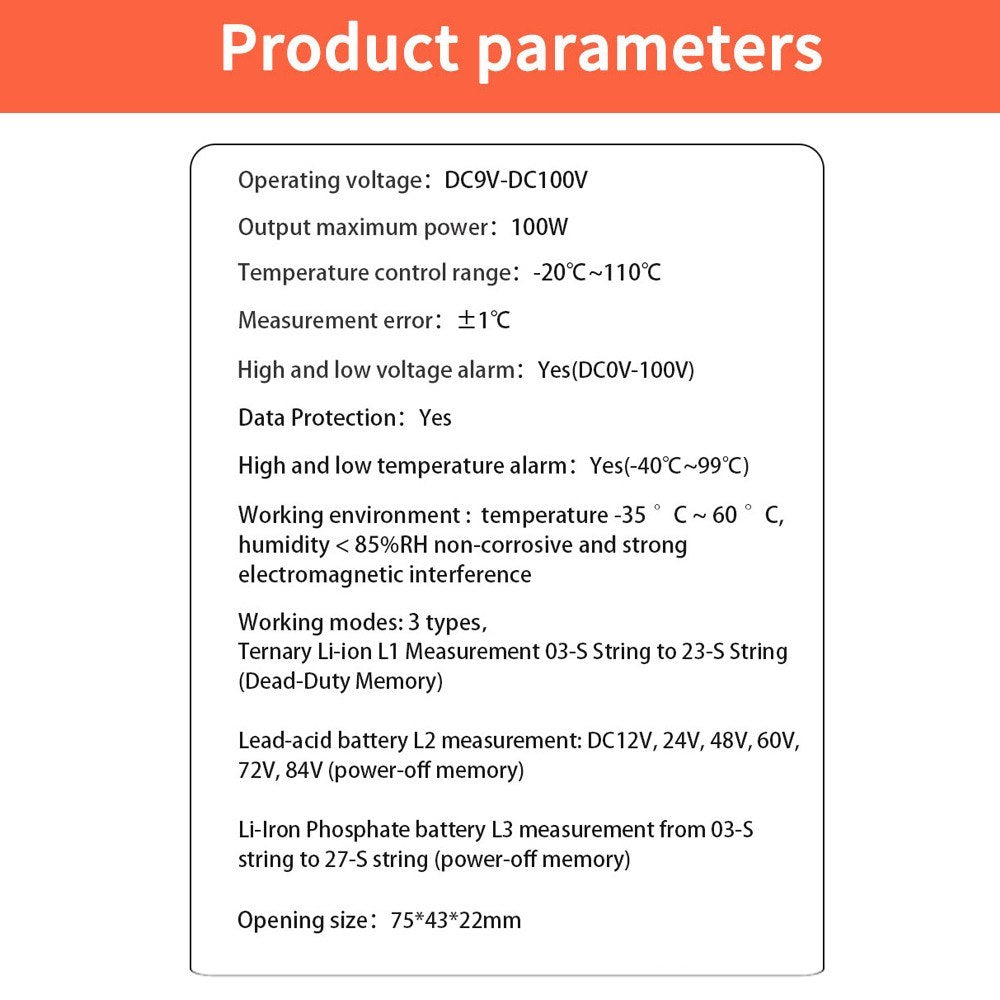

Specifications

• Material: Flame retardant PVC
• Operating Voltage: DC 9V-DC 100V
• Output Maximum Power: 100W
• Temperature Control Range: -20℃ to 110℃
• Measurement Error: ±1℃
• High and Low Voltage Alarm: Yes (DC 0V-100V)
• Data Protection: Yes
• High and Low Temperature Alarm: Yes (-40℃ to 99℃)
• Working Environment: Temperature -35℃ to 60℃, humidity less than 85% RH, non-corrosive, and low electromagnetic interference

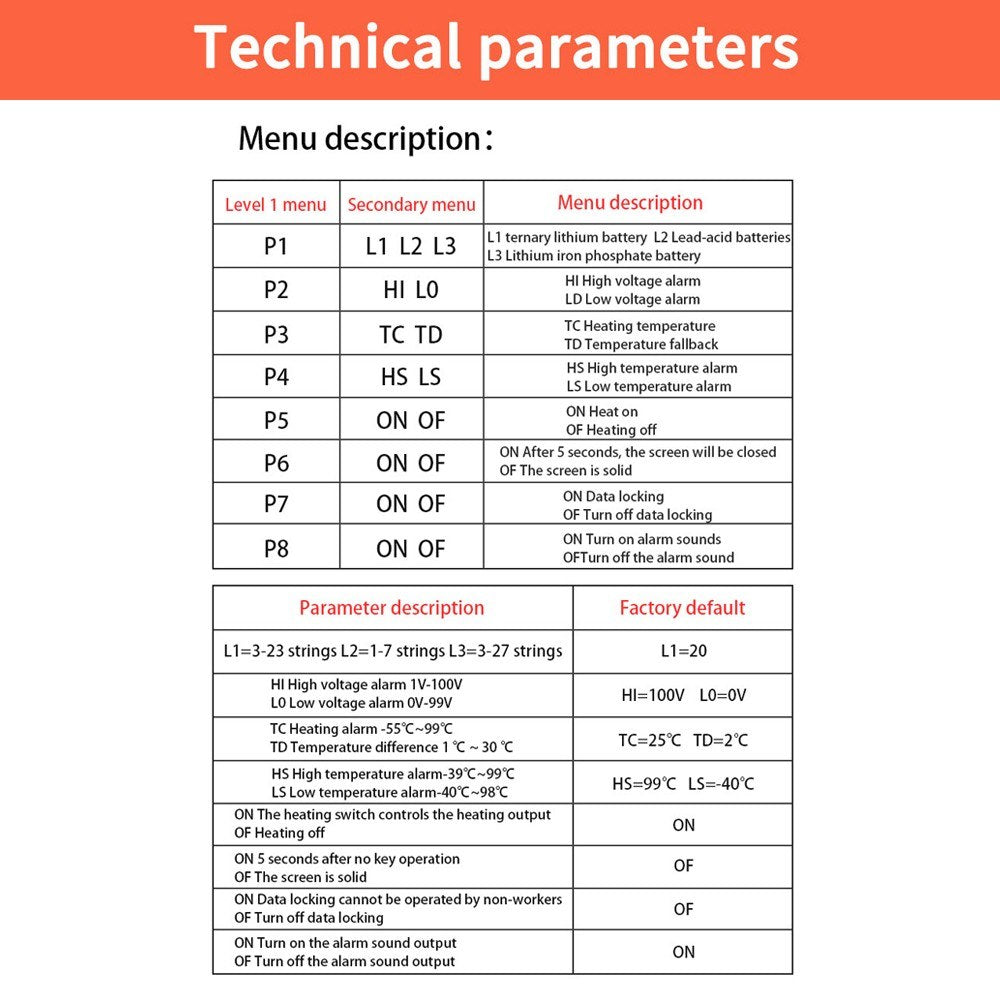

• Working Modes:
  • Ternary Li-ion L1 Measurement: 03-S to 23-S string (Dead-Duty Memory)
  • Lead-acid Battery L2 Measurement: DC 12V, 24V, 48V, 60V, 72V, 84V (Power-off Memory)
  • Li-Iron Phosphate Battery L3 Measurement: 03-S to 27-S string (Power-off Memory)
• Item Size: 81 x 41 x 25mm (3.18 x 1.61 x 0.98 inches)
• Item Weight: 70g (2.46 oz)
• Package Weight: 71g (2.50 oz)
• Package Size: 14.5 x 10 x 3cm (5.71 x 3.94 x 1.18 inches)

Package Includes

• 1 x Battery Capacity Voltage
• 1 x User Manual (English)
