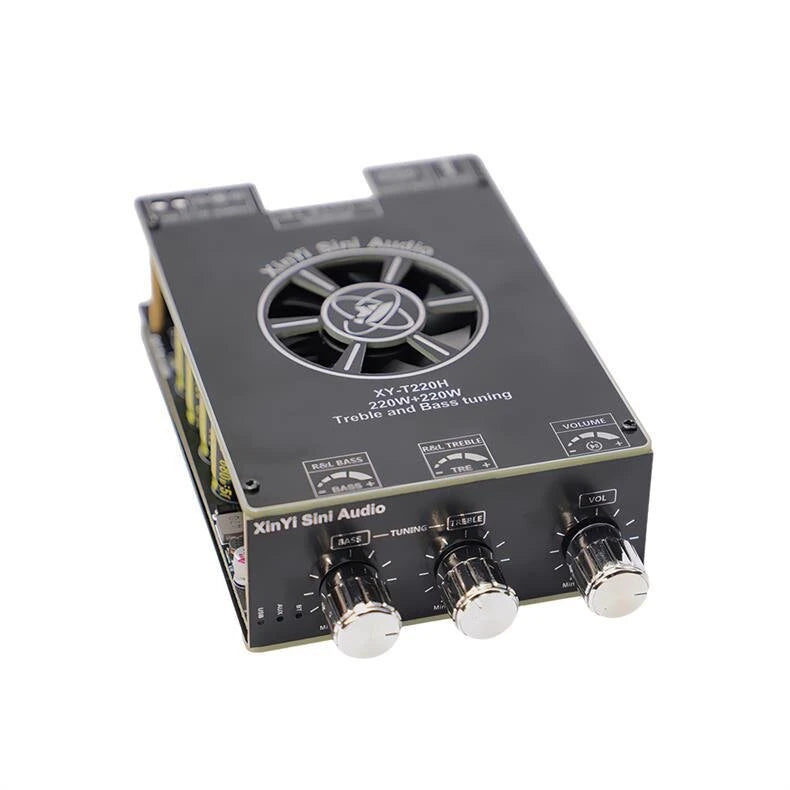

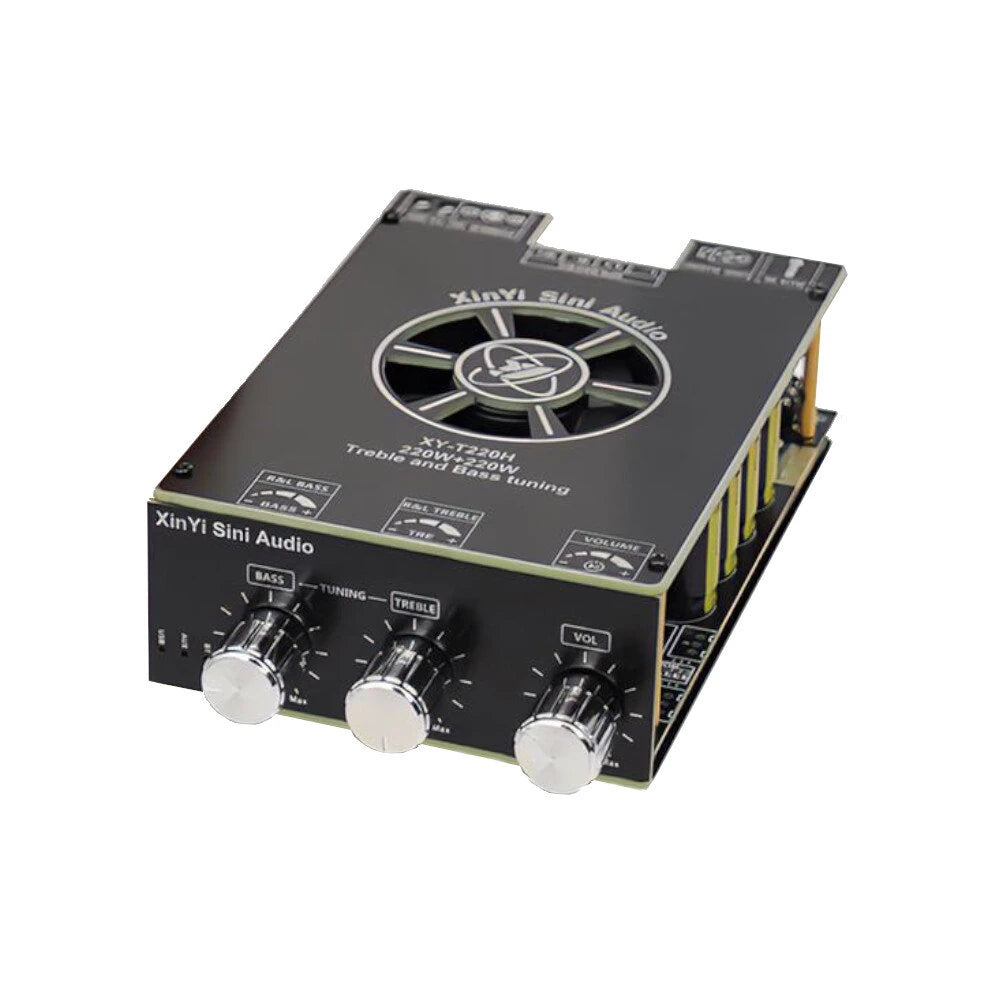

XY-T220H Dual Channel Bluetooth 5.2 Digital Stereo Audio Power Amplifier 220Wx2 with TPA3251 Decoder and Shell

XY-T220H Dual Channel Bluetooth 5.2 Digital Stereo Audio Power Amplifier 220Wx2 with TPA3251 Decoder and Shell

Regular price $29.99 USD
Regular price $0.00 USD Sale price $29.99 USD
Sale Sold out
Shipping calculated at checkout.
Type

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Product Description

Product Features

  • TPA3251D2 is a high-performance Class D power amplifier known for its efficient energy consumption and premium sound quality.
  • Comes with a comprehensive protection mechanism including overvoltage, short circuit, overheating, and undervoltage safeguards.
  • Advanced TPA3251 technology ensures minimal distortion across the full audio frequency range while delivering superior sound clarity.
  • Boasts a high-power output of 220W+220W, utilizing top-tier components for lossless, ultra-low noise, and high-definition audio.
  • Features gold-plated sockets for excellent conductivity, high dependability, and extended durability.

Product Parameters

  • Product Model: XY-T220H
  • Power Supply: DC 12-36V/8A
  • Bluetooth Version: 5.2
  • Audio Input Options: Bluetooth, AUX, USB flash drive, USB sound card
  • Bluetooth Audio Decoding: AAC, SBC
  • Frequency Range: 20Hz - 20KHz
  • Independent Audio Adjustment: High and Low Frequencies
  • USB Decoding Formats: WAV, FLAC, APE, MP3
  • Audio Output: Stereo/2.0
  • Left and Right Channel Output Power:
    • 2 * 10W @ 8 Ω/12VDC
    • 2 * 20W @ 4 Ω/12VDC
    • 2 * 35W @ 8 Ω/24VDC
    • 2 * 70W @ 4 Ω/24VDC
    • 2 * 80W @ 8 Ω/36VDC
    • 2 * 160W @ 4 Ω/36VDC
    • 2 * 220W @ 3 Ω/36VDC
  • Protection Mechanism: Guards against overvoltage, short circuit, overheating, undervoltage, and more.
  • Remote Control Function: Compatible with Sinilink APP
  • Channel Gain Adjustment: Separate gain settings for L (left) and R (right) channels, gain=R/10K, with a factory default R of 15K
  • Product Dimensions: 125mm x 88mm x 35mm

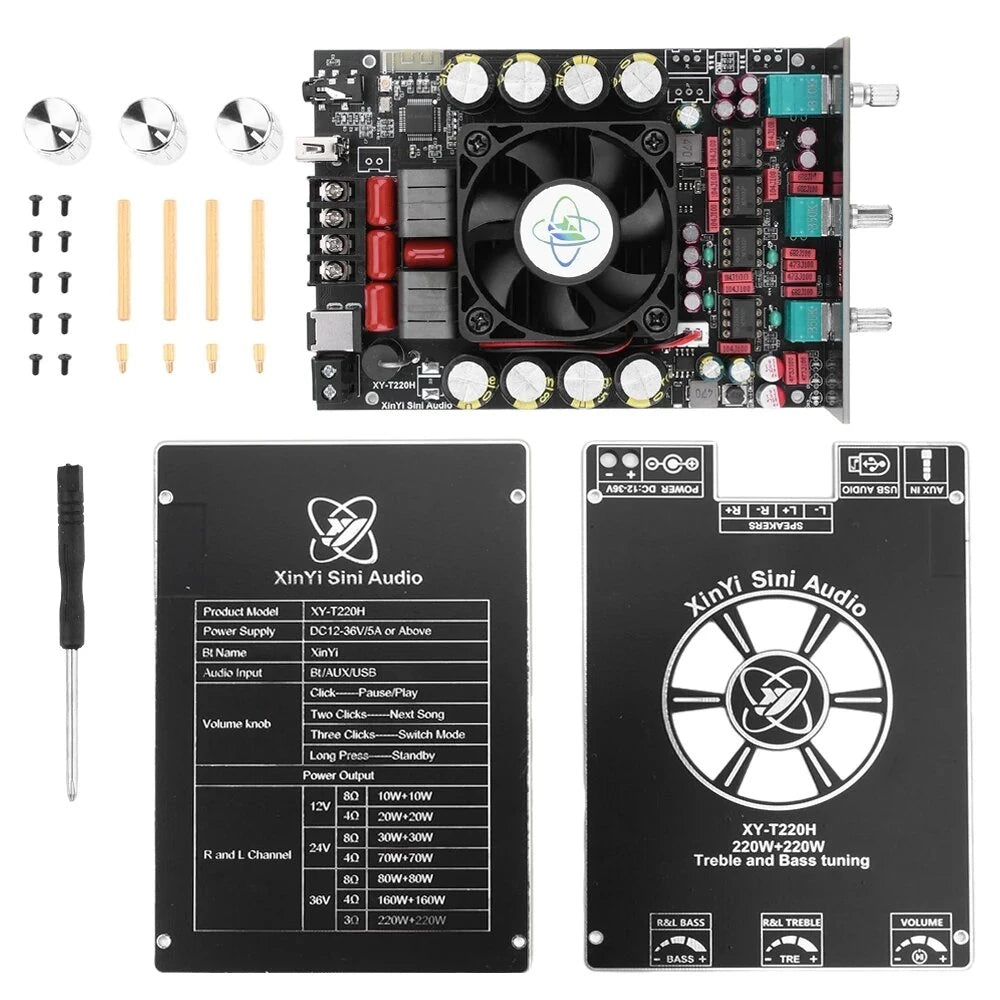

Package Includes

  • 1x Amplifier board motherboard
  • 1x Shell (includes screw accessories, assembly required)
  • 3x Knob cap
  • 1x Screwdriver
