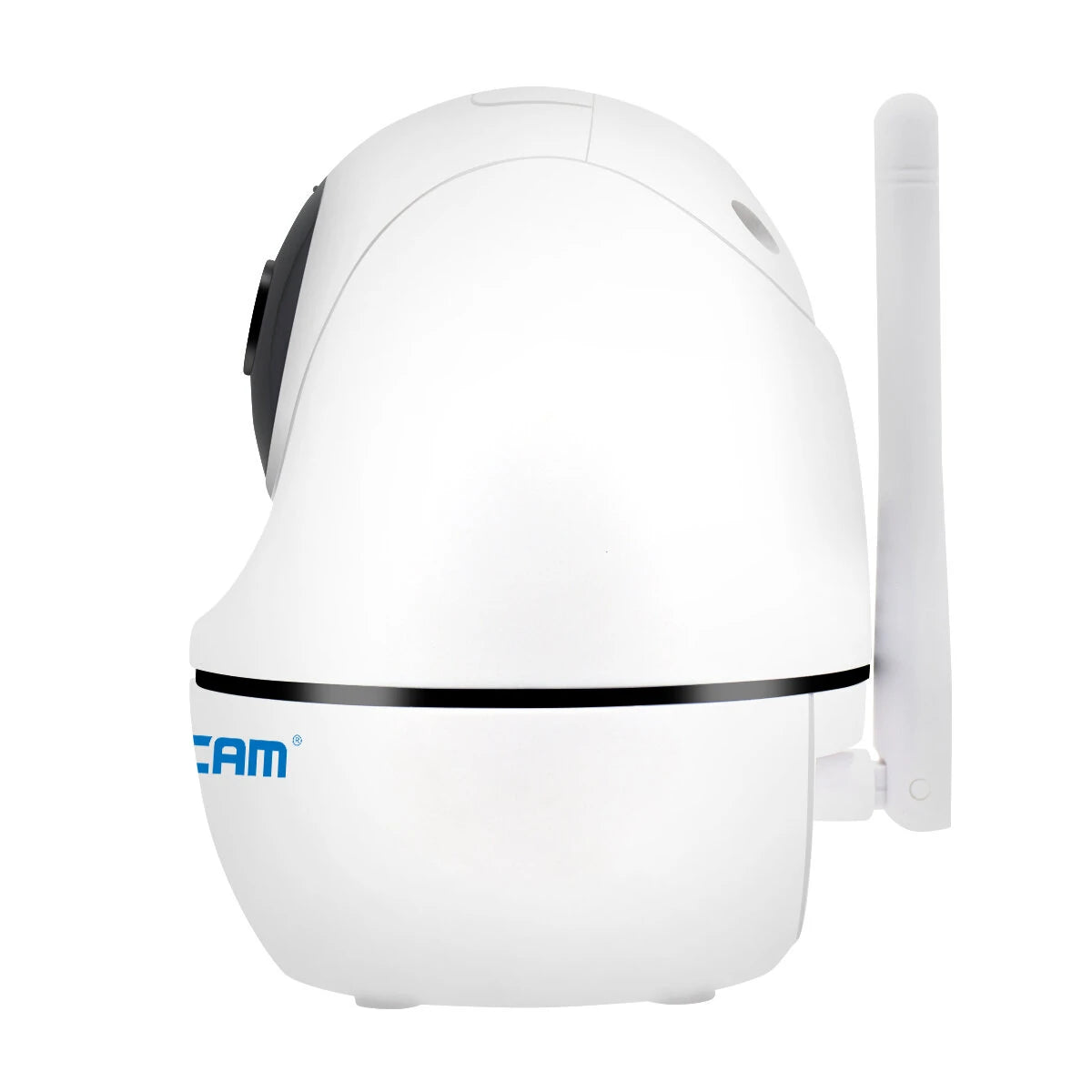

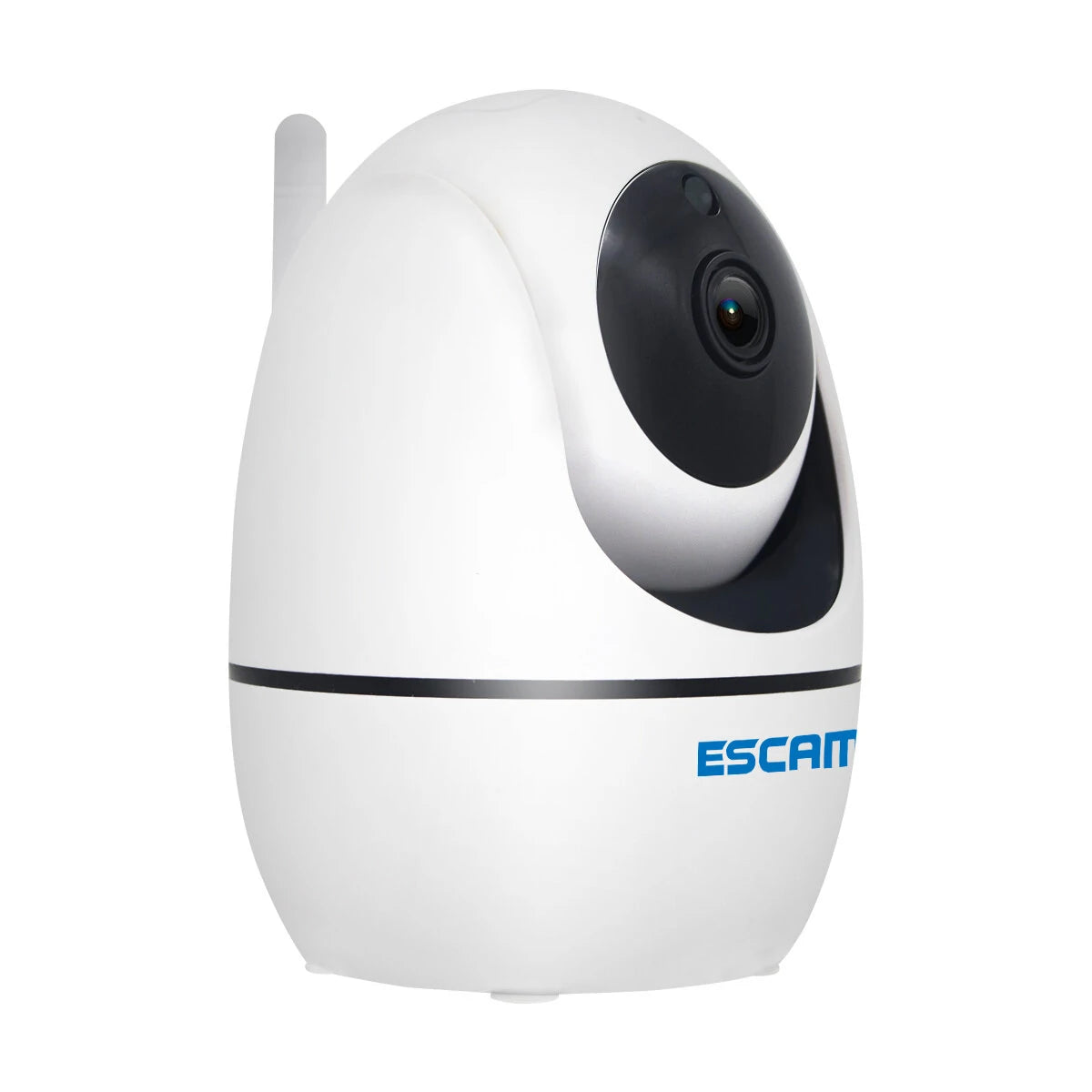

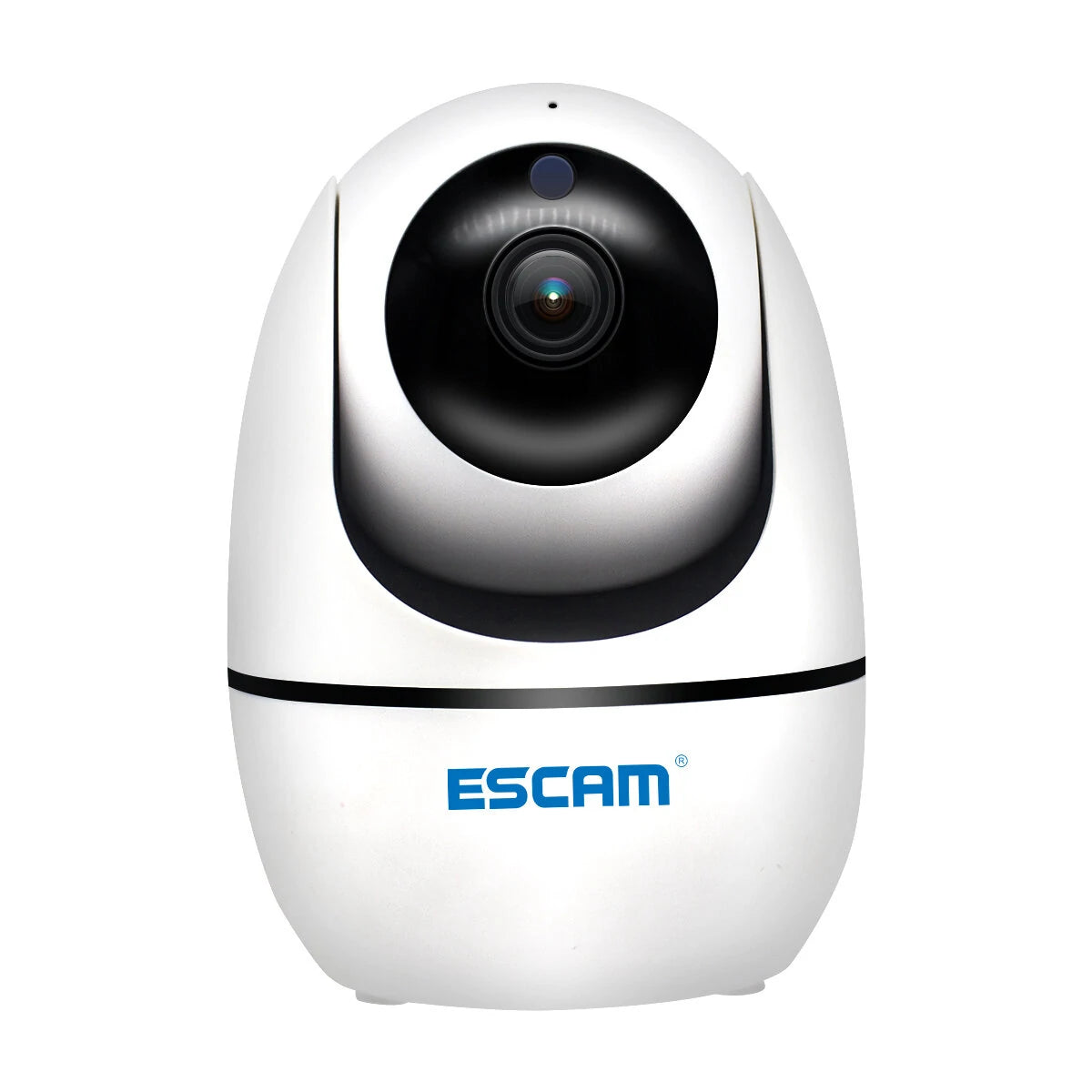

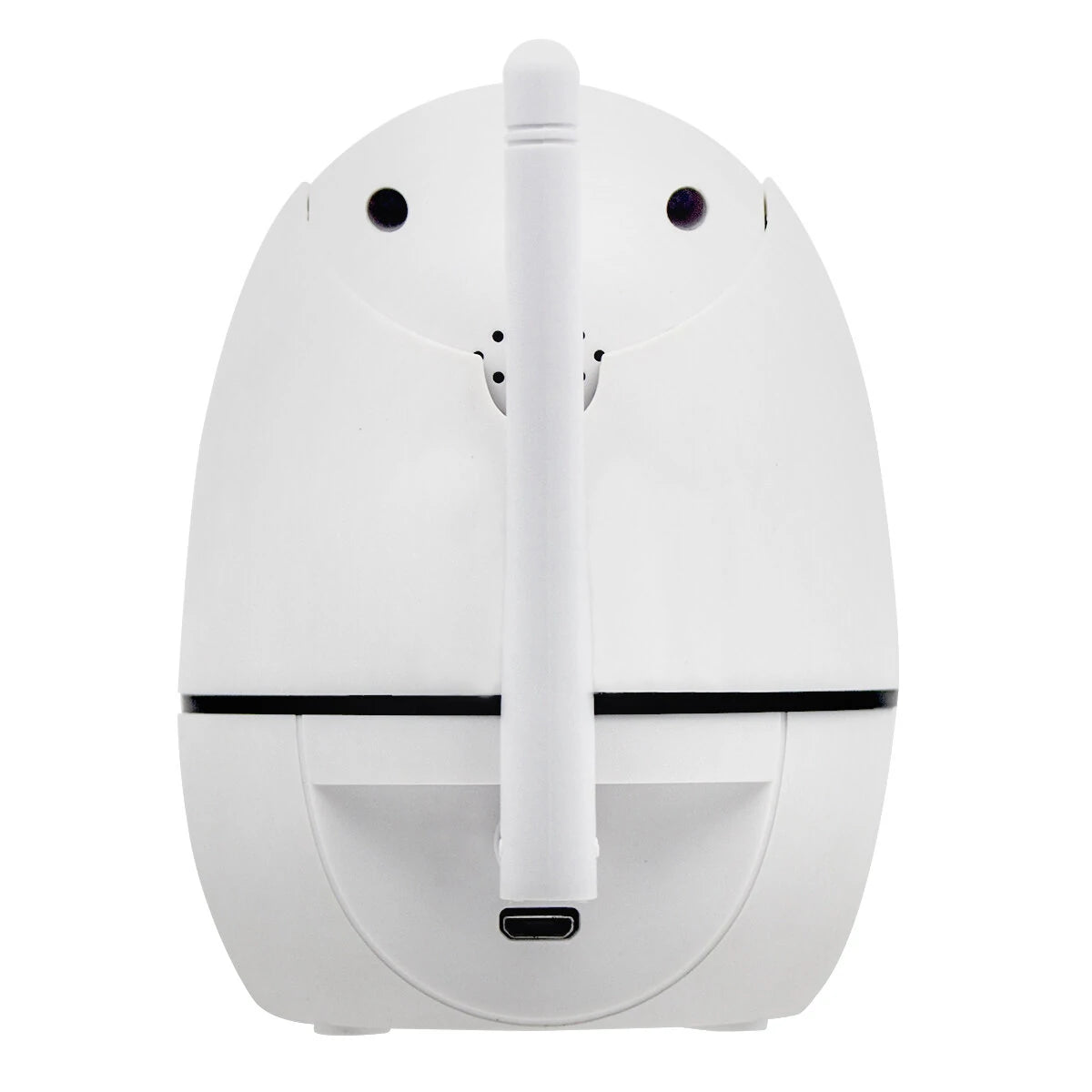

ESCAM PVR008

Features

• 1080P Resolution with Hisilicon chip for high-definition image quality
• H.265 Compression for reduced transmission and storage cost
• Supports night vision with an IR distance of up to 10m
• High-quality two-way audio with noise cancellation
• Supports WiFi and AP Connection
• Features Motion Detection, Humanoid Detection, and Sound Detection
• Supports microSD card up to 128 GB
• Pan and Tilt monitoring: Pan 355° & Tilt 120°
• Supports Multi-Platform: APP, PC client
• APP push notifications supported
• Supports Onvif and RTSP protocol

Specifications

Model

ESCAM PVR008

Camera Sensor

1/2.9” 2 Megapixel progressive scan CMOS

Electronic Shutter Speed

Auto/Manual, 1/50~1/10000s

Minimum Illumination

Color: 0.1Lux@F1.2, B/W: 0.01Lux@F1.2

Focal Length

3.6mm

Angle of View

75.7°

P/T Function

Pan: 355°, Tilt: 120°

Day/Night Switch

10 pcs IR LEDs, IR distance 10m

White Balance

Auto white balance

BLC

Supports BLC

Digital Noise Reduction

Supports 3D noise reduction

WDR

Supports D-WDR

Privacy Shelter

Supports 4 zones

OSD

Supports OSD settings

Video Compression

H.264/H.265

Resolution

Mainstream: 1080P(1920x1080), 720P(1280x720)

Substream: D1(704x576), 360P(640x360), CIF(352x288)

Video Frame Rate

25fps(50Hz), 25fps(60Hz)

Bitrate

135Kbps~2048Kbps CBR/VBR adjustable

Video Adjustment

Brightness, Saturation, Chromacity adjustment

Wireless

Supports WIFI 802.11b/g/n, 2.4G band; AP mode

IP Type

Dynamic IP and Static IP

Network Agreement

HTTP, TCP/IP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP

Access Protocol

Supports ONVIF 2.4

Max User Quantity

4

Client

iPhones, iPads, Android, Windows PC

Alarm Detection

Humanoid detection, automatic tracking, motions detection, sound detection

Alarm Action

Alarm recording, alarm capture, Email and FTP send pictures, APP push

Audio Input

Built-in microphone

Audio Output

Built-in speaker

TF Card

Supports max 128 GB TF card (micro SD)

Power Supply

DC5V

Working Environment

-10°C~+50°C, 10%~85%

Dimension

90mm x 80mm x 105mm

Weight

0.19kg

Package Dimension

150mm x 140mm x 100mm

Package Weight

0.35kg

Package Includes

• 1 x PVR008 IP Camera
• 1 x USB Power Adapter
• 1 x Micro USB Charging Cable
• 2 x Plastic Expansion
• 2 x Screws
• 1 x Quick Start Guide
