12V Mini Spot Welding Machine Handheld Welder PSW100 with Adjustable Gear and 0.15mm Nickel Support

Product Description:

Introducing our latest spot welding machine, a cutting-edge product designed for both stability and superior performance. Whether you are working with Vrla, aircraft, or vehicle starting batteries, our welder delivers professional-grade results.

Features:

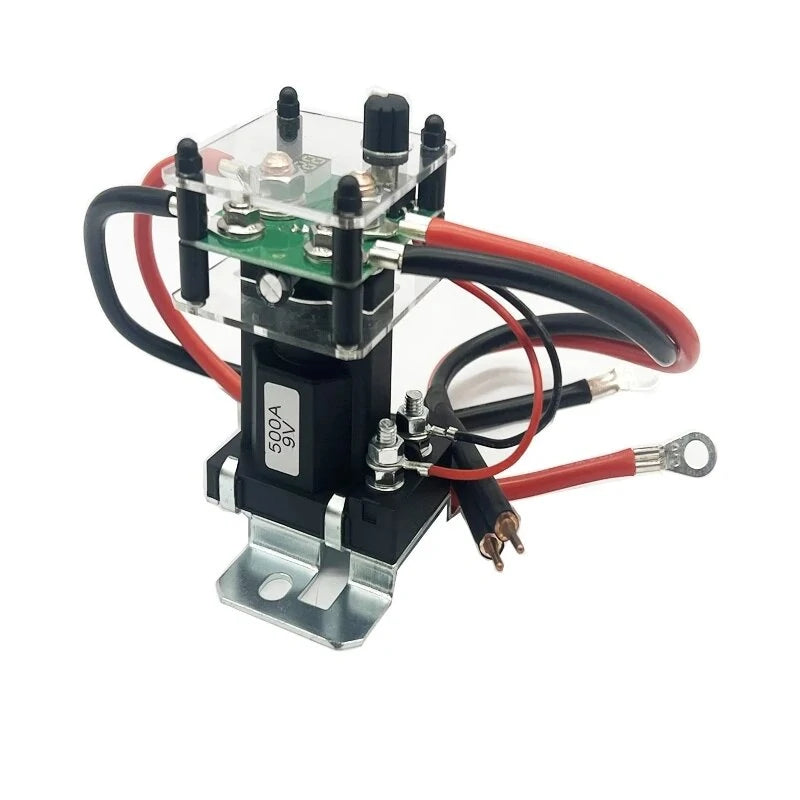

• New Generation Technology: Say goodbye to MOS tubes! Our machine leverages advanced high-power relays capable of handling an instantaneous current of up to 1500A, ensuring a stable quality and exceptional welding performance.
• Adjustable Precision: Easily tailor your welding process with our innovative gear adjustment. Simply rotate the encoder to select your gear (ranging from 01-199) and click to confirm for welding readiness.
• Efficient Spot Welding: Start from the first gear and carefully increase until the desired weld strength is achieved. Ensure a flat contact surface between the nickel sheet and battery electrode, and handle with care during welding.
• Sleek Design: Power on or off seamlessly by pressing and holding the encoder for 3 seconds. Our welder guarantees a solid bond that won’t easily detach.
• Comprehensive Functionality: Equipped to weld 0.15mm nickel plates, this machine accommodates up to 199 gear settings, making it versatile for various applications.

Specifications:

• Material: Metal + PC + ABS
• Package Size: Approximately 15x10 cm (5.91x3.94 inches)
• Origin: Mainland China
• Model Number: Relay Spot Welder
• Smart Device: No

Applicable Batteries:

• Vrla Batteries: Suitable for 12V14AH-100AH (ensure 14AH batteries are fully charged for optimal welding).
• Aircraft Batteries: Use XT60 interface with 3S-4S 3000mAh model aircraft batteries at a discharge rate higher than 60C.
• Vehicle Starting Batteries: Must use an EC5 output interface with a current less than 1500A.

Notifications:

1. Ensure using a battery capable of providing a continuous current of 7-17V to sustain 200A-1500A for the spot welding machine. Failure to do so may damage the main board.
2. Avoid using alligator clips to connect the spot welder.
3. The power cord is approximately 25 cm in length. Extending it may compromise welding capabilities.
4. Start on the first gear when using for the first time, gradually increasing until the suitable gear is found. Avoid excessive increases to prevent potential board damage.

Note: Due to varying monitor and lighting conditions, the product's actual color may slightly differ from images.

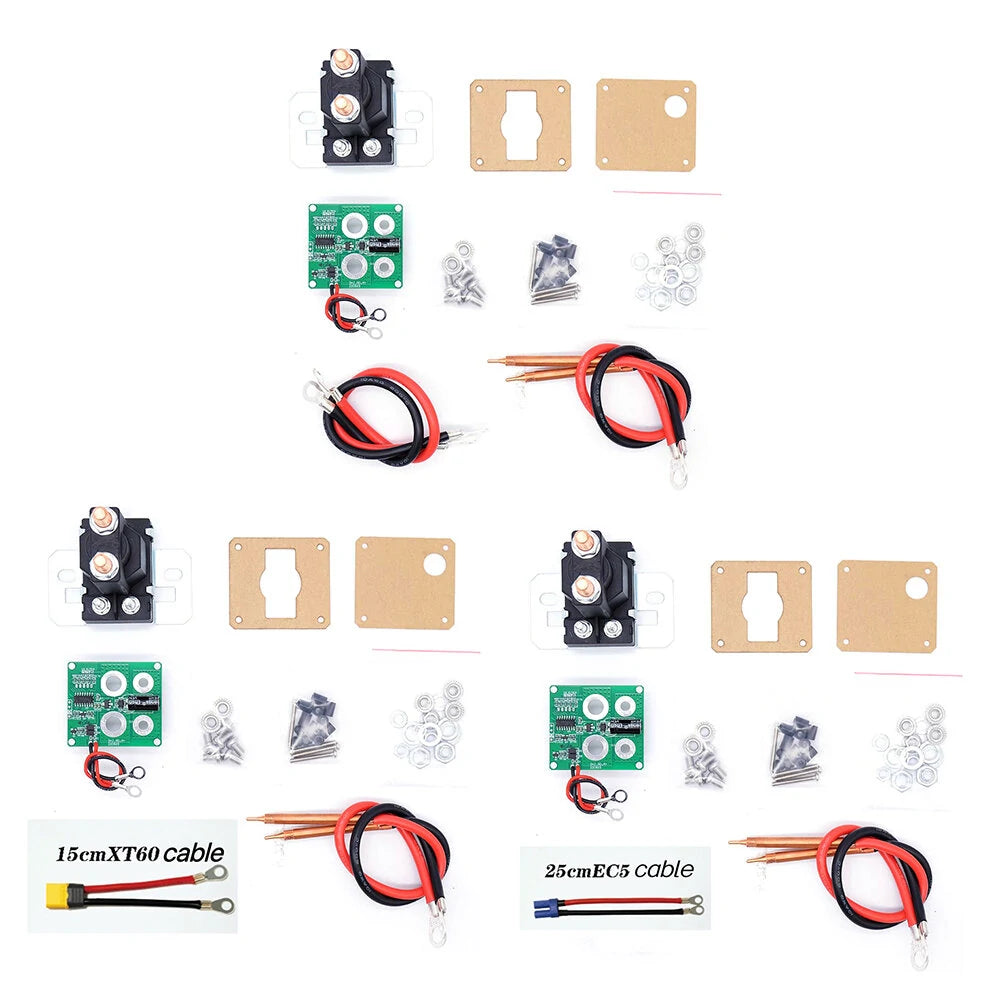

Package Includes:

• Type A: 1 x Relay Spot Welder Kit (for Vrla batteries)
• Type B: 1 x Relay Spot Welder Kit (for Aircraft batteries)
• Type C: 1 x Relay Spot Welder Kit (for Vehicle starting batteries)
