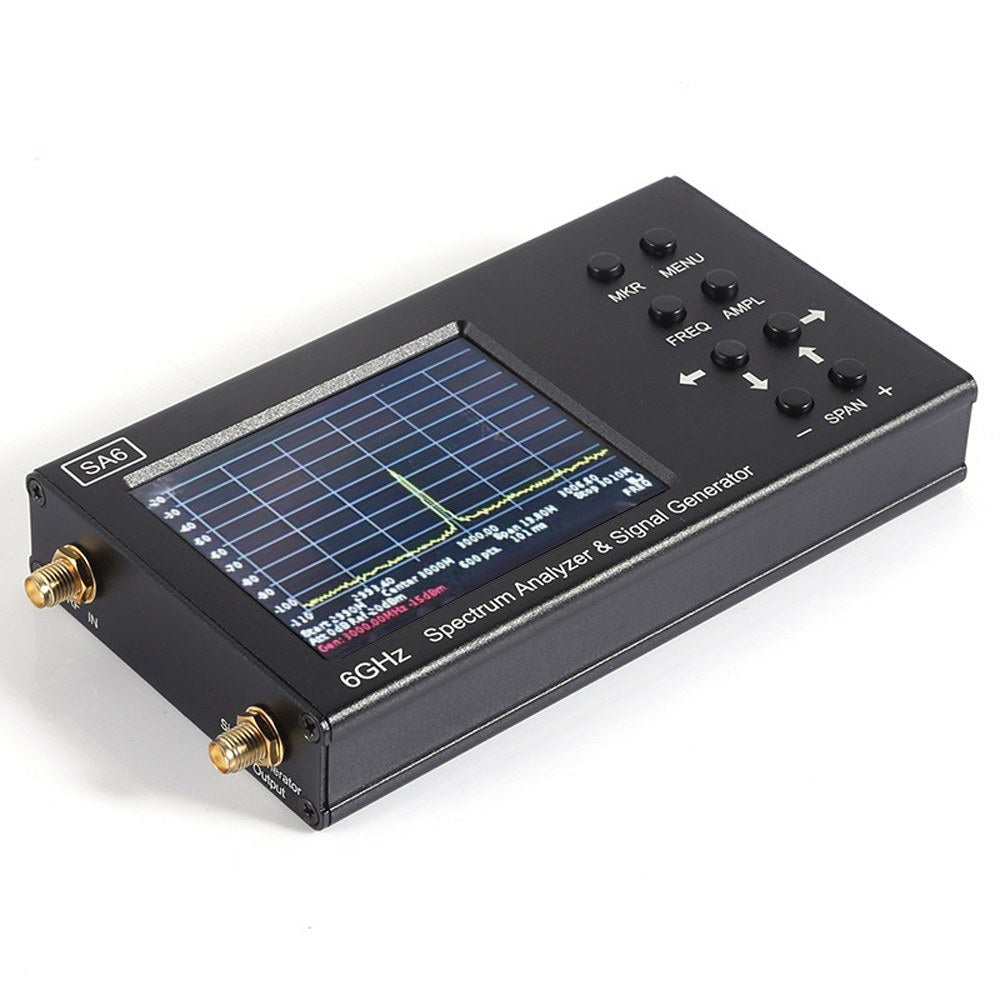

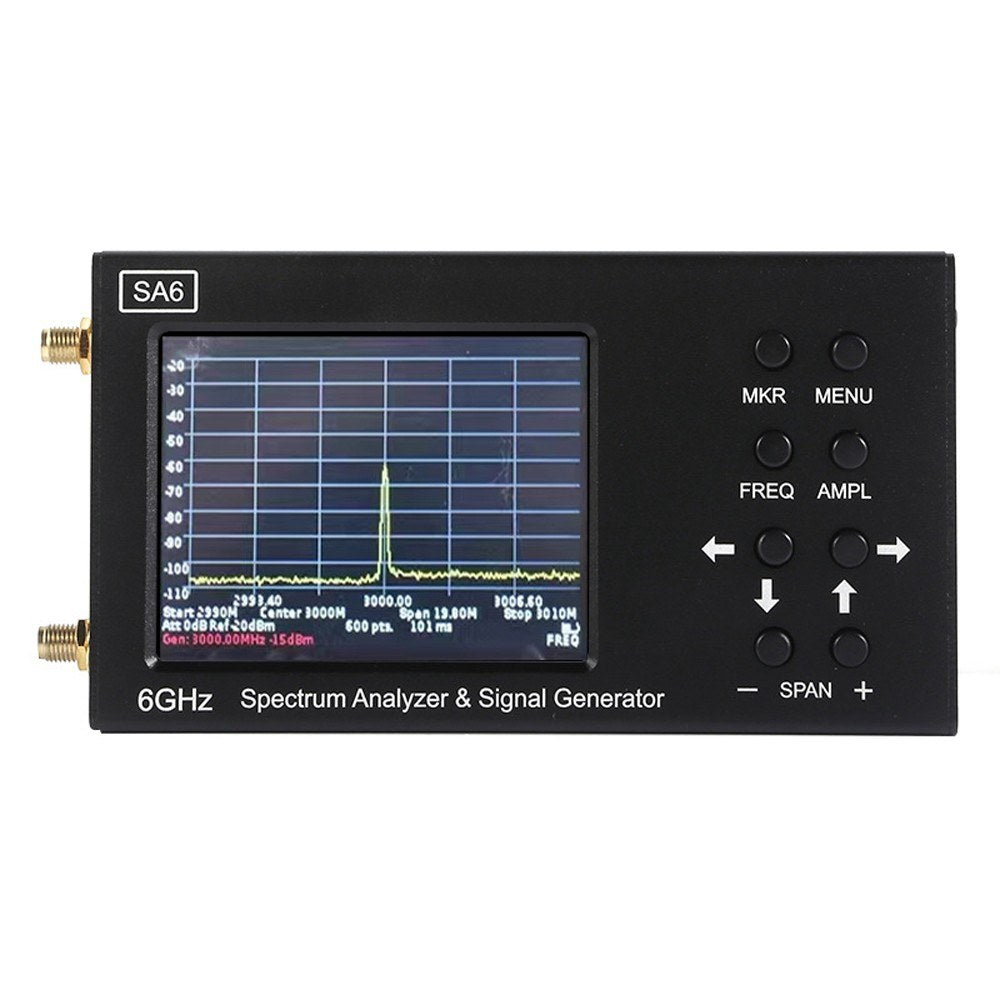

SA6 Multifunctional Handheld Spectrum Analyzer & Signal Generator with 3.2-inch Touchscreen

SA6 Spectrum Analyzer and Signal Source

The SA6 is a portable spectrum analyzer and signal source designed to display signal spectrums in the 35 to 6200 MHz frequency range.

Features:

• Built-in Signal Generator: Switch between spectrum analyzer and signal generator functions seamlessly.

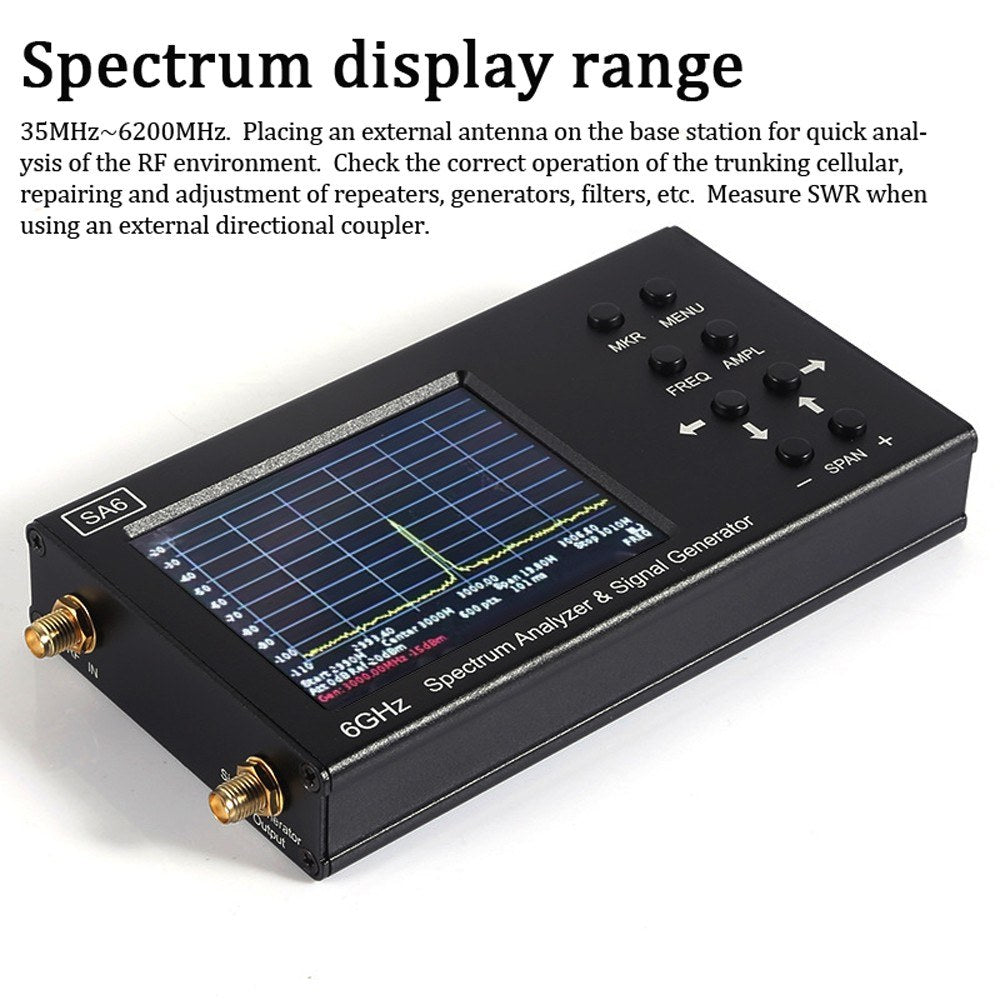

• Comprehensive Spectrum Display: Covers the entire range of 35 MHz to 6200 MHz, with easy analysis of the radio frequency environment using an external antenna.
• Advanced Diagnostic Tools: Ideal for checking cellular operations, as well as repairing and adjusting repeaters, generators, and filters. Supports SWR measurement when using an external directional coupler.

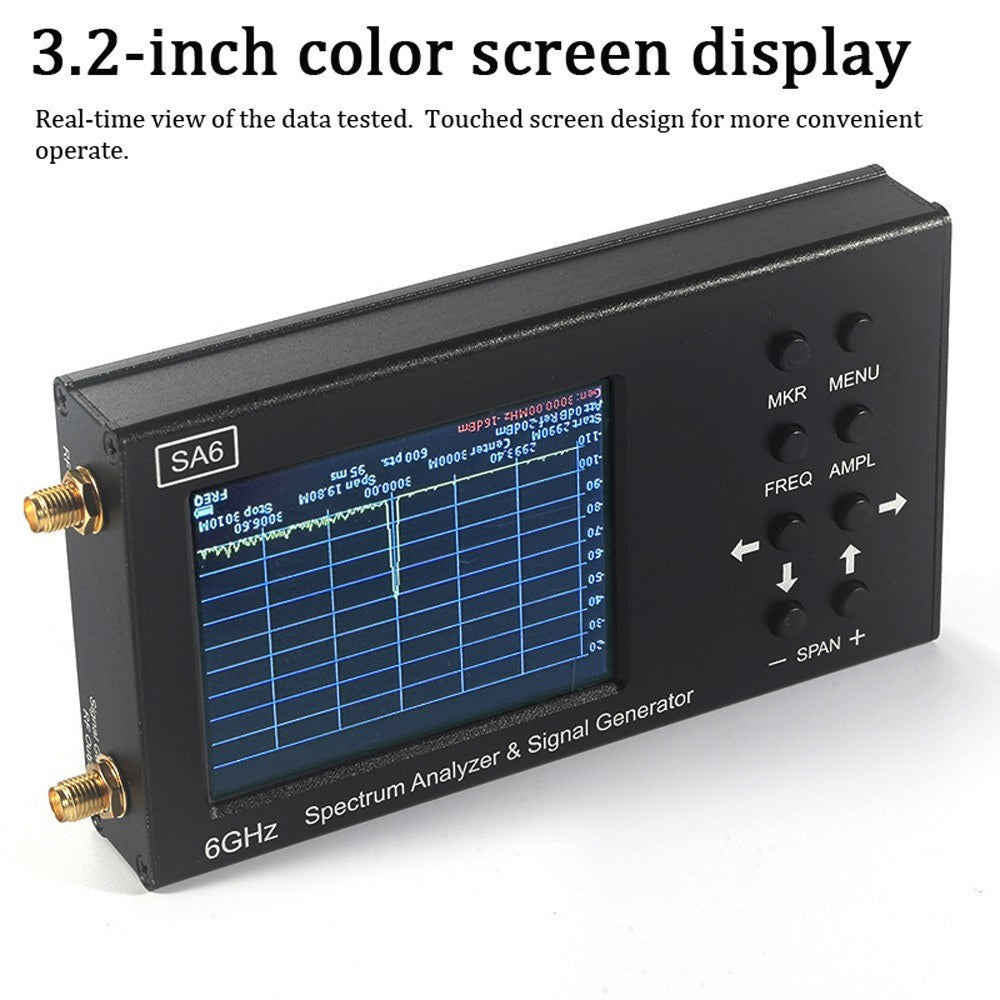

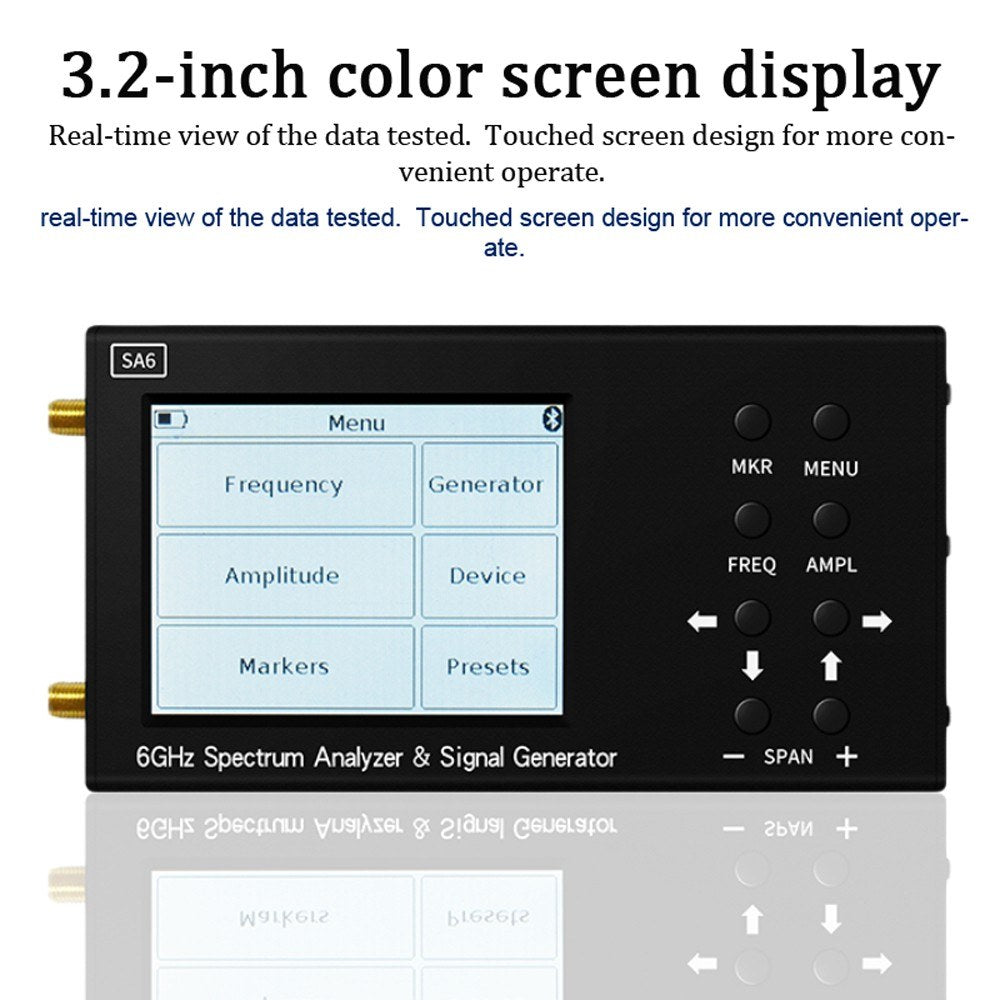

• 3.2-inch Color Touch Screen: Provides real-time data display with a user-friendly touch interface.
• Long-lasting Battery: Equipped with a 3000mAh rechargeable battery, eliminating battery life concerns.

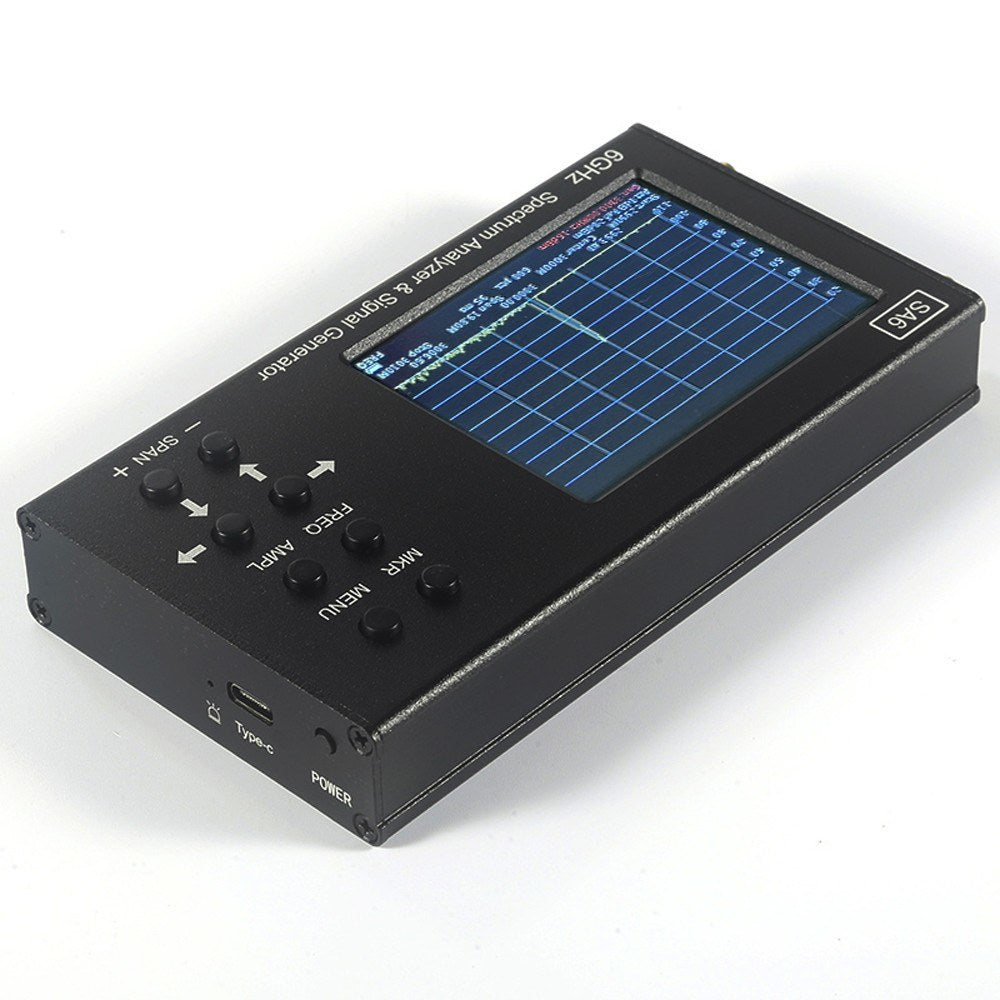

• USB Connectivity: Connect to a computer for easy data transfer.

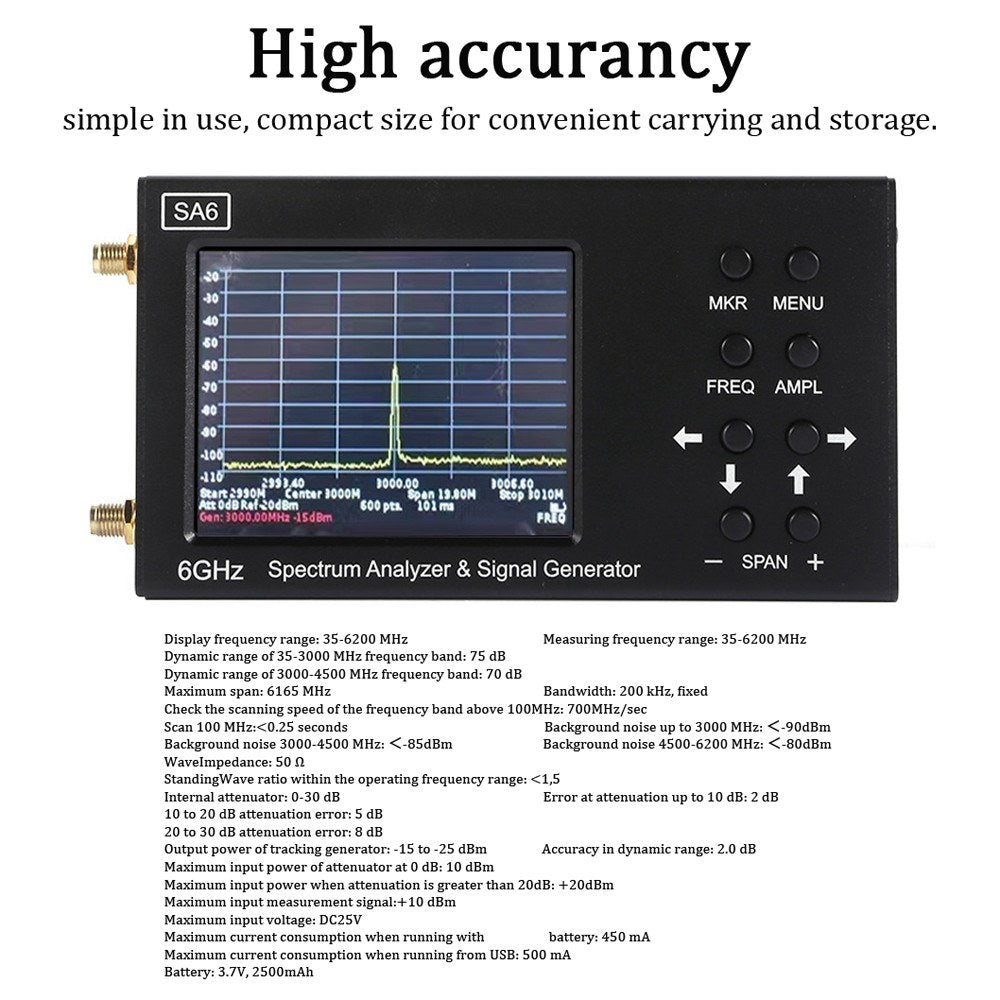

• High Precision and Portability: Offers high accuracy with a compact design for easy carrying and storage.

Specifications:

• Type: Set A, Set B (optional)
• Main Color: Black
• Display Frequency Range: 35-6200 MHz
• Measuring Frequency Range: 35-6200 MHz
• Dynamic Range:
  • 35-3000 MHz: 75 dB
  • 3000-4500 MHz: 70 dB
• Maximum Span: 6165 MHz
• Bandwidth: 200 kHz, fixed
• Scanning Speed Above 100MHz: 700 MHz/sec
• Scan 100 MHz: <0.25 seconds
• Background Noise Levels:
  • Up to 3000 MHz: ＜-90 dBm
  • 3000-4500 MHz: ＜-85 dBm
  • 4500-6200 MHz: ＜-80 dBm
• Wave Impedance: 50 Ω
• Standing Wave Ratio (SWR): <1.5
• Internal Attenuator: 0-30 dB
• Attenuation Error:
  • Up to 10 dB: 2 dB
  • 10 to 20 dB: 5 dB
  • 20 to 30 dB: 8 dB
• Output Power of Tracking Generator: -15 to -25 dBm
• Accuracy in Dynamic Range: 2.0 dB
• Maximum Input Power of Attenuator: 10 dBm at 0 dB
• Maximum Input Power with Attenuation >20 dB: +20 dBm

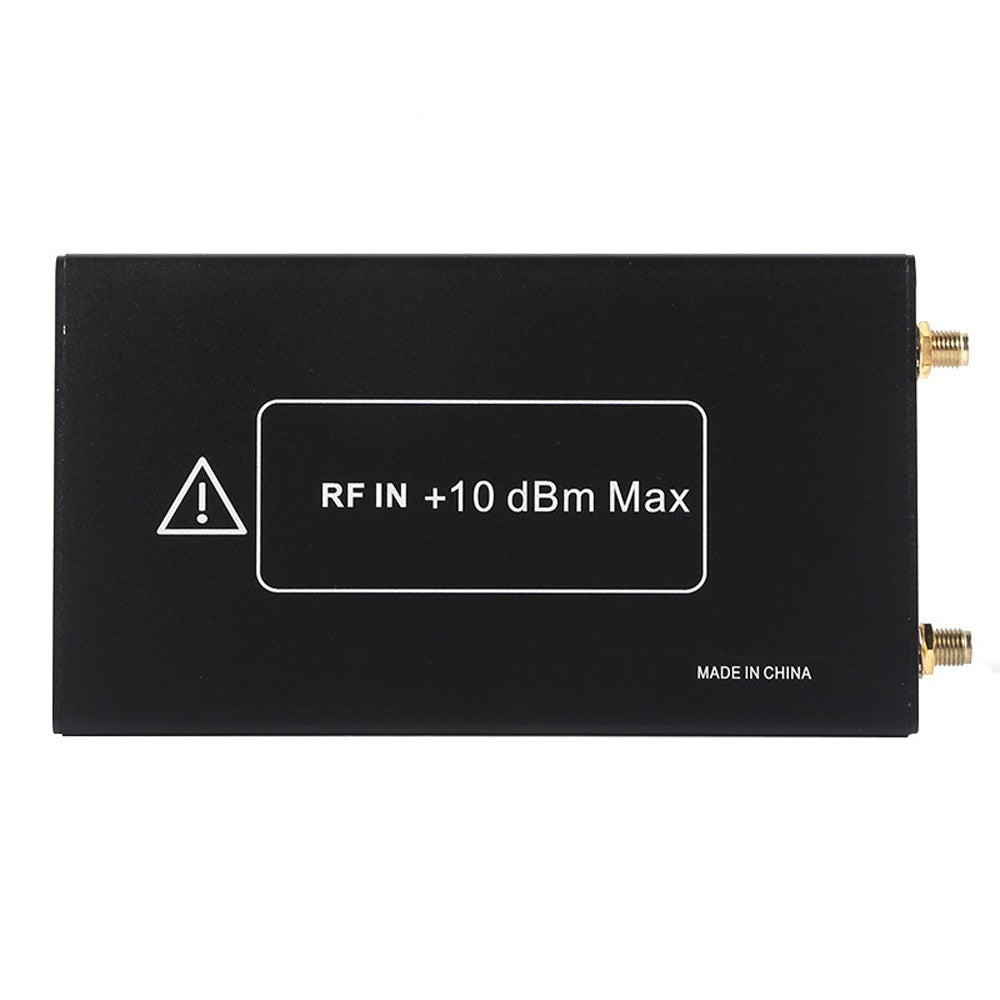

• Maximum Input Measurement Signal: +10 dBm
• Maximum Input Voltage: DC 25V
• Maximum Current Consumption:
  • Battery: 450 mA
  • USB: 500 mA
• Battery: 3.7V, 2500mAh
• Item Size: 150 x 75 x 23 mm / 5.9 x 3.0 x 0.9 in
• Package Size: 210 x 115 x 35 mm / 8.3 x 4.5 x 1.4 in
• Package Weight:
  • Set A: 460g / 1.0lb
  • Set B: 495g / 1.1lb

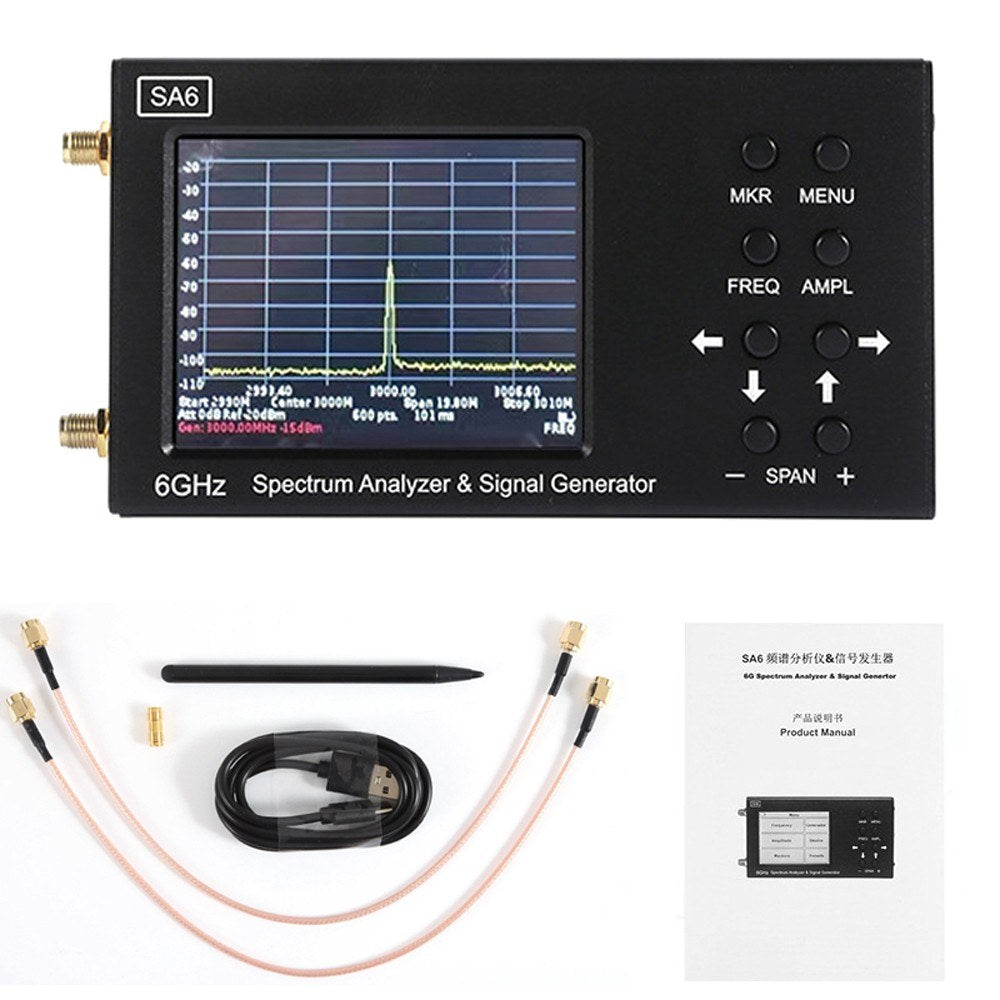

Packing List:

Set A:

• 1 x Spectrum Analyzer
• 2 x Long Cable
• 1 x USB Cable
• 1 x Connector
• 1 x Touch Screen Pen
• 1 x User Manual

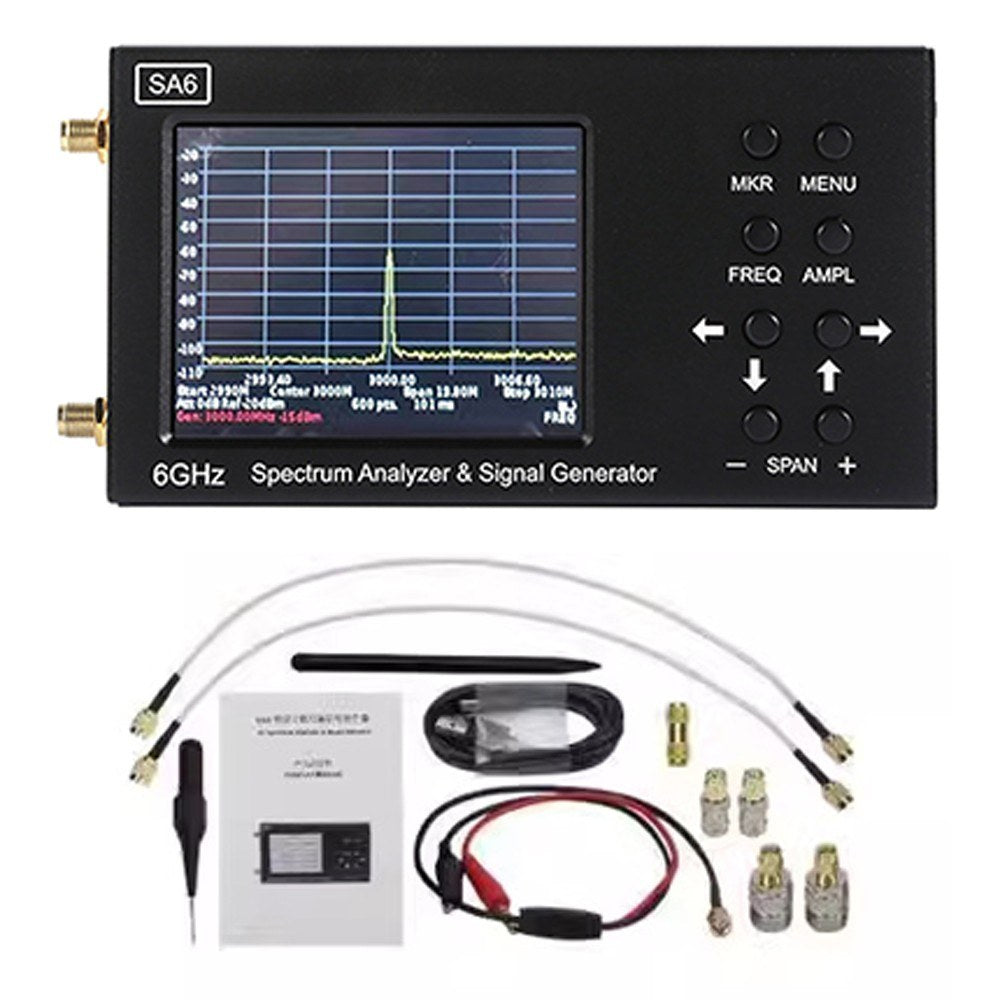

Set B:

• 1 x Spectrum Analyzer
• 2 x Long Cable
• 1 x One Tow Two Cable
• 1 x USB Cable
• 5 x Connector
• 1 x Touch Screen Pen
• 1 x Probe
• 1 x User Manual
