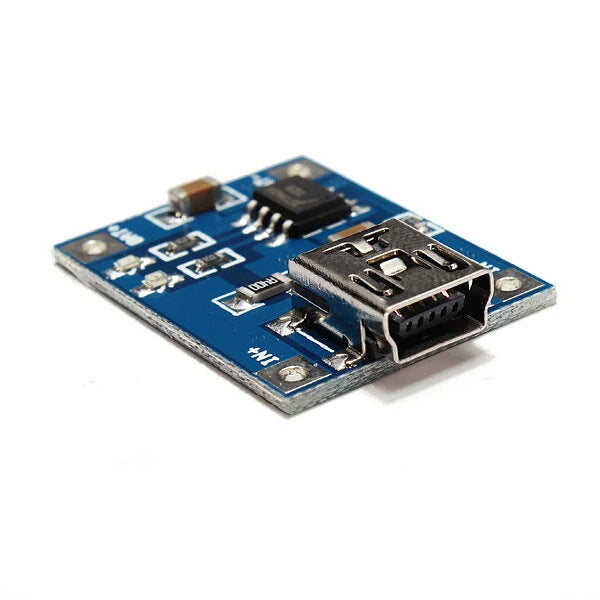

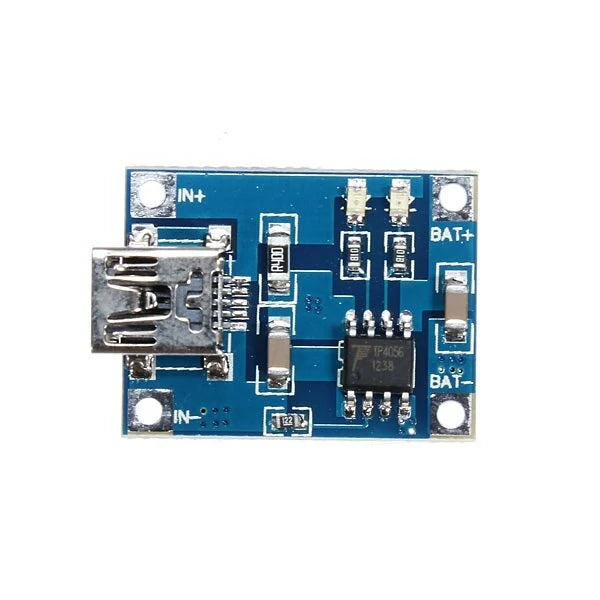

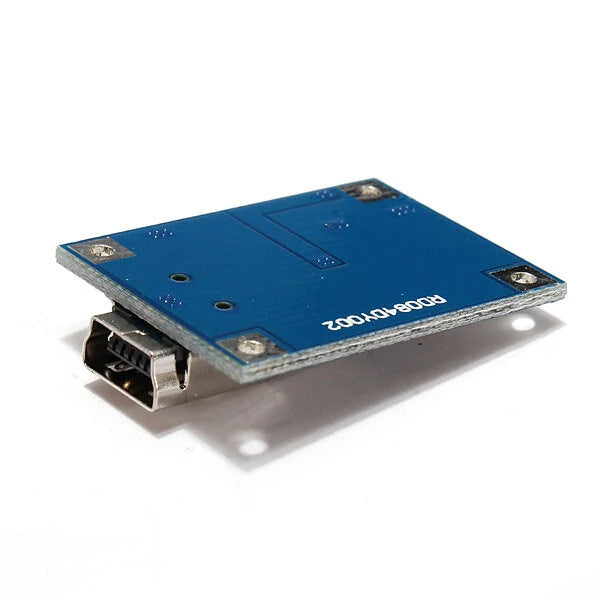

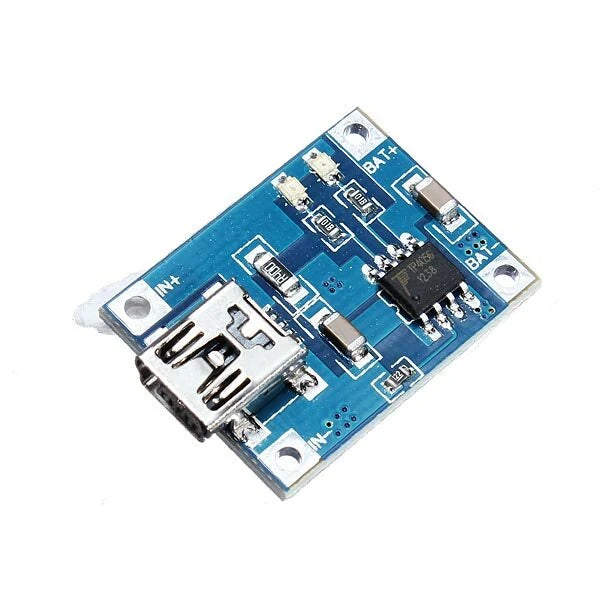

3-Pack Mini 1A Lithium Battery Charger Module with USB Interface

Product Description

Charging Method: Linear charge 1%

Charging Current: 1A, Adjustable

Charge Accuracy: 1.5%

Input Voltage Range: 4.5V - 5.5V

Full Charge Voltage: 4.2V

Charging Indicator: Red when charging, green when fully charged

Charging Input Interface: Mini USB

Operating Temperature: -10°C to +85°C

Reverse Protection: None

Size: 25 x 19 x 10mm

Important Notes

• Ampere meter should only be connected to the 5V input end of the module.
• It's recommended that the charging current be 37% of the battery capacity. For example, 400mA is sufficient for a 1000mAh battery.
• Avoid using excessively long connection wires for optimal performance.
• Ensure that the connection points are secure and stable.
• If the input voltage exceeds 5.2V, the charging current may reduce to less than 1000mA as a safety measure to protect the chip from damage.
• While input reversal will not affect the chip, reversing the output (battery terminals) may cause damage to the chip.

Applications

This module is designed for charging single or multi-section parallel lithium rechargeable batteries from a USB power source.

Package Includes

• 3 x 1A Lithium Battery Charging Modules
