HABOTEST HT122 Pen Type Digital Multimeter - Smart Handheld True RMS LCD, 4000 Counts, NCV

Features:

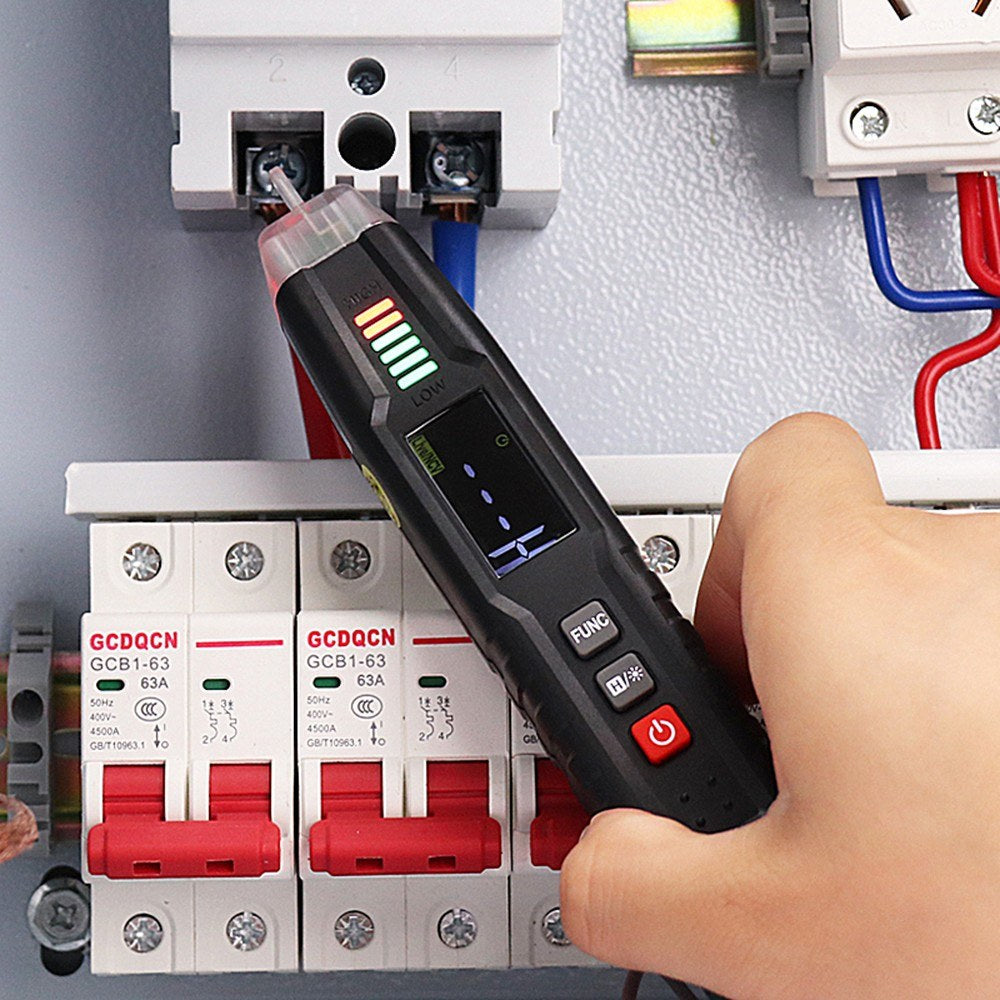

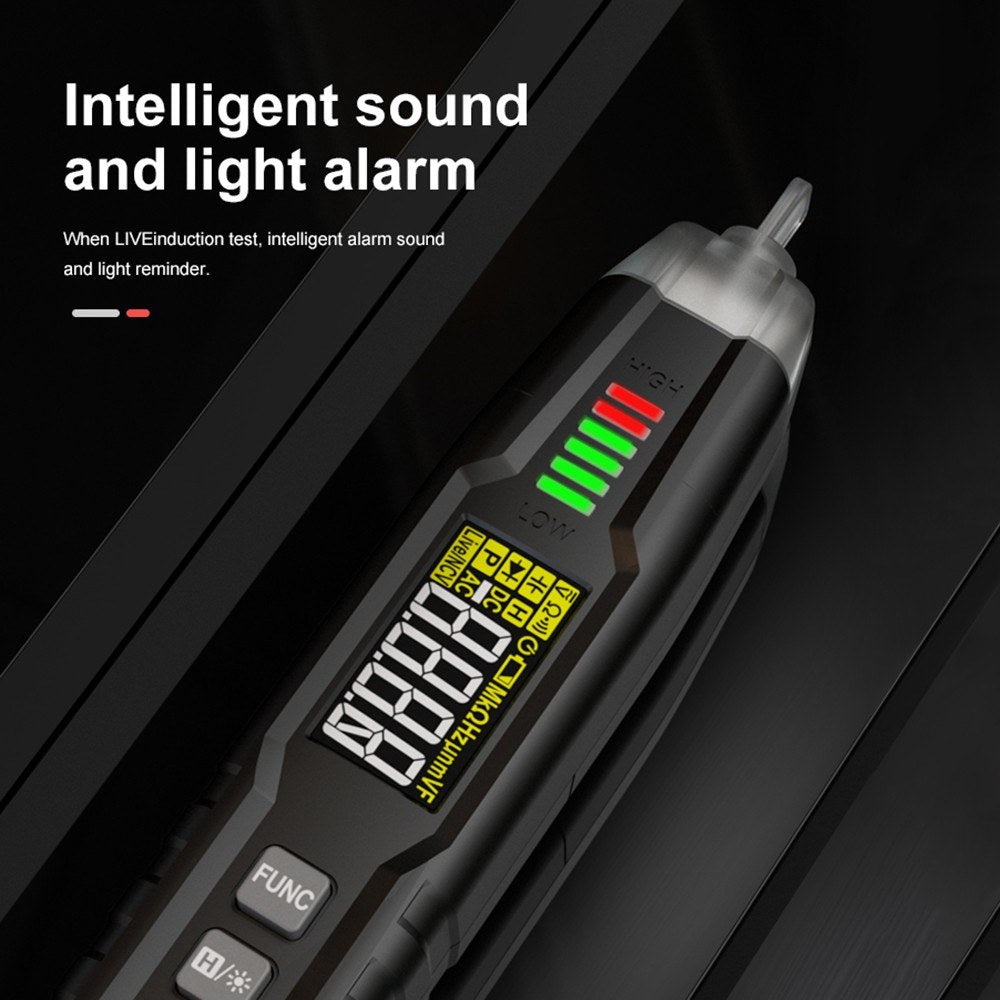

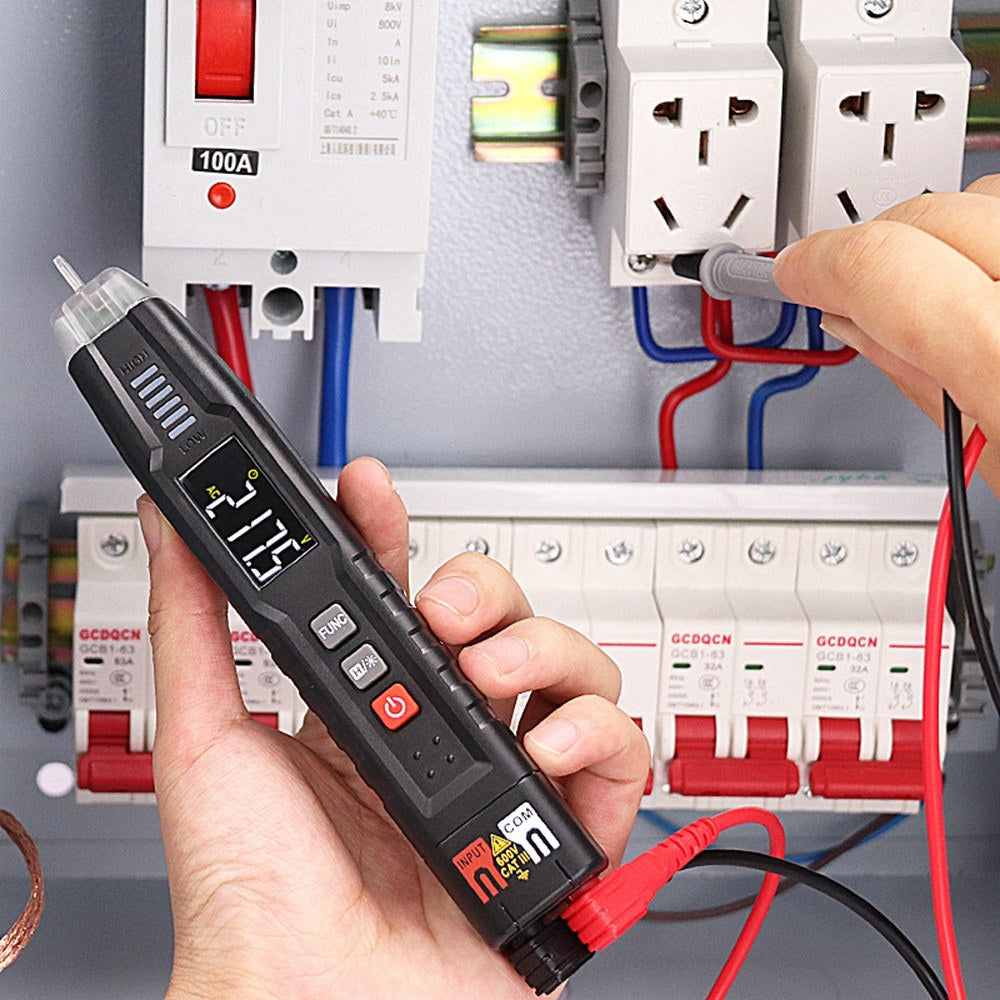

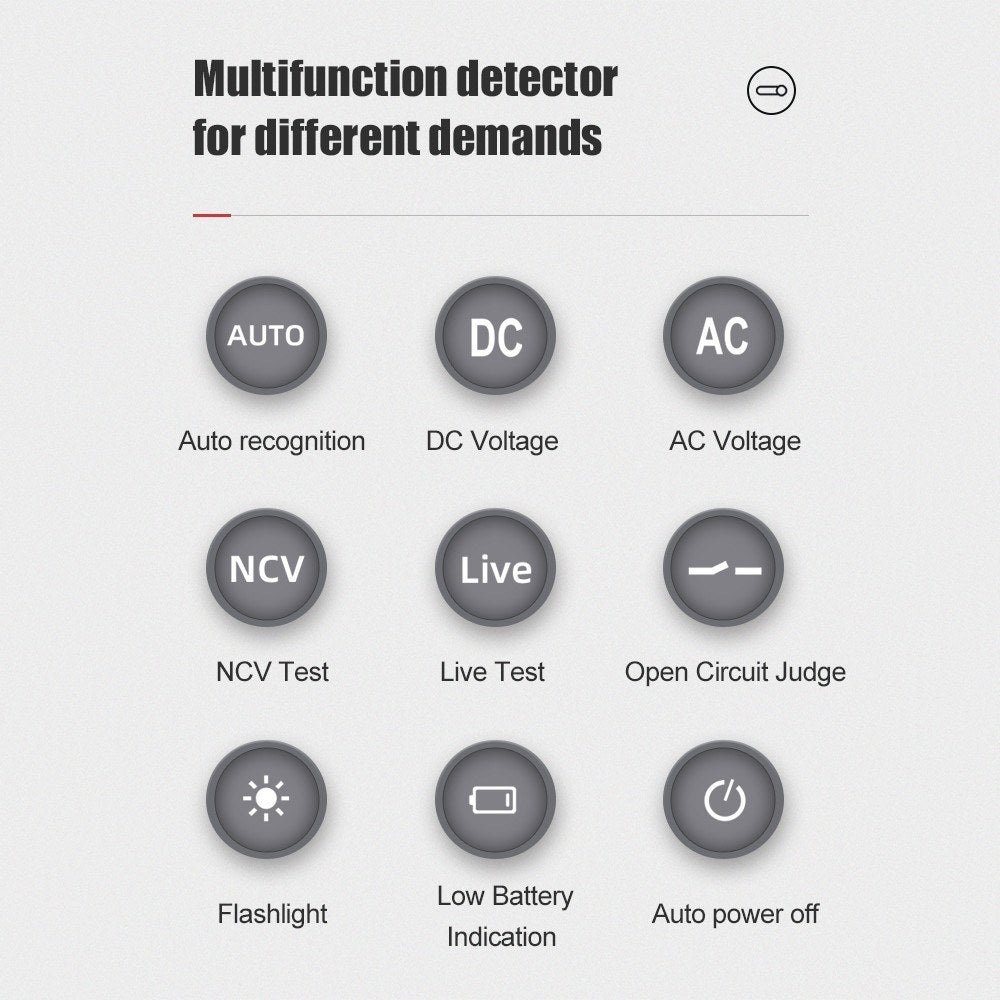

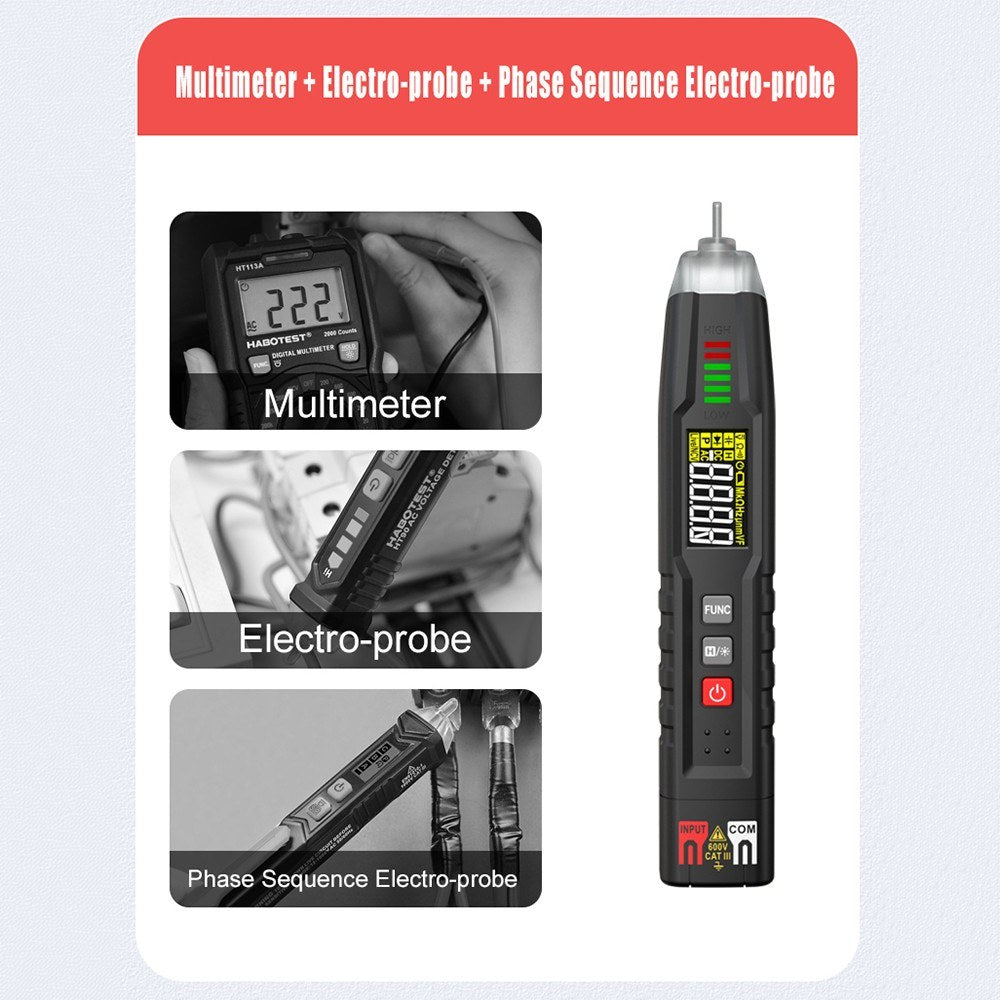

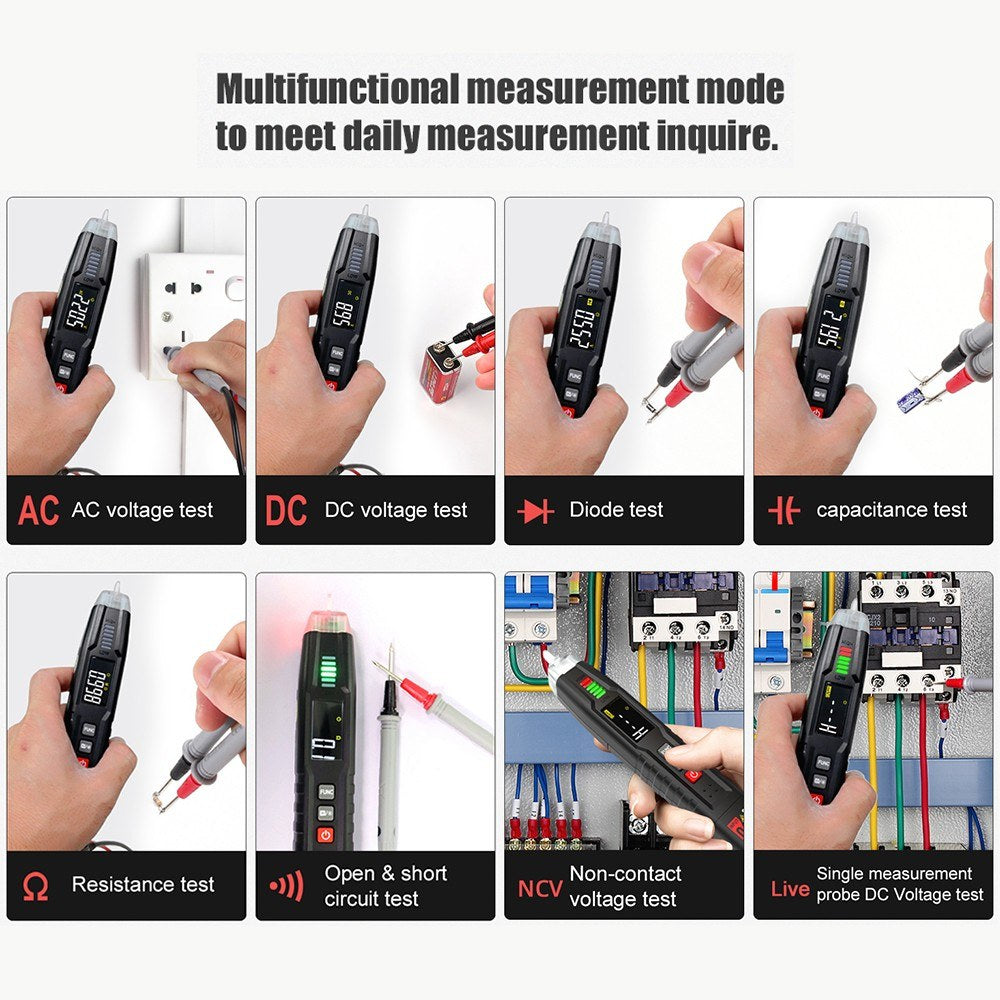

• Versatile Digital Tester: Measure DC/AC voltage, resistance, capacitance, frequency, and continuity. Includes diode testing, NCV non-contact voltage measurement, and phase sequence detection.
• Smart Auto Measurement: Automatically identify and measure DC/AC voltage, resistance, and continuity signals.

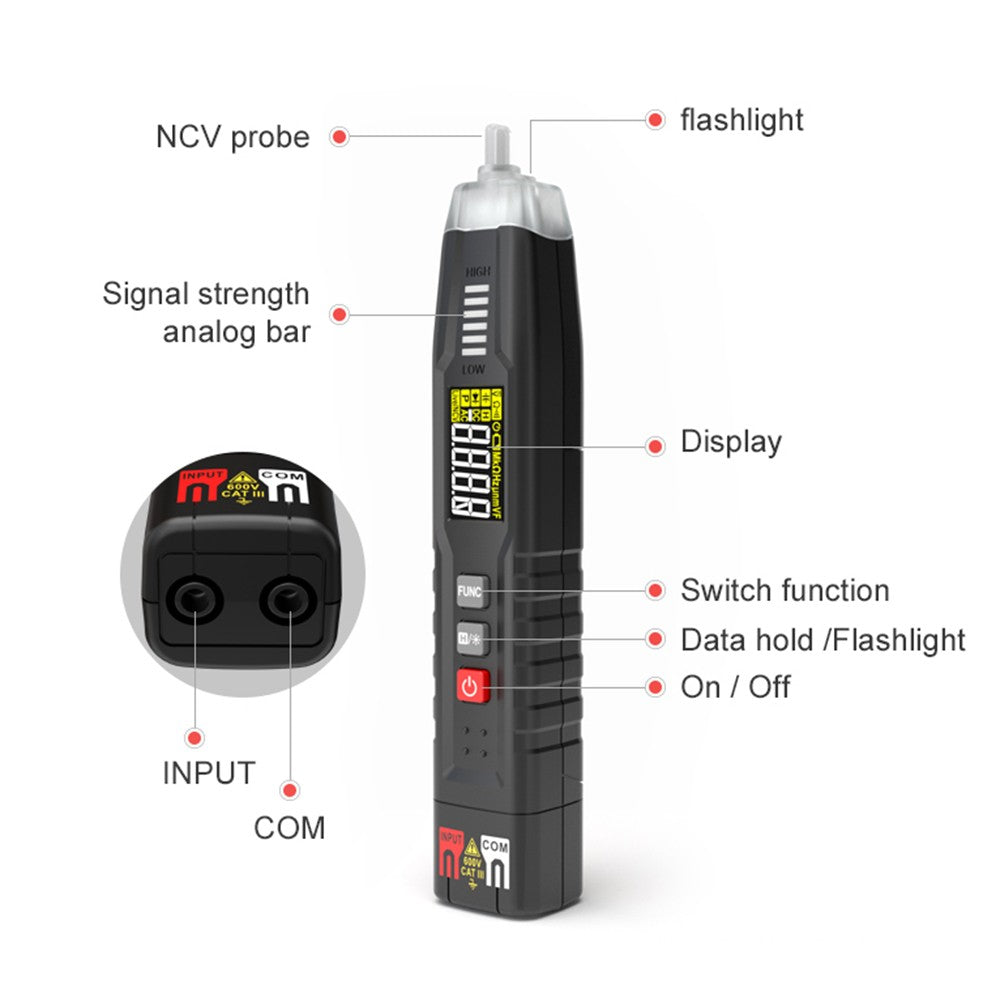

• User-Friendly Display: Equipped with a 1.3-inch LCD screen and a signal intensity indicator bar. Includes a data hold function to freeze and easily view measured data.
• Energy Efficient: Powered by two AAA batteries, featuring a 15-minute auto power-off function to conserve energy.

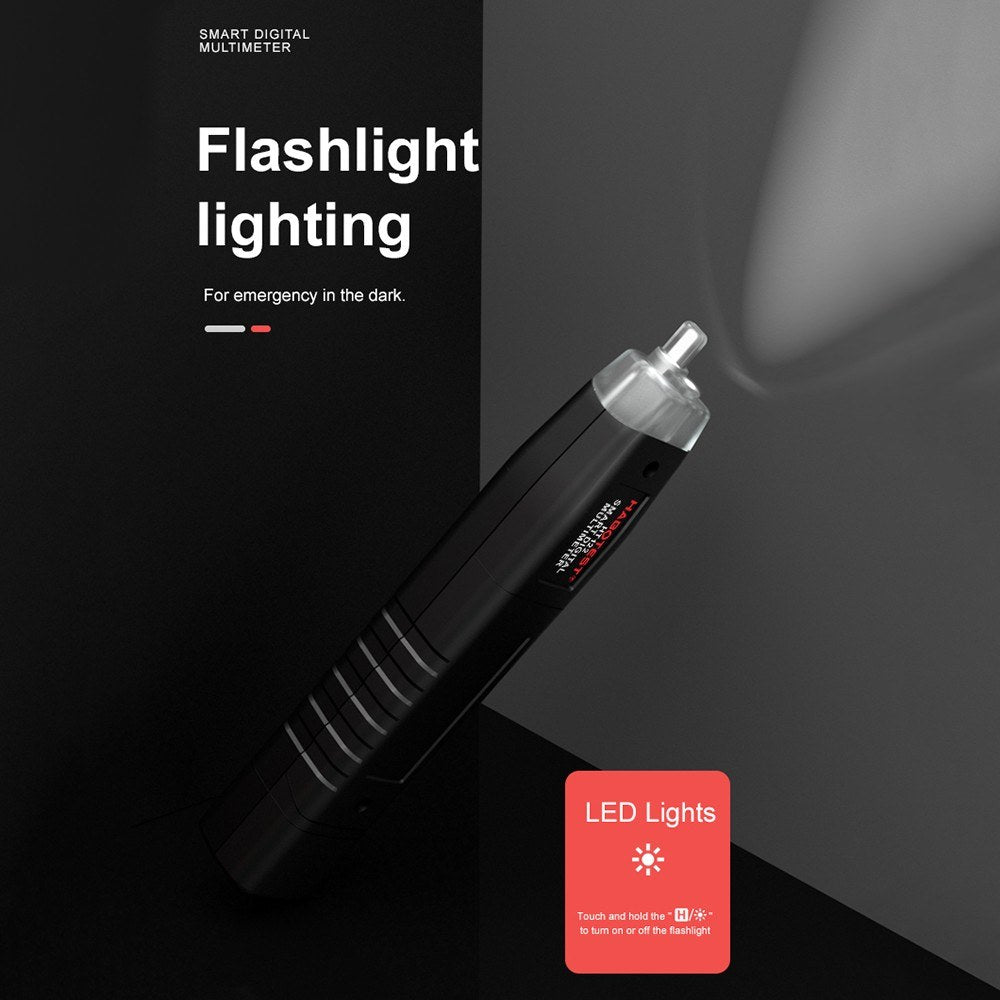

• LED Illumination: Built-in LED light for working in dark spaces.
• Safe Operation: Conforms to IEC61010-1 CAT.III 600V overvoltage safety standards and pollution level 2.

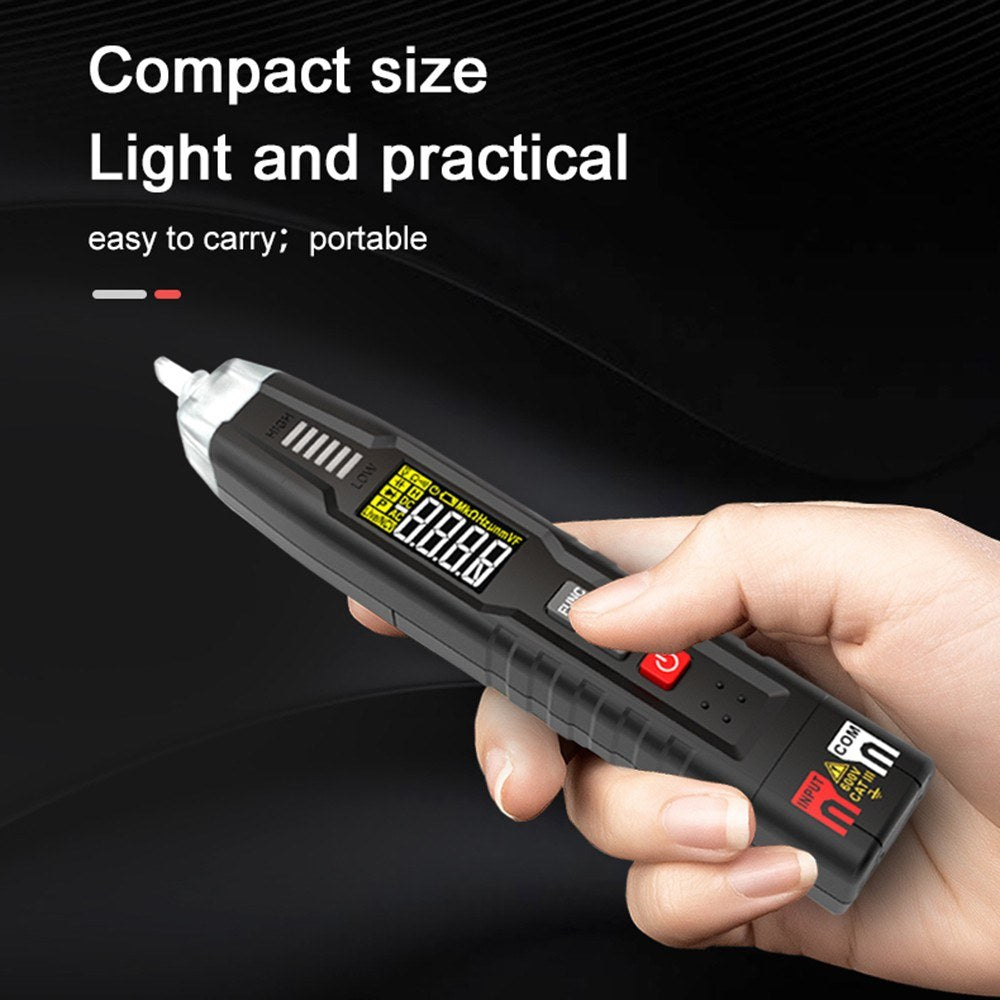

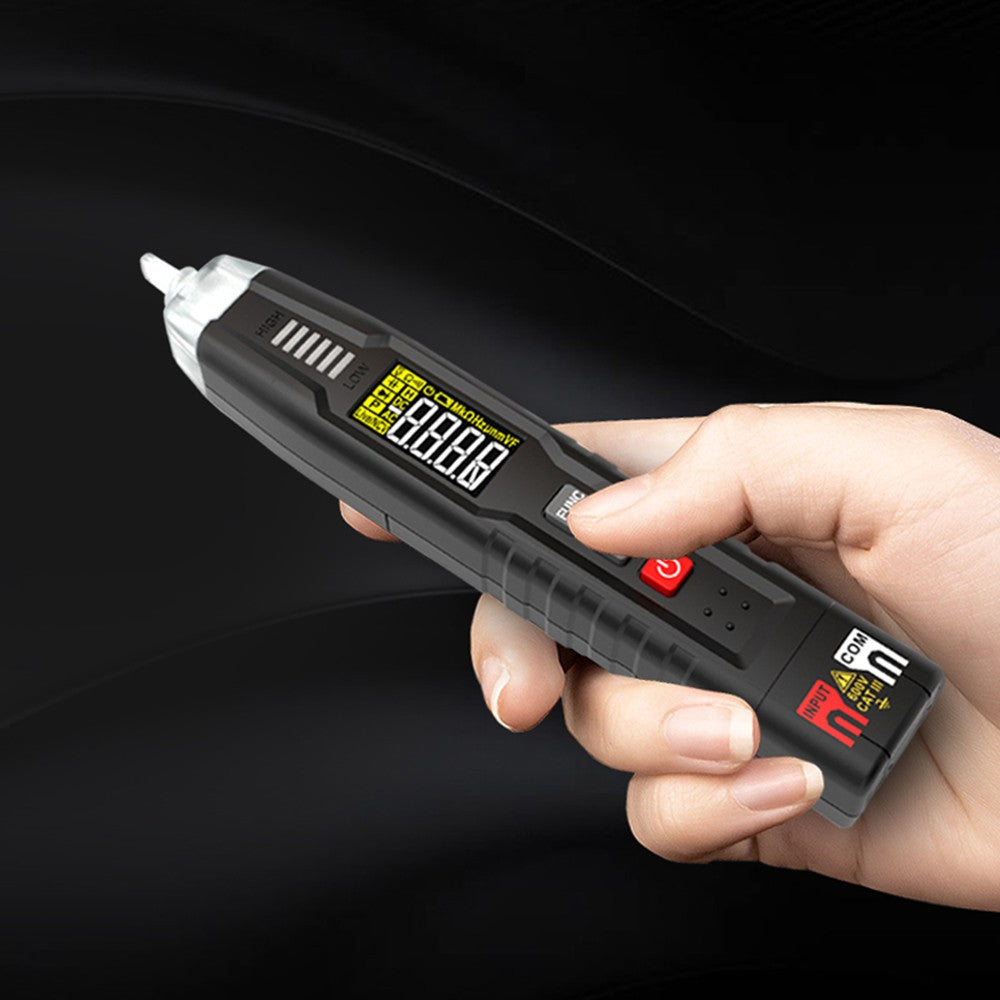

• Compact and Portable: Lightweight pen-type digital multimeter for easy portability.

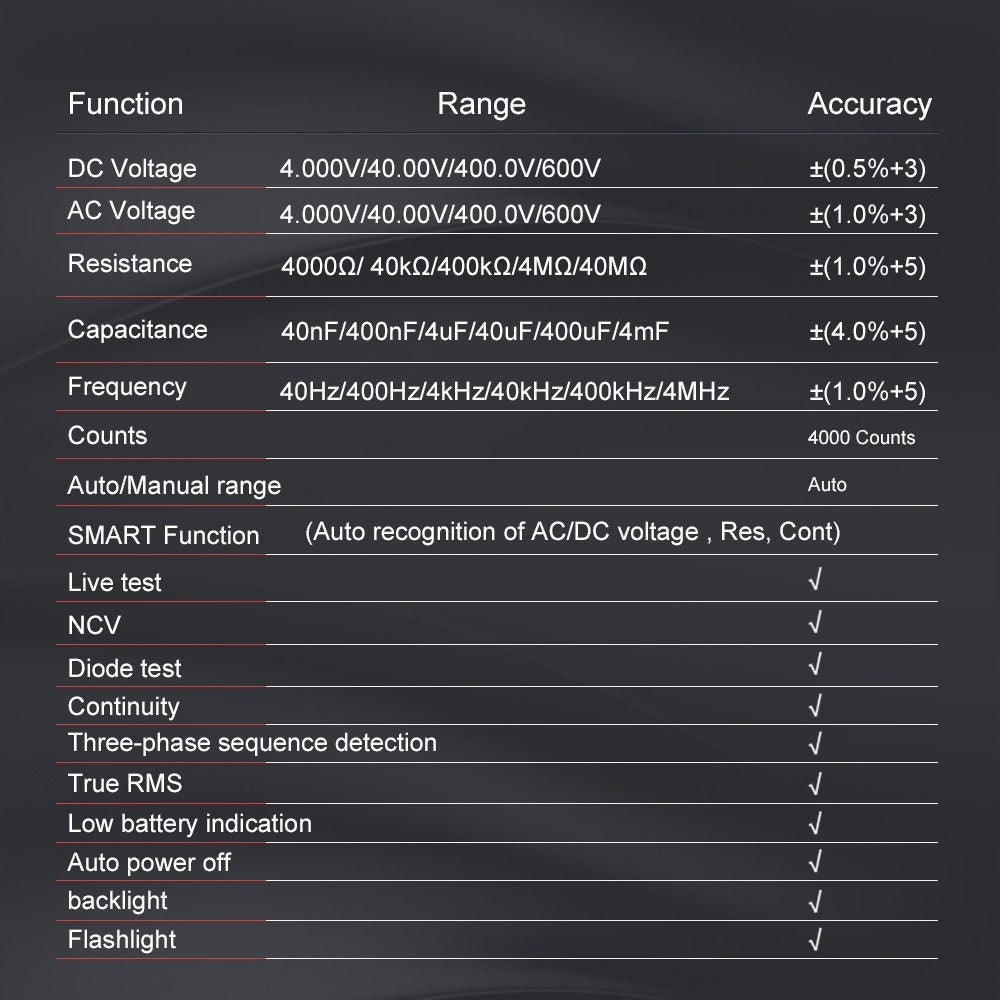

Specifications:

• DC Voltage: 4V/40V/400V/600V
• AC Voltage: 4V/40V/400V/600V
• Resistance: 4000Ω/ 40kΩ/400kΩ/4MΩ/40MΩ
• Capacitance: 40nF/400nF/4µF/40µF/400µF/4mF
• Frequency: 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz
• Material: ABS
• Display: 4000 counts
• Sampling Rate: Approx. 3 times/second
• Over Range Indication: "OL"
• Temperature Coefficient: 0.1 x accuracy/℃ (<18℃ or >28℃)
• Usage Environment: CAT.III 600V, pollution level 2, altitude <2000m
• Operating Environment: 0~40℃, <80% RH
• Storage Environment: -10~60℃, <70% RH

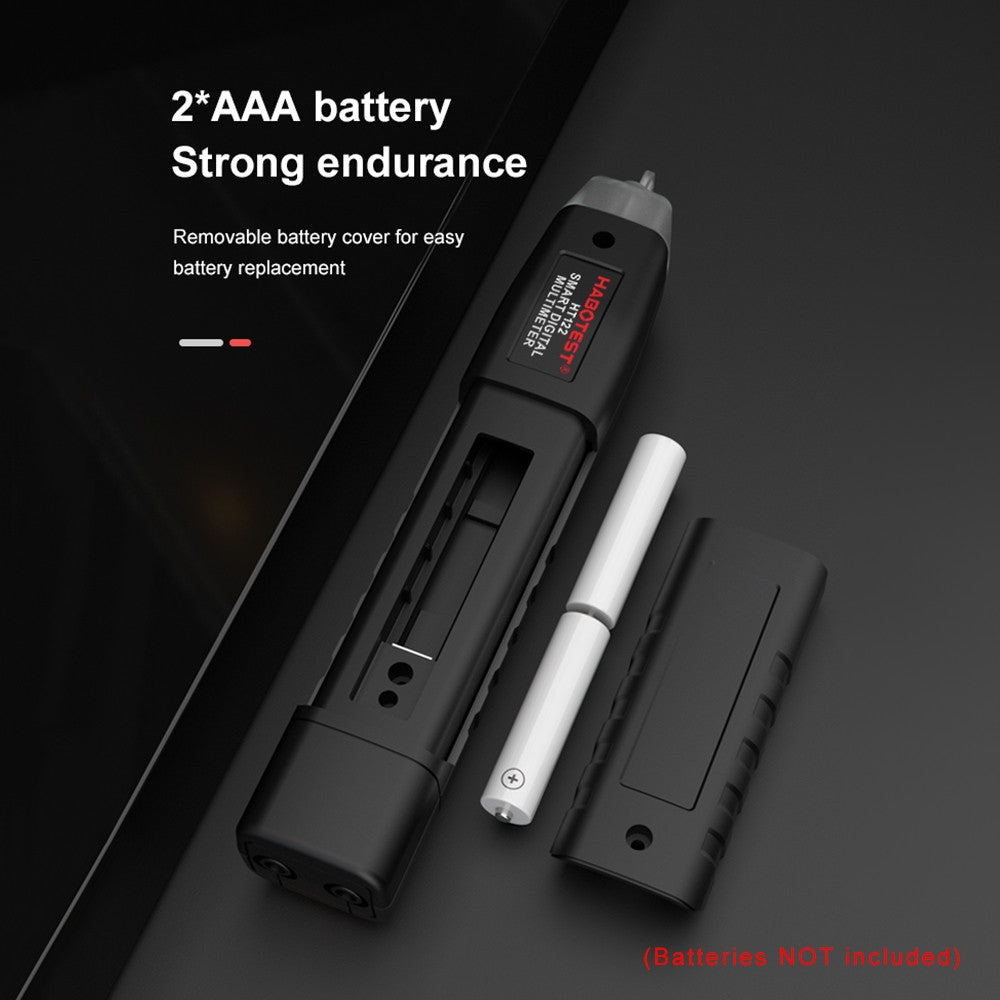

• Power Supply: 2 x 1.5V AAA batteries (NOT included)

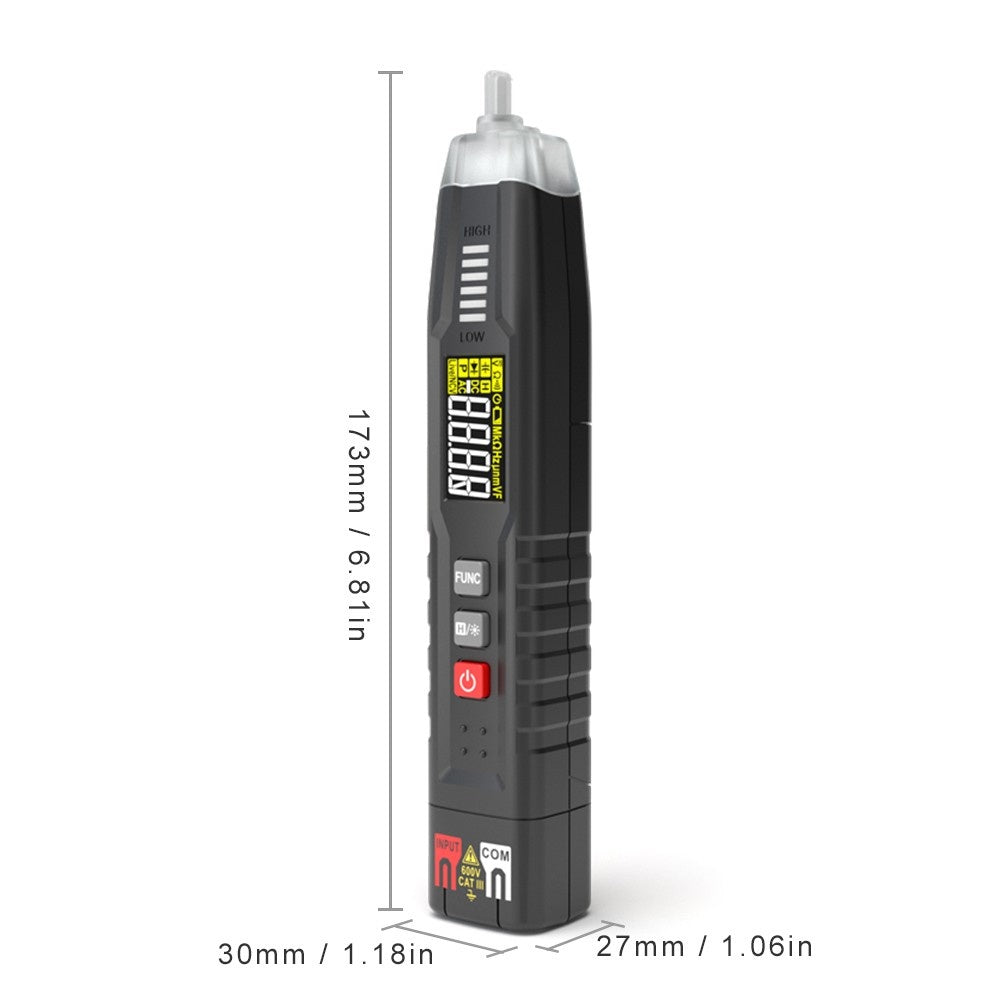

• Dimensions: 173 x 30 x 27mm / 6.81 x 1.18 x 1.06in
• Weight: 77g / 2.72oz
• Package Weight: 170g / 6.02oz
• Package Dimensions: 18 x 5.8 x 4cm / 7.09 x 2.28 x 1.57in

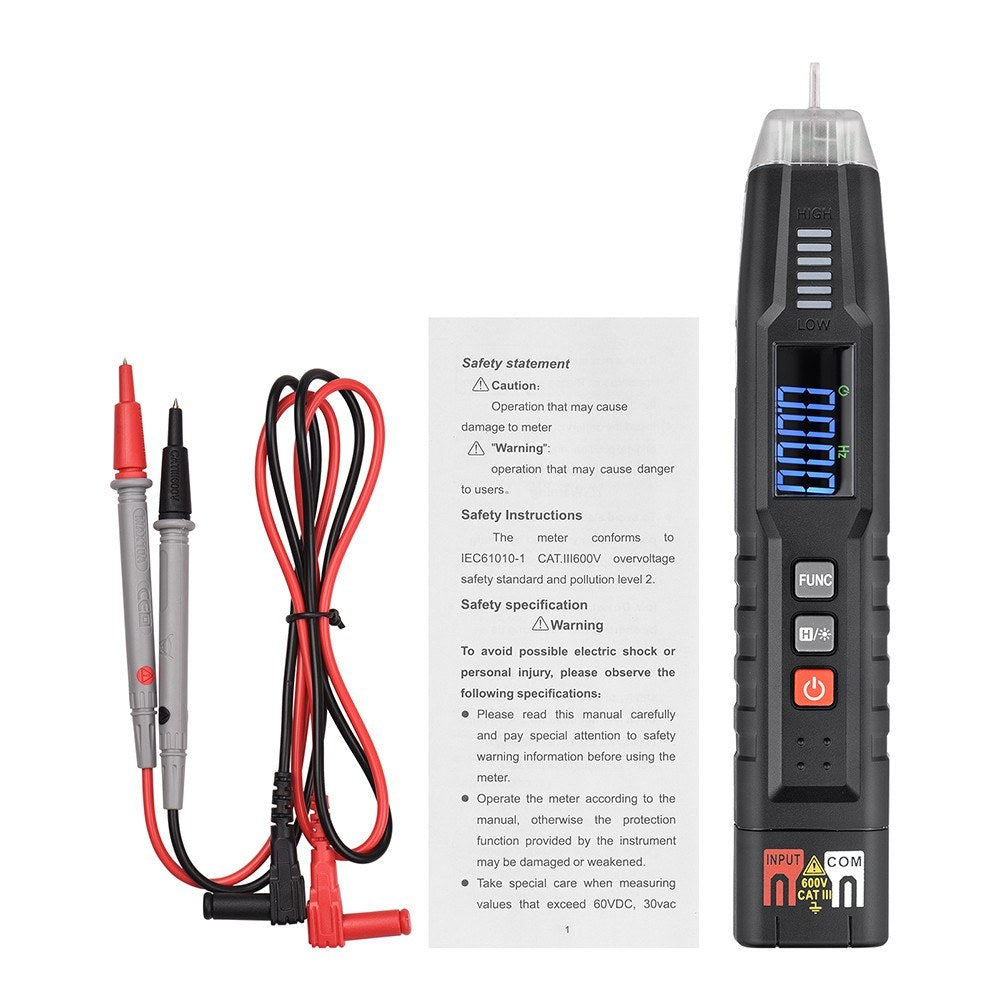

Packing List:

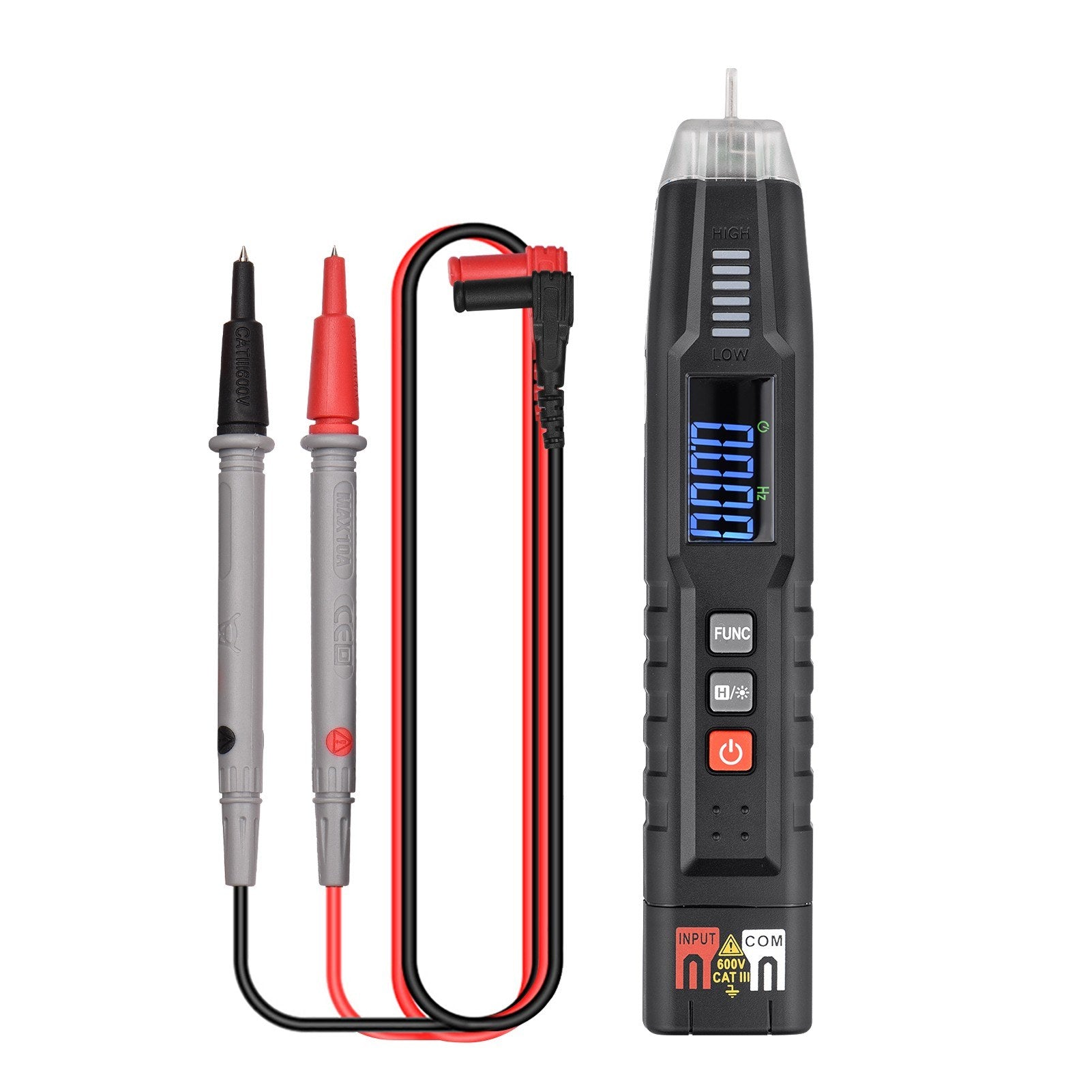

• 1 x Pen Type Multimeter
• 1 x Pair of Test Lead
• 1 x Manual (English)
